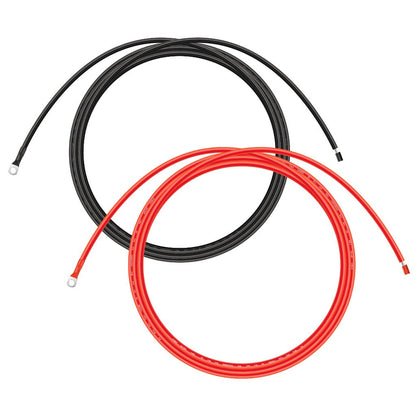

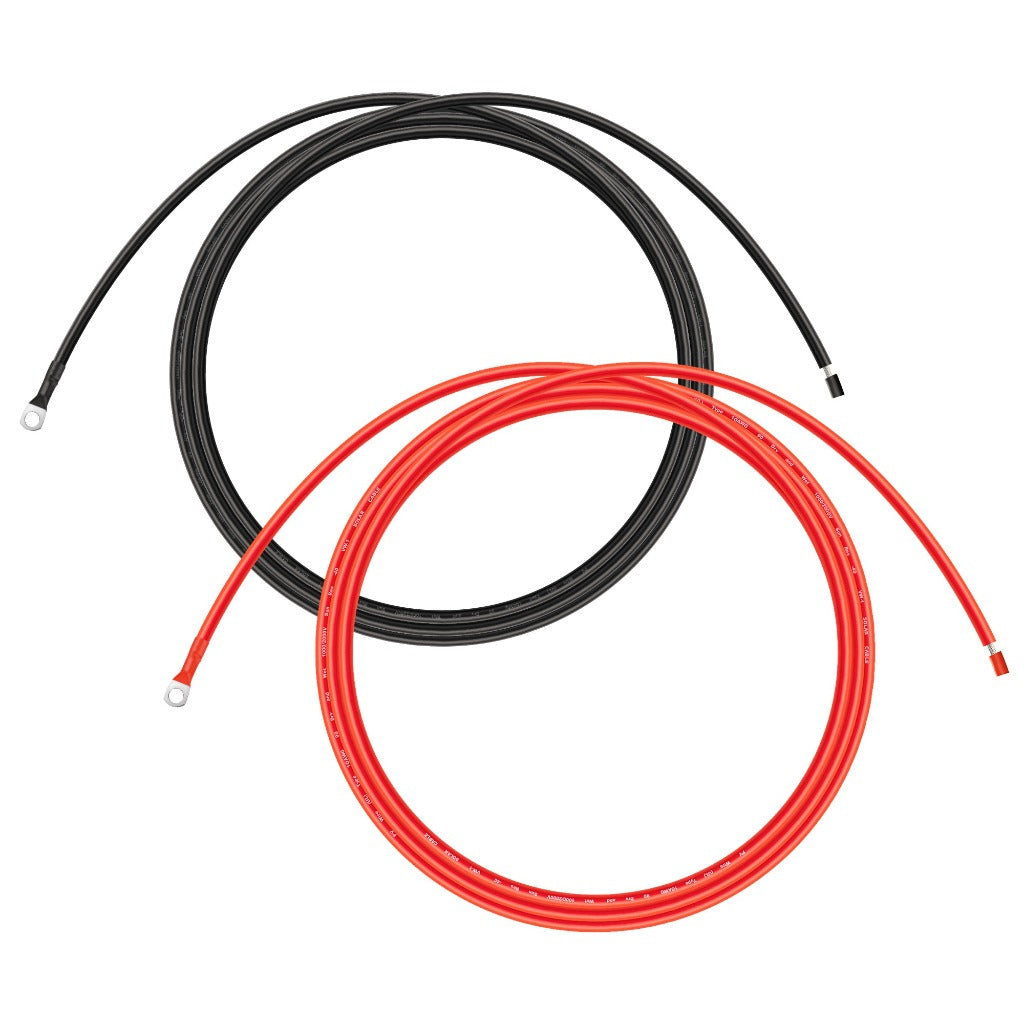

Extension Cable to Connect Charge Controller to BatterY

Extension Cable to Connect Charge Controller to BatterY

$28.79 USD
$35.99 USD $28.79 USD
Sale Sold out
Shipping calculated at checkout.

features

• Solid design control box — Meets NEMA Type 4 & IP30 standard by lab test
• LCD color screen — Real-time status view and easy user interaction
• Breathing indicator light — Shows real-time charging status
• Control button — Adjust max output current & set scheduled charging time
• Water protection gasket — Resists 3-minute direct high-pressure water spray
• TPU cable — 14.76ft, excellent durability, cold resistant to -22°F
• ETL certified — Compliant with North American safety standards

Technical Specifications

Voltage: 240V/208V
Max Output Current: 40A (SS-PC1-100) / 32A (SS-HAY-100-32A)
Max Power: 8kW / 7kW
Frequency: 50/60Hz
Temperature Range: -22°F to 122°F
Humidity: 5–95%, no condensation
Connector: Type 1 (J1772)
Cable Length: 14.76ft (4.5m)
Altitude: ≤2000m (6,562ft)
Cooling: Natural
Safety Standards: ETL, UL2594, CSA C22.2
Scheduling: App / Timer control
Connectivity: Wi-Fi / Bluetooth
Warranty: 2 years

Packing Details

Package Dimensions

  • RS-810: 8 × 8 × 3 in

Gross Weight

  • RS-810: 2 lb
View full details

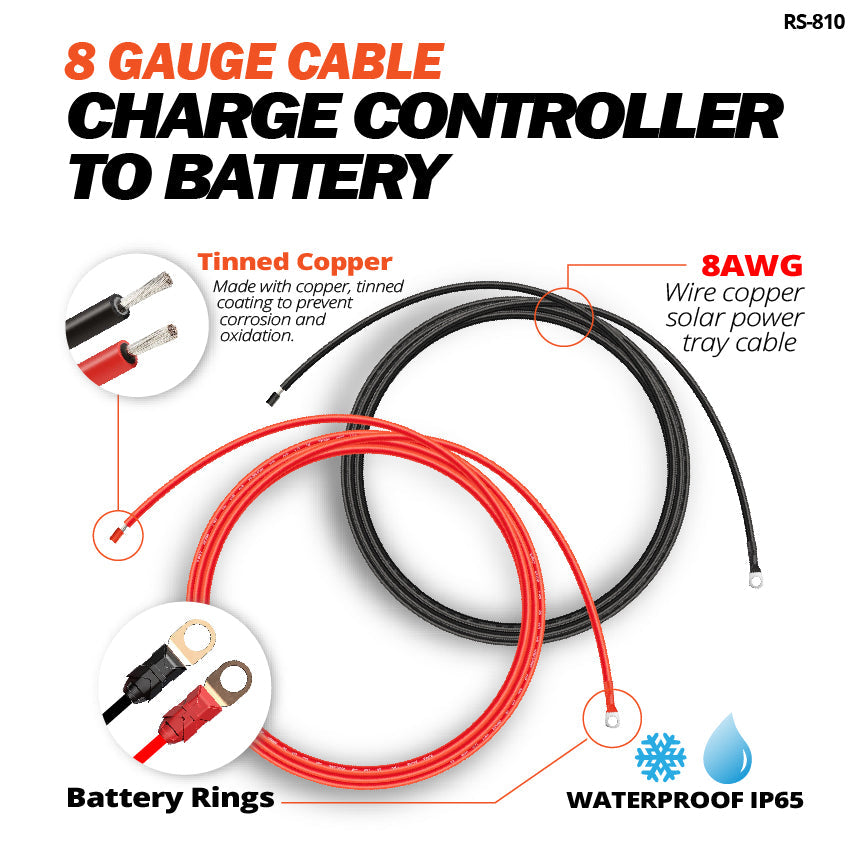

10 ft Charge Controller to Battery Extension Cable

Equipment Type and Primary Applications

This 10 ft battery extension cable connects a charge controller directly to a battery using pre-installed battery ring terminals and an exposed wire end. It is intended for charge-controller battery connections in solar and other DC power installations requiring 8/10 AWG conductors, a 30A current rating, and outdoor protection.

Performance Specifications

  • Rated voltage: 1000V DC
  • Rated current: 30A
  • Wire gauge: 8/10 AWG
  • Length: 10 ft
  • Conductor: Tinned copper
  • Insulation: PPO / PC EXL9330
  • Operating temperature: -40°F to 194°F
  • Ingress protection: IP67
  • Flame rating: UL94 V-0
  • Stated service life: Up to 25 years

Safety Features and Certifications

  • Pre-installed battery ring terminals provide a secure battery-side connection.
  • IP67-rated construction protects against demanding outdoor conditions.
  • UL94 V-0-rated insulation supports flame-resistance requirements.
  • Exposed wire end connects directly to the charge controller and should be installed according to the controller and battery manufacturer’s wiring requirements.

Installation and Maintenance Requirements

Connect the ring terminals to the battery and terminate the exposed wire end at the charge controller. Confirm polarity, conductor compatibility, and secure terminations before energizing the circuit. Inspect terminals, insulation, and cable routing during system maintenance, particularly after outdoor exposure.

Warranty and Service Information

The stated product service life is up to 25 years.

Branding/References

Reference: RS-810. Package dimensions are 8 × 8 × 3 in, with a gross weight of 2 lb.

Differentiators

The cable combines 1000V DC rated insulation, tinned copper conductors, IP67 protection, and pre-installed battery ring terminals in a ready-to-install 10 ft connection assembly.
