Equipment Type and Primary Applications

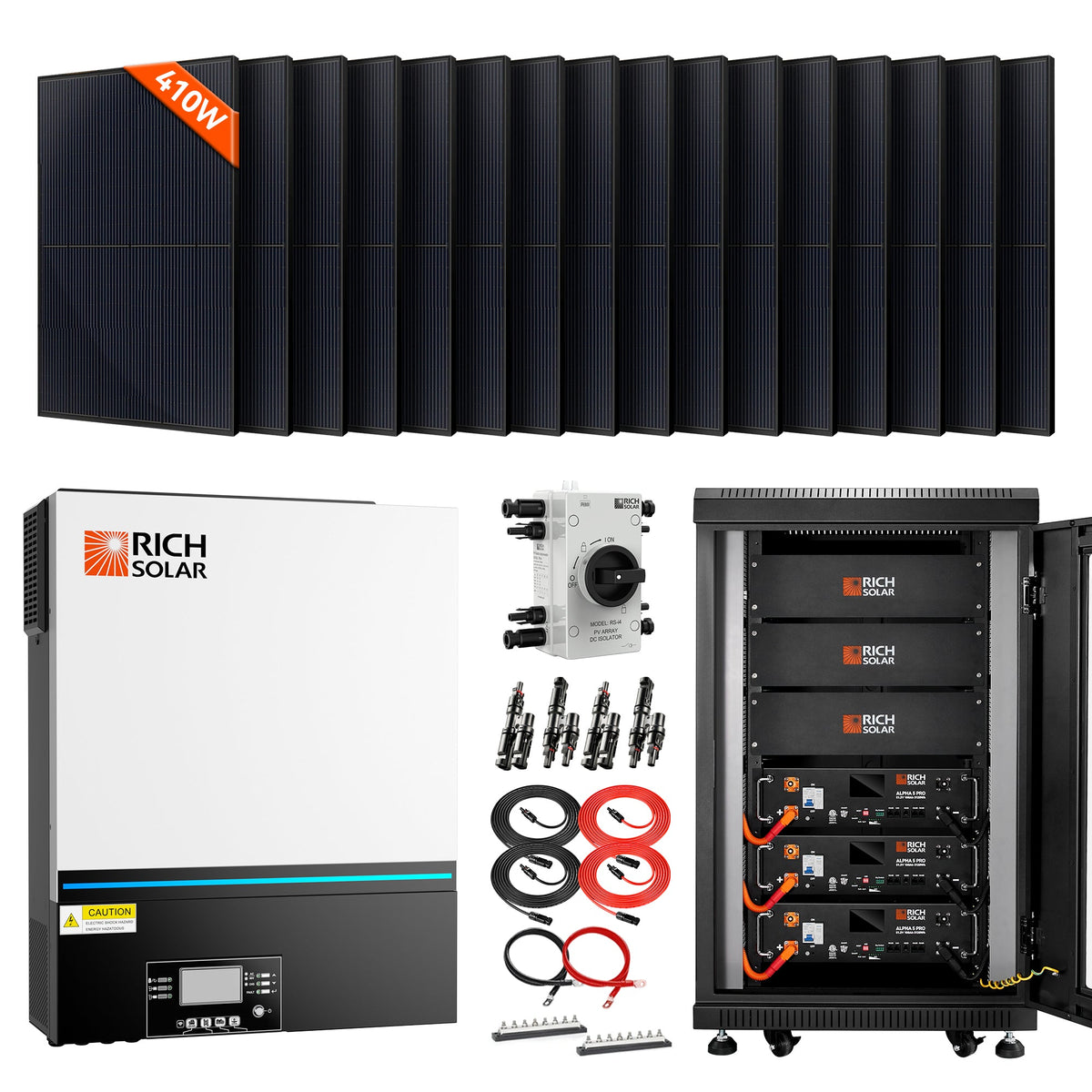

Complete off-grid solar power kit for homes, cabins, workshops, farms, remote properties, and backup power installations. KIT-SR0001 combines a 6,560W solar array, 48V battery storage, hybrid inverter, battery rack, disconnect, cabling, connectors, and busbars in one matched system.

Performance Specifications

• Solar array: 16 MEGA 410 monocrystalline panels, 410W each; 6,560W total PV capacity.
• Estimated solar production: approximately 23.6kWh per day under 4 peak sun hours.
• System voltage: 48V DC.

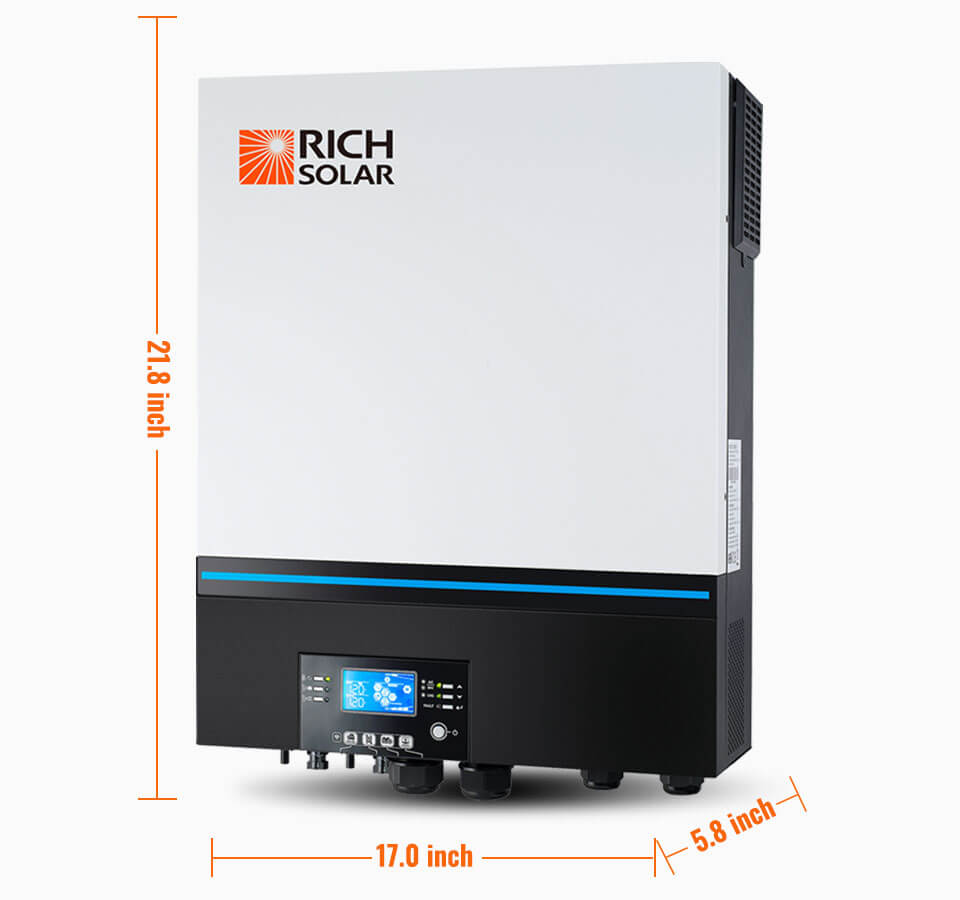

• Hybrid inverter: RS-H6548, 6,500W pure sine wave output, 120VAC output, and 120A MPPT charge controller.
• PV input: up to 8,000W as identified for the RS-H6548 system.

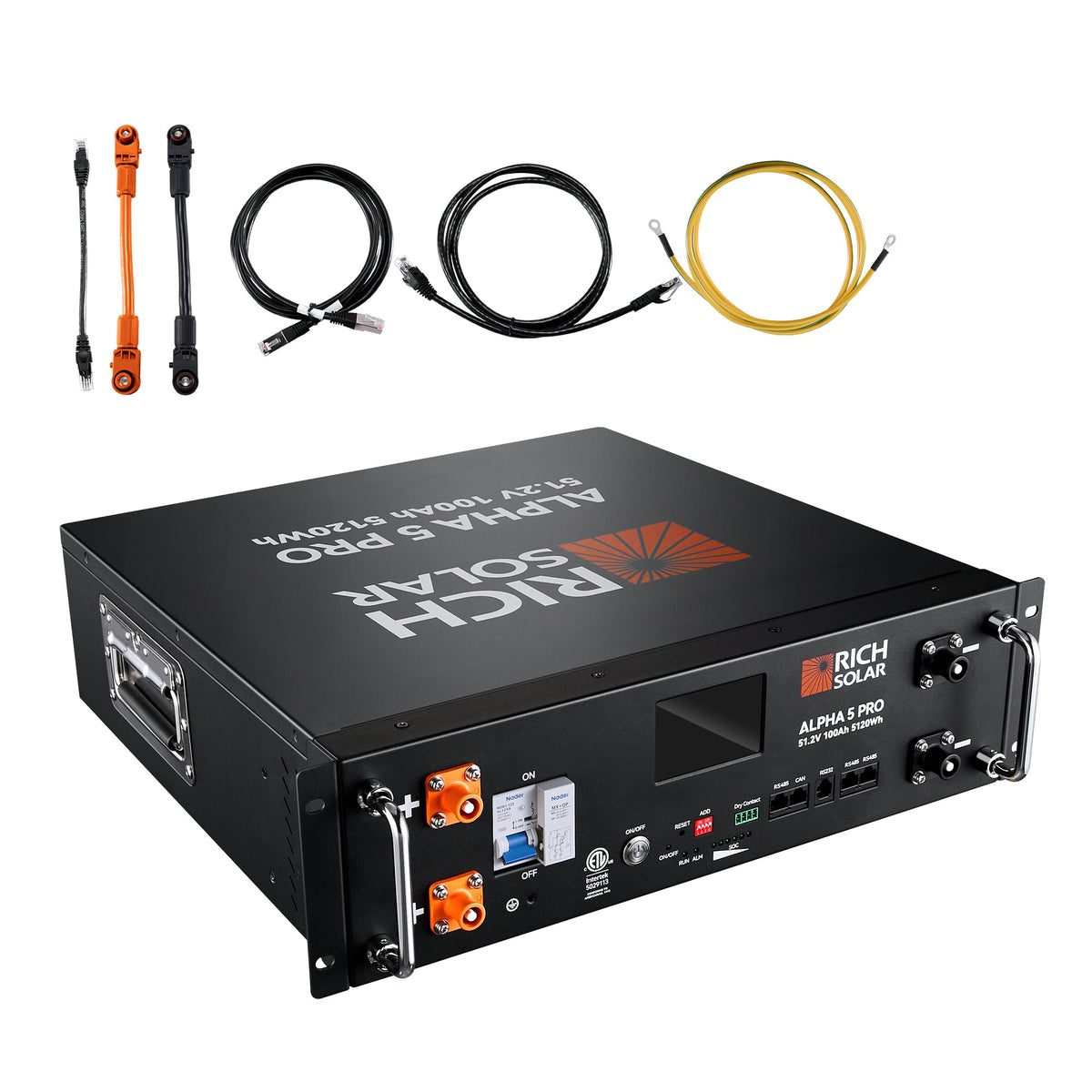

• Battery bank: 15.36kWh total using three 51.2V 100Ah ALPHA 5 PRO LiFePO₄ server rack batteries.
• Supported energy sources: solar, battery, utility, and generator inputs.

Safety Features and Certifications

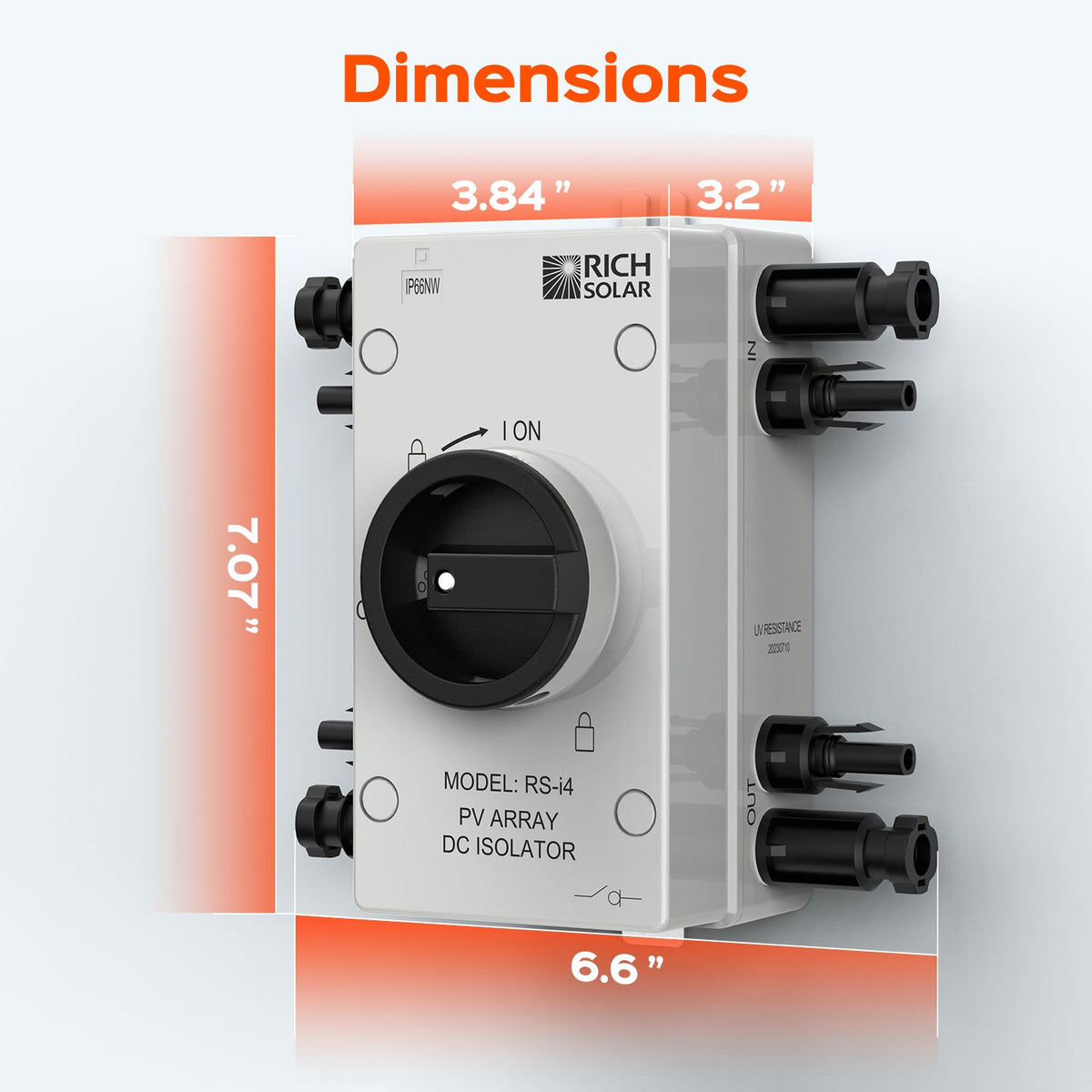

• Solar PV DC quick-disconnect switch, model RS-i4, supports system isolation during service.

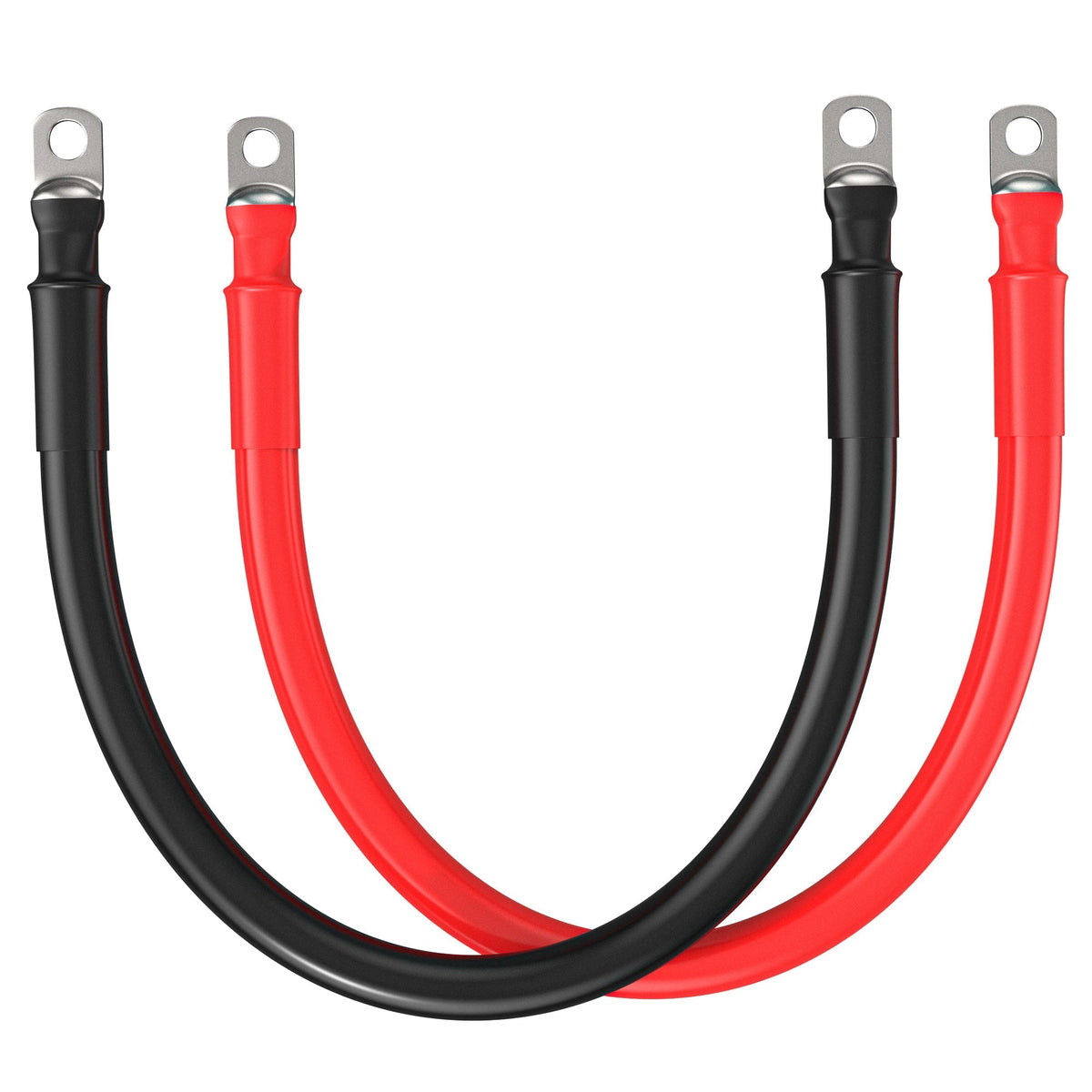

• 600A busbars and dedicated 2/0 AWG battery wire sets are included for battery-side connections.
• Certification marks and applicable standards are not specified.

Installation and Maintenance Requirements

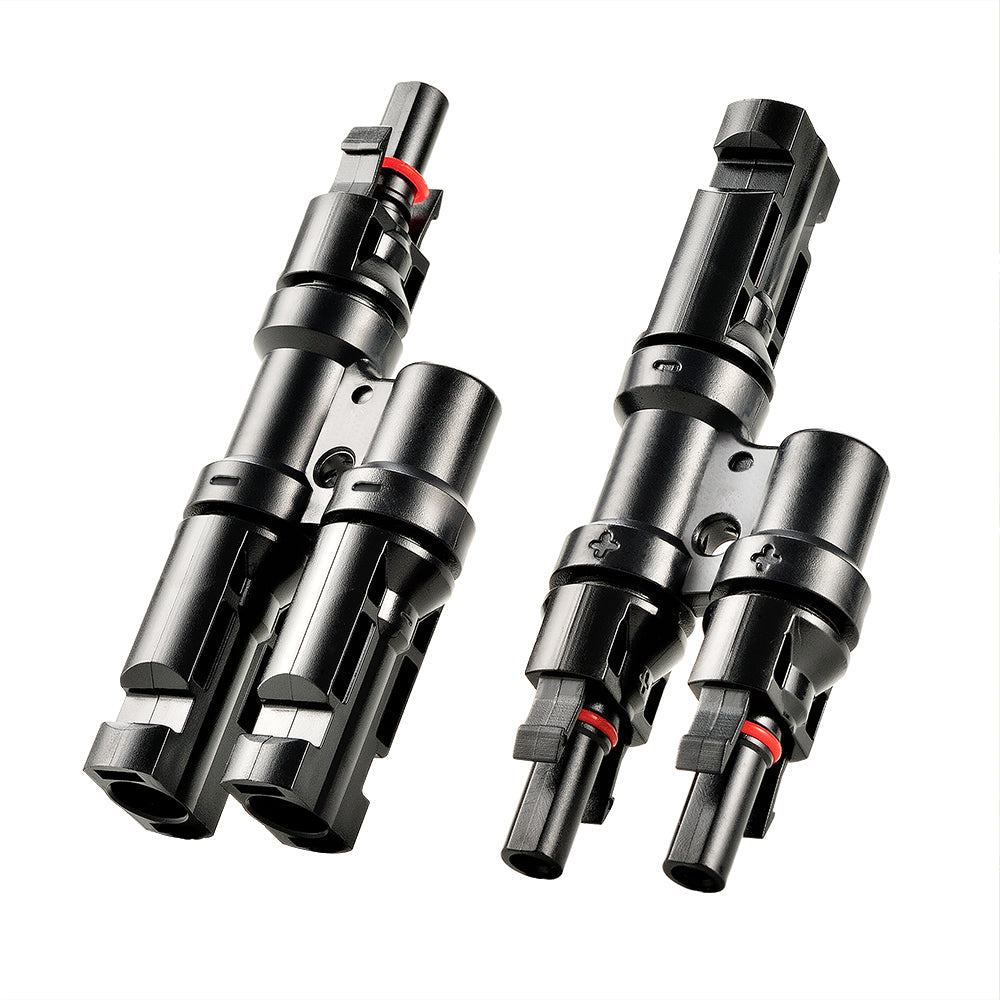

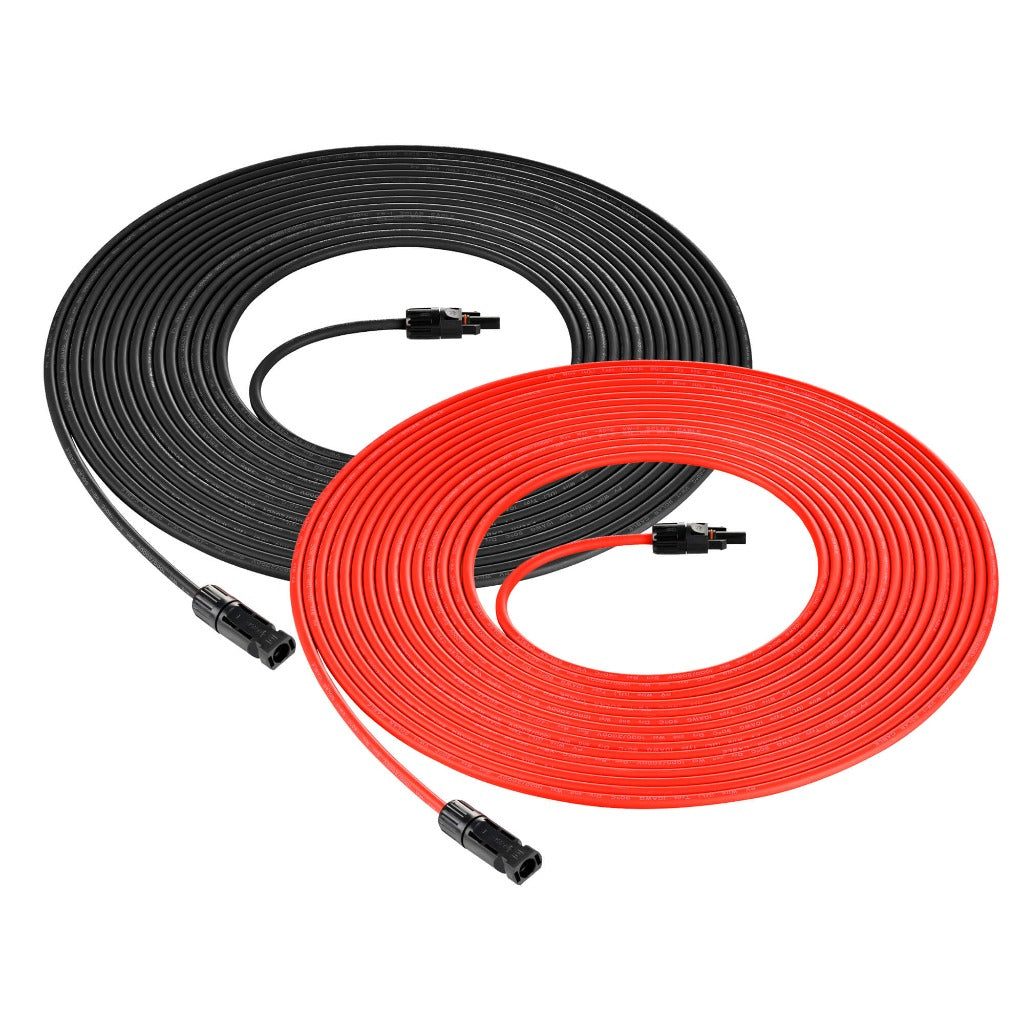

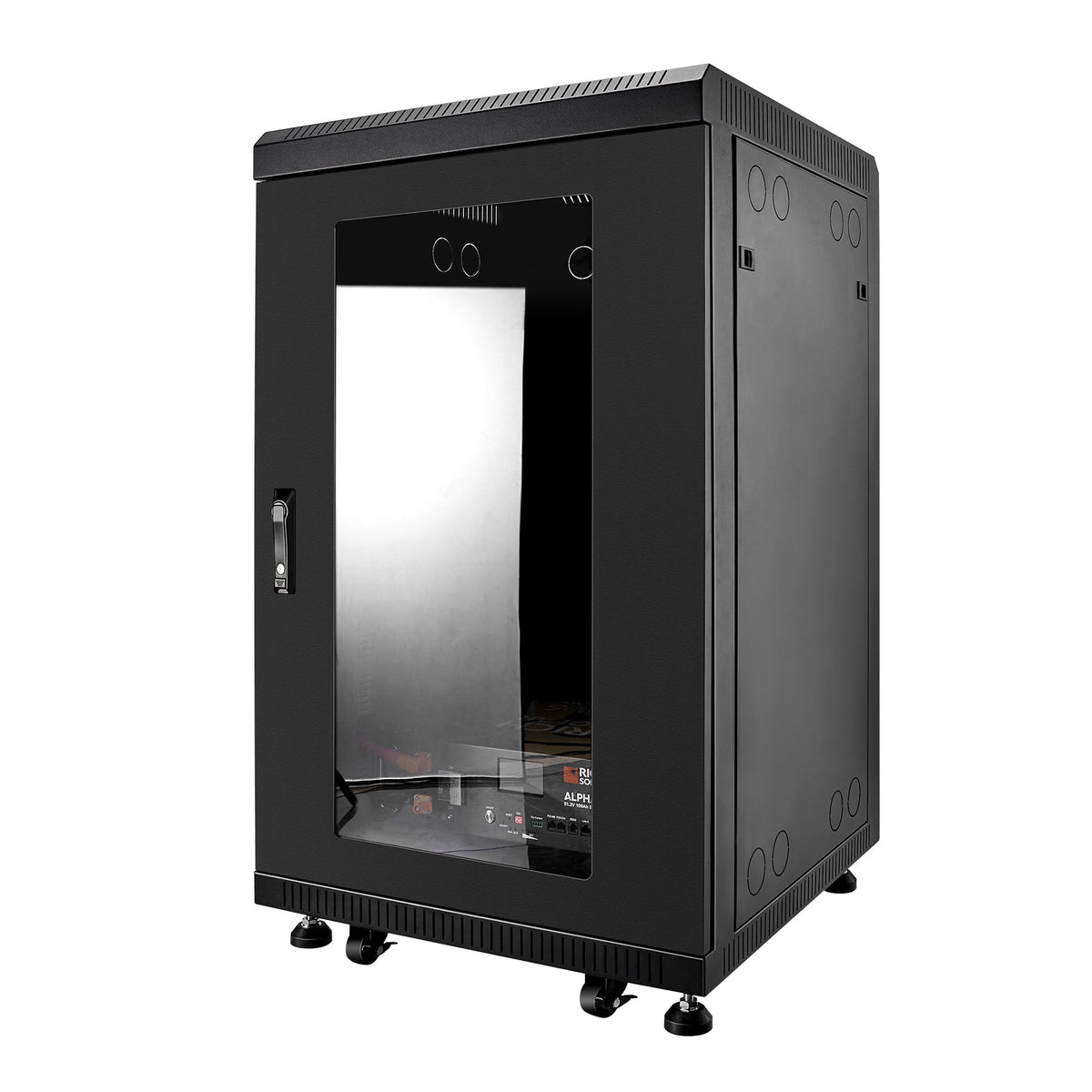

Installation requires placement of the 16 solar panels, RS-H6548 inverter, three rack batteries, and RS-SRA5P battery rack. Included components support PV, battery, and interconnection wiring: four 50ft 10 AWG solar extension cables, two Y-branch connectors, two 4ft 2/0 AWG wire sets, and two 600A busbars. Connect the matched components and commission the system according to the equipment documentation.

Warranty and Service Information

Branding/References

Renogy? Product references: KIT-SR0001, RS-H6548, RS-M410, RS-B5121P, RS-SRA5P, RS-i4, RS-2/0A4F3, RS-50102, and RS-T2.

Differentiators

The 6,500W hybrid inverter combines 120A MPPT solar charging with solar, battery, utility, and generator input capability, while the 15.36kWh LiFePO₄ bank provides a scalable 48V storage platform.
