Cable Entry Plate | Polypropylene Housing with UL 8AWG 600V Wires for Solar Panels on RVs, Boats, Cabins

Cable Entry Plate | Polypropylene Housing with UL 8AWG 600V Wires for Solar Panels on RVs, Boats, Cabins

$23.19 USD
$28.99 USD $23.19 USD
Sale Sold out
Shipping calculated at checkout.

features

• Solid design control box — Meets NEMA Type 4 & IP30 standard by lab test
• LCD color screen — Real-time status view and easy user interaction
• Breathing indicator light — Shows real-time charging status
• Control button — Adjust max output current & set scheduled charging time
• Water protection gasket — Resists 3-minute direct high-pressure water spray
• TPU cable — 14.76ft, excellent durability, cold resistant to -22°F
• ETL certified — Compliant with North American safety standards

Technical Specifications

Voltage: 240V/208V
Max Output Current: 40A (SS-PC1-100) / 32A (SS-HAY-100-32A)
Max Power: 8kW / 7kW
Frequency: 50/60Hz
Temperature Range: -22°F to 122°F
Humidity: 5–95%, no condensation
Connector: Type 1 (J1772)
Cable Length: 14.76ft (4.5m)
Altitude: ≤2000m (6,562ft)
Cooling: Natural
Safety Standards: ETL, UL2594, CSA C22.2
Scheduling: App / Timer control
Connectivity: Wi-Fi / Bluetooth
Warranty: 2 years

Packing Details

View full details

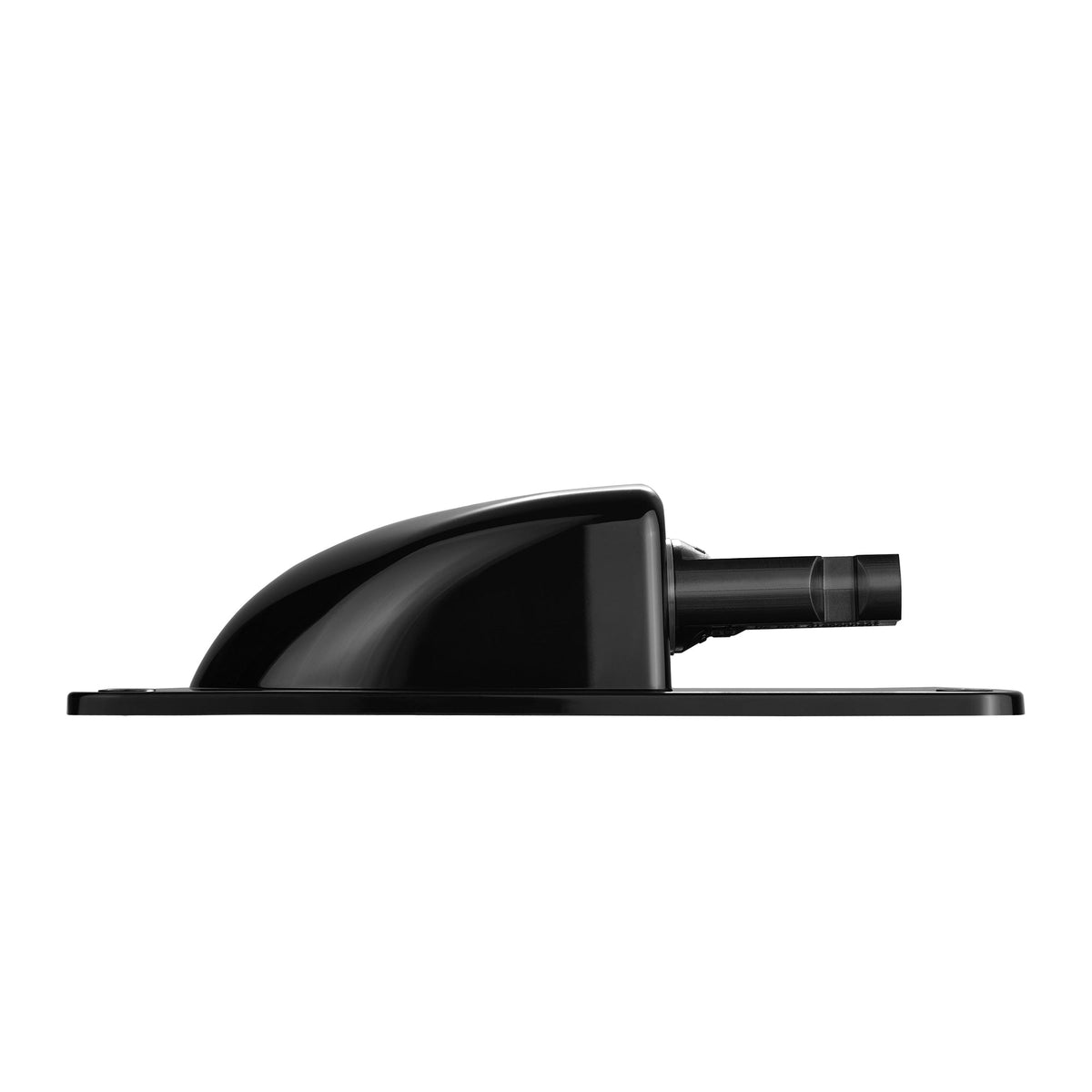

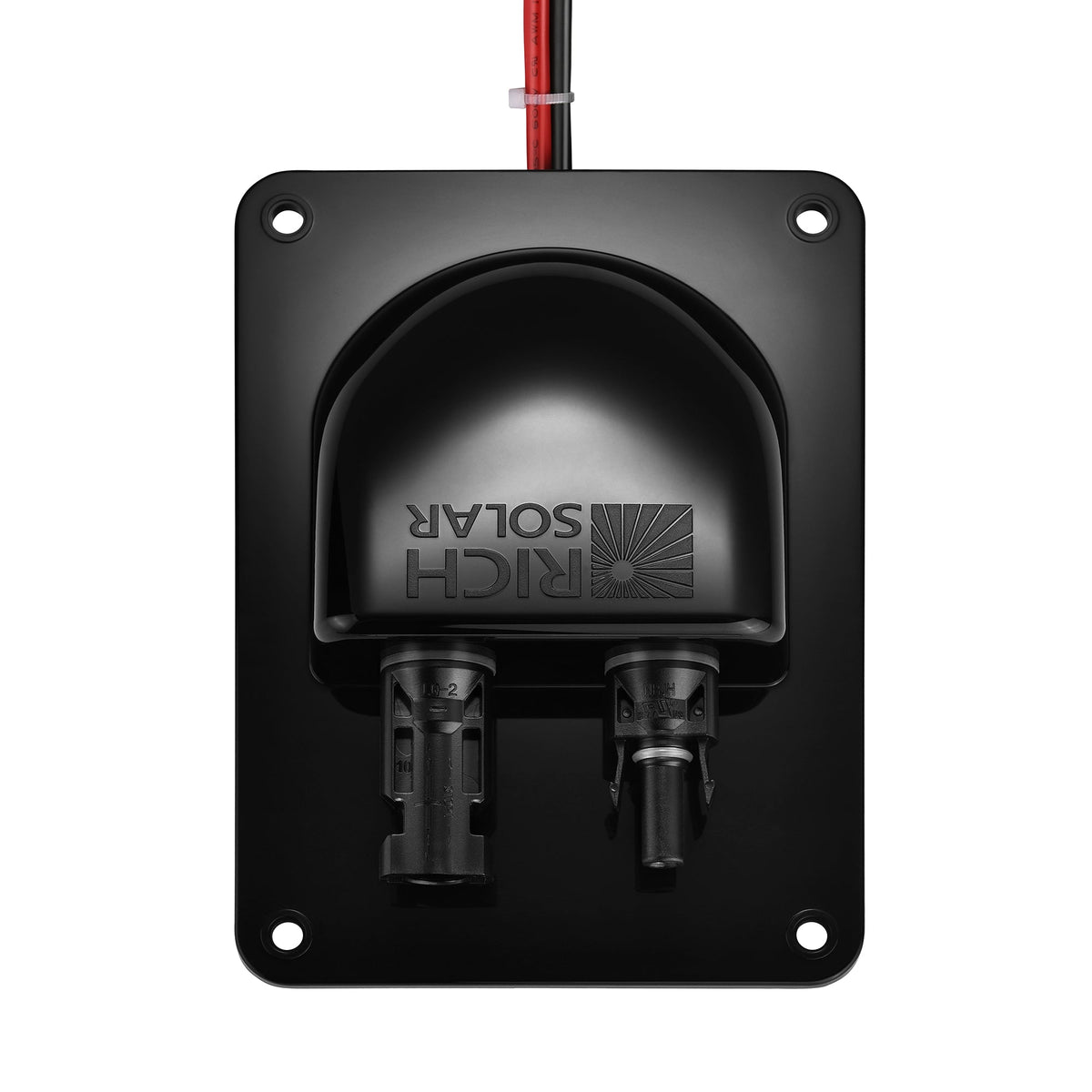

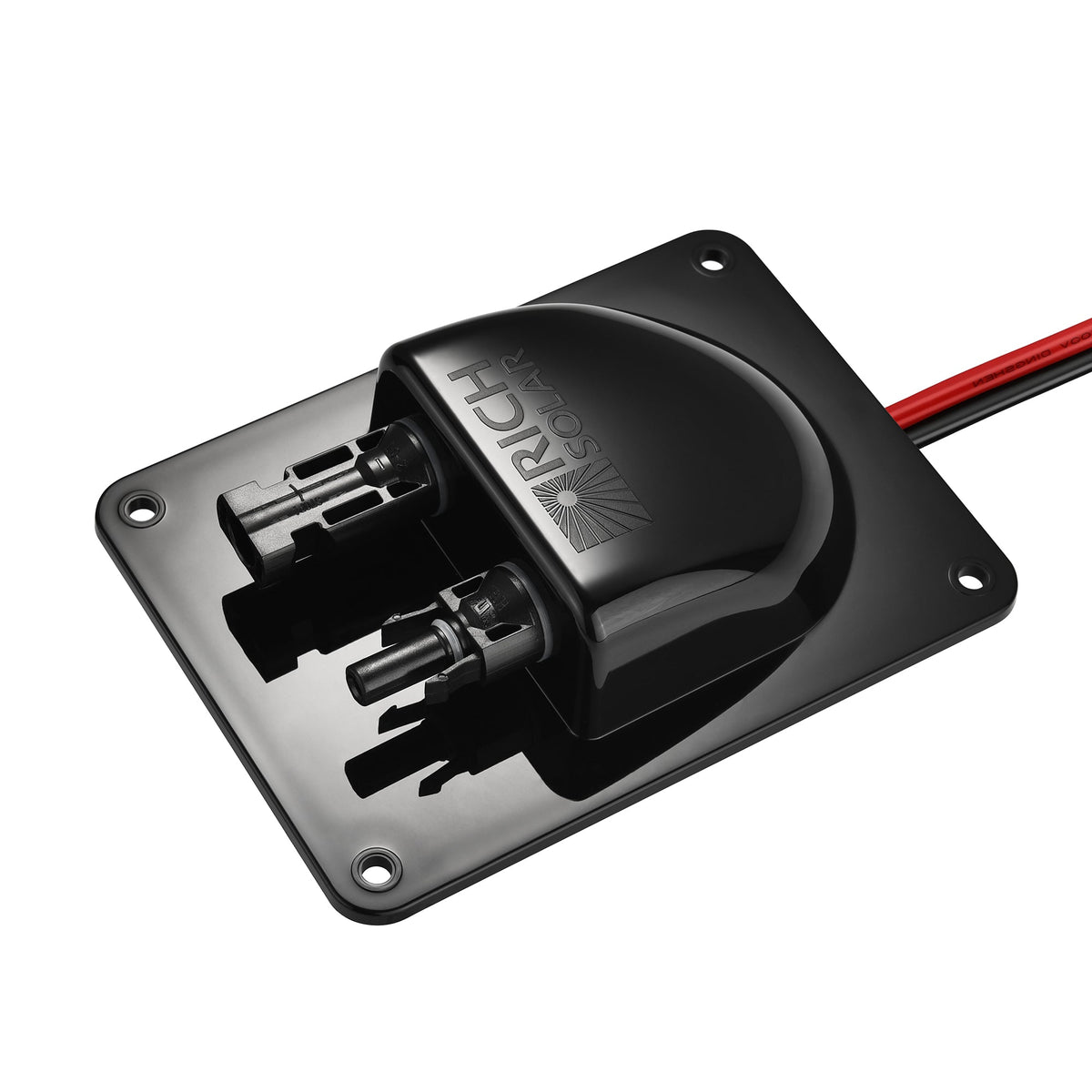

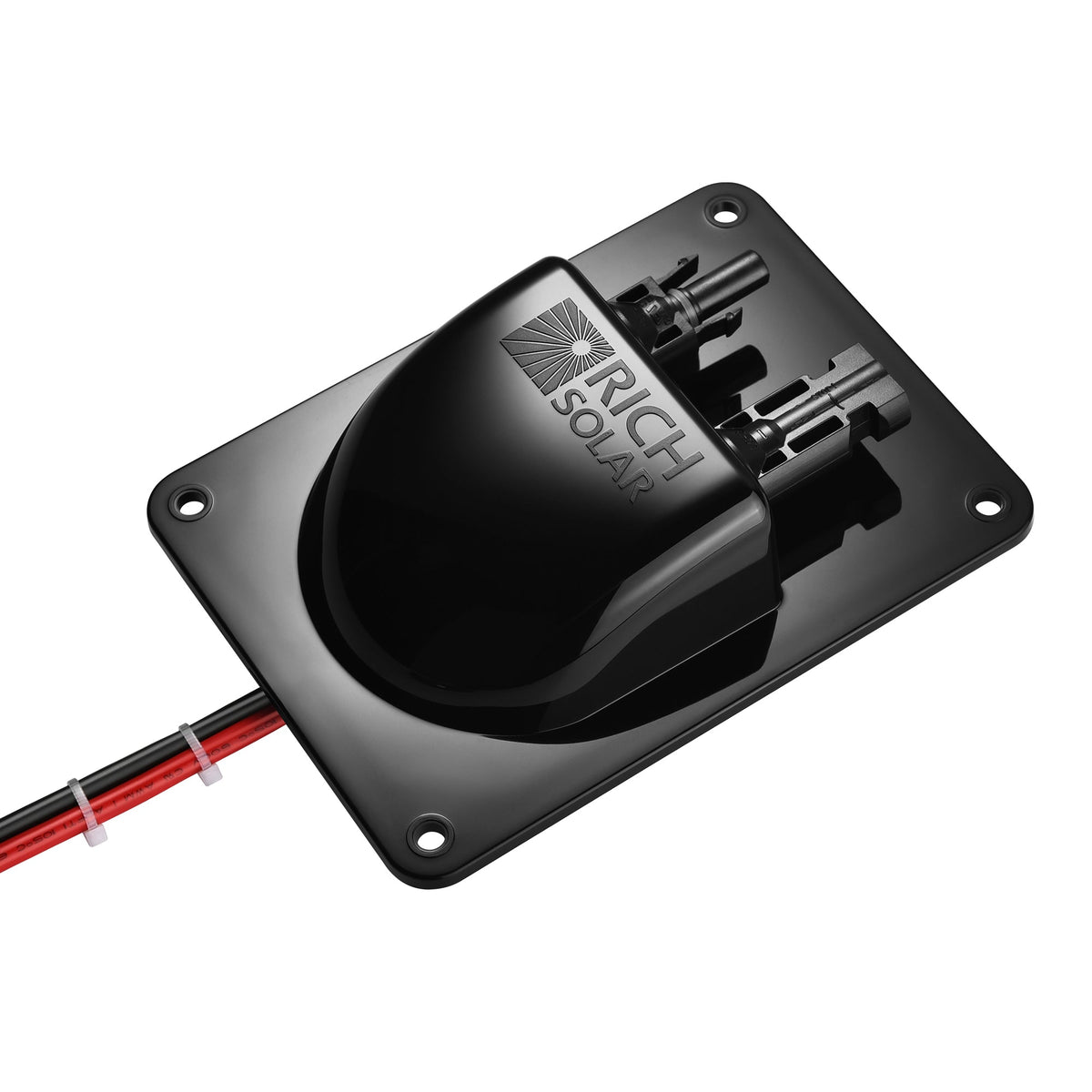

Cable Entry Plate with Pre-Wired 8AWG Solar Connectors

Equipment Type and Primary Applications

Pre-wired 8AWG solar cable entry plate for routing photovoltaic wiring through roofs and exterior surfaces on RVs, boats, and cabins. The compact, low-profile polypropylene housing supports outdoor solar installations while reducing field wiring work.

Performance Specifications

  • Maximum current: 50A; continuous current: 37.7A.
  • Maximum voltage: 600V.

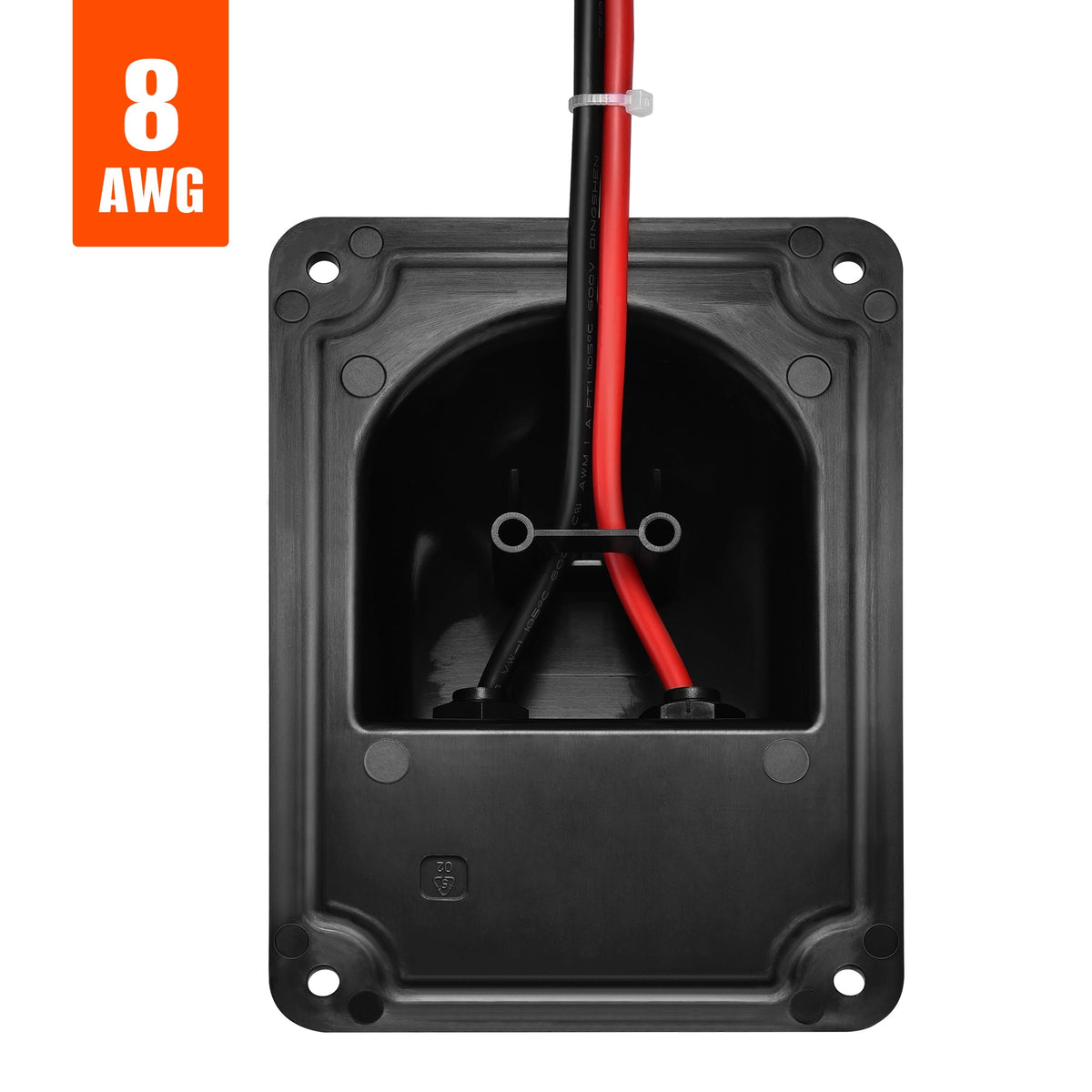

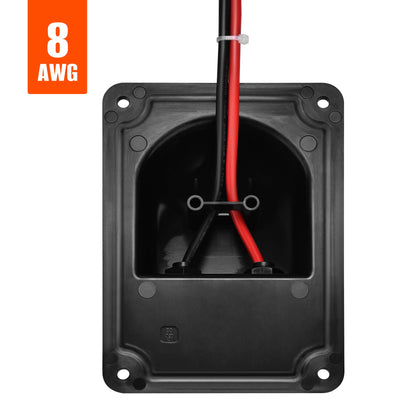

  • Wiring: UL 1015 8AWG tin-plated copper conductors with pre-installed solar connectors.
  • Wire insulation: PVC, VW-1 flame rated; wire temperature rating: 5°F to 221°F (-15°C to 105°C).
  • Housing material: flame-retardant polypropylene (PP); operating temperature: -40°F to 185°F (-40°C to 85°C).

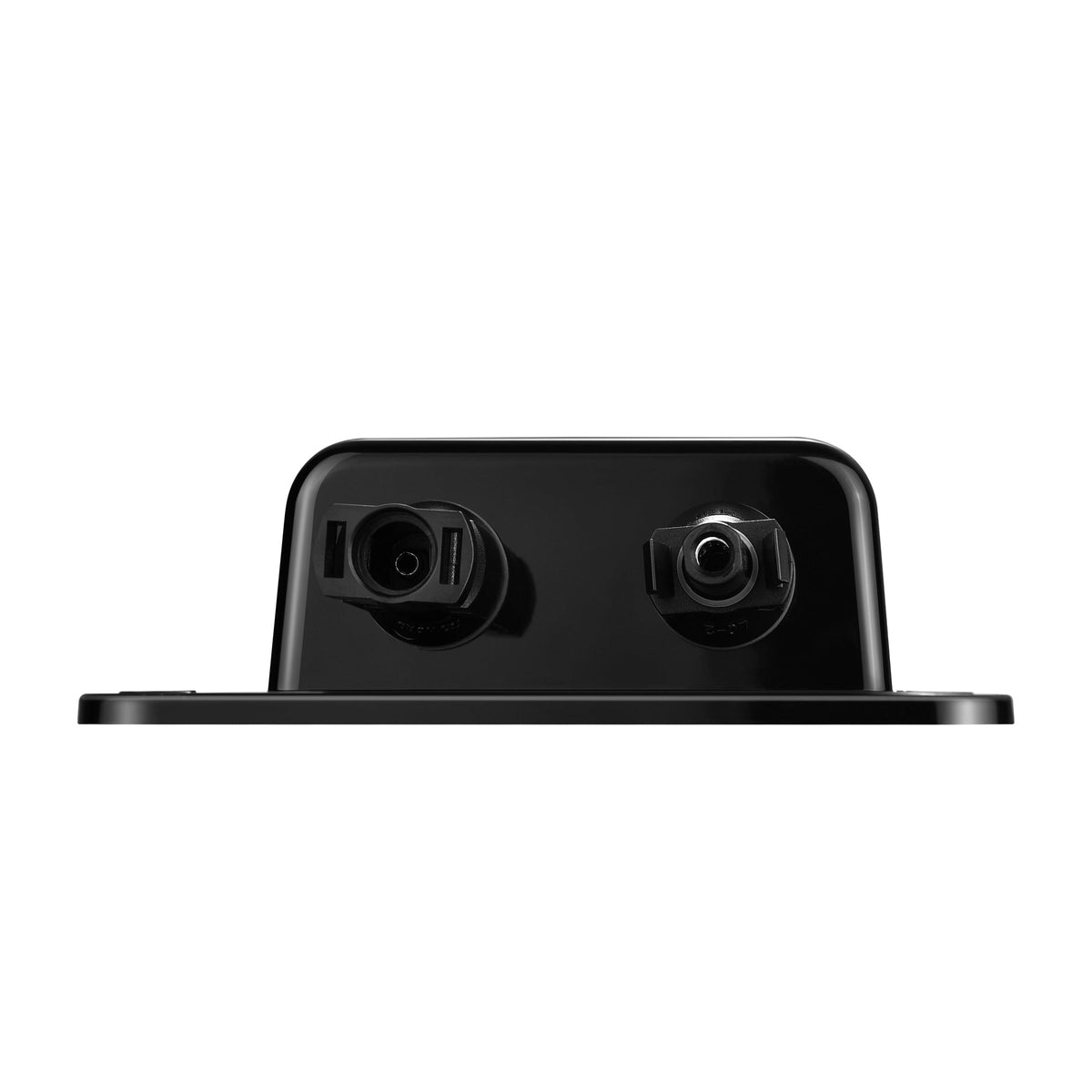

  • Solar connector protection: IP68 for resistance to water and dust exposure.
  • Dimensions: 5.9 × 4.3 × 1.6 in; weight: 0.34 lb; color: black.

Safety Features and Certifications

  • UL 1015 wiring with VW-1 flame-rated PVC insulation.
  • Flame-retardant housing with UL94 V-0 flame class.
  • Solar connectors use PC shells and provide IP68 environmental protection.
  • UL Listed certification.

Installation and Maintenance Requirements

Install using adhesive, sealant, or screws; mounting hardware is not included. Connect the pre-installed solar connectors after securing the entry plate. Its 5.9 × 4.3 in footprint supports compact installations.

Warranty and Service Information

Branding/References

Product reference: Cable Entry Plate | Polypropylene Housing with UL 8AWG 600V Wires for Solar Panels on RVs, Boats, and Cabins.

Differentiators

The assembly combines pre-installed UL 1015 8AWG tin-plated copper wires, 50A maximum current capacity, 600V voltage rating, and IP68 solar connectors in one low-profile cable entry plate.
