Cable Entry Plate | IP68 Waterproof Polypropylene Housing with UL 10AWG Wires and Solar Connectors | Easy to Install

Cable Entry Plate | IP68 Waterproof Polypropylene Housing with UL 10AWG Wires and Solar Connectors | Easy to Install

$20.79 USD
$25.99 USD $20.79 USD
Sale Sold out
Shipping calculated at checkout.

features

• Solid design control box — Meets NEMA Type 4 & IP30 standard by lab test
• LCD color screen — Real-time status view and easy user interaction
• Breathing indicator light — Shows real-time charging status
• Control button — Adjust max output current & set scheduled charging time
• Water protection gasket — Resists 3-minute direct high-pressure water spray
• TPU cable — 14.76ft, excellent durability, cold resistant to -22°F
• ETL certified — Compliant with North American safety standards

Technical Specifications

Voltage: 240V/208V
Max Output Current: 40A (SS-PC1-100) / 32A (SS-HAY-100-32A)
Max Power: 8kW / 7kW
Frequency: 50/60Hz
Temperature Range: -22°F to 122°F
Humidity: 5–95%, no condensation
Connector: Type 1 (J1772)
Cable Length: 14.76ft (4.5m)
Altitude: ≤2000m (6,562ft)
Cooling: Natural
Safety Standards: ETL, UL2594, CSA C22.2
Scheduling: App / Timer control
Connectivity: Wi-Fi / Bluetooth
Warranty: 2 years

Packing Details

View full details

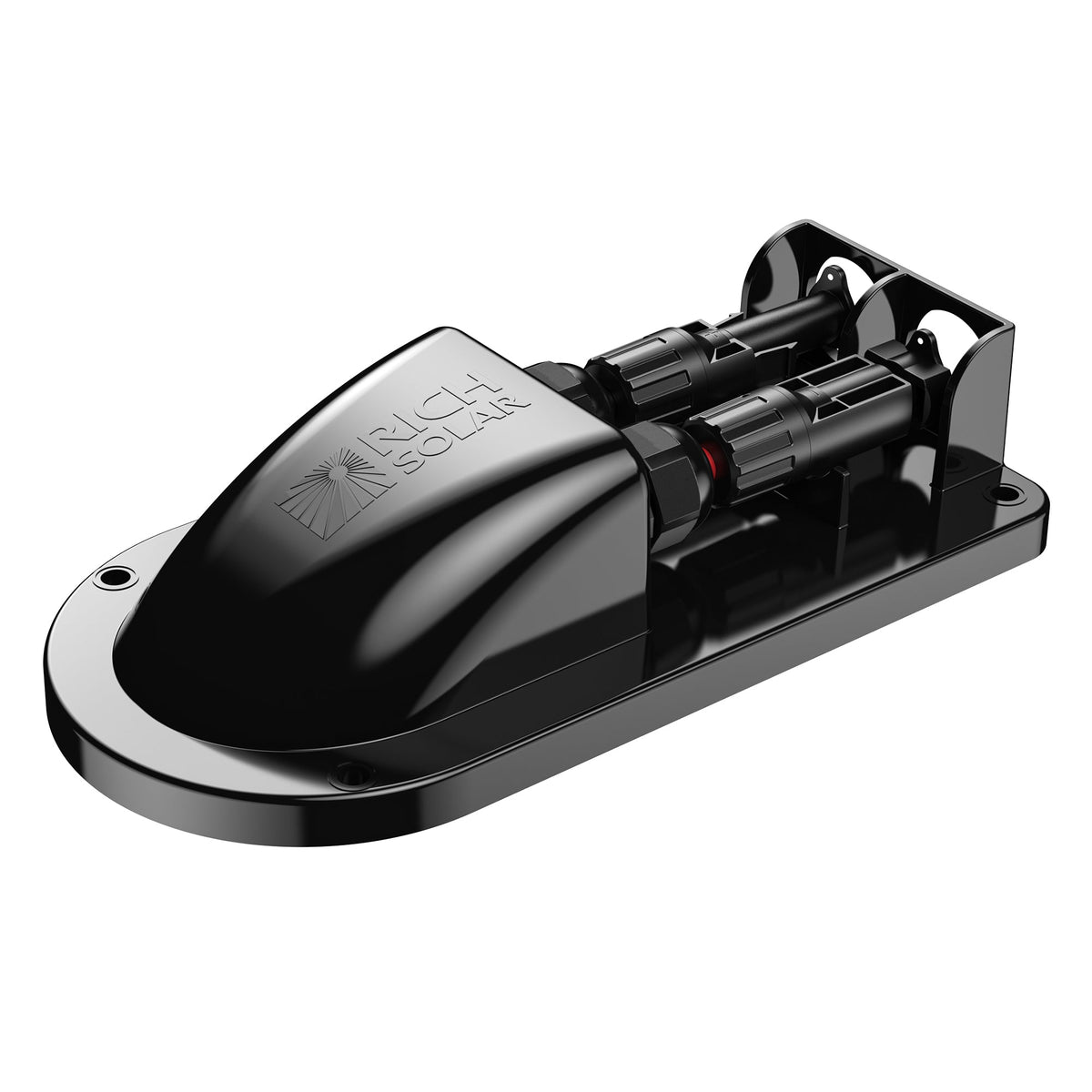

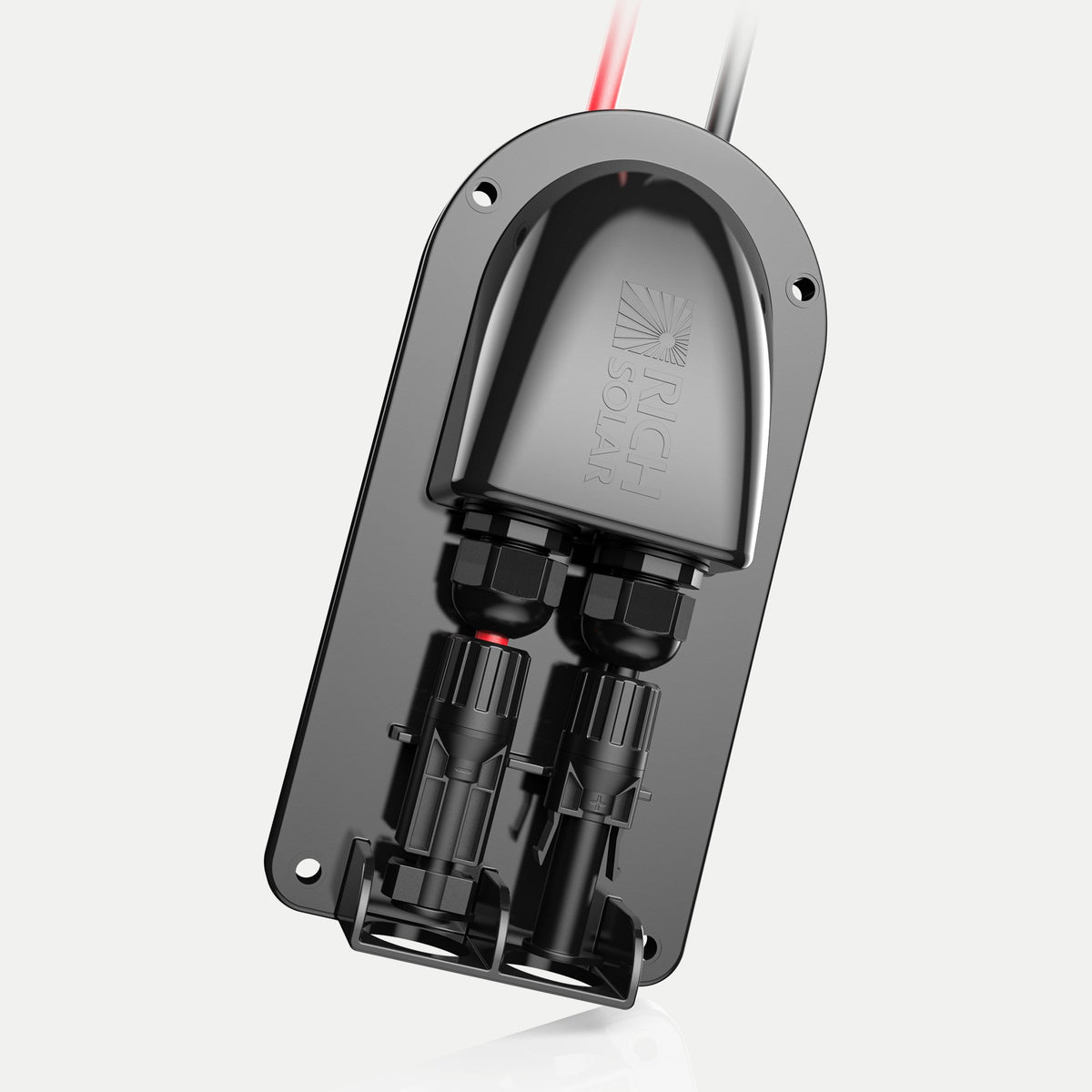

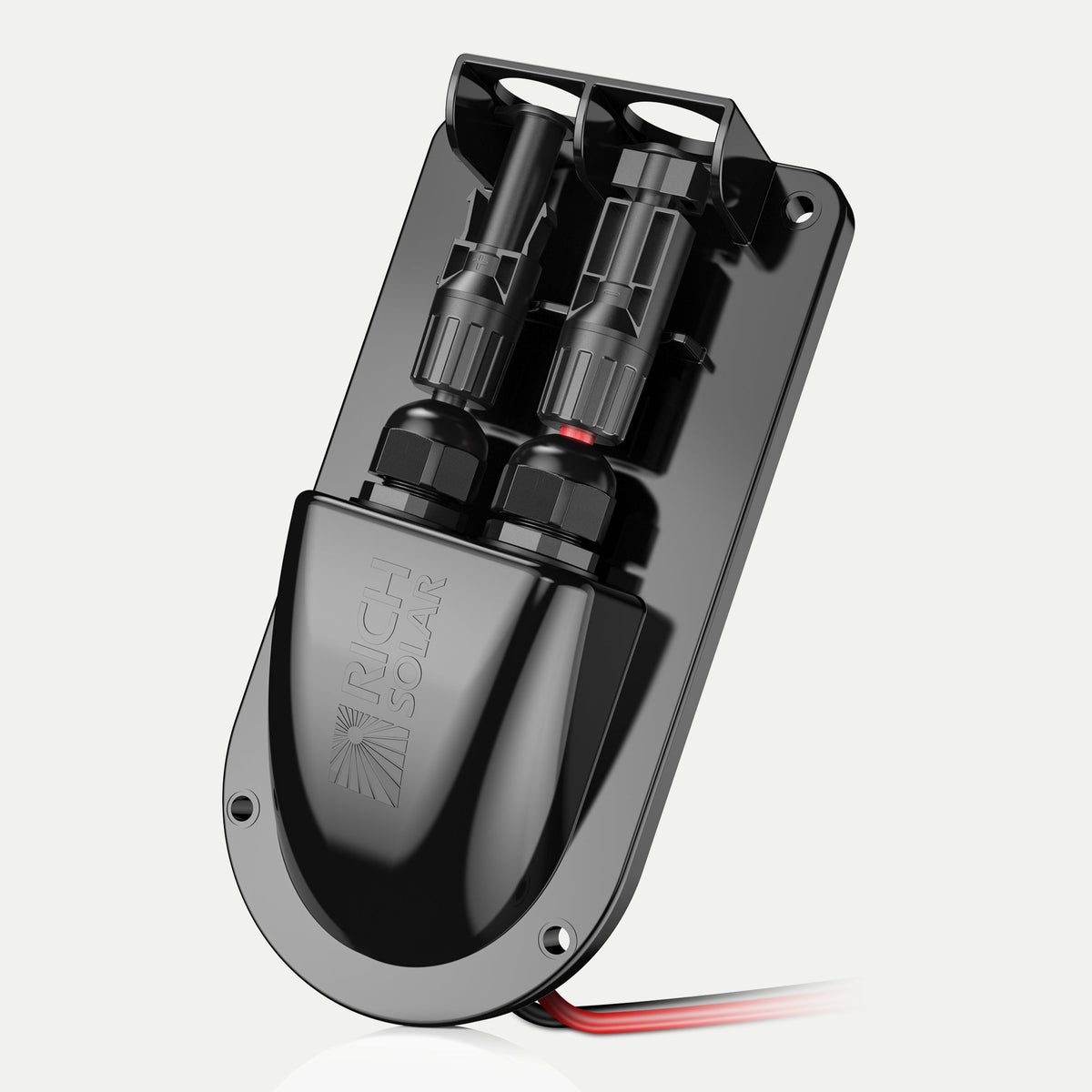

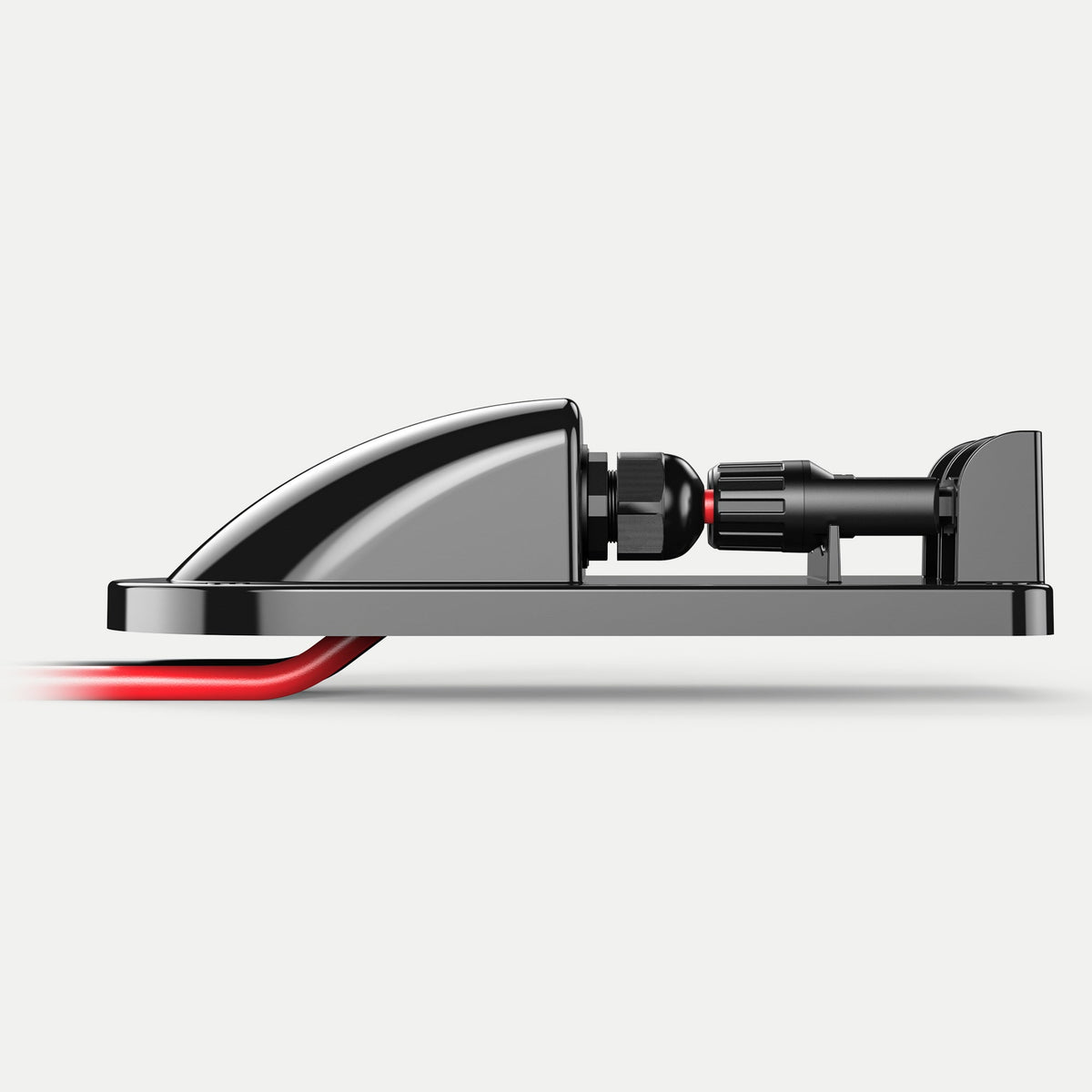

IP68 Cable Entry Plate with UL 10AWG Solar Connectors

Equipment Type and Primary Applications

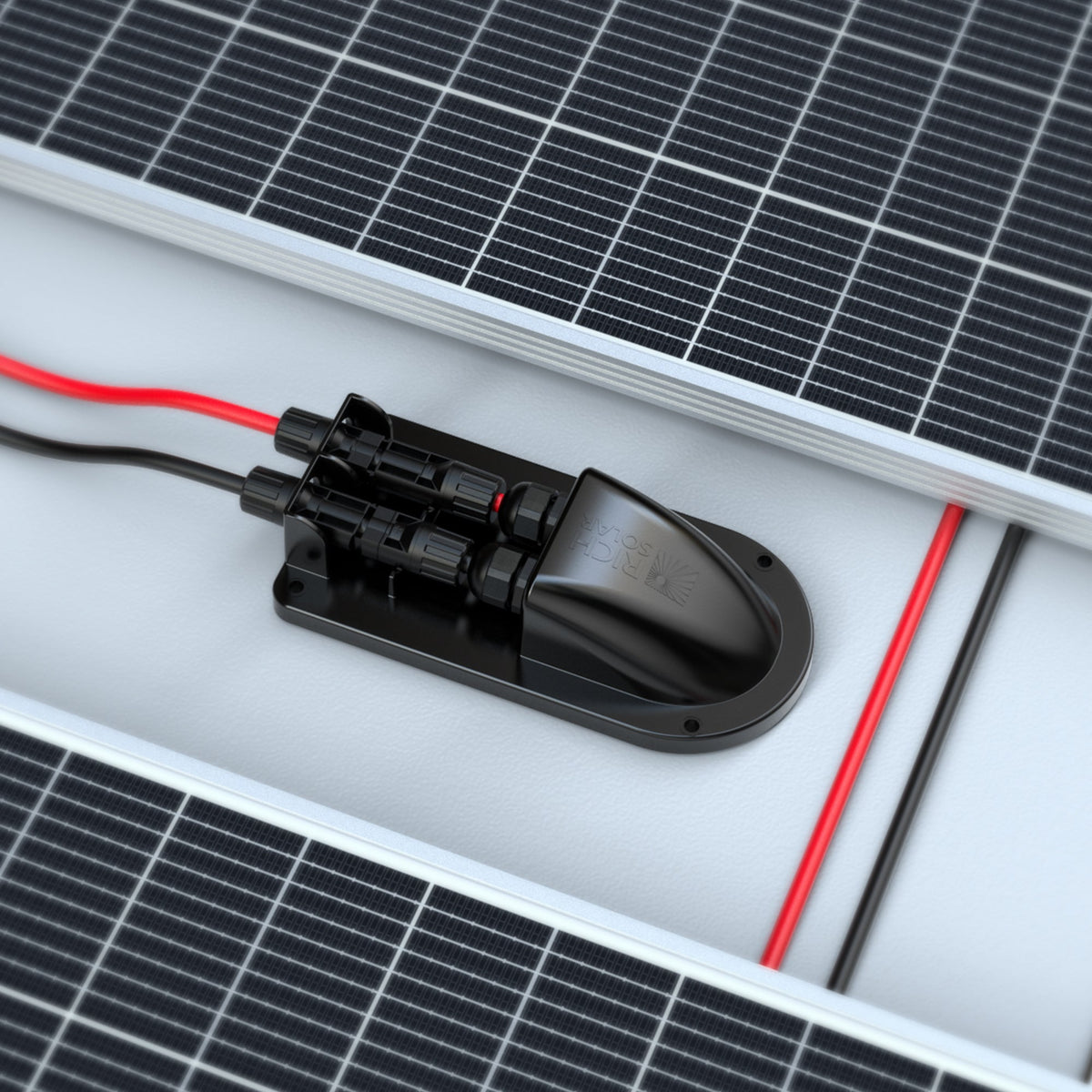

This low-profile cable entry plate provides a pre-wired outdoor cable pass-through for solar and other weather-exposed electrical installations. Its polypropylene housing, IP68 PG9 cable gland, UL 10AWG wires, and pre-assembled solar connectors simplify exterior cable routing while helping protect the connection from water and dust.

Performance Specifications

  • Maximum current: 42A; continuous current: 30A
  • Maximum voltage: 600V
  • Wire type: UL 1015 10AWG tin-plated copper
  • Insulation: PVC, VW-1 flame rated; wire temperature rating: 5°F to 221°F
  • Housing material: flame-retardant polypropylene (PP)
  • Housing operating temperature: -40°F to 185°F

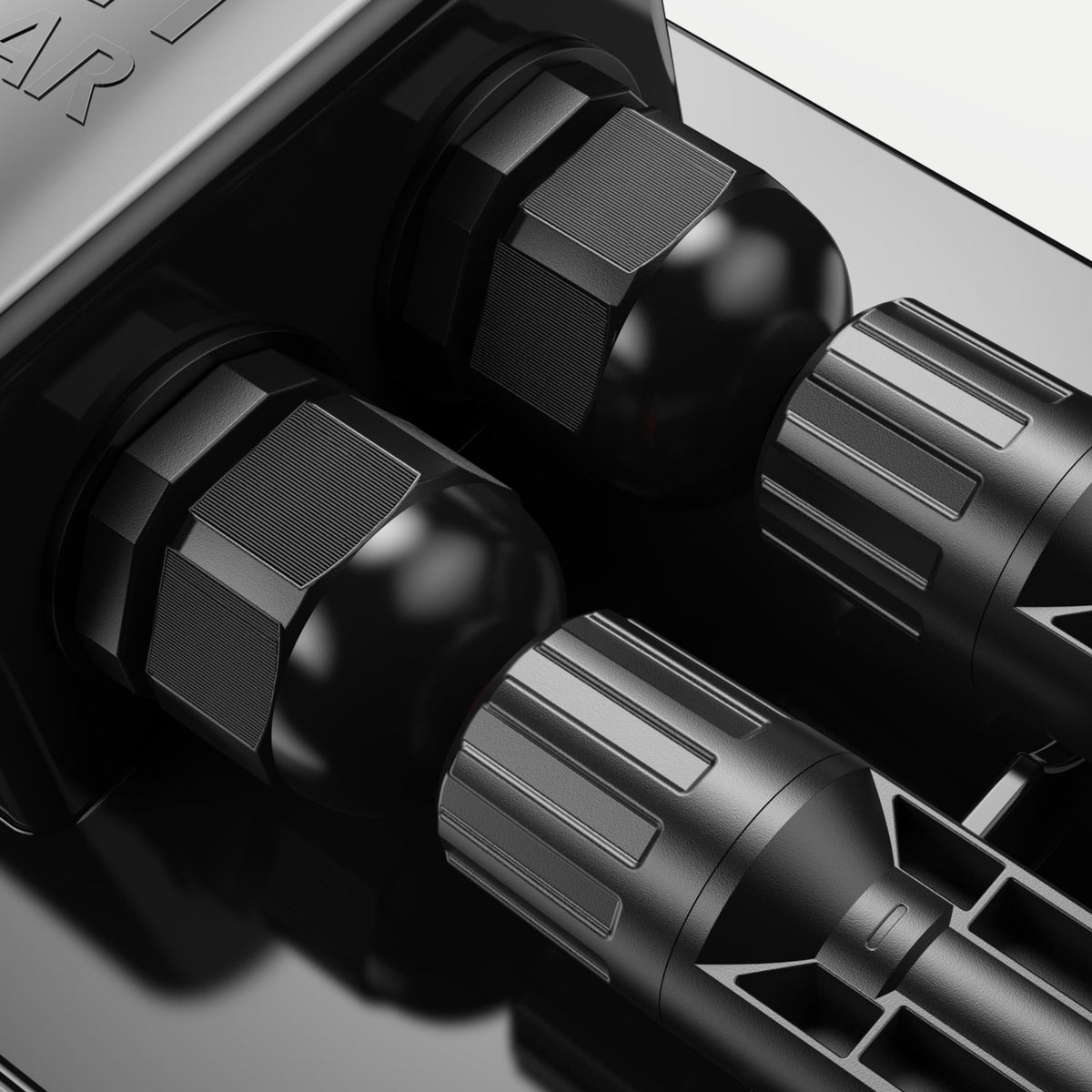

  • Cable gland: PG9, PA6, IP68 protection rating
  • Dimensions: 7.2 × 3.8 × 2.0 in; weight: 0.34 lb
  • Color: black

Safety Features and Certifications

  • VW-1-rated PVC wire insulation and UL94 V-2 flame-class housing
  • UL-certified wiring
  • CE certification
  • TÜV-certified PC solar connectors

Installation and Maintenance Requirements

Install using adhesive, sealant, or screws; screws are not included. The 7.2 × 3.8 × 2.0 in plate dimensions define the required mounting area. Pre-wired construction and supplied solar connectors support direct installation without field wire termination.

Warranty and Service Information

Branding/References

Product reference: Cable Entry Plate | IP68 Waterproof Polypropylene Housing with UL 10AWG Wires and Solar Connectors.

Differentiators

The combination of 42A peak capacity, 30A continuous operation, pre-installed UL 1015 10AWG tin-plated copper wiring, and IP68 cable entry protection distinguishes this plate from basic un-wired cable pass-throughs.
