800 Watt Solar Kit

800 Watt Solar Kit

$1,119.99 USD
$1,399.99 USD $1,119.99 USD
Sale Sold out
Shipping calculated at checkout.

features

• Solid design control box — Meets NEMA Type 4 & IP30 standard by lab test
• LCD color screen — Real-time status view and easy user interaction
• Breathing indicator light — Shows real-time charging status
• Control button — Adjust max output current & set scheduled charging time
• Water protection gasket — Resists 3-minute direct high-pressure water spray
• TPU cable — 14.76ft, excellent durability, cold resistant to -22°F
• ETL certified — Compliant with North American safety standards

Technical Specifications

Voltage: 240V/208V
Max Output Current: 40A (SS-PC1-100) / 32A (SS-HAY-100-32A)
Max Power: 8kW / 7kW
Frequency: 50/60Hz
Temperature Range: -22°F to 122°F
Humidity: 5–95%, no condensation
Connector: Type 1 (J1772)
Cable Length: 14.76ft (4.5m)
Altitude: ≤2000m (6,562ft)
Cooling: Natural
Safety Standards: ETL, UL2594, CSA C22.2
Scheduling: App / Timer control
Connectivity: Wi-Fi / Bluetooth
Warranty: 2 years

Packing Details

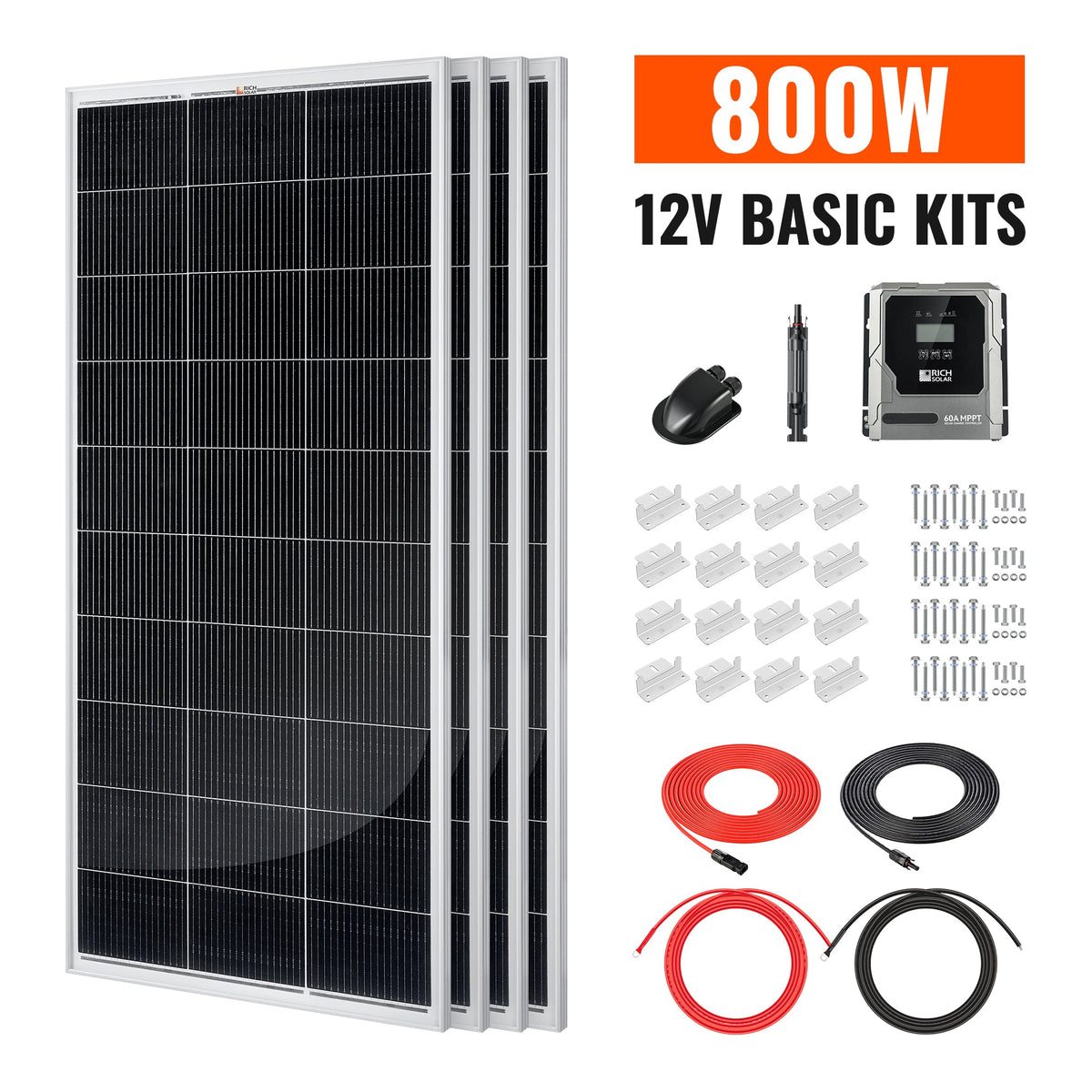

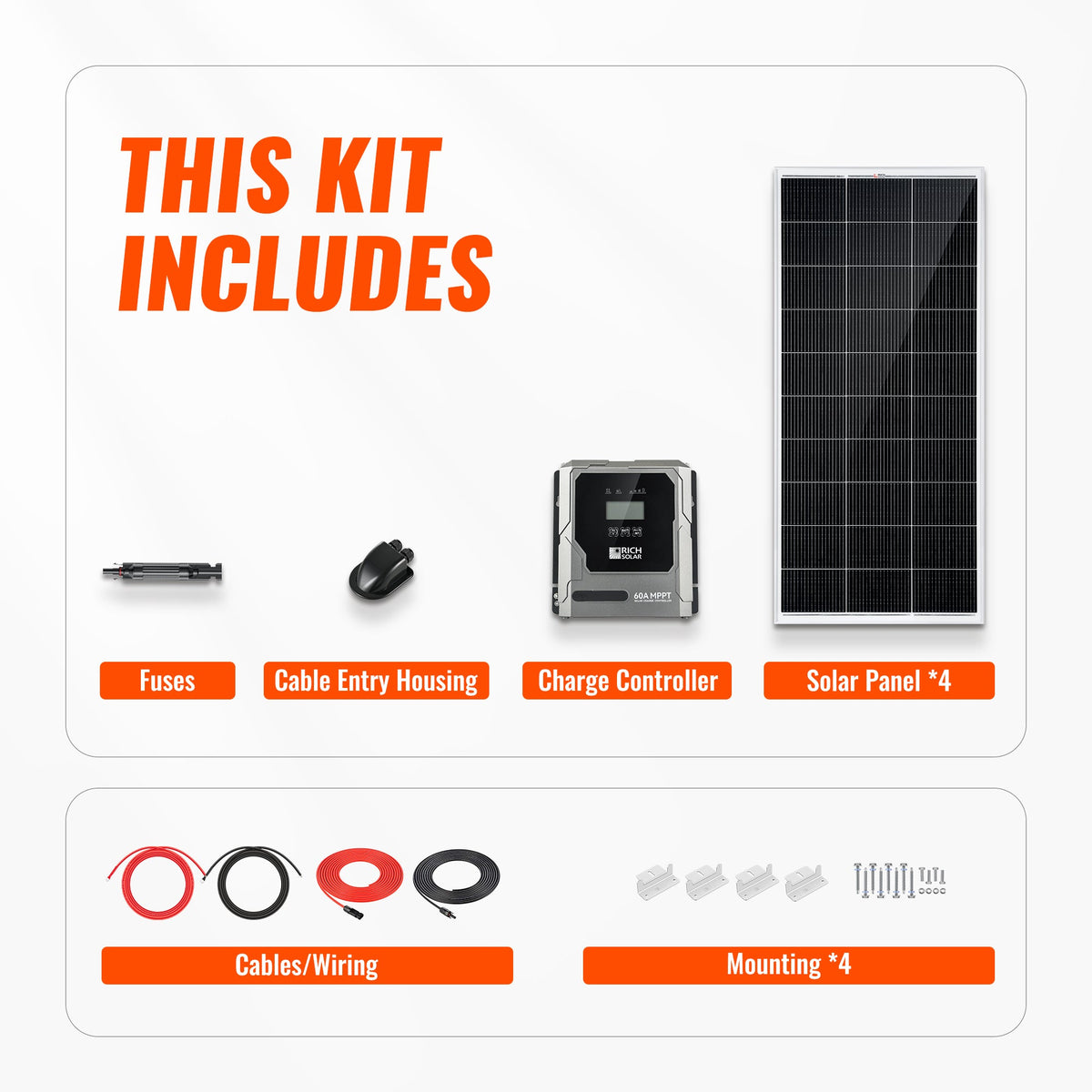

  • 4 x 200 Watt Monocrystalline Solar Panel (RS-M200)
  • 1 x Bravo 60 60A MPPT Charge Controller (RS-MPPT60PB)
  • 4 x Mounting Z Brackets (one set of 4) (RS-ZB4C)
  • 1 x Cable Entry Housing (RS-C2B)
  • 1 x 15A Inline Fuse Holder with Fuse (RS-SC15F)
  • 1 x 30 ft 10 AWG Solar Cable Set (Panel to Controller) (RS-30101)
  • 1 x 10 ft 10 AWG Battery Cable Set (Controller to Battery) (RS-1010)
View full details

800 Watt Solar Kit

Equipment Type and Primary Applications

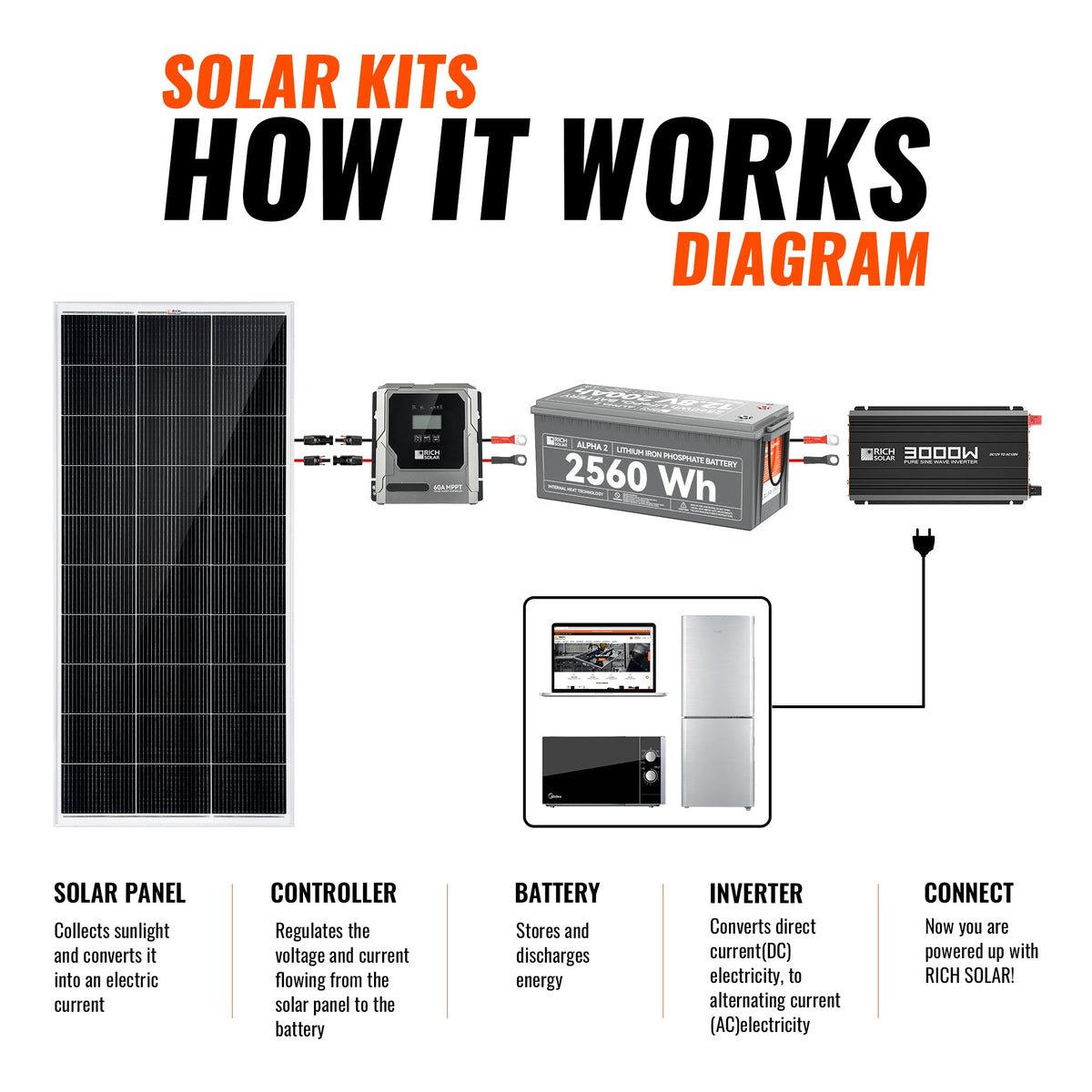

The 800 Watt Solar Kit is a 12V solar charging system combining four 200W monocrystalline solar panels with a 60A MPPT charge controller for compatible battery banks. It is designed for RVs, trailers, boats, cabins, and other off-grid battery-charging applications.

Performance Specifications

  • Solar array: 800W total, configured with four 200W RS-M200 monocrystalline panels.
  • Estimated daily energy production: approximately 2.9kWh under four peak sun hours.
  • System voltage: 12V solar charging system for compatible battery banks.
  • Charge controller: Bravo 60 RS-MPPT60PB, rated at 60A.
  • MPPT tracking efficiency: up to 99.5%.
  • Peak conversion efficiency: 98%.
  • Included wiring: 30ft 10 AWG panel-to-controller cable set and 10ft 10 AWG controller-to-battery cable set.

Safety Features and Certifications

  • Includes one RS-SC15F 15A inline fuse holder with fuse.
  • Certification marks and standards are not specified in the supplied product details.

Installation and Maintenance Requirements

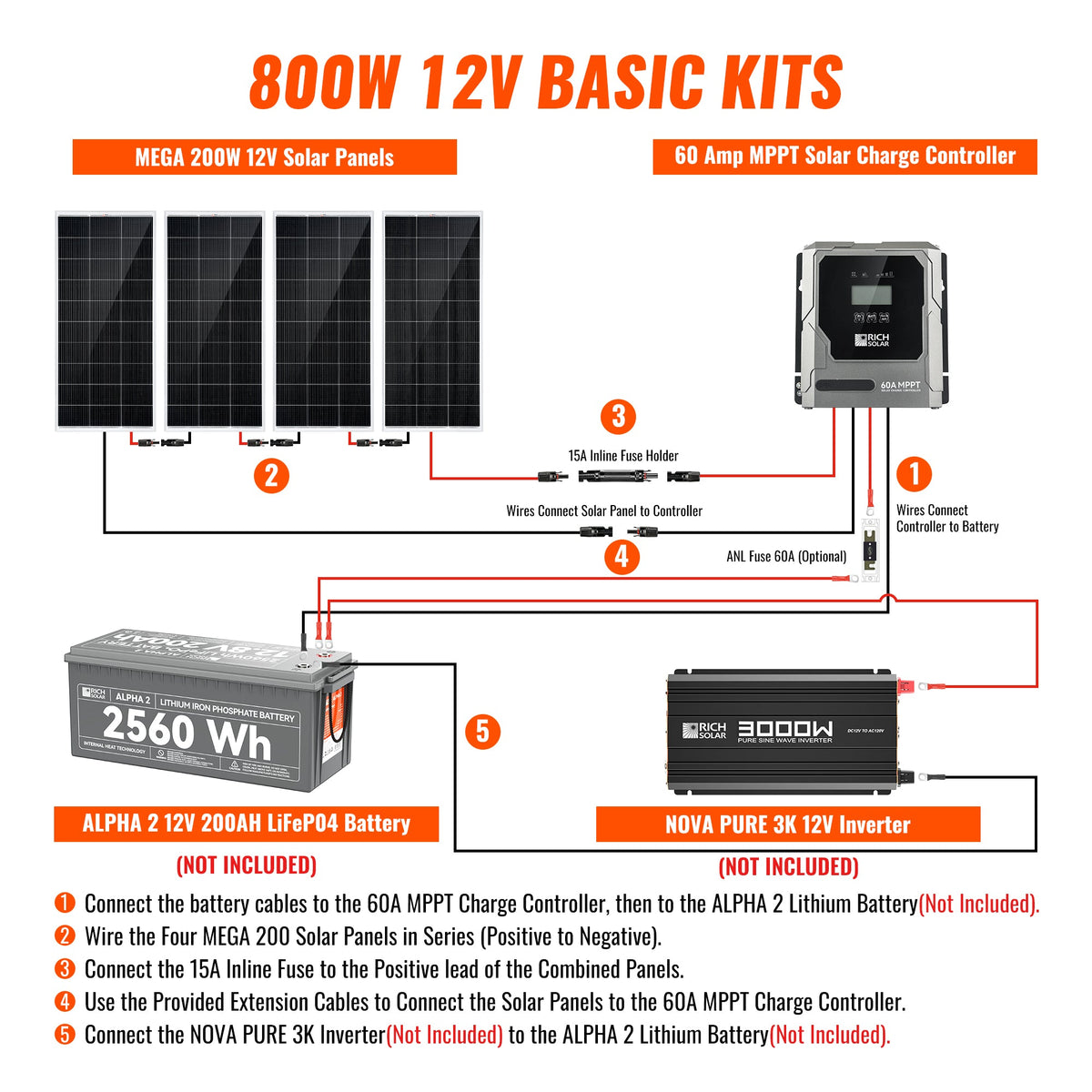

Installation requires a compatible 12V battery bank, suitable mounting surfaces for the included RS-ZB4C mounting Z brackets, and routing for the included RS-C2B cable entry housing. Commissioning uses the supplied panel, controller, and battery cable sets. Keep panel surfaces and cable connections clean and inspect the fuse, wiring, mounting hardware, and cable entry periodically.

Warranty and Service Information

Branding/References

Manufacturer reference: RICH SOLAR. Included components are four RS-M200 panels, one Bravo 60 RS-MPPT60PB controller, RS-ZB4C mounting brackets, RS-C2B cable entry housing, RS-SC15F fuse holder, RS-30101 solar cable set, and RS-1010 battery cable set.

Differentiators

The 60A MPPT controller combines up to 99.5% tracking efficiency with 98% peak conversion efficiency, while the system can be expanded with compatible RICH SOLAR batteries or additional solar panels.
