6 Pole Outdoor Circuit Breaker Box

6 Pole Outdoor Circuit Breaker Box

$55.99 USD
$69.99 USD $55.99 USD
Sale Sold out
Shipping calculated at checkout.

features

• Solid design control box — Meets NEMA Type 4 & IP30 standard by lab test
• LCD color screen — Real-time status view and easy user interaction
• Breathing indicator light — Shows real-time charging status
• Control button — Adjust max output current & set scheduled charging time
• Water protection gasket — Resists 3-minute direct high-pressure water spray
• TPU cable — 14.76ft, excellent durability, cold resistant to -22°F
• ETL certified — Compliant with North American safety standards

Technical Specifications

Voltage: 240V/208V
Max Output Current: 40A (SS-PC1-100) / 32A (SS-HAY-100-32A)
Max Power: 8kW / 7kW
Frequency: 50/60Hz
Temperature Range: -22°F to 122°F
Humidity: 5–95%, no condensation
Connector: Type 1 (J1772)
Cable Length: 14.76ft (4.5m)
Altitude: ≤2000m (6,562ft)
Cooling: Natural
Safety Standards: ETL, UL2594, CSA C22.2
Scheduling: App / Timer control
Connectivity: Wi-Fi / Bluetooth
Warranty: 2 years

Packing Details

View full details

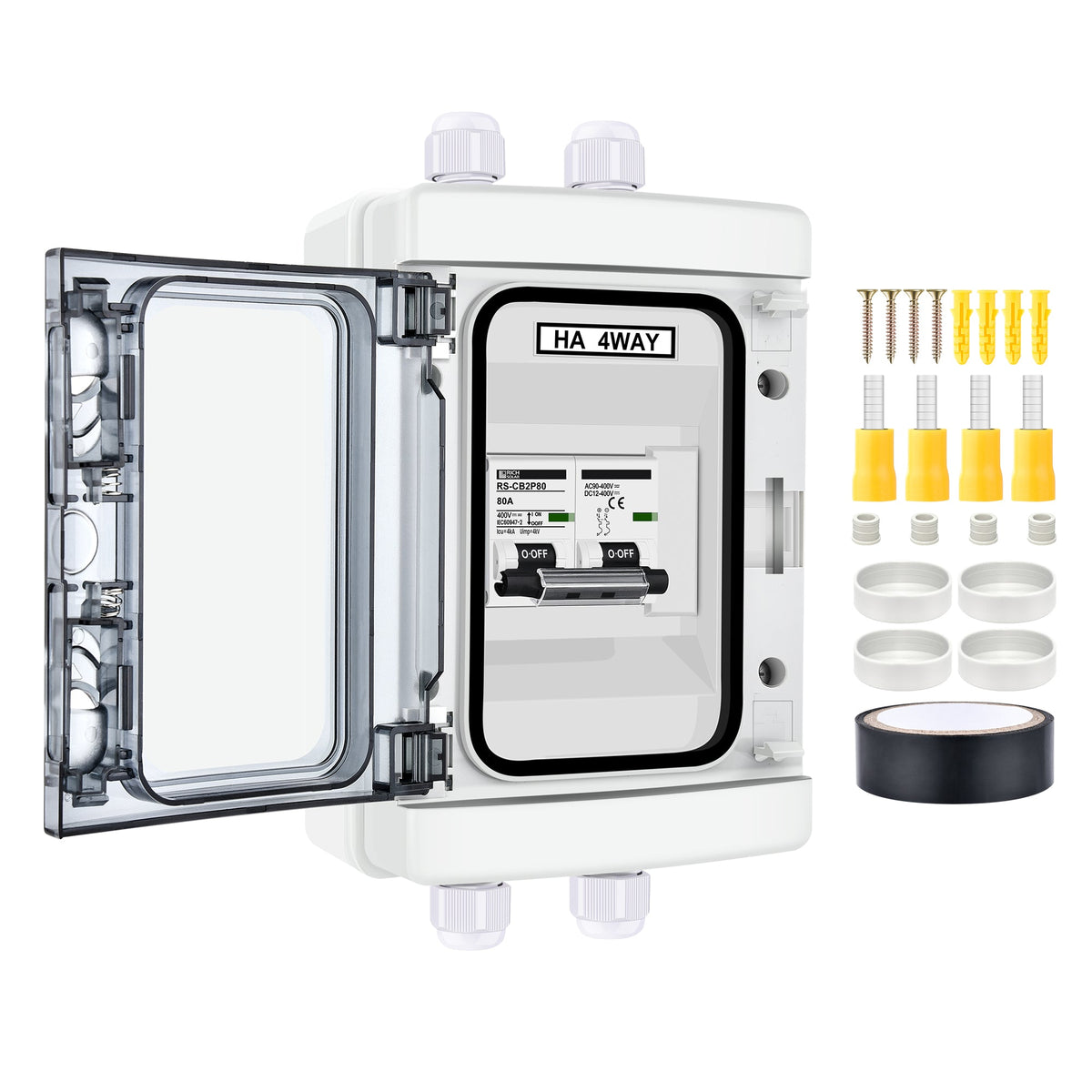

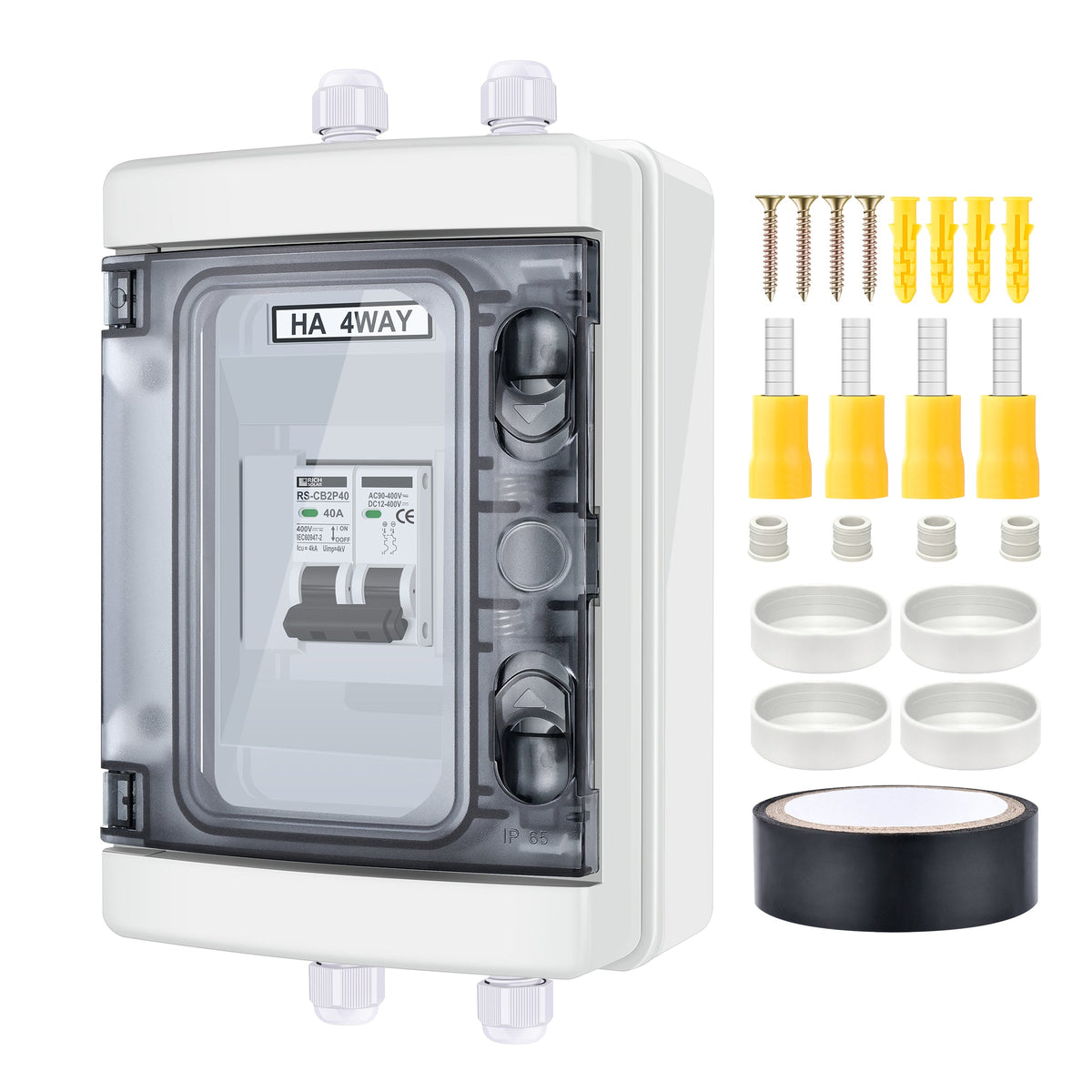

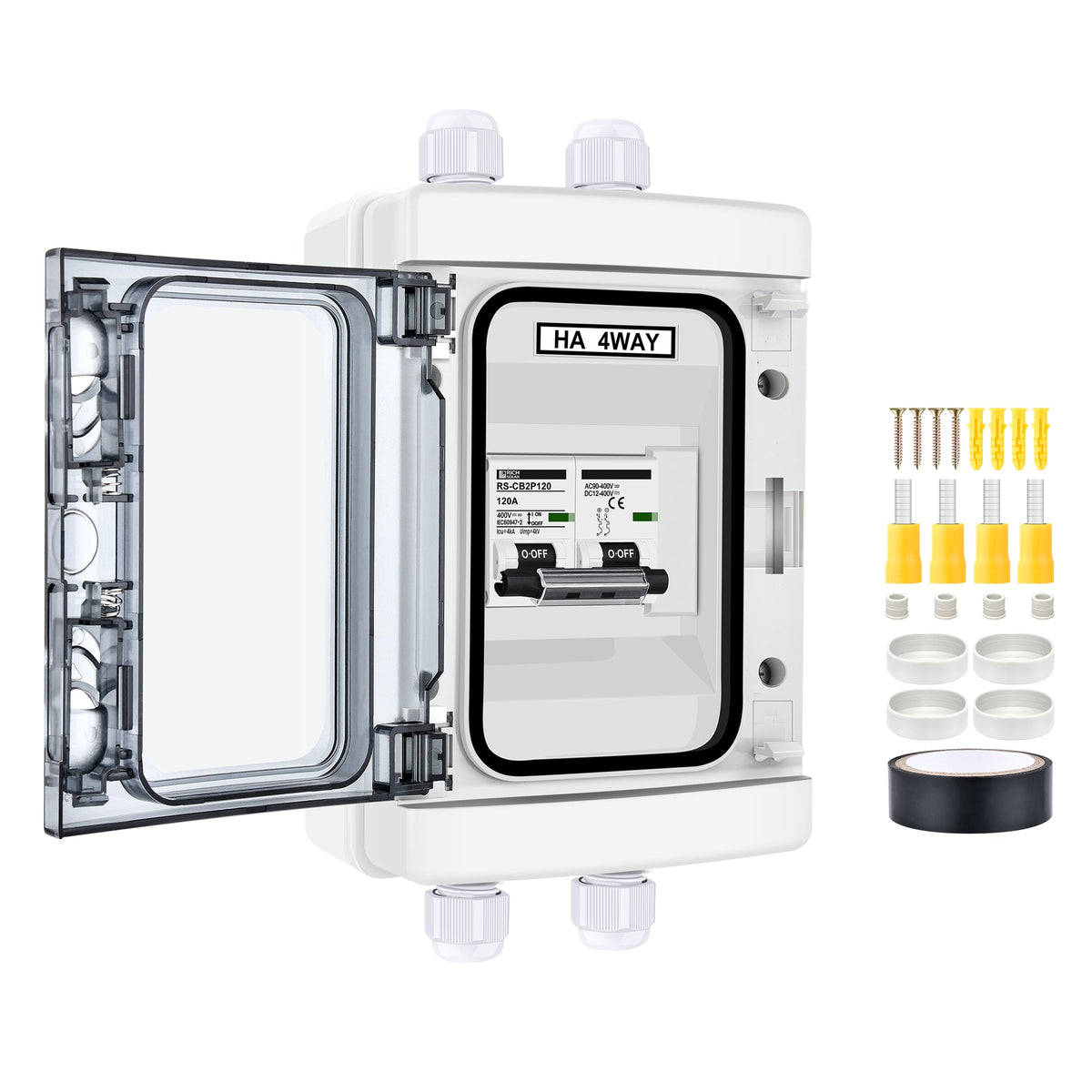

6 Pole Outdoor Circuit Breaker Box

Equipment Type and Primary Applications

Outdoor circuit breaker enclosure for dual-pole AC and DC circuit protection in solar photovoltaic systems, RV electrical installations, and off-grid power applications. The wall-mounted box combines a built-in DIN rail, copper bus bars, neutral and ground terminals, and pre-drilled wiring ports for organized circuit installation.

Performance Specifications

  • Configuration: 2P dual-pole circuit protection
  • Current ratings: 30A, 40A, 60A, 80A, 120A, 150A, 200A, or 250A
  • Rated voltage: AC 90–400V; DC 12–400V
  • Rated frequency: 50/60Hz
  • Breaking capacity: 4,000A
  • Endurance: at least 4,000 operations at 30A–60A; at least 20,000 operations at 80A–250A
  • Protection rating: IP65 exterior; IP20 interior
  • Operating temperature: 23°F to 104°F (-5°C to 40°C)
  • Enclosure material: industrial-grade PC/ABS; package dimensions: 9 × 6 × 5 in; gross weight: 2 lb

Safety Features and Certifications

  • Transparent flip cover enables visual circuit-status checks without opening the enclosure.
  • IP65 exterior protection helps shield against water and dust; the interior is rated IP20.
  • Impact-resistant PC/ABS housing and enhanced copper bus bars support secure electrical connections.

Installation and Maintenance Requirements

Install on a flat wall surface using the built-in wall-mount arrangement. Route conductors through the pre-drilled wiring ports, secure connections at the copper bus bars and neutral or ground terminals, and mount compatible circuit breakers or DIN rail components. Inspect wiring connections and enclosure condition during scheduled electrical maintenance.

Warranty and Service Information

Branding/References

Product reference: 6 Pole Outdoor Circuit Breaker Box. Listed electrical configuration: 2P.

Differentiators

The enclosure combines AC 90–400V and DC 12–400V compatibility with a 4,000A breaking capacity, transparent status monitoring, and a DIN rail layout for solar and off-grid installations.
