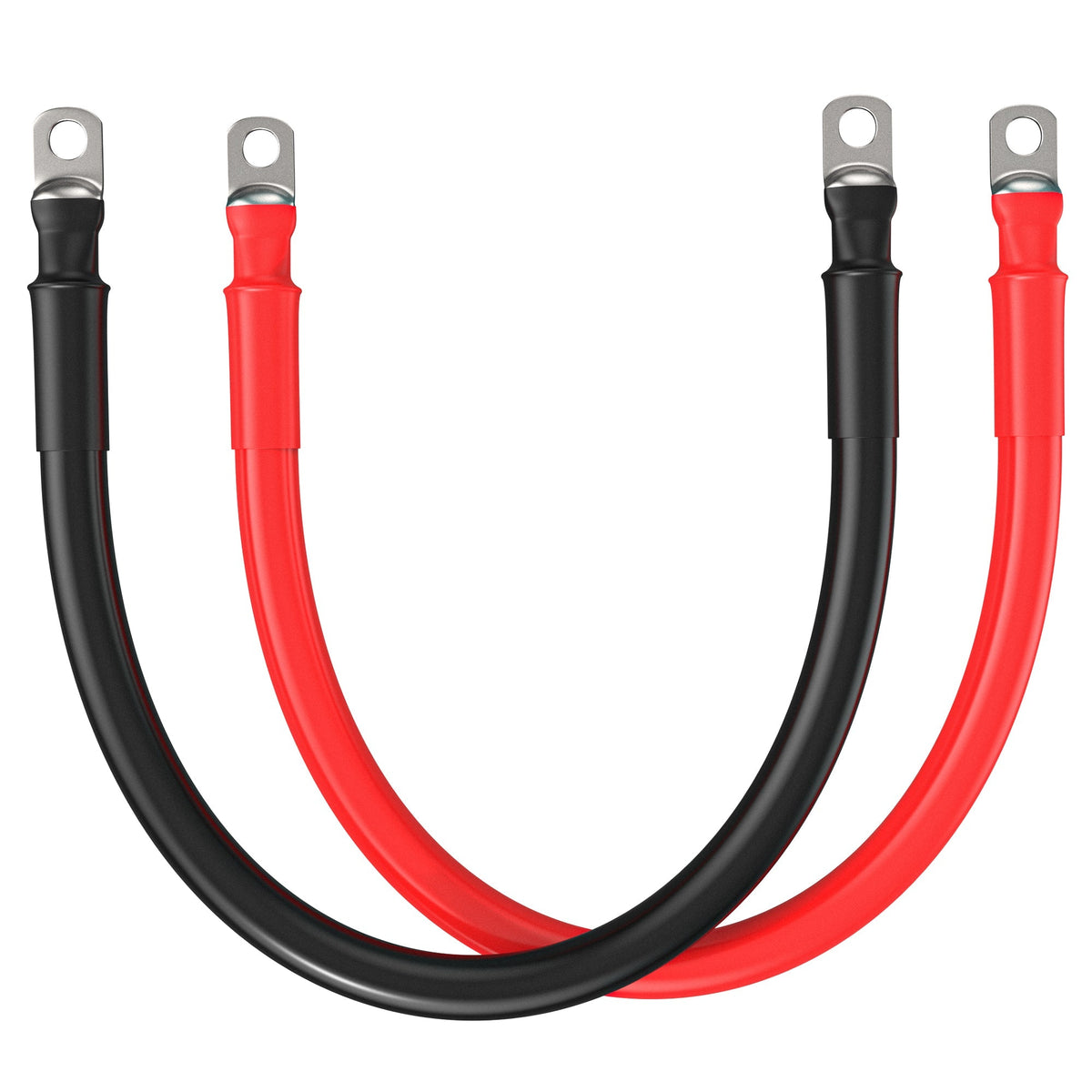

• 6 Gauge 5/16” Battery Cables | Pair of 6AWG Red and Black Pure Copper Inverter Battery Cables with 5/16” Lugs
1 1

6 Gauge 5/16” Battery Cables | Pair of 6AWG Red and Black Pure Copper Inverter Battery Cables with 5/16” Lugs

6 Gauge 5/16” Battery Cables | Pair of 6AWG Red and Black Pure Copper Inverter Battery Cables with 5/16” Lugs

$12.79 USD
$15.99 USD $12.79 USD
Sale Sold out
Shipping calculated at checkout.
Option

features

• Solid design control box — Meets NEMA Type 4 & IP30 standard by lab test
• LCD color screen — Real-time status view and easy user interaction
• Breathing indicator light — Shows real-time charging status
• Control button — Adjust max output current & set scheduled charging time
• Water protection gasket — Resists 3-minute direct high-pressure water spray
• TPU cable — 14.76ft, excellent durability, cold resistant to -22°F
• ETL certified — Compliant with North American safety standards

Technical Specifications

Voltage: 240V/208V
Max Output Current: 40A (SS-PC1-100) / 32A (SS-HAY-100-32A)
Max Power: 8kW / 7kW
Frequency: 50/60Hz
Temperature Range: -22°F to 122°F
Humidity: 5–95%, no condensation
Connector: Type 1 (J1772)
Cable Length: 14.76ft (4.5m)
Altitude: ≤2000m (6,562ft)
Cooling: Natural
Safety Standards: ETL, UL2594, CSA C22.2
Scheduling: App / Timer control
Connectivity: Wi-Fi / Bluetooth
Warranty: 2 years

Packing Details

View full details

6 AWG 5/16-Inch Battery Cable Pair for Inverter and Battery Connections

Equipment Type and Primary Applications

This 6 AWG battery cable set connects a battery bank directly to an inverter using one red cable and one black cable. It is designed for solar power systems, battery banks, RVs, marine equipment, and other DC electrical applications requiring flexible, pre-terminated power cables.

Performance Specifications

  • Conductor: 100% pure copper for power transfer and cable flexibility
  • Wire gauge: 6 AWG
  • Voltage rating: Up to 600 V
  • Operating temperature: -67°F to +275°F
  • Insulation: Flexible, moisture-resistant PVC
  • Lugs: 5/16-inch terminals installed at both ends of each cable
  • Available lengths: 1, 1.5, 2, 3, 4, 5, 6, 8, and 10 ft

Safety Features and Certifications

  • VW-1-rated PVC insulation provides flame-rated cable protection
  • Moisture-resistant insulation supports use in applicable RV, marine, solar, and DC environments
  • UL Certified and RoHS Compliant

Installation and Maintenance Requirements

Connect the red cable to the positive battery and inverter terminals and the black cable to the corresponding negative terminals, using the pre-installed 5/16-inch lugs. Select a cable length appropriate for the installation. Confirm terminal compatibility and secure connections before energizing the system. Route cables to prevent abrasion, excessive bending, and contact with heat sources. Inspect the PVC insulation, lugs, and connection points periodically for damage, looseness, or corrosion.

Warranty and Service Information

Branding/References

Product reference: 6 Gauge 5/16” Battery Cables. Configuration: 6 AWG red and black pure copper cable pair. Package dimensions: 16 × 11 in.

Differentiators

The cable pair combines 100% pure copper conductors with factory-installed 5/16-inch lugs, multiple selectable lengths, VW-1-rated PVC insulation, and a wide -67°F to +275°F operating range.
