520W Slim Kit

520W Slim Kit

$799.99 USD
$999.99 USD $799.99 USD
Sale Sold out
Shipping calculated at checkout.

features

• Solid design control box — Meets NEMA Type 4 & IP30 standard by lab test
• LCD color screen — Real-time status view and easy user interaction
• Breathing indicator light — Shows real-time charging status
• Control button — Adjust max output current & set scheduled charging time
• Water protection gasket — Resists 3-minute direct high-pressure water spray
• TPU cable — 14.76ft, excellent durability, cold resistant to -22°F
• ETL certified — Compliant with North American safety standards

Technical Specifications

Voltage: 240V/208V
Max Output Current: 40A (SS-PC1-100) / 32A (SS-HAY-100-32A)
Max Power: 8kW / 7kW
Frequency: 50/60Hz
Temperature Range: -22°F to 122°F
Humidity: 5–95%, no condensation
Connector: Type 1 (J1772)
Cable Length: 14.76ft (4.5m)
Altitude: ≤2000m (6,562ft)
Cooling: Natural
Safety Standards: ETL, UL2594, CSA C22.2
Scheduling: App / Timer control
Connectivity: Wi-Fi / Bluetooth
Warranty: 2 years

Packing Details

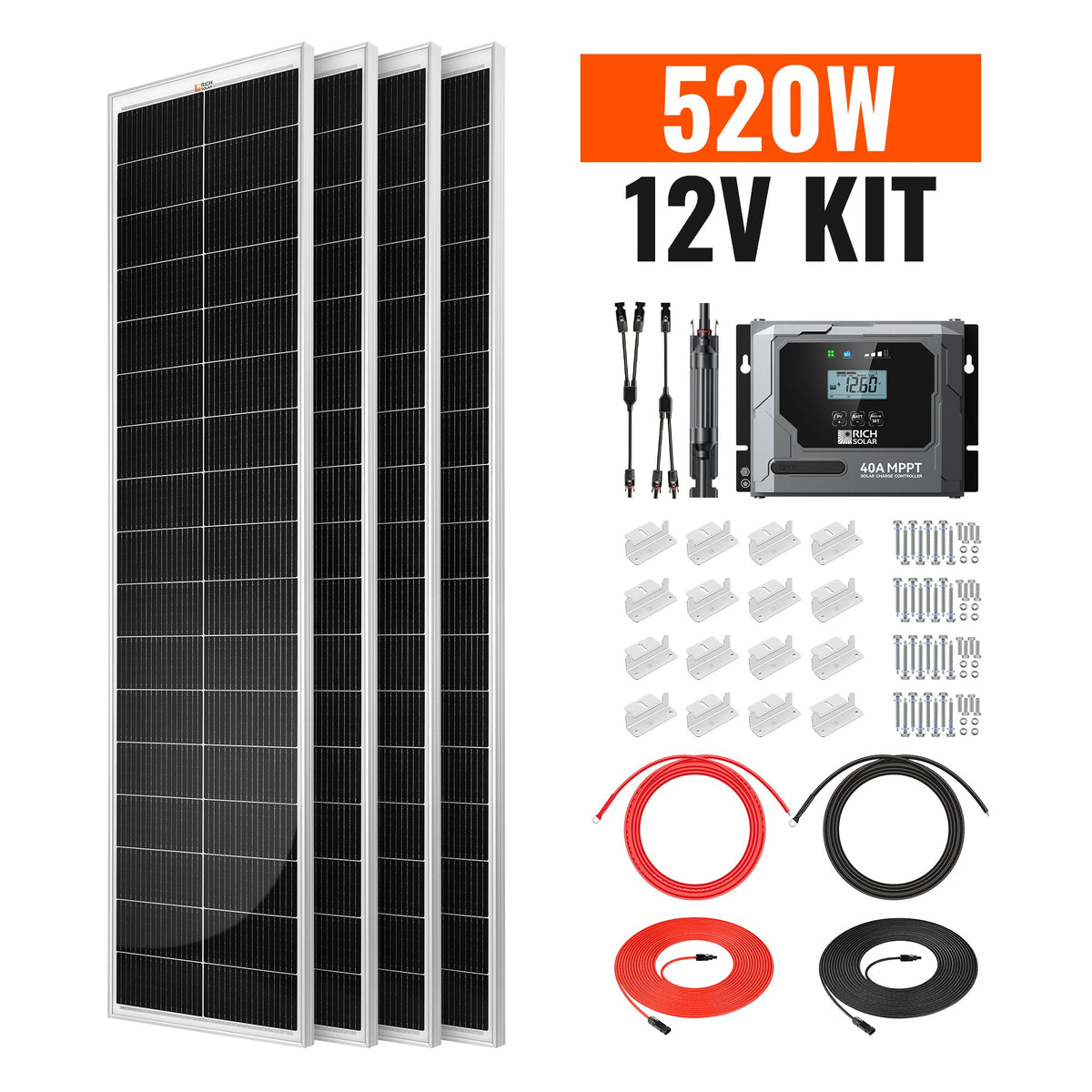

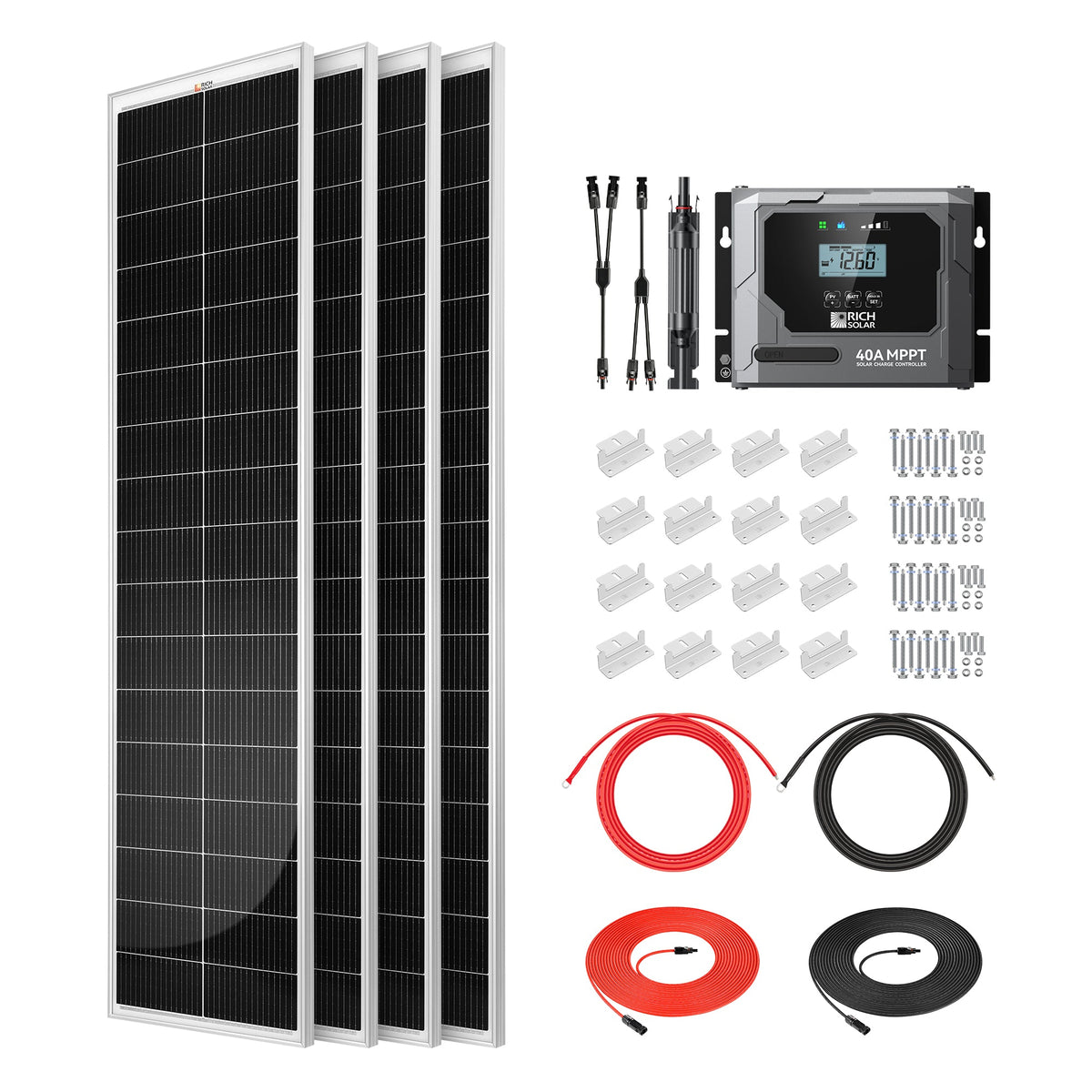

  • 4 x 12V 130W Slim Solar Panels (RS-M130SL)
  • 1 x 30 ft 10 AWG Solar Cable Set (Panel to Controller) (RS-30101)
  • 1 x Y Branch Parallel Adapter (RS-Y2)
  • 1 x 10 ft 8 AWG Battery Cable (Controller to 12V Battery) (RS-810)
  • 1 x Bravo 40 12V/24V 40A MPPT Charge Controller (RS-MPPT40PB)
  • 1 x Mounting Z Bracket set (one set of 4) (RS-ZB4C)
  • 1 x 20A Solar Panel Inline Fuse Holder (RS-SC20F)
View full details

Equipment Type and Primary Applications: 520W Slim Kit

The 520W Slim Kit is a solar battery-charging system for RVs, vans, trailers, boats, tiny homes, and other off-grid installations. It combines four 130W slim monocrystalline solar panels with a 40A MPPT charge controller and pre-assembled connection hardware for compact rooftop solar applications.

Performance Specifications

  • Solar array: 520W total, comprising 4 × 12V 130W RS-M130SL slim monocrystalline panels.
  • Estimated energy production: approximately 1.9kWh per day under 4 peak sun hours.
  • Charge controller: Bravo 40 RS-MPPT40PB, 12V/24V, 40A MPPT.
  • MPPT tracking efficiency: up to 99.5%; peak conversion efficiency: 98%.
  • Electrical connections include a 30ft 10 AWG panel-to-controller cable set and a 10ft 8 AWG controller-to-12V-battery cable.

Safety Features and Certifications

  • Includes a 20A solar panel inline fuse holder, RS-SC20F.
  • Mounting Z brackets and dedicated cable assemblies support organized panel installation and battery connections.

Installation and Maintenance Requirements

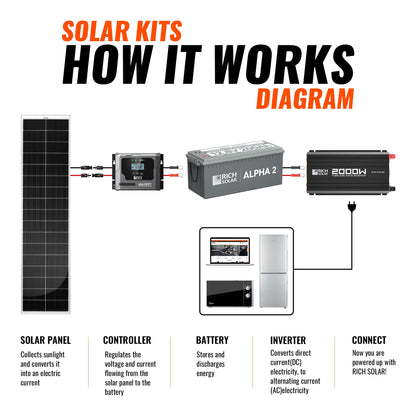

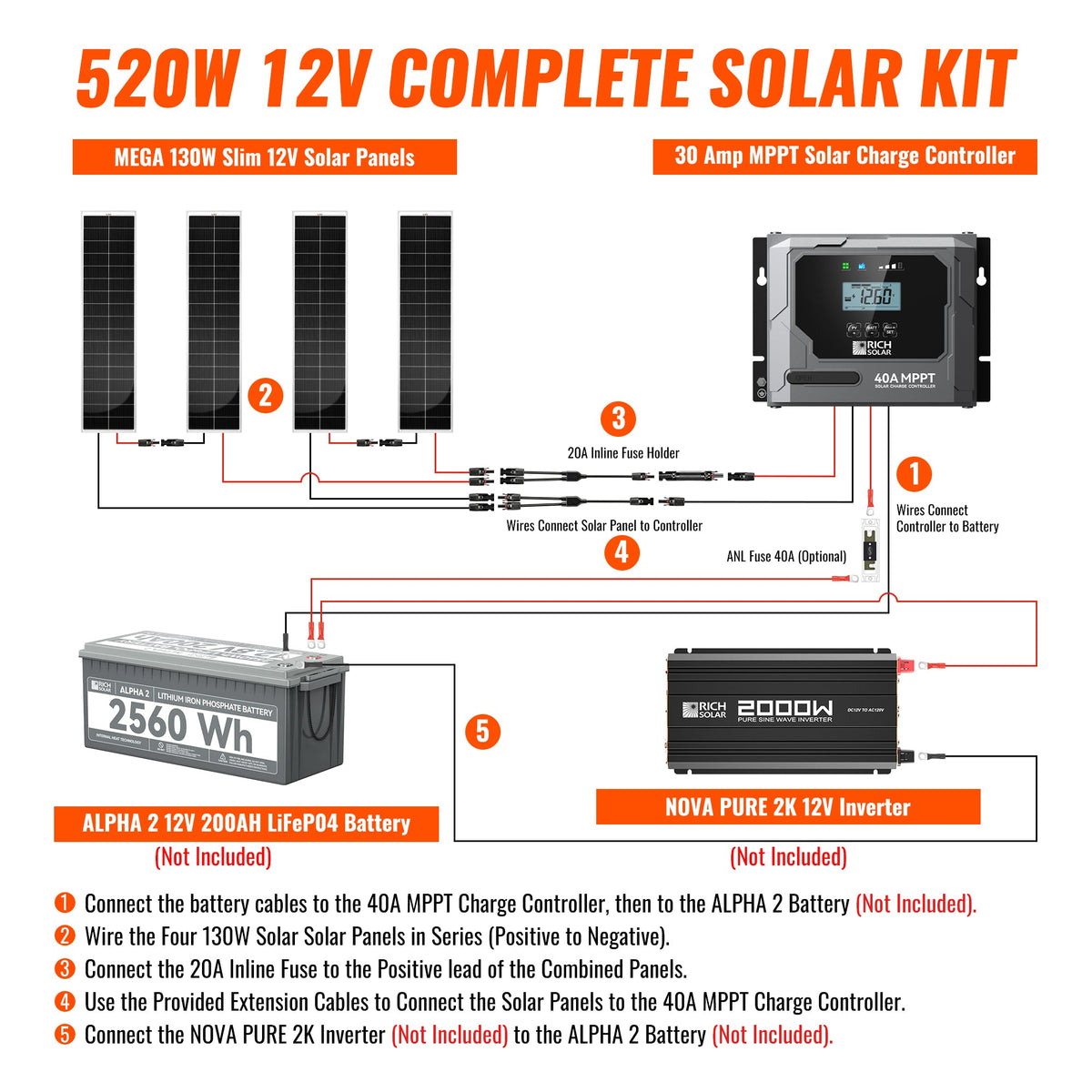

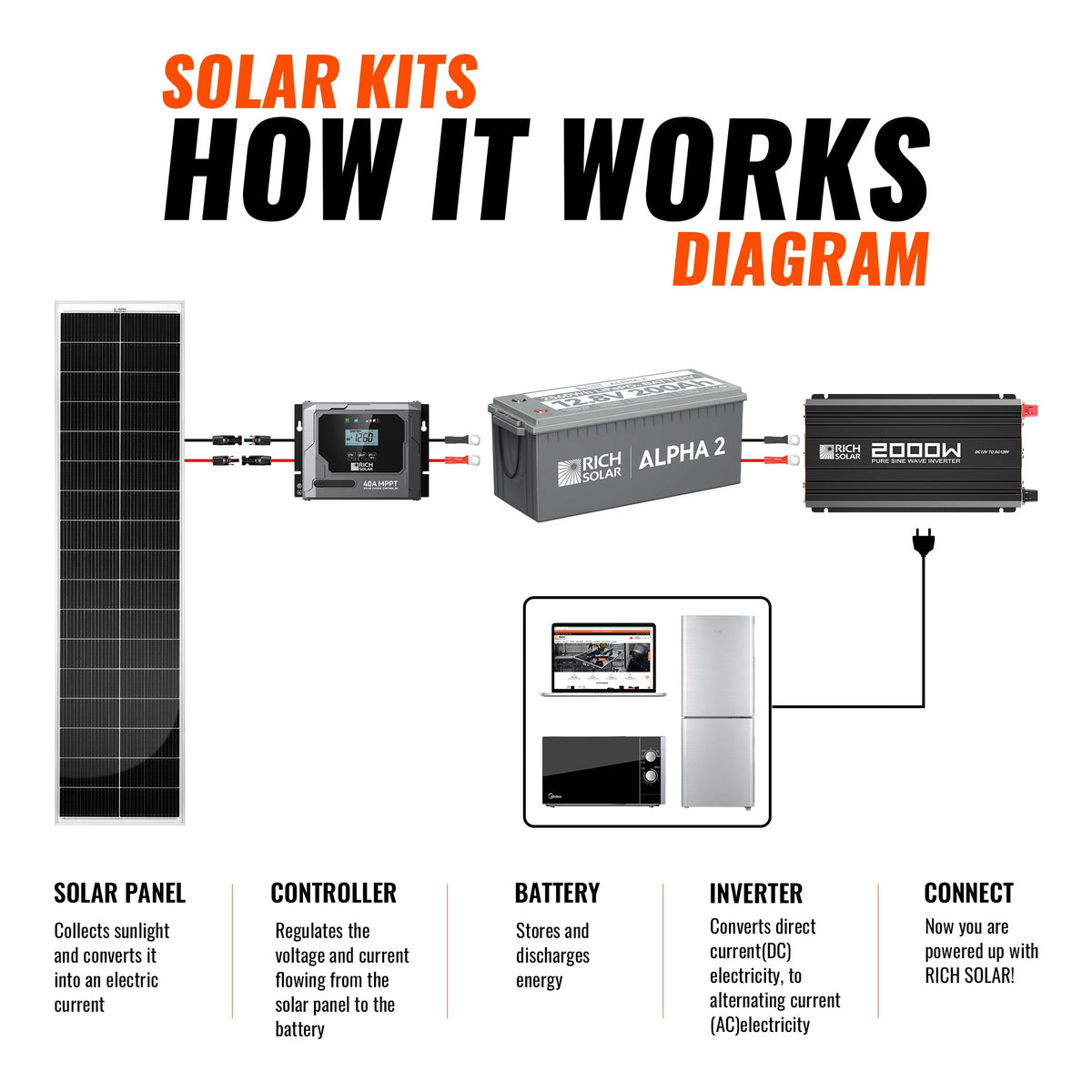

Installation requires suitable rooftop or mounting space for four slim solar panels, a compatible 12V battery system, and secure access for the controller and cable routing. Connect the solar array to the Bravo 40 controller using the supplied cable set and Y branch parallel adapter, then connect the controller to the battery with the supplied 8 AWG cable. Secure panels with the included Z bracket set. Periodically inspect panel surfaces, cable insulation, fuse connections, and mounting hardware.

Warranty and Service Information

Branding/References

References include RS-M130SL panels, RS-MPPT40PB Bravo 40 controller, RS-30101 cable set, RS-Y2 adapter, RS-810 battery cable, RS-ZB4C bracket set, and RS-SC20F fuse holder.

Differentiators

The slim 520W array combines space-conscious panel construction with up to 99.5% MPPT tracking efficiency, supporting higher solar harvest where rooftop area is limited.
