50 Watt Solar Kit

50 Watt Solar Kit

$199.99 USD
$249.99 USD $199.99 USD
Sale Sold out
Shipping calculated at checkout.

features

• Solid design control box — Meets NEMA Type 4 & IP30 standard by lab test
• LCD color screen — Real-time status view and easy user interaction
• Breathing indicator light — Shows real-time charging status
• Control button — Adjust max output current & set scheduled charging time
• Water protection gasket — Resists 3-minute direct high-pressure water spray
• TPU cable — 14.76ft, excellent durability, cold resistant to -22°F
• ETL certified — Compliant with North American safety standards

Technical Specifications

Voltage: 240V/208V
Max Output Current: 40A (SS-PC1-100) / 32A (SS-HAY-100-32A)
Max Power: 8kW / 7kW
Frequency: 50/60Hz
Temperature Range: -22°F to 122°F
Humidity: 5–95%, no condensation
Connector: Type 1 (J1772)
Cable Length: 14.76ft (4.5m)
Altitude: ≤2000m (6,562ft)
Cooling: Natural
Safety Standards: ETL, UL2594, CSA C22.2
Scheduling: App / Timer control
Connectivity: Wi-Fi / Bluetooth
Warranty: 2 years

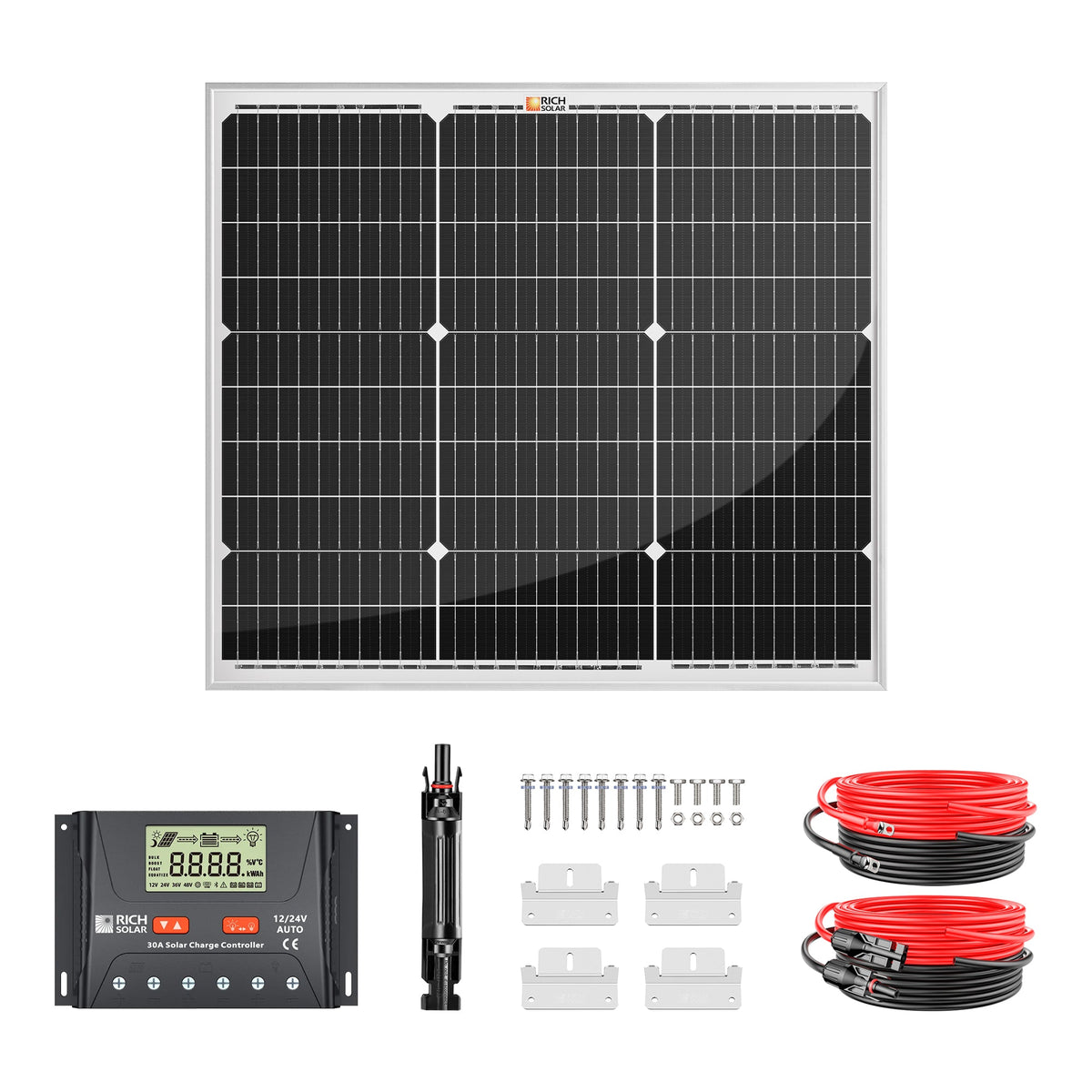

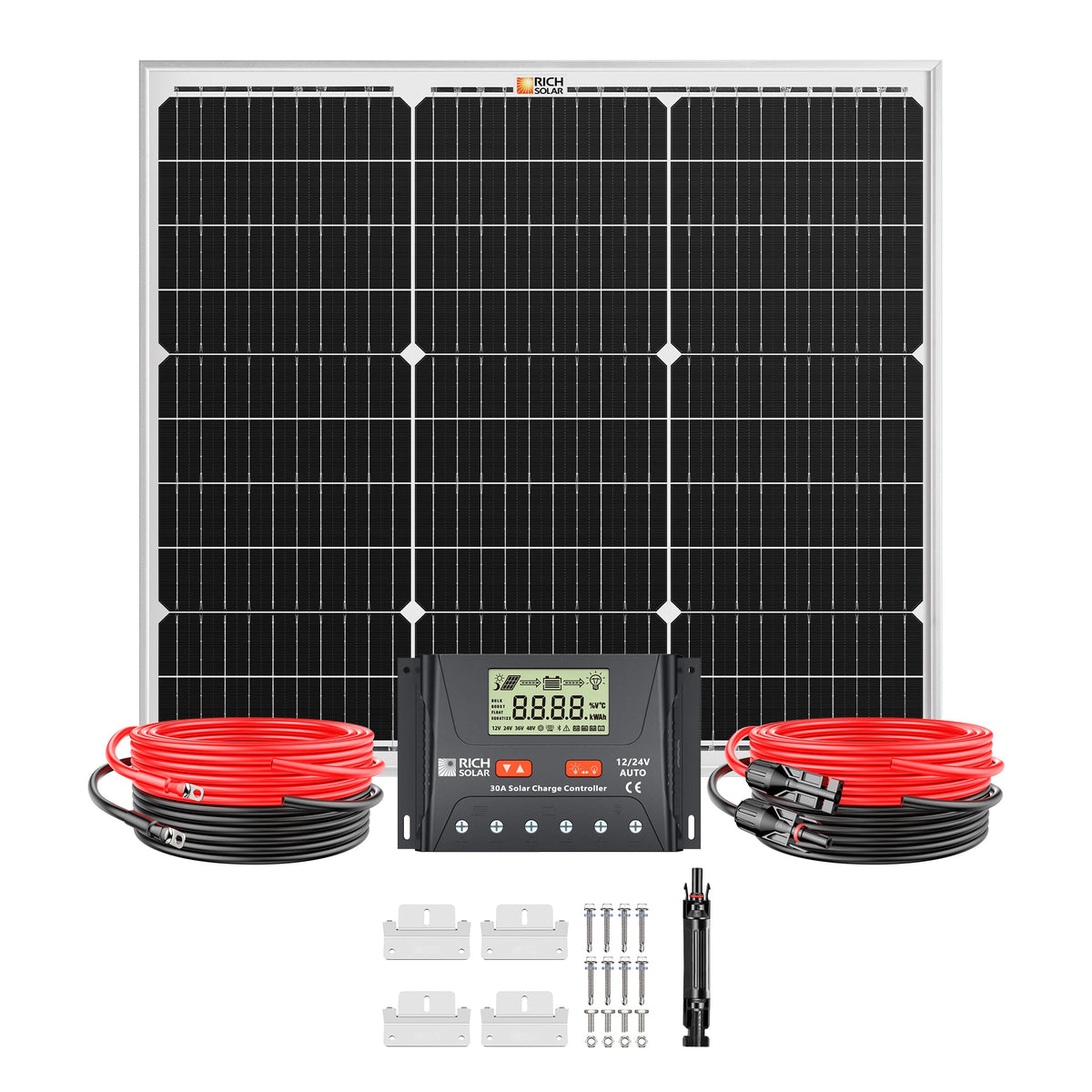

Packing Details

  • 1 x 50 Watt Monocrystalline Solar Panel (RS-M50)
  • 1 x 30A PWM Solar Charge Controller (RS-PWM30P)
  • 1 x 20 ft 10 AWG Solar Cable (Red), connects the solar panel to the controller
  • 1 x 20 ft 10 AWG Solar Cable (Black), connects the solar panel to the controller
  • 1 x 10 ft 10 AWG Battery Cable (Red), connects controller to battery
  • 1 x 10 ft 10 AWG Battery Cable (Black), connects controller to battery
  • 1 x Mounting Z Brackets (one set of 4)
  • 1 x 10A Inline Fuse Holder with Fuse
View full details

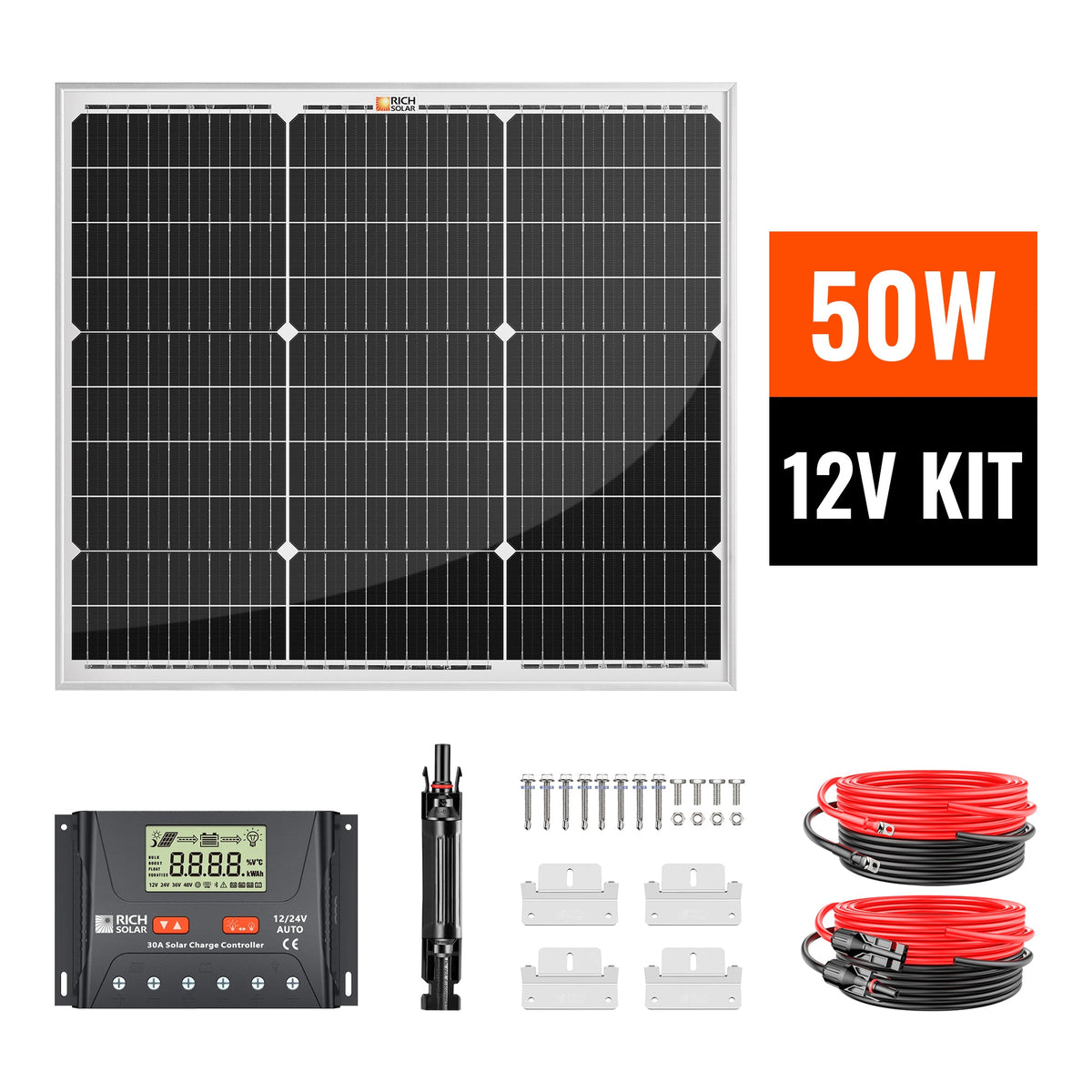

Equipment Type and Primary Applications: 50 Watt Solar Kit

The RICH SOLAR 50 Watt Solar Kit provides a compact 12V solar charging system for compatible battery banks in RVs, trailers, boats, cabins, sheds, and other small off-grid applications.

Performance Specifications

  • Solar array: One 50W monocrystalline solar panel, model RS-M50.
  • Estimated daily energy production: Approximately 0.2kWh under 4 peak sun hours.
  • Charge controller: 30A PWM solar charge controller, model RS-PWM30P.
  • System compatibility: Designed for 12V solar charging systems; the controller automatically detects 12V or 24V systems.
  • Battery compatibility: Supports multiple battery types.

Safety Features and Certifications

  • Includes one 10A inline fuse holder with fuse.
  • Automatic 12V/24V system detection helps match controller operation to the connected system.

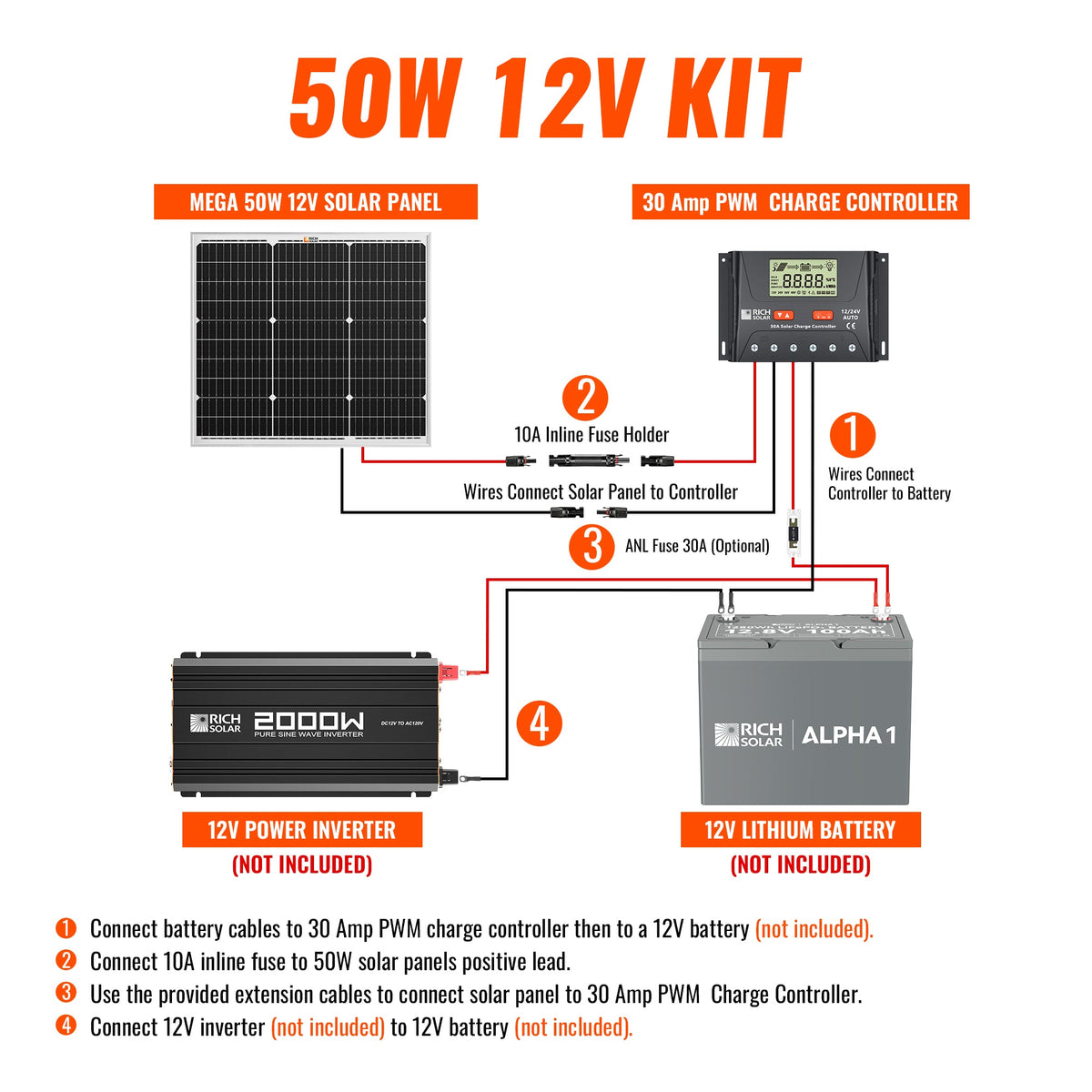

Installation and Maintenance Requirements

  • Includes one set of four mounting Z brackets for panel installation.
  • Panel-to-controller connection uses one 20 ft 10 AWG red solar cable and one 20 ft 10 AWG black solar cable.
  • Controller-to-battery connection uses one 10 ft 10 AWG red battery cable and one 10 ft 10 AWG black battery cable.
  • Install with a compatible battery bank and connect the supplied cables between the panel, controller, and battery as intended.

Warranty and Service Information

Branding/References

  • Manufacturer: RICH SOLAR.
  • Referenced models: RS-M50 monocrystalline solar panel and RS-PWM30P PWM charge controller.

Differentiators

The matched 50W panel and 30A PWM controller form an expandable charging platform. Compatible RICH SOLAR panels can be added as energy requirements increase.
