5 Pole Outdoor Circuit Breaker Box
Equipment Type and Primary Applications

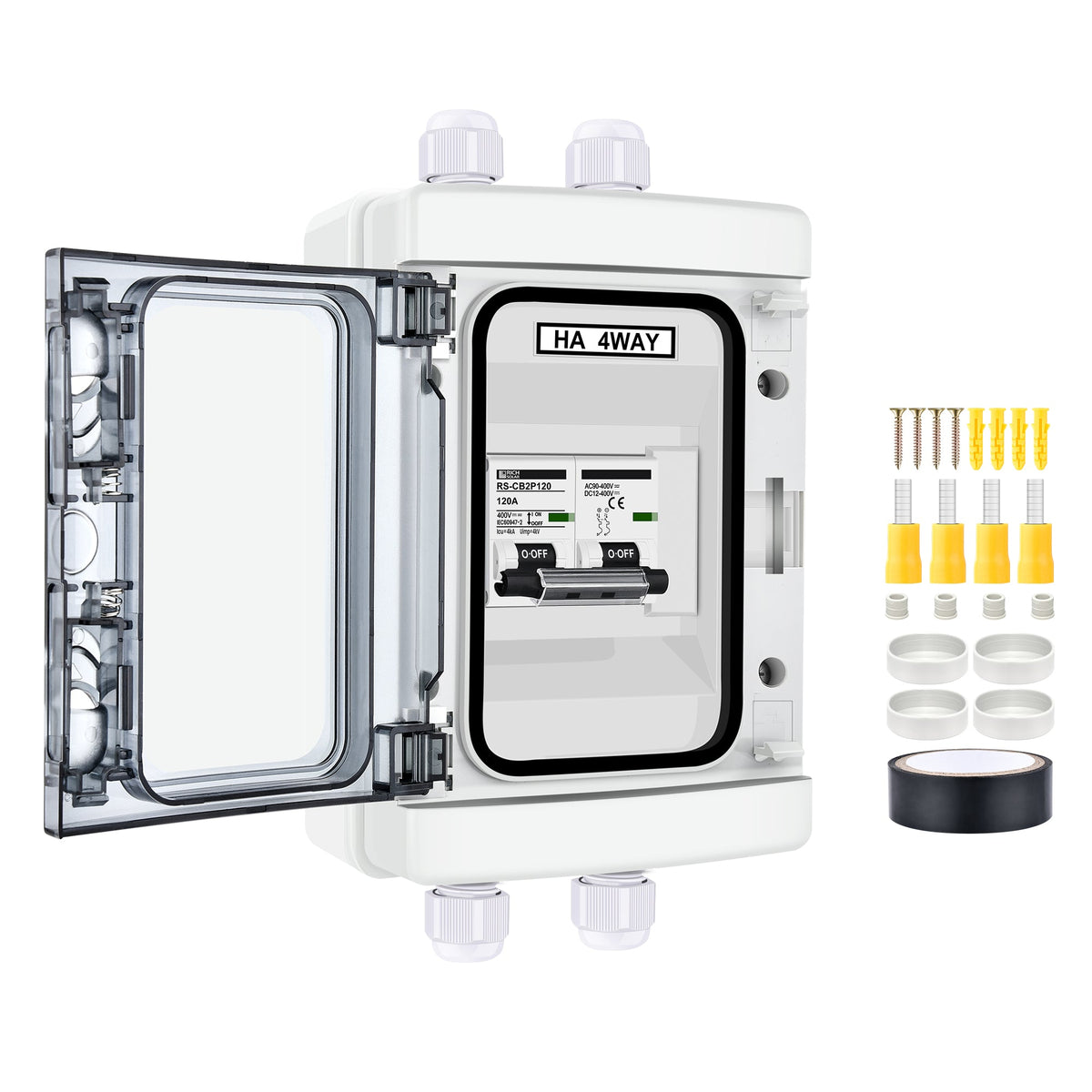

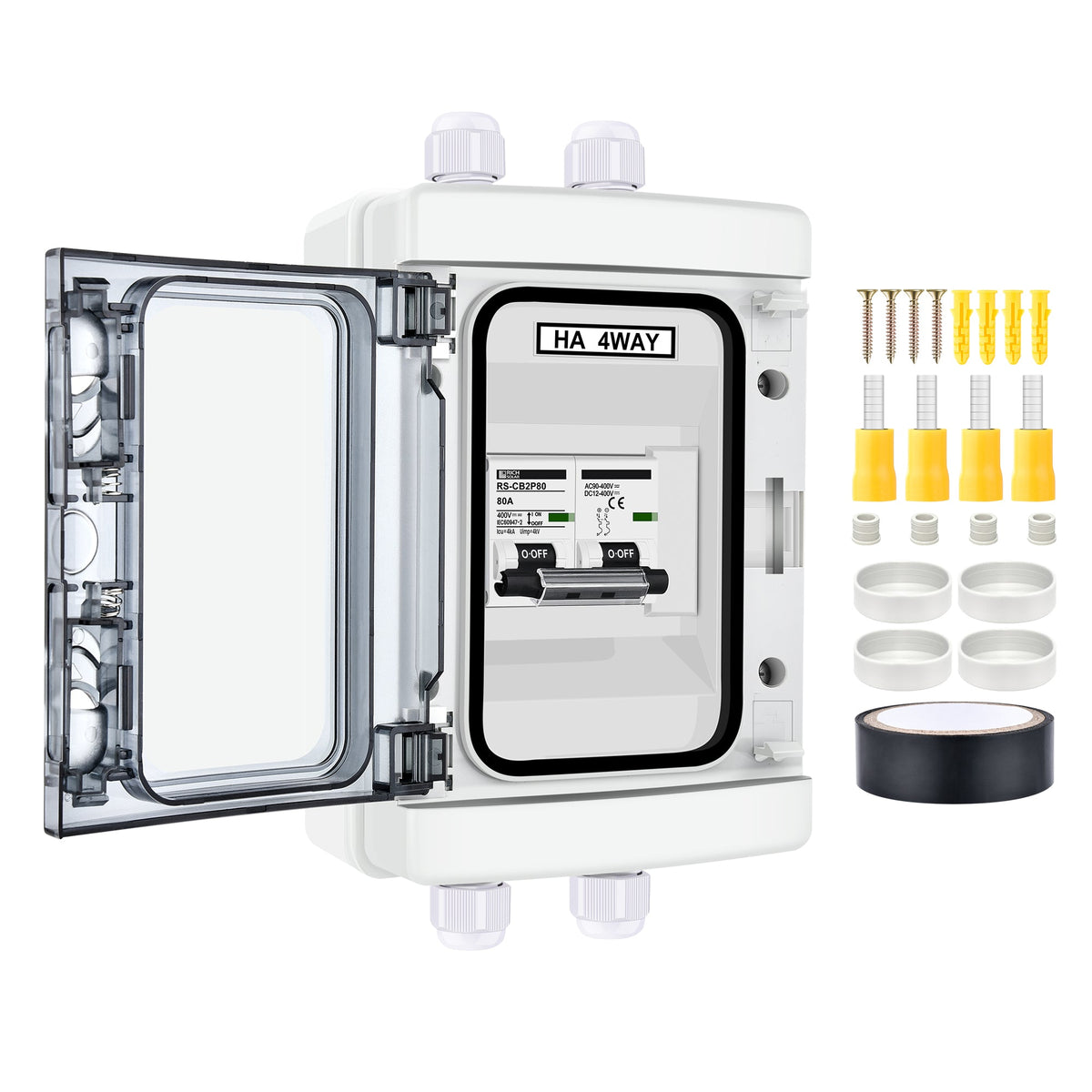

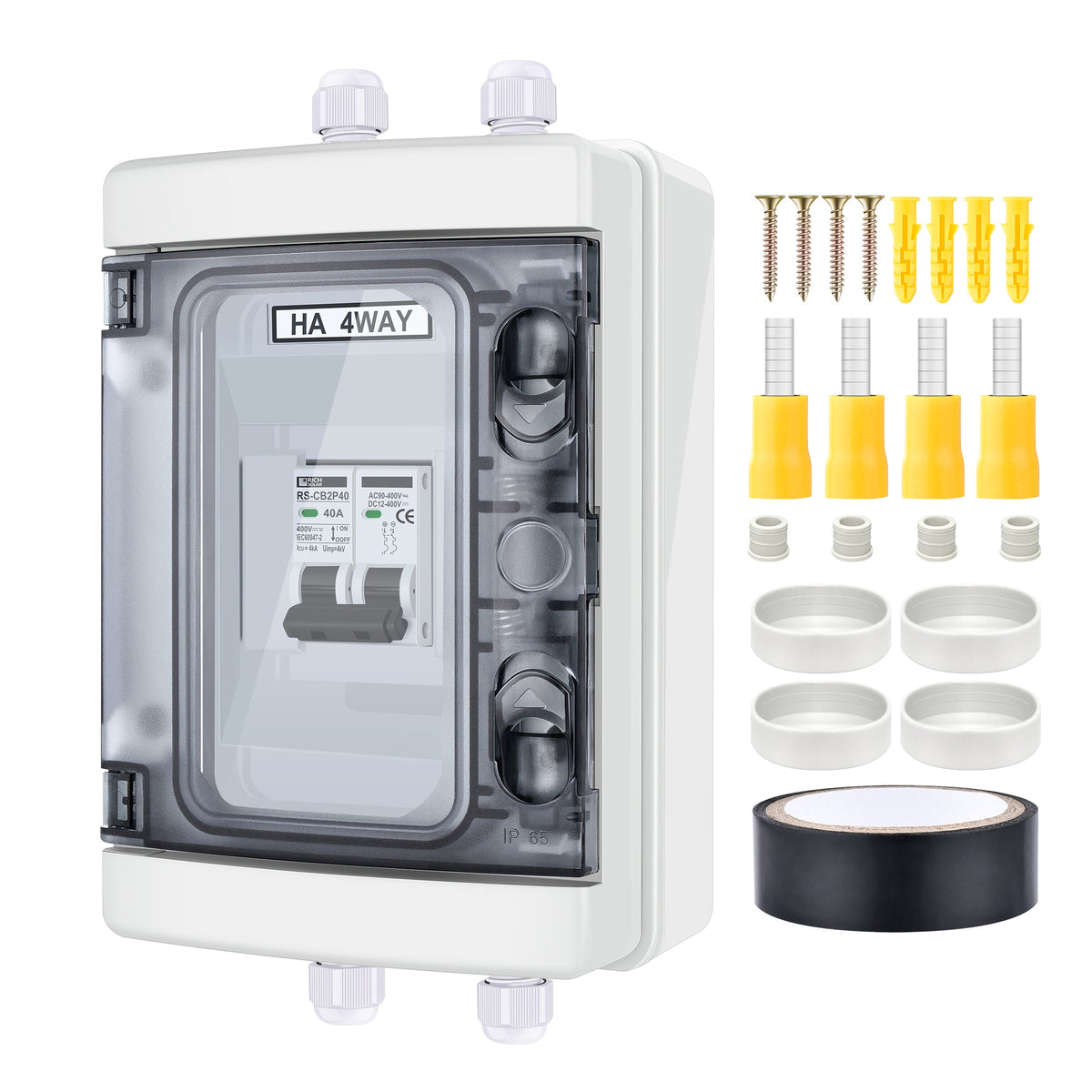

Outdoor circuit breaker enclosure for AC and DC distribution, with dual-pole circuit protection, a built-in DIN rail, and wall-mount installation. Suitable for solar PV systems, RV electrical systems, and off-grid power applications.
Performance Specifications
- Electrical configuration: 2P; current options: 30A, 40A, 60A, 80A, 120A, 150A, 200A, or 250A.
- Rated voltage: AC 90–400V and DC 12–400V; rated frequency: 50/60Hz.
- Breaking capacity: 4,000A.
- Endurance: ≥4,000 operations for 30A–60A ratings; ≥20,000 operations for 80A–250A ratings.
- Protection rating: IP65 exterior and IP20 interior.
- Operating temperature: 23°F to 104°F (-5°C to 40°C).
- Enclosure material: industrial-grade PC/ABS. Package dimensions: 9 × 6 × 5 in; gross weight: 2 lb.
Safety Features and Certifications
- Dual-pole circuit protection supports both AC and DC circuit applications.
- Transparent flip cover allows circuit status checks without opening the enclosure.
- IP65 exterior protection helps shield against dust and water exposure.
- Expanded neutral and ground terminals with copper bus bars support secure electrical connections.
Installation and Maintenance Requirements
Mount on a flat surface using the wall-mount enclosure and route conductors through the pre-drilled wiring ports. Install compatible circuit breakers and DIN rail components on the built-in DIN rail. Inspect wiring connections, terminals, enclosure condition, and cover closure during scheduled electrical maintenance.
Warranty and Service Information
Branding/References
Product reference: 5 Pole Outdoor Circuit Breaker Box. Electrical specification reference: 2P circuit protection.
Differentiators
The enclosure combines AC/DC voltage compatibility up to 400V, a 4,000A breaking capacity, IP65 outdoor protection, and a transparent status-check cover in one DIN rail wall-mount design.
