400W Slim Kit

400W Slim Kit

$663.99 USD
$829.99 USD $663.99 USD
Sale Sold out
Shipping calculated at checkout.

features

• Solid design control box — Meets NEMA Type 4 & IP30 standard by lab test
• LCD color screen — Real-time status view and easy user interaction
• Breathing indicator light — Shows real-time charging status
• Control button — Adjust max output current & set scheduled charging time
• Water protection gasket — Resists 3-minute direct high-pressure water spray
• TPU cable — 14.76ft, excellent durability, cold resistant to -22°F
• ETL certified — Compliant with North American safety standards

Technical Specifications

Voltage: 240V/208V
Max Output Current: 40A (SS-PC1-100) / 32A (SS-HAY-100-32A)
Max Power: 8kW / 7kW
Frequency: 50/60Hz
Temperature Range: -22°F to 122°F
Humidity: 5–95%, no condensation
Connector: Type 1 (J1772)
Cable Length: 14.76ft (4.5m)
Altitude: ≤2000m (6,562ft)
Cooling: Natural
Safety Standards: ETL, UL2594, CSA C22.2
Scheduling: App / Timer control
Connectivity: Wi-Fi / Bluetooth
Warranty: 2 years

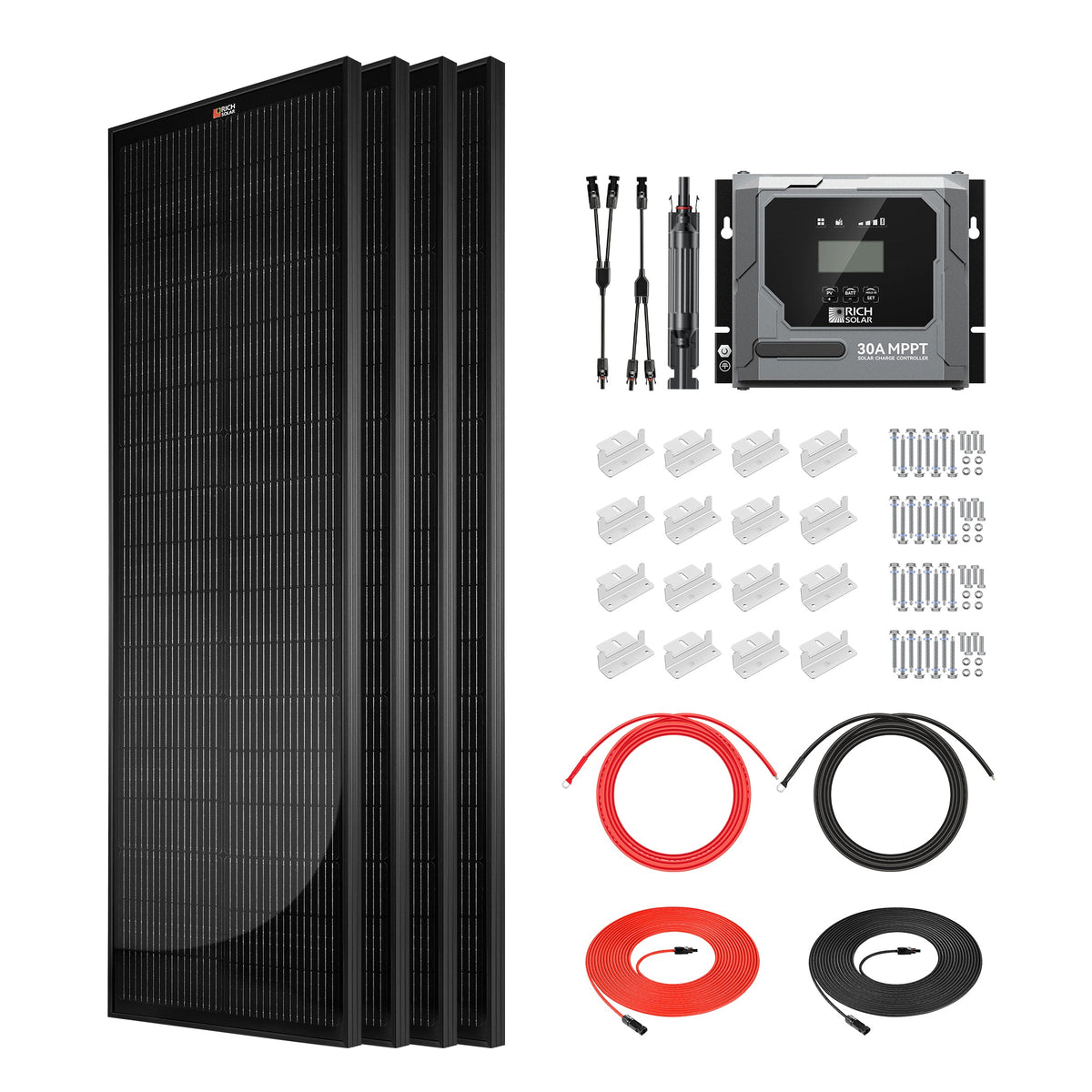

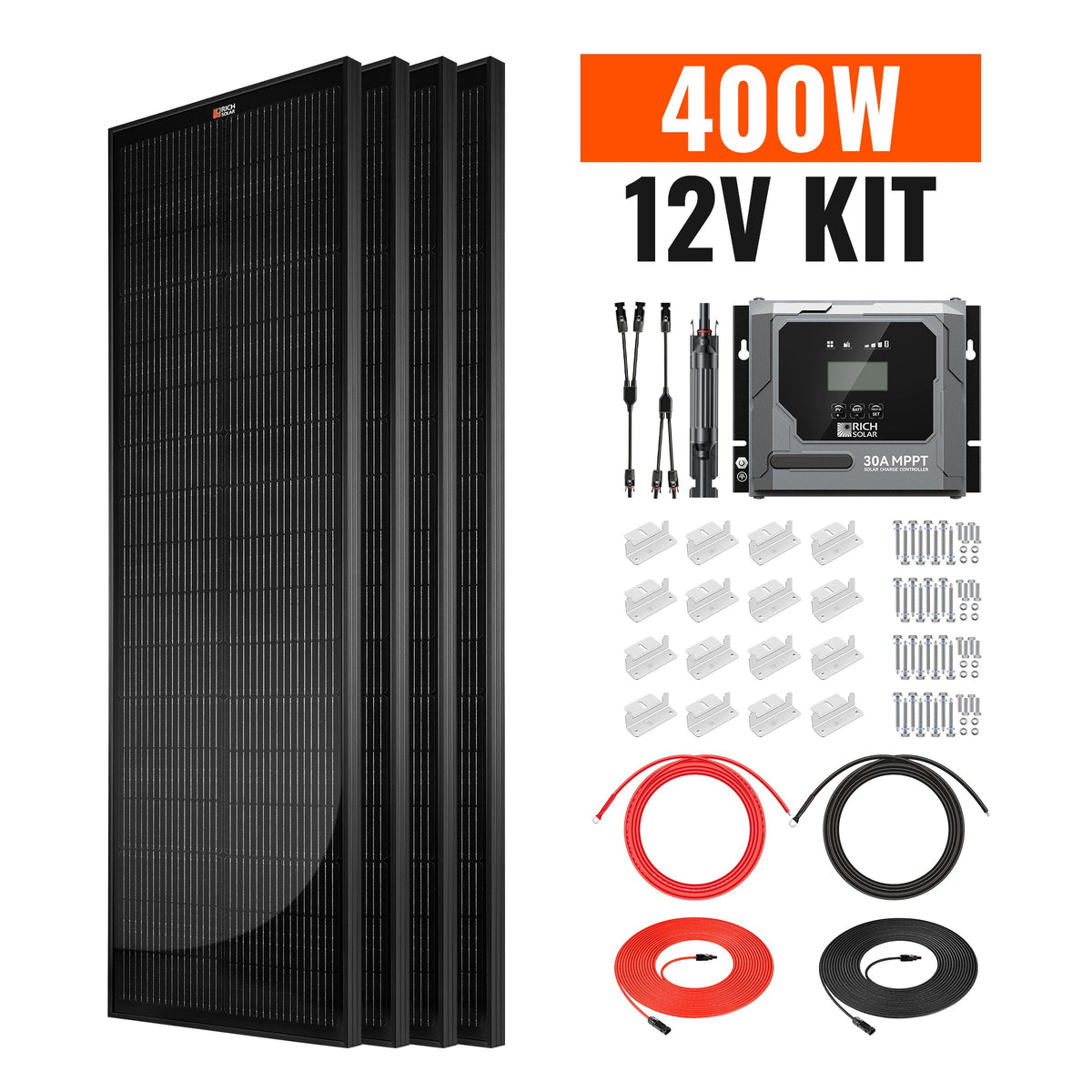

Packing Details

  • 4 x 12V 100W SLIM Onyx Solar Panels (RS-M100SLB)
  • 1 x 30 ft 10 AWG Solar Cable Set (Panel to Controller) (RS-30101)
  • 1 x Y Branch Parallel Adapter (RS-Y2)
  • 1 x 10 ft 8 AWG Battery Cable (Controller to 12V Battery) (RS-810)
  • 1 x Bravo 30 12V/24V 30A MPPT Charge Controller (RS-MPPT30PB)
  • 1 x Mounting Z Bracket set (one set of 4) (RS-ZB4C)
  • 1 x 15A Solar Panel Inline Fuse Holder (RS-SC15F)
View full details

400W Slim Solar Charging Kit

Equipment Type and Primary Applications

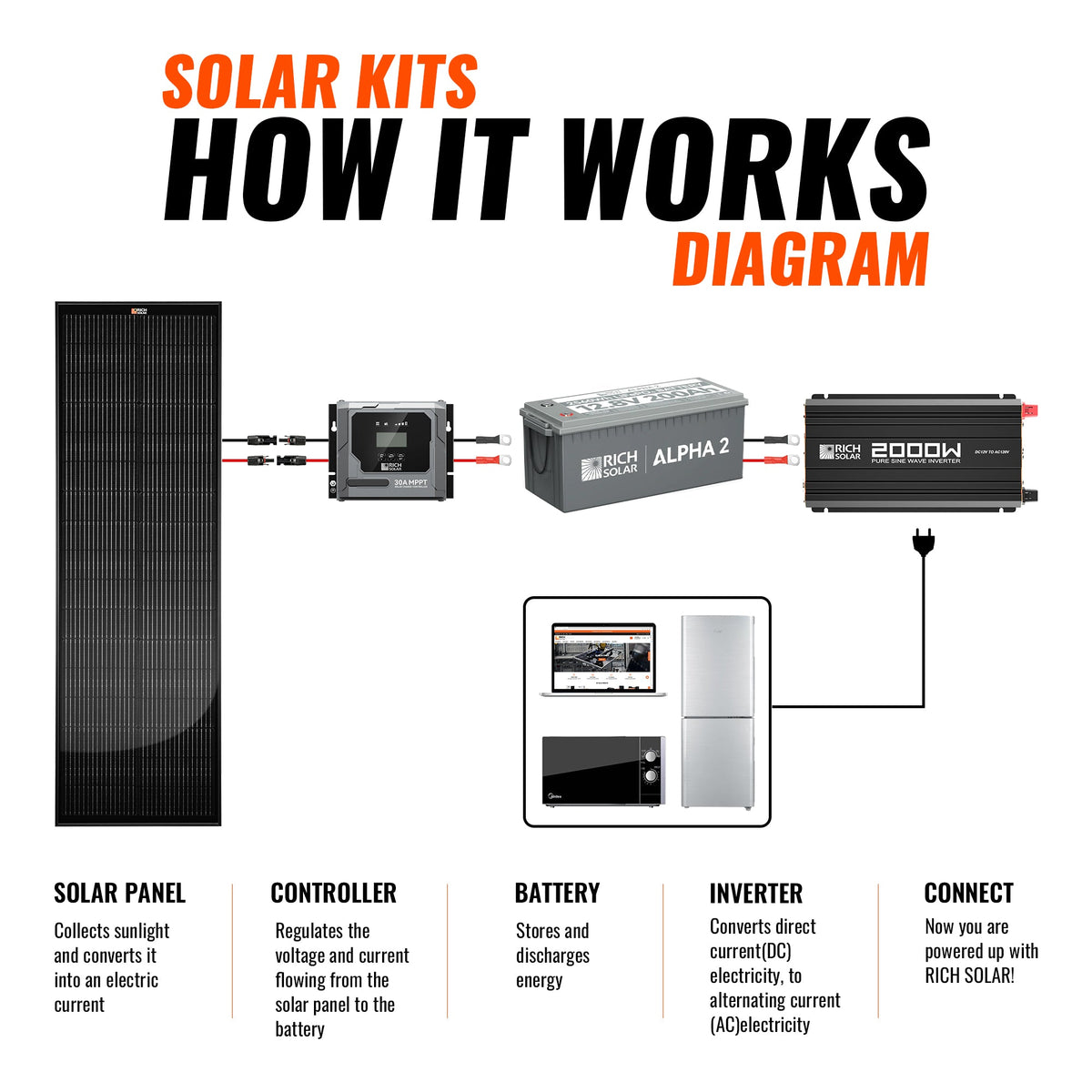

A 400W slim solar charging kit combining four 100W monocrystalline panels with a 30A MPPT charge controller for battery charging in space-constrained, off-grid installations. Designed for RVs, vans, trailers, boats, tiny homes, and other 12V solar power systems.

Performance Specifications

  • Solar array: 400W total, comprising four 12V 100W slim monocrystalline panels.
  • Daily energy production: approximately 1.4kWh under 4 peak sun hours.
  • Charge controller: 30A MPPT, compatible with 12V and 24V systems.
  • MPPT tracking efficiency: up to 99.5%.
  • Peak conversion efficiency: 98%.
  • Included conductors: 10 AWG panel-to-controller cable and 8 AWG controller-to-battery cable.

Safety Features and Certifications

  • Includes a 15A solar panel inline fuse holder for circuit protection.
  • Certification marks and compliance standards are not stated in the supplied product details.

Installation and Maintenance Requirements

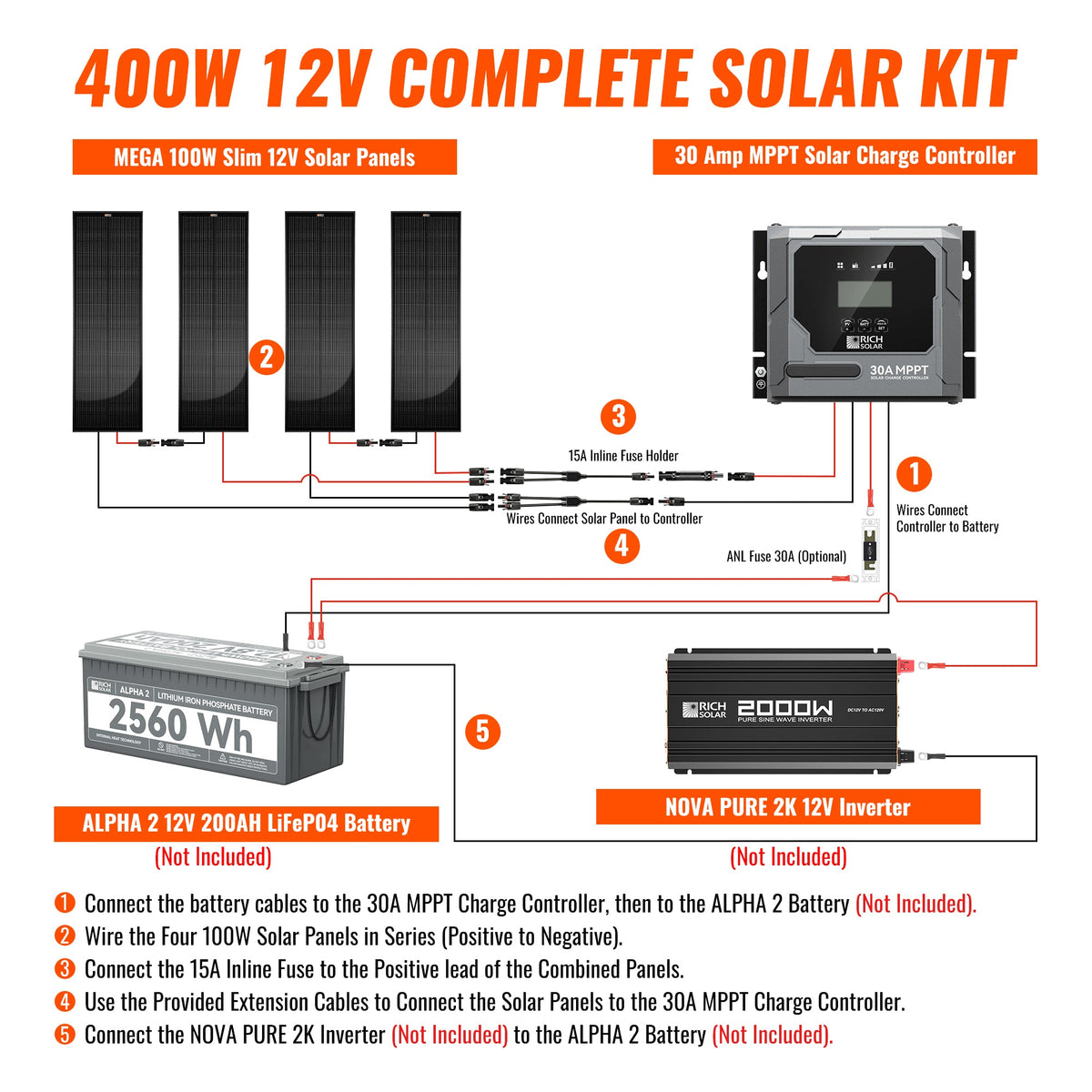

The kit includes a mounting Z-bracket set, pre-assembled solar cables, a Y-branch parallel adapter, and battery cable for installation with a 12V battery system. Installation requires a suitable mounting surface and battery connection. The slim panel profile supports placement where rooftop space is limited. Maintenance intervals and commissioning procedures are not specified.

Warranty and Service Information

Branding/References

  • Solar panels: Onyx Solar RS-M100SLB.
  • Charge controller: Bravo 30 RS-MPPT30PB.
  • Cable set: RS-30101; battery cable: RS-810.
  • Y-branch adapter: RS-Y2; Z-bracket set: RS-ZB4C; fuse holder: RS-SC15F.

Differentiators

The 30A MPPT controller combines up to 99.5% tracking efficiency with 98% peak conversion efficiency, while four slim panels provide a 400W array for compact rooftop installations.
