4 Pole Outdoor Circuit Breaker Box

4 Pole Outdoor Circuit Breaker Box

$39.99 USD
$49.99 USD $39.99 USD
Sale Sold out
Shipping calculated at checkout.

features

• Solid design control box — Meets NEMA Type 4 & IP30 standard by lab test
• LCD color screen — Real-time status view and easy user interaction
• Breathing indicator light — Shows real-time charging status
• Control button — Adjust max output current & set scheduled charging time
• Water protection gasket — Resists 3-minute direct high-pressure water spray
• TPU cable — 14.76ft, excellent durability, cold resistant to -22°F
• ETL certified — Compliant with North American safety standards

Technical Specifications

Voltage: 240V/208V
Max Output Current: 40A (SS-PC1-100) / 32A (SS-HAY-100-32A)
Max Power: 8kW / 7kW
Frequency: 50/60Hz
Temperature Range: -22°F to 122°F
Humidity: 5–95%, no condensation
Connector: Type 1 (J1772)
Cable Length: 14.76ft (4.5m)
Altitude: ≤2000m (6,562ft)
Cooling: Natural
Safety Standards: ETL, UL2594, CSA C22.2
Scheduling: App / Timer control
Connectivity: Wi-Fi / Bluetooth
Warranty: 2 years

Packing Details

View full details

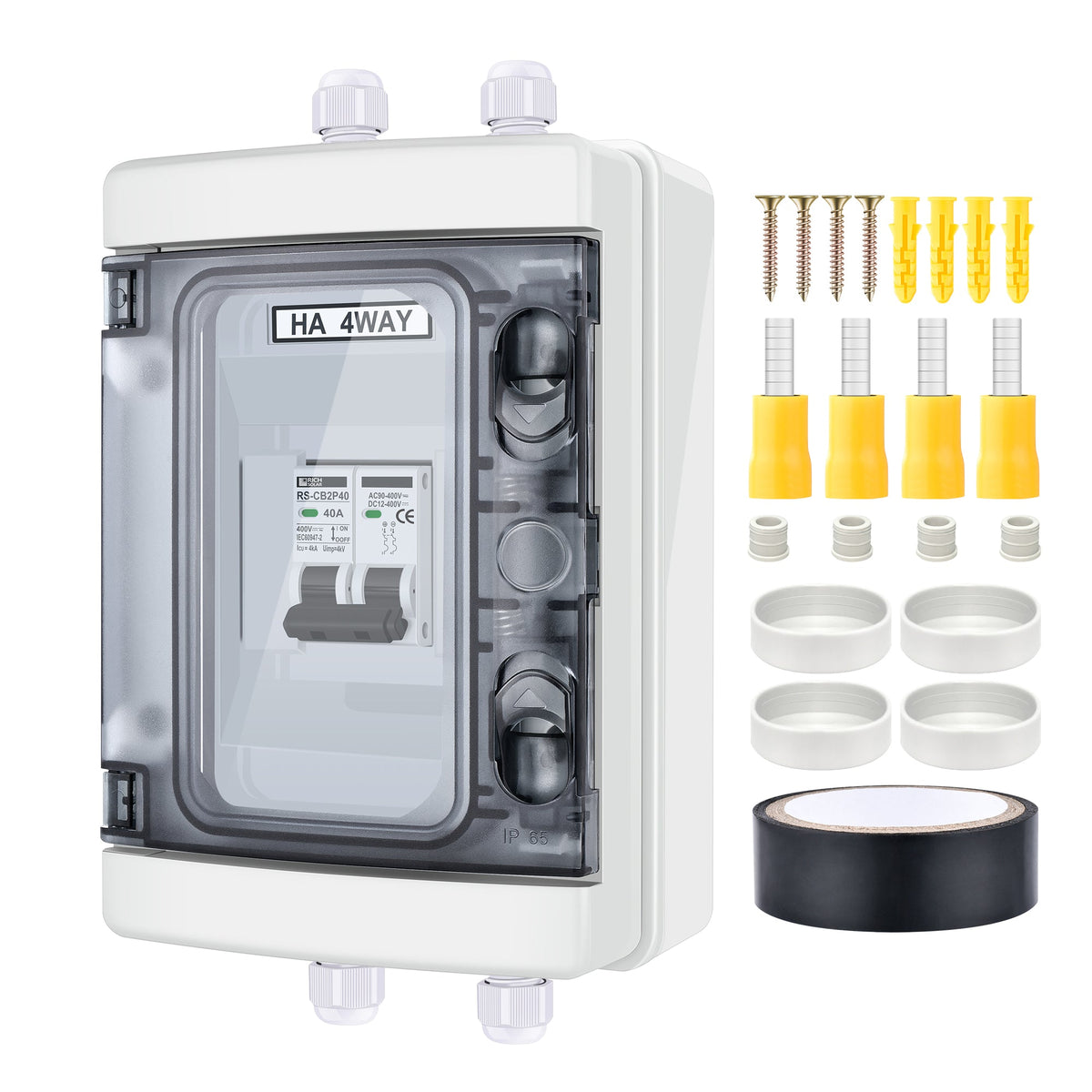

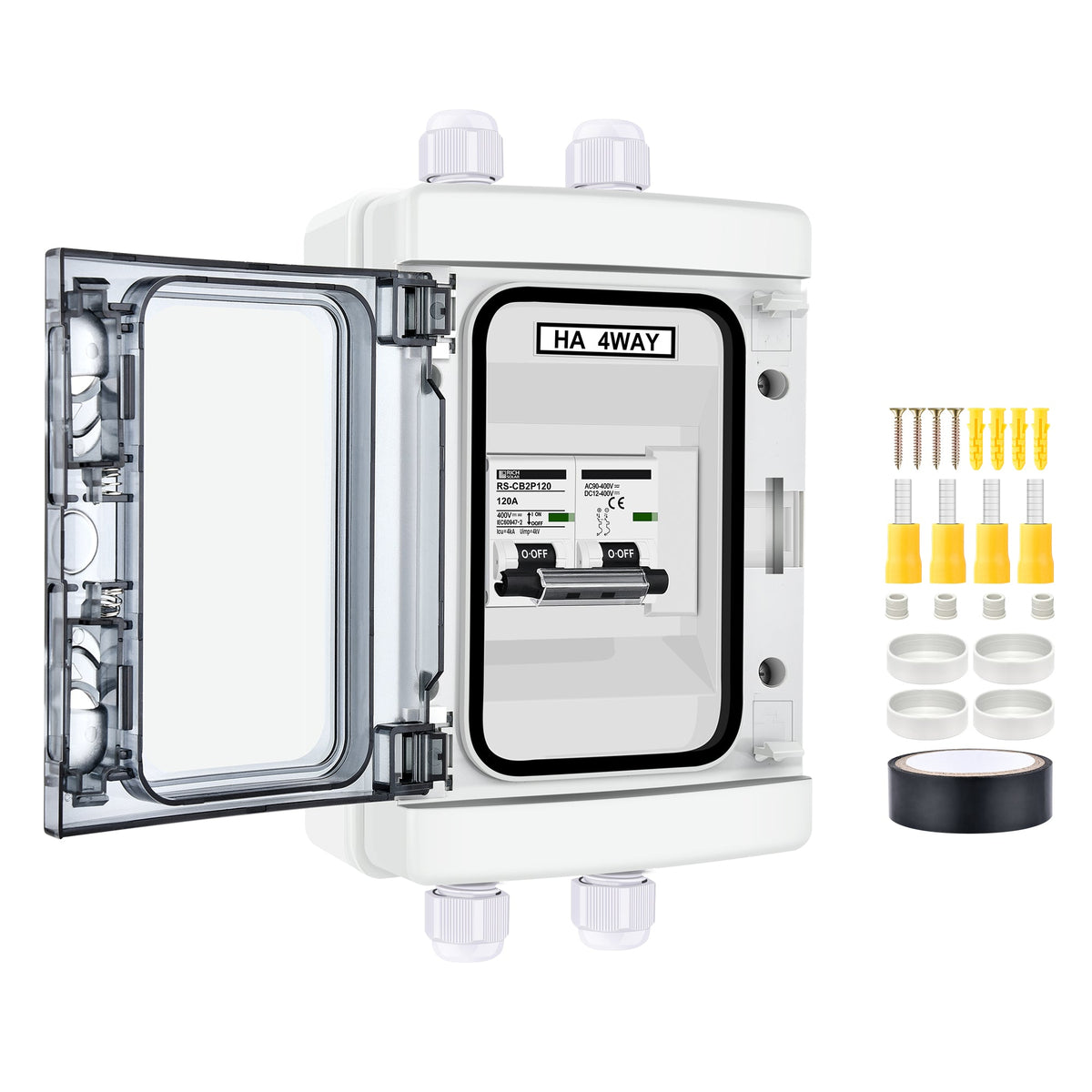

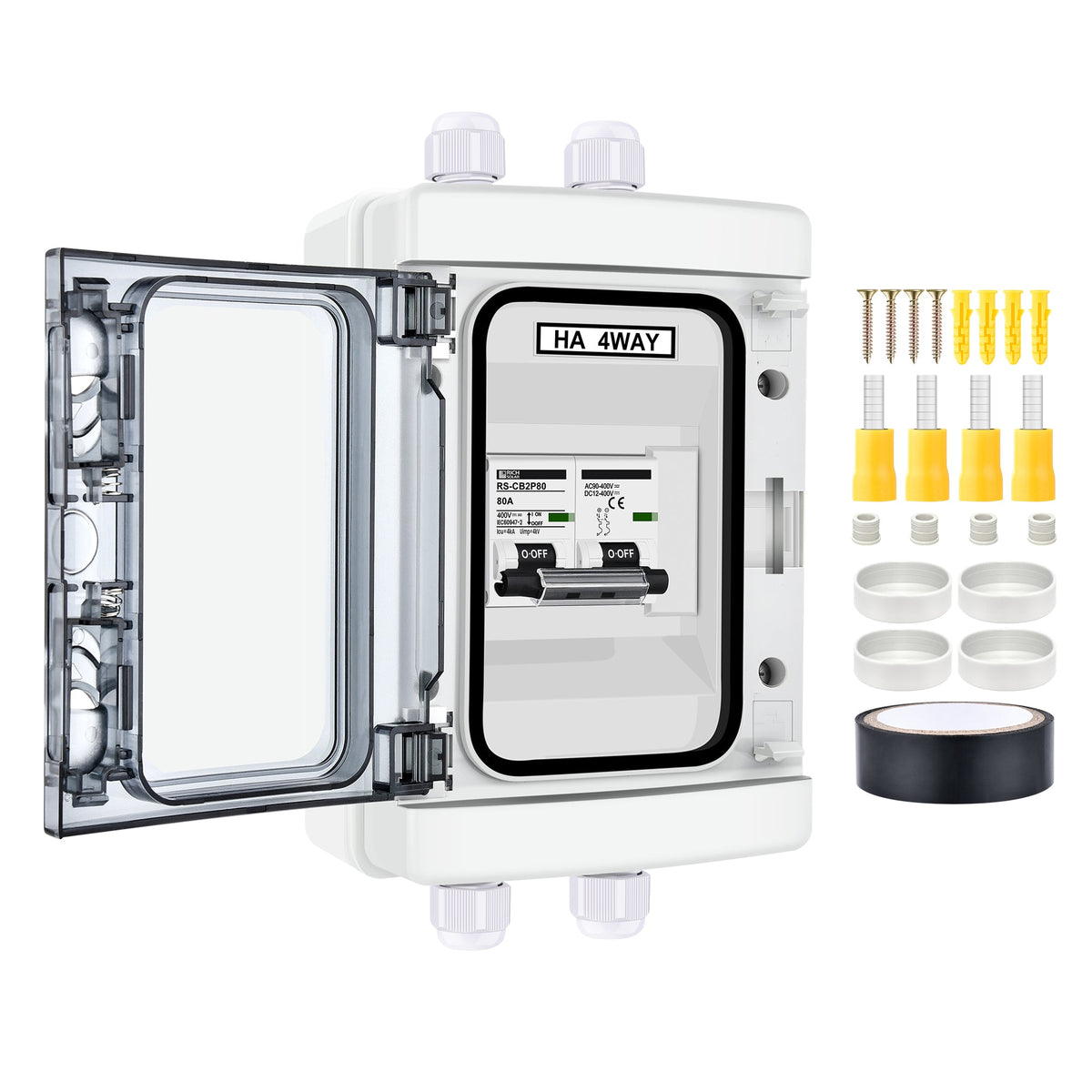

4 Pole Outdoor Circuit Breaker Box

Equipment Type: Outdoor circuit breaker enclosure with two-pole circuit protection, built-in DIN rail, wall-mount design, and transparent flip cover.

Primary Applications: Solar photovoltaic systems, RV electrical systems, off-grid installations, and AC or DC circuit distribution in outdoor environments.

Performance Specifications

  • Current ratings: 30A, 40A, 60A, 80A, 120A, 150A, 200A, and 250A.
  • Rated voltage: AC 90–400V; DC 12–400V.
  • Rated frequency: 50/60Hz.
  • Breaking capacity: 4,000A.
  • Endurance: ≥4,000 operations at 30A–60A; ≥20,000 operations at 80A–250A.
  • Protection rating: IP65 exterior and IP20 interior.
  • Operating temperature: 23°F to 104°F (-5°C to 40°C).
  • Enclosure: impact-resistant industrial-grade PC/ABS. Package dimensions are 9 × 6 × 5 inches; gross weight is 2 lb.

Safety Features and Certifications

  • Dual-pole circuit protection supports AC and DC systems.
  • IP65 enclosure protection helps shield outdoor components from water and dust.
  • Transparent flip cover enables circuit-status checks without opening the box.
  • Expanded copper neutral and ground terminals support secure electrical connections.

Installation and Maintenance Requirements

  • Mount on a flat surface using the wall-mount enclosure and route conductors through pre-drilled wiring ports.
  • Use the built-in DIN rail for compatible circuit breakers and DIN rail components.
  • Inspect wiring connections, terminals, enclosure condition, and cover closure during routine electrical maintenance.

Warranty and Service Information

Branding/References

Product reference: 4 Pole Outdoor Circuit Breaker Box.

Differentiators

The enclosure combines AC/DC voltage compatibility from 12V DC to 400V AC, 4,000A breaking capacity, DIN rail installation, and IP65 outdoor protection in one compact wall-mounted box.
