Equipment Type and Primary Applications

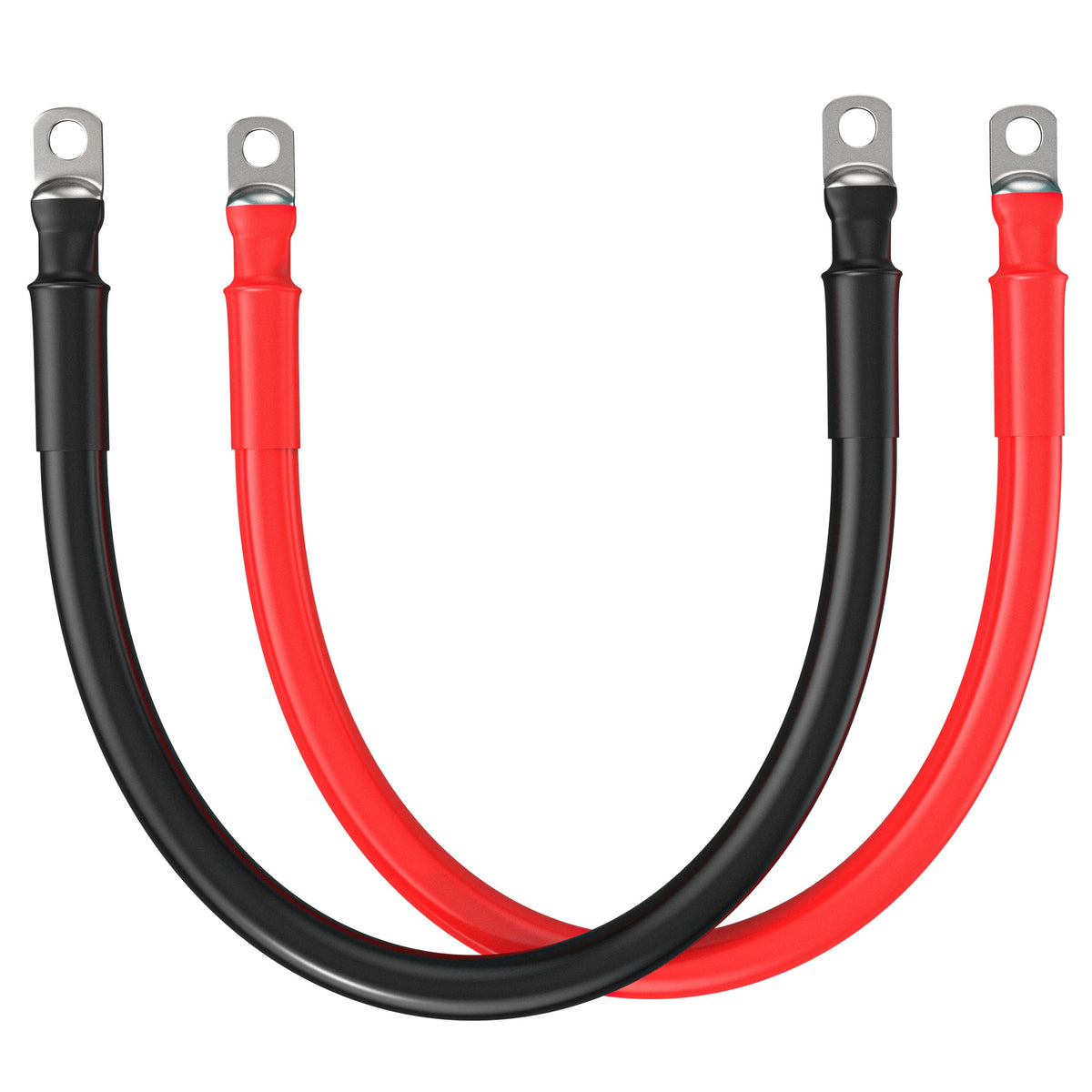

Equipment Type: 4 AWG inverter-to-battery cable set. Primary Applications: Direct connections between battery banks and inverters in solar power systems, RVs, marine equipment, and other DC applications. The red and black pair supports polarity identification during installation.
Performance Specifications
- Conductor: 100% pure copper with 665 strands for flexible routing and reliable power transfer.
- Wire gauge: 4 AWG.
- Voltage rating: Up to 600 V.
- Operating temperature: -40°F to +221°F.
- Insulation: Flexible, moisture-resistant PVC with VW-1 flame rating.
- Terminations: Pre-installed 5/16-inch lugs on both ends of each cable.
- Available lengths: 1 ft, 1.5 ft, 2 ft, 3 ft, 4 ft, 5 ft, 6 ft, 8 ft, and 10 ft.
Safety Features and Certifications
- VW-1-rated PVC insulation provides a specified flame-resistance classification.
- Moisture-resistant insulation supports use in solar, RV, marine, and other DC environments.
- UL certified.
Installation and Maintenance Requirements
Use the pre-installed 5/16-inch lugs to connect the cables between compatible battery and inverter terminals. Select the cable length required for the installation and maintain correct red-positive and black-negative identification. Cable ends are supplied ready for connection; no lug crimping is required. Installation suitability depends on compatible 5/16-inch terminals and the system’s electrical requirements.
Warranty and Service Information
Branding/References
Model references: RS-4A1F5 and RS-4A3F5. Package dimensions: 16 × 11 in. Gross weight: 1 lb for RS-4A1F5 and 2 lb for RS-4A3F5.
Differentiators
The cable pair combines flexible 665-strand pure copper conductors with factory-installed 5/16-inch lugs, reducing installation preparation while maintaining polarity-specific red and black identification.
