Equipment Type and Primary Applications

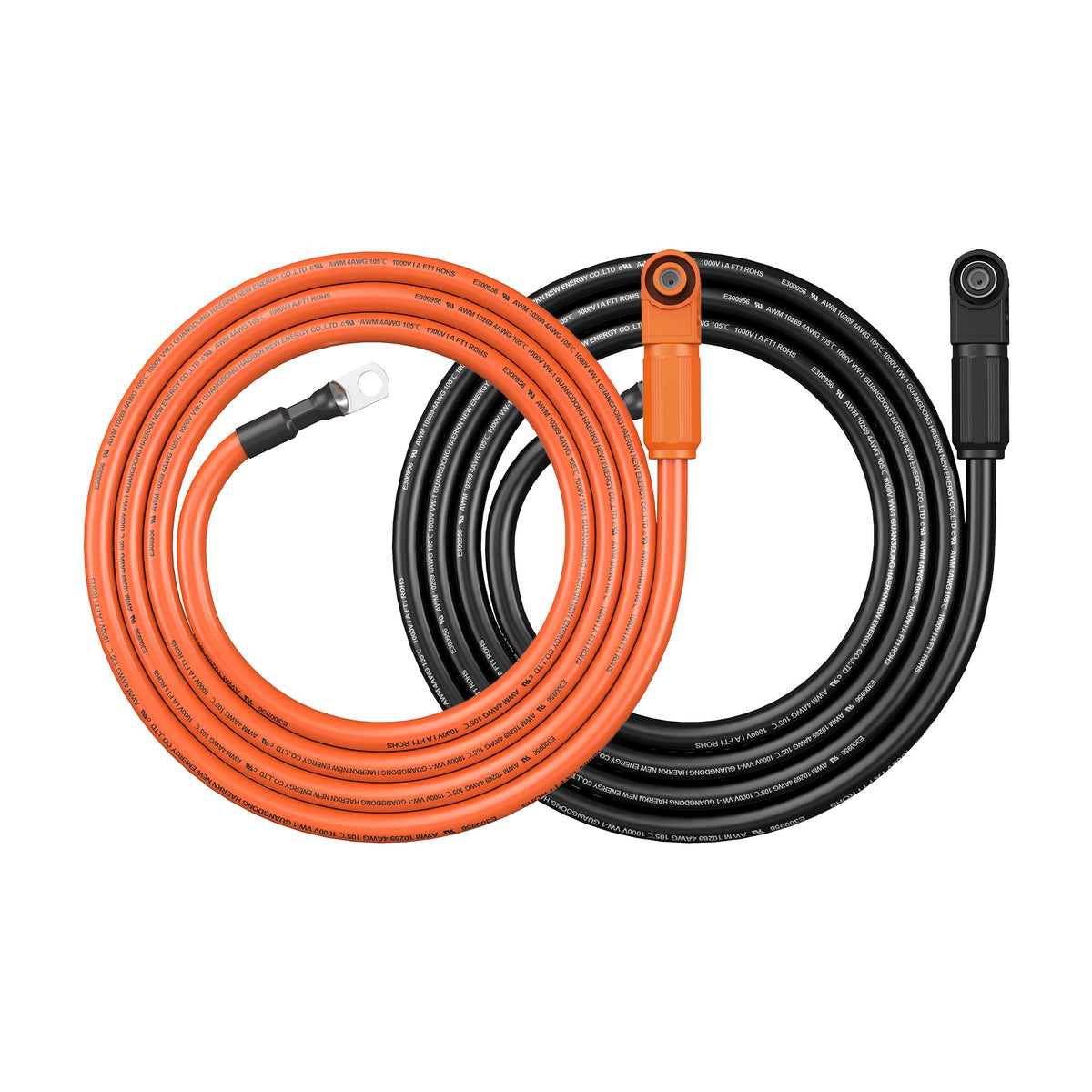

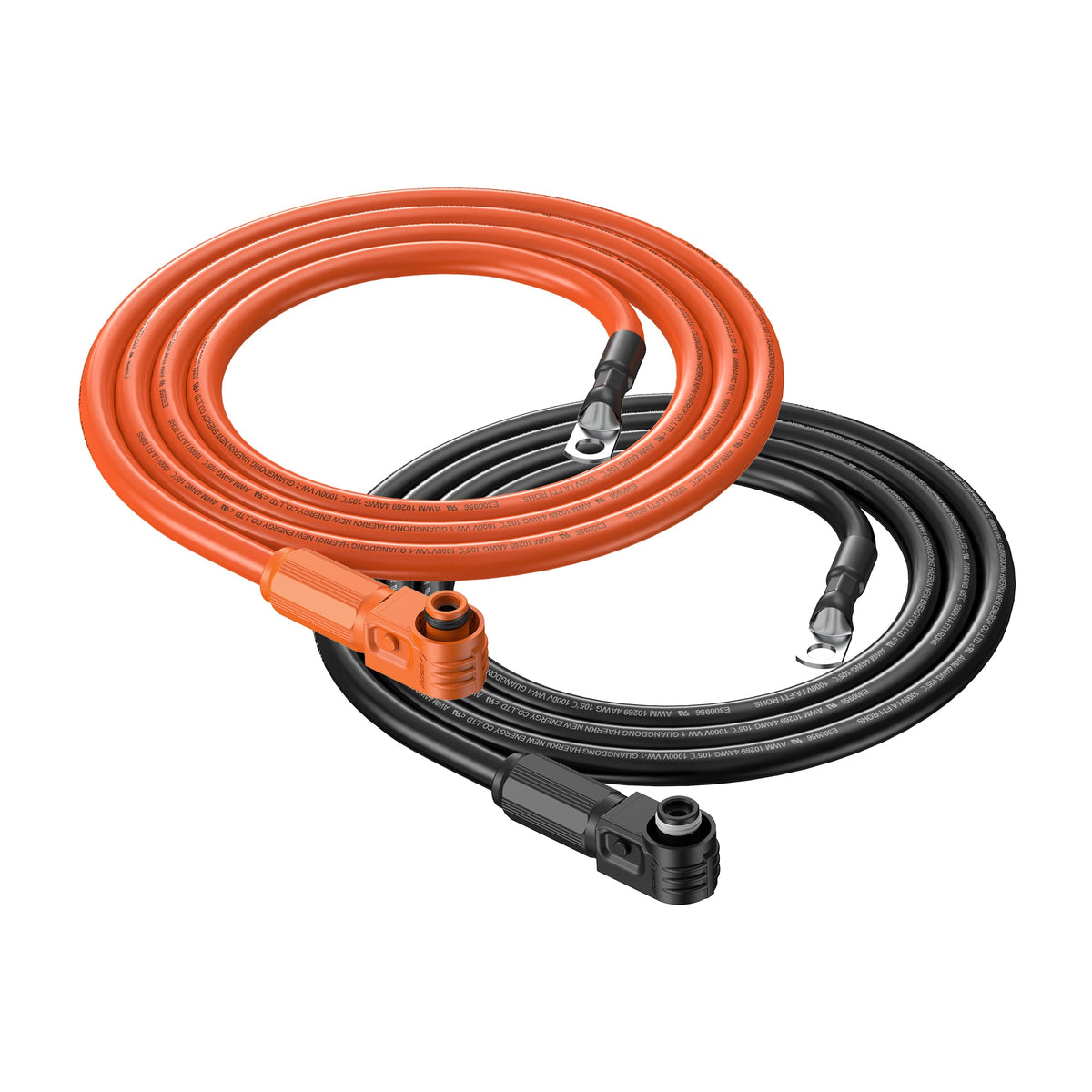

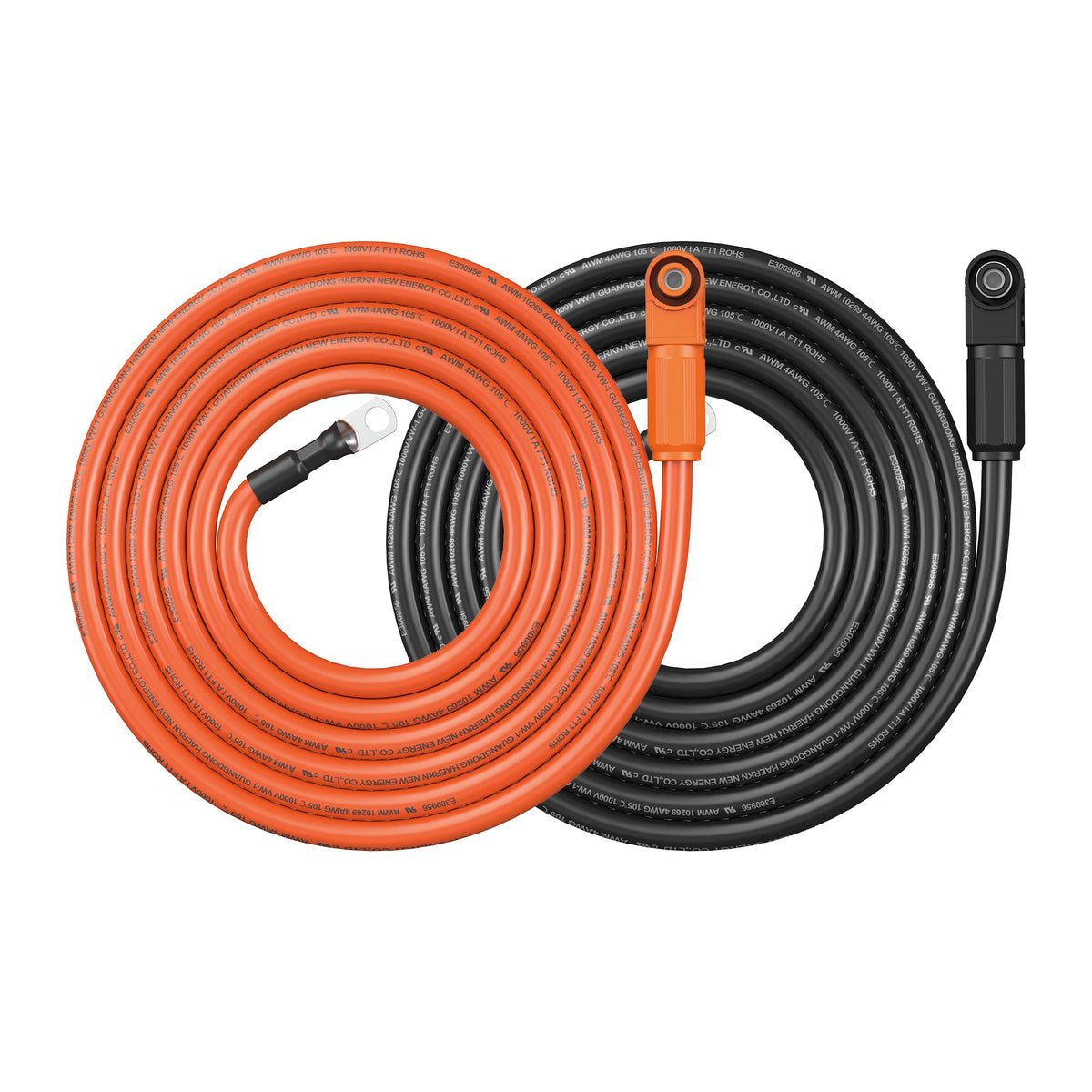

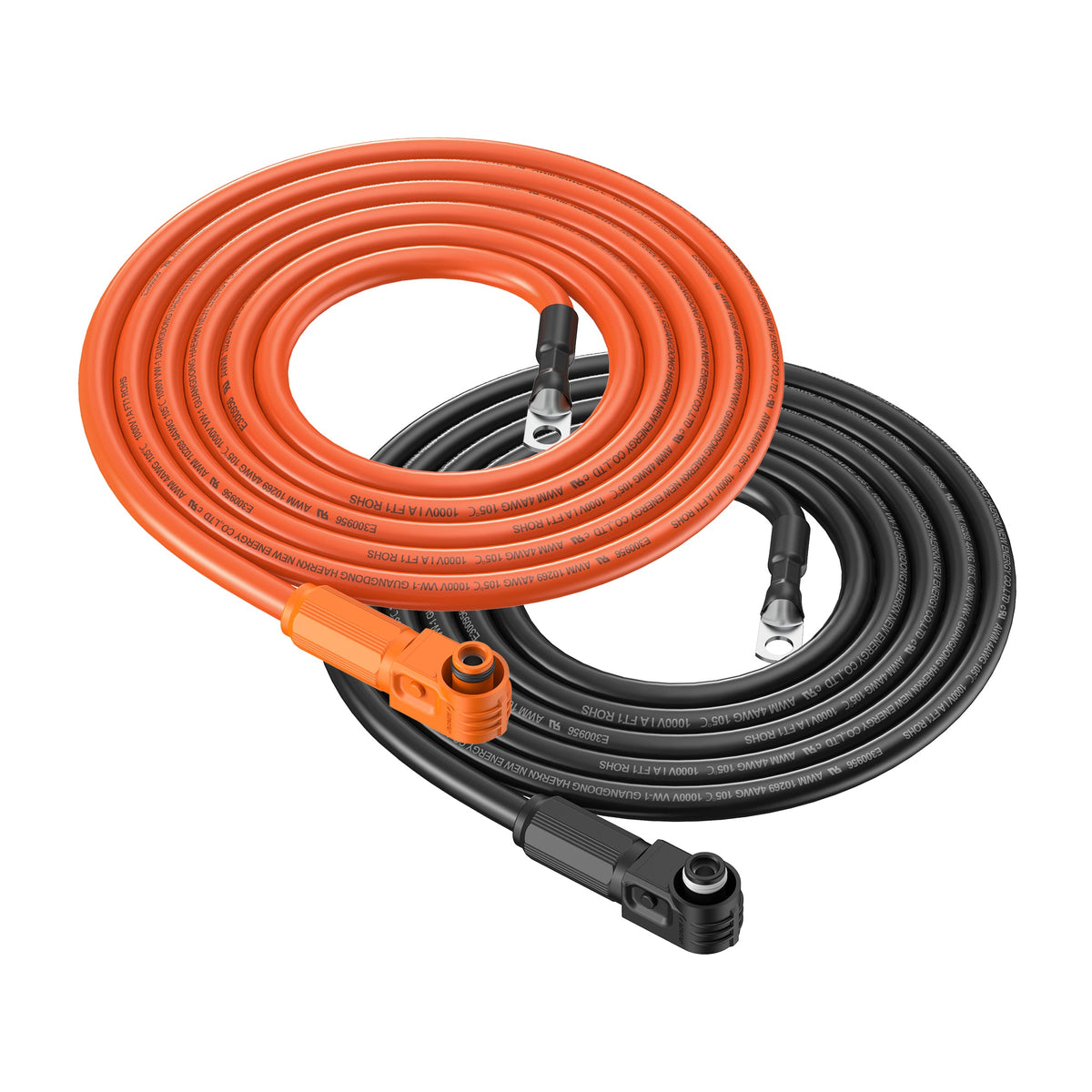

This 4 AWG battery-to-inverter cable set connects RICH SOLAR ALPHA 5 PRO batteries to compatible RICH SOLAR hybrid inverters. The orange-and-black pair is intended for high-current battery power transfer where system-specific ALPHA 5 PRO connectors are required. Choose a 6 ft or 10 ft cable length to match the installation layout.
Performance Specifications
- Wire gauge: 4 AWG
- Rated current: 120 A
- Voltage rating: 1000 V
- Cable configuration: Orange and black pair
- Available lengths: 6 ft and 10 ft
- Application: Battery-to-inverter connection
- Battery compatibility: RICH SOLAR ALPHA 5 PRO
- Connector type: ALPHA 5 PRO system-specific connectors
Safety Features and Certifications
- Color-coded orange and black conductors support polarity identification during installation.
- System-specific connectors are designed for connection with the ALPHA 5 PRO system.
Installation and Maintenance Requirements
Install between a compatible RICH SOLAR ALPHA 5 PRO battery and compatible RICH SOLAR hybrid inverter using the designated system connectors. Select the cable length according to equipment placement and routing distance. Confirm orange and black cable polarity before completing the connection. Package dimensions are 8 × 8 × 3 in.
Warranty and Service Information
Branding/References
- Compatible system: RICH SOLAR ALPHA 5 PRO
- Product references: RS-IBC4A06F for 6 ft; RS-IBC4A10F for 10 ft
- Gross weight: 3 lb for RS-IBC4A06F; 5 lb for RS-IBC4A10F
Differentiators
The cable set combines a 4 AWG conductor size, 120 A current rating, 1000 V voltage rating, and ALPHA 5 PRO system-specific connectors in selectable 6 ft and 10 ft configurations.
