390W Slim Kit

390W Slim Kit

$631.99 USD
$789.99 USD $631.99 USD
Sale Sold out
Shipping calculated at checkout.

features

• Solid design control box — Meets NEMA Type 4 & IP30 standard by lab test
• LCD color screen — Real-time status view and easy user interaction
• Breathing indicator light — Shows real-time charging status
• Control button — Adjust max output current & set scheduled charging time
• Water protection gasket — Resists 3-minute direct high-pressure water spray
• TPU cable — 14.76ft, excellent durability, cold resistant to -22°F
• ETL certified — Compliant with North American safety standards

Technical Specifications

Voltage: 240V/208V
Max Output Current: 40A (SS-PC1-100) / 32A (SS-HAY-100-32A)
Max Power: 8kW / 7kW
Frequency: 50/60Hz
Temperature Range: -22°F to 122°F
Humidity: 5–95%, no condensation
Connector: Type 1 (J1772)
Cable Length: 14.76ft (4.5m)
Altitude: ≤2000m (6,562ft)
Cooling: Natural
Safety Standards: ETL, UL2594, CSA C22.2
Scheduling: App / Timer control
Connectivity: Wi-Fi / Bluetooth
Warranty: 2 years

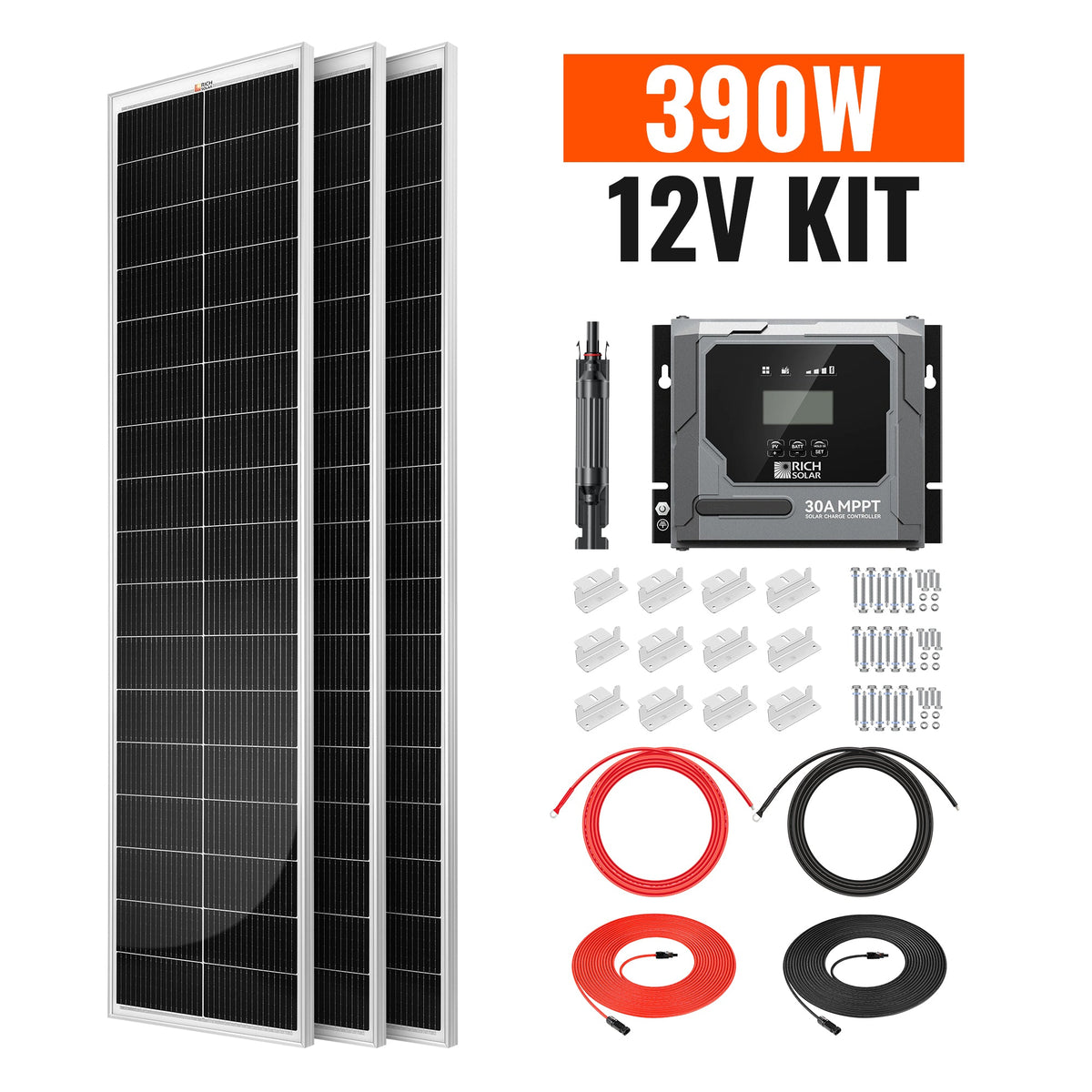

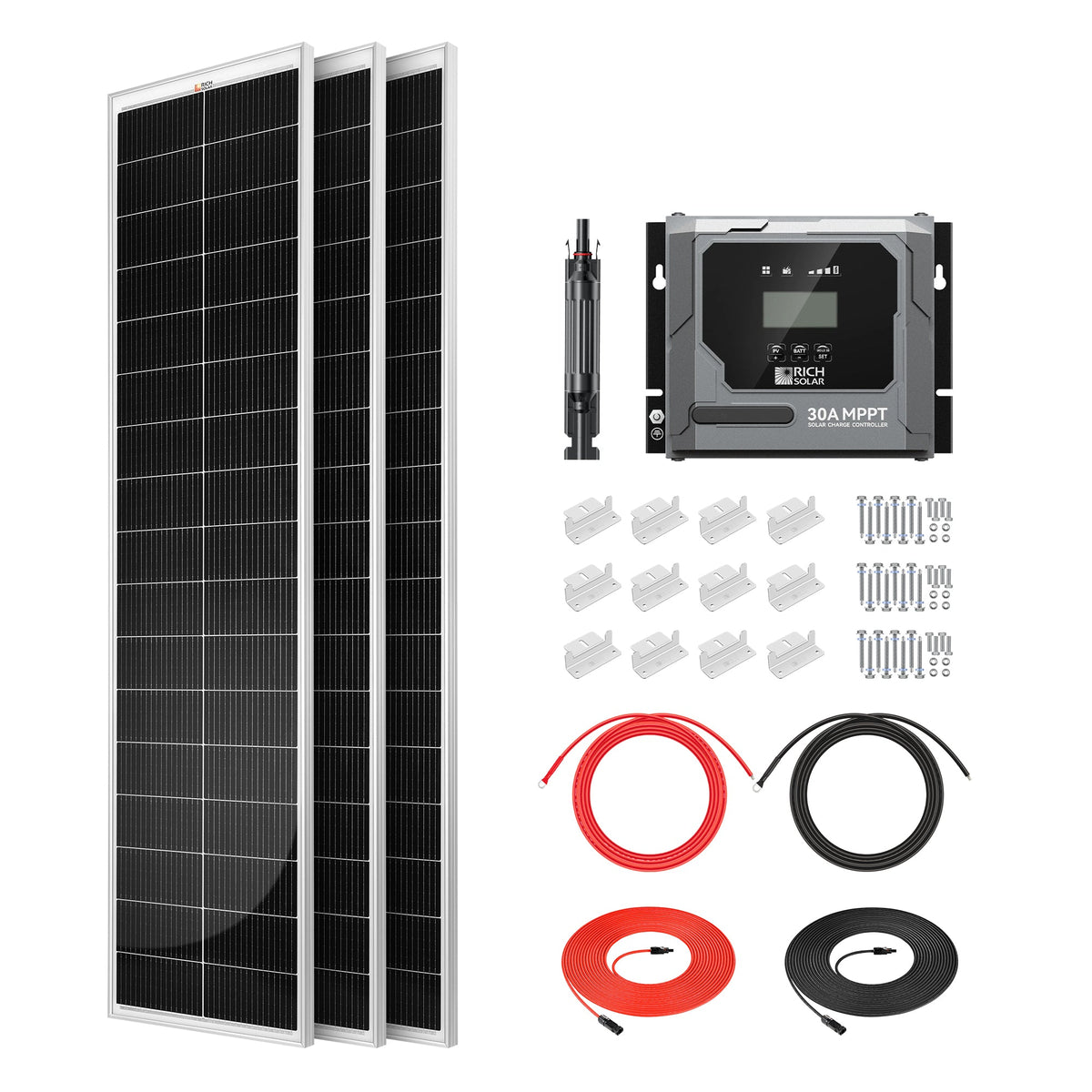

Packing Details

  • 3 x 12V 130W Slim Solar Panels (RS-M130SL)
  • 1 x 30 ft 10 AWG Solar Cable Set (Panel to Controller) (RS-30101)
  • 1 x 10 ft 8 AWG Battery Cable (Controller to 12V Battery) (RS-810)
  • 1 x Bravo 30 12V/24V 30A MPPT Charge Controller (RS-MPPT30PB)
  • 1 x Mounting Z Bracket Sets (one set of 4) (RS-ZB4C)
  • 1 x 10A Solar Panel Inline Fuse Holder (RS-SC10F)
View full details

Equipment Type: 390W Slim Solar Charging Kit

Primary Applications: Off-grid battery charging for RVs, vans, trailers, boats, tiny homes, and other compact solar power systems. The kit combines three 130W slim monocrystalline solar panels with a 30A MPPT charge controller and matched installation accessories.

Performance Specifications

  • Total solar array output: 390W, comprising 3 x 130W RS-M130SL slim monocrystalline panels.
  • Typical energy production: approximately 1.4kWh per day under 4 peak sun hours.
  • Charge controller: Bravo 30 RS-MPPT30PB, rated for 30A and compatible with 12V/24V systems.
  • MPPT tracking efficiency: up to 99.5%; peak conversion efficiency: 98%.
  • Battery connection: 12V battery cable included.
  • Panel profile: slim design for space-conscious rooftop installations.

Safety Features and Certifications

  • Includes a 10A solar panel inline fuse holder, model RS-SC10F.
  • Pre-assembled cable and connection accessories support organized installation.

Installation and Maintenance Requirements

  • Install the three panels using the included RS-ZB4C mounting Z bracket set.

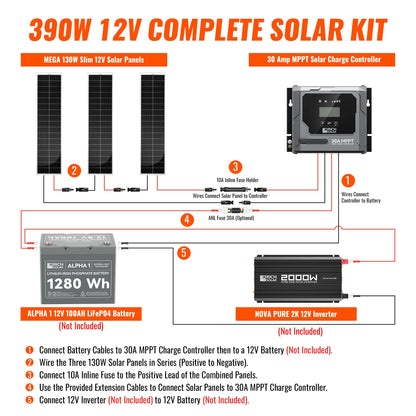

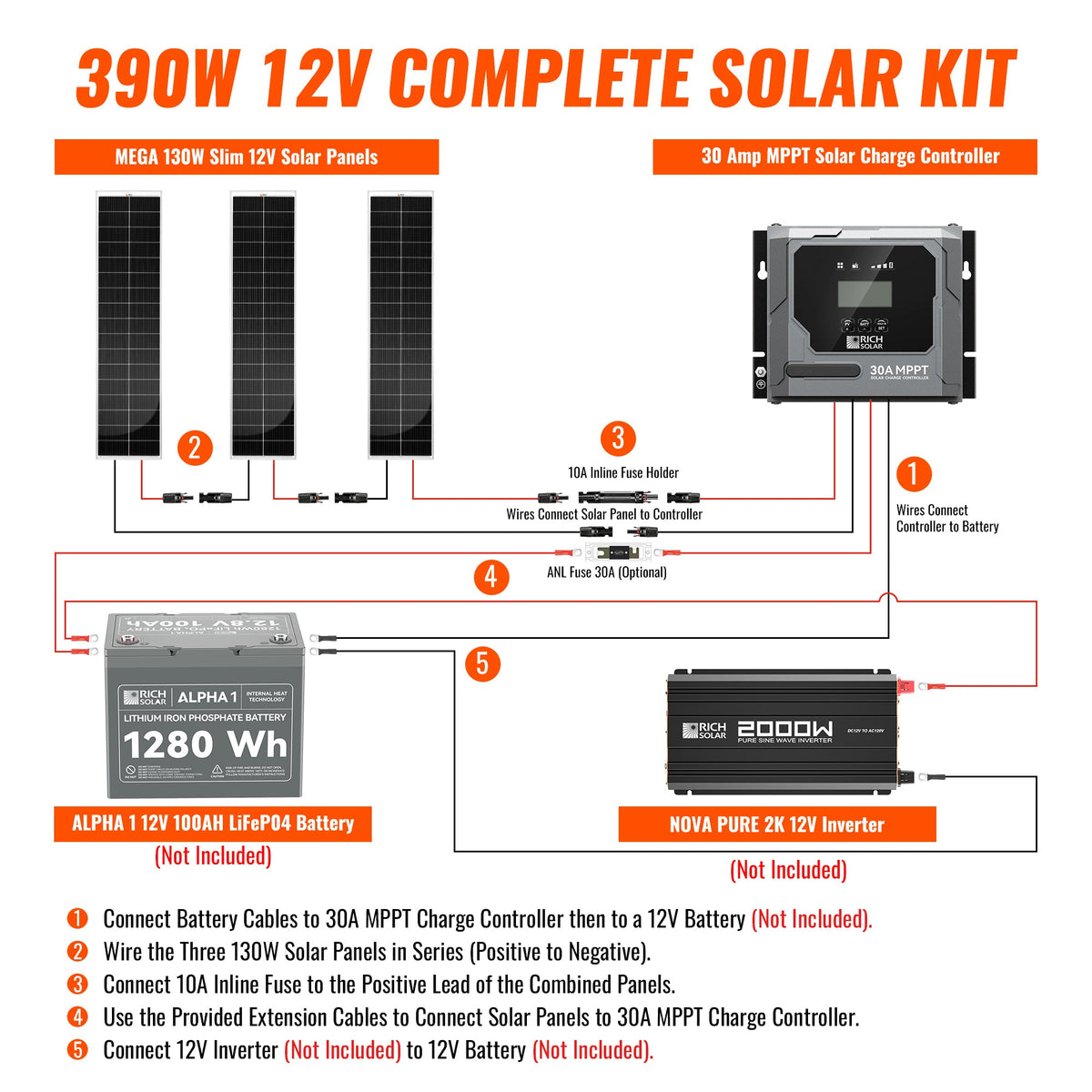

  • Connect panels to the controller with the 30 ft 10 AWG solar cable set, then connect the controller to a 12V battery with the 10 ft 8 AWG battery cable.
  • Keep panels clear of obstructions and inspect cable connections, fuse protection, mounting hardware, and panel surfaces periodically.

Warranty and Service Information

Branding/References

Referenced components: RS-M130SL, RS-30101, RS-810, RS-MPPT30PB, RS-ZB4C, and RS-SC10F.

Differentiators

The slim 390W array combines compact installation flexibility with MPPT tracking efficiency up to 99.5%, while the kit supplies matched cabling, fuse protection, mounting hardware, and controller components.
