300W Slim Kit

300W Slim Kit

$535.99 USD
$669.99 USD $535.99 USD
Sale Sold out
Shipping calculated at checkout.

features

• Solid design control box — Meets NEMA Type 4 & IP30 standard by lab test
• LCD color screen — Real-time status view and easy user interaction
• Breathing indicator light — Shows real-time charging status
• Control button — Adjust max output current & set scheduled charging time
• Water protection gasket — Resists 3-minute direct high-pressure water spray
• TPU cable — 14.76ft, excellent durability, cold resistant to -22°F
• ETL certified — Compliant with North American safety standards

Technical Specifications

Voltage: 240V/208V
Max Output Current: 40A (SS-PC1-100) / 32A (SS-HAY-100-32A)
Max Power: 8kW / 7kW
Frequency: 50/60Hz
Temperature Range: -22°F to 122°F
Humidity: 5–95%, no condensation
Connector: Type 1 (J1772)
Cable Length: 14.76ft (4.5m)
Altitude: ≤2000m (6,562ft)
Cooling: Natural
Safety Standards: ETL, UL2594, CSA C22.2
Scheduling: App / Timer control
Connectivity: Wi-Fi / Bluetooth
Warranty: 2 years

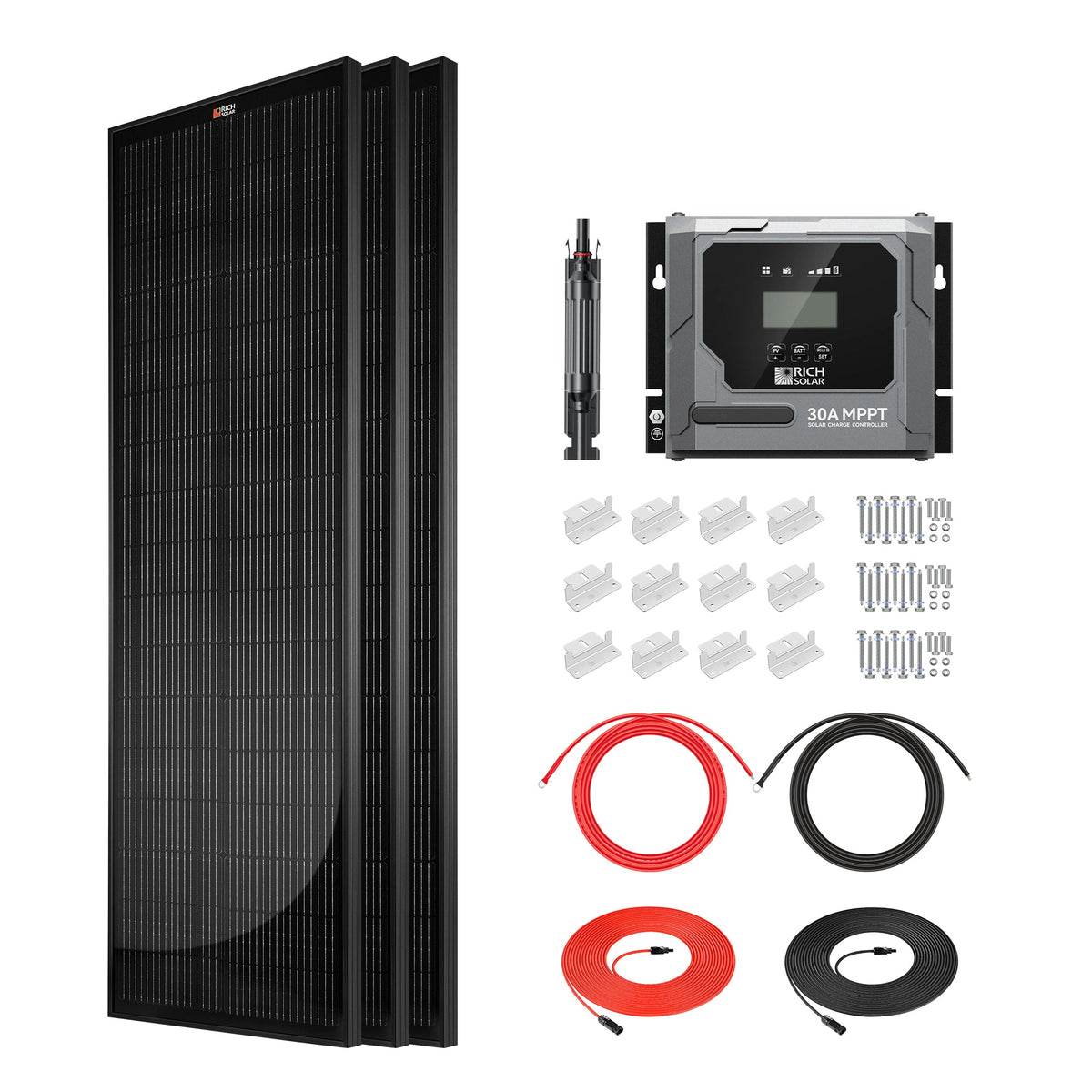

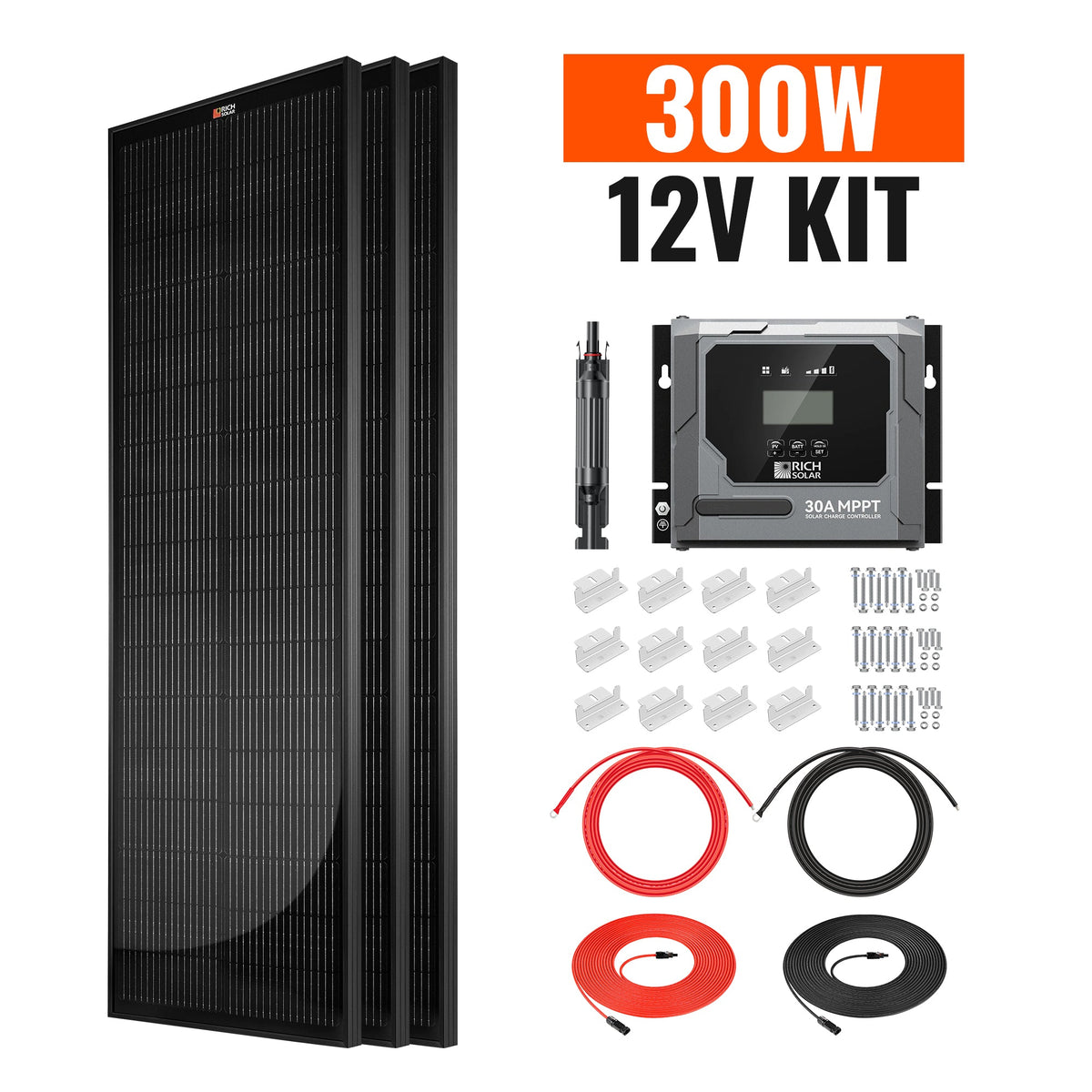

Packing Details

  • 3 x 12V 100W SLIM Onyx Solar Panels (RS-M100SLB)
  • 1 x 30 ft 10 AWG Solar Cable Set (Panel to Controller) (RS-30101)
  • 1 x 10 ft 10 AWG Battery Cable (Red), connects controller to battery (RS-1010)
  • 1 x 10 ft 10 AWG Battery Cable (Black), connects controller to battery (RS-1010)
  • 1 x Bravo 30 12V/24V 30A MPPT Charge Controller (RS-MPPT30PB)
  • 1 x Mounting Z Bracket Set (one set of 4) (RS-ZB4C)
  • 1 x 10A Solar Panel Inline Fuse Holder (RS-SC10F)
View full details

300W Slim Kit

Equipment Type: 300W slim solar charging kit.

Primary Applications: Battery charging for RVs, vans, trailers, boats, tiny homes, and other off-grid solar systems where compact rooftop installation is required.

Performance Specifications

  • Solar array: Three 12V, 100W slim monocrystalline solar panels, model RS-M100SLB.
  • Total rated output: 300W.
  • Estimated energy production: Approximately 1.1kWh per day under four peak sun hours.
  • Charge controller: Bravo 30, 12V/24V, 30A MPPT charge controller, model RS-MPPT30PB.
  • MPPT tracking efficiency: Up to 99.5%.
  • Peak conversion efficiency: 98%.
  • Solar connection: 30 ft, 10 AWG cable set.
  • Battery connection: 10 ft, 10 AWG red cable and 10 ft, 10 AWG black cable.

Safety Features and Certifications

  • Includes one 10A solar panel inline fuse holder, model RS-SC10F.

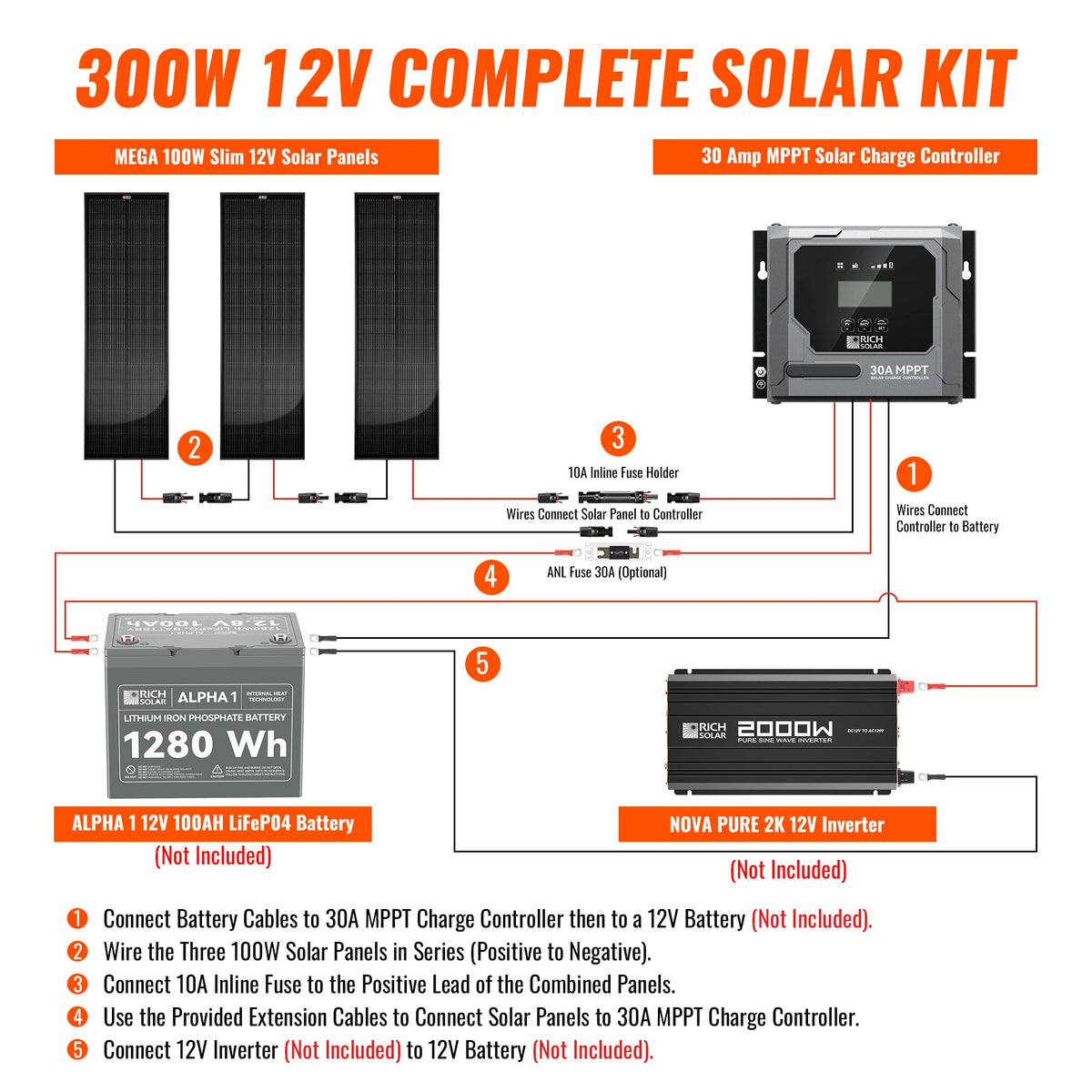

Installation and Maintenance Requirements

  • Install the three slim panels using the included mounting Z bracket set, consisting of four brackets.
  • Connect the panels to the MPPT controller with the pre-assembled 10 AWG solar cable set.
  • Connect the controller to the battery using the supplied red and black 10 AWG battery cables.
  • Suitable for 12V and 24V systems supported by the controller.

Warranty and Service Information

Branding/References

Product title: 300W Slim Kit. Included references: RS-M100SLB, RS-30101, RS-1010, RS-MPPT30PB, RS-ZB4C, and RS-SC10F.

Differentiators

The slim panel profile improves installation flexibility on compact rooftops, while the 30A MPPT controller captures solar energy with up to 99.5% tracking efficiency.
