275A On/Off Battery Switch | 275 Amp DC Switch with Removable Knob for Isolation and Safety | Easy Install

275A On/Off Battery Switch | 275 Amp DC Switch with Removable Knob for Isolation and Safety | Easy Install

$31.99 USD
$39.99 USD $31.99 USD
Sale Sold out
Shipping calculated at checkout.

features

• Solid design control box — Meets NEMA Type 4 & IP30 standard by lab test
• LCD color screen — Real-time status view and easy user interaction
• Breathing indicator light — Shows real-time charging status
• Control button — Adjust max output current & set scheduled charging time
• Water protection gasket — Resists 3-minute direct high-pressure water spray
• TPU cable — 14.76ft, excellent durability, cold resistant to -22°F
• ETL certified — Compliant with North American safety standards

Technical Specifications

Voltage: 240V/208V
Max Output Current: 40A (SS-PC1-100) / 32A (SS-HAY-100-32A)
Max Power: 8kW / 7kW
Frequency: 50/60Hz
Temperature Range: -22°F to 122°F
Humidity: 5–95%, no condensation
Connector: Type 1 (J1772)
Cable Length: 14.76ft (4.5m)
Altitude: ≤2000m (6,562ft)
Cooling: Natural
Safety Standards: ETL, UL2594, CSA C22.2
Scheduling: App / Timer control
Connectivity: Wi-Fi / Bluetooth
Warranty: 2 years

Packing Details

View full details

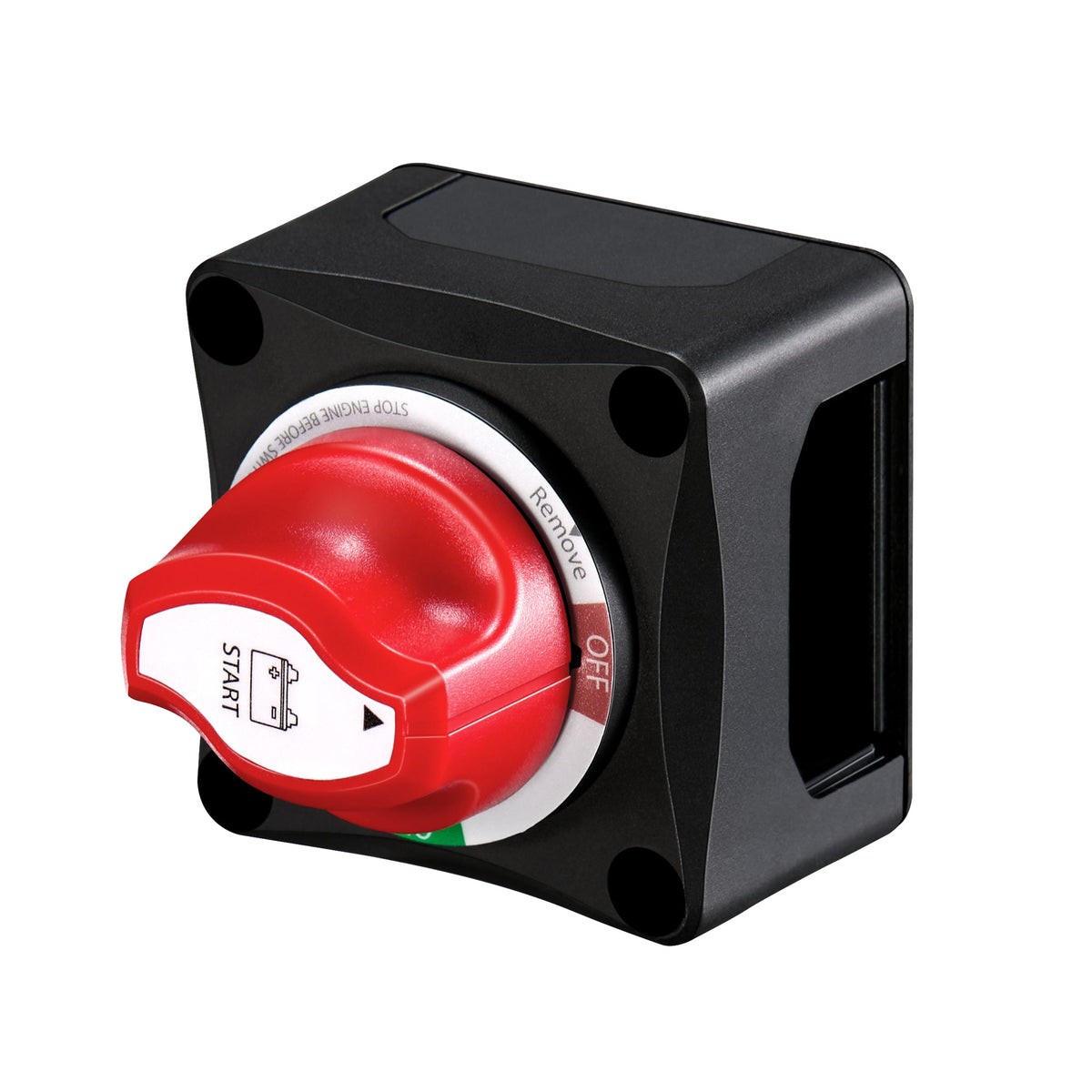

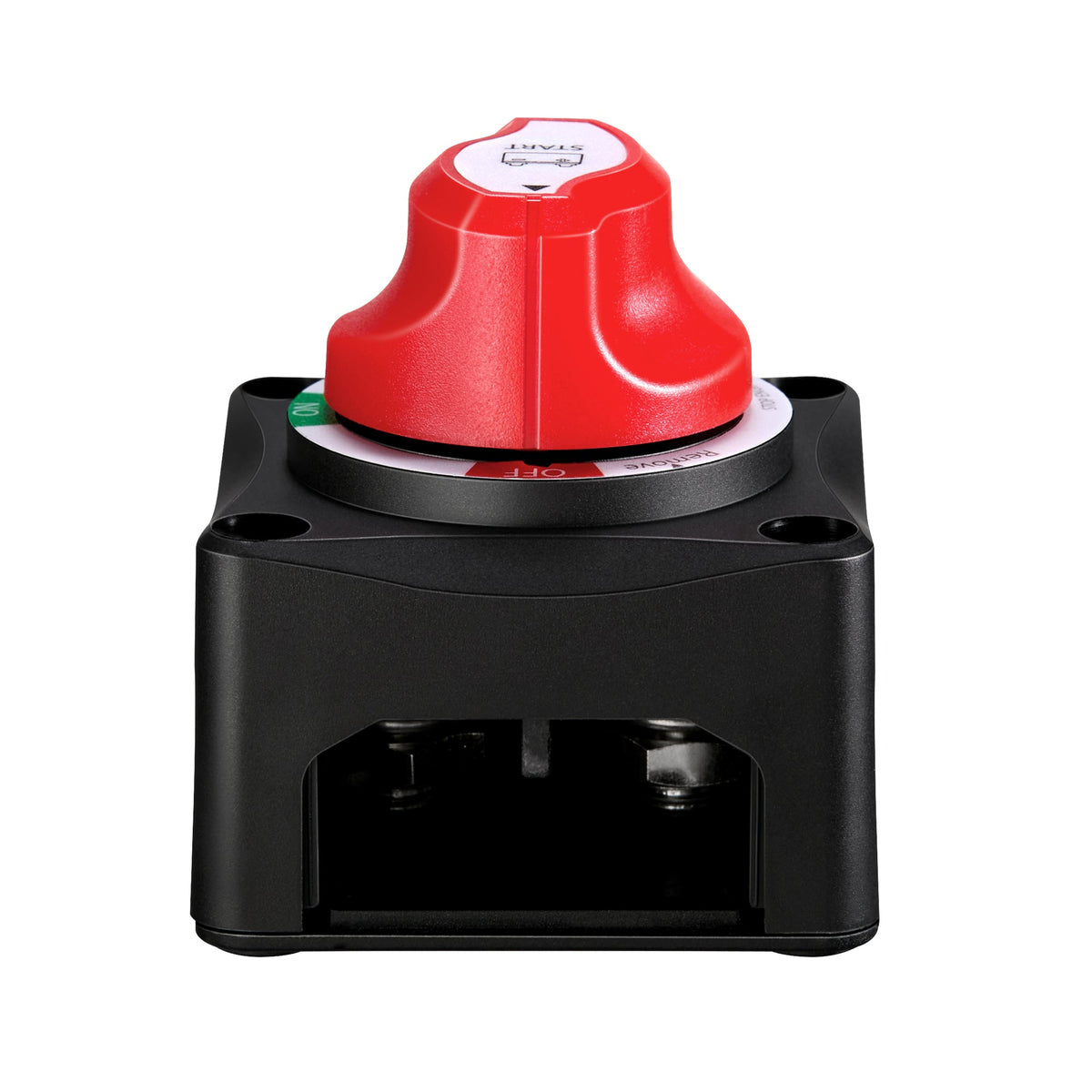

275A On/Off Battery Switch, RS-BS275

Equipment Type and Primary Applications

The RS-BS275 is a 275 amp DC battery disconnect switch for isolating battery power during equipment shutdown, storage, and safety servicing. Its on/off operation provides a direct method of disconnecting the battery supply in applications requiring controlled electrical isolation. The switch is ignition protected for use in engine compartments and supports both surface and panel mounting.

Performance Specifications

  • Continuous rating: DC 275 A
  • Intermittent rating: DC 455 A for 5 minutes
  • Cranking rating: DC 1,250 A for 10 seconds
  • Voltage rating: DC 48 V
  • Terminal studs: M10 (3/8 in.)
  • Housing material: Reinforced nylon

Safety Features and Certifications

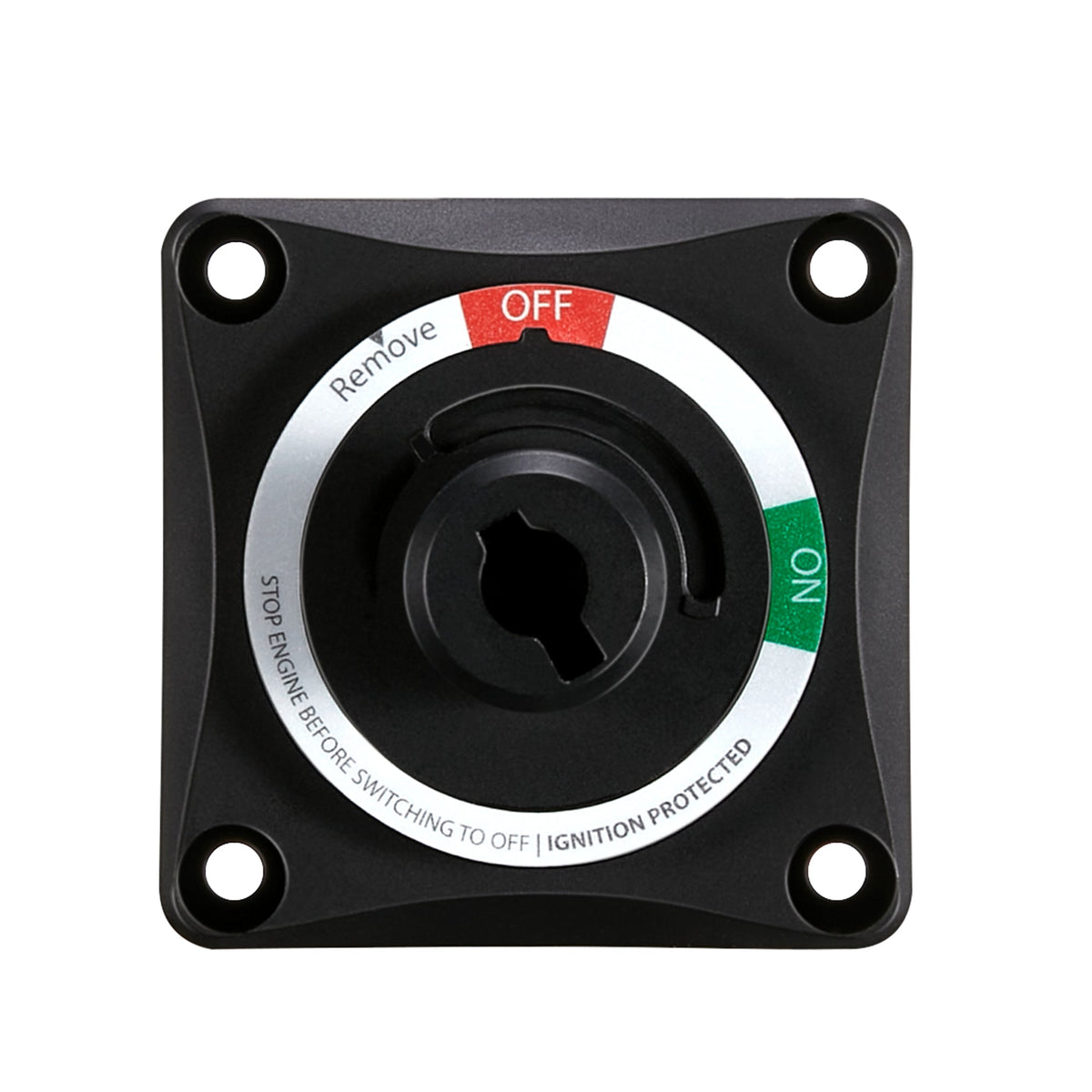

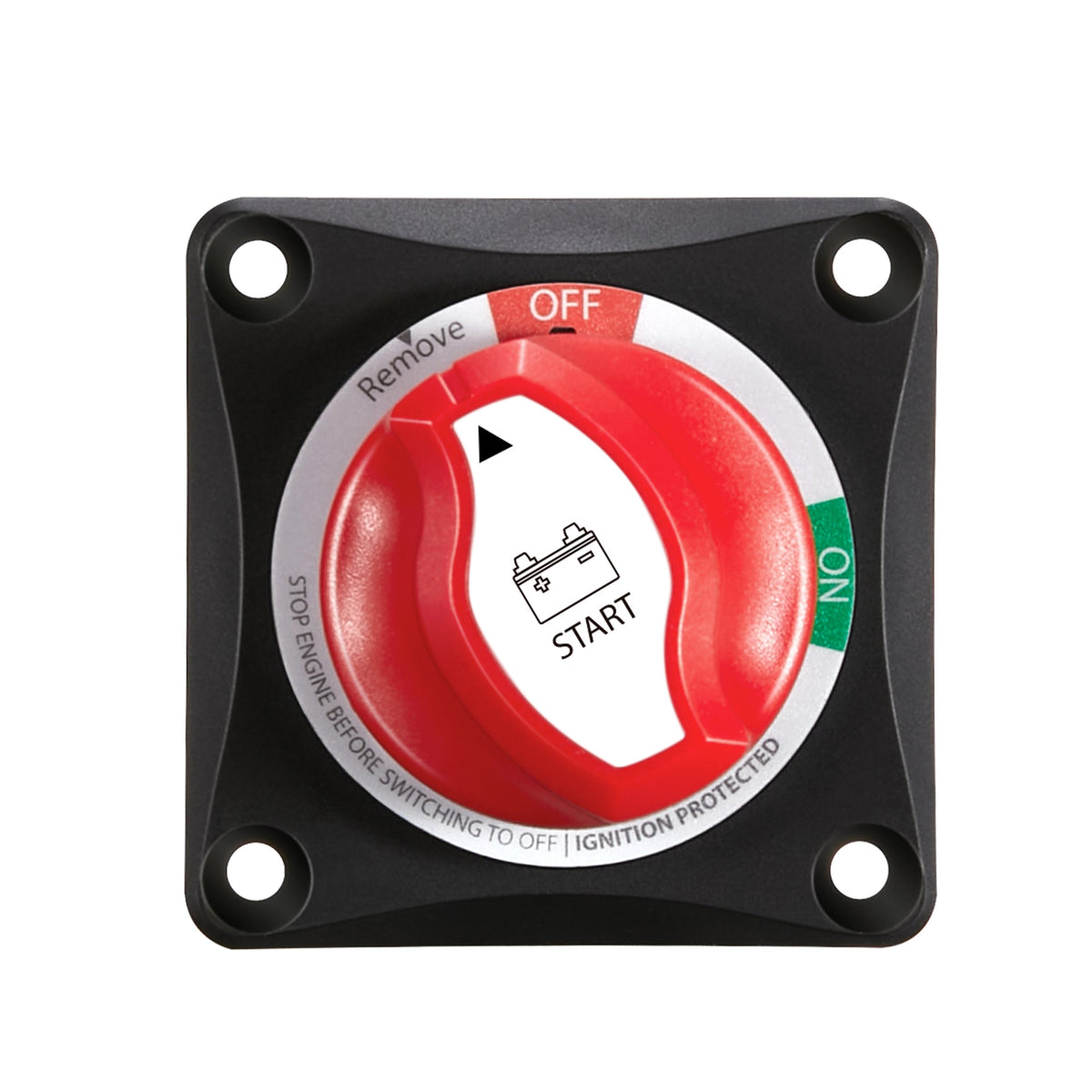

  • Removable safety knob can be removed in the OFF position to help prevent accidental operation.
  • Ignition protected and meets ISO 8846 requirements for engine compartments.
  • Battery isolation supports safer storage and servicing by disconnecting battery power.

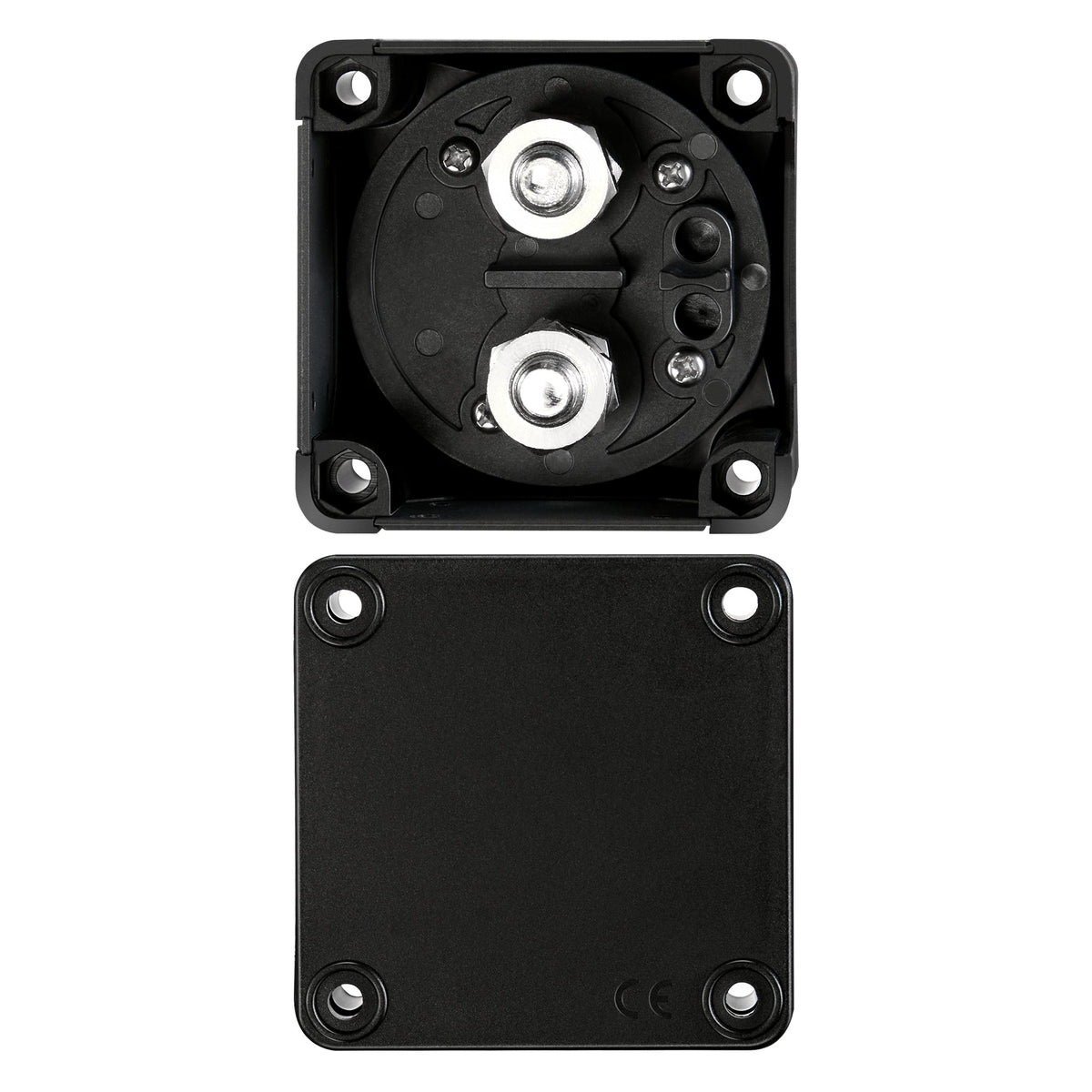

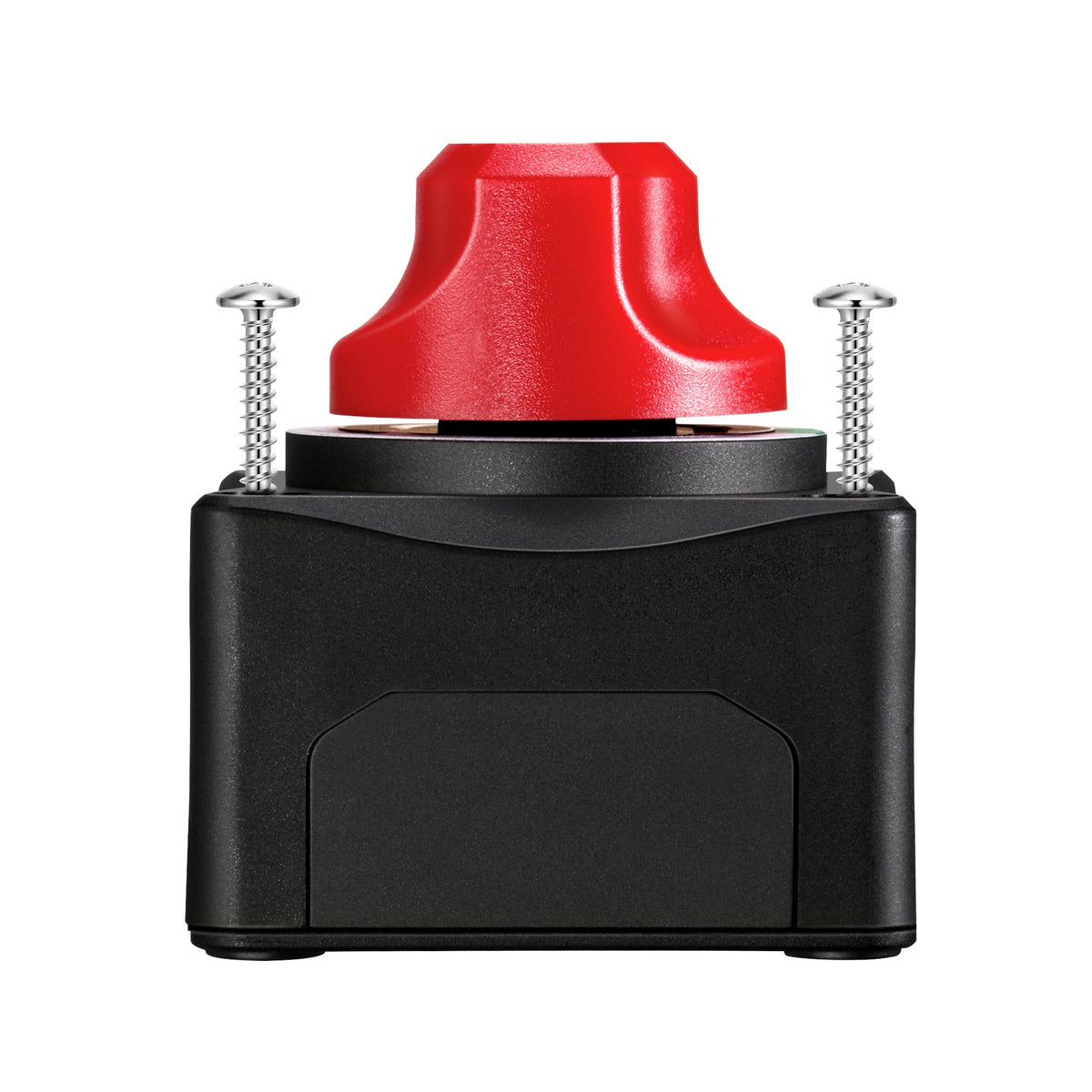

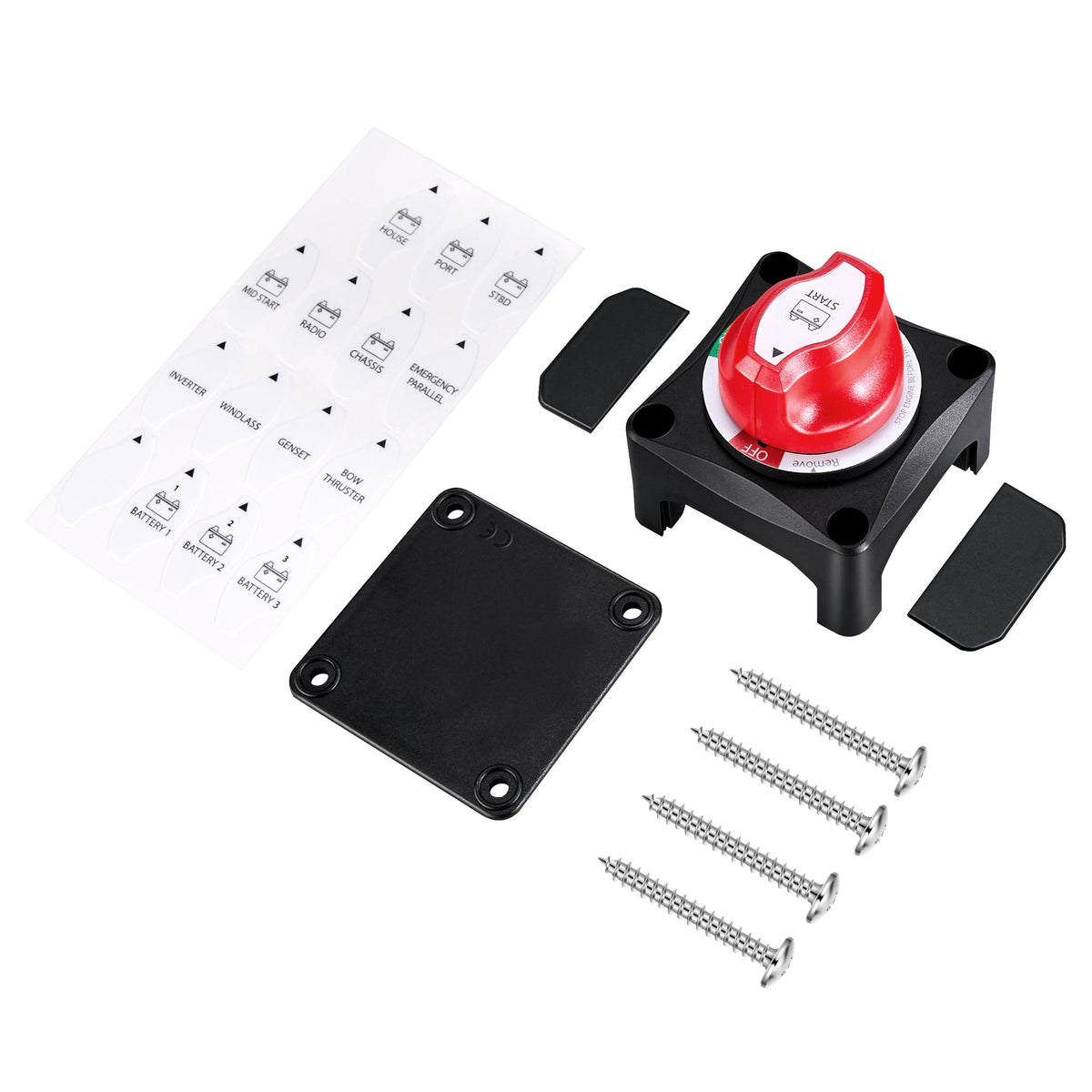

Installation and Maintenance Requirements

The battery switch supports surface or panel mounting. Installation uses the M10 (3/8 in.) terminal studs. Position the switch for accessible on/off operation and confirm that connected circuit loads remain within the applicable continuous, intermittent, and cranking ratings. The reinforced nylon housing supports routine use; maintenance consists of keeping the switch and terminals clean and checking connections during equipment service.

Warranty and Service Information

Branding/References

  • Model: RS-BS275
  • Product reference: 275A On/Off Battery Switch

Differentiators

The removable knob combines battery isolation with a physical lockout-style safeguard when the switch is OFF, while ISO 8846 ignition protection allows engine-compartment installation.
