260W Slim Kit

260W Slim Kit

$479.99 USD
$599.99 USD $479.99 USD
Sale Sold out
Shipping calculated at checkout.

features

• Solid design control box — Meets NEMA Type 4 & IP30 standard by lab test
• LCD color screen — Real-time status view and easy user interaction
• Breathing indicator light — Shows real-time charging status
• Control button — Adjust max output current & set scheduled charging time
• Water protection gasket — Resists 3-minute direct high-pressure water spray
• TPU cable — 14.76ft, excellent durability, cold resistant to -22°F
• ETL certified — Compliant with North American safety standards

Technical Specifications

Voltage: 240V/208V
Max Output Current: 40A (SS-PC1-100) / 32A (SS-HAY-100-32A)
Max Power: 8kW / 7kW
Frequency: 50/60Hz
Temperature Range: -22°F to 122°F
Humidity: 5–95%, no condensation
Connector: Type 1 (J1772)
Cable Length: 14.76ft (4.5m)
Altitude: ≤2000m (6,562ft)
Cooling: Natural
Safety Standards: ETL, UL2594, CSA C22.2
Scheduling: App / Timer control
Connectivity: Wi-Fi / Bluetooth
Warranty: 2 years

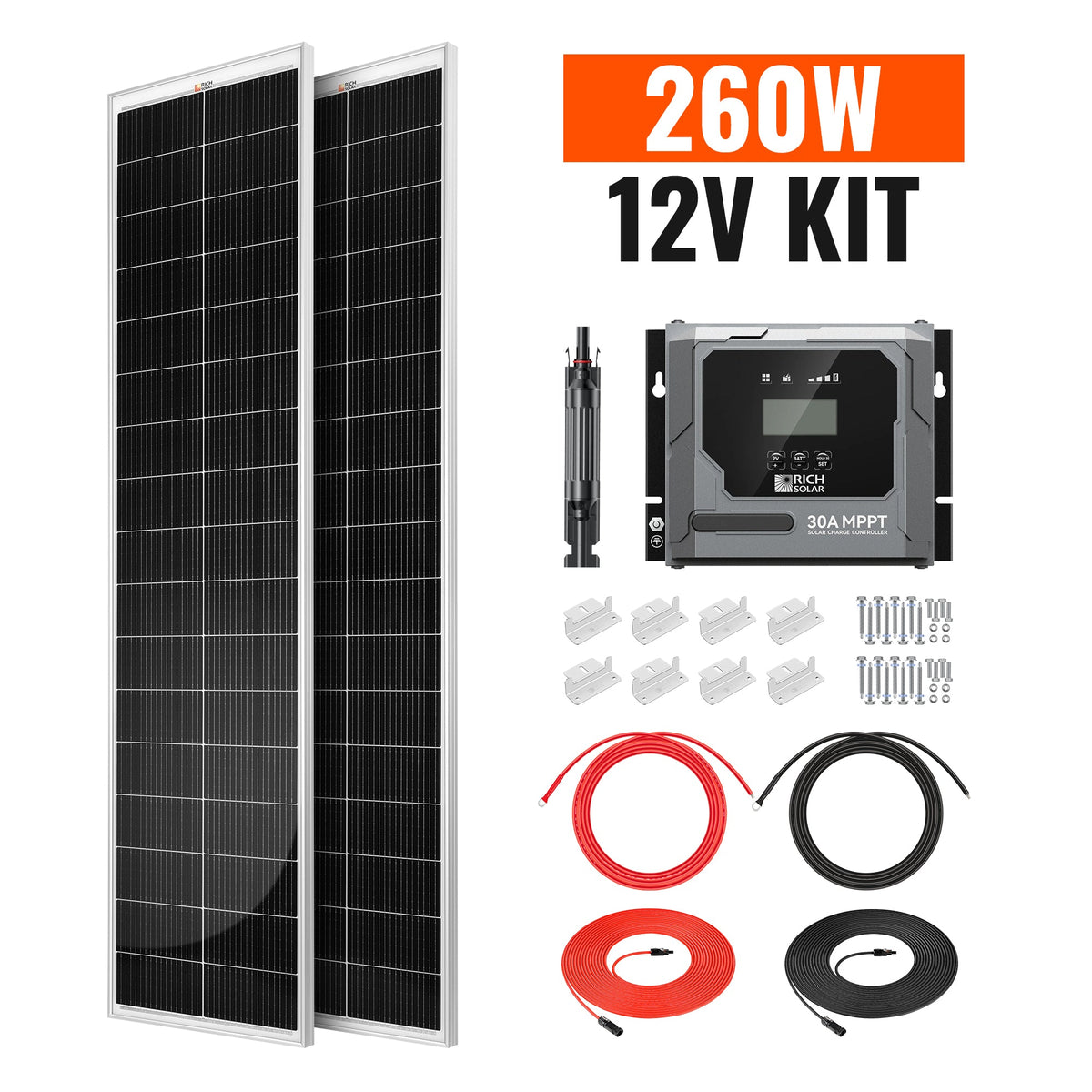

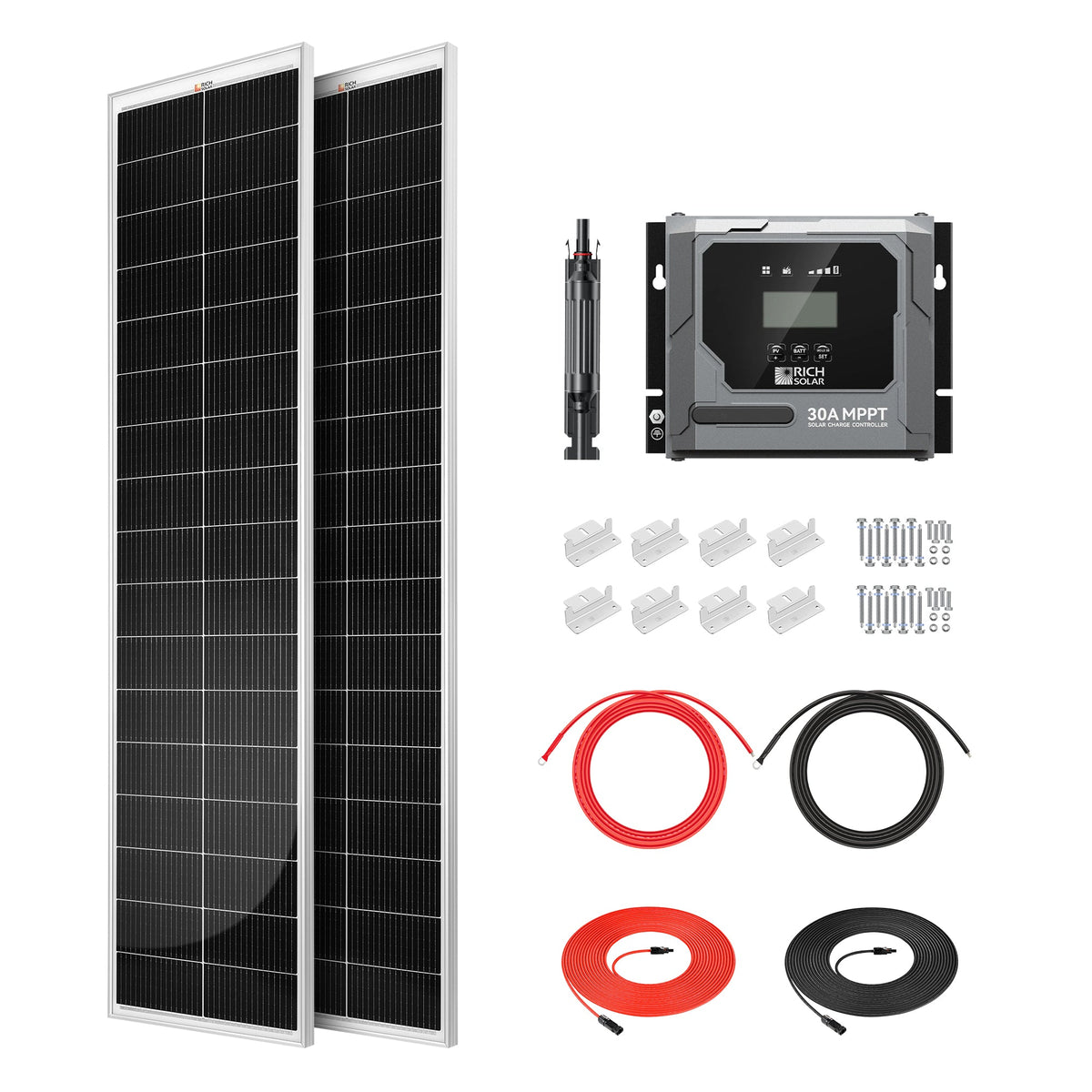

Packing Details

  • 2 x 12V 130W Slim Solar Panels (RS-M130SL)
  • 1 x 30 ft 10 AWG Solar Cable Set (Panel to Controller) (RS-30101)
  • 1 x 10 ft 10 AWG Battery Cable (Red), connects controller to battery (RS-1010)
  • 1 x 10 ft 10 AWG Battery Cable (Black), connects controller to battery (RS-1010)
  • 1 x Bravo 30 12V/24V 30A MPPT Charge Controller (RS-MPPT30PB)
  • 1 x Mounting Z Bracket set (one set of 4) (RS-ZB4C)
  • 1 x 10A Solar Panel Inline Fuse Holder (RS-SC10F)
View full details

260W Slim Kit

Equipment Type and Primary Applications

Solar charging kit with two 130W slim monocrystalline solar panels and a 30A MPPT charge controller for battery charging in RVs, vans, trailers, boats, tiny homes, and other off-grid solar systems.

Performance Specifications

  • Total solar array output: 260W, supplied by two 12V 130W panels.
  • Approximate daily energy production: 0.9kWh under 4 peak sun hours.
  • Charge controller: Bravo 30, 12V/24V, 30A MPPT.
  • MPPT tracking efficiency: up to 99.5%.
  • Peak conversion efficiency: 98%.
  • Panel-to-controller connection: 30ft 10 AWG solar cable set.
  • Controller-to-battery connections: 10ft 10 AWG red and black battery cables.
  • Slim panel construction supports installation on compact rooftops where available space is limited.

Safety Features and Certifications

  • Includes a 10A solar panel inline fuse holder for the panel circuit.
  • Separate red and black battery cables support clearly identified battery connections.

Installation and Maintenance Requirements

  • Installation components include four mounting Z brackets, pre-assembled solar cabling, battery cables, and connection accessories.

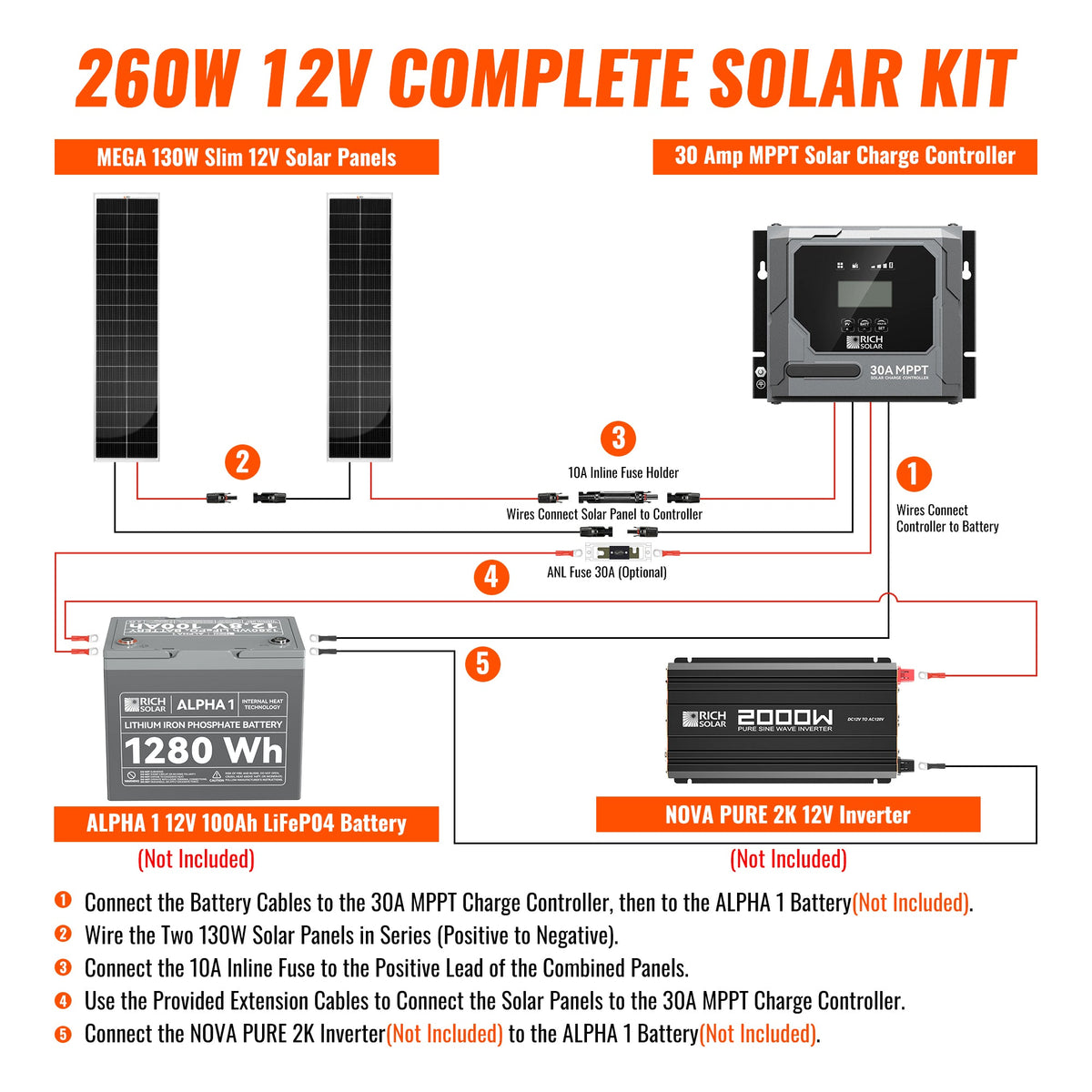

  • Connect the solar panels to the MPPT controller with the supplied 30ft cable set, then connect the controller to the battery using the supplied 10 AWG cables.
  • The system requires a compatible 12V or 24V battery system and a suitable mounting surface.

Warranty and Service Information

Branding/References

  • Solar panels: RS-M130SL.
  • Charge controller: Bravo 30 12V/24V 30A MPPT, RS-MPPT30PB.
  • Solar cable set: RS-30101; battery cables: RS-1010.
  • Mounting bracket set: RS-ZB4C; inline fuse holder: RS-SC10F.

Differentiators

The kit combines a space-saving 260W slim array with a high-efficiency MPPT controller offering up to 99.5% tracking efficiency and 98% peak conversion efficiency.
