200W Slim Kit

200W Slim Kit

$415.99 USD
$519.99 USD $415.99 USD
Sale Sold out
Shipping calculated at checkout.

features

• Solid design control box — Meets NEMA Type 4 & IP30 standard by lab test
• LCD color screen — Real-time status view and easy user interaction
• Breathing indicator light — Shows real-time charging status
• Control button — Adjust max output current & set scheduled charging time
• Water protection gasket — Resists 3-minute direct high-pressure water spray
• TPU cable — 14.76ft, excellent durability, cold resistant to -22°F
• ETL certified — Compliant with North American safety standards

Technical Specifications

Voltage: 240V/208V
Max Output Current: 40A (SS-PC1-100) / 32A (SS-HAY-100-32A)
Max Power: 8kW / 7kW
Frequency: 50/60Hz
Temperature Range: -22°F to 122°F
Humidity: 5–95%, no condensation
Connector: Type 1 (J1772)
Cable Length: 14.76ft (4.5m)
Altitude: ≤2000m (6,562ft)
Cooling: Natural
Safety Standards: ETL, UL2594, CSA C22.2
Scheduling: App / Timer control
Connectivity: Wi-Fi / Bluetooth
Warranty: 2 years

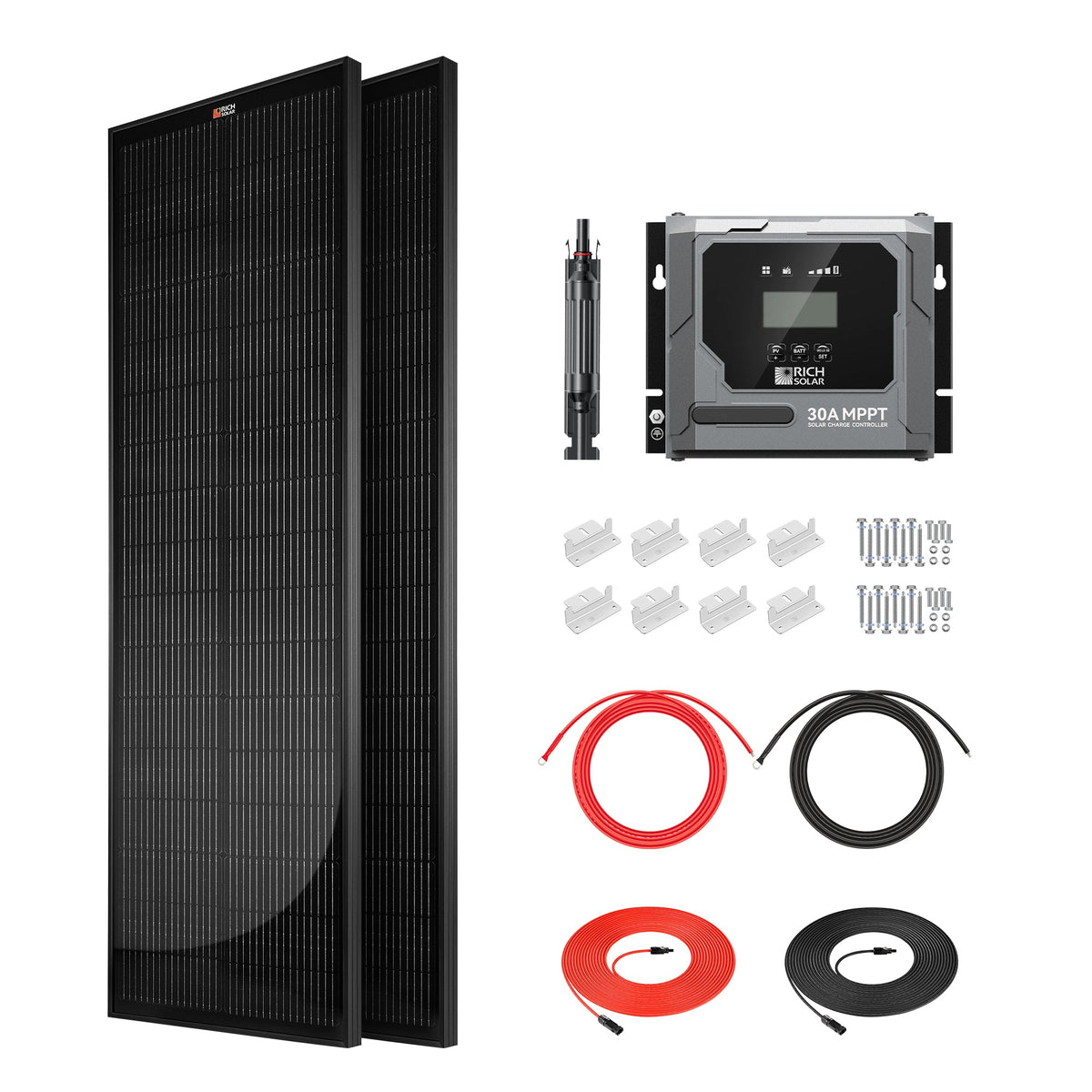

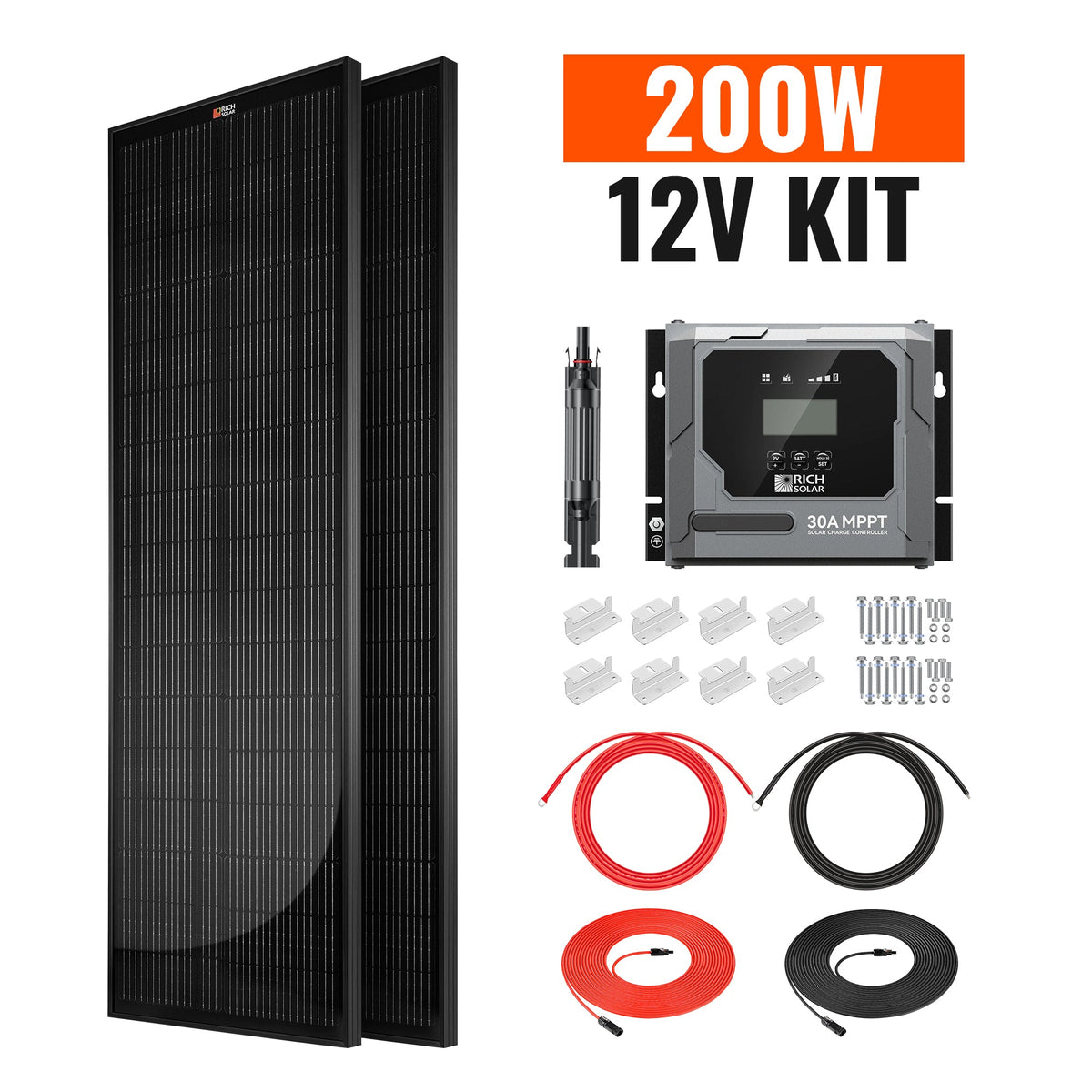

Packing Details

  • 2 x 12V 100W SLIM Onyx Solar Panels (RS-M100SLB)
  • 1 x 30 ft 10 AWG Solar Cable Set (Panel to Controller) (RS-30101)
  • 1 x 10 ft10 AWG Battery Cable (Red), connects controller to battery (RS-1010)
  • 1 x 10 ft 10 AWG Battery Cable (Black), connects controller to battery (RS-1010)
  • 1 x Bravo 30 12V/24V 30A MPPT Charge Controller (RS-MPPT30PB)
  • 1 x Mounting Z Bracket Set (one set of 4) (RS-ZB4C)
  • 1 x 10A Solar Panel Inline Fuse Holder (RS-SC10F)
View full details

Equipment Type and Primary Applications: 200W Slim Solar Charging Kit

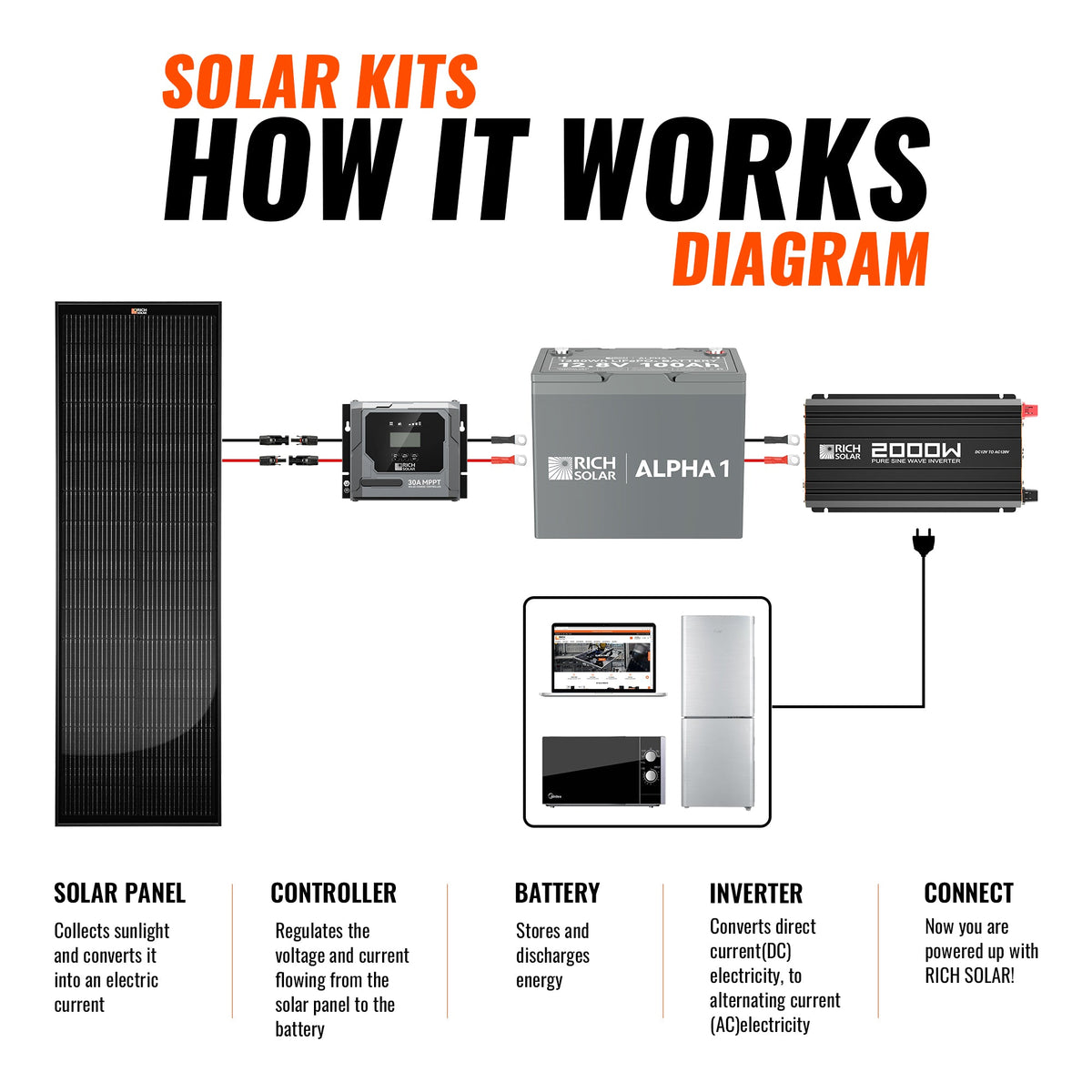

The 200W Slim Kit combines two 100W slim monocrystalline solar panels with a 30A MPPT charge controller for battery charging in RVs, vans, trailers, boats, tiny homes, and other off-grid solar systems.

Performance Specifications

  • Solar array: 200W total, using two 12V 100W slim monocrystalline panels.
  • Daily energy production: approximately 0.7kWh under 4 peak sun hours.
  • Charge controller: 30A MPPT, compatible with 12V/24V systems.
  • MPPT tracking efficiency: up to 99.5%.
  • Peak conversion efficiency: 98%.
  • Panel-to-controller cable: 30ft, 10 AWG.
  • Battery cables: two 10ft 10 AWG leads, one red and one black.

Safety Features and Certifications

  • Includes a 10A solar panel inline fuse holder for array-side circuit protection.
  • Pre-assembled cables and connection accessories support organized installation.

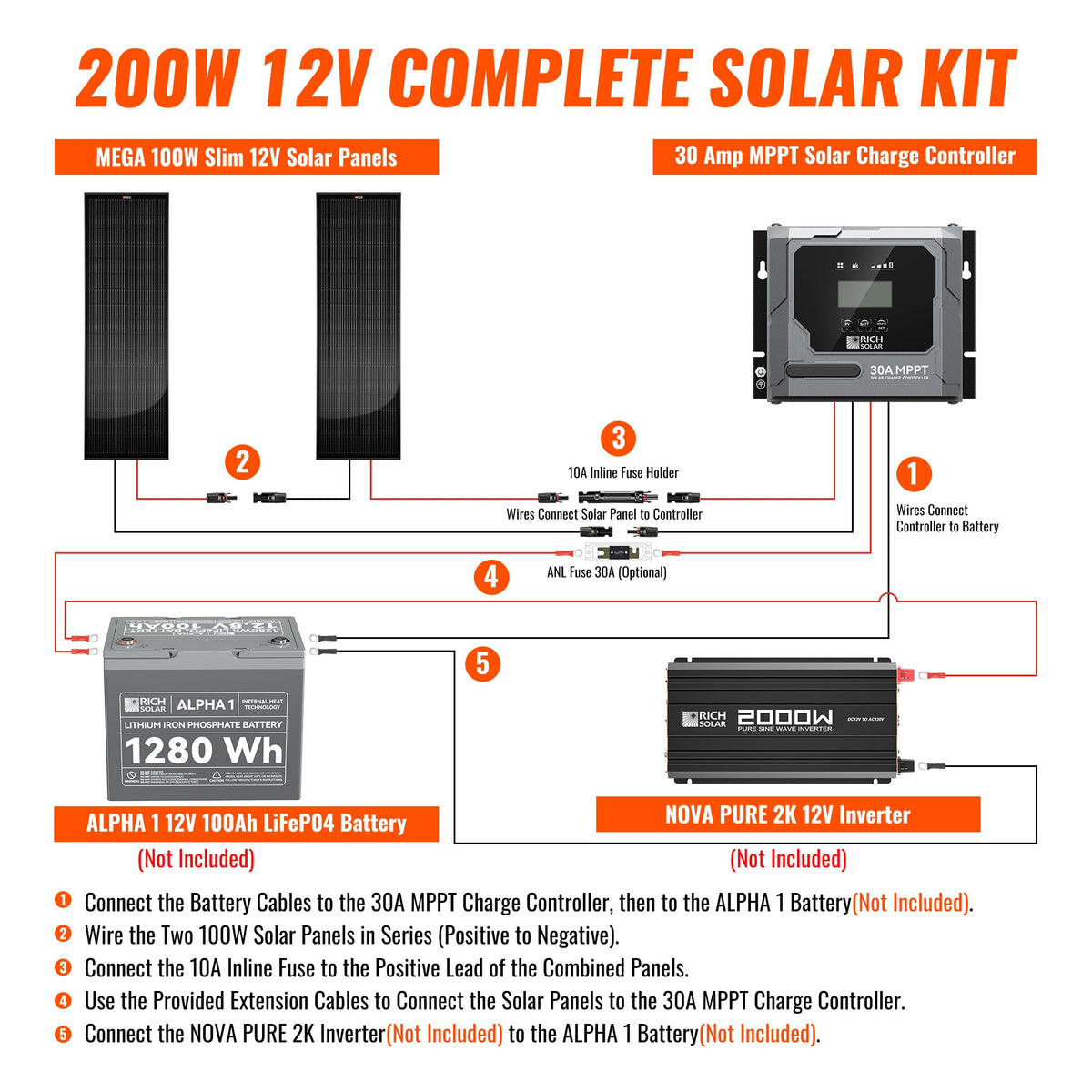

Installation and Maintenance Requirements

Install the two panels using the included mounting Z bracket set, then connect the array to the Bravo 30 controller with the supplied 30ft solar cable. Connect the controller to the battery using the included red and black 10 AWG cables. The kit is intended for 12V/24V battery charging applications. Installation requires a suitable mounting surface and compatible battery system.

Warranty and Service Information

Branding/References

  • Onyx Solar Panels: RS-M100SLB, two included.
  • Bravo 30 MPPT Charge Controller: RS-MPPT30PB.
  • Solar cable set: RS-30101.
  • Battery cables: RS-1010.
  • Mounting brackets: RS-ZB4C.
  • Inline fuse holder: RS-SC10F.

Differentiators

The slim two-panel layout provides a space-saving alternative for compact rooftops, while the 30A MPPT controller captures solar energy with up to 99.5% tracking efficiency.
