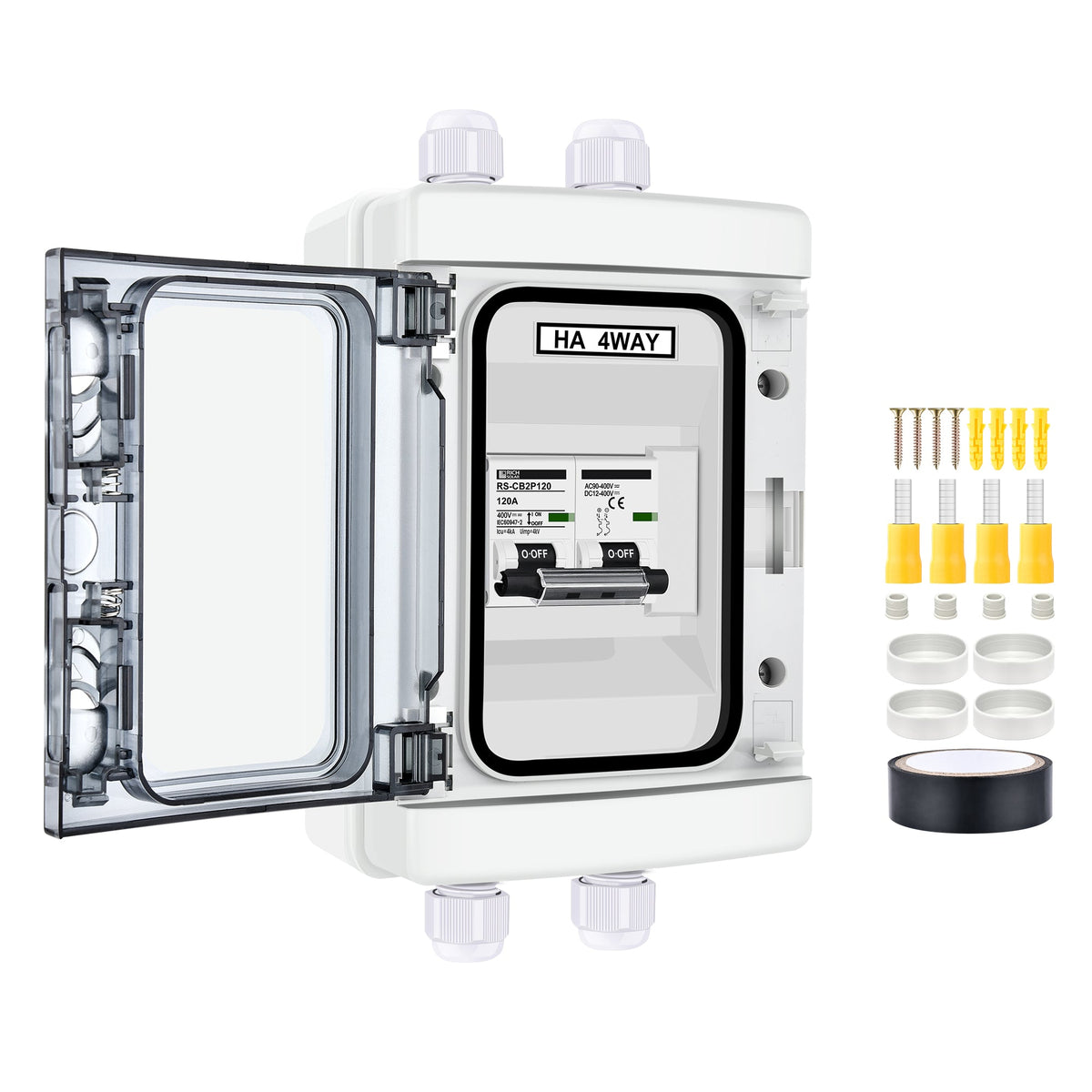

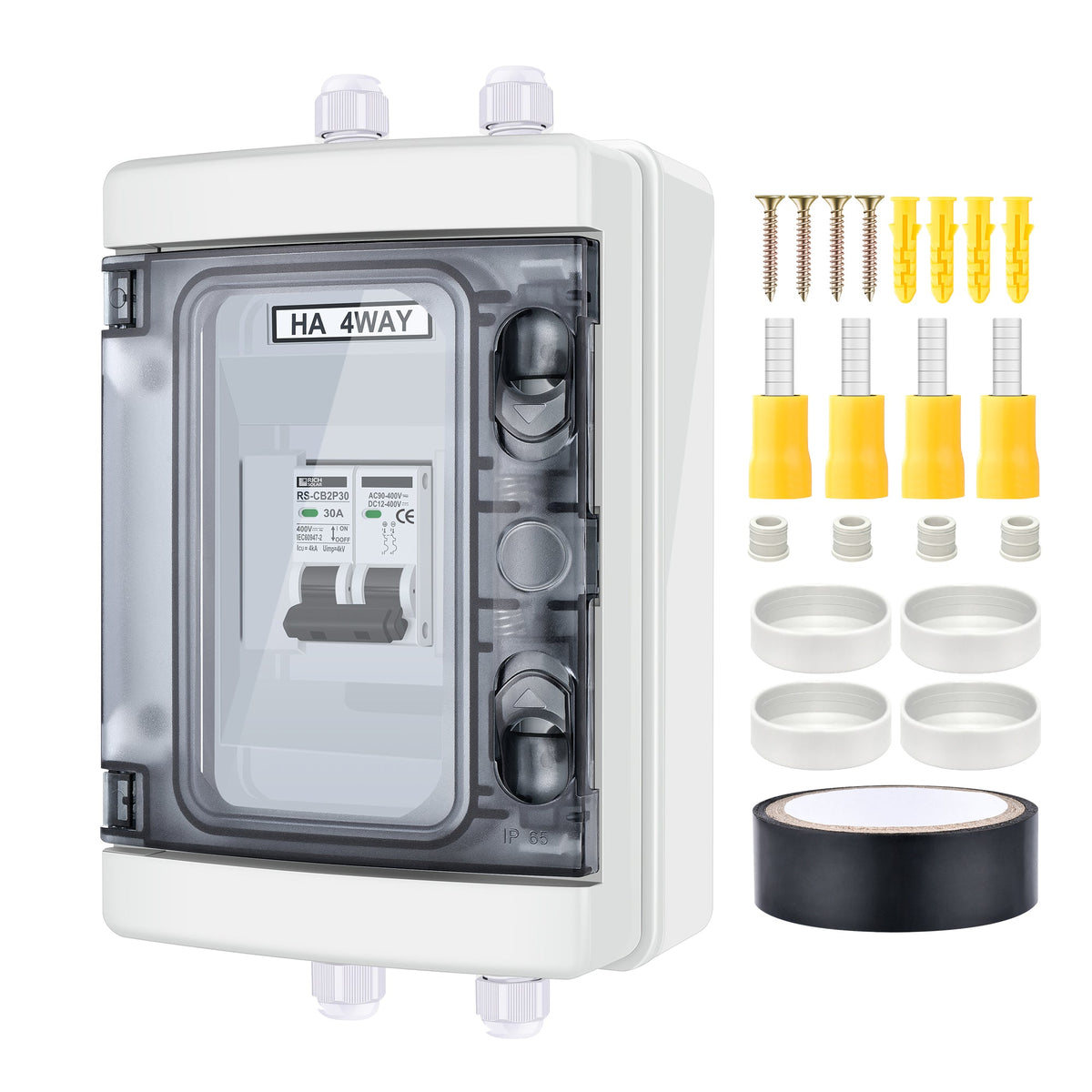

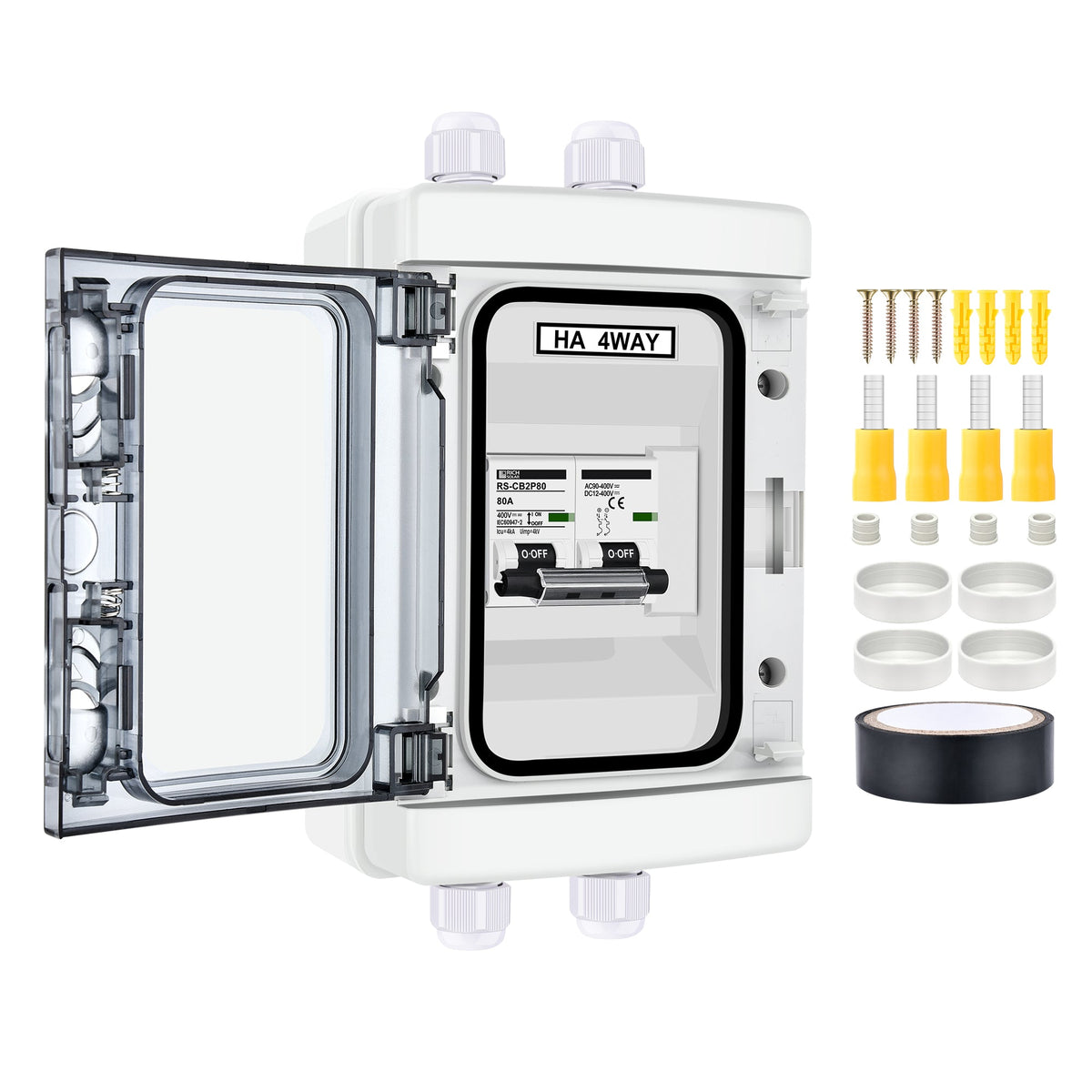

Equipment Type and Primary Applications 2 Pole Outdoor Circuit Breaker Box for dual-pole protection of AC and DC circuits in solar PV systems, RV electrical installations, and off-grid power applications. The wall-mount enclosure is designed for flat-surface installation and accommodates circuit breakers and DIN rail components. Performance Specifications - Configuration: 2P dual-pole circuit protection
- Current ratings: 30A, 40A, 60A, 80A, 120A, 150A, 200A, and 250A
- Rated voltage: AC 90–400V; DC 12–400V
- Rated frequency: 50/60Hz
- Breaking capacity: 4,000A
- Electrical endurance: ≥4,000 operations at 30A–60A; ≥20,000 operations at 80A–250A
- Protection rating: IP65 exterior; IP20 interior
- Operating temperature: 23°F to 104°F (-5°C to 40°C)
- Enclosure material: industrial-grade PC/ABS
- Package dimensions: 9 × 6 × 5 in
- Gross weight: 2 lb Safety Features and Certifications - Transparent flip cover enables circuit-status checks without opening the enclosure.
- IP65 exterior protection helps resist water and dust exposure.
- Impact-resistant PC/ABS housing supports outdoor use.
- Expanded neutral and ground terminals support secure conductor connections.
- Certification marks and standards are not specified. Installation and Maintenance Requirements - Install on a flat surface using the wall-mount design.
- Connect wiring through the pre-drilled cable-routing ports.
- Install compatible breakers or DIN rail components on the built-in DIN rail.
- Inspect enclosure condition, terminals, bus bars, and cable connections during scheduled electrical maintenance.
- Keep the interior dry and maintain the IP65 cover seal. Warranty and Service Information Warranty period, coverage, service terms, and response times are not specified. Branding/References - Product reference: 2 Pole Outdoor Circuit Breaker Box
- Manufacturer and model number: Not specified Differentiators - Supports both AC 90–400V and DC 12–400V systems in one compact 2P outdoor enclosure.
- Combines 4,000A breaking capacity, transparent status monitoring, DIN rail mounting, and pre-drilled wiring ports.
