1200 Watt 24V Complete Solar Kit

1200 Watt 24V Complete Solar Kit

$3,599.99 USD
$4,499.99 USD $3,599.99 USD
Sale Sold out
Shipping calculated at checkout.

features

• Solid design control box — Meets NEMA Type 4 & IP30 standard by lab test
• LCD color screen — Real-time status view and easy user interaction
• Breathing indicator light — Shows real-time charging status
• Control button — Adjust max output current & set scheduled charging time
• Water protection gasket — Resists 3-minute direct high-pressure water spray
• TPU cable — 14.76ft, excellent durability, cold resistant to -22°F
• ETL certified — Compliant with North American safety standards

Technical Specifications

Voltage: 240V/208V
Max Output Current: 40A (SS-PC1-100) / 32A (SS-HAY-100-32A)
Max Power: 8kW / 7kW
Frequency: 50/60Hz
Temperature Range: -22°F to 122°F
Humidity: 5–95%, no condensation
Connector: Type 1 (J1772)
Cable Length: 14.76ft (4.5m)
Altitude: ≤2000m (6,562ft)
Cooling: Natural
Safety Standards: ETL, UL2594, CSA C22.2
Scheduling: App / Timer control
Connectivity: Wi-Fi / Bluetooth
Warranty: 2 years

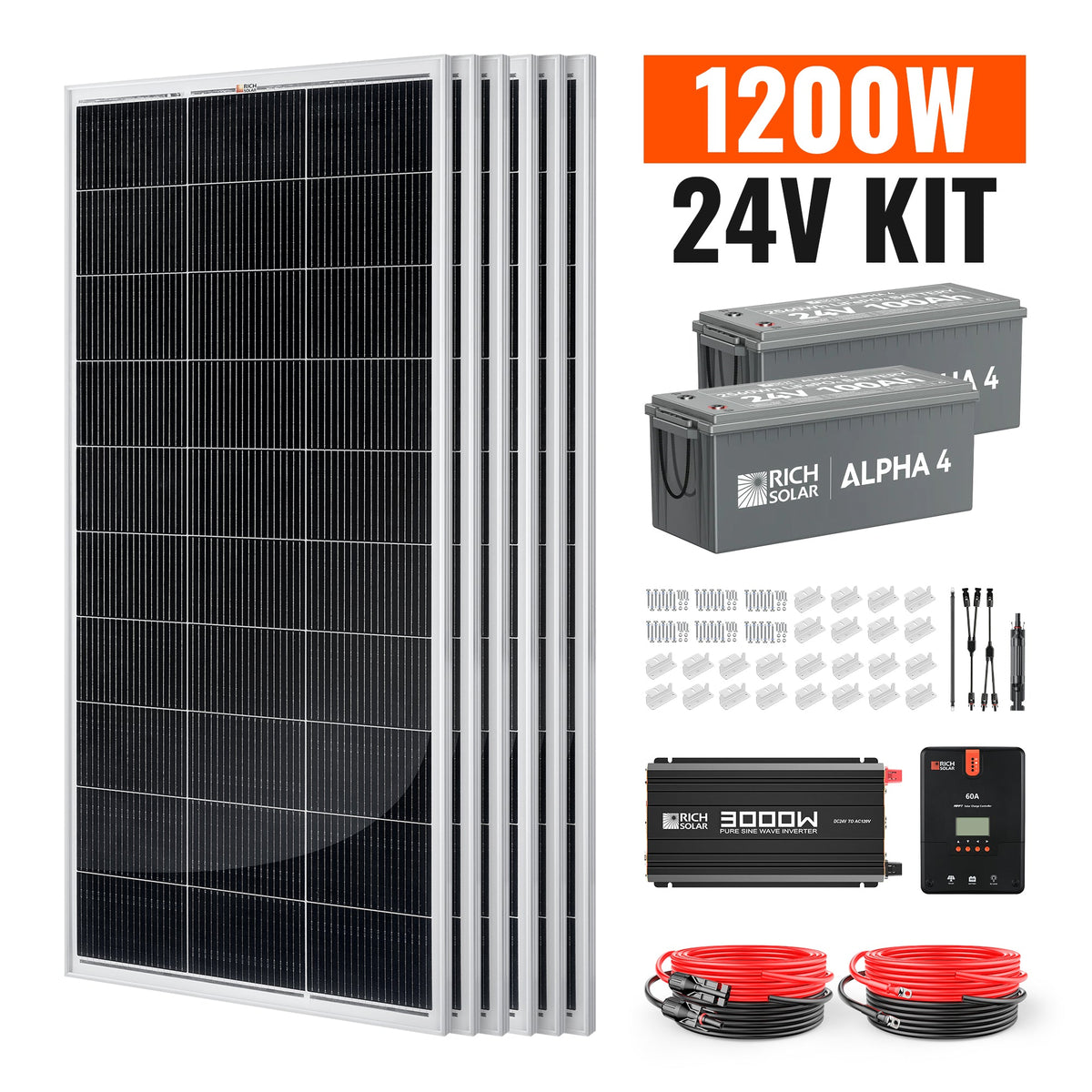

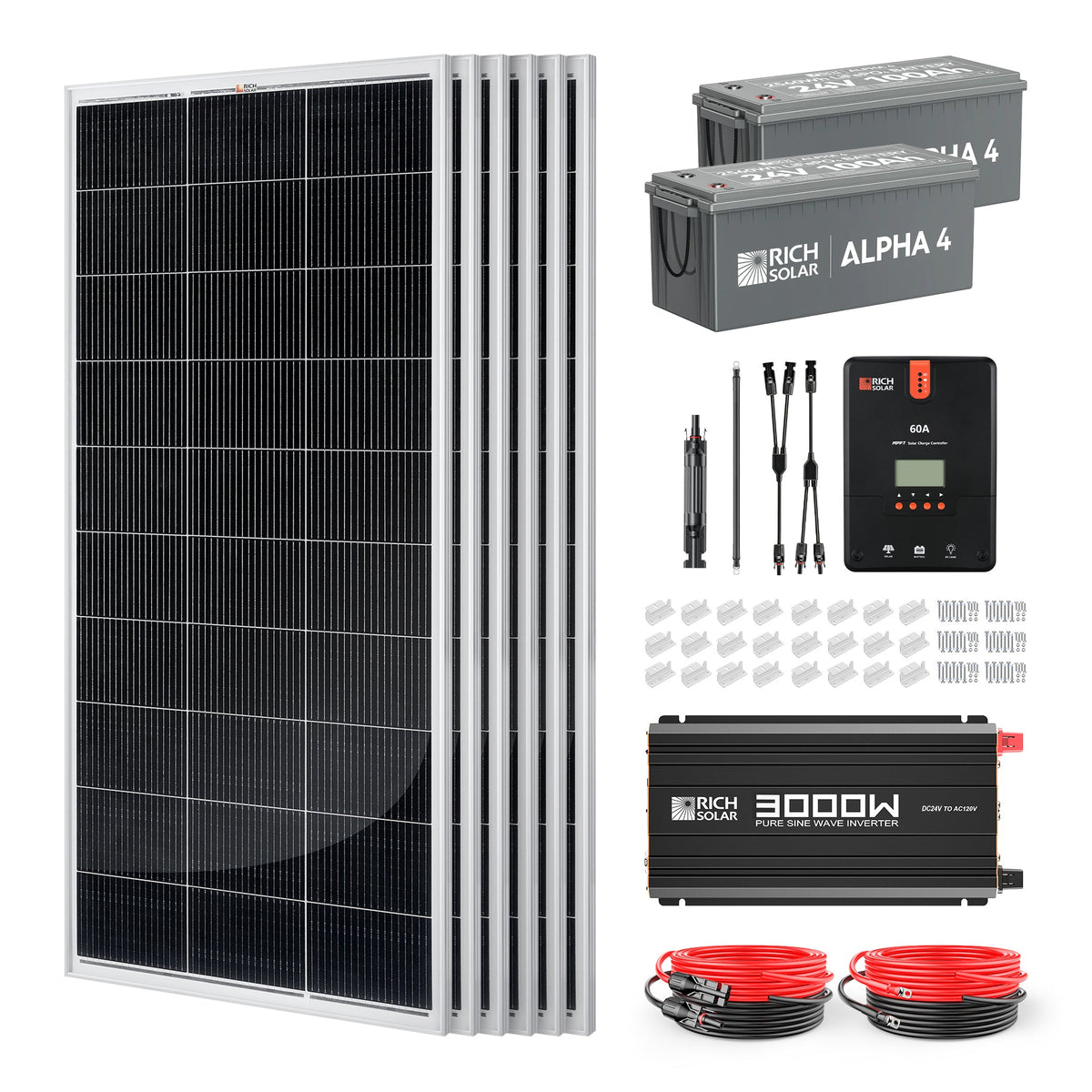

Packing Details

  • 6 x MEGA 200 12V 200W Solar Panels (RS-M200)
  • 2 x ALPHA 4 Lithium Batteries (RS-B241S)
  • 1 x 3000W 24V Inverter (RS-V3P24)
  • 1 x 60A MPPT Charge Controller (RS-MPPT60)
  • 6 x Z Bracket sets (one set of 4) (RS-ZB4C)
  • 1 x 30A Inline Fuse Holder (RS-SC30F)
  • 1 x Y Branch Parallel Adapter (RS-Y2)
  • 1 x 2 AWG 1 ft Inverter Battery Cable Red (RS-C21R)
  • 1 x 2 AWG 1 ft Inverter Battery Cable Black (RS-C21B)
  • 1 x 30 ft 10 AWG Solar Cable Set (Panel to Controller) (RS-30101)
  • 1 x 10 ft 8 AWG Solar Cable Set (Controller to Battery) (RS-810)
  • 1 x 8 ft 4 AWG Battery Cable Set (RS-C48B & RS-C248R)
View full details

1200 Watt 24V Complete Solar Kit

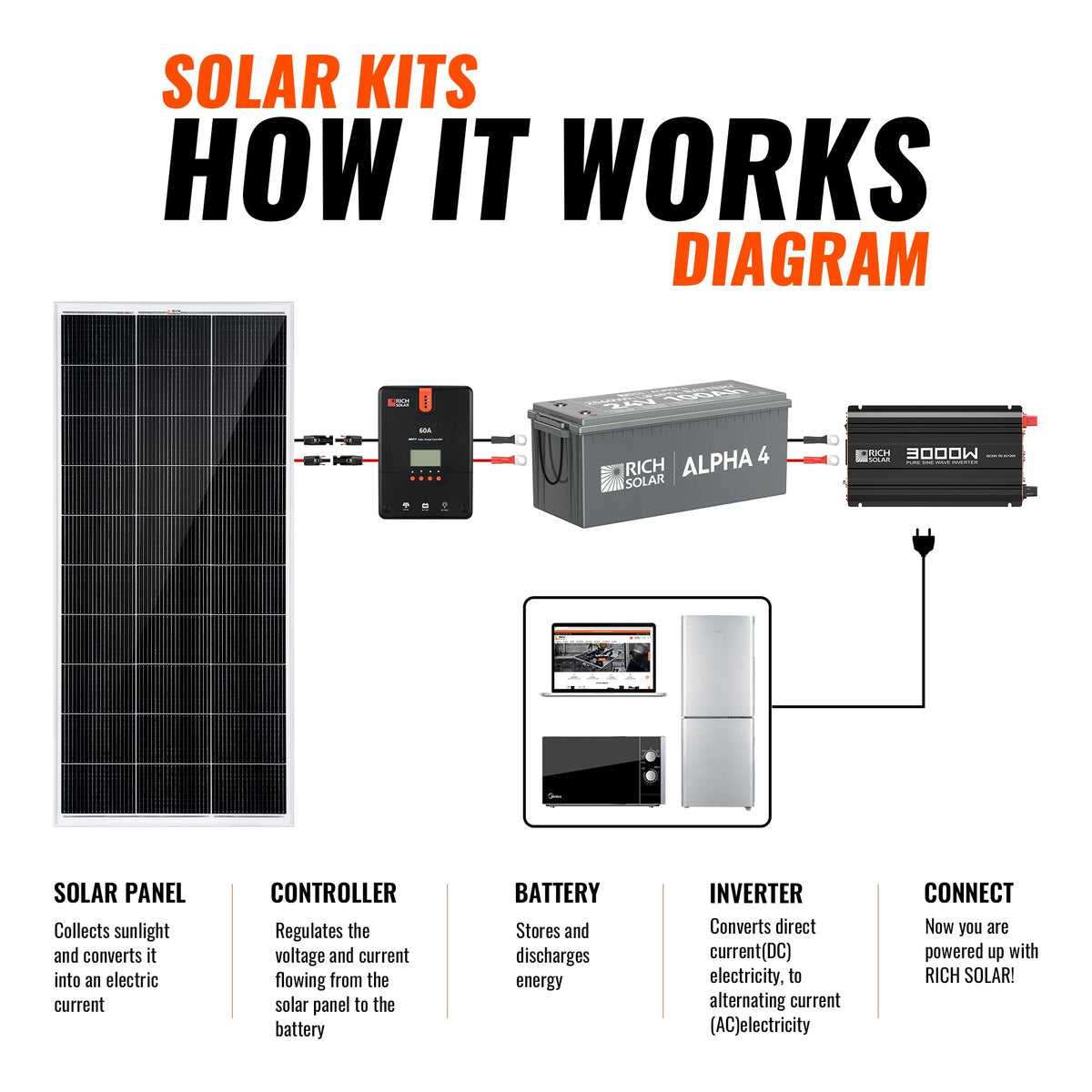

Equipment Type: 24V DC off-grid solar power system with solar generation, LiFePO₄ battery storage, MPPT charge control, and pure sine wave AC inversion.

Primary Applications: RVs, cabins, tiny homes, trailers, and off-grid backup power installations.

Performance Specifications

  • Solar array: 1,200W total from six 200W monocrystalline MEGA 200 12V panels.
  • Estimated energy production: approximately 4.3kWh per day under 4 peak sun hours.
  • Battery storage: 5.12kWh using two 24V 100Ah ALPHA 4 LiFePO₄ batteries; each battery is rated at 2,560Wh.
  • Inverter output: 3,000W continuous and 6,000W surge, with pure sine wave AC power.
  • Charge controller: 60A MPPT with up to 99% tracking efficiency.
  • System voltage: 24V DC, supporting compatible equipment and system expansion.

Safety Features and Certifications

  • 30A inline fuse holder included for the solar circuit.
  • Pure sine wave inverter output supports AC equipment requiring clean waveform power.

Installation and Maintenance Requirements

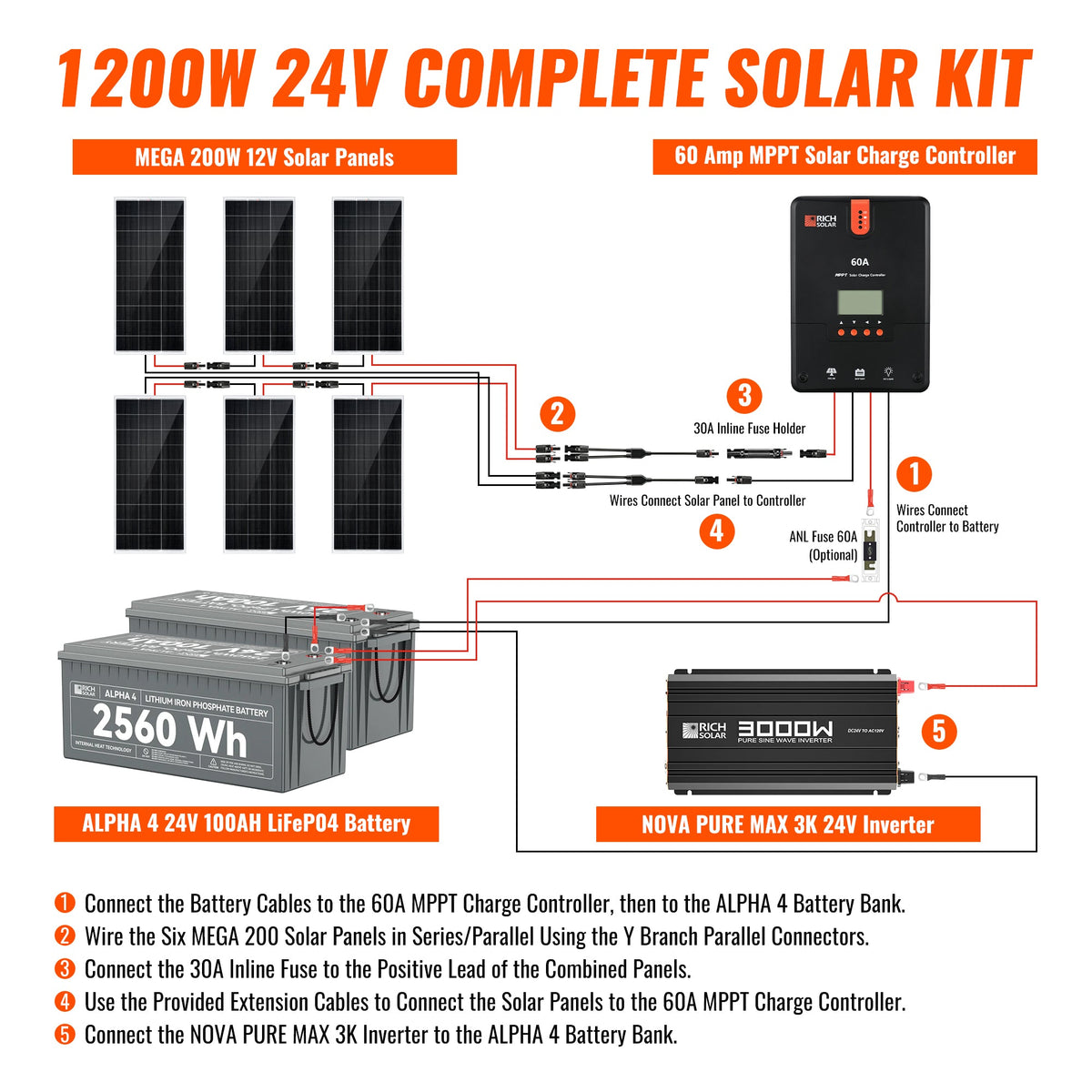

  • Includes six Z-bracket sets, a Y-branch parallel adapter, and preselected solar, controller, inverter, and battery cables.
  • Included cable lengths: 30ft 10 AWG solar cable, 10ft 8 AWG controller-to-battery cable, and 8ft 4 AWG battery cable set.

Warranty and Service Information

Branding/References

Renogy components: MEGA 200 panels (RS-M200), ALPHA 4 batteries (RS-B241S), 3000W 24V inverter (RS-V3P24), 60A MPPT controller (RS-MPPT60), and associated installation accessories.

Differentiators

The matched 1,200W array, 5.12kWh LiFePO₄ battery bank, 60A MPPT controller, and 3,000W pure sine wave inverter combine generation, storage, and AC conversion in one 24V kit.
