Equipment Type and Primary Applications

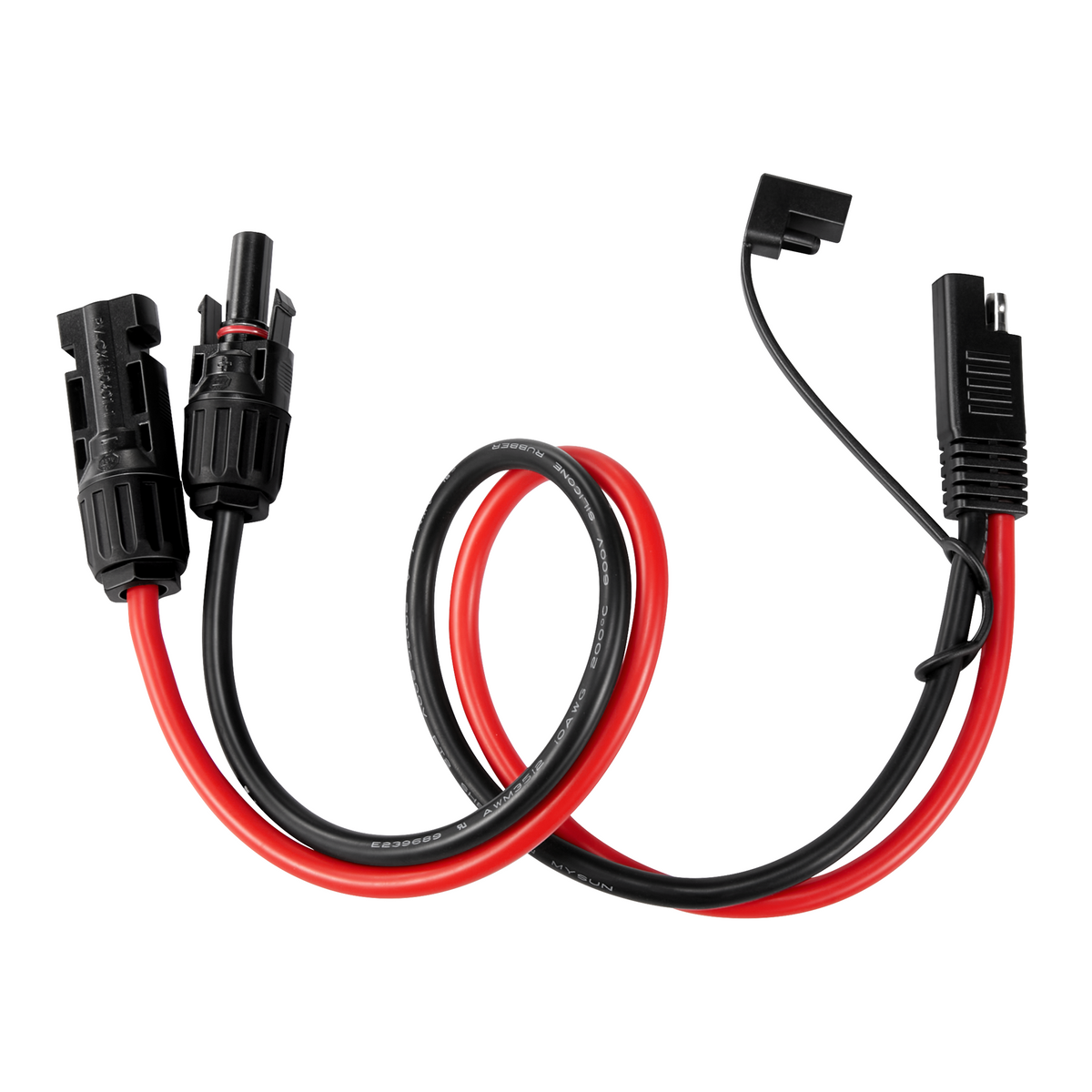

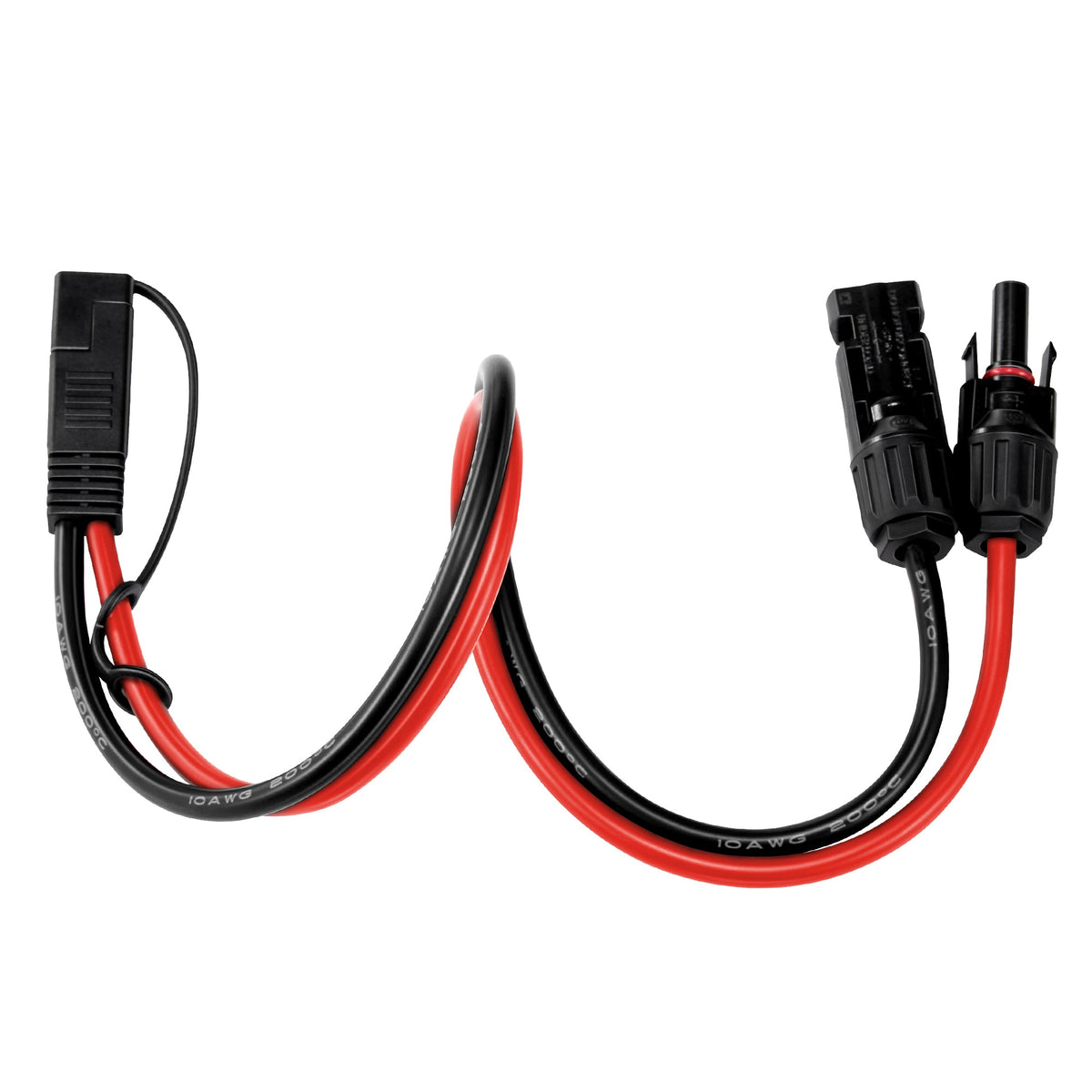

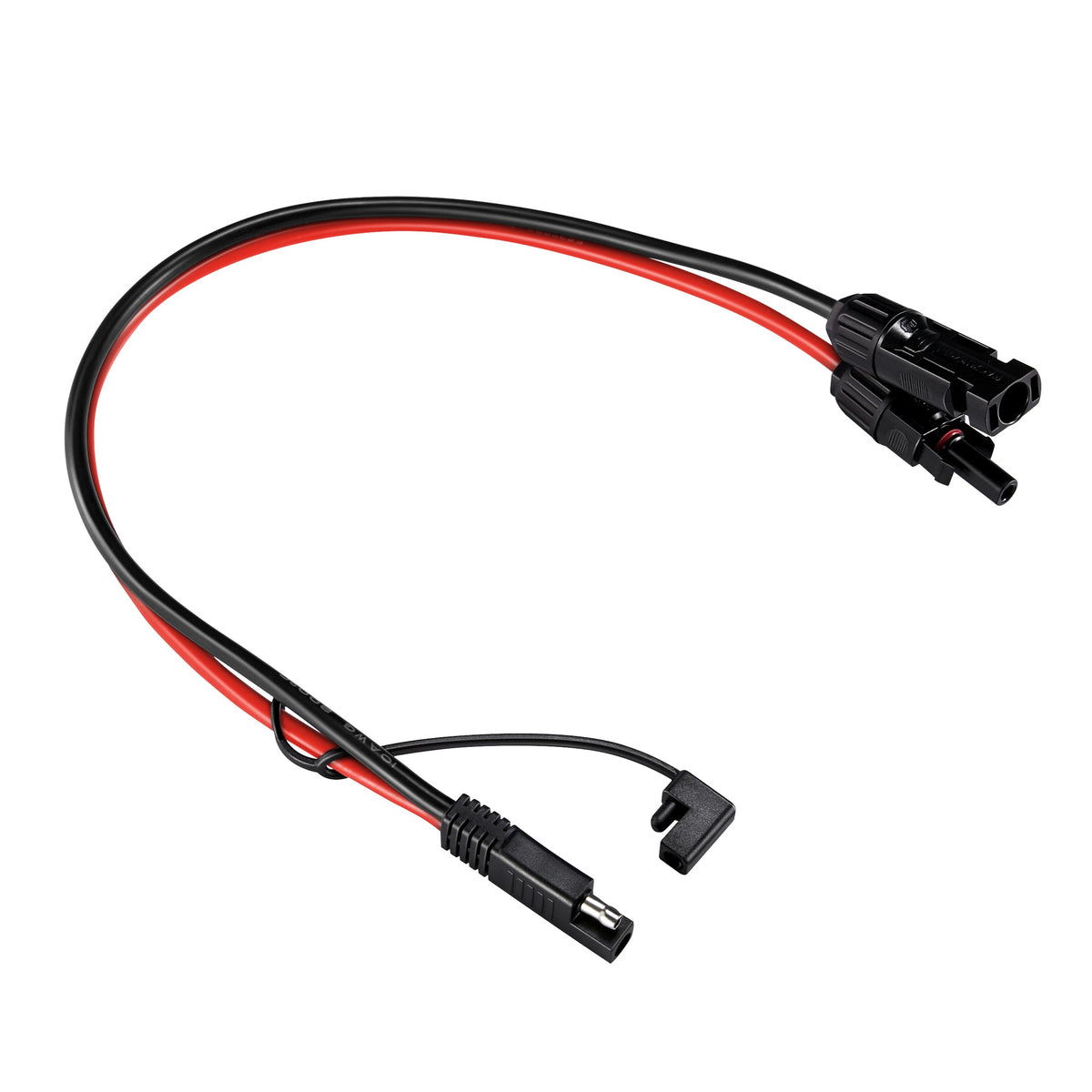

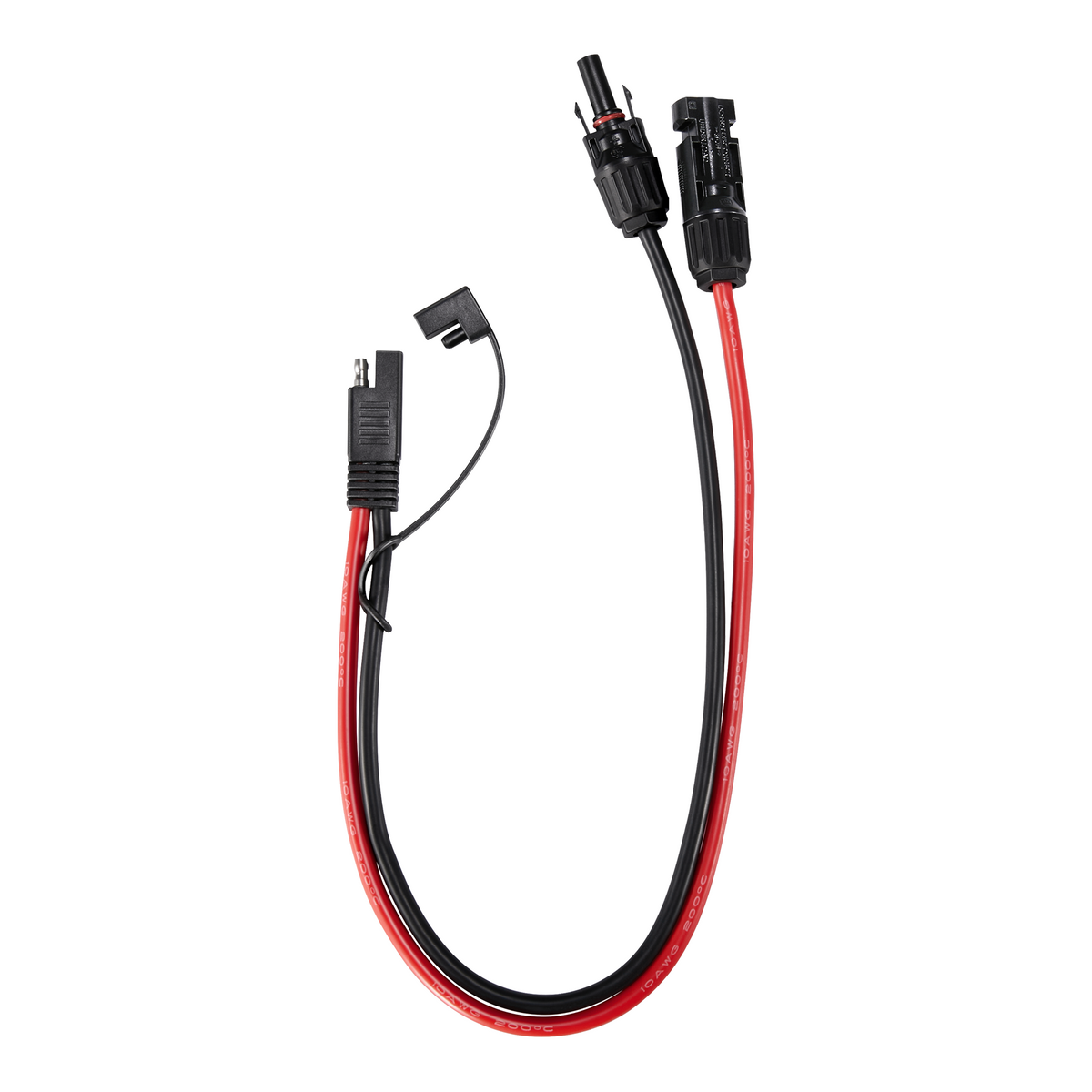

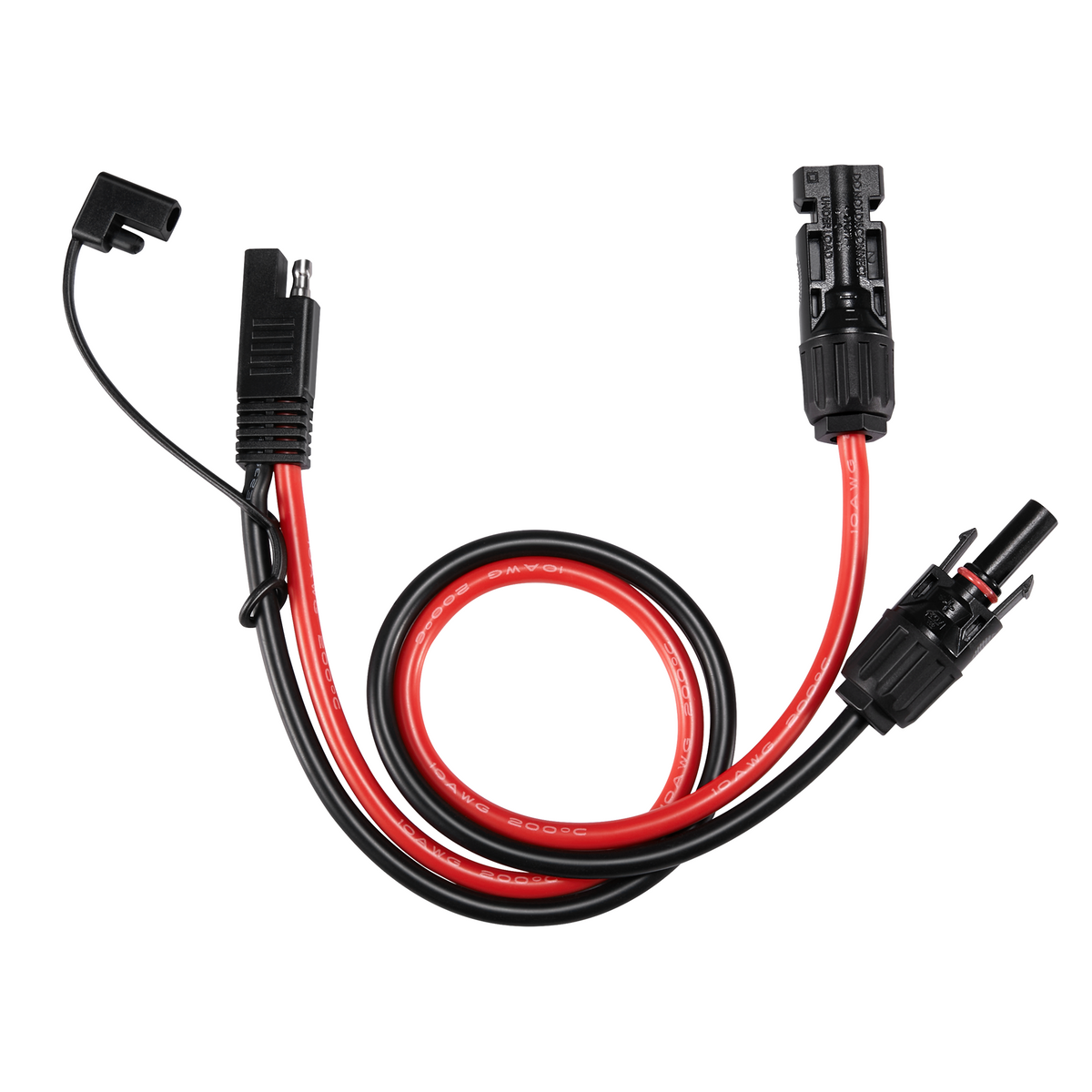

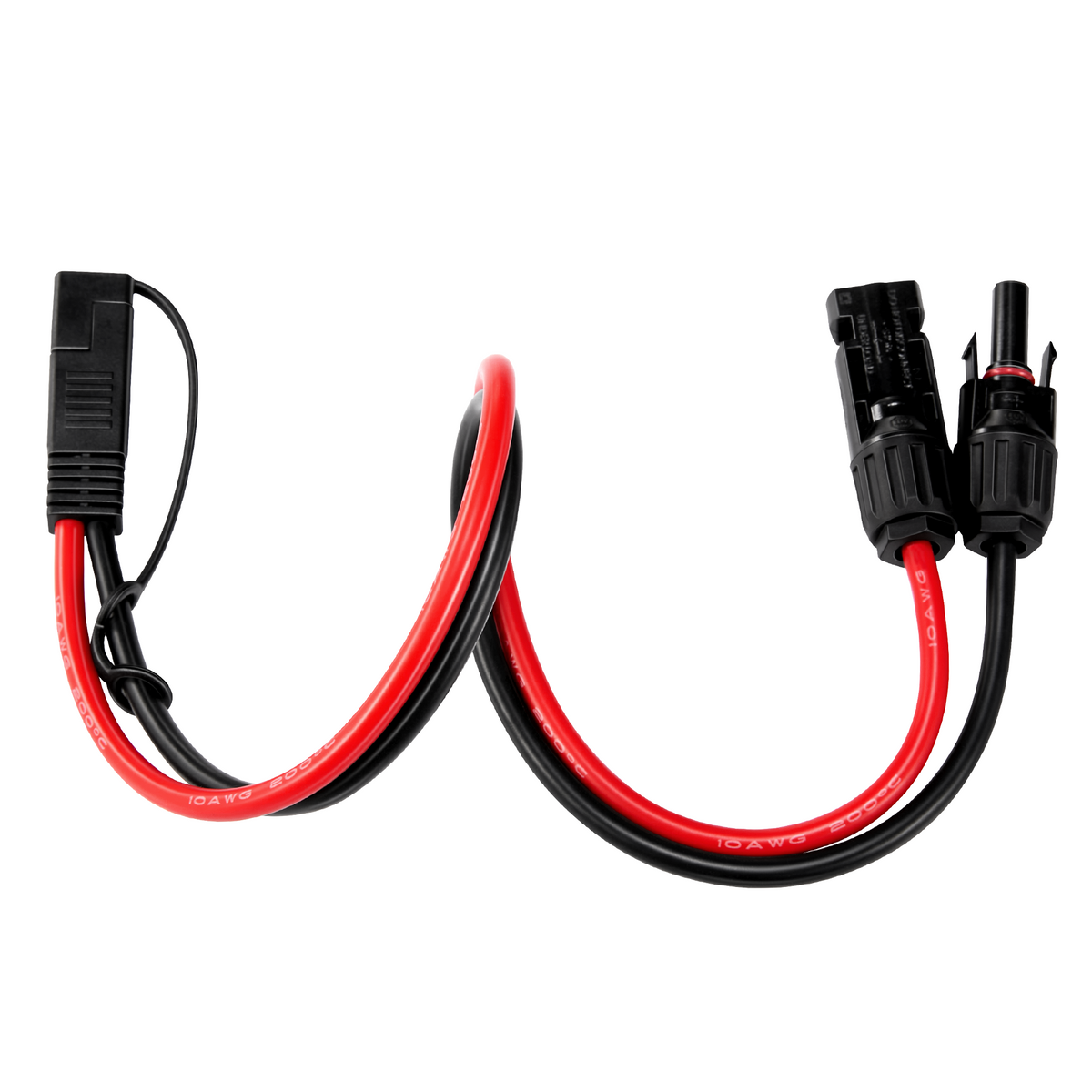

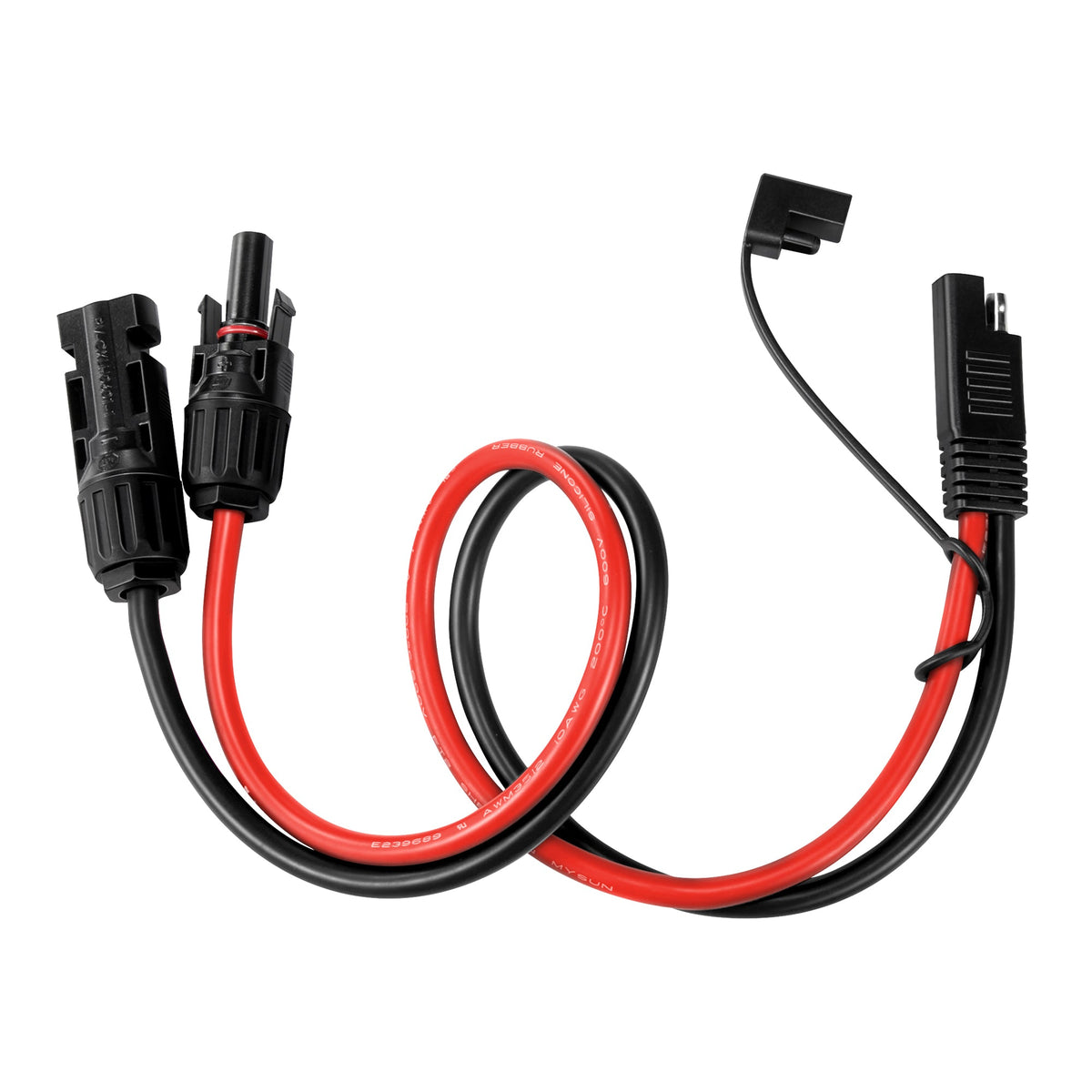

Type: SAE-to-MC4 adapter cable for connecting solar panels with MC4 connectors to equipment using an SAE plug. The 52 cm (20.5 in) cable supports solar charging and power connections in RVs, boats, trailers, and off-grid systems.
Performance Specifications

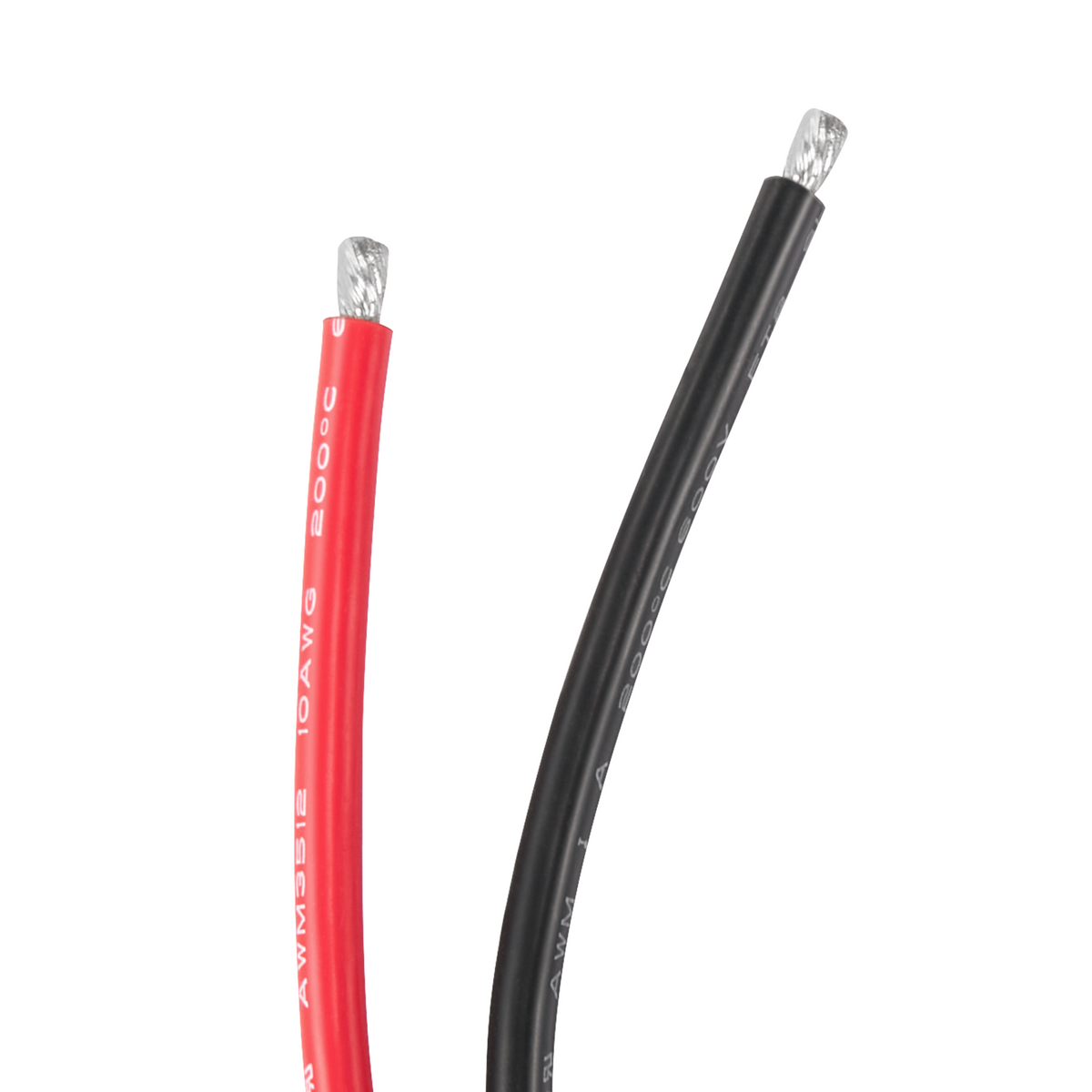

- Wire: 10AWG soft silicone-insulated, tinned copper conductor
- Rated voltage: 600V
- Rated current: 45A

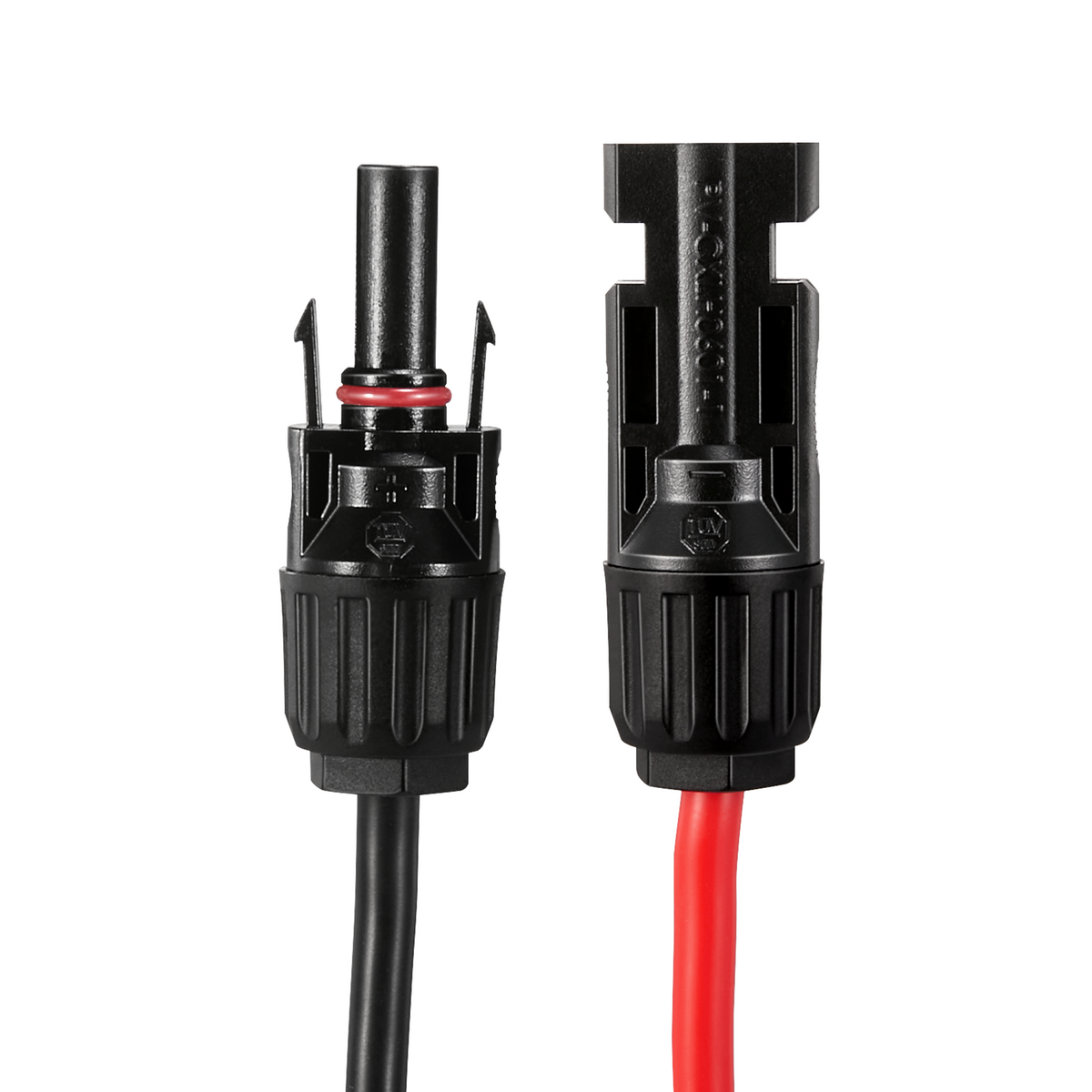

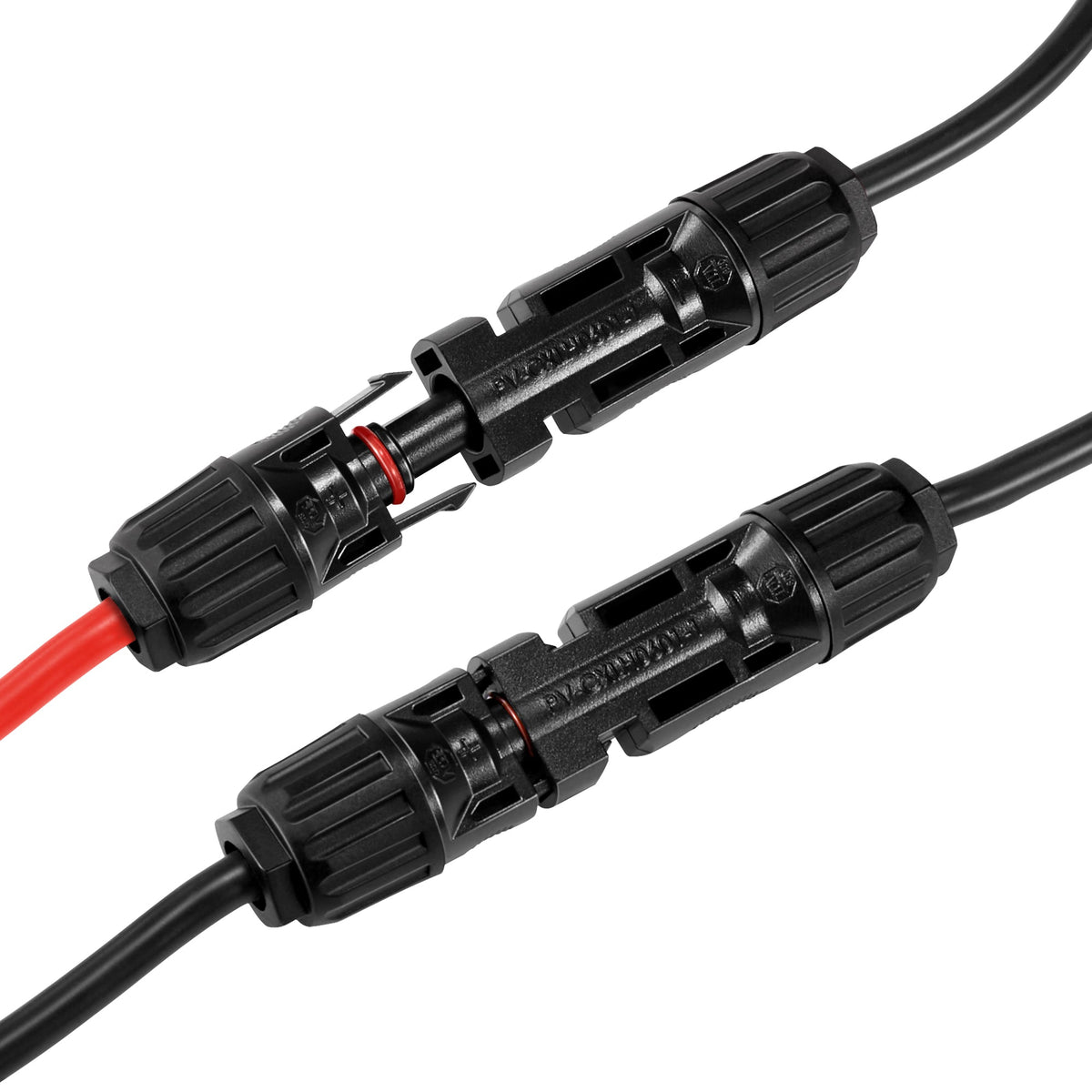

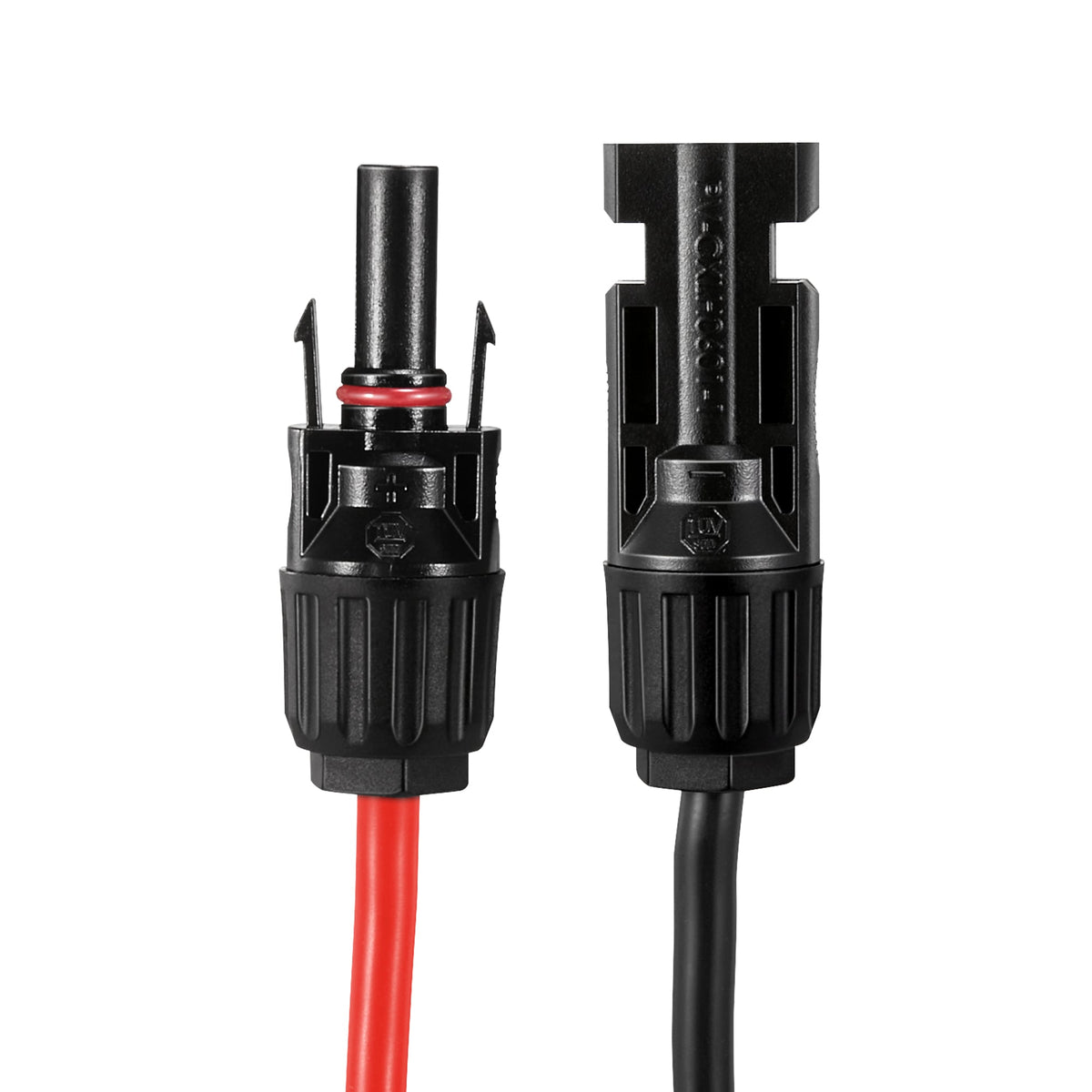

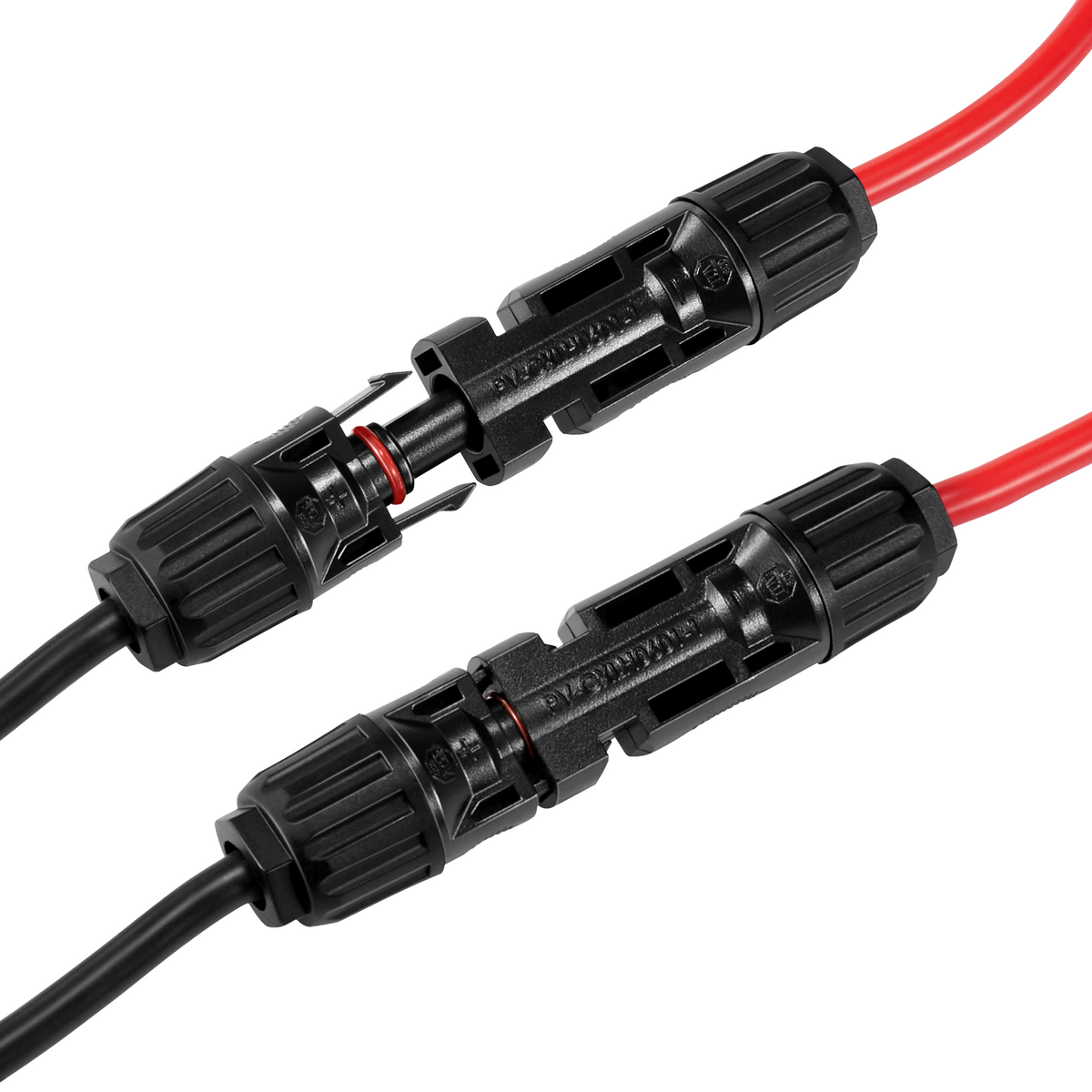

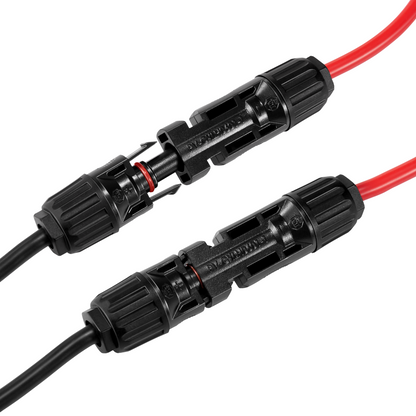

- MC4 connector protection: IP68 waterproof

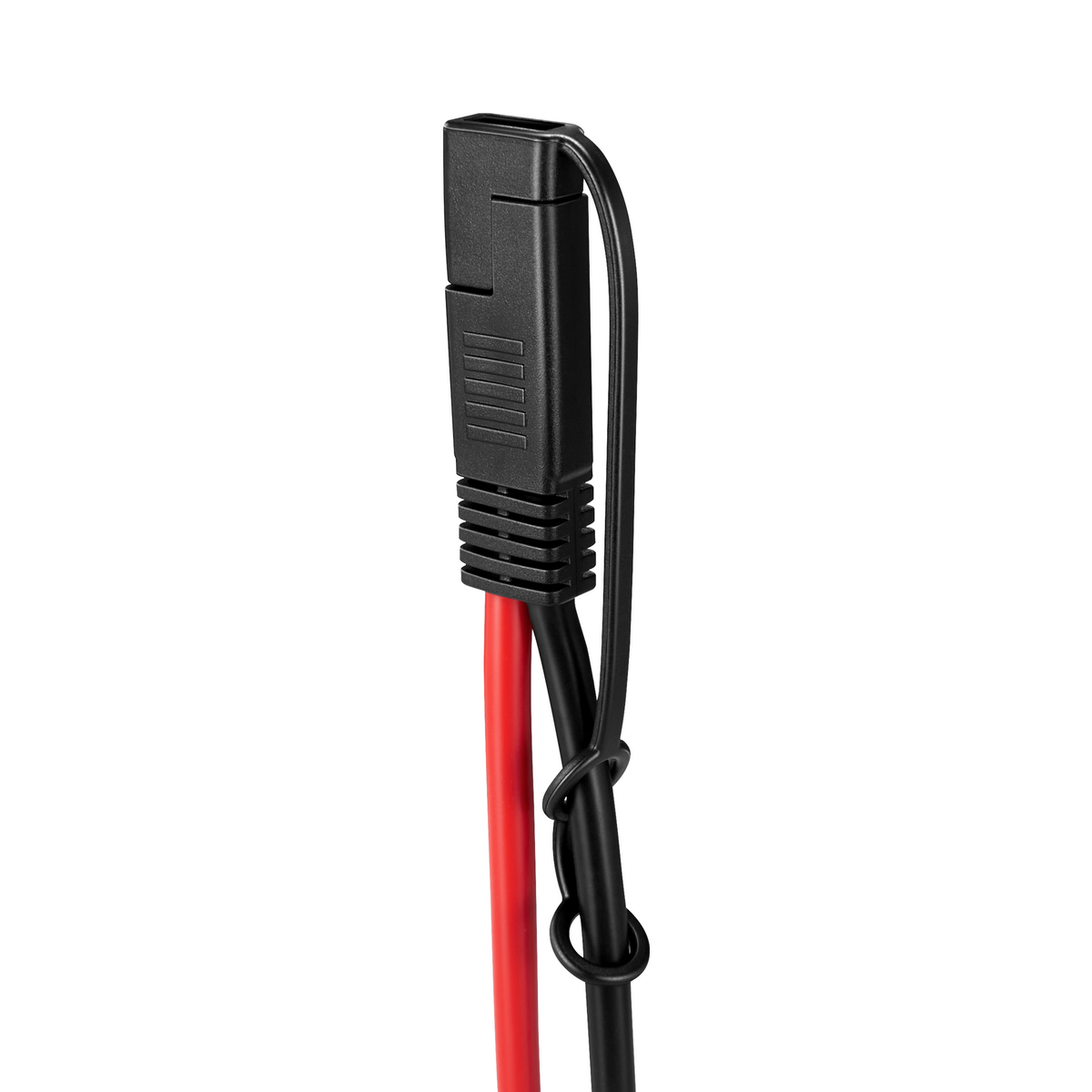

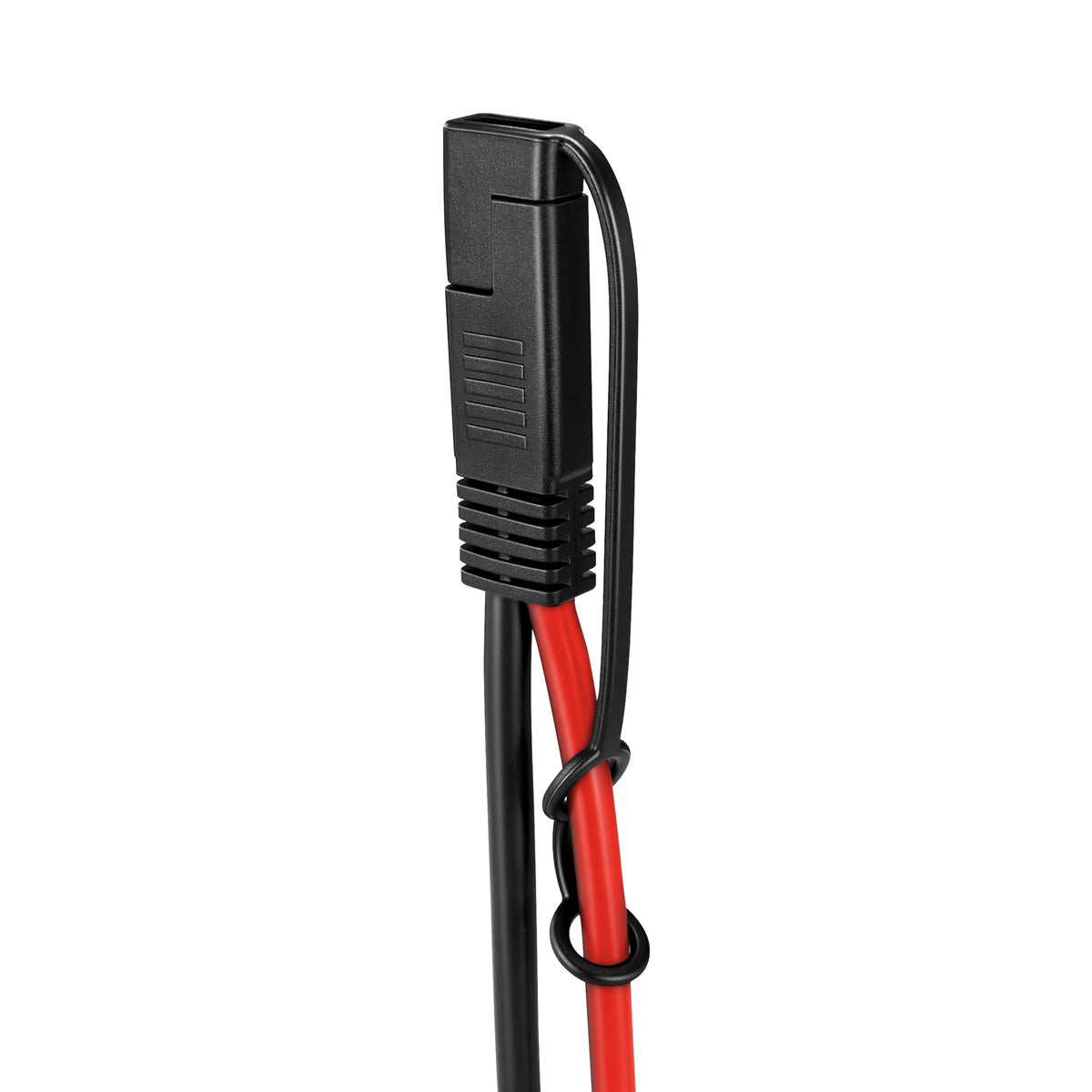

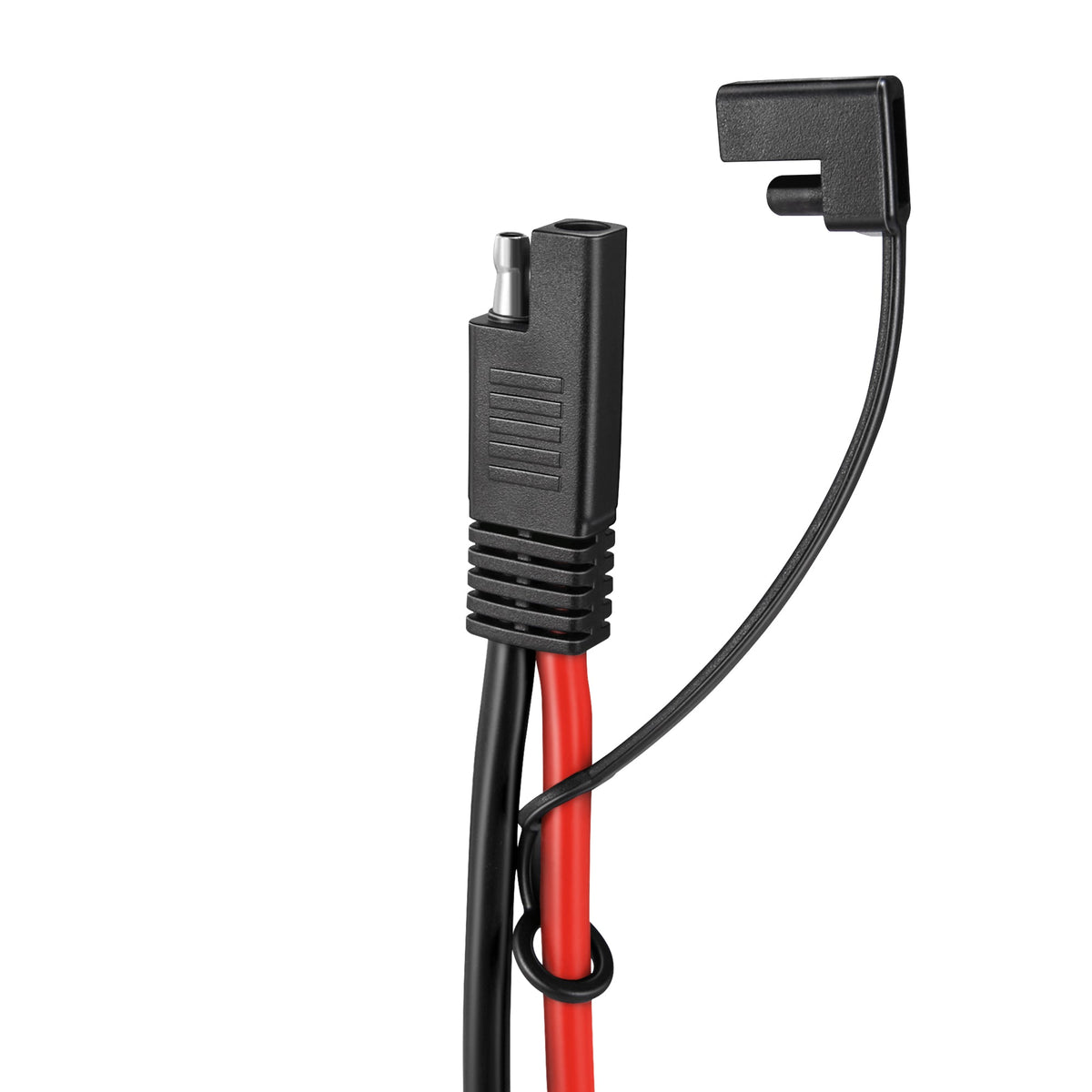

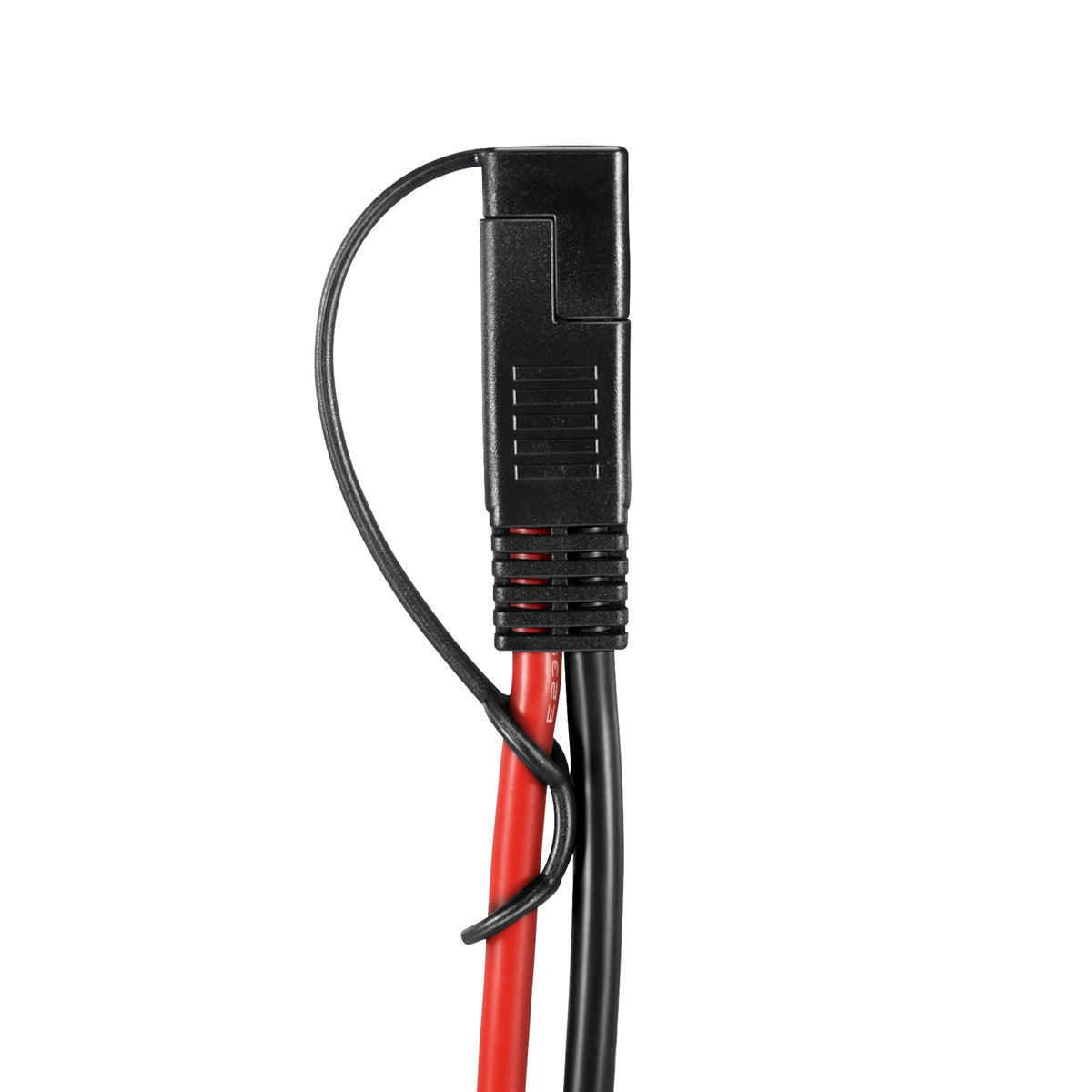

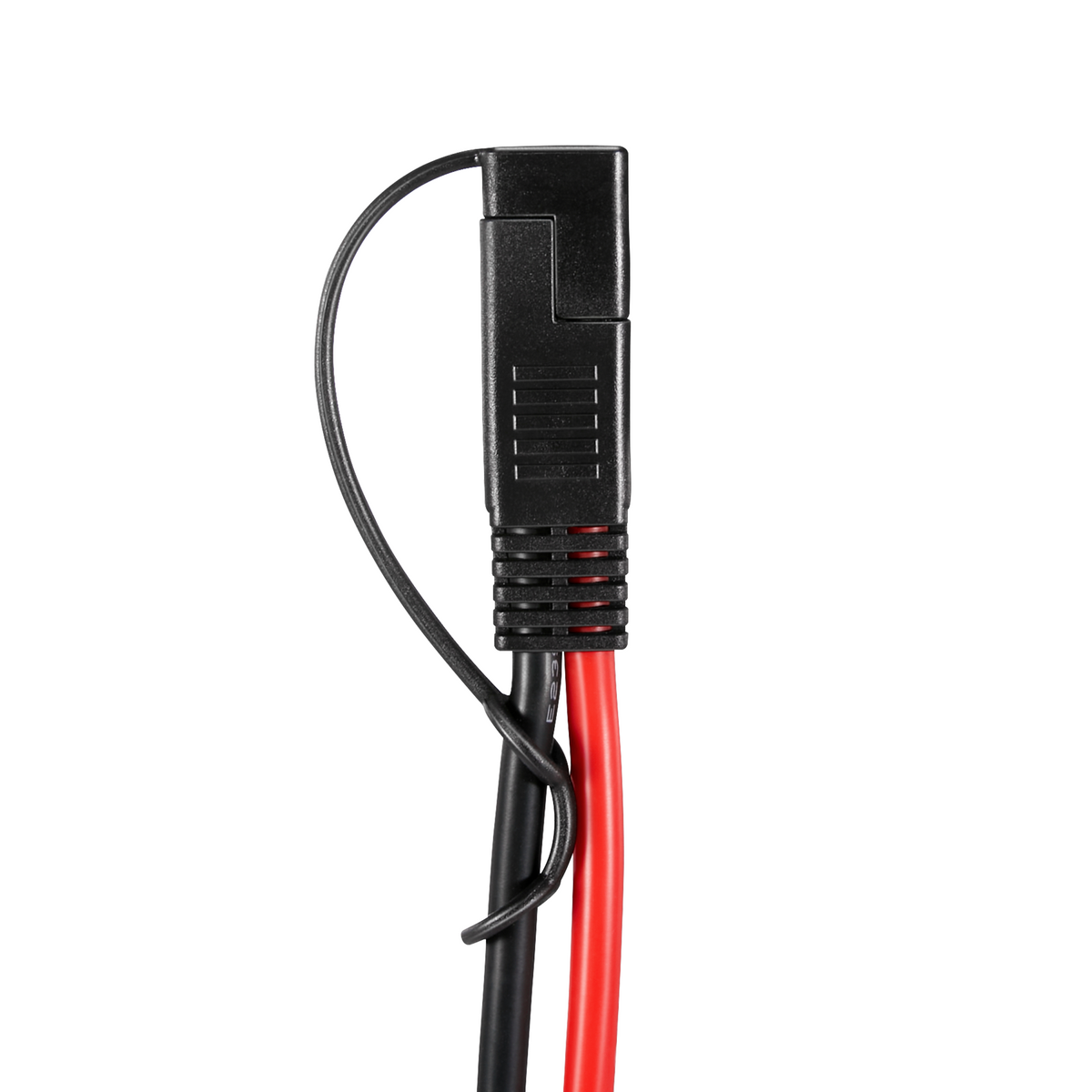

- SAE connector: Dustproof cap included
- Connector materials: PPO MC4 and UL 94V-0 flame-retardant PVC SAE housing
- Environmental capability: UV-resistant PVC with heat resistance up to 200°C (392°F)
- Product length: 52 cm (20.5 in)
Safety Features and Certifications
- UL 94V-0 flame-rated PVC housing
- Corrosion-resistant tinned copper conductor
- IP68-rated MC4 connectors help protect against water and debris
- SAE dust cap helps protect the connector when disconnected
Installation and Maintenance Requirements
- No tools required; connect the MC4 plugs and SAE connector securely before use.
- Use with compatible MC4 solar panel connectors and SAE equipment.
- Keep the SAE dust cap fitted when the connector is not in use.
- Inspect connectors, cable insulation, and contact surfaces before installation and during routine use.
Warranty and Service Information
Branding/References
Product reference: 10AWG Solar Connector to SAE Adapter. Package dimensions: 6 × 10 in. Gross weight: 1 lb.
Differentiators
The combination of 10AWG tinned copper wiring, a 45A rating, IP68 MC4 connectors, and a heat-resistant UL 94V-0 PVC SAE housing provides a high-current solar-to-SAE connection in a compact 52 cm cable.
