100W Slim Kit

100W Slim Kit

$303.99 USD
$379.99 USD $303.99 USD
Sale Sold out
Shipping calculated at checkout.

features

• Solid design control box — Meets NEMA Type 4 & IP30 standard by lab test
• LCD color screen — Real-time status view and easy user interaction
• Breathing indicator light — Shows real-time charging status
• Control button — Adjust max output current & set scheduled charging time
• Water protection gasket — Resists 3-minute direct high-pressure water spray
• TPU cable — 14.76ft, excellent durability, cold resistant to -22°F
• ETL certified — Compliant with North American safety standards

Technical Specifications

Voltage: 240V/208V
Max Output Current: 40A (SS-PC1-100) / 32A (SS-HAY-100-32A)
Max Power: 8kW / 7kW
Frequency: 50/60Hz
Temperature Range: -22°F to 122°F
Humidity: 5–95%, no condensation
Connector: Type 1 (J1772)
Cable Length: 14.76ft (4.5m)
Altitude: ≤2000m (6,562ft)
Cooling: Natural
Safety Standards: ETL, UL2594, CSA C22.2
Scheduling: App / Timer control
Connectivity: Wi-Fi / Bluetooth
Warranty: 2 years

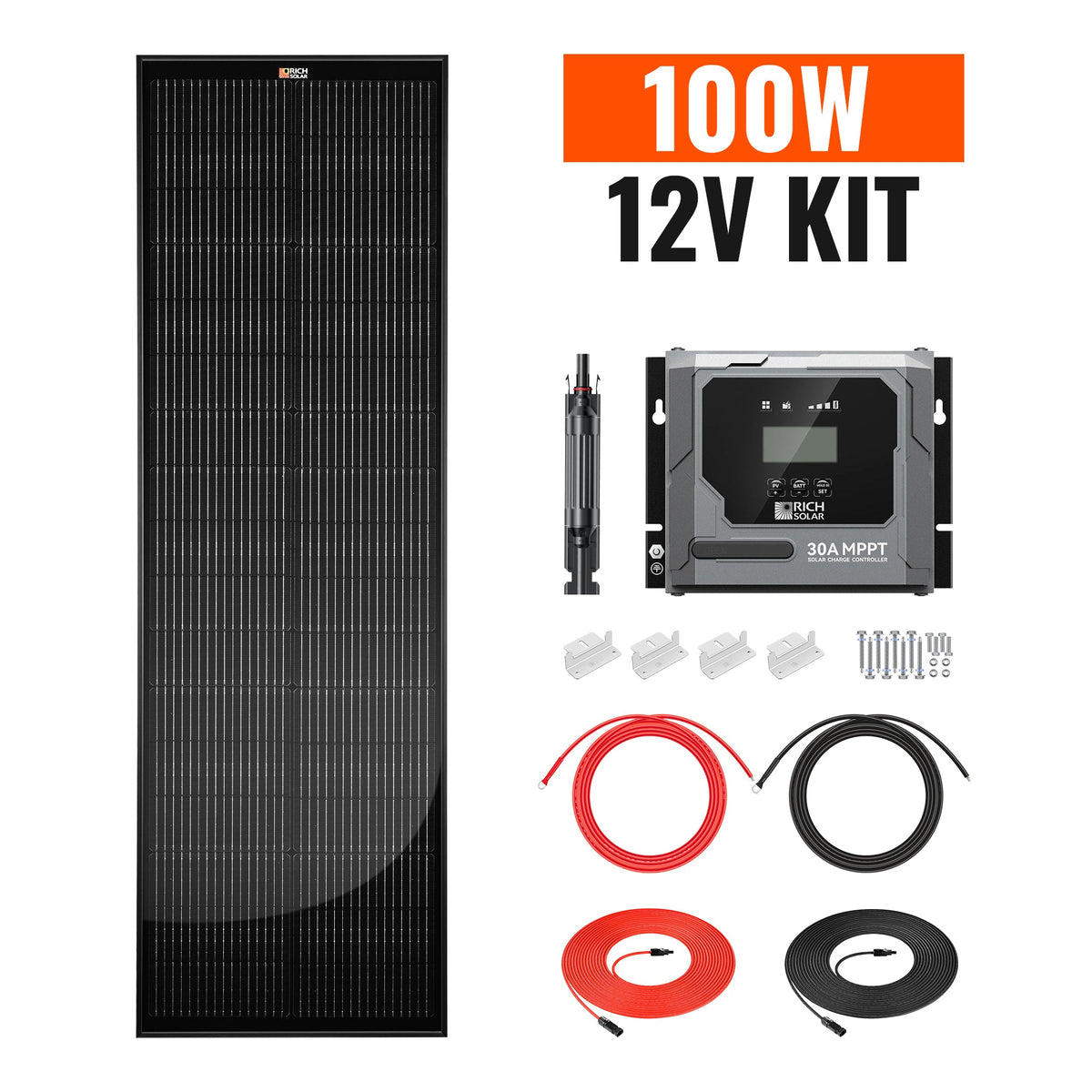

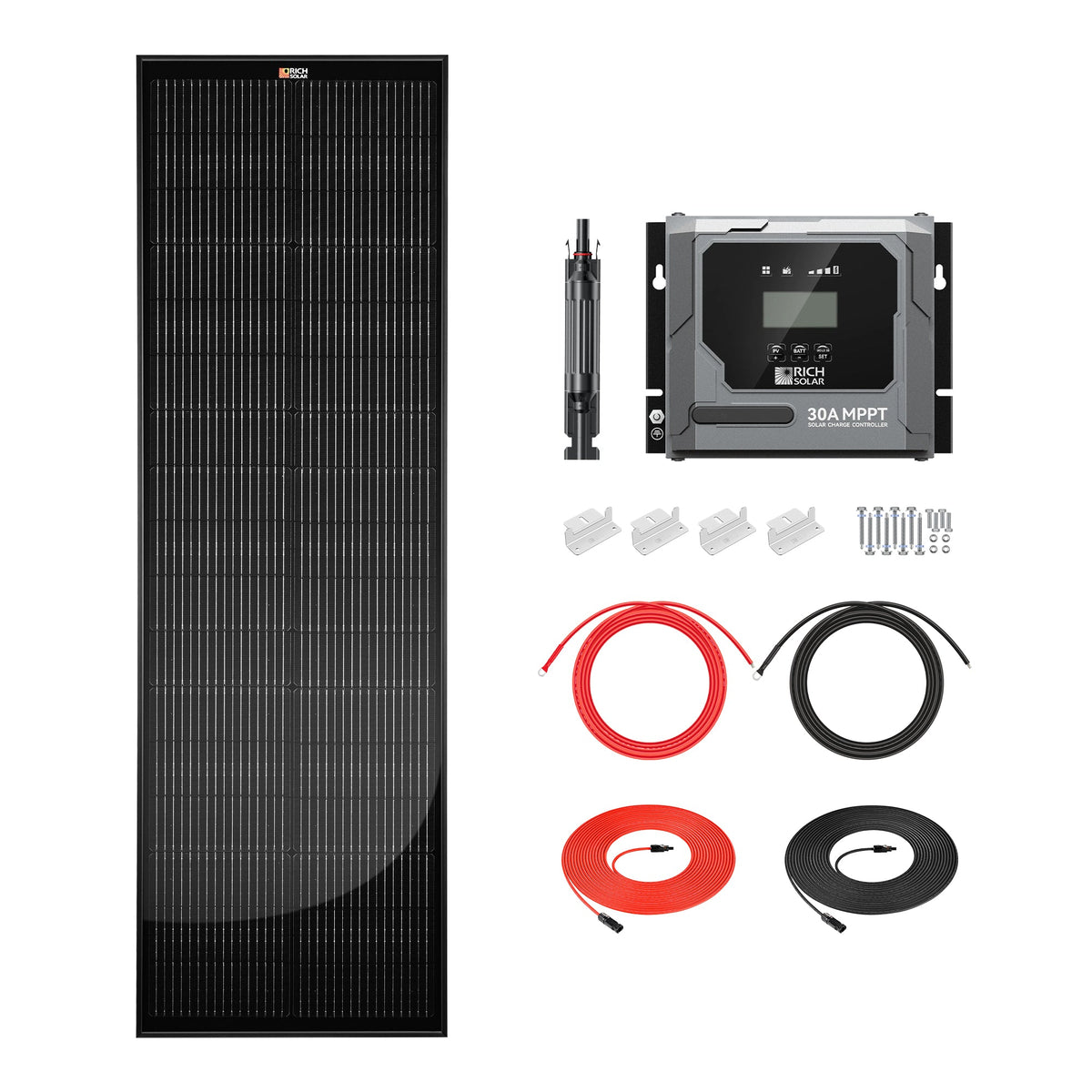

Packing Details

  • 1 x 12V 100W SLIM Onyx Solar Panel (RS-M100SLB)
  • 1 x 30 ft 10 AWG Solar Cable Set (Panel to Controller) (RS-30101)
  • 1 x 10 ft 10 AWG Battery Cable (Red), connects controller to battery (RS-1010)
  • 1 x 10 ft 10 AWG Battery Cable (Black), connects controller to battery (RS-1010)
  • 1 x Bravo 30 12V/24V 30A MPPT Charge Controller (RS-MPPT30PB)
  • 1 x Mounting Z Bracket set (one set of 4) (RS-ZB4C)
  • 1 x 10A Solar Panel Inline Fuse Holder (RS-SC10F)
View full details

100W Slim Solar Charging Kit

Equipment Type and Primary Applications

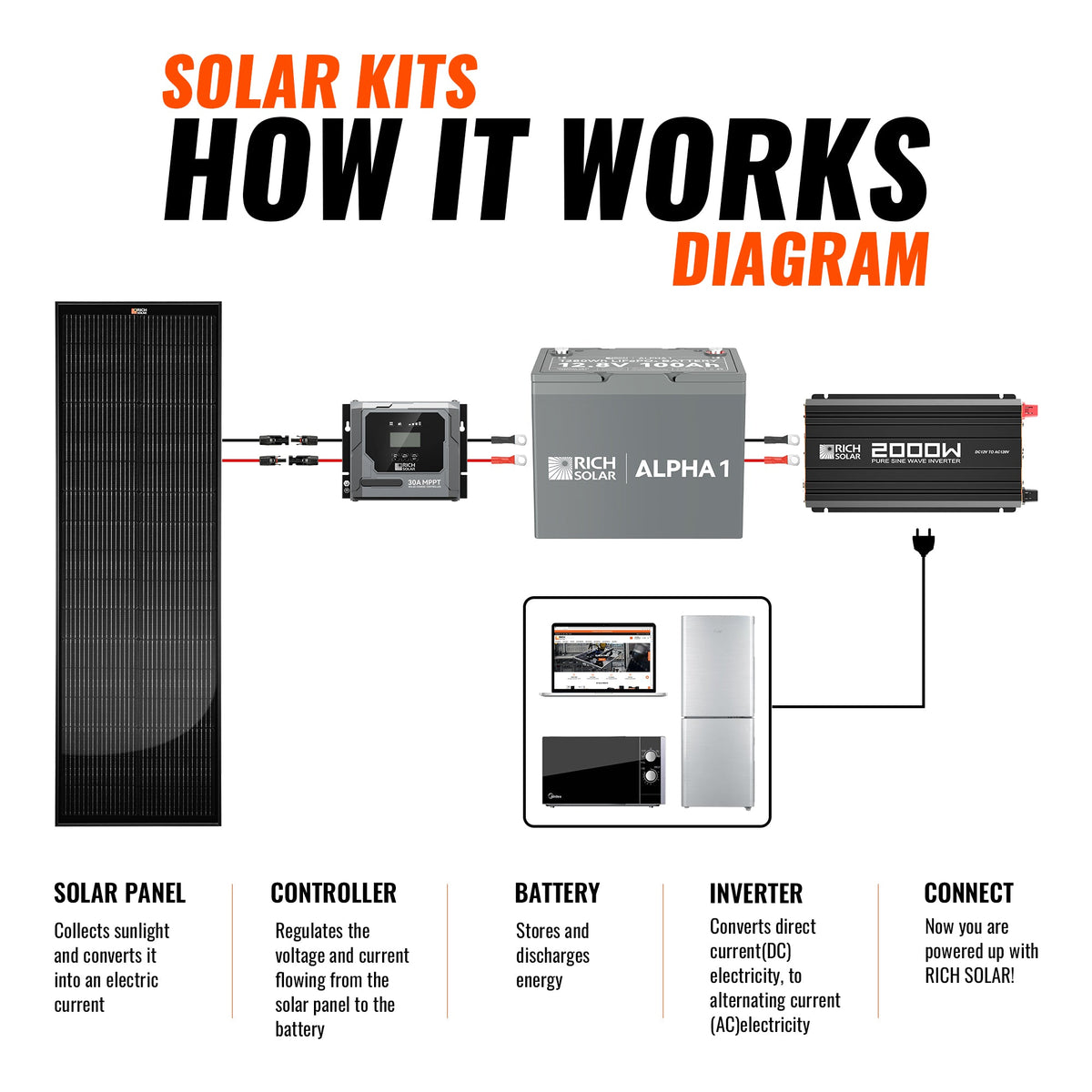

12V solar charging kit combining a 100W slim monocrystalline solar panel with a 30A MPPT charge controller for battery charging in RVs, vans, trailers, boats, tiny homes, and other off-grid solar systems. The slim panel profile supports installation where rooftop space is limited.

Performance Specifications

  • Solar panel: 100W, 12V slim monocrystalline design; approximately 0.4kWh daily energy production under 4 peak sun hours.
  • Charge controller: Bravo 30, 12V/24V, 30A MPPT; up to 99.5% tracking efficiency and 98% peak conversion efficiency.
  • Cabling: 30 ft 10 AWG solar cable set from panel to controller; two 10 ft 10 AWG battery cables for controller-to-battery connection.
  • Protection component: 10A solar panel inline fuse holder.

Safety Features and Certifications

  • Includes a 10A inline solar panel fuse holder for circuit protection.
  • Certification marks and standards are not included in the supplied product details.

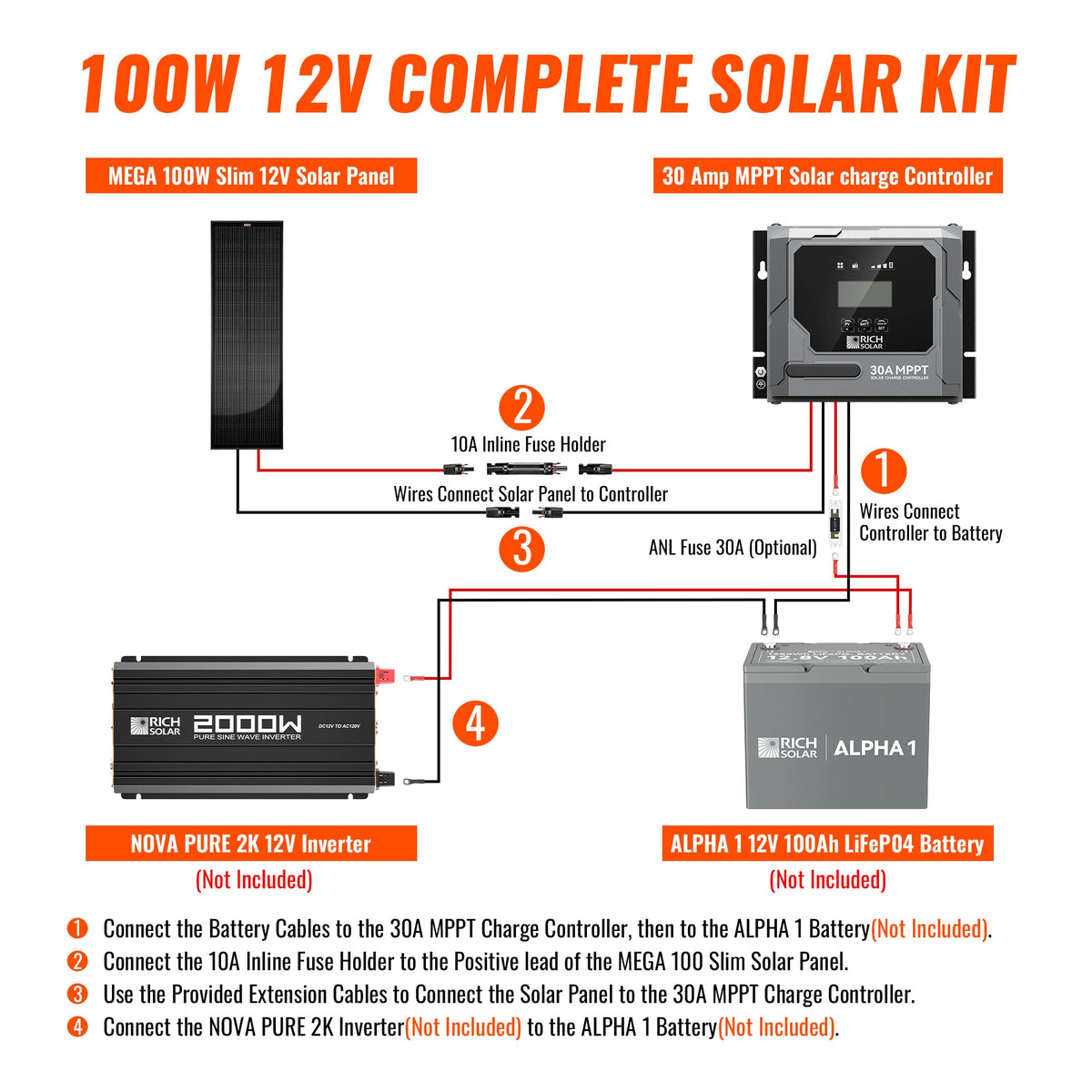

Installation and Maintenance Requirements

  • Install the panel using the included set of four mounting Z brackets.
  • Connect the panel to the Bravo 30 controller with the pre-assembled 30 ft solar cable set.
  • Connect the controller to the battery using the supplied red and black 10 AWG cables.
  • Inspect cable connections, fuse-holder condition, mounting hardware, and panel surfaces as part of routine system upkeep.

Warranty and Service Information

Branding/References

  • Panel: Onyx Solar RS-M100SLB.
  • Charge controller: Bravo 30 RS-MPPT30PB.
  • Solar cable set: RS-30101; battery cables: RS-1010; mounting brackets: RS-ZB4C; fuse holder: RS-SC10F.

Differentiators

The compact 100W panel is paired with a high-efficiency MPPT controller rated for both 12V and 24V systems, providing flexible installation and battery-charging compatibility.
