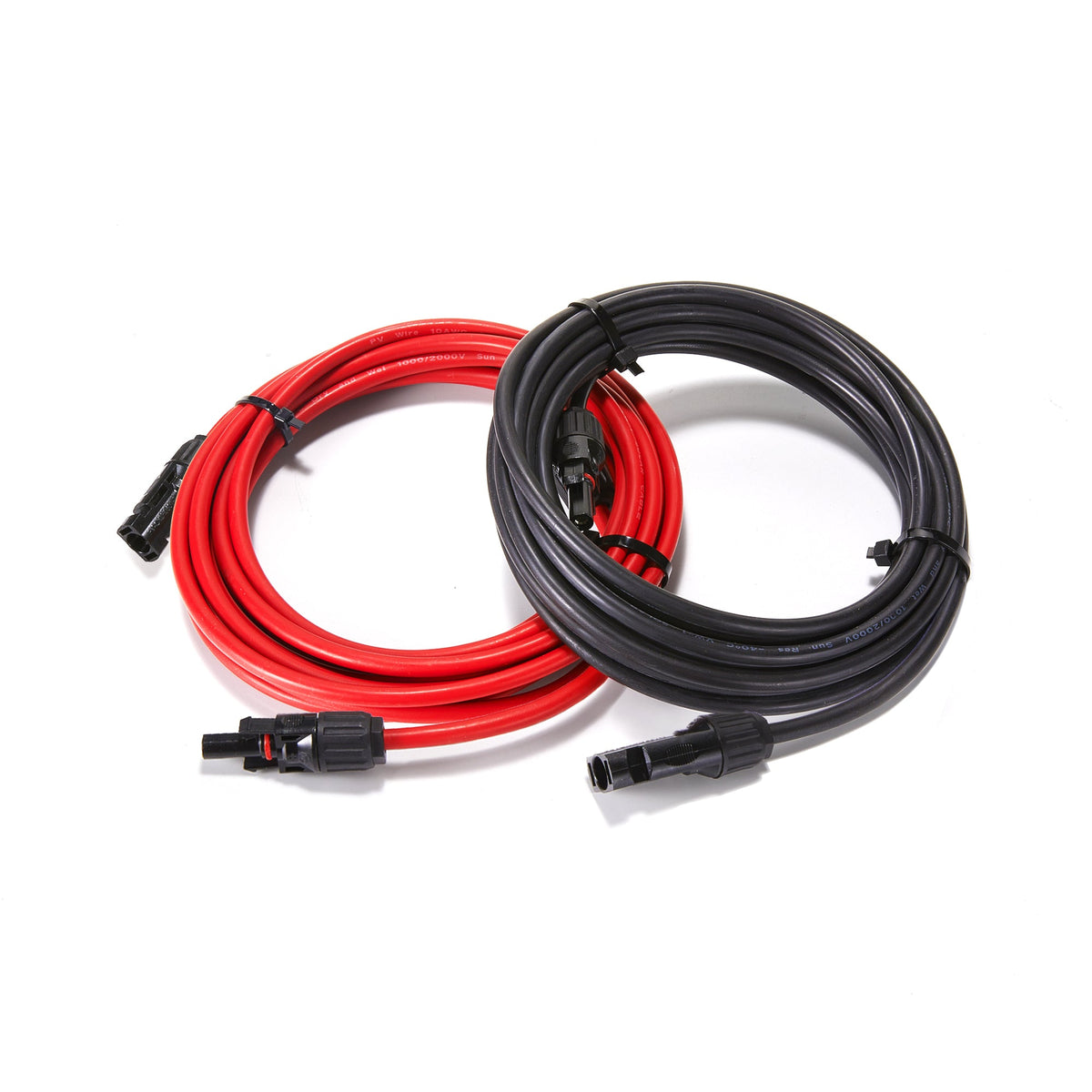

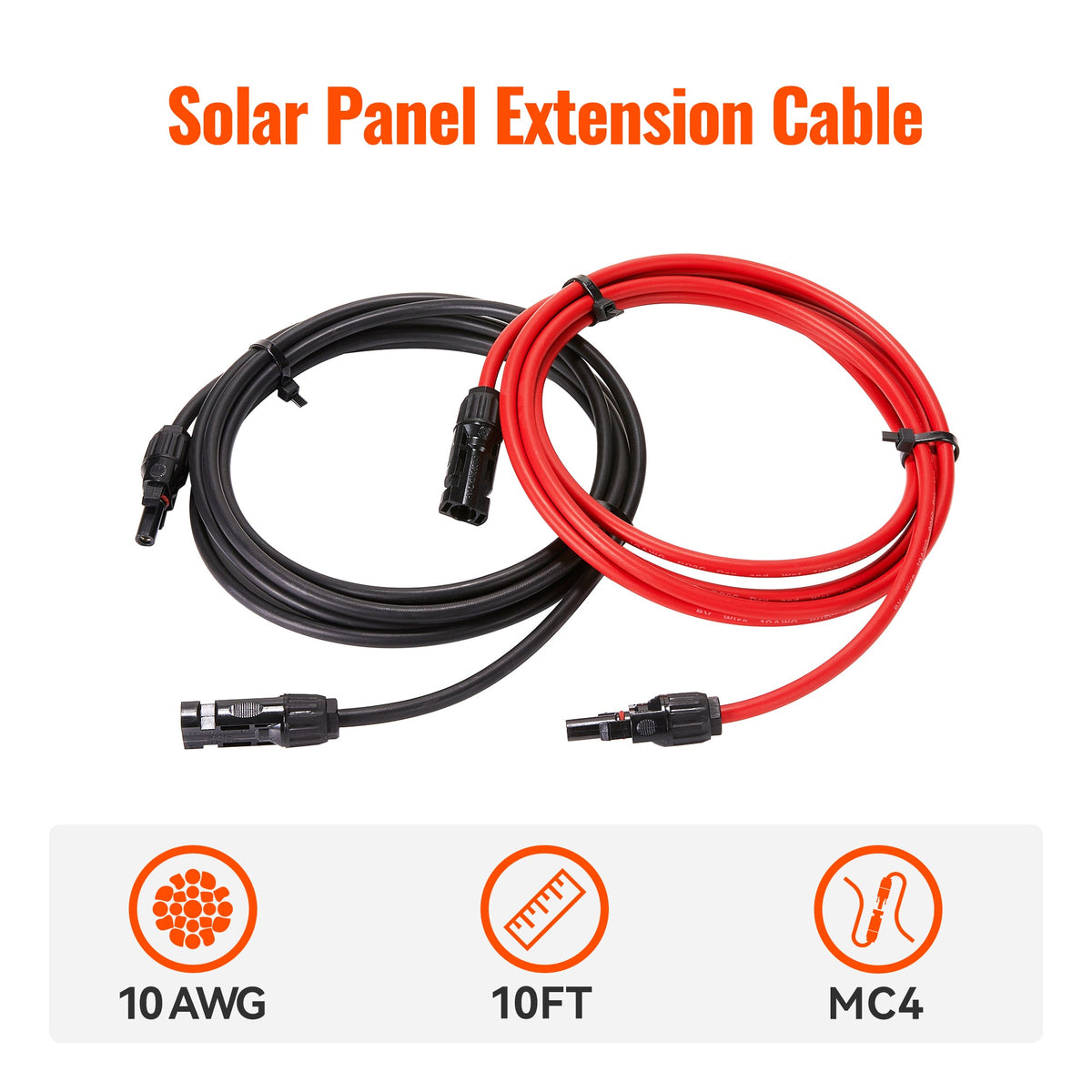

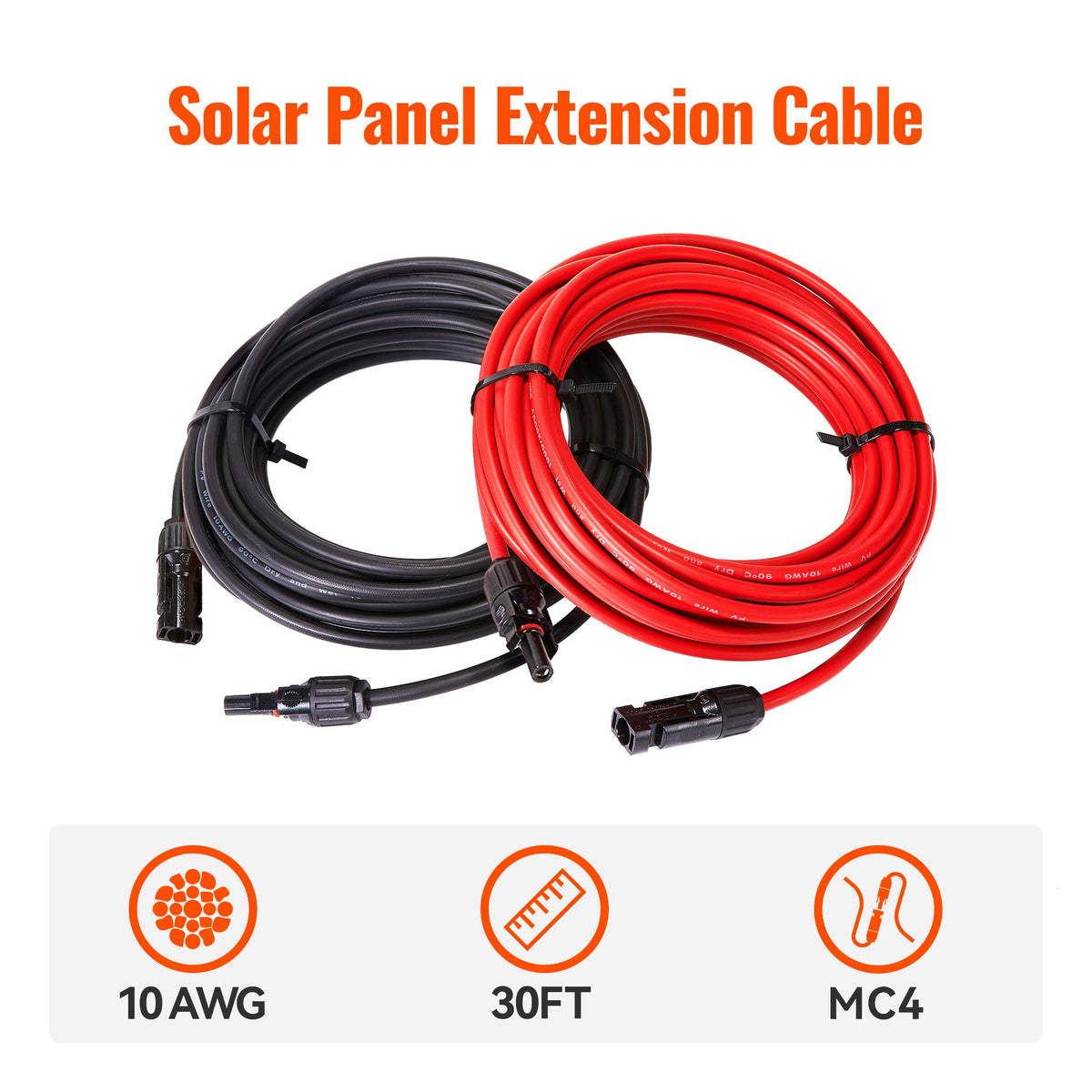

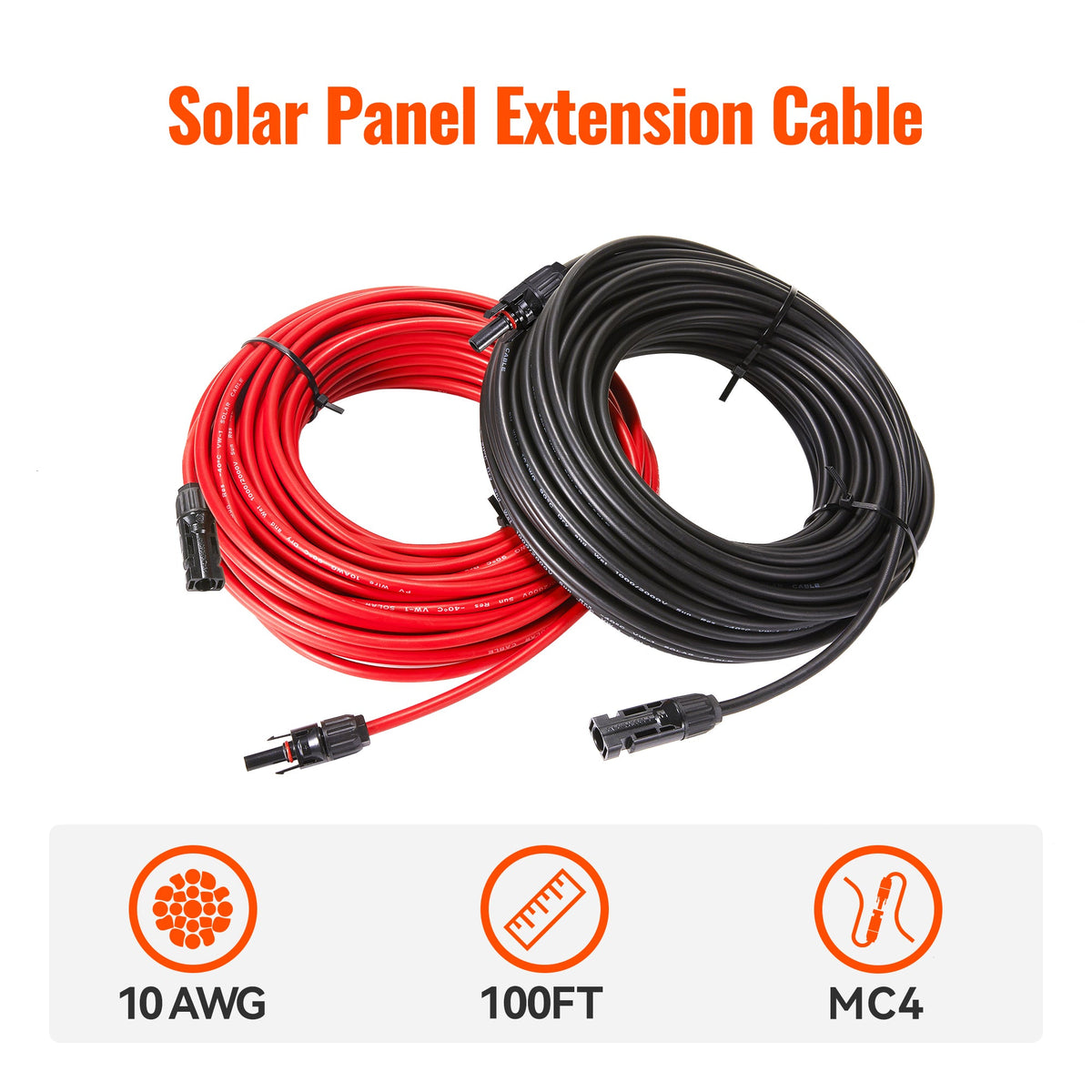

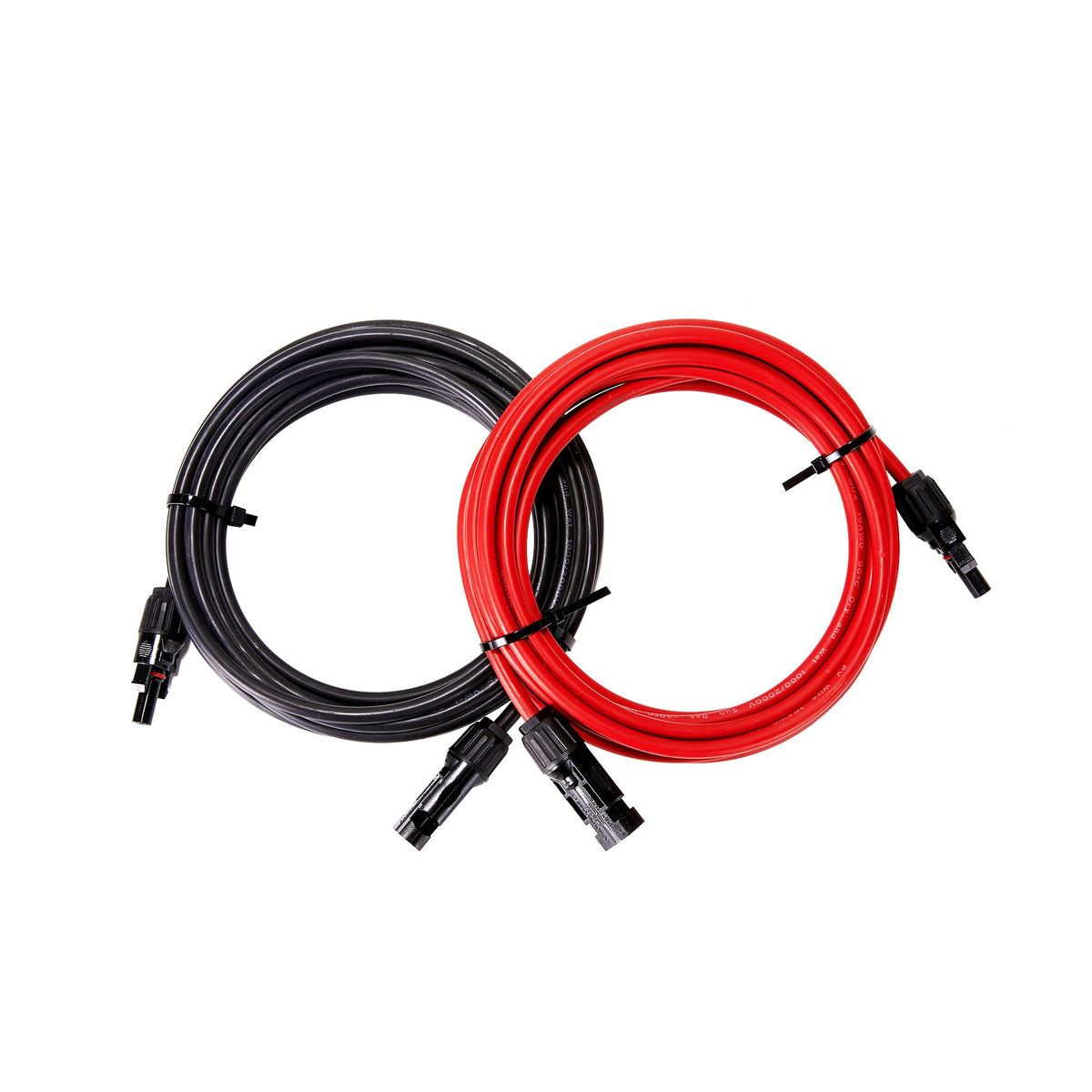

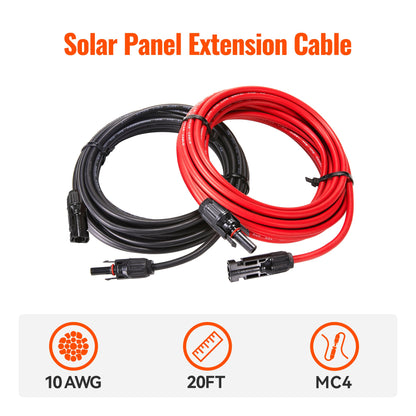

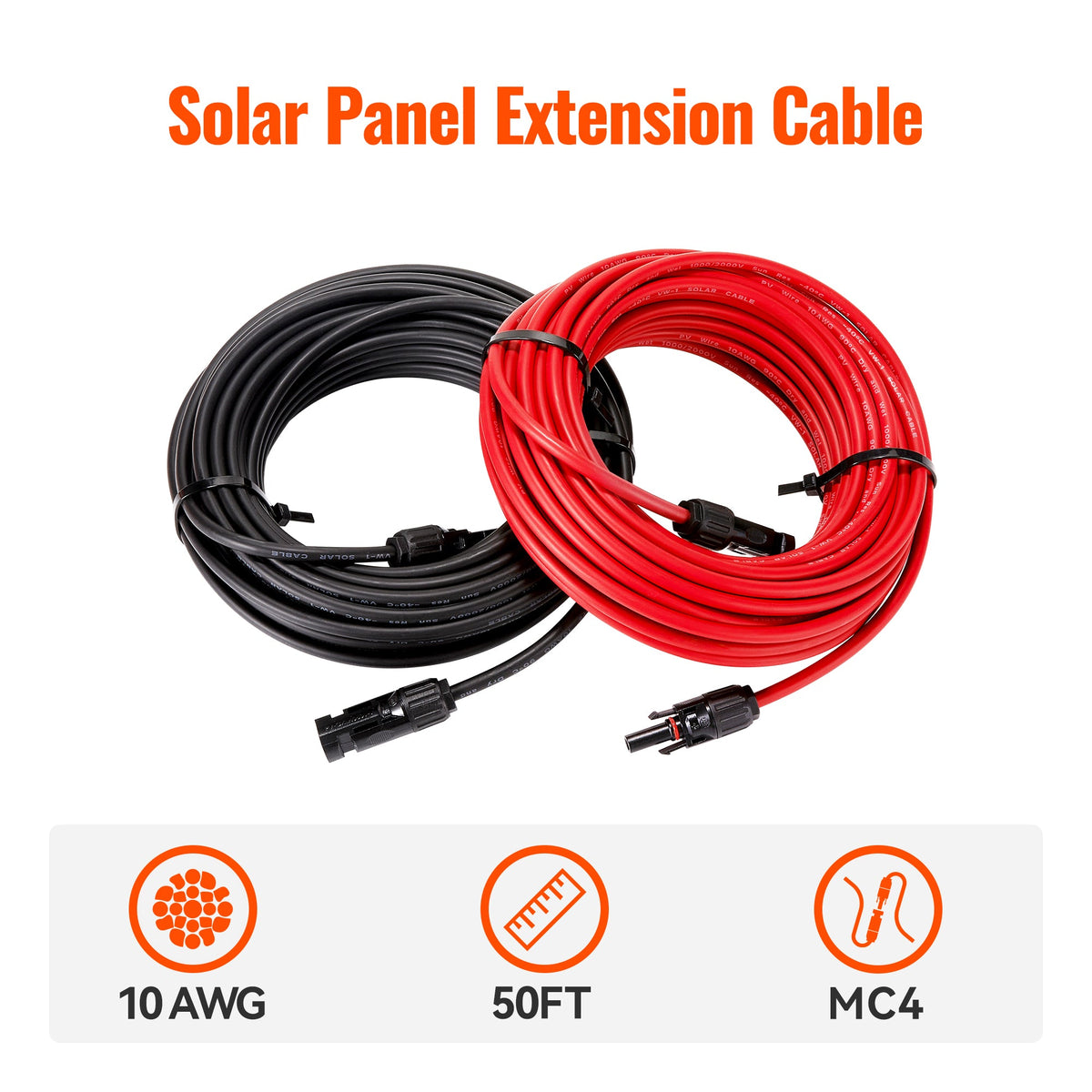

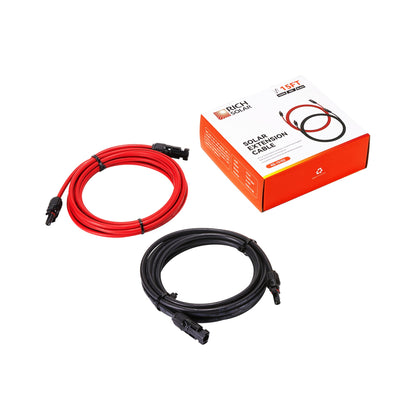

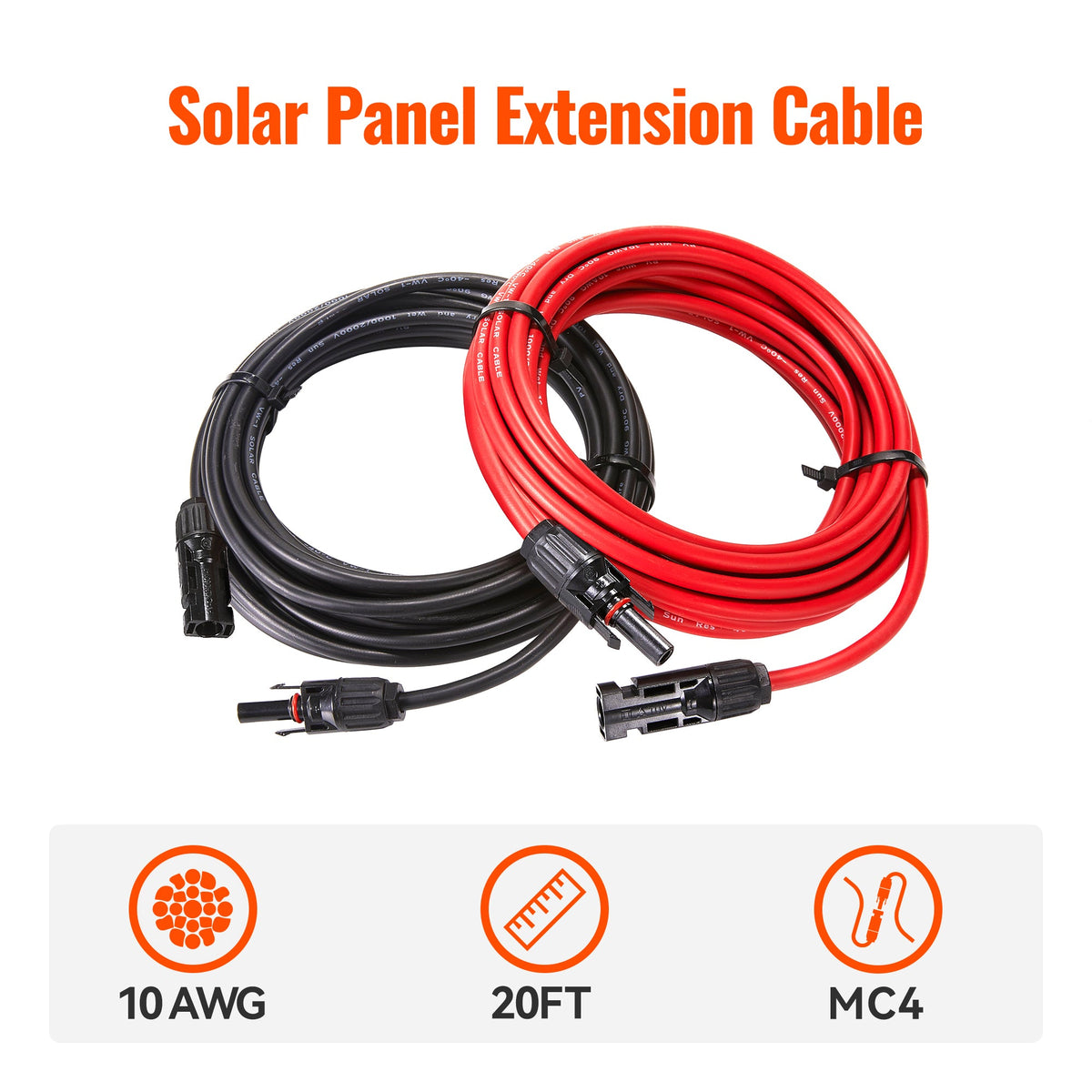

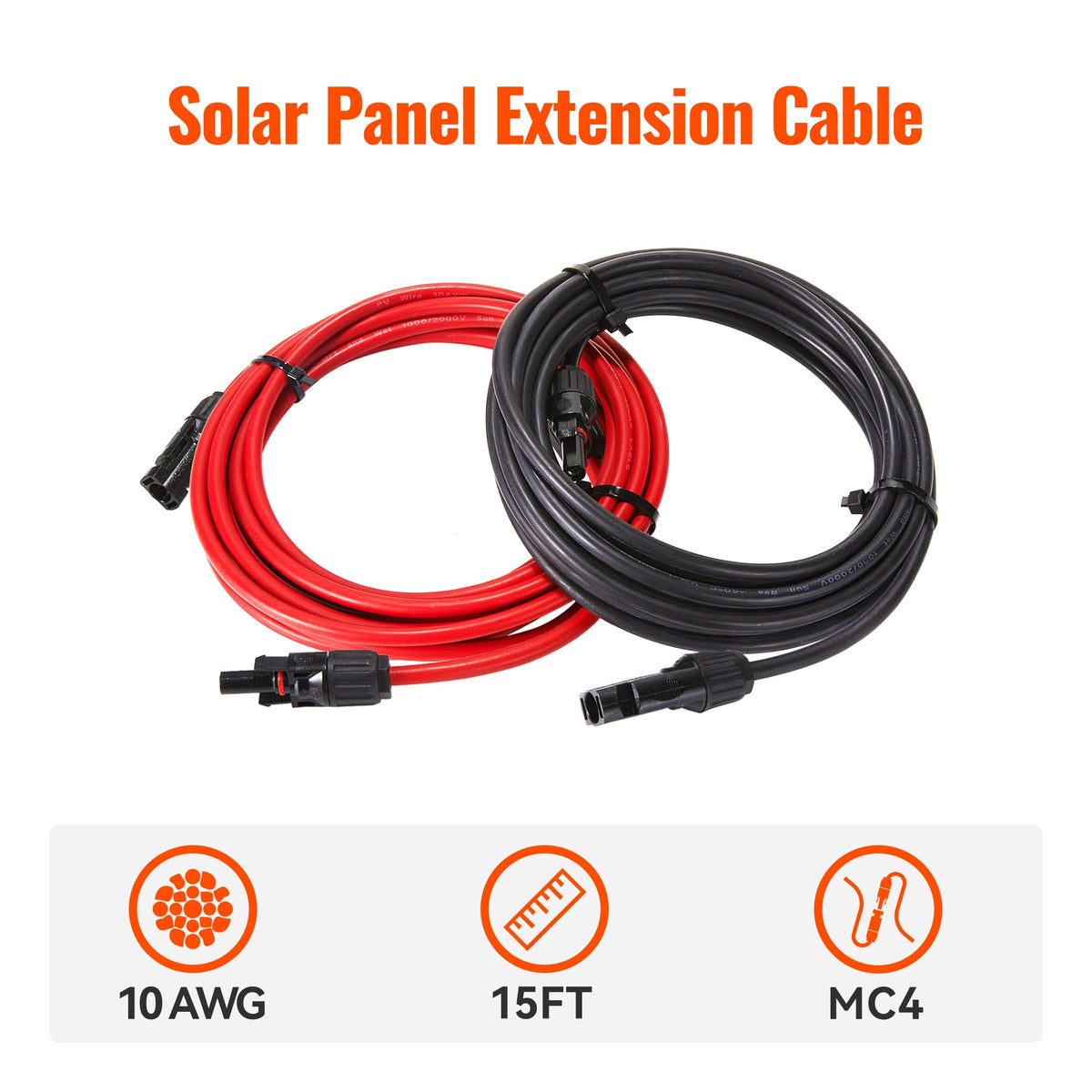

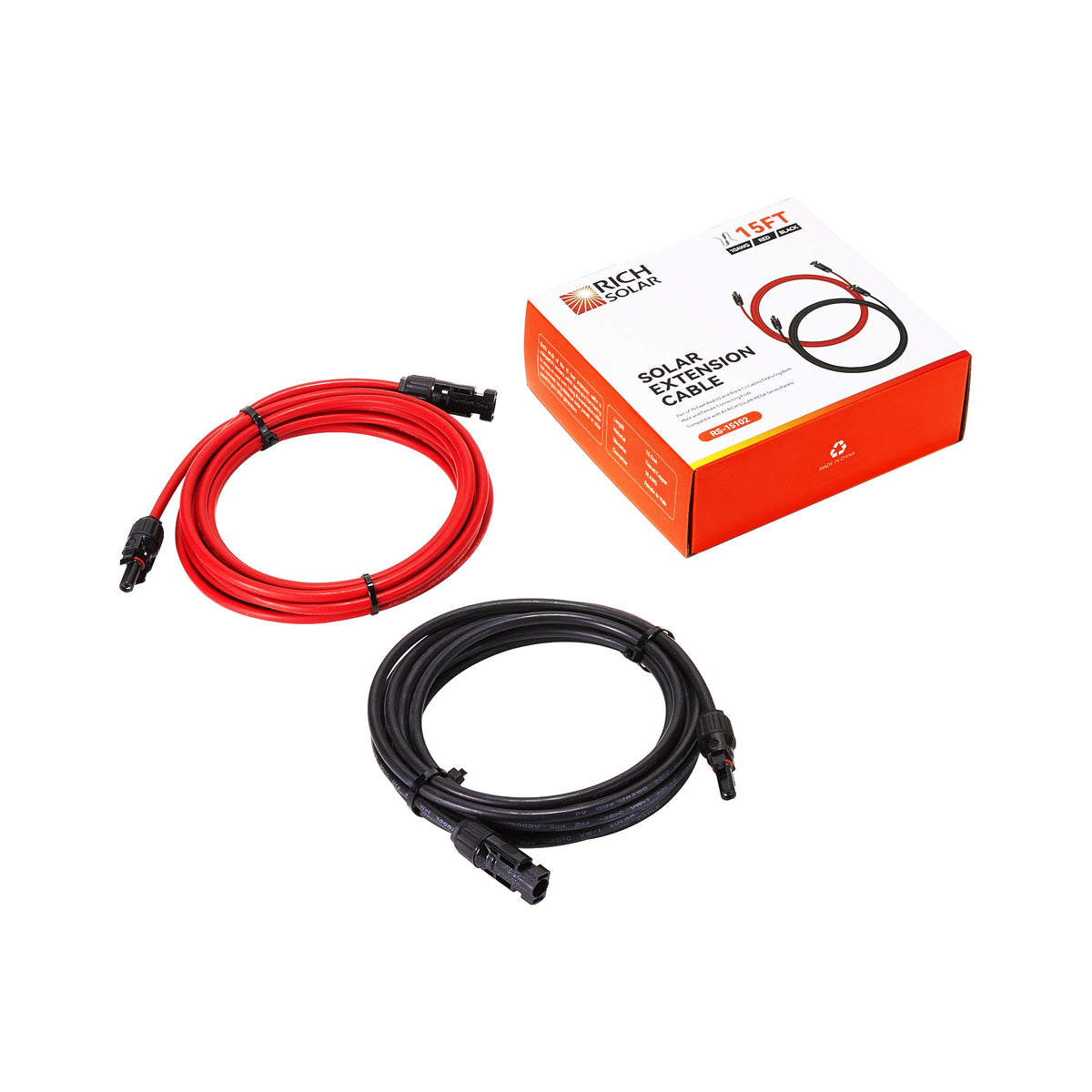

10 Gauge Solar Panel Extension Cable with Male and Female Solar Connector Ends

$23.99 USD

~~$29.99 USD~~ $23.99 USD

Sale Sold out

Shipping calculated at checkout.

Option 10 Feet Red & Black (Set) 15 Feet Red & Black (Set) 20 Feet Red & Black (Set) 30 Feet Red & Black (Set) 50 Feet Red & Black (Set) 75 Feet Red & Black (Set) 100 Feet Red & Black (Set) 30 Feet Red & Black (Set) + Parallel Connectors 50 Feet Red & Black (Set) + Parallel Connectors

features

• Solid design control box — Meets NEMA Type 4 & IP30 standard by lab test
• LCD color screen — Real-time status view and easy user interaction
• Breathing indicator light — Shows real-time charging status
• Control button — Adjust max output current & set scheduled charging time
• Water protection gasket — Resists 3-minute direct high-pressure water spray
• TPU cable — 14.76ft, excellent durability, cold resistant to -22°F
• ETL certified — Compliant with North American safety standards

Technical Specifications

Voltage: 240V/208V
Max Output Current: 40A (SS-PC1-100) / 32A (SS-HAY-100-32A)
Max Power: 8kW / 7kW
Frequency: 50/60Hz
Temperature Range: -22°F to 122°F
Humidity: 5–95%, no condensation
Connector: Type 1 (J1772)
Cable Length: 14.76ft (4.5m)
Altitude: ≤2000m (6,562ft)
Cooling: Natural
Safety Standards: ETL, UL2594, CSA C22.2
Scheduling: App / Timer control
Connectivity: Wi-Fi / Bluetooth
Warranty: 2 years

Packing Details

Package Dimensions

RS-10102: 9 × 8 × 2 in
RS-15102: 8 × 7 × 3 in
RS-20102: 8 × 8 × 3 in
RS-30102: 9 × 8 × 4 in
RS-50102: 9 × 9 × 5 in
RS-75102: 10 × 10 × 5 in
RS-100102: 10 × 10 × 5 in

Gross Weight

RS-10102: 2 lb
RS-15102: 3 lb
RS-20102: 3 lb
RS-30102: 4 lb
RS-50102: 7 lb
RS-75102: 9 lb
RS-100102: 12 lb

View full details

10 AWG Solar Panel Extension Cable with Male and Female Solar Connector Ends

Equipment Type and Primary Applications

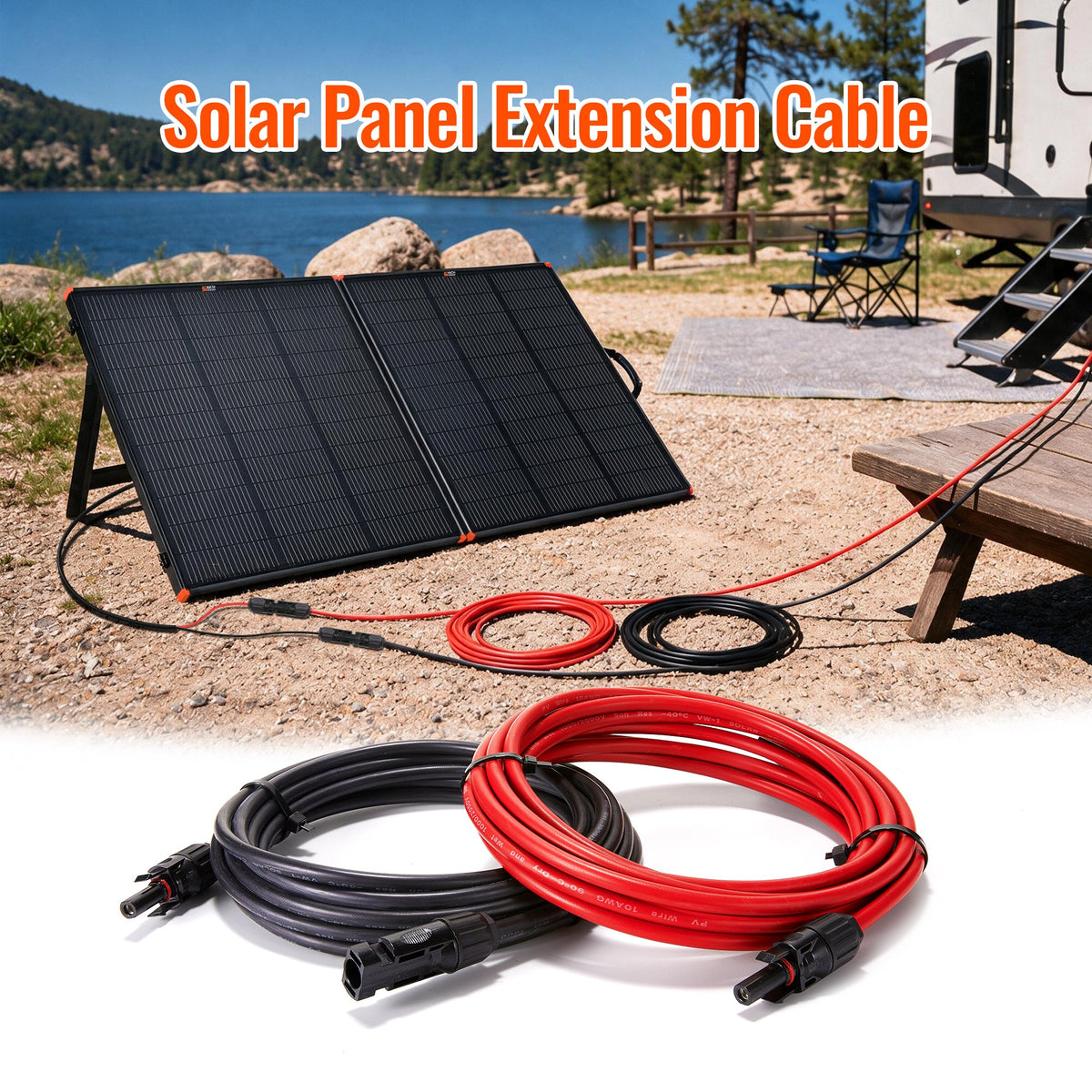

10 AWG solar panel extension cable for extending connections between photovoltaic panels and system components. Each red-and-black cable pair includes pre-installed male and female solar connector ends for connecting compatible solar equipment during residential, commercial, and off-grid installations.

Performance Specifications

Conductor: Tinned copper
Wire gauge: 10 AWG; rated current: 30A
Rated voltage: 1000V DC
Operating temperature: -40°F to +194°F
Protection rating: IP67
Insulation: PPO / PC EXL9330
Flame rating: UL94 V-0
Service life: 25 years
Available lengths: 10, 15, 20, 30, 50, 75, and 100 ft

Safety Features and Certifications

UL 4703 solar cable construction is designed for outdoor exposure, with resistance to moisture, ultraviolet exposure, and corrosion. IP67 protection and UL94 V-0 flame-rated insulation support use in demanding solar installation environments. The 1000V DC rating and 30A current rating define the cable’s electrical operating limits.

Installation and Maintenance Requirements

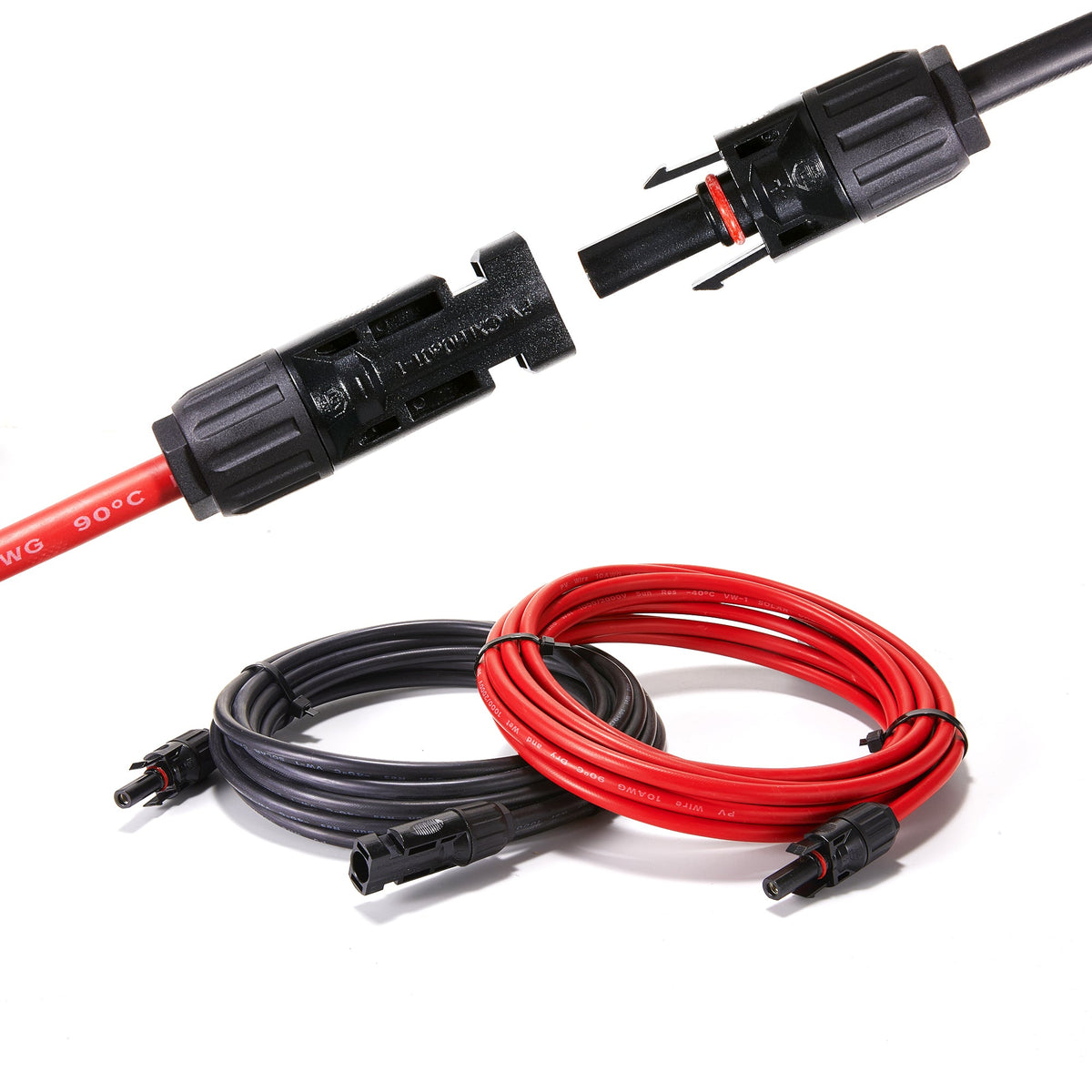

Install by connecting the pre-installed male and female solar connectors to compatible system components. Select the cable length required for the panel-to-component run. Inspect connectors, insulation, and cable condition before installation and during routine system maintenance; replace damaged cable assemblies.

Warranty and Service Information

Branding/References

Reference models: RS-10102, RS-15102, RS-20102, RS-30102, RS-50102, RS-75102, and RS-100102. Each model corresponds to an available cable length.

Differentiators

The cable combines 10 AWG tinned-copper conductors, pre-installed male and female connectors, a 1000V DC rating, -40°F to +194°F operating range, and a stated 25-year service life for long-distance solar wiring applications.
