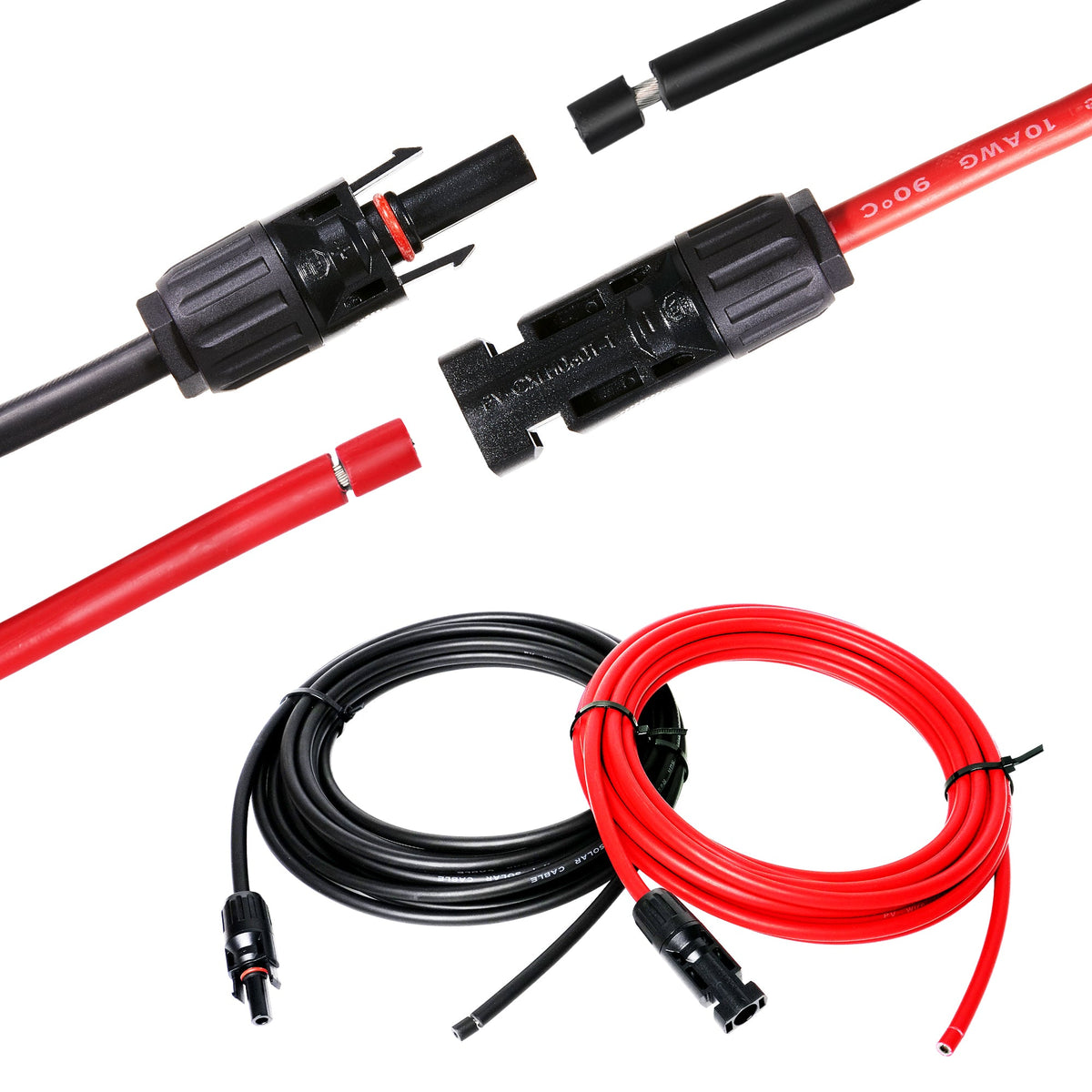

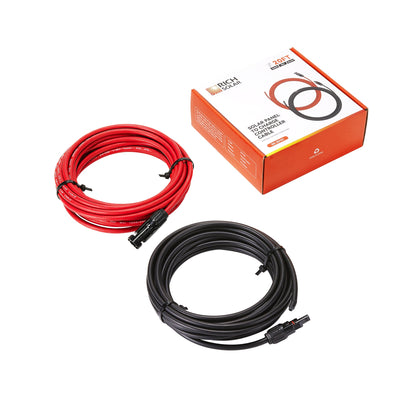

10 AWG Solar Panel to Charge Controller Extension Cable
Equipment Type and Primary Applications
This 10 AWG red-and-black solar extension cable connects a solar panel directly to a charge controller over a 10 ft, 20 ft, or 30 ft run. It is designed for photovoltaic wiring where one end requires a pre-installed solar connector and the other connects directly to a charge controller through bare wire.
Performance Specifications
- Conductor: 10 AWG tinned copper, red and black pair
- Rated voltage: 1000V DC
- Rated current: 30A
- Operating temperature: -40°F to +194°F
- Protection rating: IP67
- Insulation: PPO / PC EXL9330
- Environmental resistance: moisture, UV exposure, and corrosion resistance

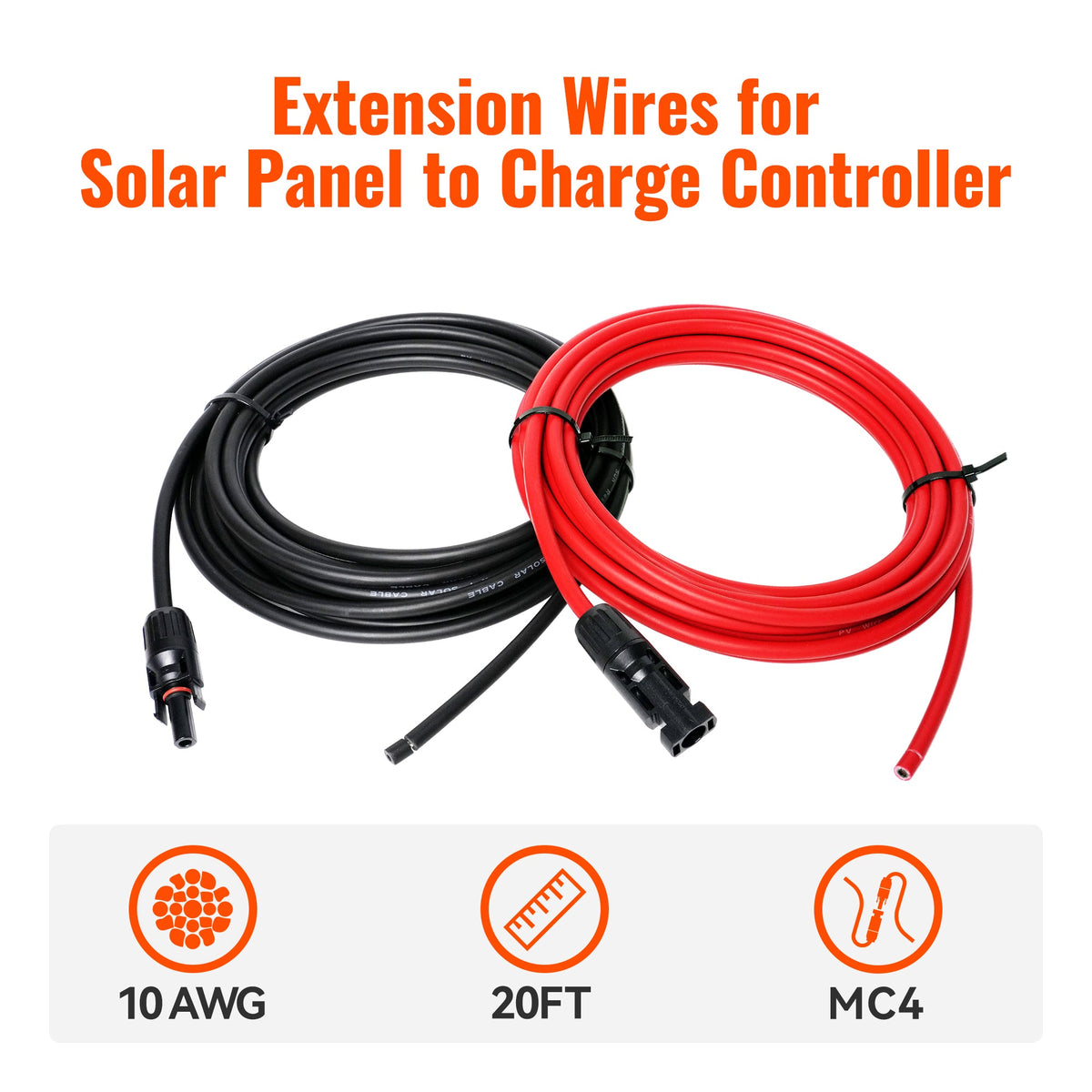

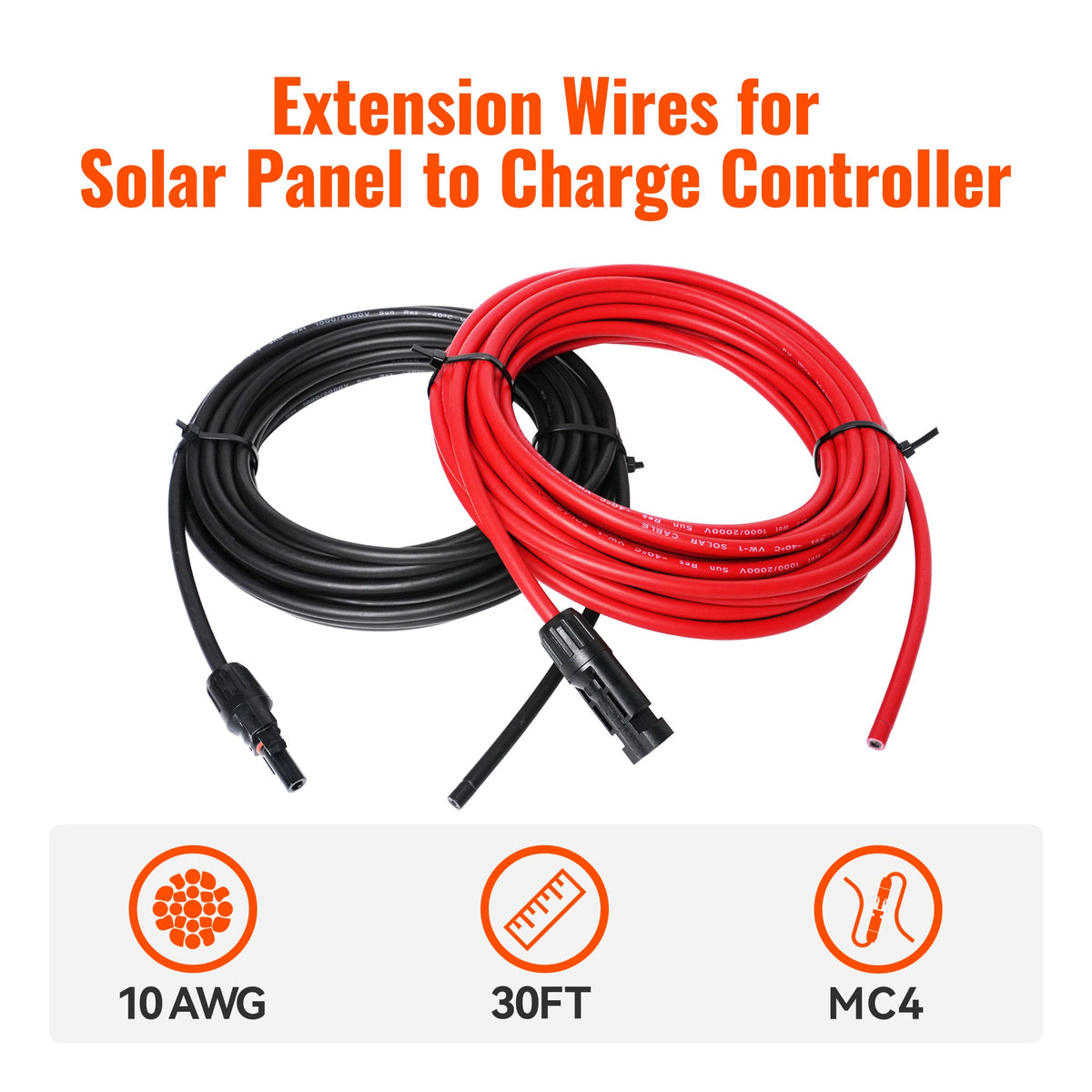

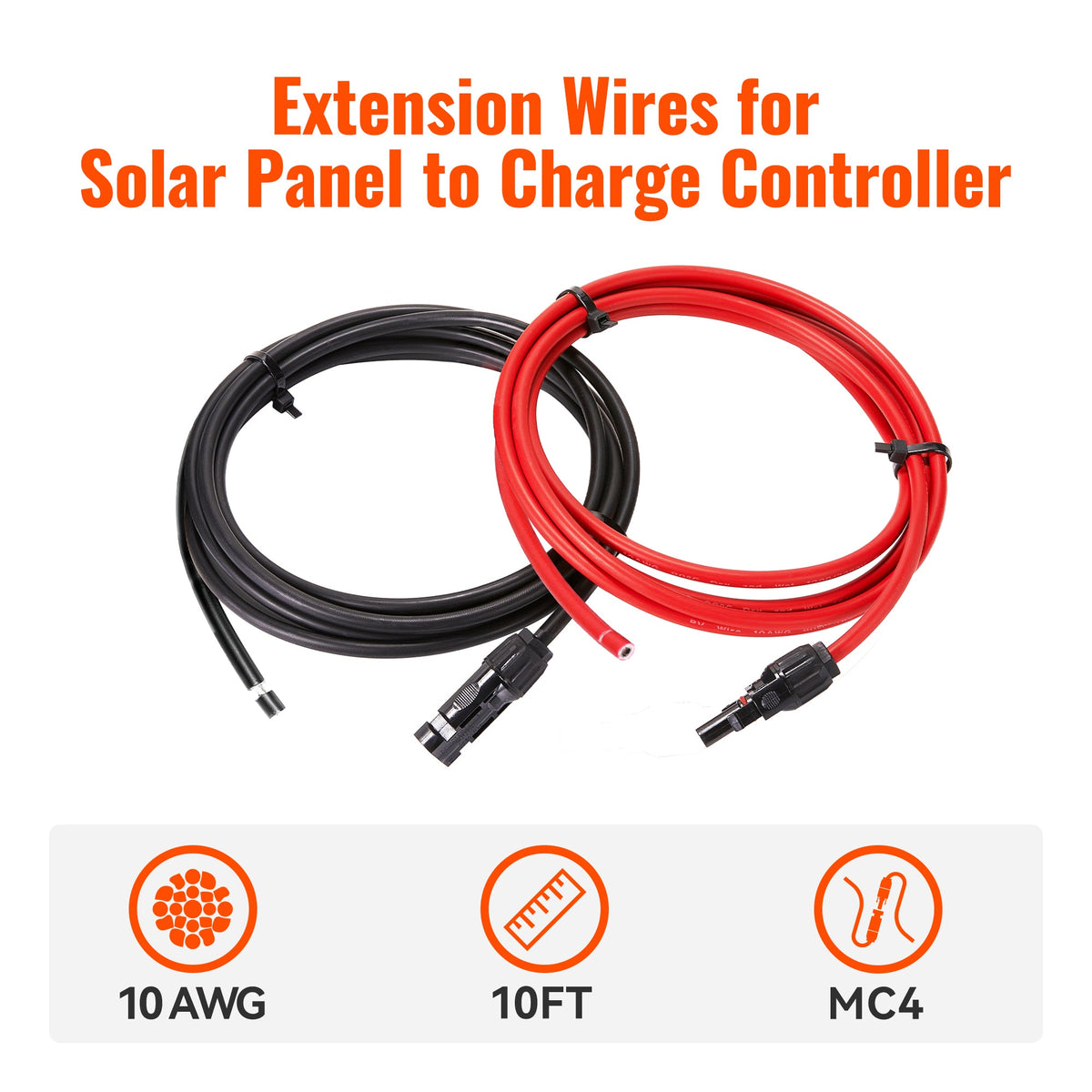

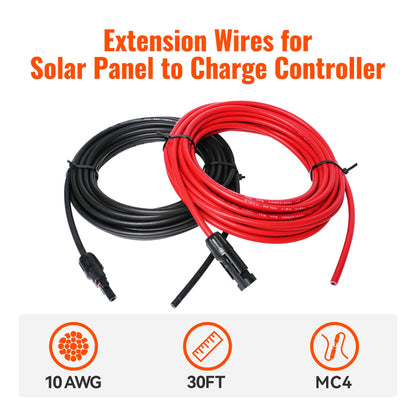

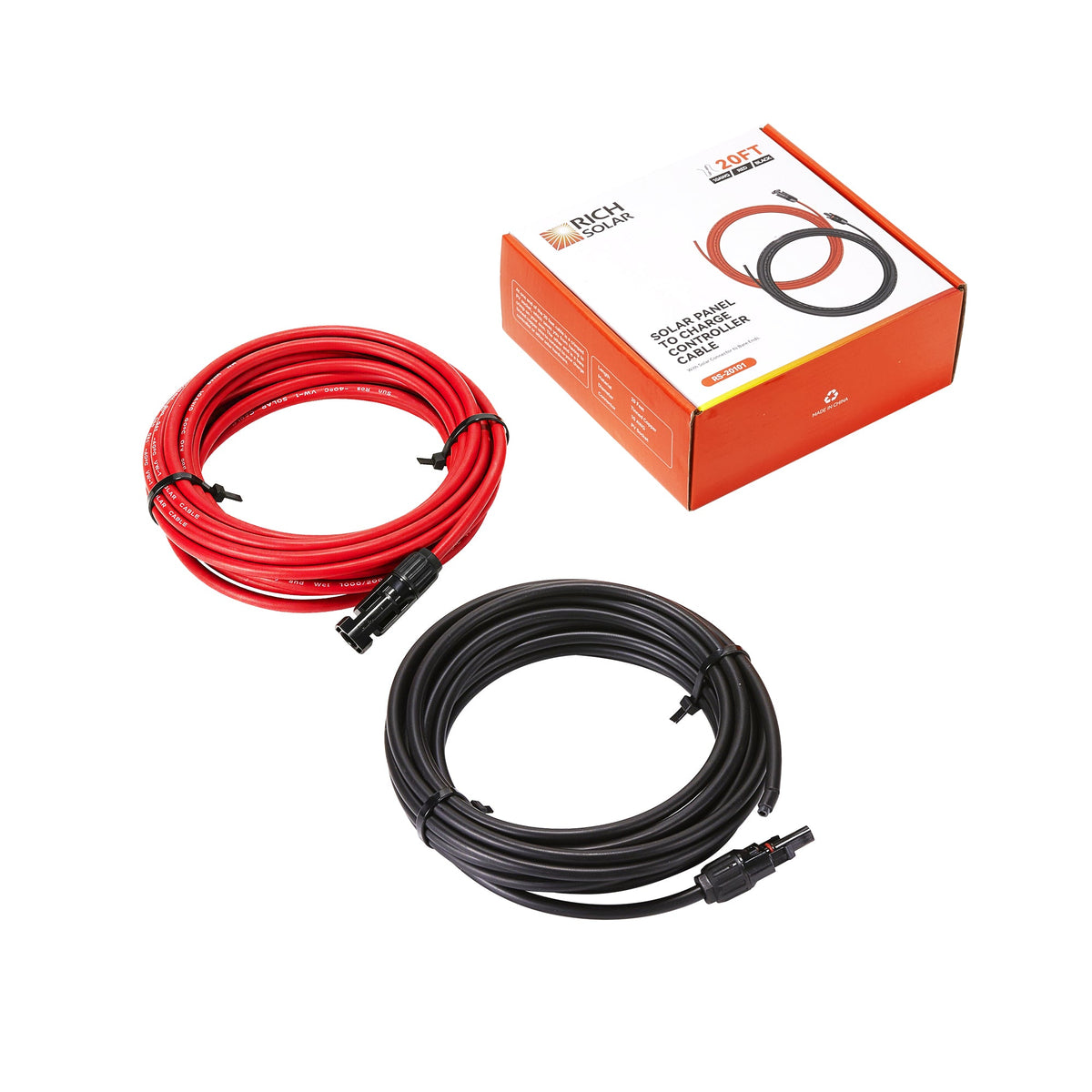

- Available lengths: 10 ft, 20 ft, and 30 ft
- Service life: 25 years
Safety Features and Certifications
- UL 4703 solar cable construction
- UL94 V-0 flame rating
- IP67-rated protection for the cable assembly

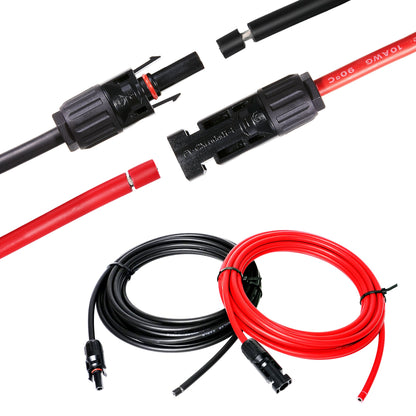

- Pre-installed solar connector supports direct panel connection; bare-wire end supports charge-controller termination
Installation and Maintenance Requirements

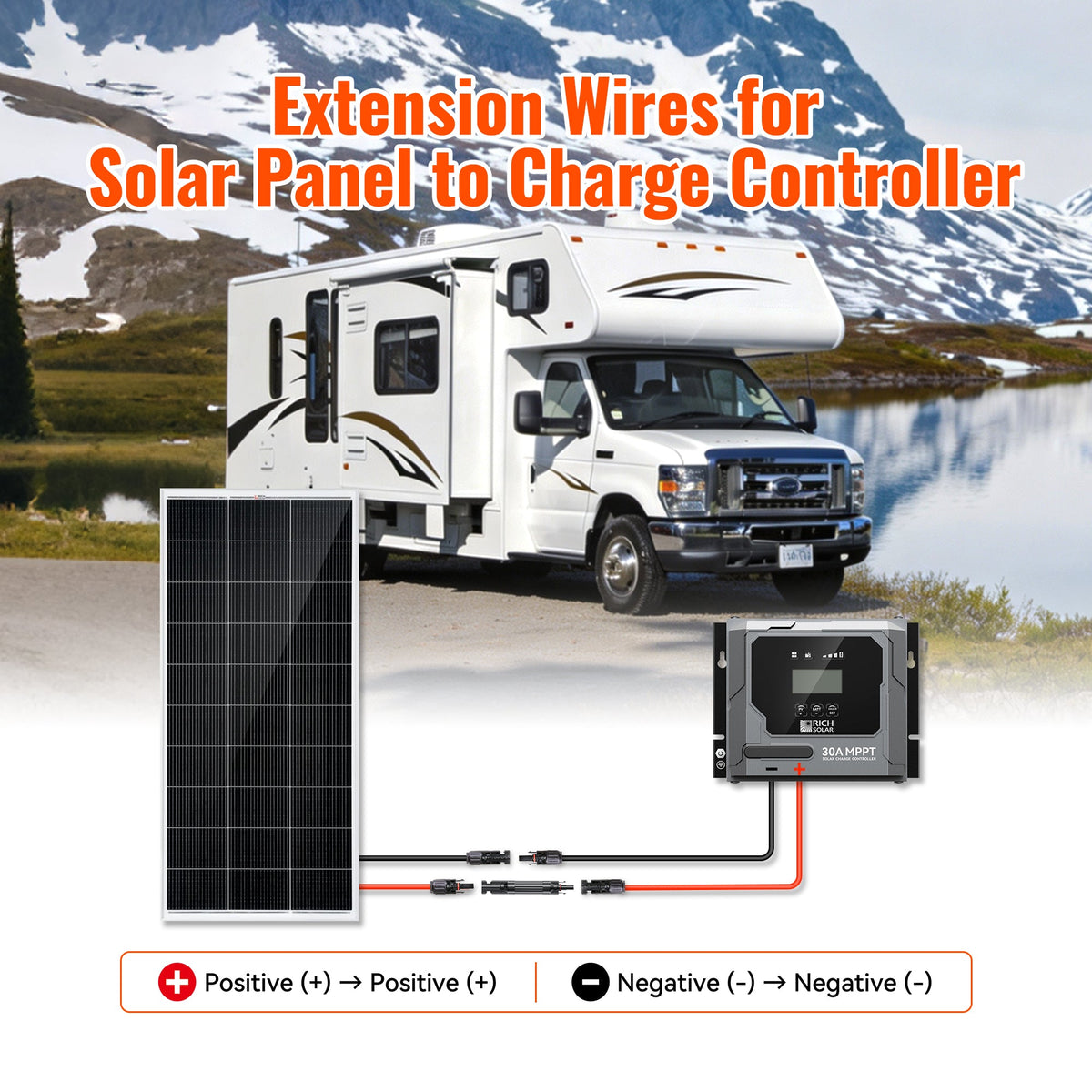

Connect the solar connector end to the compatible panel connection and terminate the bare-wire end at the charge controller. Select the cable length required for the installation: 10 ft, 20 ft, or 30 ft. Route and secure the cable to protect the insulation and connections from physical damage. Inspect the cable, connector, and termination points for damage or deterioration during system maintenance.
Warranty and Service Information
Branding/References
Model references: RS-10101, RS-20101, and RS-30101. Package dimensions and gross weights are 9 × 8 × 2 in and 2 lb; 8 × 8 × 3 in and 3 lb; and 9 × 8 × 4 in and 4 lb, respectively.
Differentiators
The cable combines a factory-installed solar connector with a bare-wire charge-controller end, eliminating the need for a matching connector at the controller while supporting 1000V DC and 30A photovoltaic applications.
