Equipment Type and Primary Applications
The 10 AWG 600V Solar Panel Extension Cable is a red-and-black bulk photovoltaic (PV) cable set for custom-length solar wiring, solar panel extensions, and large solar installations. It is supplied as paired red and black cable for organized positive and negative circuit connections. The tinned copper conductor supports electrical conductivity and corrosion resistance in solar wiring applications.
Performance Specifications
- Wire gauge: 10 AWG; an 8 AWG option is also available.
- Conductor material: Tinned copper.
- Cable colors: Red and black.

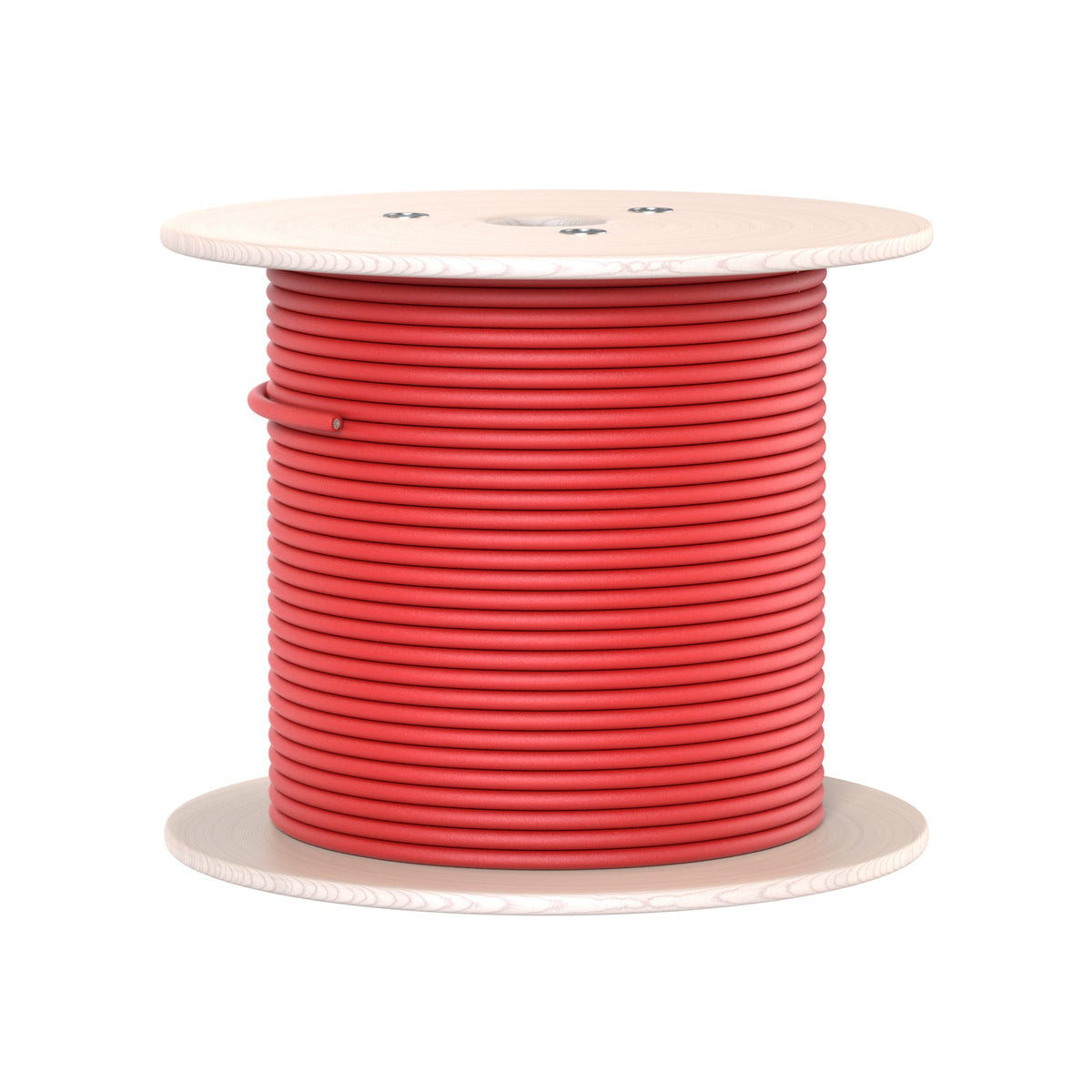

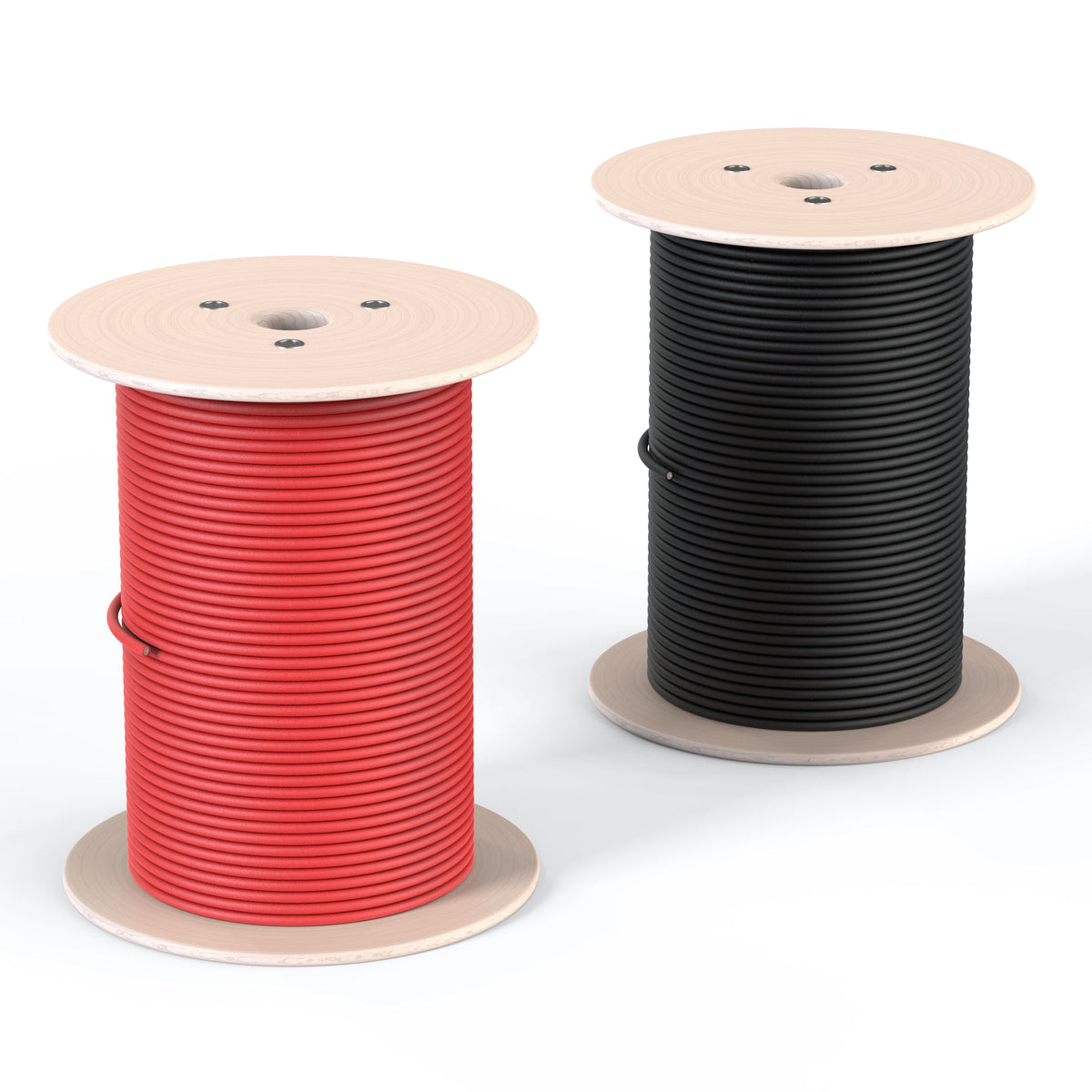

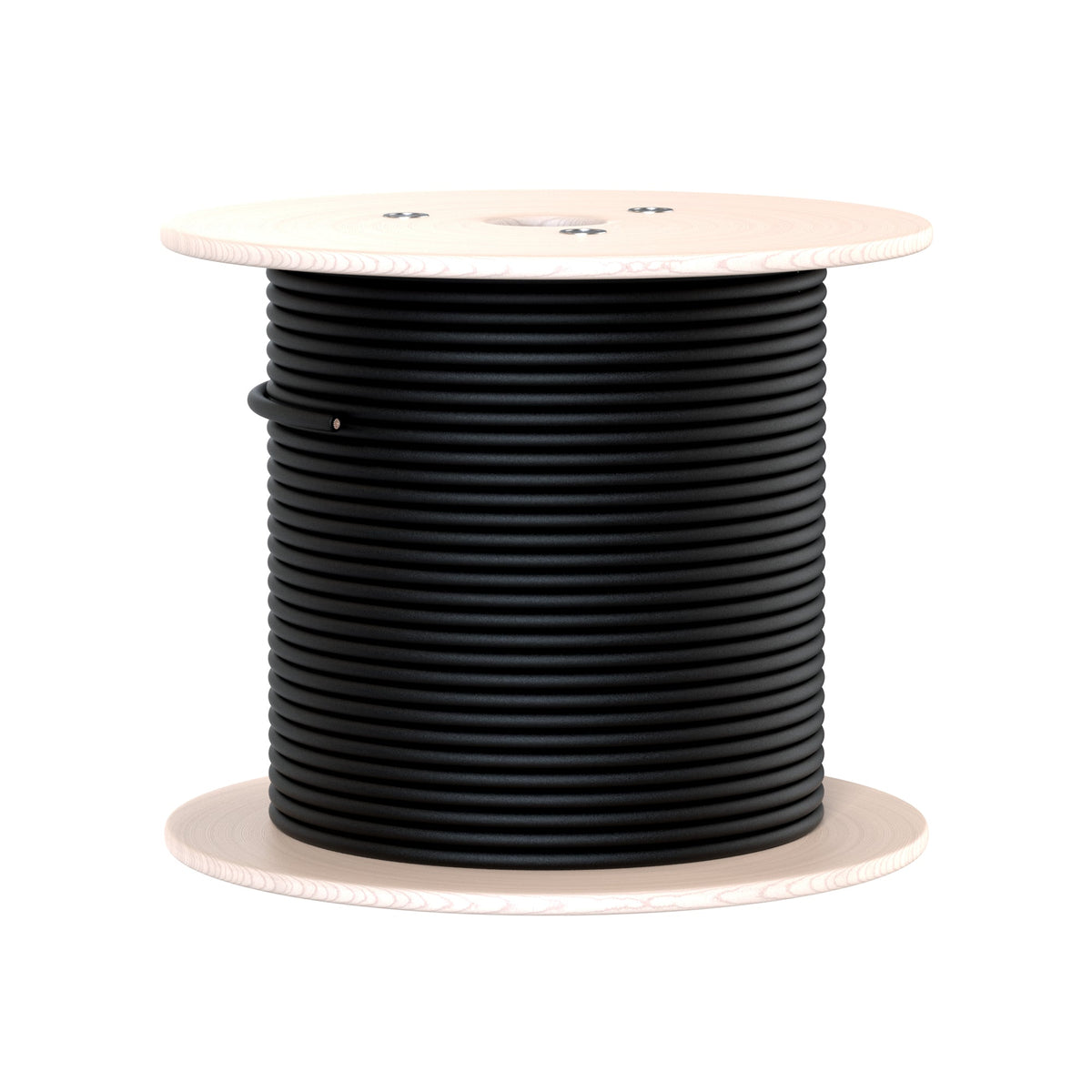

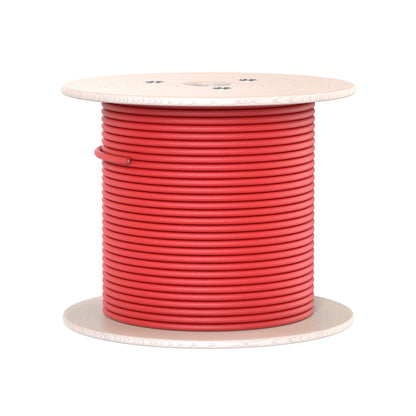

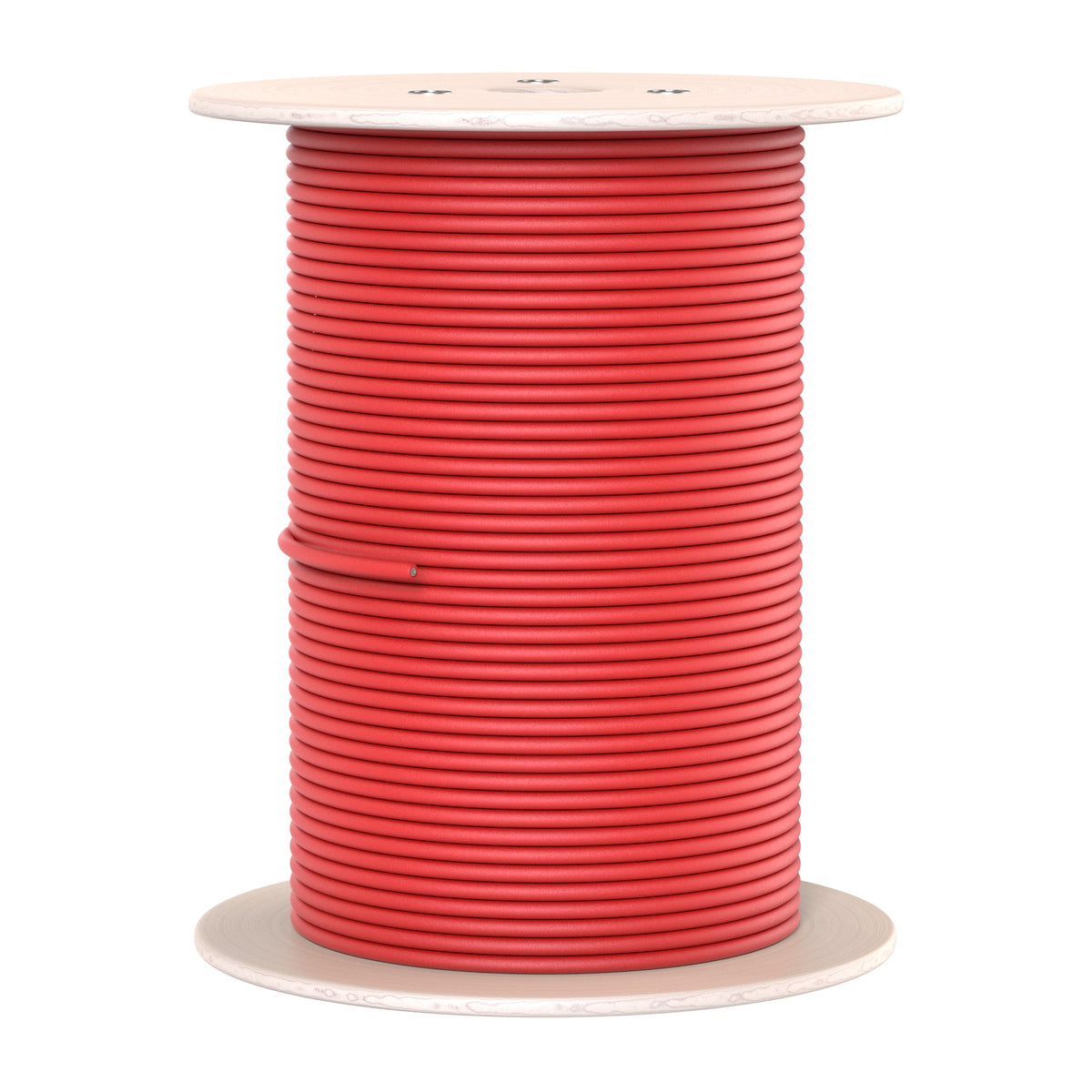

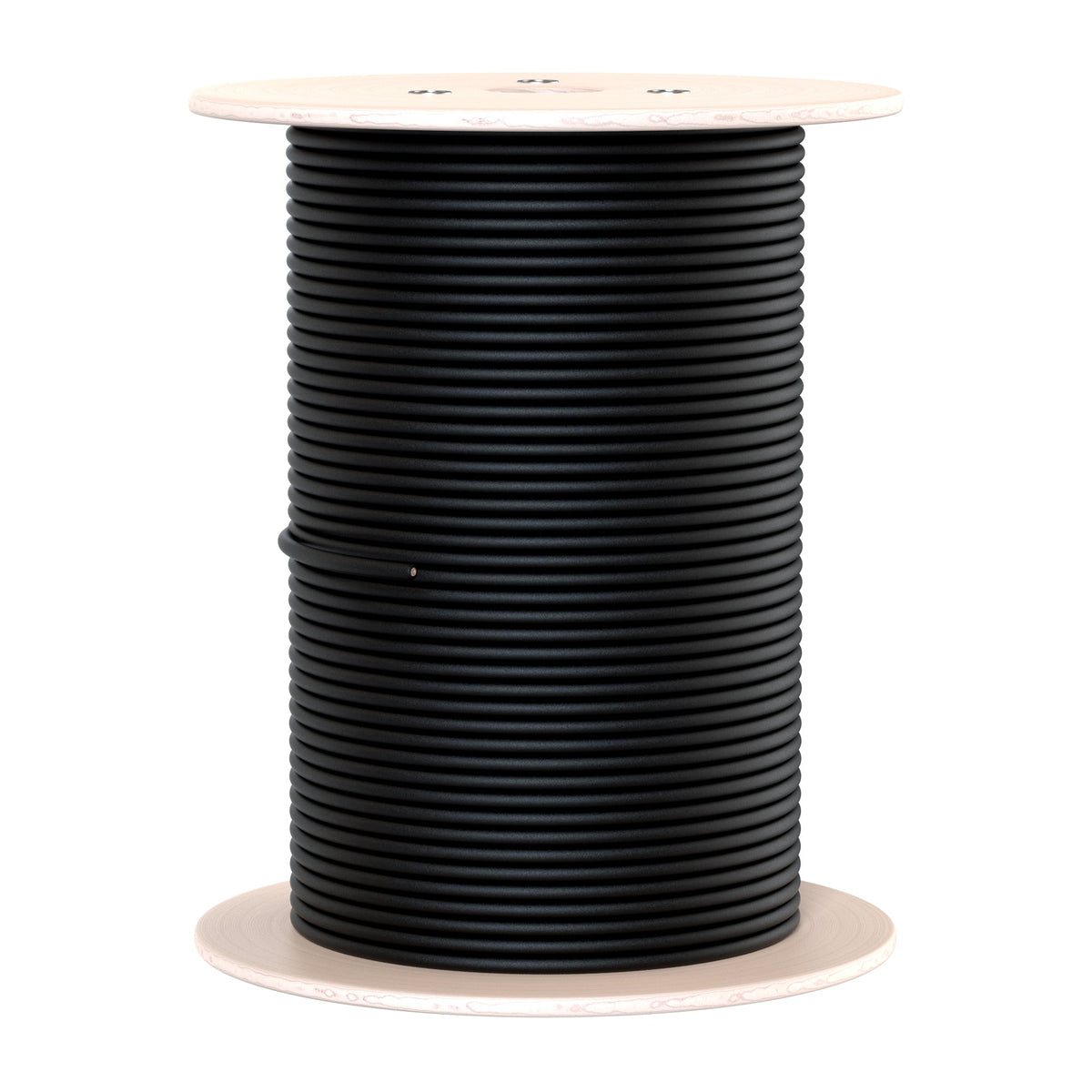

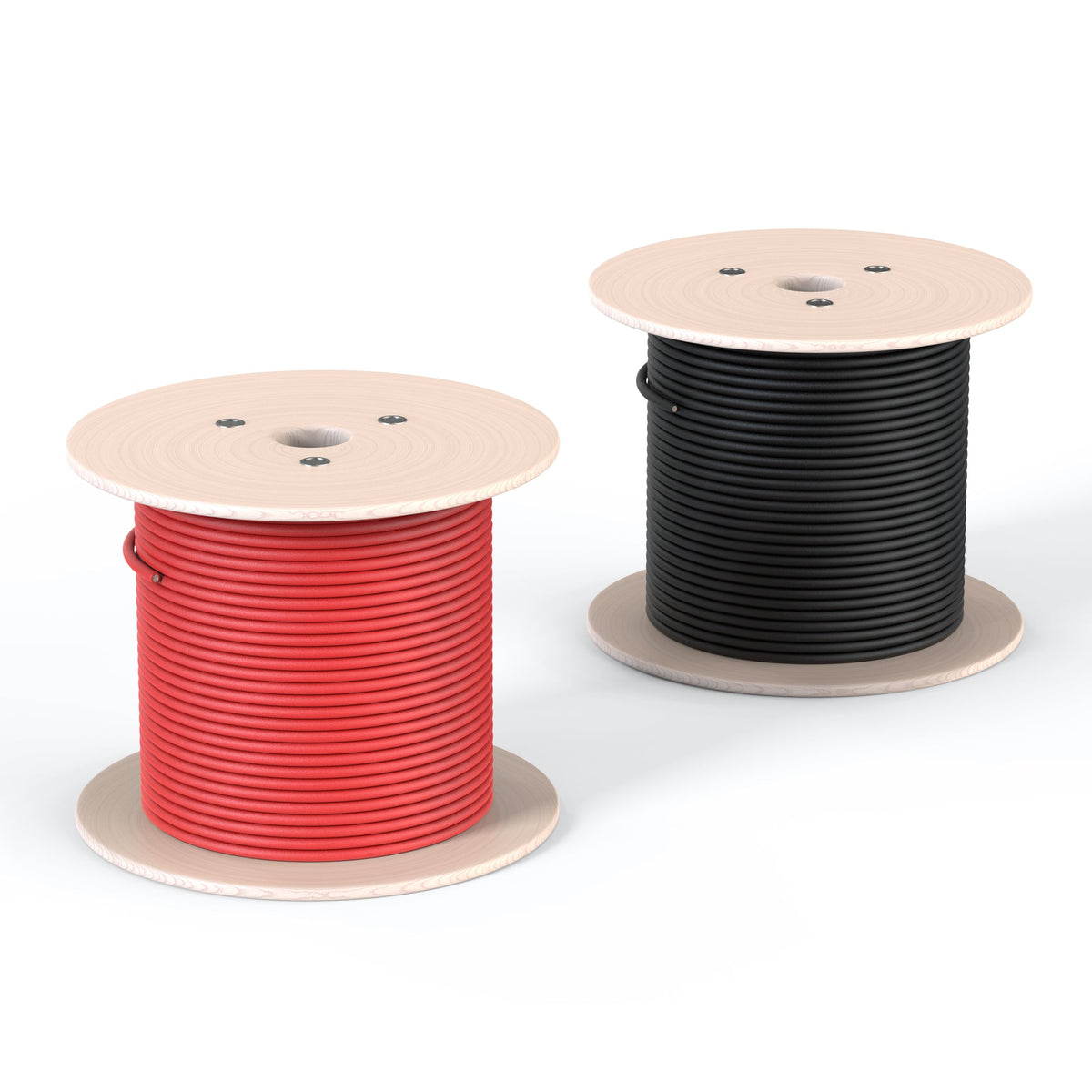

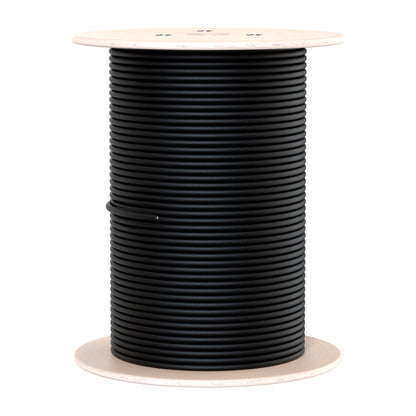

- Available spool configurations: 500 ft red plus 500 ft black, or 1000 ft red plus 1000 ft black.
- Voltage information: The product title identifies a 600V solar panel extension cable; listed specifications identify a 1000/2000V PV cable rating.
Safety Features and Certifications
- UL Certified for recognized solar cable safety and performance requirements.
- Red-and-black color identification supports polarity recognition during PV wiring.
Installation and Maintenance Requirements
Use the cable for custom-length PV wiring and solar panel extension applications. Cut cable to the required length, maintain red and black polarity, and make connections using compatible solar wiring components. The bulk spool format supports field sizing for larger installations. Preventive care includes inspecting cable runs and connections for visible damage, corrosion, or looseness.
Warranty and Service Information
Branding/References
- Product reference: 10 Gauge 600V Solar Panel Extension Cable.
- Configuration reference: 10AWG 600 Volt PV Red and Black Solar Panel Extension Wire.
Differentiators
The combination of tinned copper conductors, polarity-marked red and black cable, and matched 500 ft or 1000 ft spool options supports custom-length PV wiring without restricting installation planning to short pre-cut extensions.
