• 1/0 Gauge 3/8" Battery Cables | Pair of 1/0 AWG Red and Black Pure Copper Inverter Battery Cables with 3/8" Lugs
1 1

1/0 Gauge 3/8" Battery Cables | Pair of 1/0 AWG Red and Black Pure Copper Inverter Battery Cables with 3/8" Lugs

1/0 Gauge 3/8" Battery Cables | Pair of 1/0 AWG Red and Black Pure Copper Inverter Battery Cables with 3/8" Lugs

$15.99 USD
$19.99 USD $15.99 USD
Sale Sold out
Shipping calculated at checkout.
Option

features

• Solid design control box — Meets NEMA Type 4 & IP30 standard by lab test
• LCD color screen — Real-time status view and easy user interaction
• Breathing indicator light — Shows real-time charging status
• Control button — Adjust max output current & set scheduled charging time
• Water protection gasket — Resists 3-minute direct high-pressure water spray
• TPU cable — 14.76ft, excellent durability, cold resistant to -22°F
• ETL certified — Compliant with North American safety standards

Technical Specifications

Voltage: 240V/208V
Max Output Current: 40A (SS-PC1-100) / 32A (SS-HAY-100-32A)
Max Power: 8kW / 7kW
Frequency: 50/60Hz
Temperature Range: -22°F to 122°F
Humidity: 5–95%, no condensation
Connector: Type 1 (J1772)
Cable Length: 14.76ft (4.5m)
Altitude: ≤2000m (6,562ft)
Cooling: Natural
Safety Standards: ETL, UL2594, CSA C22.2
Scheduling: App / Timer control
Connectivity: Wi-Fi / Bluetooth
Warranty: 2 years

Packing Details

Gross Weight

  • RS-1/0A1F3: 2 lb
  • RS-1/0A2F3: 3 lb
  • RS-1/0A3F3: 4 lb
  • RS-1/0A4F3: 4 lb
  • RS-1/0A5F3: 5 lb
  • RS-1/0A6F3: 6 lb
View full details

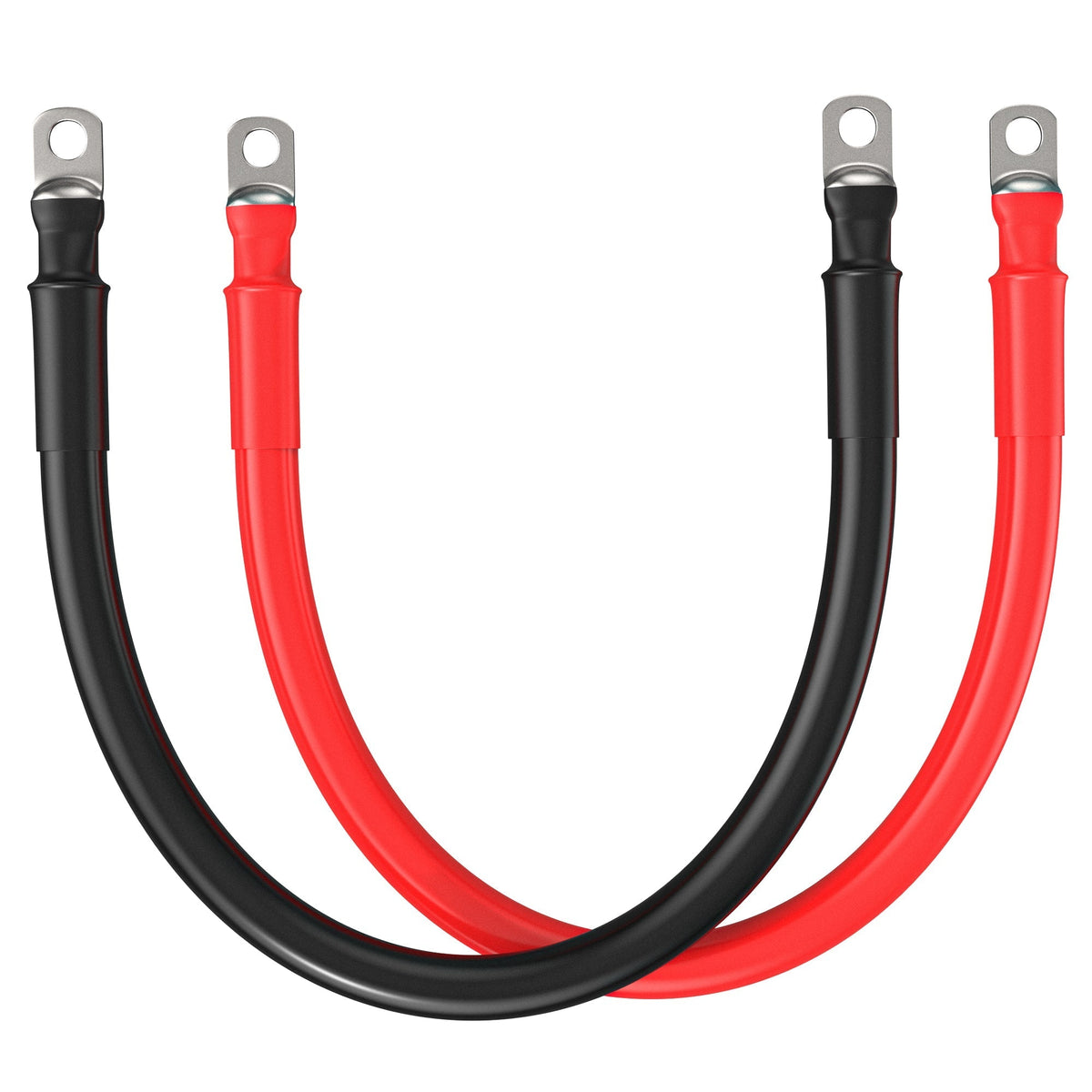

1/0 Gauge 3/8" Battery Cables, Red and Black Pair

Equipment Type and Primary Applications

This 1/0 AWG battery cable set connects a battery bank directly to an inverter for high-current power transfer. The red and black pure copper cables are recommended for 1500W–2000W inverters, including medium-sized battery banks and pure sine wave inverter systems. Each cable includes pre-installed 3/8" lugs on both ends.

Performance Specifications

  • Conductor: Pure copper, 1/0 AWG
  • Cable set: Red and black pair
  • Lug size: 3/8" on both ends
  • Available lengths: 1 ft, 2 ft, 3 ft, 4 ft, 5 ft, and 6 ft
  • Voltage rating: Up to 600V
  • Operating temperature: -67°F to +275°F
  • Insulation: Moisture-resistant PVC
  • Flame rating: VW-1

Safety Features and Certifications

  • Durable PVC insulation provides moisture resistance.
  • VW-1-rated insulation supports flame-resistance requirements.
  • UL Certified.

Installation and Maintenance Requirements

Choose the cable length required for the inverter-to-battery installation. The pre-installed 3/8" lugs support direct connection to compatible terminals and are designed for quick installation. Package dimensions are 16 × 11 in.

Warranty and Service Information

Branding/References

  • Reference models: RS-1/0A1F3, RS-1/0A2F3, RS-1/0A3F3, RS-1/0A4F3, RS-1/0A5F3, and RS-1/0A6F3.

Differentiators

The set combines flexible length selection from 1 to 6 ft with pure copper 1/0 AWG conductors, factory-installed 3/8" lugs, and a broad -67°F to +275°F operating temperature range.
