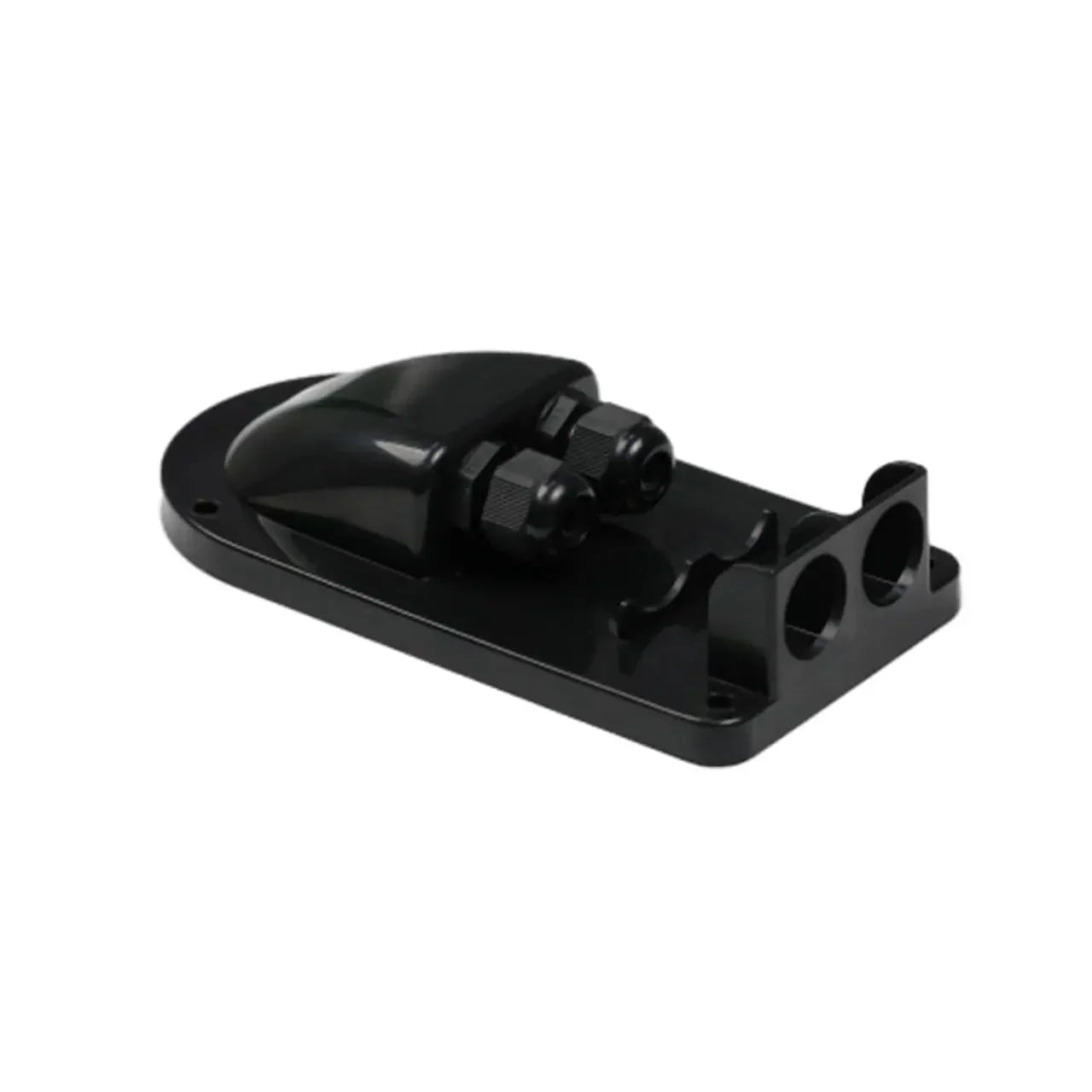

Renogy Solar Double Cable Entry Gland
Rugged, waterproof sealing solution for routing solar cables through rooftops. This gland is purpose-built for mobile and remote installations, including RVs, boats, cabins, farms, and other off-grid or portable applications. It provides a secure, UV- and weather-resistant entry point that mitigates cable vibration and bending while preserving roof integrity.
- Material: 100% recyclable ABS plastic with excellent UV and water resistance

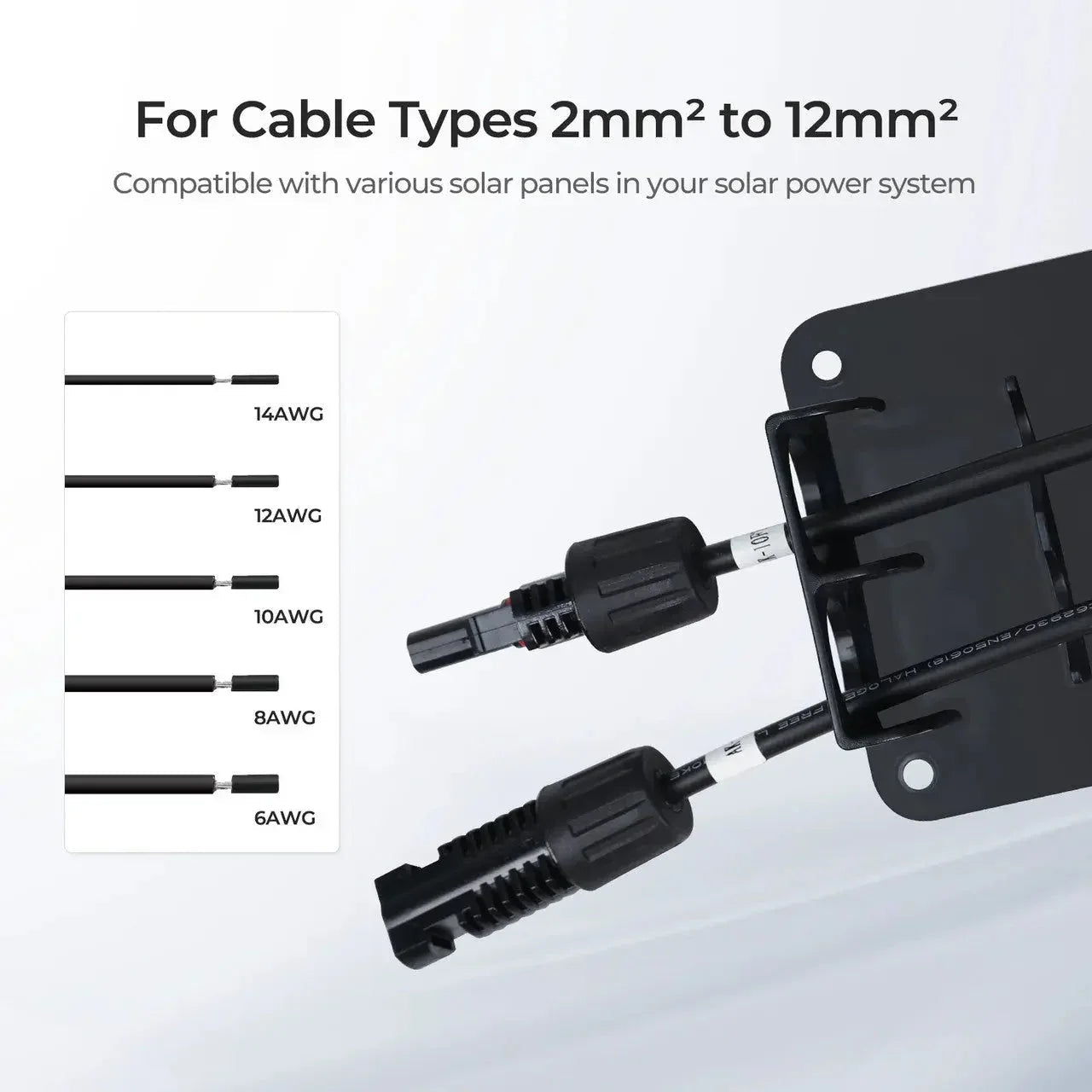

- Compatibility: Compatible with all aluminum-framed solar panels

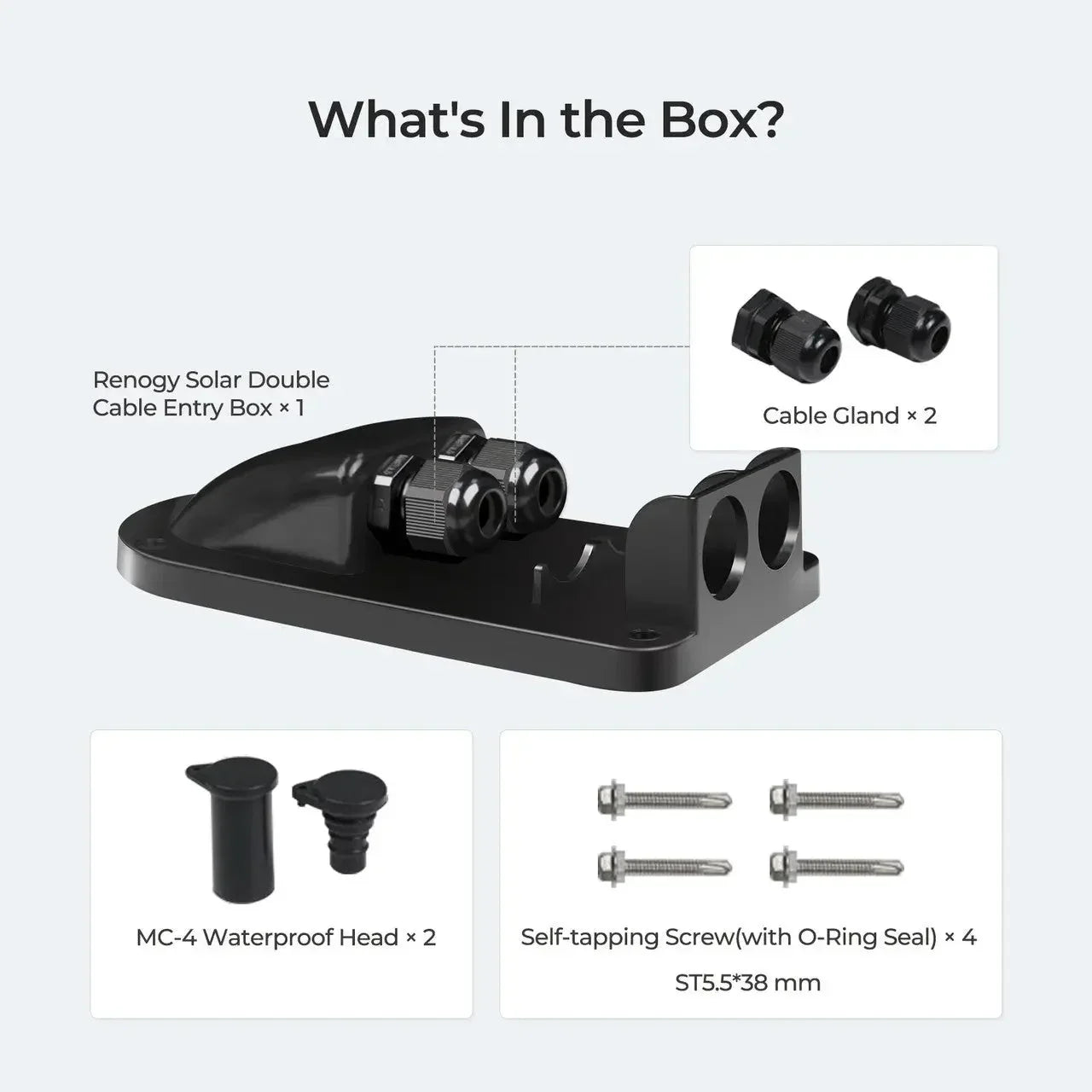

- Contents: Includes 1 solar cable gland, 2 rubber seals, and 4 self-tapping screws
- Installation: Installs easily with self-tapping screws and adhesive; no drilling required
- Applications: Suitable for RVs, farms, boats, cabins, and mobile applications
- Sealing and protection: Waterproof and UV-resistant, designed to prevent cable vibration and bending
Specifications and certifications
- Operating temperature: -4°F to 158°F (-20°C to 70°C)
- Operating humidity: 0% to 95% RH
- Operating altitude: Less than 5000 m above sea level
- Dimensions: 4.17 x 4.17 x 1.05 in (106 x 106 x 26.6 mm)
- Weight: 0.28 lb (128 g)
- Certification: CE, FCC, RoHS, TSCA, BQB, IC-ID
- Installation method: Flush mount or place on a table
Installation precautions and use cases
- Before installation, ensure the product's sealing integrity. The installation surface must be secure and flat.
- Best results are achieved when mounting on flat, clean surfaces and using the included adhesive in conjunction with the self-tapping screws.

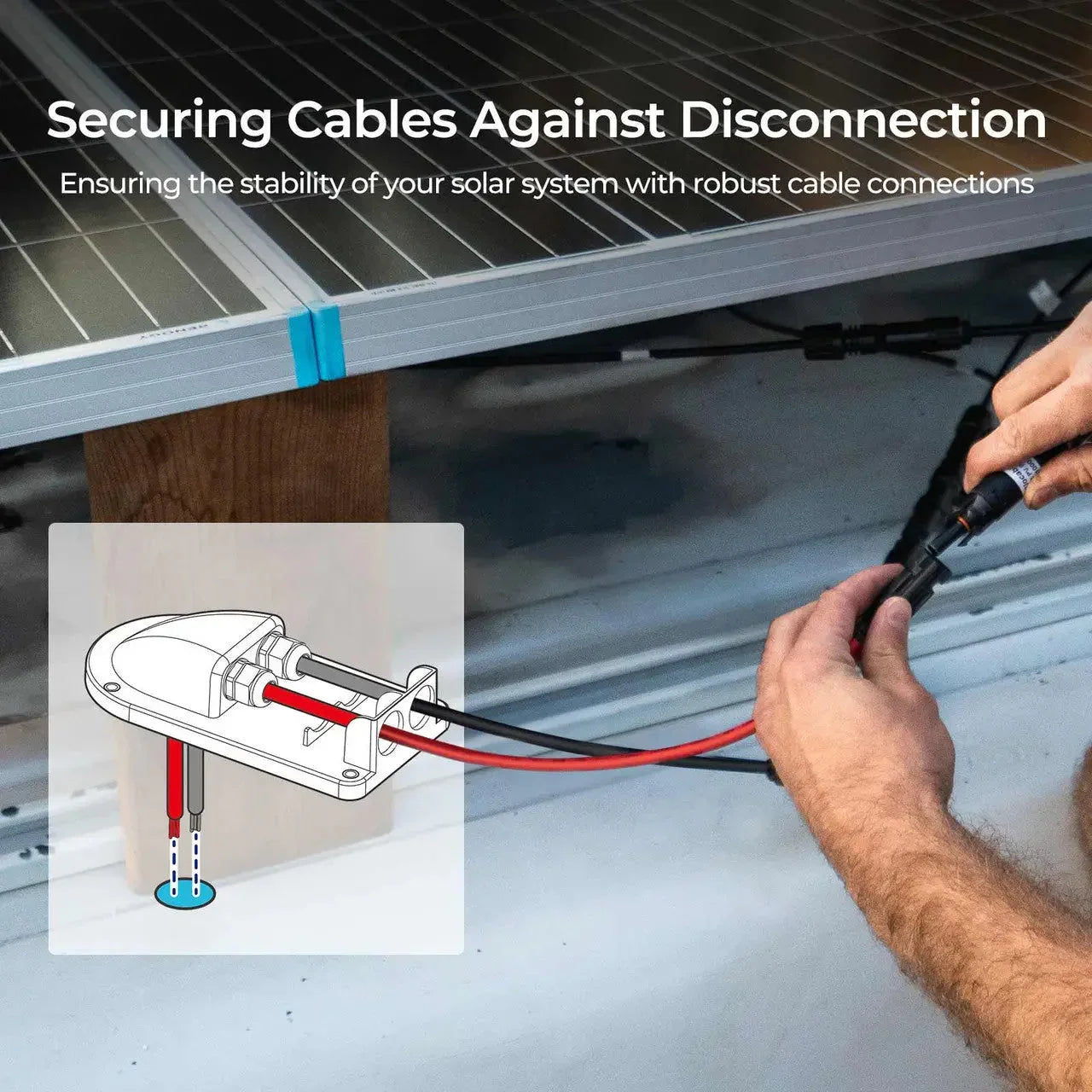

- Ideal for wiring cables when installing solar panels on rooftops of RVs, boats, cabins, farms, and other mobile installations.
Warranty and service information
Warranty: 2 years.
- Installs easily with self-tapping screws and adhesive, no drilling required
- Made from 100% recyclable ABS plastic, offering excellent UV and water resistance
- Compatible with all aluminum-framed solar panels
- Includes 1 solar cable gland, 2 rubber seals, and 4 self-tapping screws
- Suitable for RVs, farms, boats, cabins, and mobile applications
Solar Double Cable Entry Gland
A waterproof and UV-resistant solution designed for solar panel cable entries on rooftops.
Trusted Solar Cable Protection
Provides exceptional resistance to wind and rain while preventing cable vibration and bending.
Reliable for Diverse Applications
Perfect for any surface—ideal for RVs, farms,boats,cabins, and mobile applications.
|
Module Performance |
|
|---|---|
| Operating Voltage | 8-60 VDC (5 VDC for USB Type-C) |
| Power Consumption at 12V | Operating, WiFi On, 100% illumination: 3.2 W Operating, WiFi On, 50% illumination: 2.4 W Operating, WiFi On, 0% illumination: 1.9 W Off, logger still active: 1.5 W |
| Communication | Wi-Fi (IEEE 802.11b/g/n 2.4 GHz) Bluetooth LE and Bluetooth Mesh Zigbee 3.0 (IEEE 802.15.4) RS-485 |
| Touch Screen | 4 inches (480 x 480p) |
| Leveling Range and Accuracy | ±89°, 0.1° |
| Warranty | |
| Model | |
| Operating Temperature | -4??? to 158??? (-20??? to 70???) |
| Operating Humidity | 0% to 95% RH |
| Operating Altitude | Less than 5000m above sea level |
| Installation | Flush mount or place on a table |
| Dimensions | 4.17 x 4.17 x 1.05 in (106 x 106 x 26.6 mm) |
| Weight | 0.28 lb (128g) |
| Certification | CE, FCC, RoHS, TSCA, BQB, IC-ID |
| Warranty | 2 years |
1. What is the function and usage scenario of the cable entry gland?
Ideal for wiring cables when installing solar panels on RVs or boats, it serves as a valuable addition to the system installation setup.
2. What are the precautions for installation?
First, ensure the product's sealing integrity before installation. Second, the installation surface needs to be secure and flat.
|
