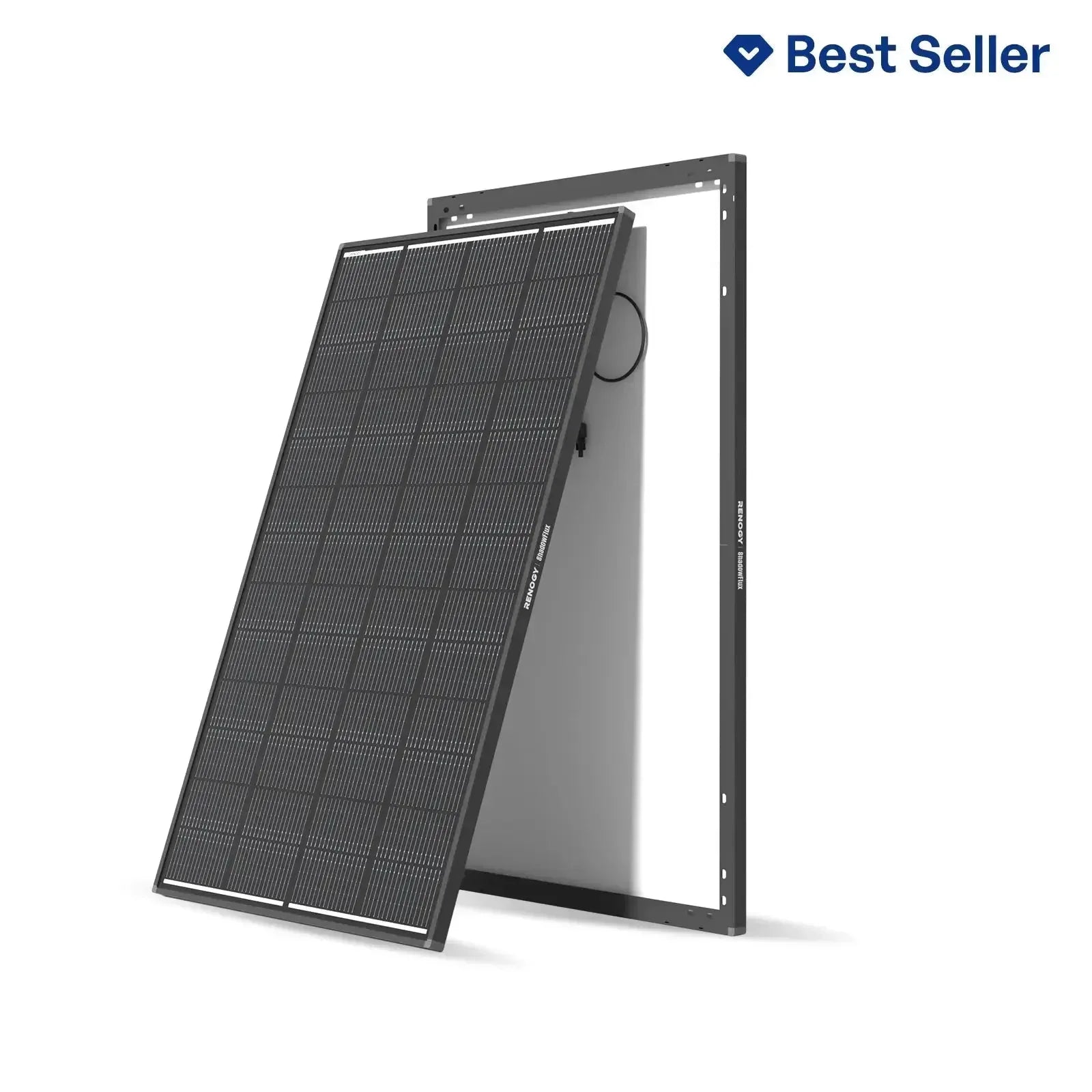

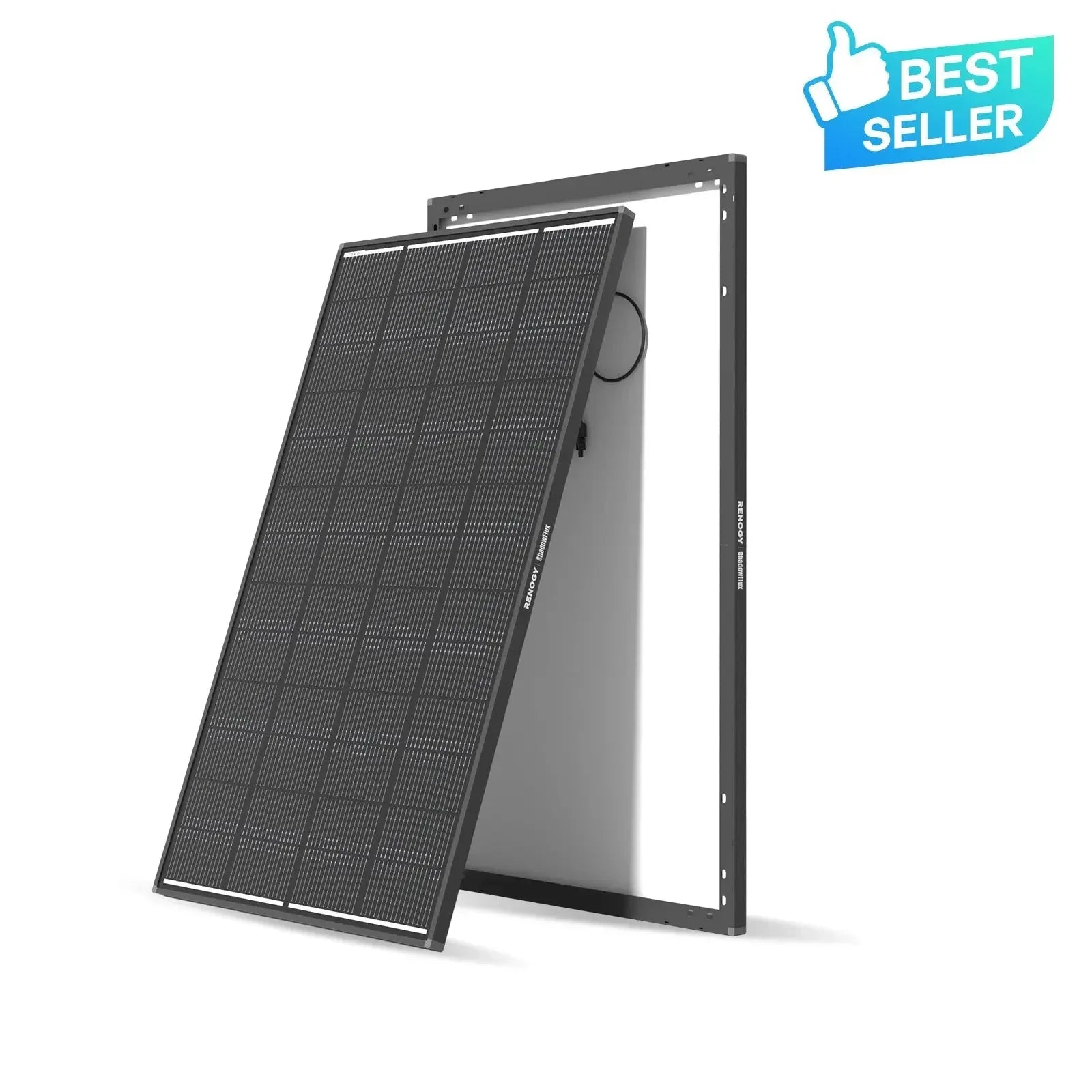

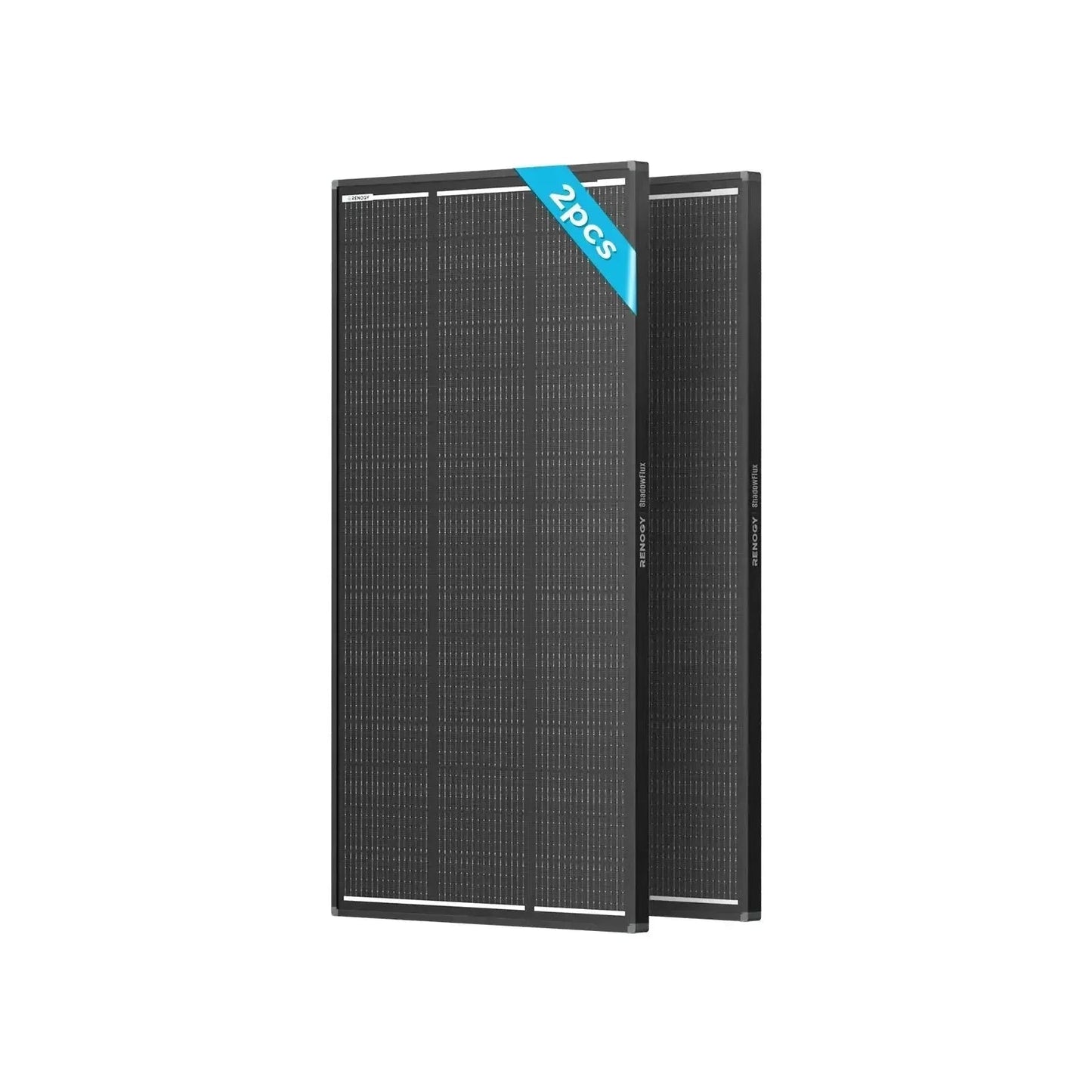

Renogy ShadowFlux N-Type Anti-Shading 200W Solar Panel

Engineered for reliable, scalable power in off-grid installations, residential backup systems, and mobile applications, this Renogy panel combines high efficiency with shading resilience to maintain steady electricity output in real-world conditions.

• Max Power at STC: 200W
• Open Circuit Voltage (Voc): 23V
• Short Circuit Current (Isc): 11.05A
• Optimum Operating Voltage (Vmp): 19.2V
• Optimum Operating Current (Imp): 10.42A
• Module Efficiency: 19.2%
• Cells: 68 (4×17) with 9 busbars and PERC technology
• Temperature Range: -40°F to 194°F (-40°C to 90°C)
• Maximum System Voltage: 600 VDC (UL)
• Maximum Series Fuse Rating: 20A
• Output Cable: 13 AWG, 2.6 ft (0.9 m)
• Junction Box: IP65, with bypass diodes and half-cut cells for shading tolerance
• Frame: Anodized aluminum alloy
• Dimensions: 58.7 in x 27.5 in x 1.38 in (1491 x 699 x 35 mm)
• Weight: 26.46 lb (12 kg)

Performance and durability are enhanced by N-Type anti-shading design, 9 busbars, and PERC cell technology, providing improved conductivity and light reflection. Half-cut cells and bypass diodes protect against hotspot overheating, allowing operation under incidental shading without dramatic efficiency loss. A rugged build supports long-term exposure to challenging environments, with pre-drilled back holes enabling fast mounting to Renogy Z-Brackets, Pole Mounts, and Tilt Mounts.

Warranty and service: panels include a 25-year power output warranty with 5-year 95%/10-year 90%/25-year 80% efficiency tiers and a 10-year workmanship warranty; 5-year material and workmanship warranty is also stated. Accessories carry a 1-year material warranty. Comprehensive support is available with real-time sales and technical assistance, typically answered within 24 hours.

Certification and installation notes: UL-listed maximum system voltage of 600 VDC; sturdy packaging and standard compatibility ensure straightforward integration into existing solar arrays. This panel provides a dependable, high-efficiency power source for long-term energy reliability.

Reliable Power Output

High-Efficiency Advanced Solar Cells

Stable Solar Conversion

Reliable Electricity Output Performance

Renogy 200W Monocrystalline Solar Panel can provide about 1000 Watt-hours of electricity per day under 5-6 hours of direct sunlight, with a guaranteed positive output tolerance of 0%-3%.

Advanced Solar Cells for Enhanced Efficiency

Renogy's Grade A+ quality panel maximizes overall efficiency through improved conductivity of 9 busbars and enhanced light reflection of PERC technology.

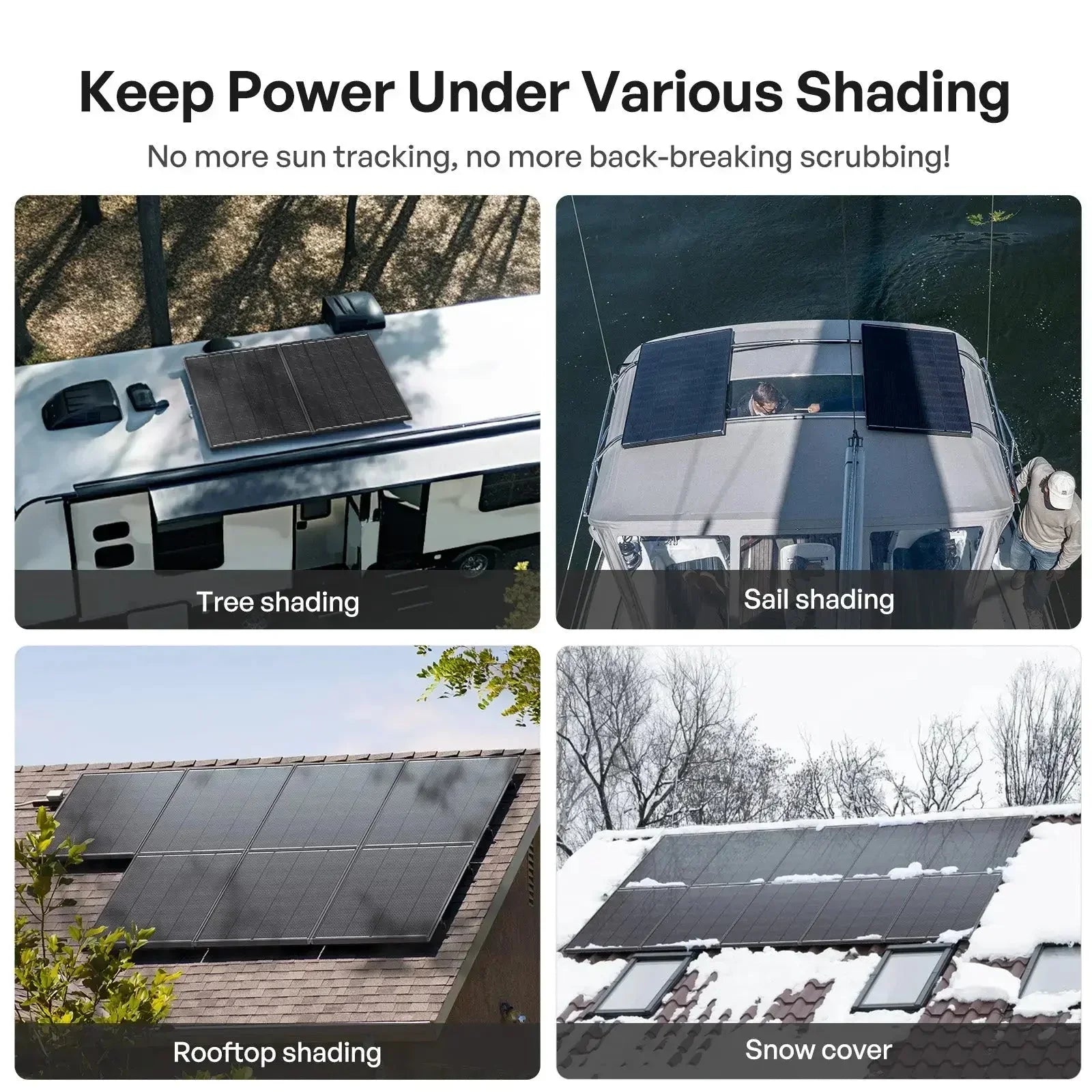

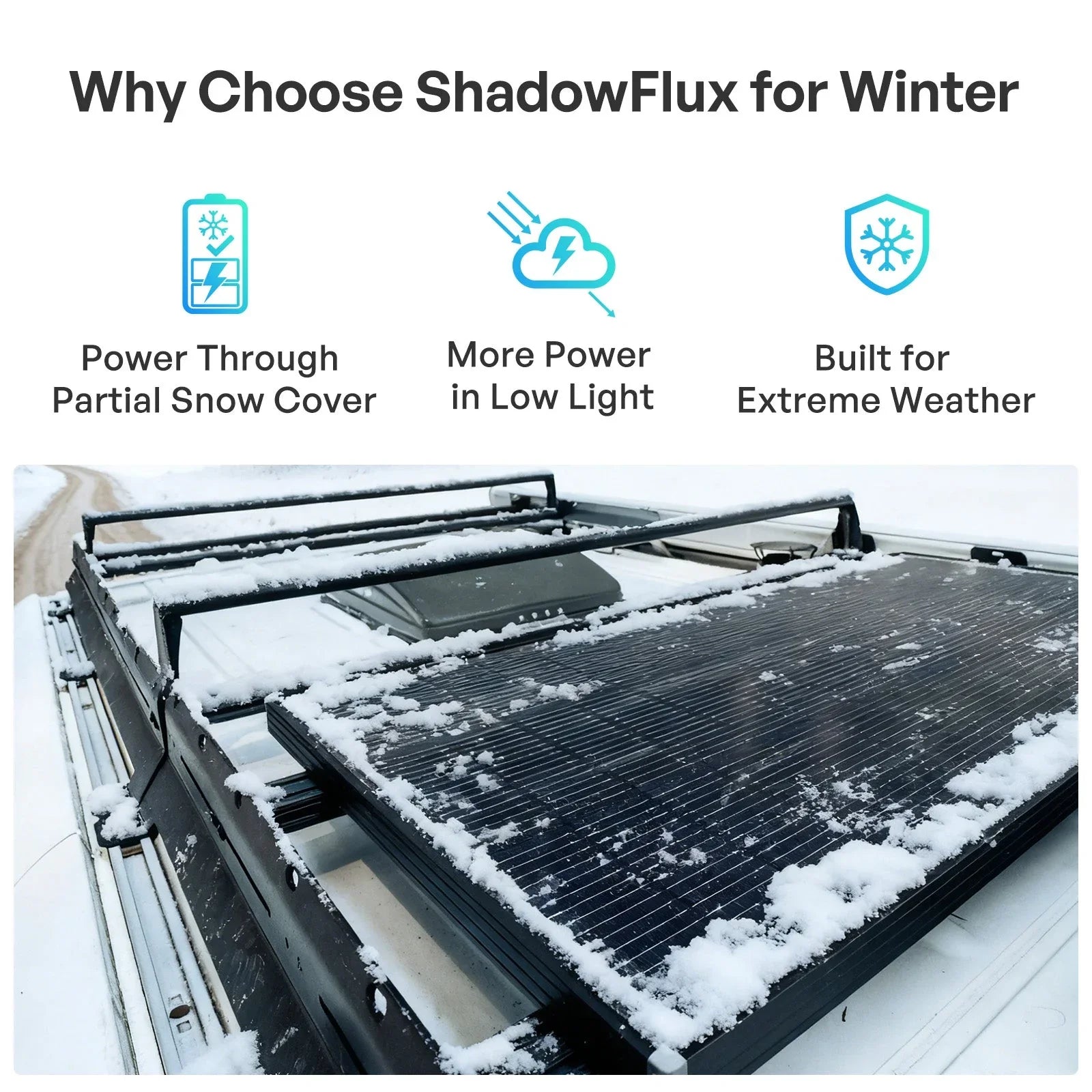

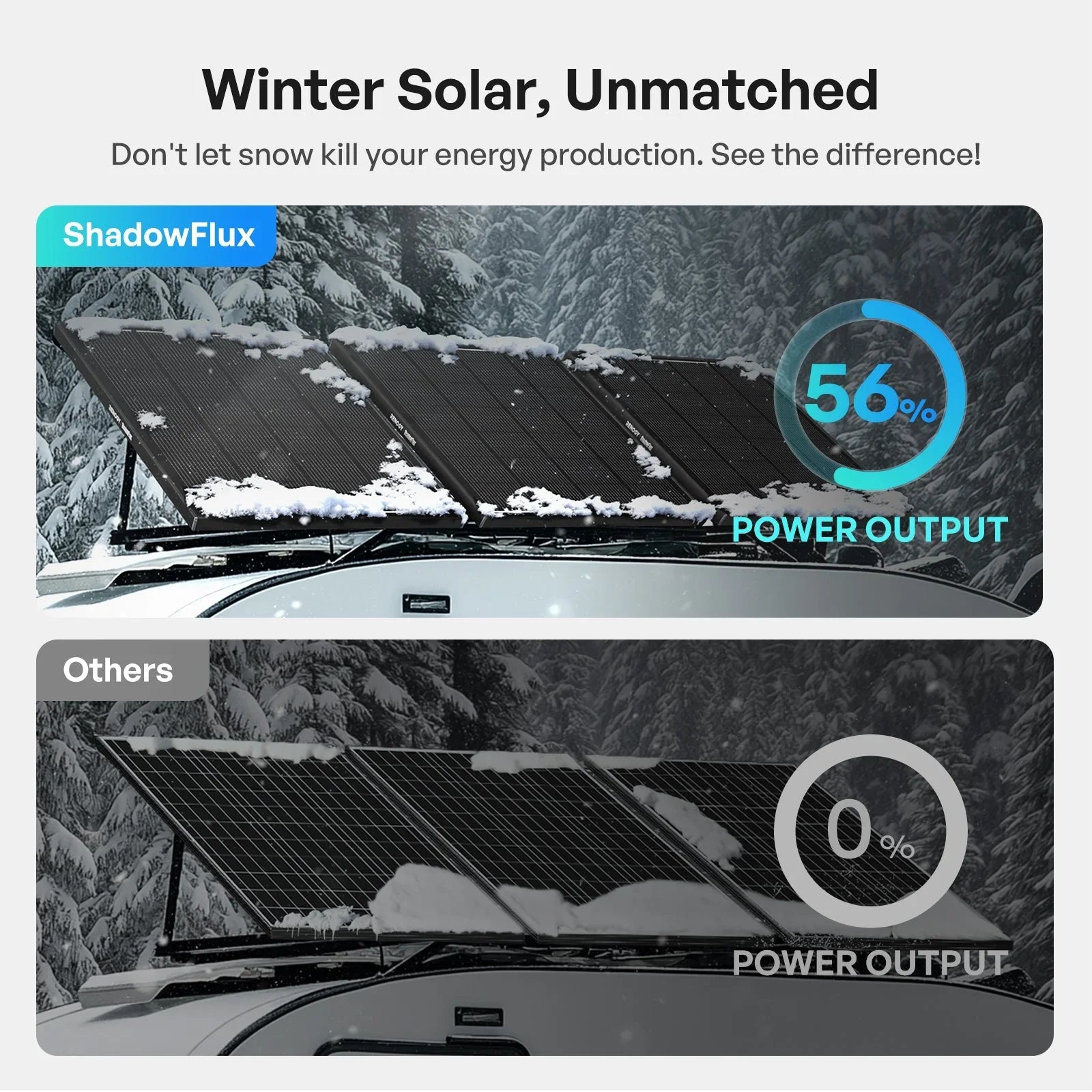

Consistent Solar Conversion under Accidental Shading

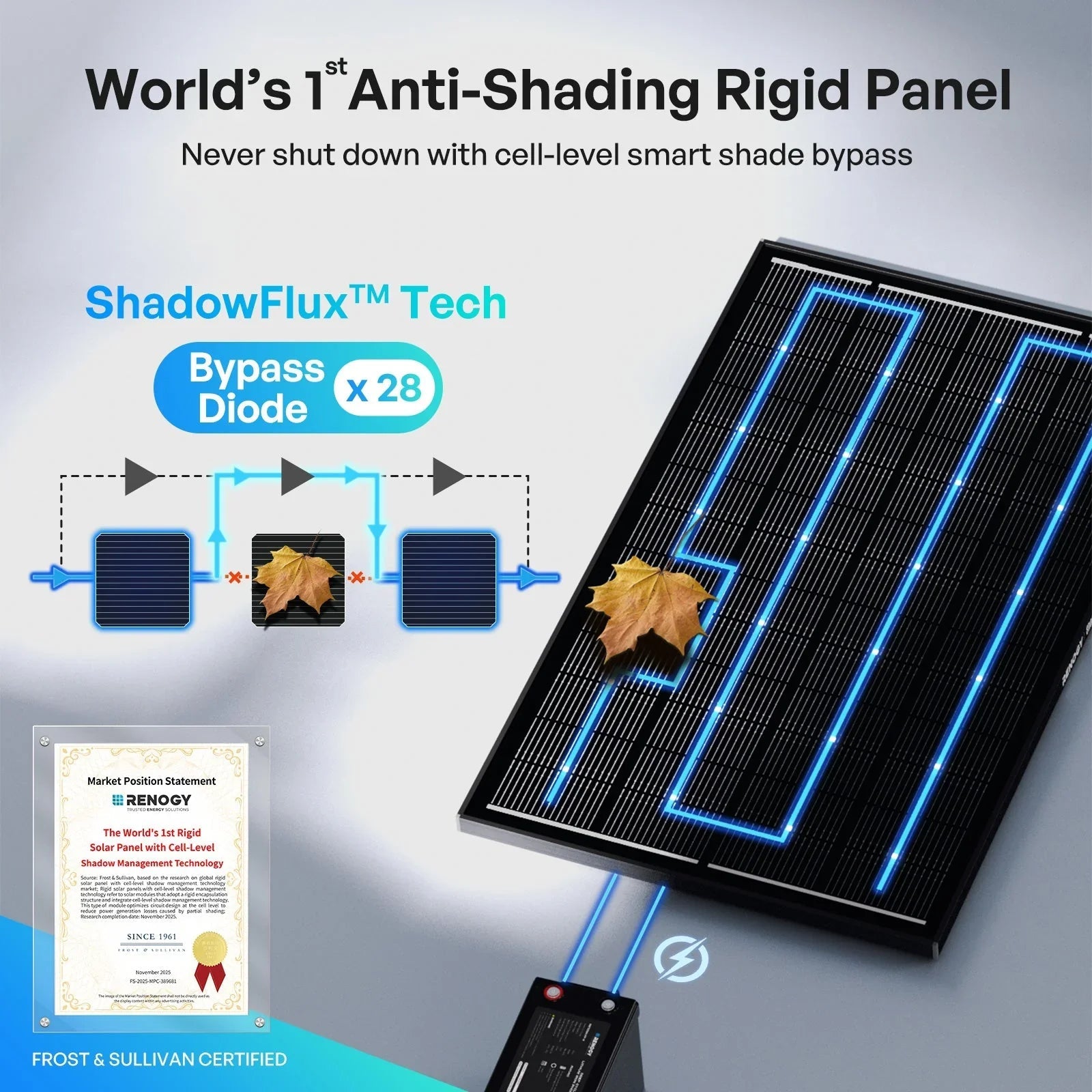

Half-cut cells and bypass diodes help protect the panel from hotspot overheating, enabling it to operate even in the presence of accidental shading.

Premium Quality

Powerful Performance

Proven Reliability

Premium Quality

With superior construction, the panel is designed to withstand challenging environments, ensuring durable and long-lasting use.

Powerful Performance

Its exceptional capabilities in extreme weather ensures a remarkable performance for years to come.

Proven Reliability

Various tests guarantee a reliable and certified quality for dependable electricity output.

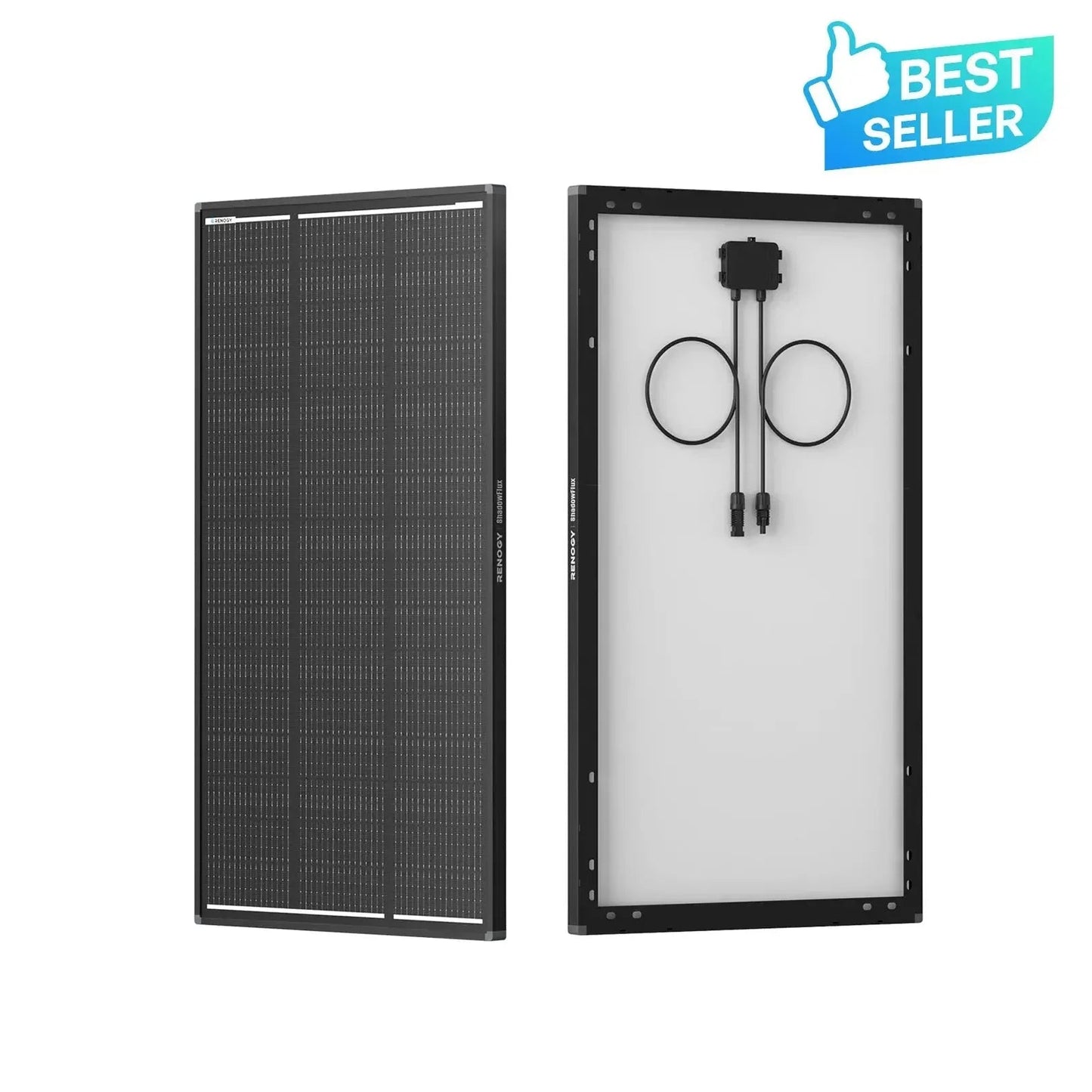

Pre-drilled holes for fast mounting and securing

It has pre-drilled holes on the back of the panel, which are also compatible with different Renogy mounting systems such as Z-Brackets, Pole Mounts, and Tilt Mounts.

Sturdy and Reliable Packaging

Renogy panels are protected with extra thick corrugated cardboard and foam L brackets on all 4 corners.

Get an Answer within 24 Hours

We offer real-time professional sales and technical support in versatile ways to ensure your question is answered within one day.



Specifications
Max Power at STC: 200W	Open Circuit Voltage: 23V
Short Circuit Current: 11.05A	Optimum Operating Voltage: 19.2 V
Optimum Operating Current: 10.42 A	Operating Temperature:  -40°F~194°F / -40℃~90℃
Maximum System Voltage: 600 VDC UL	Maximum Series Fuse Rating: 20A
Output Cable: 13 AWG 2.6 ft (0.9m) long	Dimensions: 58.7 x 27.5 x 1.38 in / 1491 x 699 x 35mm
Weight: 26.46 lb (12 kg)	Solar Cells: 68 Cells (4*17)
Junction Box: IP65	Connectors: Solar Connectors
Module Efficiency: 19.2%	Frame: Anodized Aluminium Alloy
Maximum Series Fuse Rating: 15A

Warranty Information

Panels	25-year power output warranty: 5 year/95% efficiency rate, 10 year/90% efficiency rate, 25-year/80% efficiency rate 5-year material and workmanship warranty
Accessories	1-year material warranty



Certification
