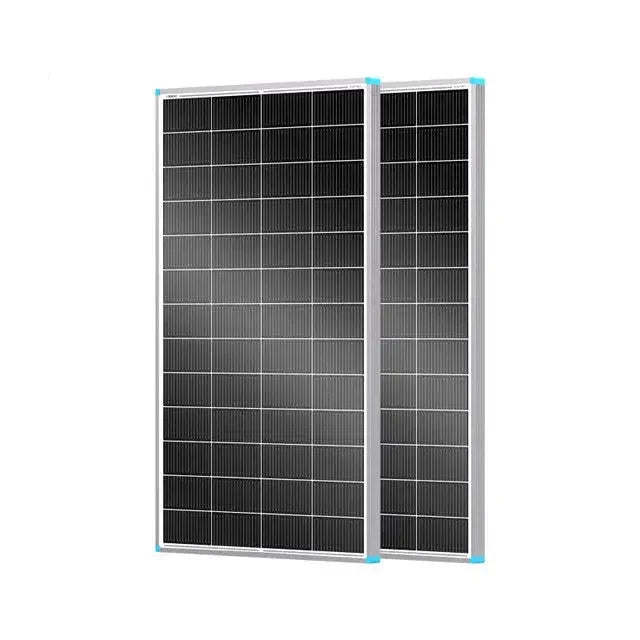

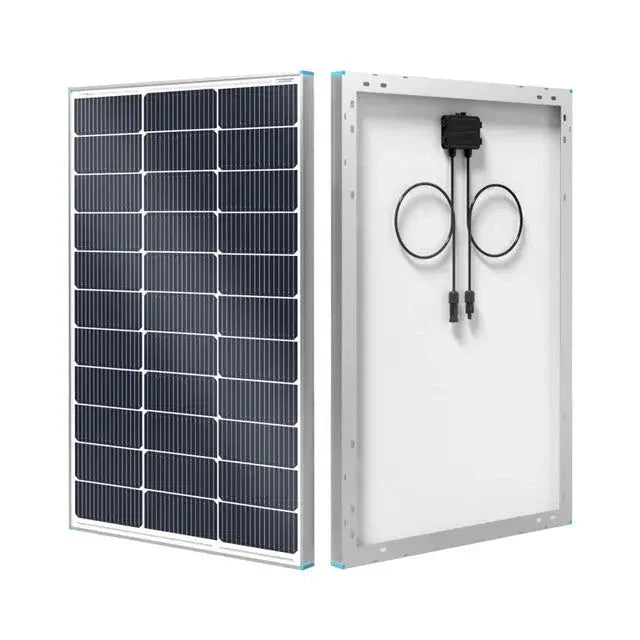

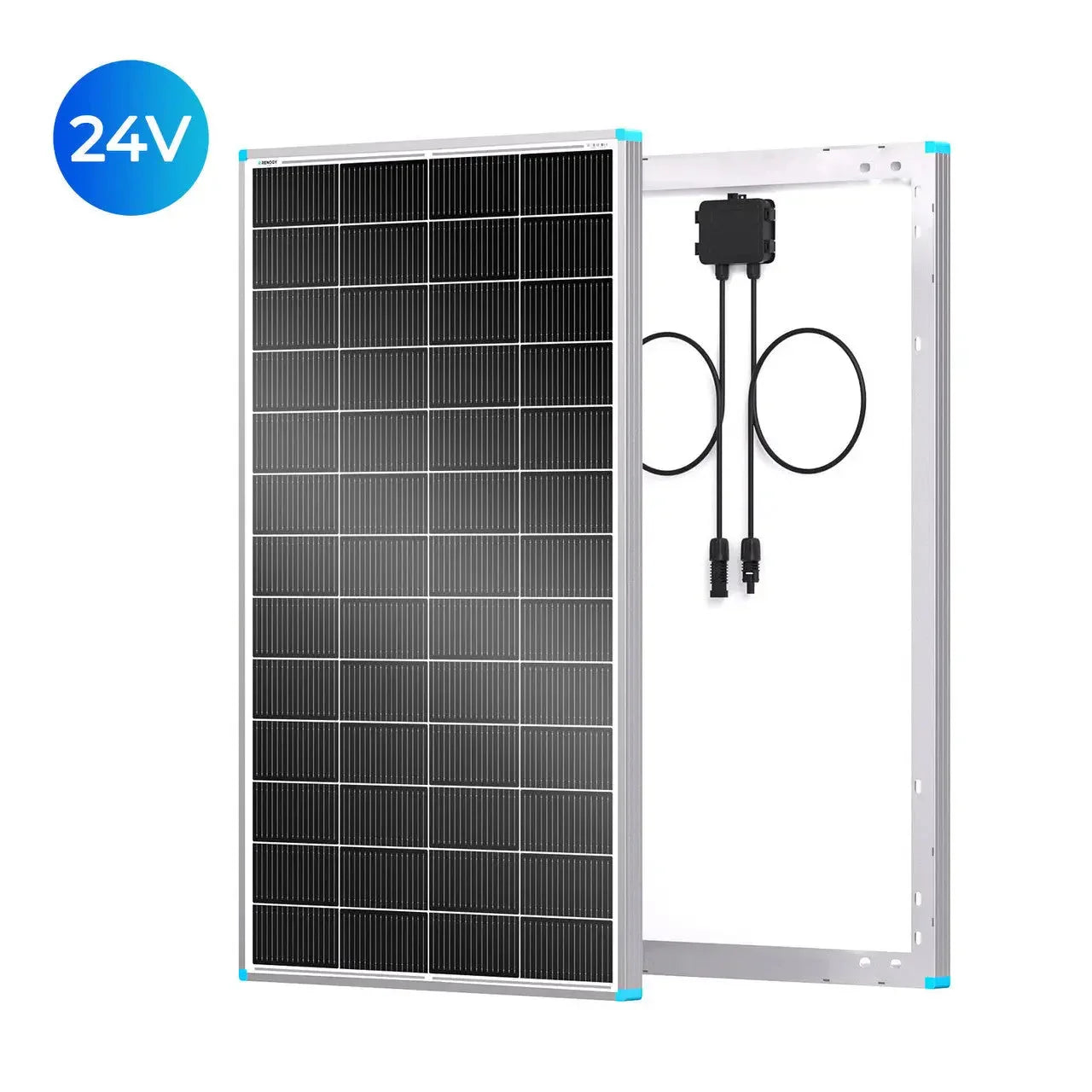

Renogy N-Type 16BB 200W Rigid Solar Panel

The Renogy N-Type 16BB 200W Rigid Solar Panel is a high-efficiency monocrystalline module designed for durable, long-term power generation in off-grid and remote installations. In typical conditions, it delivers up to 1000 Wh per day with 5–6 hours of direct sunlight, enabling steady battery charging and reliable daytime electricity for diversified energy systems. The panel combines advanced circuitry with rugged construction to withstand challenging environments.

Performance and Specifications

• Max Power at STC: 200W
• Open Circuit Voltage: 23V
• Short Circuit Current: 11.05A
• Optimum Operating Voltage: 19.2V
• Optimum Operating Current: 10.42A
• Module Efficiency: 19.2%
• Temperature Range: -40°F to 194°F (-40°C to 90°C)
• Maximum System Voltage: 600V DC (UL)
• Maximum Series Fuse Rating: 20A
• Output Cable: 13 AWG, 2.6 ft (0.9 m)
• Dimensions: 58.7 x 27.5 x 1.38 in (1491 x 699 x 35 mm)
• Weight: 26.46 lb (12 kg)
• Solar Cells: 68 (4 × 17); 9 busbars; PERC technology
• Junction Box: IP65; Connectors: Solar

Key design features include half-cut cells and bypass diodes to improve shading tolerance and minimize hotspot risk, while a corrosion-resistant anodized aluminum frame supports long service life.

Durability, Safety and Certifications

• IP65-rated junction box for protection against dust and water ingress
• UL-listed maximum system voltage of 600V DC
• 0%–3% positive output tolerance for reliable power delivery
• 9 busbars and PERC technology for enhanced conductivity and light capture

Installation and Maintenance

Pre-drilled back holes enable quick, repeatable installation and compatibility with Renogy mounting systems (Z-Brackets, Pole Mounts, Tilt Mounts). The panel is designed for minimal maintenance in harsh environments; routine cleaning of dust or debris from the surface is recommended to sustain optimal performance. Inspect connections and frame integrity during periodic checks for signs of wear or corrosion.

Warranty and Service

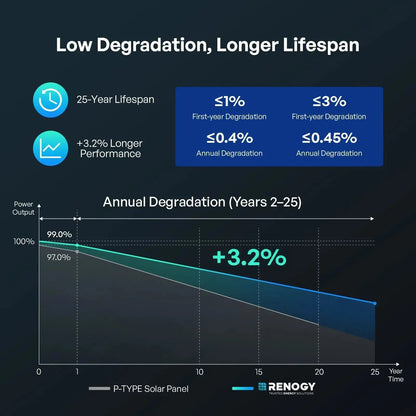

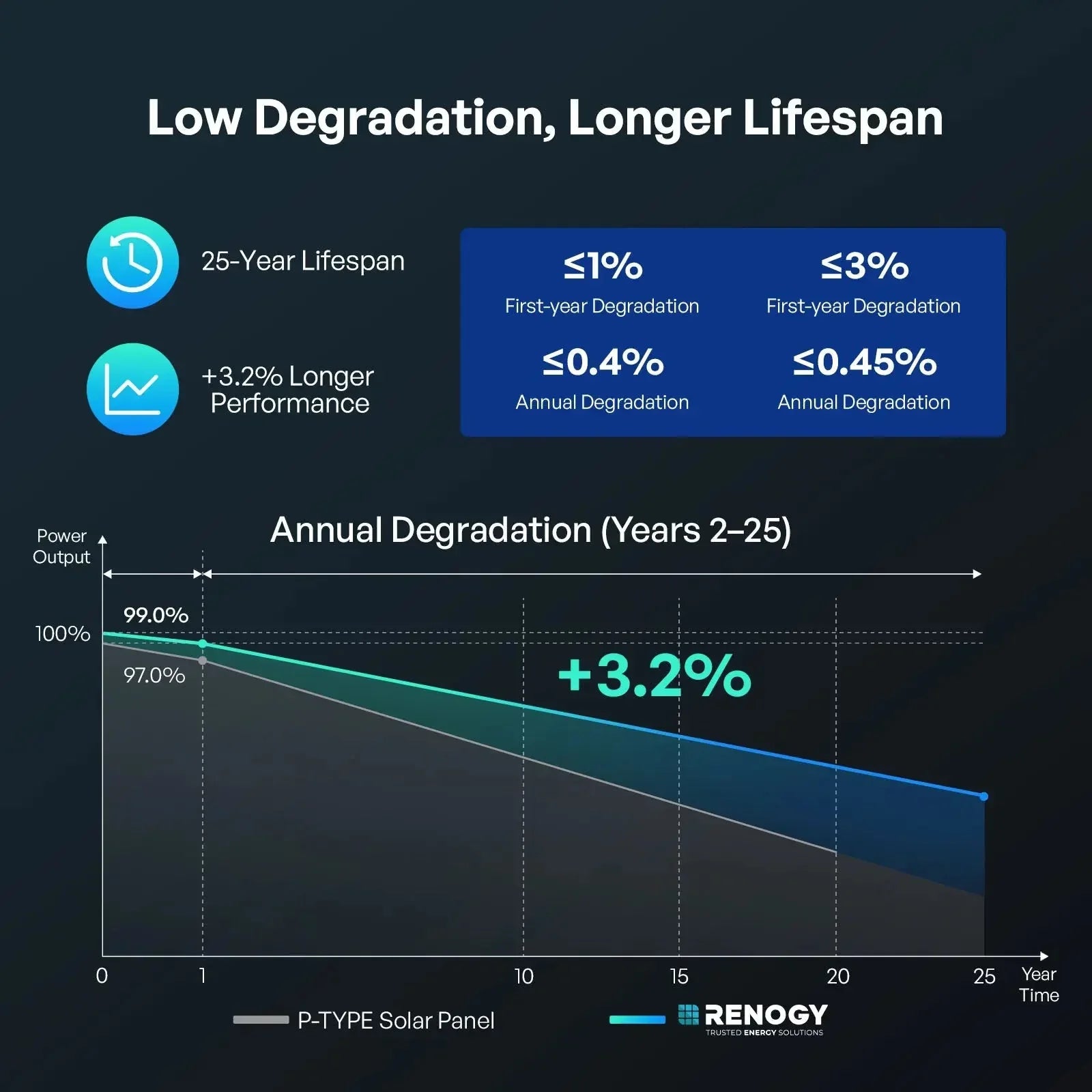

Panels carry a 25-year power output warranty with performance guarantees of 5 years at 95% and 10 years at 90%, diminishing to 80% at 25 years. A 5-year material and workmanship warranty applies, with a 1-year warranty on accessories. Renogy provides professional sales and technical support through multiple channels, with responses typically within 24 hours.

Reliable Power Output

High-Efficiency Advanced Solar Cells

Stable Solar Conversion

Reliable Electricity Output Performance

Renogy 200W Monocrystalline Solar Panel delivers up to 1000 Watt-hours of electricity per day with 5–6 hours of direct sunlight. It features a guaranteed positive output tolerance of 0%–3%, ensuring consistent and reliable performance.

Advanced Solar Cells for Enhanced Efficiency

Built with Grade A+ solar cells, this panel maximizes efficiency through 9 busbars for enhanced conductivity and PERC technology for improved light reflection.

Consistent Solar Conversion under Accidental Shading

Thanks to half-cut cells and bypass diodes, this panel maintains consistent solar energy conversion, even in conditions of accidental shading, while protecting against hotspot overheating.

Premium Quality

Powerful Performance

Proven Reliability

Premium Quality Construction

Designed for durability, this panel is built to endure challenging environments, ensuring long-lasting and dependable use.

Powerful Performance

Engineered to excel in extreme weather conditions, this panel provides exceptional energy production for years to come.

Proven Reliability

Extensively tested and certified, the panel offers guaranteed quality for dependable and consistent power output.

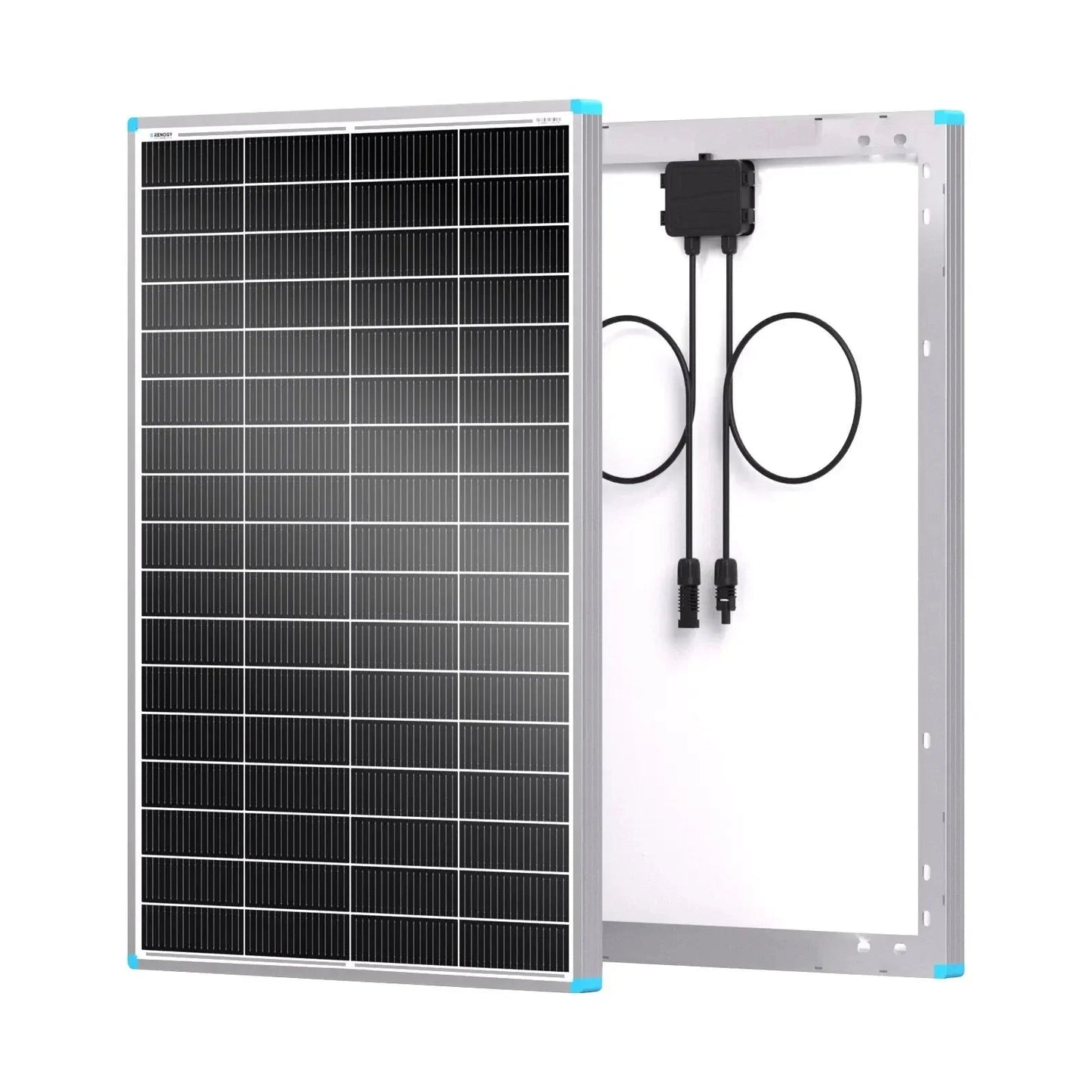

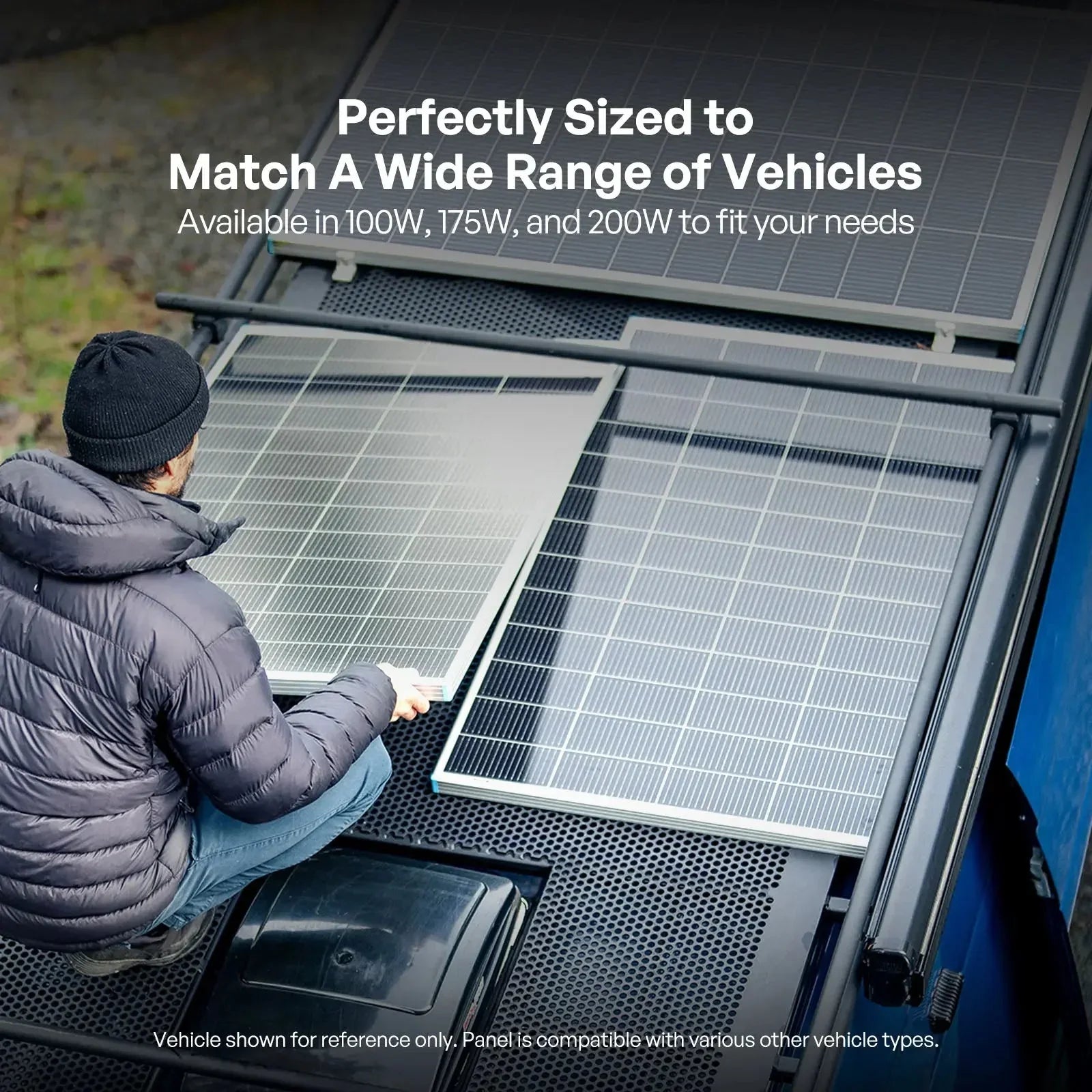

Quick and Easy Mounting

Pre-drilled holes on the back of the panel enable fast installation and compatibility with various Renogy mounting systems, including Z-Brackets, Pole Mounts, and Tilt Mounts.

Secure and Durable Packaging

Renogy panels are carefully packaged with extra-thick corrugated cardboard and foam L-brackets on all four corners for added protection during shipping.

Fast and Reliable Customer Support

Renogy offers professional sales and technical support through multiple channels, ensuring that your questions are answered within 24 hours.





Specifications
Max Power at STC: 200W	Open Circuit Voltage: 23V
Short Circuit Current: 11.05A	Optimum Operating Voltage: 19.2 V
Optimum Operating Current: 10.42 A	Operating Temperature:  -40°F~194°F / -40℃~90℃
Maximum System Voltage: 600 VDC UL	Maximum Series Fuse Rating: 20A
Output Cable: 13 AWG 2.6 ft (0.9m) long	Dimensions: 58.7 x 27.5 x 1.38 in / 1491 x 699 x 35mm
Weight: 26.46 lb (12 kg)	Solar Cells: 68 Cells (4*17)
Junction Box: IP65	Connectors: Solar Connectors
Module Efficiency: 19.2%	Frame: Anodized Aluminium Alloy
Maximum Series Fuse Rating: 15A

Warranty Information

Panels	25-year power output warranty: 5 year/95% efficiency rate, 10 year/90% efficiency rate, 25-year/80% efficiency rate 5-year material and workmanship warranty
Accessories	1-year material warranty



Certification
