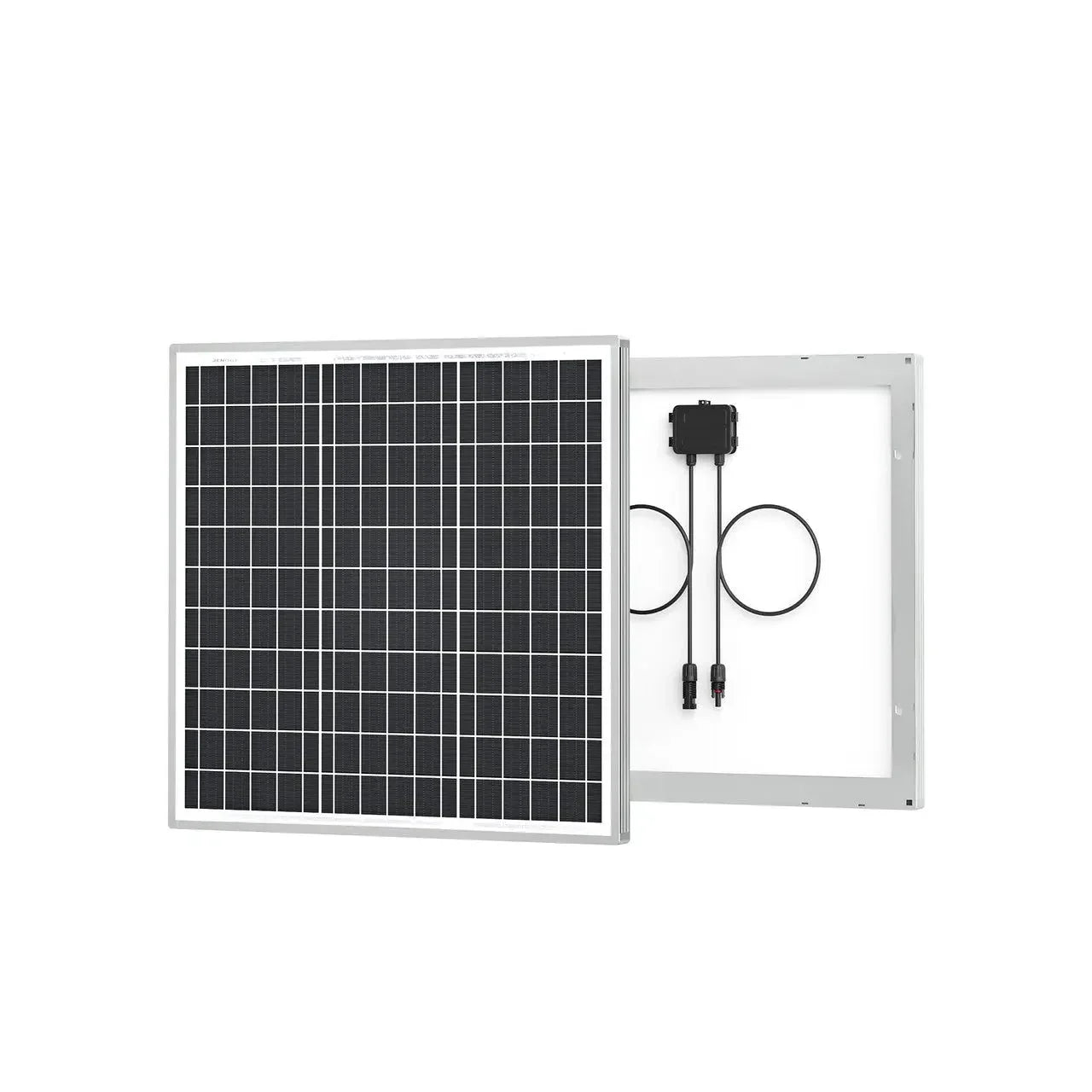

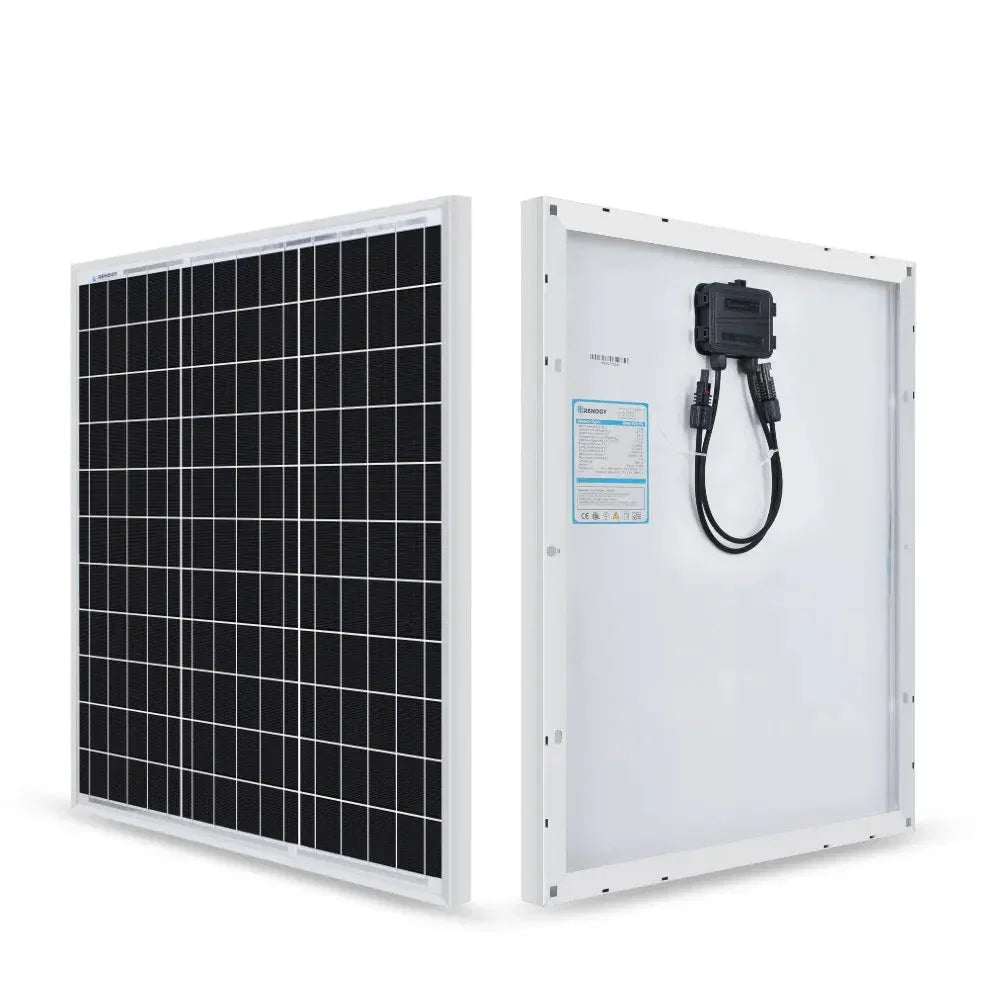

Renogy 50W 12V Monocrystalline Solar Panel
Compact, high-efficiency solar power module designed for introductory solar setups and small off-grid applications. Its 50 watt rating makes it ideal for powering ancillary backyard lighting, garden irrigation, or charging batteries for marine use and dry camping, while remaining easy to scale with additional panels.
Performance specifications
- Maximum Power (Pmax): 50 W
- Optimum Operating Voltage (Vmp): 18.6 V
- Open-Circuit Voltage (Voc): 22.3 V
- Optimum Operating Current (Imp): 2.69 A
- Short-Circuit Current (Isc): 2.94 A
- Weight: 7.72 lb (3.5 kg)

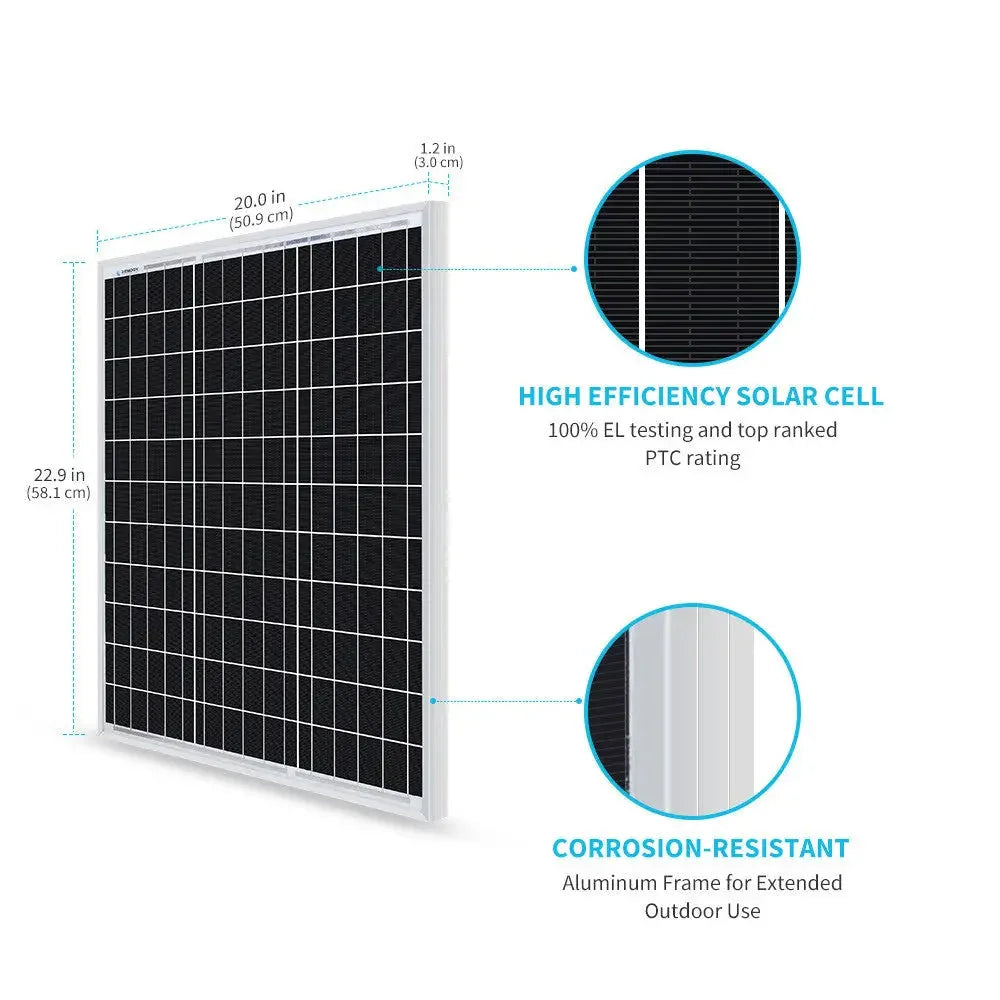

- Dimensions: 22.9 × 20.0 × 1.2 in
- Operating temperature: −40°F to 194°F (−40°C to +90°C)
- Output Cables: 1.31 ft; Panel Leads: 14 AWG
- Maximum System Voltage (UL): 600 V DC
Durability, safety and certifications
- EL-tested modules with no hot-spot heating; bypass diodes reduce power loss in shade
- Anti-reflective, high-transparency, low-iron tempered glass for impact resistance
- TPT back sheet and corrosion-resistant aluminum frame for decades of outdoor use

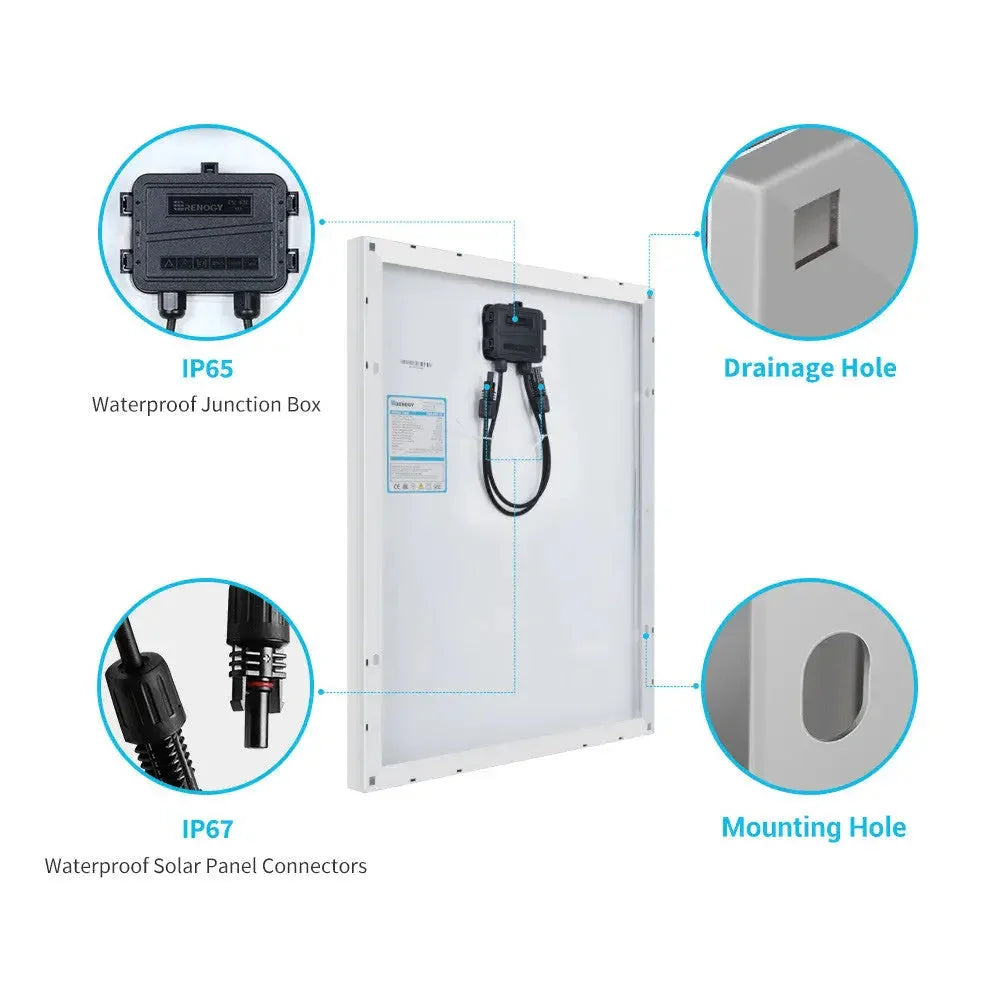

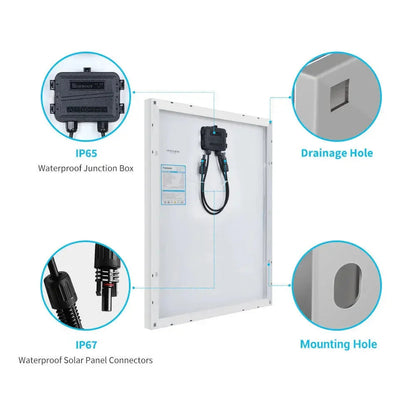

- IP65 rated junction box and IP67 connectors for environmental protection
- Positive output tolerance (0–3%) for predictable performance
Installation and maintenance
- Pre-drilled holes on the back panel for fast mounting; grounding holes included
- Ground-mount compatible and compatible with Renogy mounting systems (Z-Brackets, Pole Mounts, Tilt Mounts)

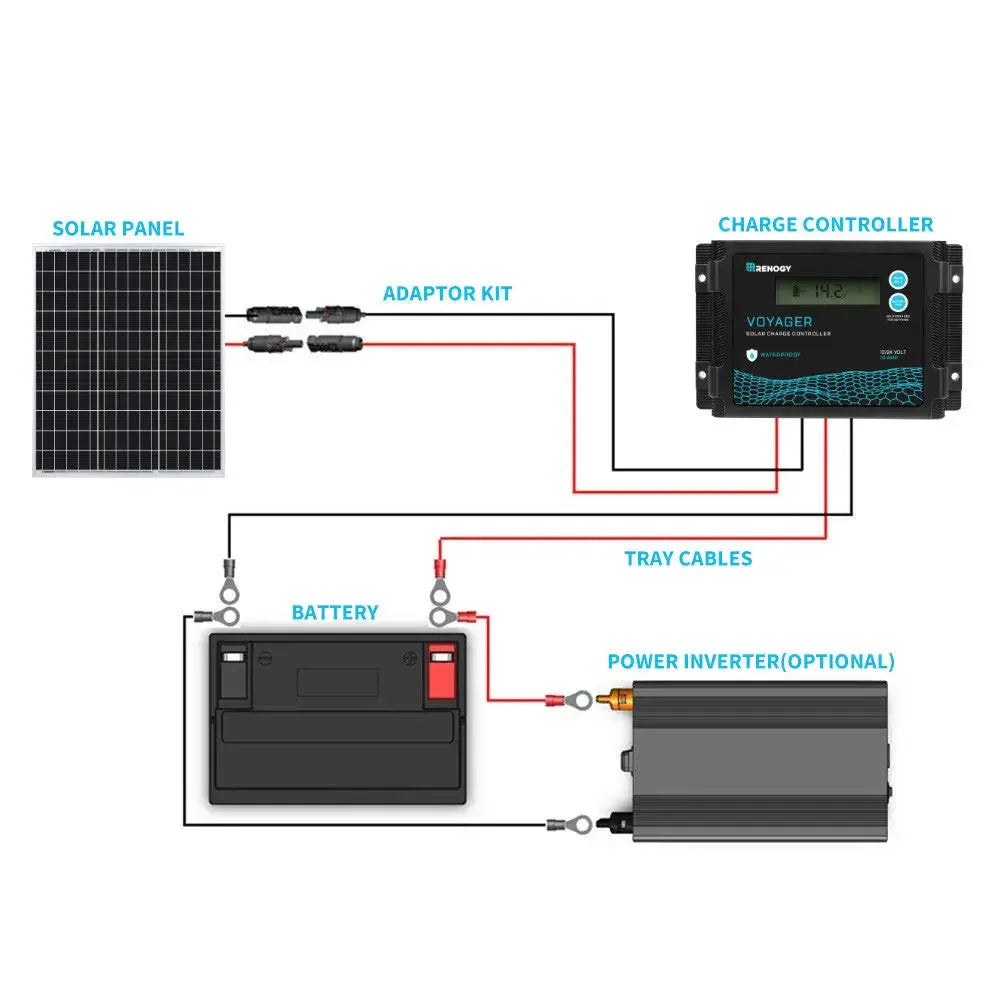

- MC4 leads enable seamless system integration; designed for grid-tied or off-grid inverters
Warranty and service
5-year materials and workmanship warranty with performance guarantees: 5 years at 95% of rated output, 10 years at 90%, and 25 years at 80%. For questions or support, call 1 (909) 287-7111.
Description

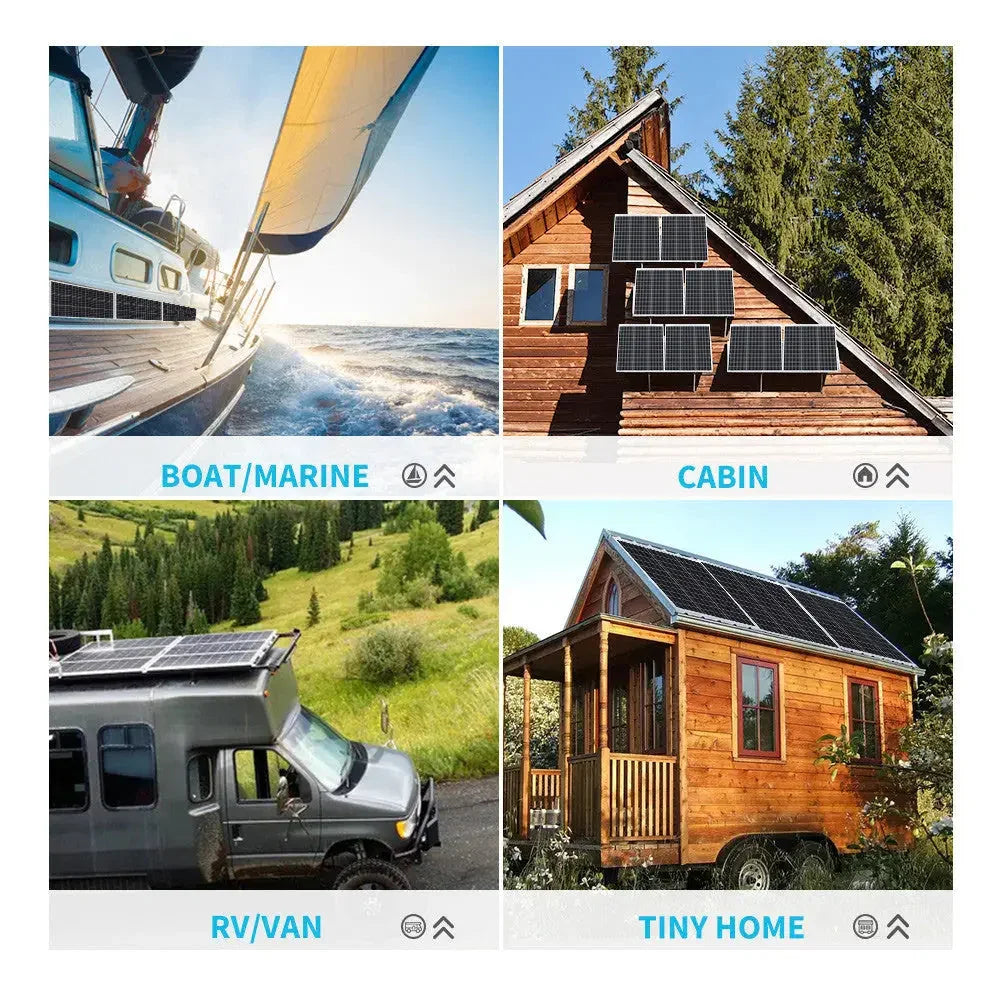

More compact than ever, the Renogy 50 Watt 12 Volt Monocrystalline Solar Panel is the perfect intro panel for solar beginners, or for seasoned users in need of a small solar setup. This panel comes with MC4 leads for seamless system integration, making it easy to build or expand your solar system. Despite its size, this 50W solar panel is a powerful solution, can power off-grid applications such as backyard lighting and sprinklers, or recharge batteries for marine use and dry camping. Give yourself a power boost with this new edition 50W panel and start your solar adventure.
If you have any questions regarding this product, please call us at 1 (909) 287-7111 or contact us.
Key Features

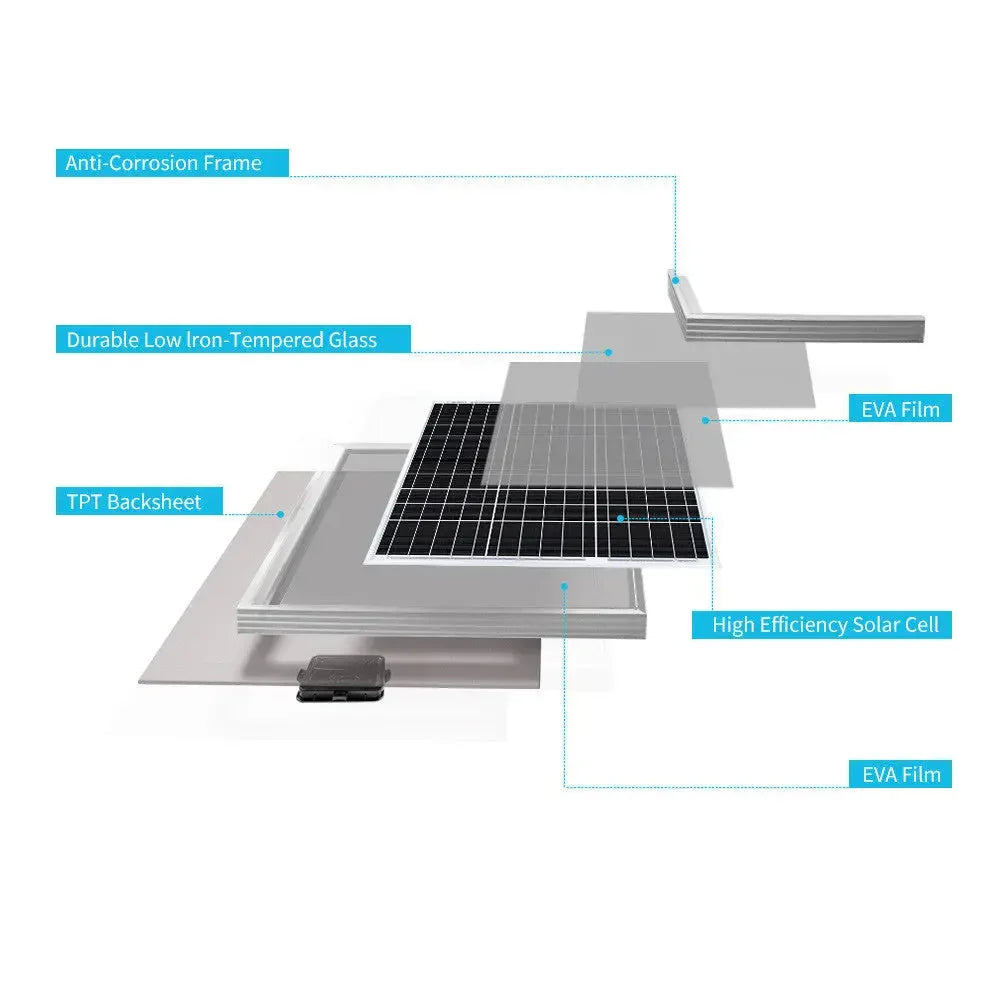

Reliable- Advanced encapsulation material with multi-layered sheet laminations to enhance cell performance and provide a long service life.
- EL tested solar modules; no hot-spot heating guaranteed.
- Bypass diodes minimize power drop caused by shade and ensure excellent performance in low-light environments.
- TPT back sheet ensures smooth performance over a long period of time.
- Guaranteed positive output tolerance (0-3%); withstands high winds (2400Pa) and snow loads (5400Pa).
- Corrosion-resistant aluminum frame for extended outdoor use, allowing the panels to last for decades.
- Anti-reflective, high transparency, low iron-tempered glass with enhanced stiffness and impact resistance.
- IP65 rated junction box provides complete protection against environmental particles and low pressure water jets.
- Can be used for many different applications.
- Ground mount compatible.
- Compatible with on-grid and off-grid inverters.
- Pre-drilled holes on the back of the panel allow for fast mounting and securing.
- Pre-drilled holes included for grounding.
- Compatible with different Renogy mounting systems such as Z-Brackets, Pole Mounts and Tilt Mounts.
Package Includes
|
Renogy 50 Watt 12 Volt Monocrystalline Solar Panel (New Edition)
1 x
|
| Built-in Components | |
|---|---|
| Junction Box: IP65 | Solar Connectors: IP67 |
| Panel Leads (Pair): 14AWG |
| Specifications | |
|---|---|
| Output Cables: 1.31 ft | Connectors: solar Connectors |
| Maximum Power: 50W | Maximum System Voltage: 600V DC (UL) |
| Optimum Operating Voltage (Vmp): 18.6V | Open-Circuit Voltage (Voc): 22.3V |
| Optimum Operating Current (Imp): 2.69A | Short-Circuit Current (Isc): 2.94A |
| Weight: 7.72 lb / 3.5 kg | Dimensions: 22.9 x 20.0 x 1.2 in |
| Operating Temperature: -40°F to 194°F(-40°C to +90°C) | Panel Leads (Pair): 14AWG (4 m / 1.3 ft long) |
| Warranty: 5-year output warranty & material and workmanship warranty | Performance: 5 year 95% output warranty 10 year 90% output warranty 25 year 80% output warranty |
|
