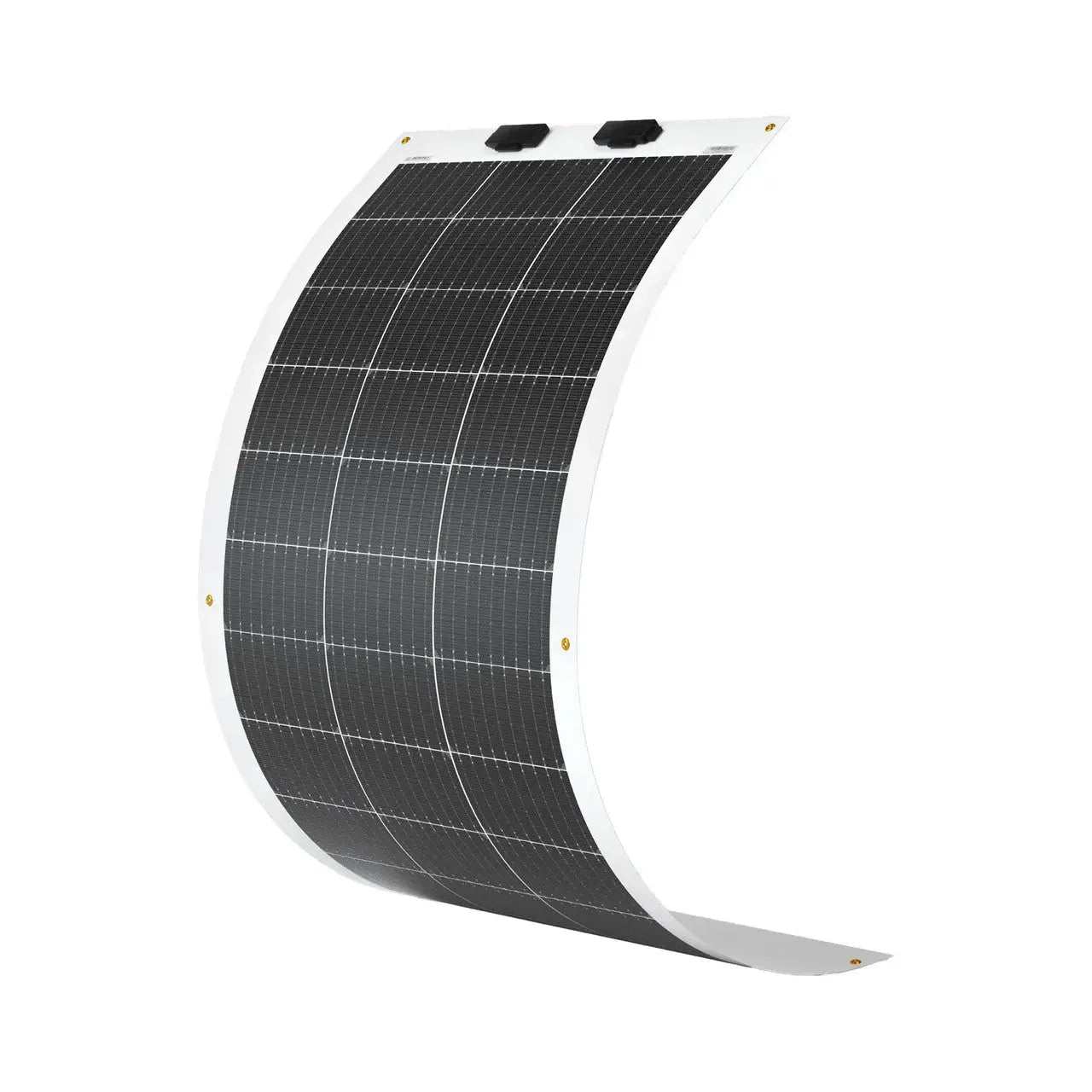

Renogy 100W Flexible Monocrystalline Solar Panel
The Renogy 100W Flexible Monocrystalline Solar Panel is an ultra-thin, highly adaptable power solution intended for curved surfaces and load‑sensitive installations. Perfect for marine vessels, RVs, campers, boats, vans, and off‑grid cabins, it enables reliable solar charging on roofs and other non‑traditional substrates without the bulk of rigid panels.
Key specifications
- Maximum Power (Pmax): 100W
- Optimum Operating Voltage (Vmp): 18.9V
- Optimum Operating Current (Imp): 5.29A
- Open-Circuit Voltage (Voc): 22.5V
- Short-Circuit Current (Isc): 5.75A
- Module Efficiency: 14.9%
- Output Cables: 12 AWG (2.30 ft)
- Cell Type: Monocrystalline, 36 cells (4 x 9)
- IP68 waterproof Junction Box; IP67 waterproof Connectors
- Weight: 4.2 lb; Thickness: 0.08 inches
- Flexibility: up to 248 degrees
- Operating Temperature: -40°F to 185°F (-40°C to +85°C)
- Maximum Series Fuse Rating: 15A; Maximum System Voltage: 600V DC (UL)
Installation and maintenance

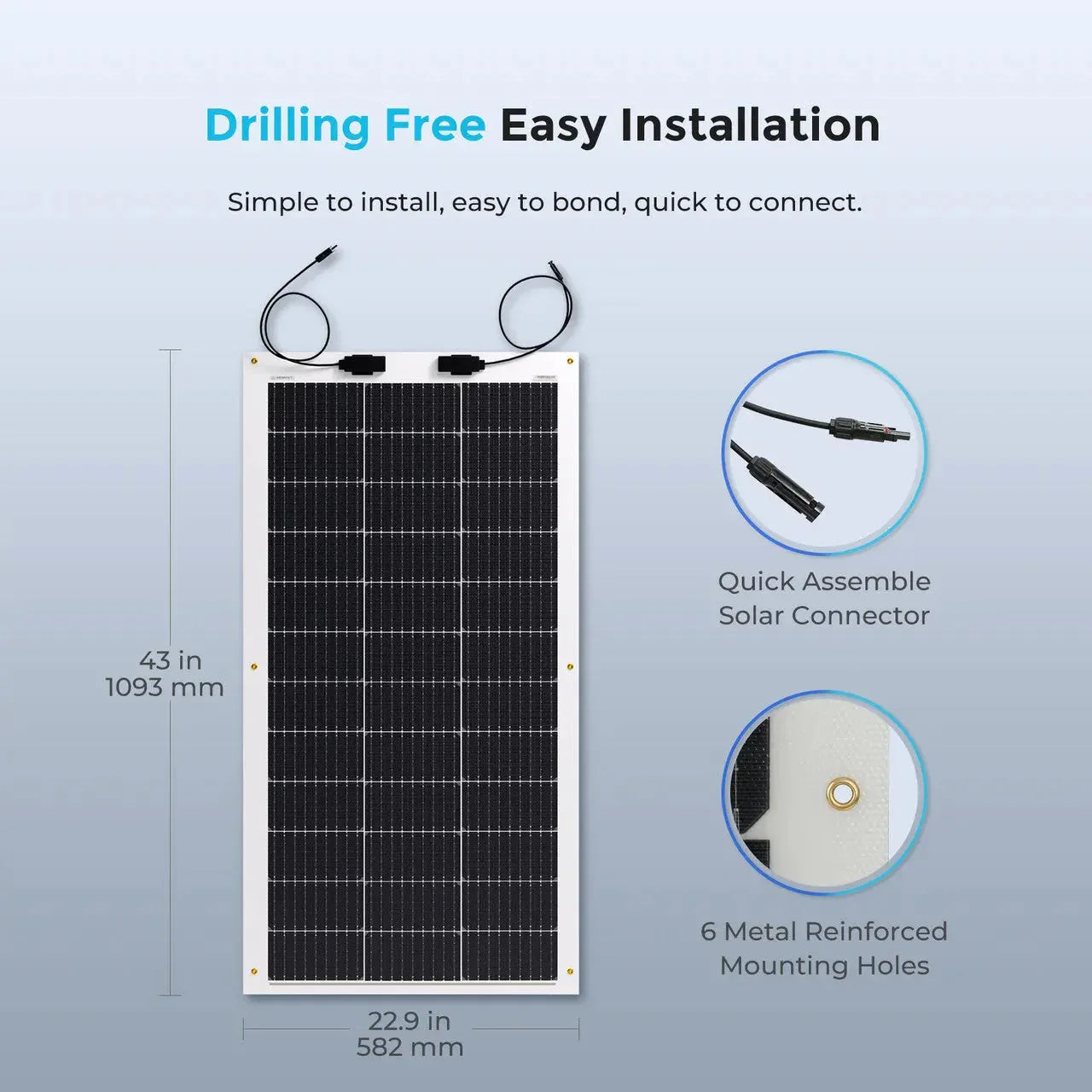

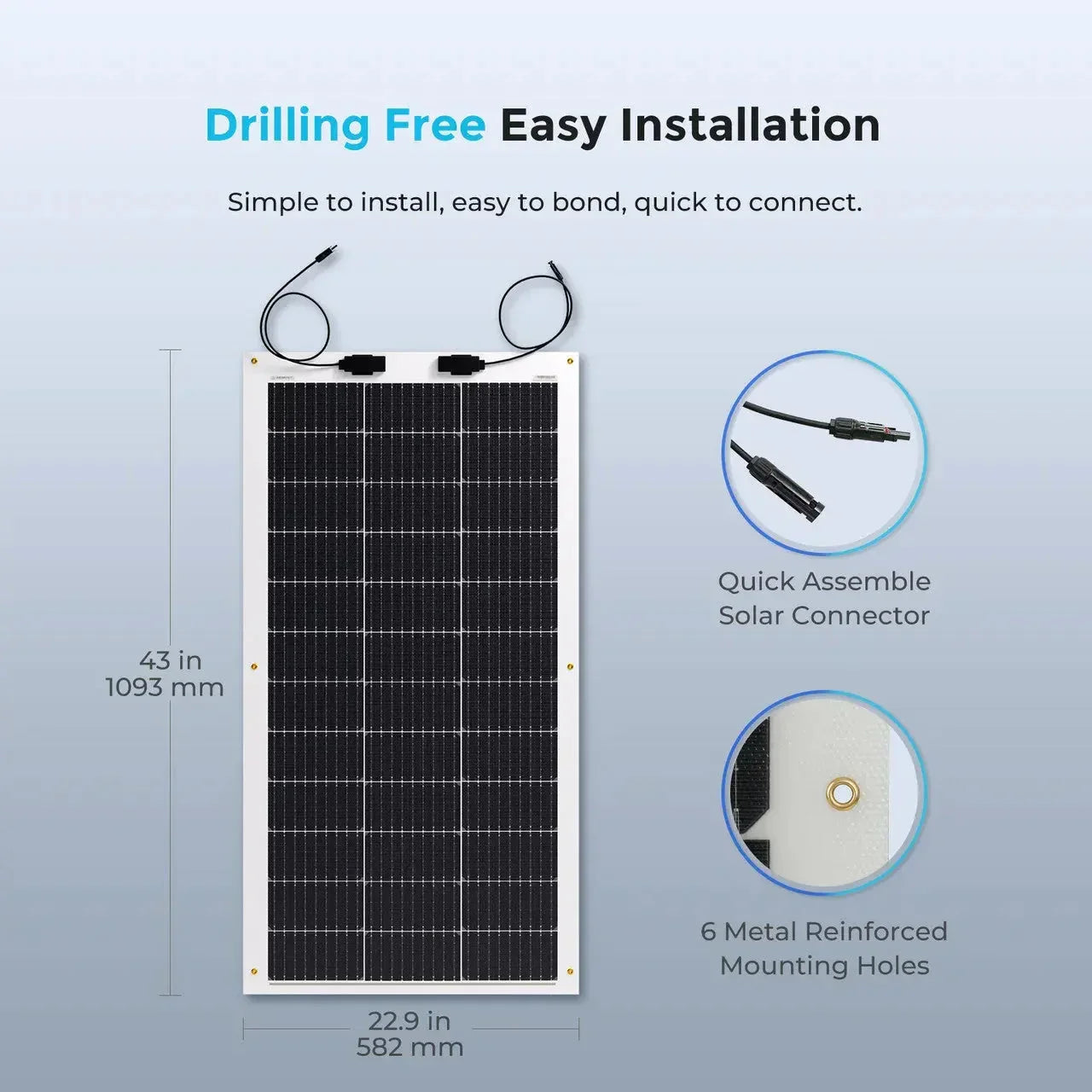

Modules are designed for mounting with silicone structural adhesive on the backside; six metal reinforced mounting holes provide secure attachment. Grommets are intended only for non‑mobile applications. For detailed methods, consult a local contractor. Regularly inspect connections and clean surfaces to maintain optimal performance, and ensure the panel remains within its specified temperature and wind/snow load limits.
Durability and safety
- Weather resistance with IP68 junction box and IP67 connectors for marine and outdoor use

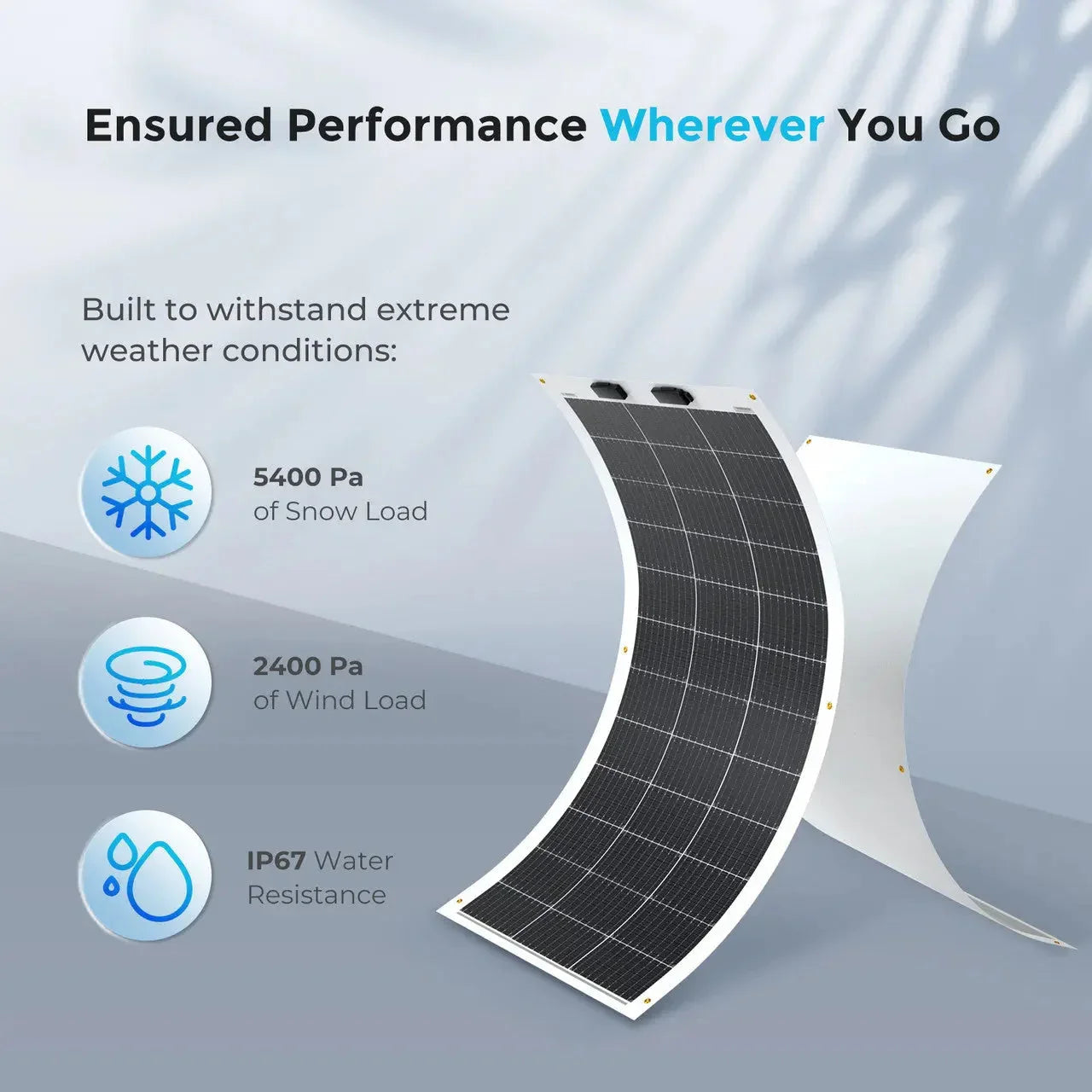

- Wind load tested up to 2400 Pa and snow load up to 5400 Pa

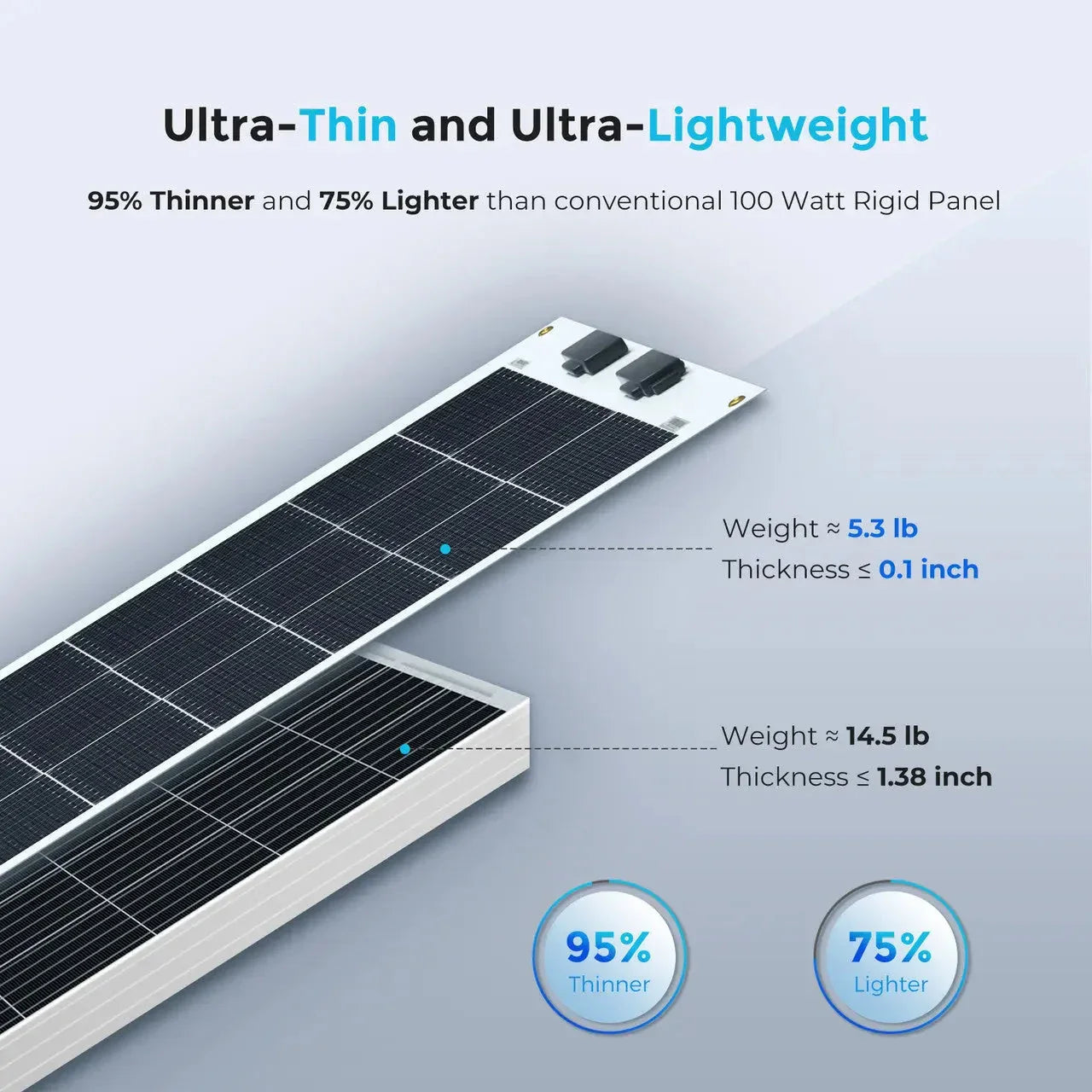

- Designed to be 75% lighter and 95% thinner than traditional 100W rigid counterparts, enabling flexible mounting on uneven surfaces
What’s in the package
- Renogy 100W Flexible Solar Panel
- Output Cables: 12 AWG (2.30 ft)
- Cell Type: Monocrystalline; Number of Cells: 36 (4 x 9)
- IP68 Rated Waterproof Junction Box; IP67 Rated Waterproof Solar Connectors
KEY FEATURES
Lightweight, thin, and capable of flexing up to 248 degrees, this Renogy 100W Flexible Solar Panel is your perfect solution for a power-independent journey!
IP68 junction box and IP67 solar connector, excellent weatherproof performance, perfect for marine and outdoor use. At a weight of 4.2 pounds, this flexible solar panel only weighs 1/4 of its traditional 100W counterpart, making it an ideal alternative for load-sensitive structures and uneven surfaces. Perfect for RVs, Campers, Boats, and many others.
Mounting Recommendation: Modules must be mounted using silicone structural adhesive on the backside of the panel, grommets are only to be used for non-mobile applications. For detailed installation methods, please consult a local contractor for guidance.
The Renogy 100W Flexible Solar Panel is anything but traditional. Perfect for marine use or placement on top of a van or vehicle with an IP68 rated waterproof junction box and IP67 rated solar connectors, the Renogy 100W Lightweight Solar Panel is ultra-thin and capable of flexing up to 248 degrees. It's 75% lighter and 95% thinner compared to the traditional 100W rigid counterpart, making it an ideal alternative for load-sensitive structures and uneven surfaces.
- If you have any questions regarding this product, please call us at 1 (909) 287-7111 or or submit a ticket for troubleshooting assistance.
- More questions about your off-grid power system? Learn more from Renogy Learning Center!
Package Includes
|
Renogy 100W Flexible Solar Panel
1 x
|
| Built-in Components | |
|---|---|
| 100 Watt Flexible Monocrystalline Solar Panel | Output Cables: 12 AWG (2.30 ft) |
| Cell Type: Monocrystalline | Number of Cells: 36 (4 x 9) |
| IP68 Rated Waterproof Junction Box | IP67 Rated Waterproof Solar Connectors |
| Specifications | |
|---|---|
| Maximum Power at STC: 100W | Module Efficiency: 14.9% |
| Optimum Operating Voltage (Vmp): 18.9V | Open-Circuit Voltage (Voc): 22.5V |
| Optimum Operating Current (Imp): 5.29 A | Short-Circuit Current (Isc): 5.75 A |
| Operating Temperature: -40°F to 185°F (-40ºC to +85ºC) | Maximum Series Fuse Rating: 15A |
| Maximum System Voltage: 600V DC (UL) | Certifications: CE, ISO |
| Weight: 4.2 lbs (1.9 kg) | Dimensions: 48.0 x 21.6 x 0.08 in (1219 x 546 x 2 mm) |

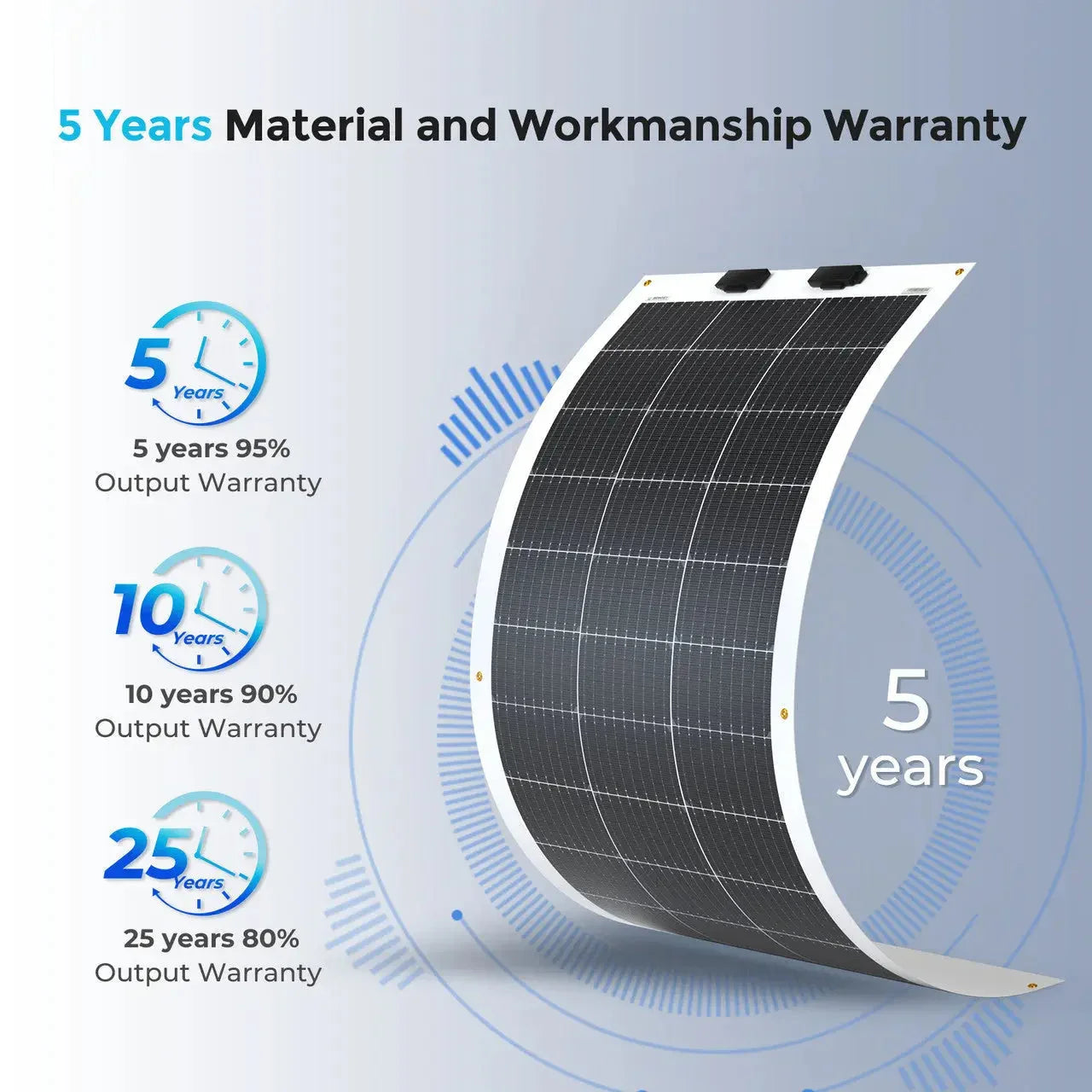

| Material and workmanship warranty: 5 years | Performance Warranty：5 year 95% output warranty 10 year 90% output warranty 25 year 80% output warranty |
1.What do I need to complete my off-grid solar power system?
2. Why is my solar panel under producing?
3. How should I connect solar panels in my electrical circuit (series vs parallel)
4. How many solar panels do I need?
5. Can I walk on flexible solar panels?
6. How to clean solar panels?
|
Renogy 100W Flexible Solar Panel
1 x
|
| Built-in Components | |
|---|---|
| 100 Watt Flexible Monocrystalline Solar Panel | Output Cables: 12 AWG (2.30 ft) |
| Cell Type: Monocrystalline | Number of Cells: 36 (4 x 9) |
| IP68 Rated Waterproof Junction Box | IP67 Rated Waterproof Solar Connectors |
| Specifications | |
|---|---|
| Maximum Power at STC: 100W | Module Efficiency: 14.9% |
| Optimum Operating Voltage (Vmp): 18.9V | Open-Circuit Voltage (Voc): 22.5V |
| Optimum Operating Current (Imp): 5.29 A | Short-Circuit Current (Isc): 5.75 A |
| Operating Temperature: -40°F to 185°F (-40ºC to +85ºC) | Maximum Series Fuse Rating: 15A |
| Maximum System Voltage: 600V DC (UL) | Certifications: CE, ISO |
| Weight: 4.2 lbs (1.9 kg) | Dimensions: 48.0 x 21.6 x 0.08 in (1219 x 546 x 2 mm) |
| Material and workmanship warranty: 5 years | Performance Warranty：5 year 95% output warranty 10 year 90% output warranty 25 year 80% output warranty |
