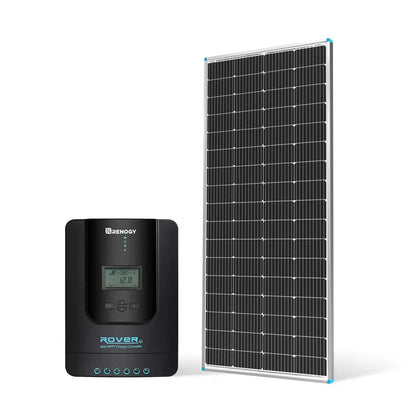

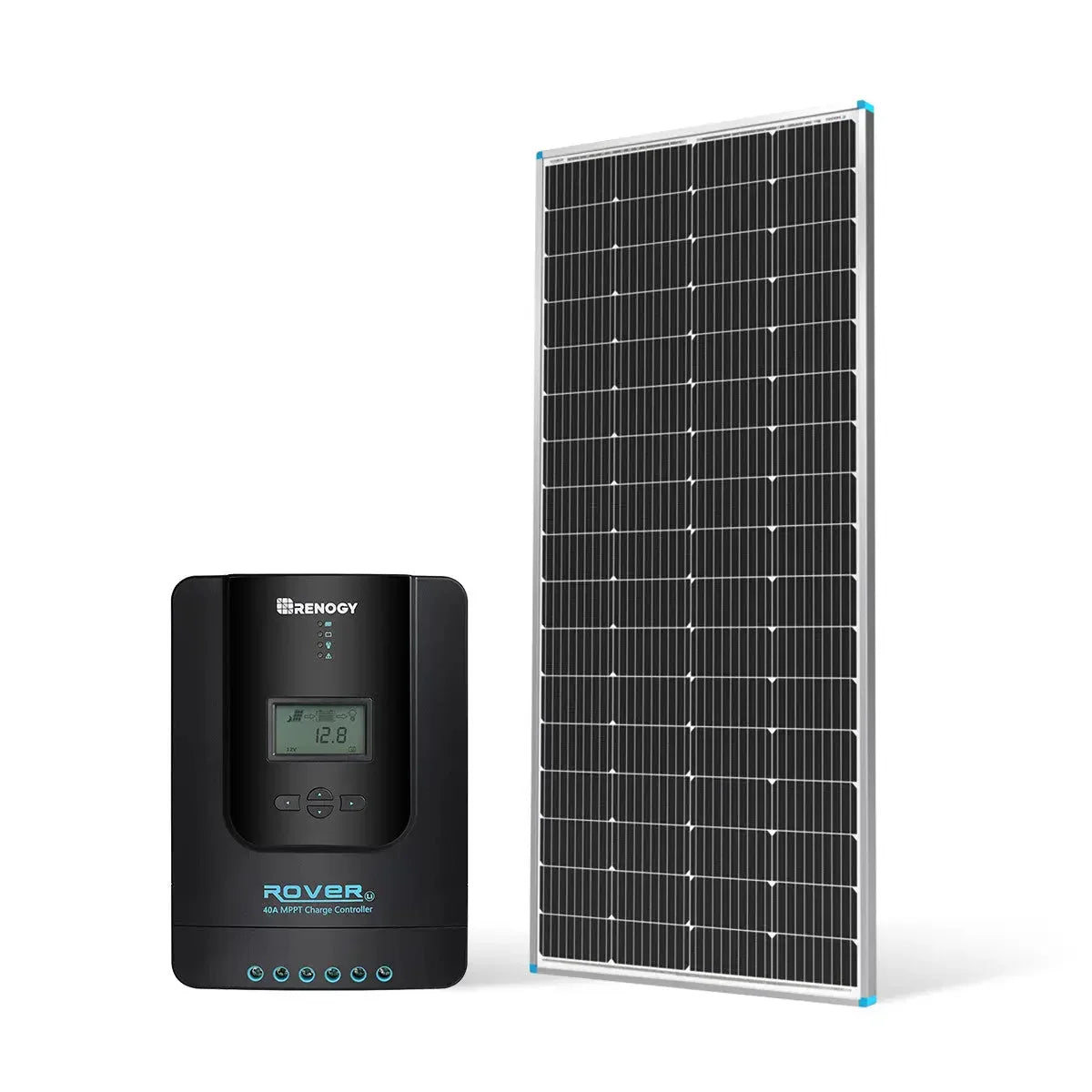

Renogy 200W 12V Monocrystalline Solar Panel with 40A MPPT Charge Controller

Unlock reliable off-grid power with this Renogy kit combining a 200W 12V monocrystalline solar panel and a 40A MPPT charge controller. Ideal for remote cabins, RVs, marine environments, telecom sites, and backup power applications, it delivers consistent daytime electricity and robust charging performance.

Performance specifications: Max Power 200W (STC); Open-Circuit Voltage 23V; Short-Circuit Current 11.05A; Optimum Operating Voltage 19.2V; Optimum Operating Current 10.42A. Module efficiency 19.2%. The panel yields about 1000 Watt-hours per day under 5-6 hours of direct sunlight with a positive output tolerance of 0%-3%. Construction features include 68 cells arranged as 4x17, 9 busbars, and PERC cell technology, which improve conductivity and light capture. Half-cut cells and bypass diodes mitigate hotspot risks during shading and enhance reliability.

Safety, certifications and durability: IP65 junction box; anodized aluminum frame; maximum system voltage 600 VDC; maximum series fuse rating 15A; 13 AWG output cable (0.9 m). The enclosure and components meet industry standards, and Renogy test results guarantee dependable electricity output across varied weather conditions, including extreme temperatures of -40°F to 194°F.

Installation and maintenance: Pre-drilled holes on the panel back support fast mounting with Renogy Z-Brackets, Pole Mounts, and Tilt Mounts. Minimal maintenance is required—periodic cleaning and inspection of cables, connectors, and mounting hardware to prevent shading and ensure clearance.

Warranty and service: 10-year workmanship warranty and a 25-year warranty at 80% of initial output. Includes dedicated technical support with responses within 24 hours to qualified inquiries.

Reliable Power Output

High-Efficiency Advanced Solar Cells

Stable Solar Conversion

Reliable Electricity Output Performance

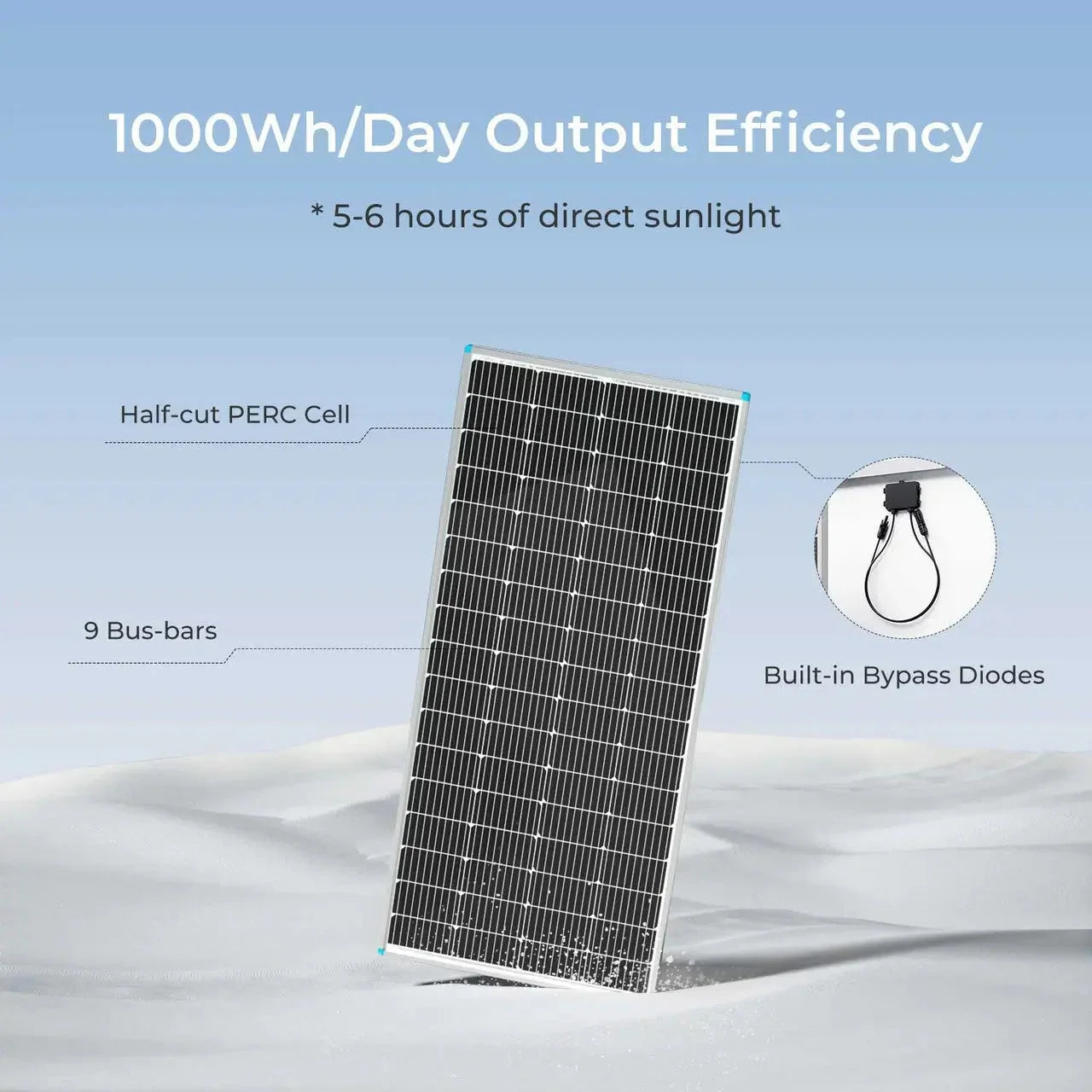

Renogy 200W Monocrystalline Solar Panel can provide about 1000 Watt-hours of electricity per day under 5-6 hours of direct sunlight, with a guaranteed positive output tolerance of 0%-3%.

Advanced Solar Cells for Enhanced Efficiency

Renogy's Grade A+ quality panel maximizes overall efficiency through improved conductivity of 9 busbars and enhanced light reflection of PERC technology.

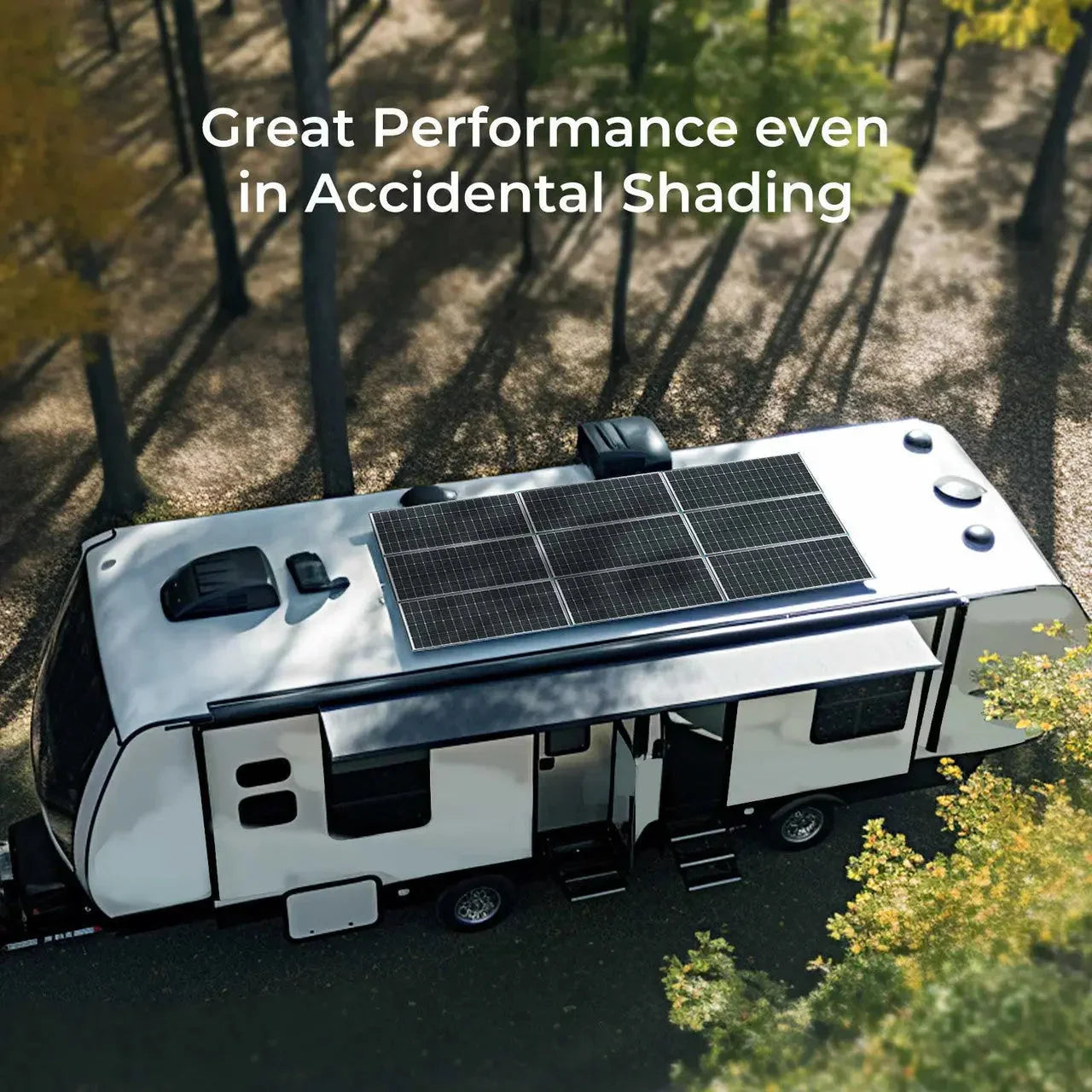

Consistent Solar Conversion under Accidental Shading

Half-cut cells and bypass diodes help protect the panel from hotspot overheating, enabling it to operate even in the presence of accidental shading.

Premium Quality

Powerful Performance

Proven Reliability

Premium Quality

With superior construction, the panel is designed to withstand challenging environments, ensuring durable and long-lasting use.

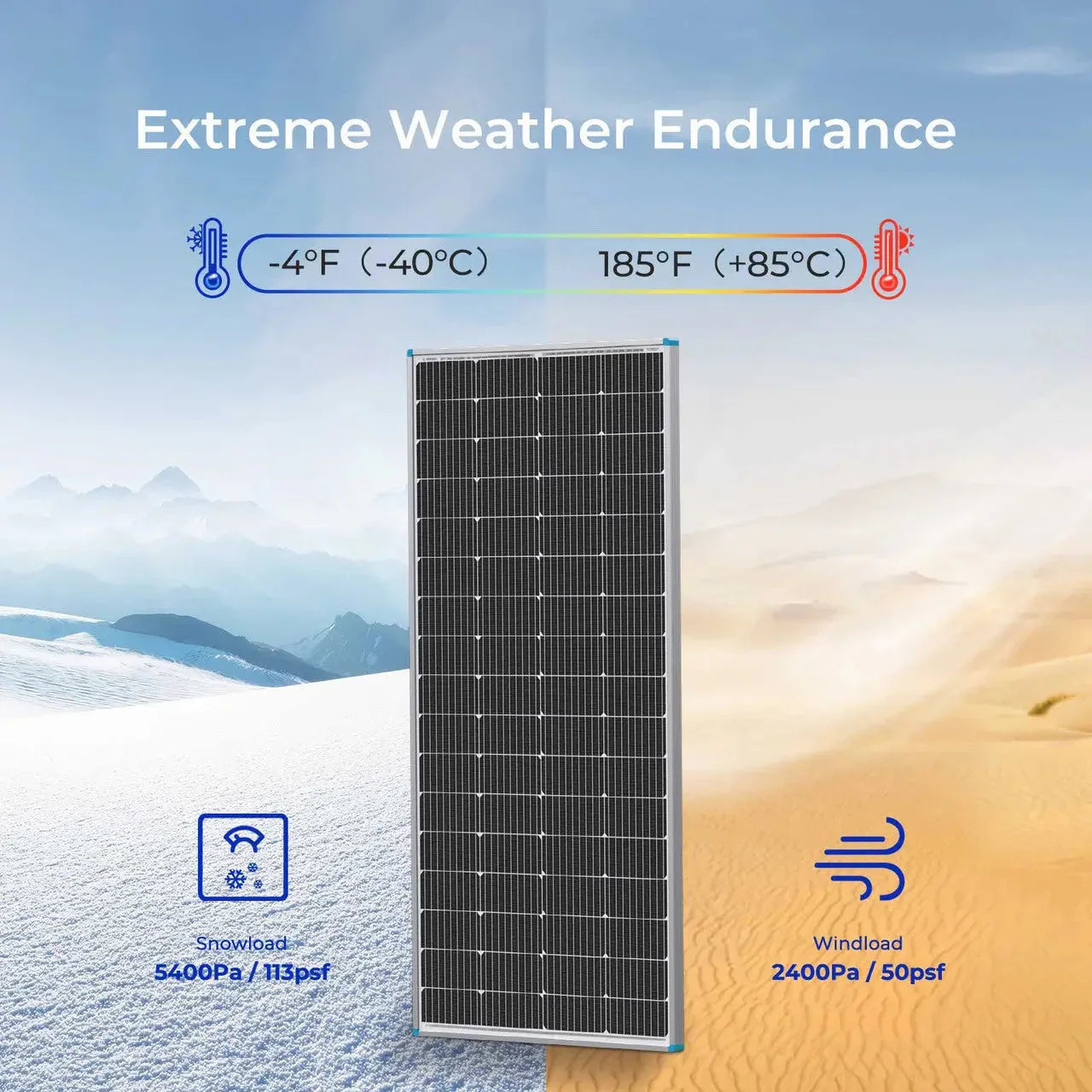

Powerful Performance

Its exceptional capabilities in extreme weather ensures a remarkable performance for years to come.

Proven Reliability

Various tests guarantee a reliable and certified quality for dependable electricity output.

Pre-drilled holes for fast mounting and securing

It has pre-drilled holes on the back of the panel, which are also compatible with different Renogy mounting systems such as Z-Brackets, Pole Mounts, and Tilt Mounts.

Sturdy and Reliable Packaging

Renogy panels are protected with extra thick corrugated cardboard and foam L brackets on all 4 corners.

Get an Answer within 24 Hours

We offer real-time professional sales and technical support in versatile ways to ensure your question is answered within one day.
