Renogy 10W Solar Battery Trickle Charger Maintainer
The Renogy 10W Solar Battery Trickle Charger Maintainer is a compact, plug-and-play device designed to maintain 12V batteries by converting sunlight into a stable charging current. Its flexible installation options—SAE quick-connect plus three direct connection choices (ring terminals, alligator clips, and cigarette lighter adapters)—enable direct battery connection across boats, SUVs, RVs, electric fences, accessory batteries, and other off‑grid systems. By continuously topping off the battery in daylight, it helps prevent discharge and sulfation. Note: for some vehicles, the cigarette lighter port may not operate with the ignition off; in those cases connect directly to the battery, and disconnect during engine start to mitigate alternator surges.
Technical specifications
- Rated Maximum Power: 10W
- Optimum Operating Current: 0.56A
- Optimum Operating Voltage: 18V
- Open Circuit Voltage: 23.47V
- Short Circuit Current: 0.59A
- Output Interface: SAE
- Output Tolerance: ±5%
- Working Temperature: -4°F to 140°F (-20°C to 60°C)
- Weight: 403.4 g / 14.23 oz

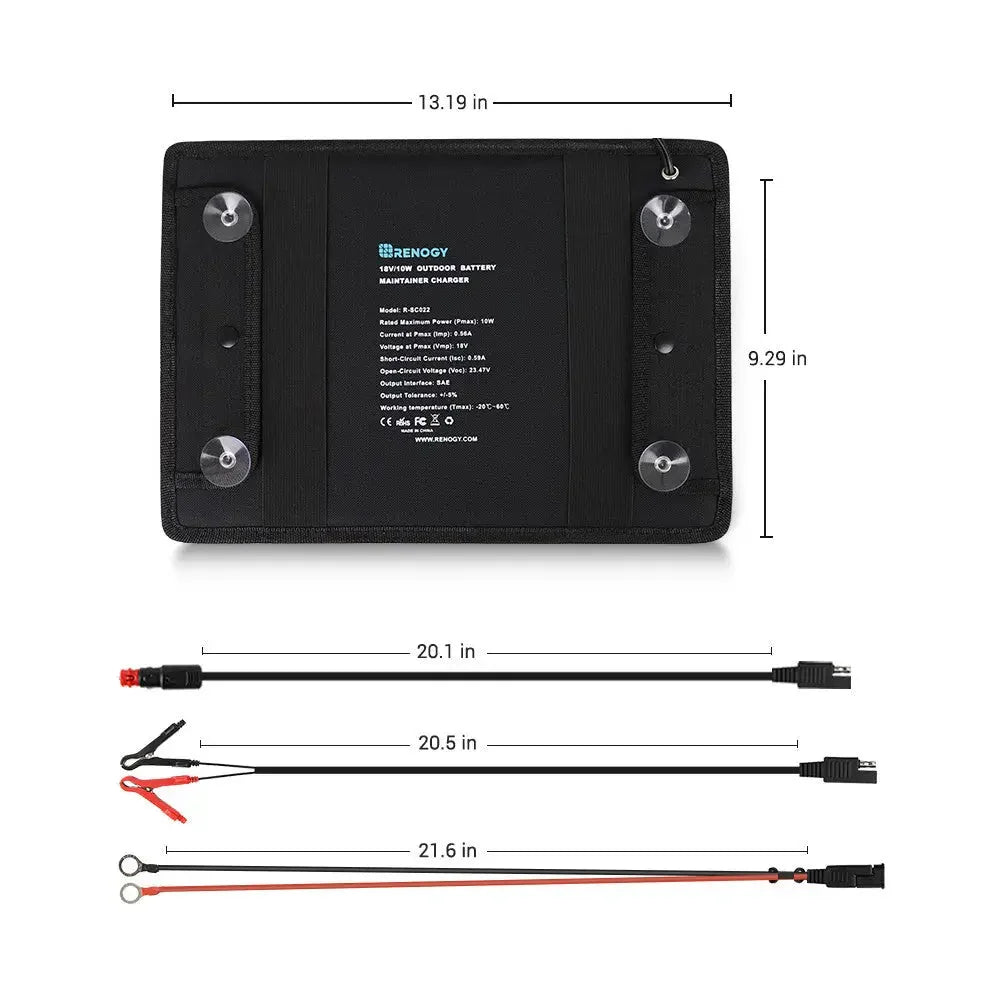

- Dimensions: 33.5 x 23.6 x 0.5 cm / 13.19 x 9.29 x 0.2 in

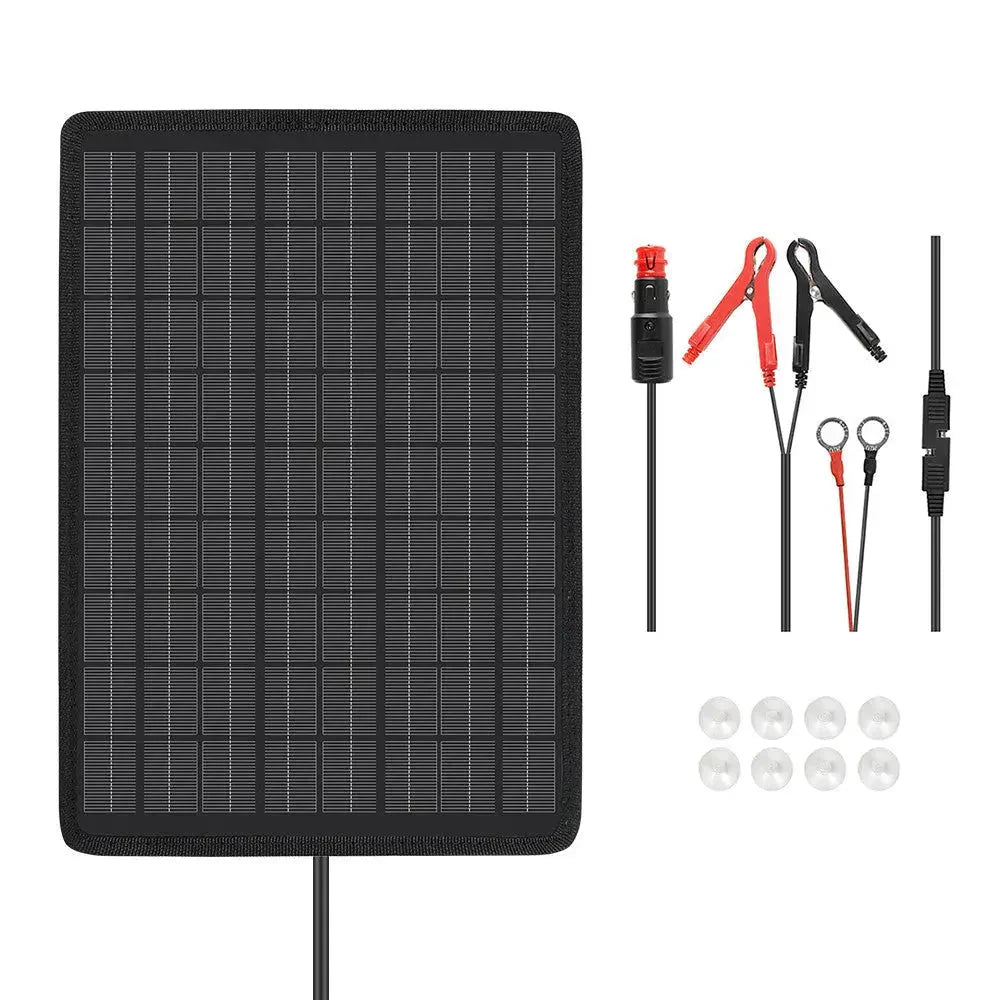

- Includes: 8 x Suction Cups, SAE to Cigarette Lighter Cable, SAE to Alligator Clip Cable, SAE to Ring Terminal Cable
Safety and installation
Designed with built-in safety protection and 24/7 maintenance capability, the unit is maintenance-free and easy to install. Mount the panel in daylight, route cables away from moving parts and heat sources, and use the appropriate connector to match the battery type. If engine starting occurs, disconnect the charger to protect the device from alternator surges. For best results, place the unit outdoors in a bright, unobstructed location.
Warranty and service
Material and workmanship warranty: 1 year. For questions or service, call 1 (909) 287-7111 or contact Renogy support.
Description
Over time batteries naturally lose power and, if allowed to, can go flat. Renogy’s 10W Solar Battery Trickle Charger Maintainer will help you maintain a healthy battery by converting solar energy into a usable 12V DC current to keep your battery topped off at a stable level. With quick SAE connection and 3 options for ring terminals, alligator clips, and cigarette lighters, our Solar Battery Trickle Charger Maintainer is sure to be a great fit no matter what your application needs. It works great with boats, SUVs, RVs, electric fences, accessory batteries, and much more! Maintain a healthy battery and never be caught flat ever again!
Note:
- For some makes or models of vehicles, the cigarette lighter port may not operate when the ignition is turned off. In such cases, please connect the trickle charger maintainer to the battery directly.
- The trickle charger maintainer must be disconnected from the battery or cigarette lighter port when starting the engine or driving the vehicle. Electric surges from the alternator when starting and running may damage the trickle charger maintainer.
If you have any questions regarding this product, please call us at 1 (909) 287-7111 or contact us.
Key Features

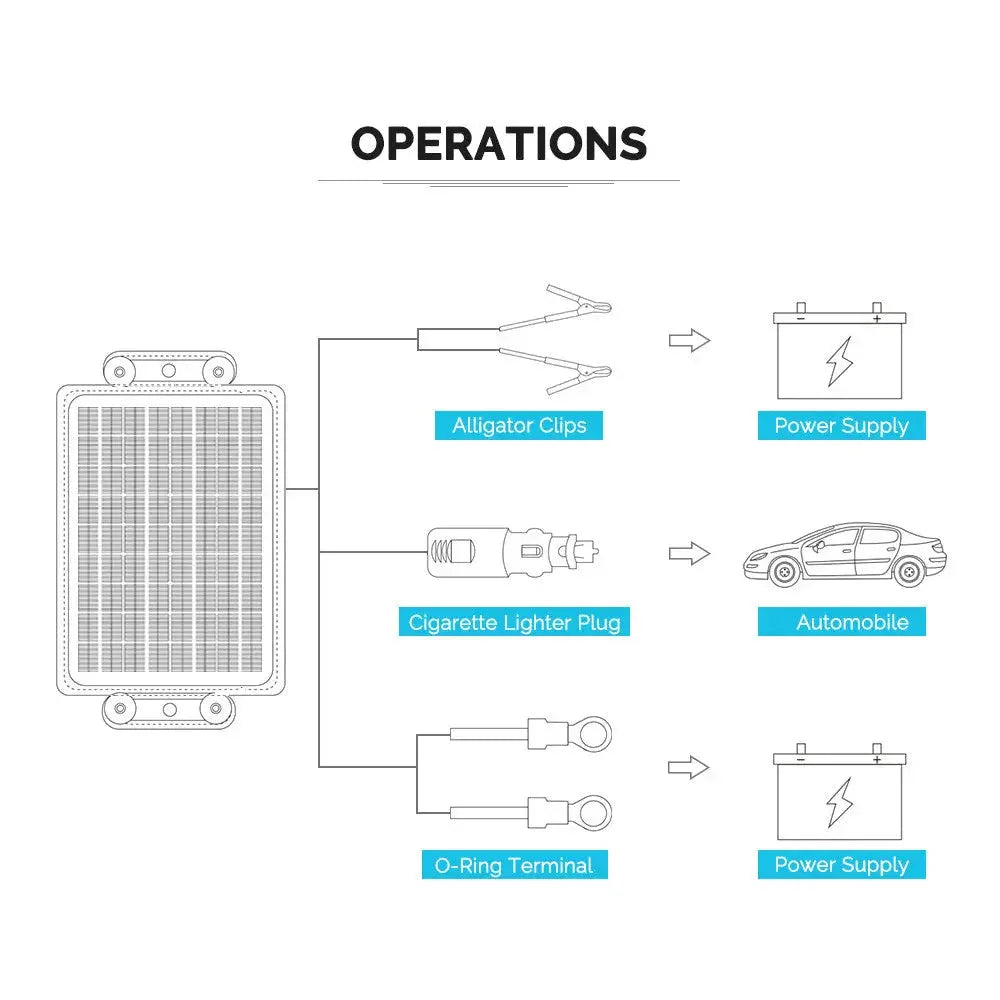

- Easy to use DC adaptors for direct battery connection (cig lighter, alligator clips, ring terminal, SAE connection)
- Charges 12 Volt batteries with the power of the sun
- Works with boats, SUVs, RVs, electric fences, accessory batteries, and more!
- High-efficiency solar panel to charge in all daylight conditions
- Built-in safety protection, plug-in 24/7 to battery
- Maintenance free and easy to install
Package Includes
|
Renogy 10W Outdoor Battery Maintainer Charger
1 x |
- 1 x 10W Solar Battery Trickle Charger Maintainer
- 1 x SAE to Cigarette Lighter Plug Cable
- 1 x SAE to Alligator Clip Cable
- 1 x SAE to Ring Terminal Cable
- 8 x Suction Cup
| SPECIFICATIONS | |
|---|---|
| Rated Maximum Power: 10W | Optimum Operating Current: 0.56A |
| Optimum Operating Voltage: 18V | Short Circuit Current: 0.59A |
| Open Circuit Voltage: 23.47V | Output Interface: SAE |
| Output Tolerance: +/-5% | Working Temperature: -4°F~ 140°F/ -20ºC~ 60ºC |
| Weight: 403.4g / 14.23 oz | Dimensions: 33.5 x 23.6 x 0.5 cm /13.19 x 9.29 x 0.2 in |
| Material and workmanship warranty: 1 year |
|
|
|
|
|
|
|
