QCELLS Q.TRON BLK M-G2.H1+/AC 430 SERIES (DOMESTIC) Solar Panel N-type TOPCon

QCELLS Q.TRON BLK M-G2.H1+/AC 430 SERIES (DOMESTIC) Solar Panel N-type TOPCon

$410.00 USD
$599.00 USD $410.00 USD
Sale Sold out
Shipping calculated at checkout.

features

• Solid design control box — Meets NEMA Type 4 & IP30 standard by lab test
• LCD color screen — Real-time status view and easy user interaction
• Breathing indicator light — Shows real-time charging status
• Control button — Adjust max output current & set scheduled charging time
• Water protection gasket — Resists 3-minute direct high-pressure water spray
• TPU cable — 14.76ft, excellent durability, cold resistant to -22°F
• ETL certified — Compliant with North American safety standards

Technical Specifications

Voltage: 240V/208V
Max Output Current: 40A (SS-PC1-100) / 32A (SS-HAY-100-32A)
Max Power: 8kW / 7kW
Frequency: 50/60Hz
Temperature Range: -22°F to 122°F
Humidity: 5–95%, no condensation
Connector: Type 1 (J1772)
Cable Length: 14.76ft (4.5m)
Altitude: ≤2000m (6,562ft)
Cooling: Natural
Safety Standards: ETL, UL2594, CSA C22.2
Scheduling: App / Timer control
Connectivity: Wi-Fi / Bluetooth
Warranty: 2 years

Packing Details

View full details

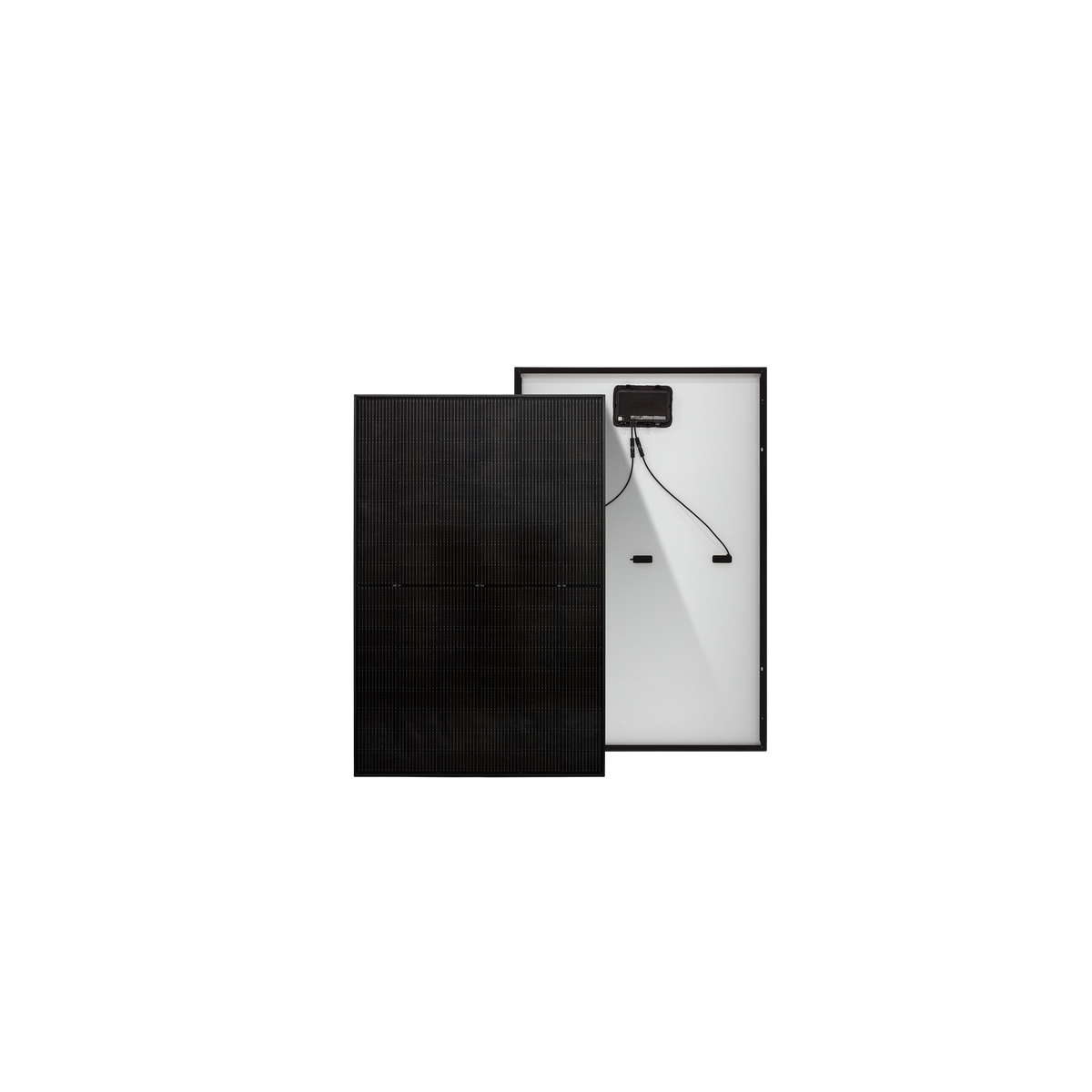

QCELLS Q.TRON BLK M-G2.H1+/AC 430 SERIES (DOMESTIC) Solar Panel

The Qcells Q.TRON BLK M-G2.H1+/AC 430 is a 430W all-black residential AC solar panel. It features an integrated microinverter and N-type TOPCon Q.ANTUM NEO half-cell technology, offering up to 22.0% efficiency. The "domestic" designation indicates U.S.-manufactured content components that may qualify for IRS Domestic Content Bonus Credits.

Technical Specifications


Nominal Power: 430 Wp
Cell Technology: 108 Half-Cell Monocrystalline (N-type TOPCon / Q.ANTUM NEO)
Module Efficiency: Up to 22.0%
Dimensions: 67.8 × 44.6 × 1.57 in (1722 × 1134 × 40 mm)
Weight: 50.6 lb (22.95 kg)
Max System Voltage: 1000 V
Nominal AC Output Current: 1.45 A
Nominal Frequency: 60 Hz

Features & System Integration


Integrated Microinverter: Converts power directly at the module level for rapid shutdown compliance, optimized individual output, and simpler installations.
Domestic Content: Includes U.S.-manufactured parts (such as the junction box, microinverter PCBA elements, and enclosure assembly) aimed at satisfying specific tax credit criteria.
Smart Monitoring: Provides module-level tracking via the Q.OMMAND PRO (for installers) and Q.OMMAND HOME (for homeowners) apps using high-bandwidth PLC communication.
Durability & Degradation: Features low annual power degradation, ensuring over 90.58% nominal power output performance guaranteed by the end of 25 years.
