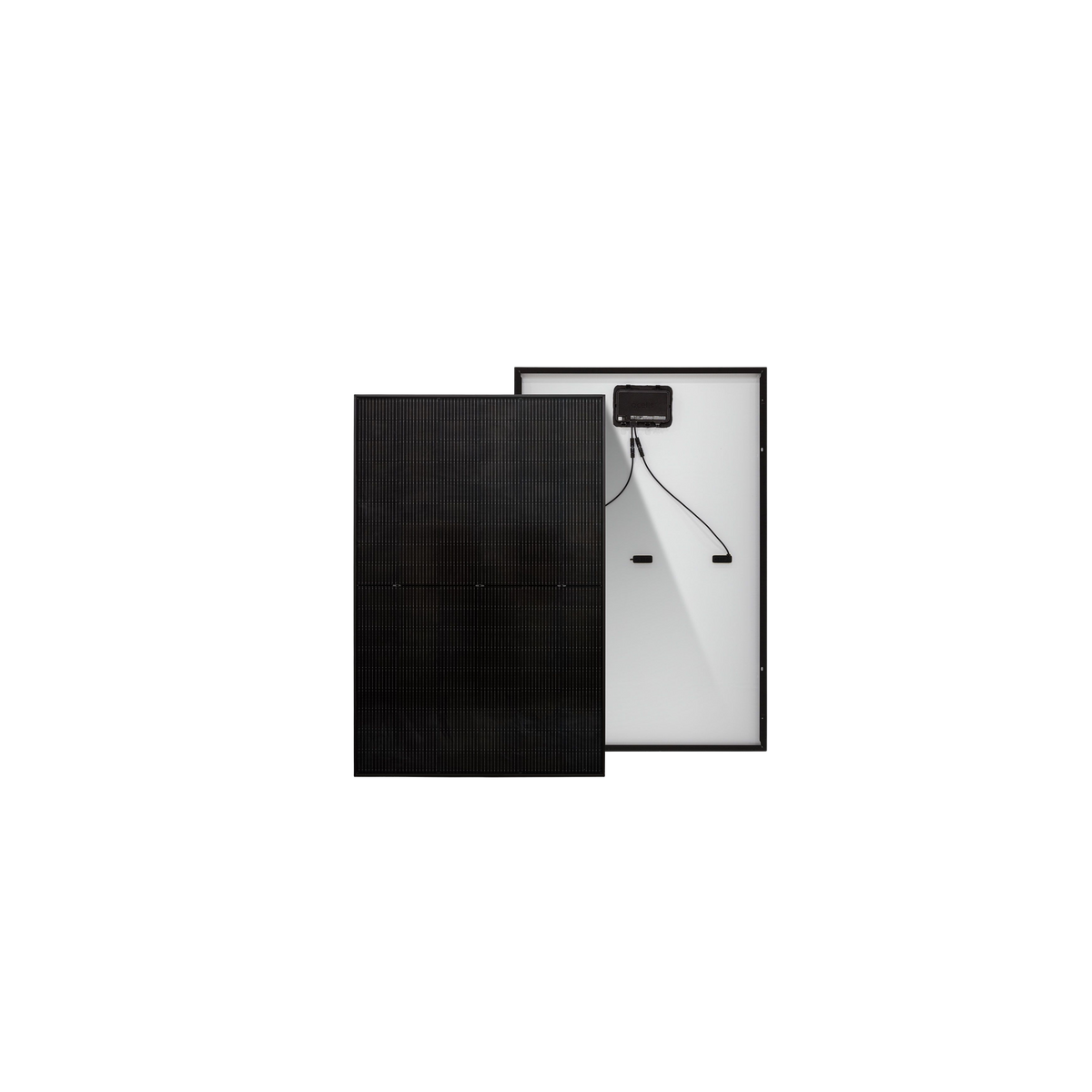

Q.TRON BLK M-G2+/AC 430 SERIES Solar Panel
The Qcells Q.TRON BLK M-G2+/AC 430 is a 430W residential all-black AC solar panel featuring N-type TOPCon Q.ANTUM NEO Technology and an embedded microinverter. It achieves up to 22.5% efficiency, reduces high-voltage DC safety risks on roofs, and includes a 25-year product and performance warranty.
Technical Specifications & Performance
Power Output (STC): 430 W
Cell Technology: N-type TOPCon (Monocrystalline, 108 half-cut Q.ANTUM NEO cells)
Module Efficiency: Up to 22.5%
Dimensions: 1722 mm × 1134 mm × 40 mm (67.8 in × 44.6 in × 1.57 in)
Weight: 50.59 lbs (22.95 kg)
Front Cover: 3.2 mm thermally pre-stressed anti-reflective (ARC) solar glass
Frame: Black anodized high-tech aluminum alloy.
Electrical & System Integration
Inverter Integration: Factory-embedded microinverter (IP67 / NEMA Type 6 enclosure protection)
AC vs. DC Conversion: Converts DC to AC directly at the panel level, removing central DC wiring hazards and streamlining rapid-shutdown compliance
System Monitoring: Compatible with standard Qcells mobile apps and communication tools for fast commissioning.
Durability & Yield Security
Weather Load Rating: Certified for high snow loads (up to 8100 Pa) and wind/suction loads (up to 3600–4000 Pa)
Degradation Control: Zero Light-Induced Degradation (LID) due to N-type phosphorus doping; includes Anti-PID and Anti-LeTID technology
Hot-Spot Protect: Advanced cell-level temperature management to prevent localized overheating.
