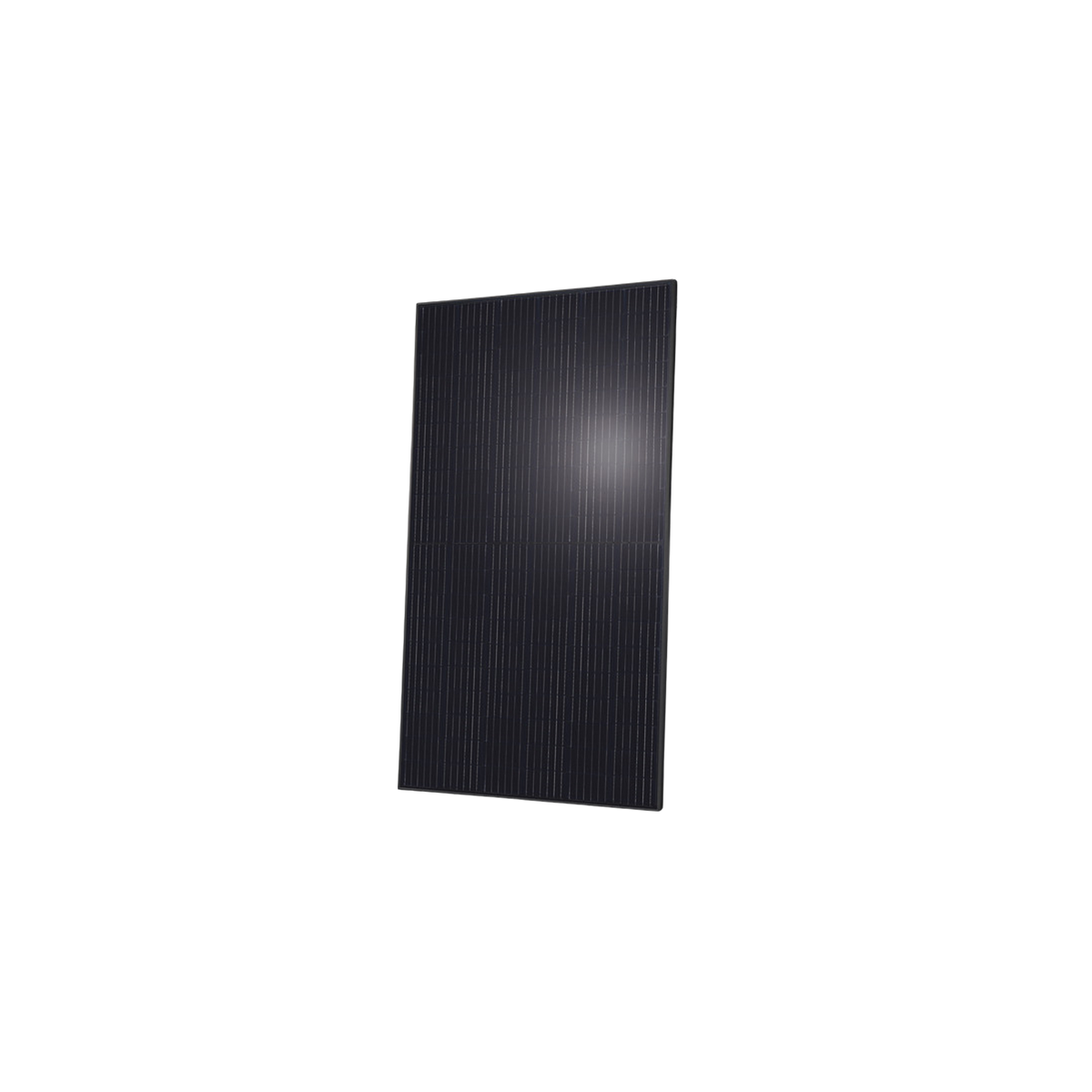

QCELLS 410W Q.PEAK DUO BLK ML-G10+ 410 Solar Panel
The Q.PEAK DUO BLK ML-G10+ 410 is a high-efficiency 410W residential monocrystalline solar panel featuring all-black aesthetics, Q.ANTUM DUO Z half-cell technology with zero-gap cell layout, 20.9% efficiency, extreme load durability, and a 25-year comprehensive warranty.
Electrical Properties
Nominal Power (STC): 410 W
Efficiency: Up to 20.9%
Open Circuit Voltage (Voc): 45.31 V
Short Circuit Current (Isc): 11.11 A
Voltage at Max Power (Vmp): 38.48 V
Current at Max Power (Impp): 10.65 A
Power Tolerance: 0/+5 W
Mechanical Data & Build
Dimensions: 1879 mm × 1045 mm × 32 mm (74.0 in × 41.1 in × 1.26 in)
Weight: 22 kg (48.5 lbs)
Cells: 132 monocrystalline Q.ANTUM solar half-cells
Frame: Black anodized aluminum alloy
Glass: 3.2 mm thermally pre-stressed glass with anti-reflection technology
Connector/Cables: Stäubli MC4 (IP68) with 4 mm² solar cables
Operational Ratings & Warranties
Max System Voltage: 1000 V (IEC/UL)
Load Rating: Certified for high snow loads (5400 Pa) and wind loads (4000 Pa)
Temperature Range: -40 °C to +85 °C
Product Warranty: 25-year manufacturer product warranty
Performance Warranty: 25-year linear performance warranty (guaranteeing high residual output over time)
