Portable Solar Generator 3000W Panel Energy System
Equipment Type and Primary Applications: - Equipment Type: Portable Solar Generator - Primary Applications: Off-grid power for remote job sites, field operations, disaster relief, outdoor events, camping, and backup power for essential loads.Performance Specifications
- Battery capacity: 270,000 mAh at 3.7 V (≈999 Wh) - Continuous AC output: 1000 W; 110/220 V selectable; 50/60 Hz; sine wave; voltage tolerance ±5% - AC outlets: 2 x AC outputs - DC/USB outputs: USB 5 V, 2.4 A; QC 3.0; DC 12 V × 3; Type-C PD 65 W; Type-C: 5 V/3 A; 9 V/2 A; 12 V/1.5 A - Solar input: MPPT, 12.5–24 V, up to 6.2 A - Charging input: 25.5 V / 5 A or 25.5 V / 15 A - Charging time: fully charged ≈ 7 hours at DC 15 V / 6 A - Lifecycle: 10,500 cycles - Weight: ≈ 15 kg - Dimensions (L×W×H): 366 × 255 × 265 mm - Environmental and operating range: -20 °C to 60 °C; 10%–90% RHSafety Features and Certifications
- Safeguards: MultiSafety protection including overload, overcurrent, short-circuit, overtemperature, undervoltage, and overcharge; Battery Management System (BMS) with fault isolation - Certifications: CE; RoHS compliant; IEC-based battery safety considerations notedInstallation and Maintenance Requirements
- Utilities: No fixed mains connection required; solar MPPT charging or 25.5 V input recharging available - Required space: provide at least 0.5 m clearance around all sides; ensure ventilation; place on a stable, level surface - Commissioning steps: inspect connections, attach solar panel or input charger, power up, verify LED indicators, test one load at a time - Preventive maintenance (intervals): check connectors and cables every 6 months; clean vents; inspect for signs of wear; review BMS health during annual checkWarranty and Service Information
- Warranty: Not specified in product data - Service terms and response times: Information available upon inquiryBranding/References
- Manufacturer: Not specified - Model: SG9161000W - Datasheets/References: available upon requestDifferentiators
- High-energy capacity in a portable form (≈999 Wh at ~15 kg) combined with MPPT solar charging up to 6.2 A, PD 65 W Type-C, and dual AC outputs enable flexible, rapid off-grid power for varied field workloads.Portable Solar Generator 3000W Panel Energy System
Equipment Type: Portable Solar Generator Primary Applications: Off-grid power for remote job sites, field operations, disaster relief, outdoor events, camping, and backup power for essential loads.Performance Specifications
- Battery capacity: 270,000 mAh at 3.7 V (approx. 999 Wh) - Continuous AC output: 1000 W; 110/220 V selectable; 50/60 Hz; sine wave; voltage tolerance ±5% - AC outlets: 2 x AC outputs - DC/USB outputs: USB 5 V, 2.4 A; QC 3.0; DC 12 V × 3; Type-C PD 65 W; Type-C: 5 V/3 A; 9 V/2 A; 12 V/1.5 A - Solar input: MPPT, 12.5–24 V, up to 6.2 A; charging input 25.5 V / 5 A or 25.5 V / 15 A - Charging time: fully charged ≈ 7 hours at DC 15 V / 6 A - Lifecycle: 10,500 cycles; weight ~15 kg; dimensions 366 × 255 × 265 mm - Environment and operating range: -20 °C to 60 °C; 10%–90% RHSafety Features and Certifications
- Safeguards: MultiSafety protection including overload, overcurrent, short-circuit, overtemperature, undervoltage, and overcharge; Battery Management System (BMS) with fault isolation - Certifications/standards: CE and RoHS compliant; IEC-based battery safety considerations notedInstallation and Maintenance Requirements
- Utilities: No fixed mains connection required for operation; solar MPPT charging or 25.5 V input recharging available - Required space: provide at least 0.5 m clearance around all sides; ensure ventilation; place on a stable, level surface - Commissioning steps: inspect connections, attach solar panel or input charger, power up, verify LED indicators, test one load at a time - Preventive maintenance (intervals): check connectors and cables every 6 months; clean vents; inspect for signs of wear; review BMS health during annual checkWarranty and Service Information
- Warranty: Not specified in provided data - Service terms and response times: Information available upon inquiryBranding/References
- Manufacturer: Not specified; Model: SG9161000W; Datasheets/References: available upon requestDifferentiators
- High-energy capacity in a portable form (≈999 Wh at ~15 kg) combined with MPPT solar charging up to 6.2 A, PD 65 W Type-C, and dual AC outputs enable rapid, flexible off-grid power for varied field workloads.Portable Solar Generator 3000w Panel Energy System
|

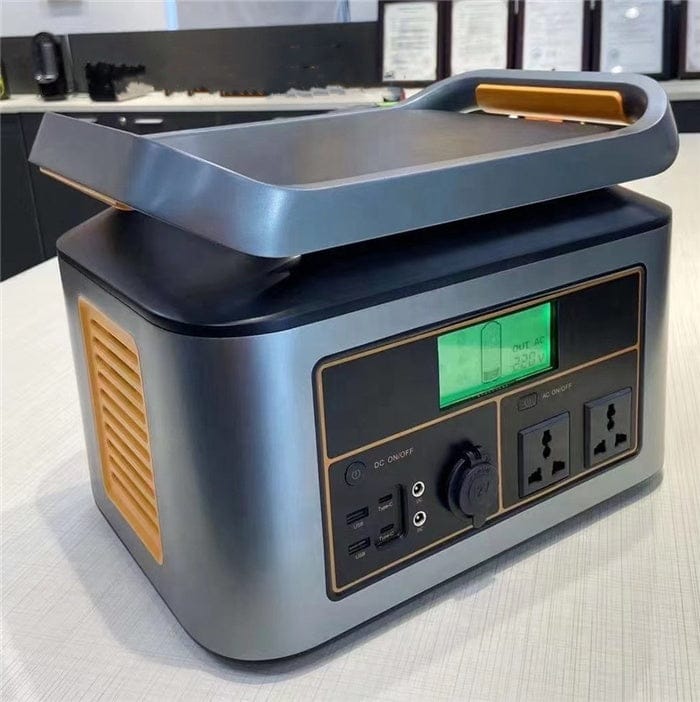

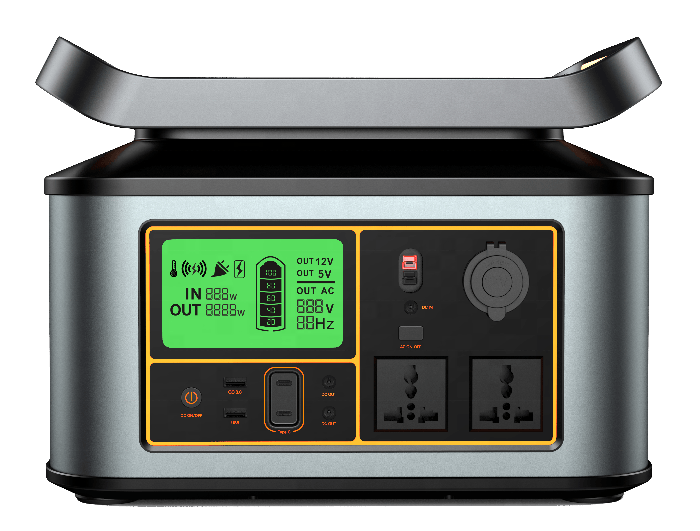

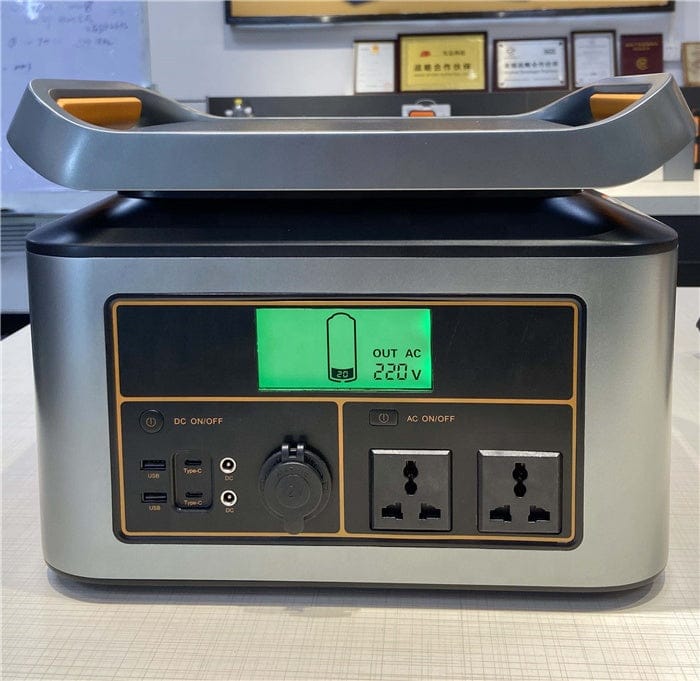

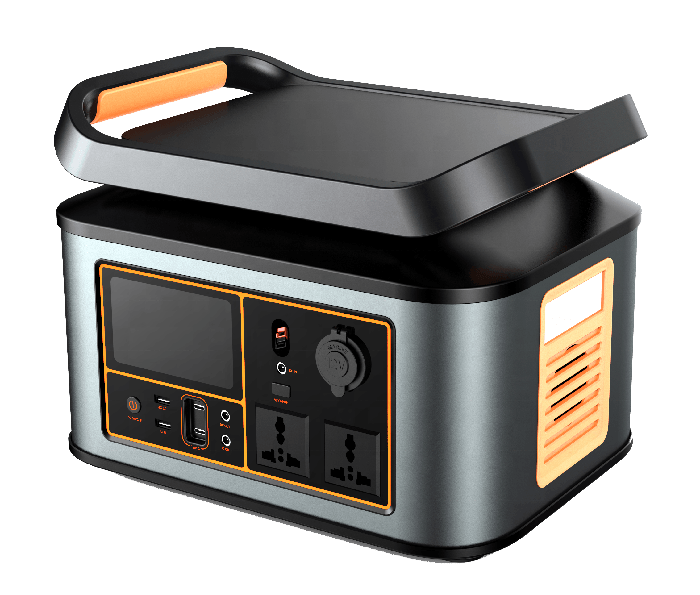

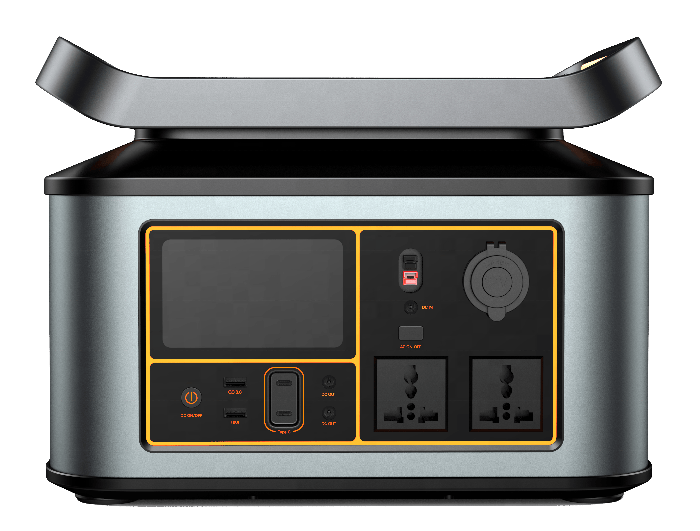

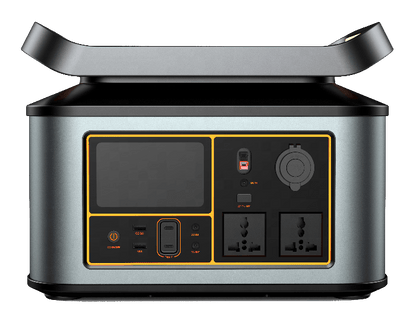

Detail Photos of SG916 1000w solar generator
| Name | SG9161000w solar generator |
| Version | Neutral |
| Capacity | 270000mAh,3.7V |
| Weight | About 15Kg |
| Fully Charged Time | DC15V/6A: 7hours |
| Design | Xtreme Power Design |
| Dimensions(LWH) |
366*255*265mm
|
| Built-in Battery | High Quality Lithium ion Batteries |
| Input Recharging |
25.5V / 5A;25.5/15A
|
| Solar Panel Charging | MPPT, 12.5V~24V, up to 6.2A Max input |
| Charge mode | CC/CV |
| Output |
USB 5V/2.4A x 1; QC3.0X1;DC 12V x 3;
Type-c: 5V/3A;9V/2A;12V/1.5
Type-c: PD 65W
|
| AC Output |
SineWave Output;110V/220Vx 2 AC Continuous Output: 1000W AC Voltage: AC 110V/220V 50/60Hz AC±5%Output Frequency:50/60Hz±5% Customized According to different Countries and areas. |
| Power Indicator | Led Indicators |
| Operation Temperature |
-20℃~60℃ |
| Operation Humidity | 10%~-90% |
| Lifecycle | 10500 times |
| Safety Technology | MultiSafety Protection |
