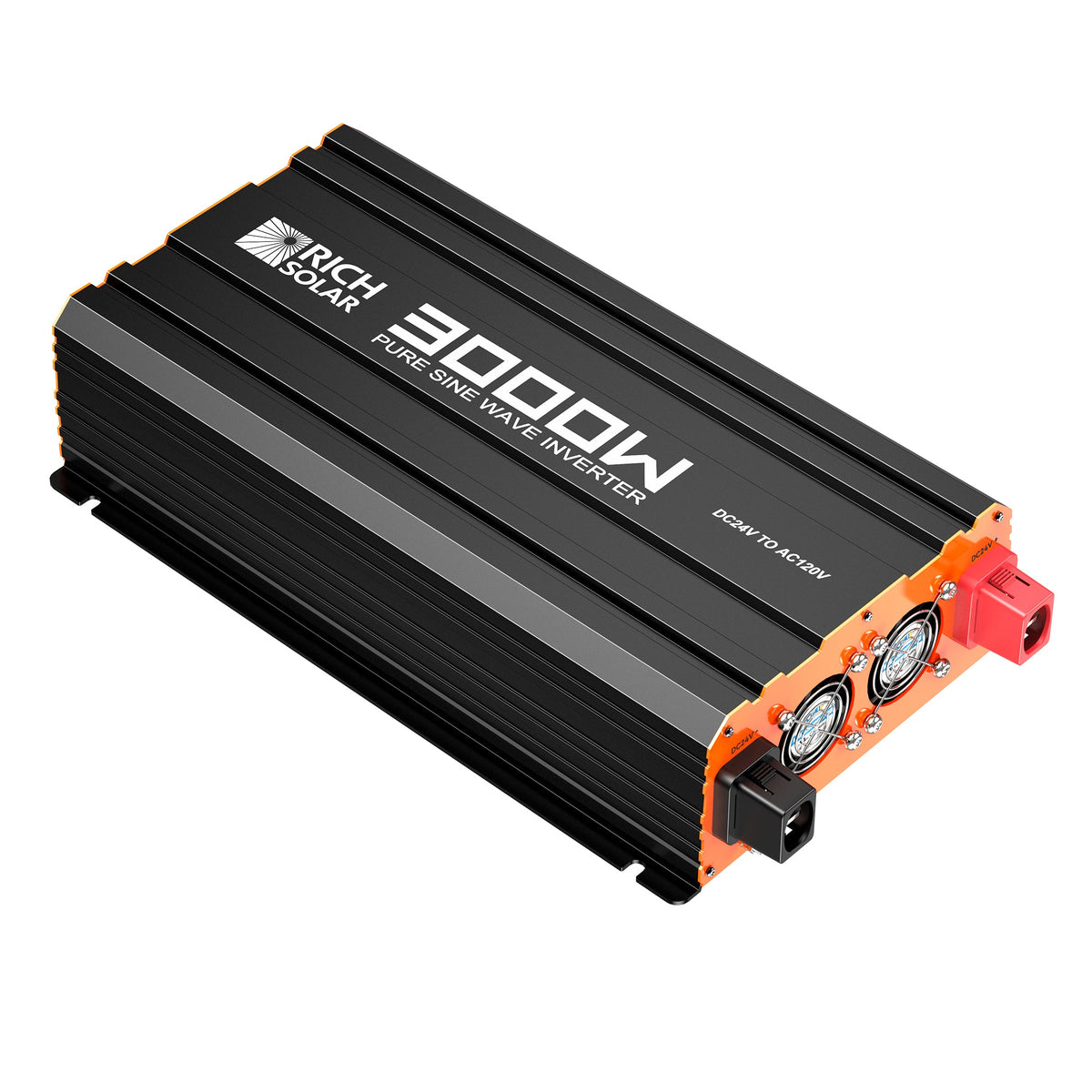

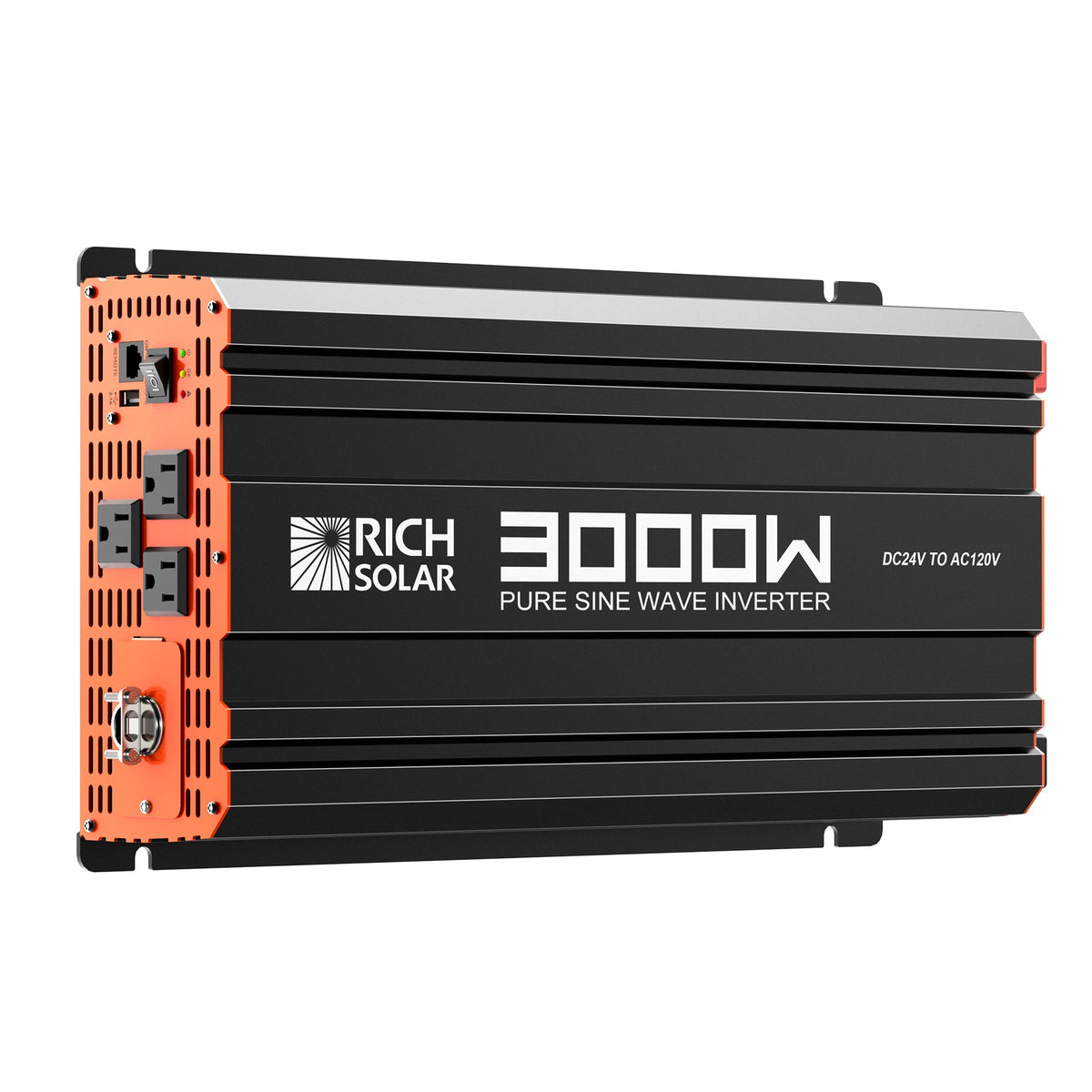

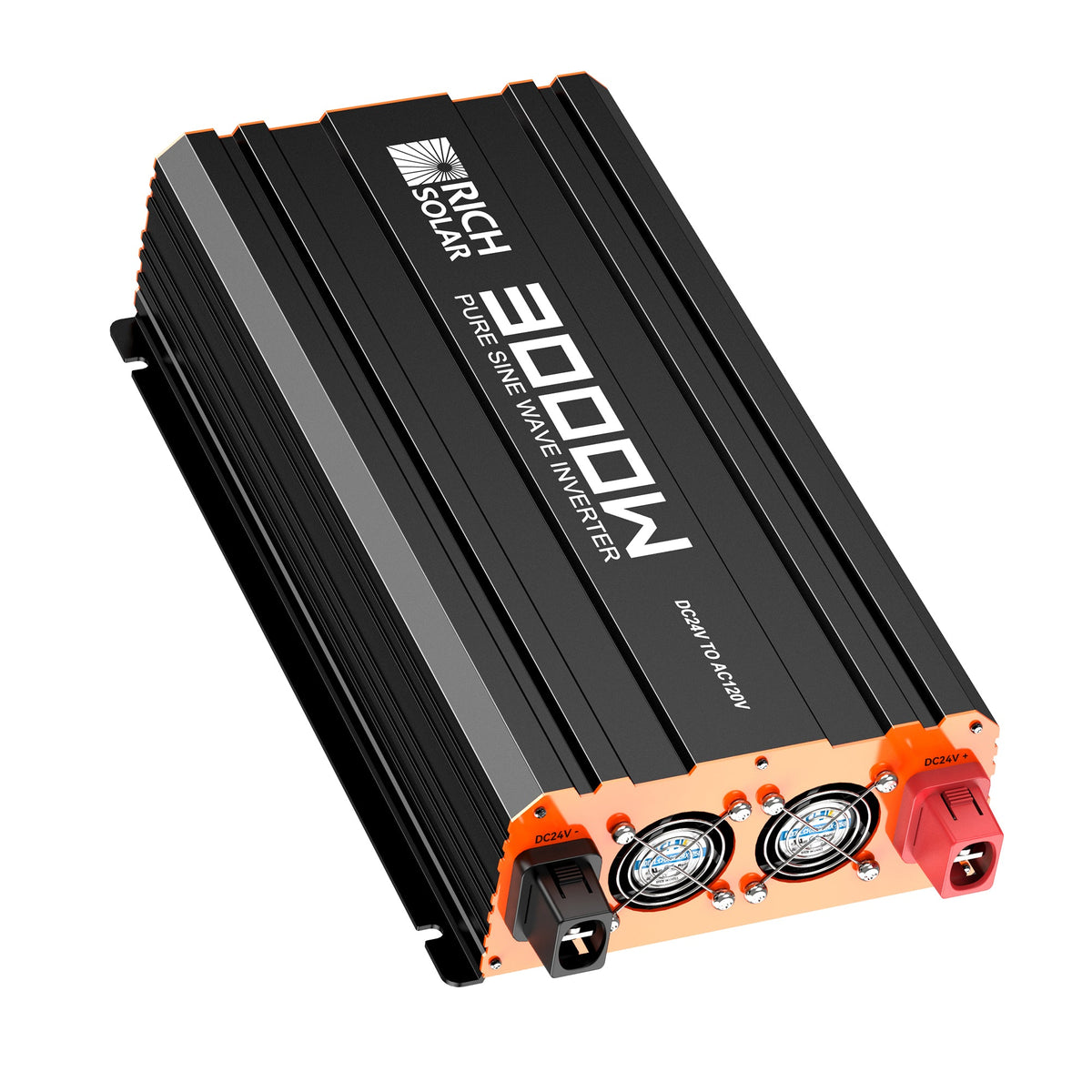

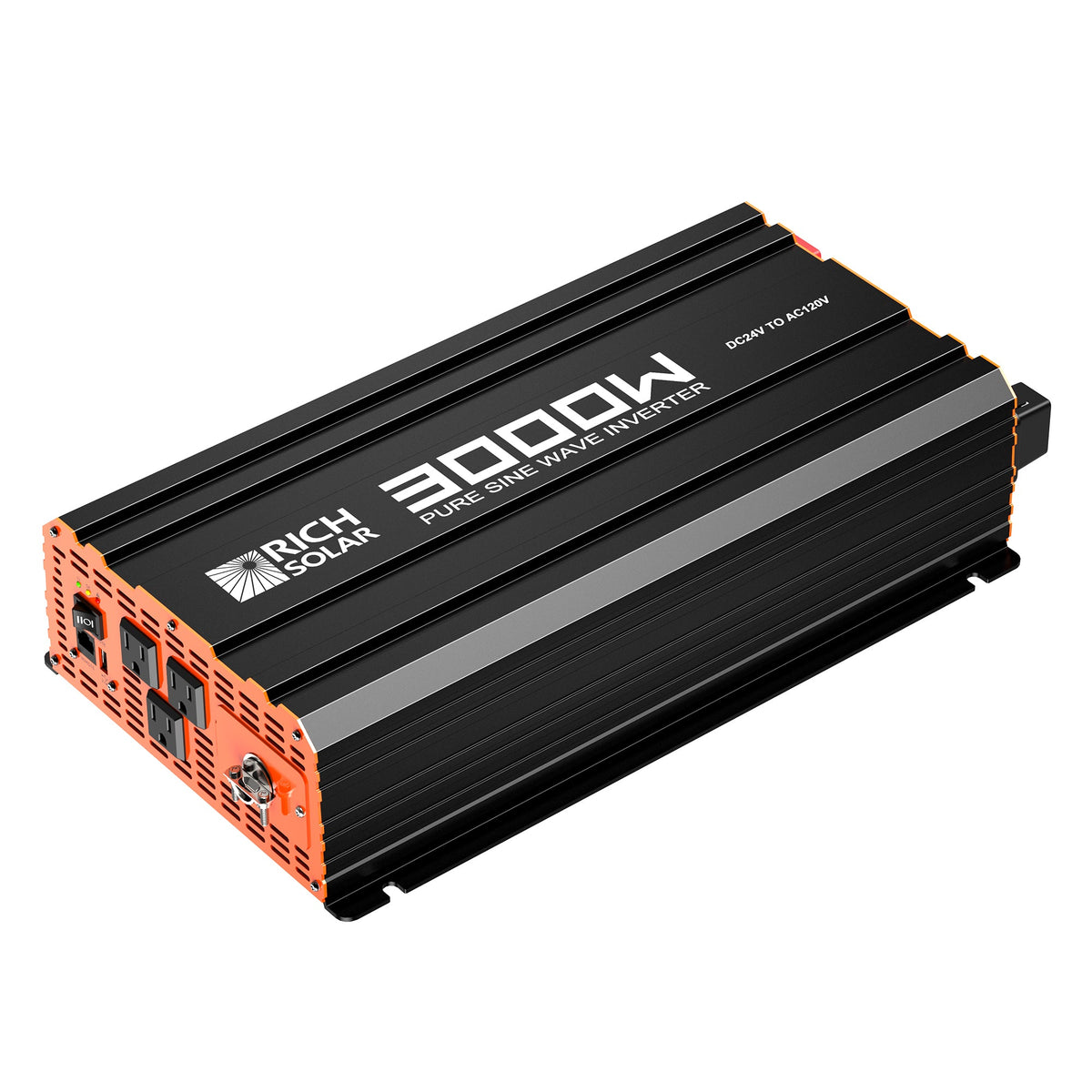

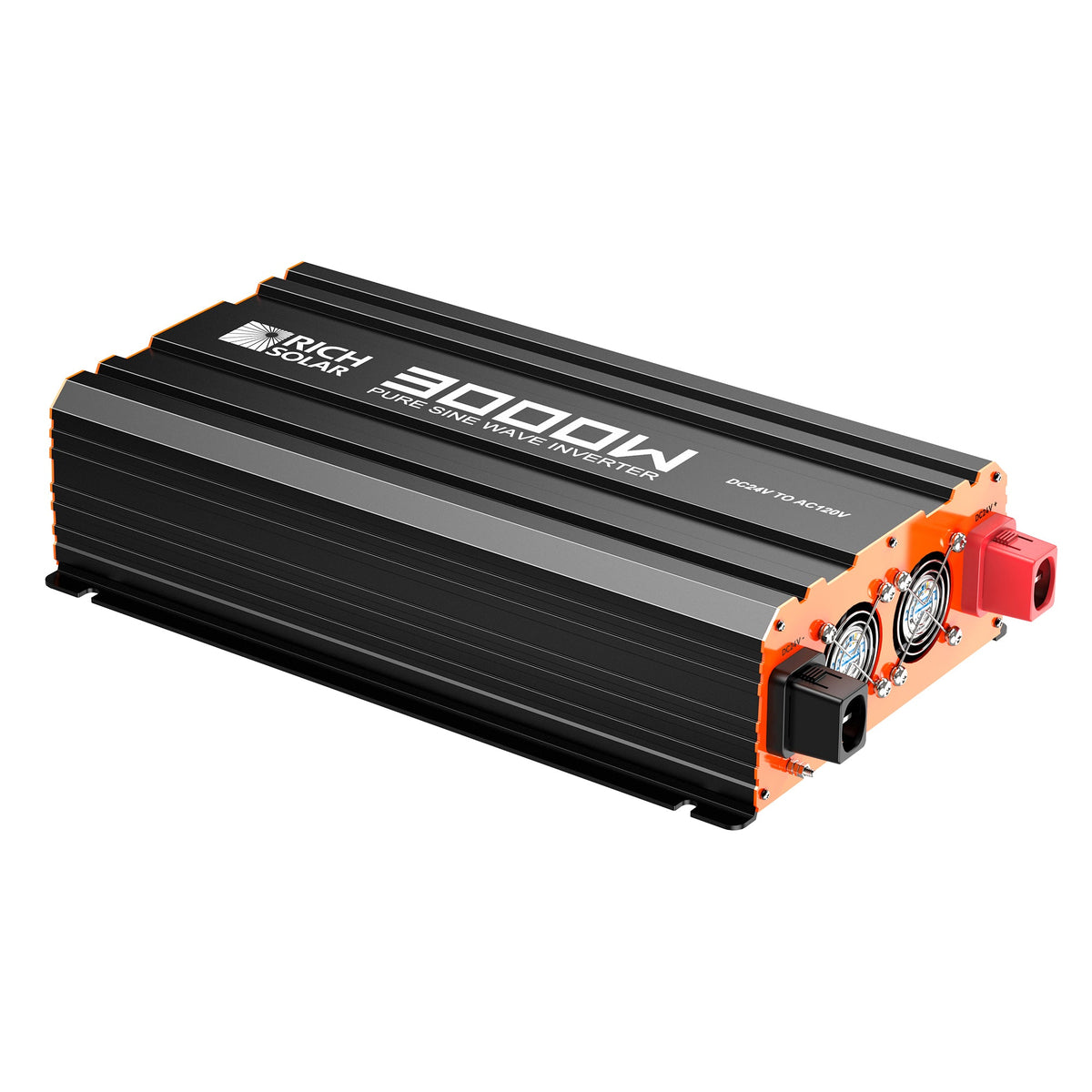

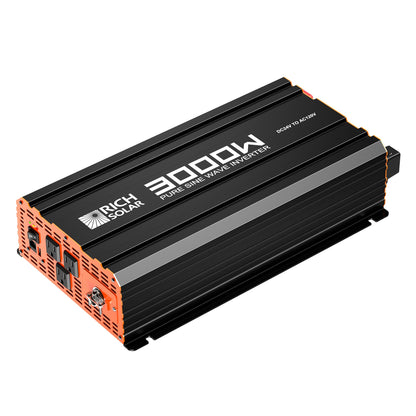

Equipment Type and Primary Applications: NOVA PURE MAX 3K 3000W 24V Pure Sine Wave Inverter
The NOVA PURE MAX 3K converts 24V DC battery power into clean 120V AC electricity for RVs, campers, boats, and off-grid installations. Its 3,000W continuous output, 6,000W surge capacity, and <3% total harmonic distortion support sensitive electronics and household appliances.
Performance Specifications
- Rated output: 3,000W continuous; surge output: 6,000W.
- Input: 24V DC from compatible deep-cycle or lithium batteries with BMS.
- Output: 120V AC, 60Hz, pure sine wave.
- Total harmonic distortion: <3%.
- Peak efficiency: >88%.
- Operating temperature: 14°F to 122°F.

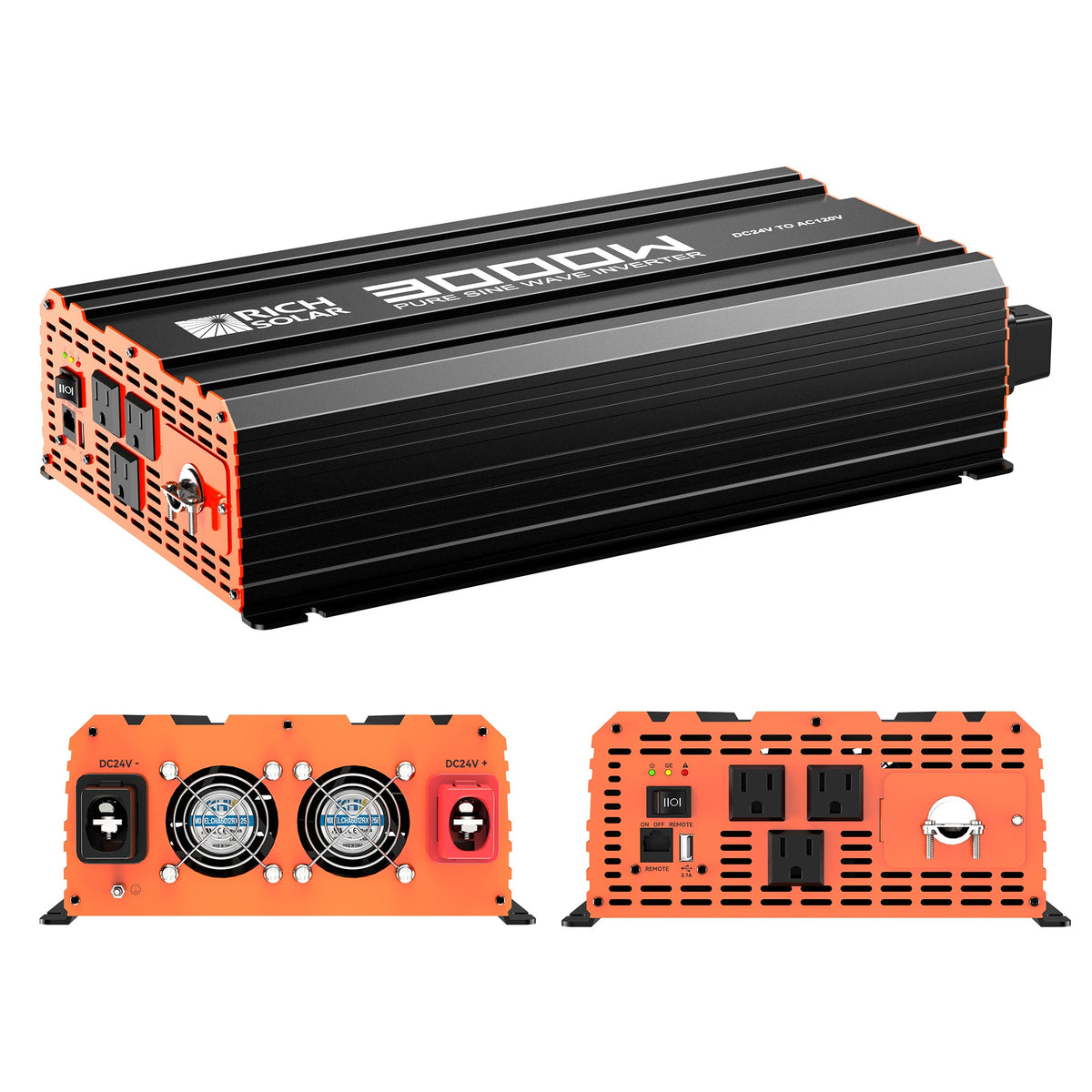

- Connections: three 120V AC outlets and one 5V/2.1A USB charging port.
- Dimensions: 18.7 × 9.6 × 4.0 inches; net weight: 12.1 lb.
Safety Features and Certifications
- Protection against under-voltage, over-voltage, overload, over-temperature, and short circuits.
- Built-in DC fuse protects the inverter and connected equipment.
- LED status indicators and audible alerts identify low-battery and overload conditions.
- ETL Listed to UL 458; FCC, CE, and RoHS compliant.
Installation and Maintenance Requirements
- Requires a compatible 24V DC battery system and access to 120V AC outlets.
- Thermally controlled fan automatically manages operating temperature.

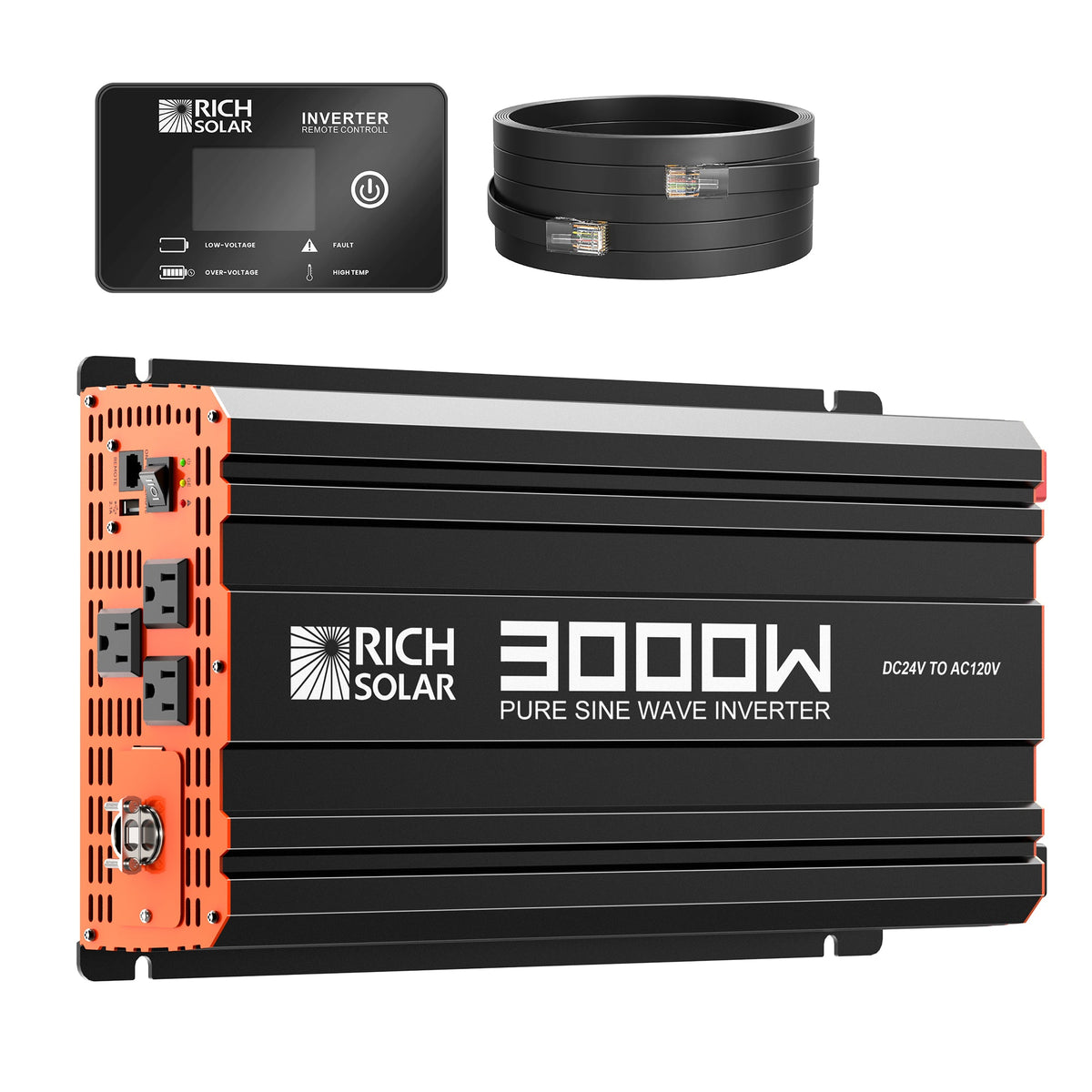

- Use the AC ON/OFF switch or included remote control for operation.
Warranty and Service Information
Branding/References
Product reference: NOVA PURE MAX 3K, 3000 Watt (3kW), 24 Volt Industrial Pure Sine Wave Inverter.
Differentiators
Pure sine wave output below 3% THD combines with 6,000W surge capacity, 24V lithium-BMS compatibility, remote control, and automatic thermal cooling in a compact 12.1 lb inverter.
