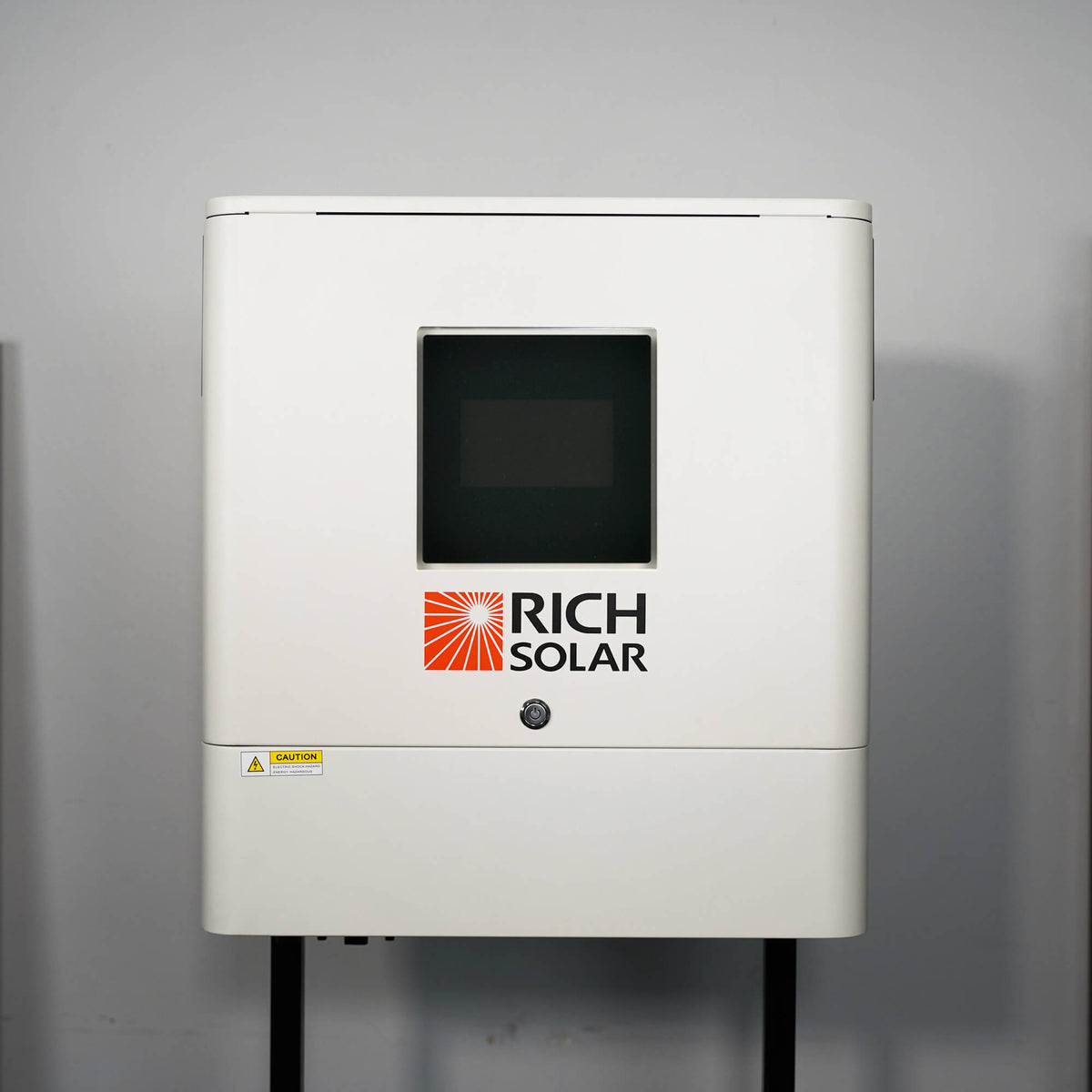

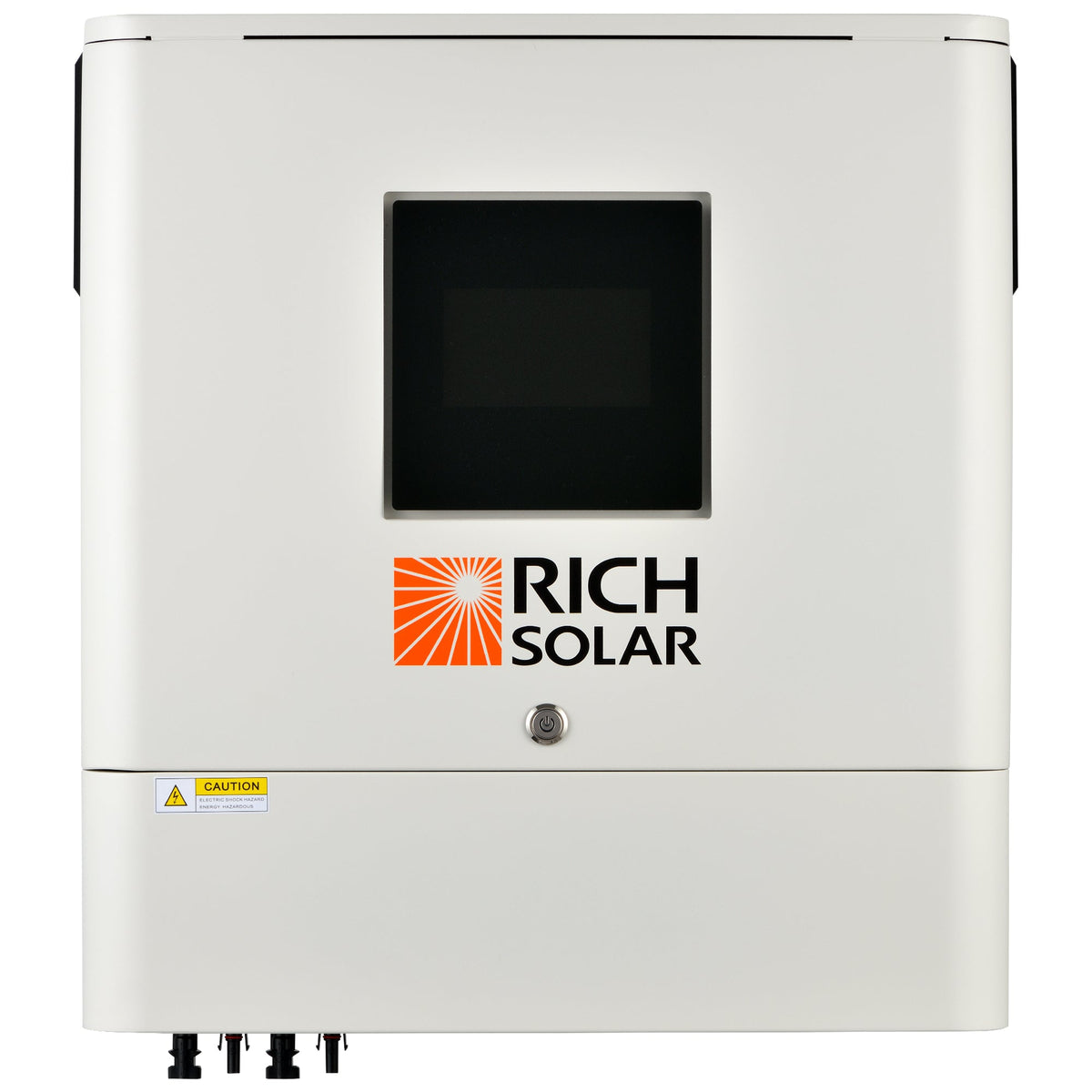

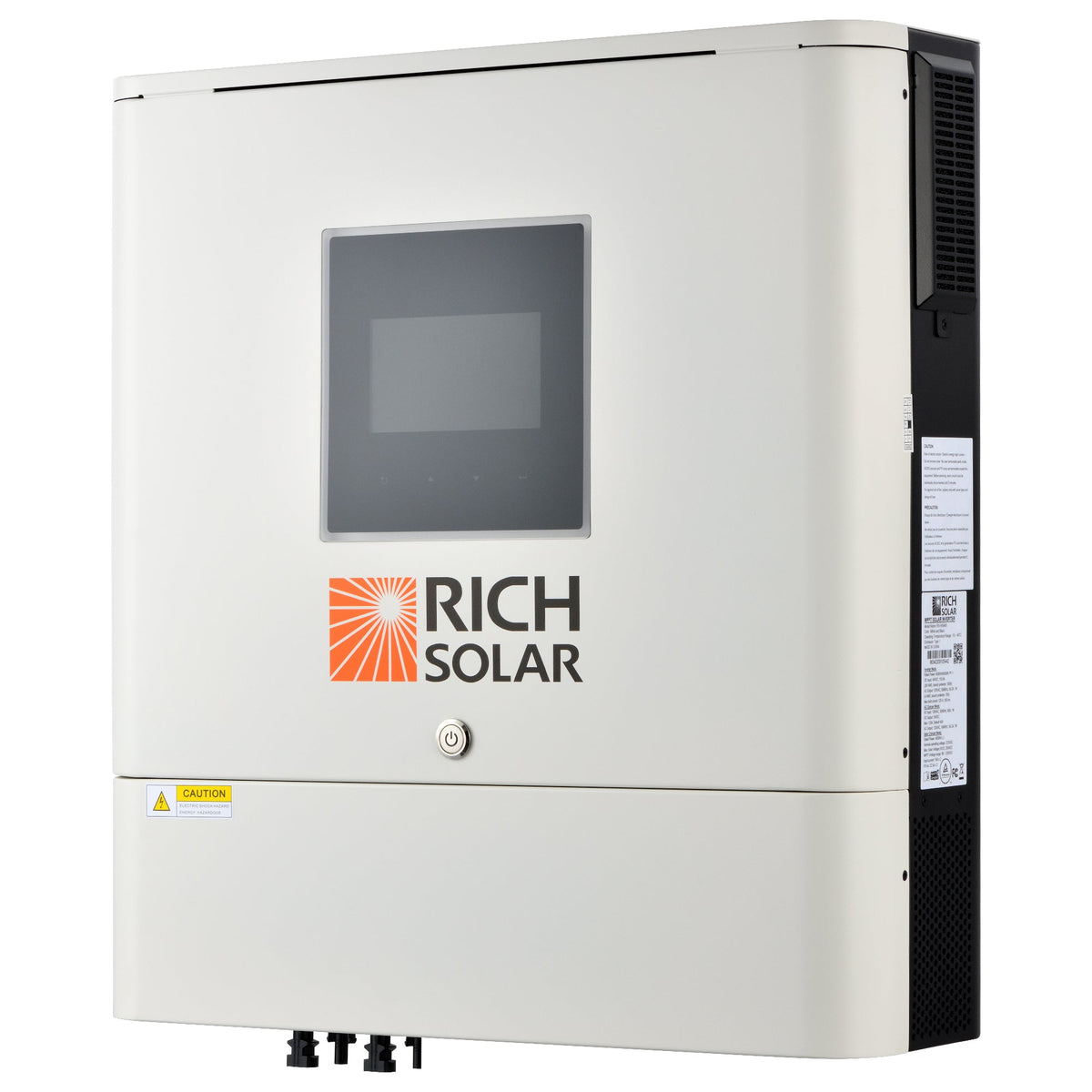

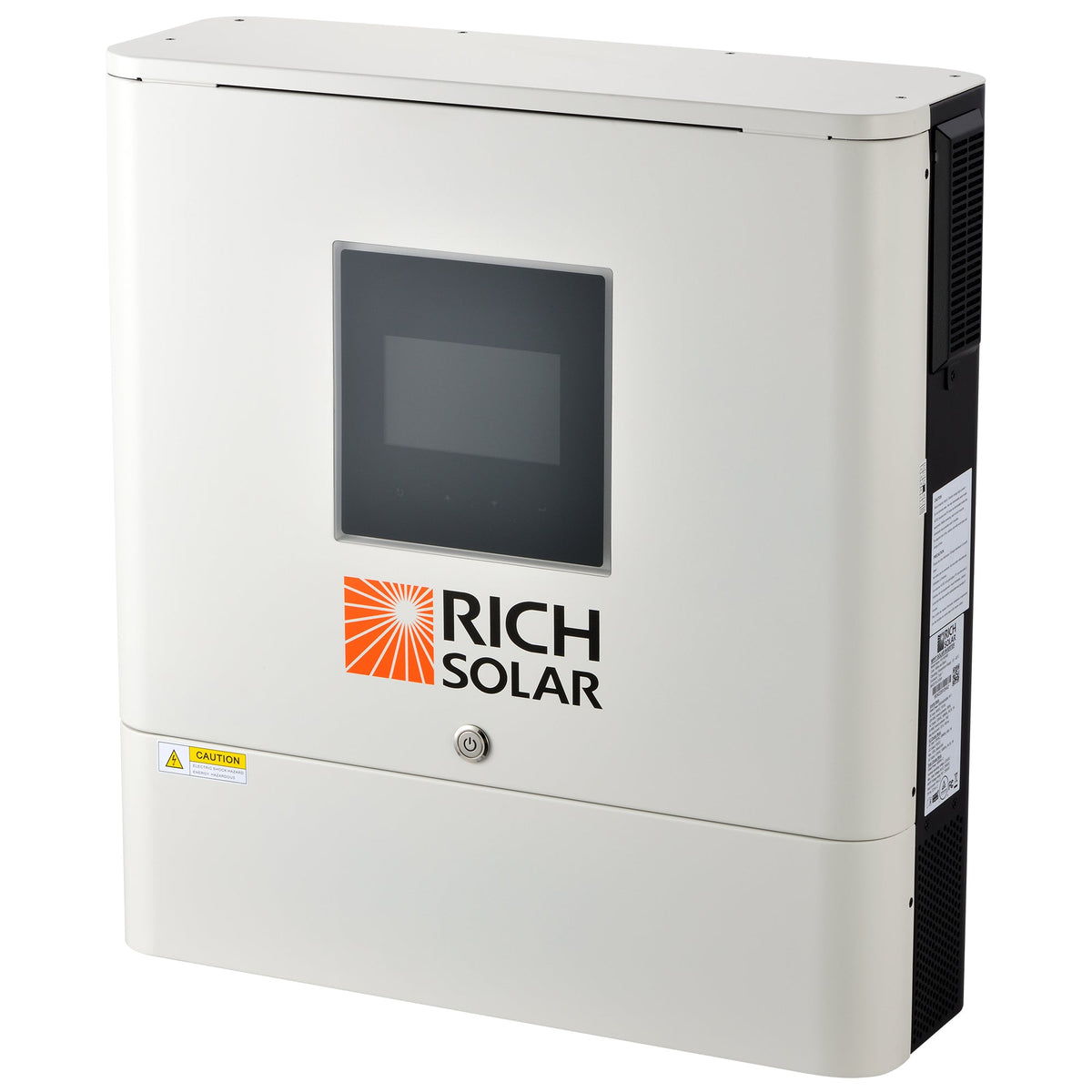

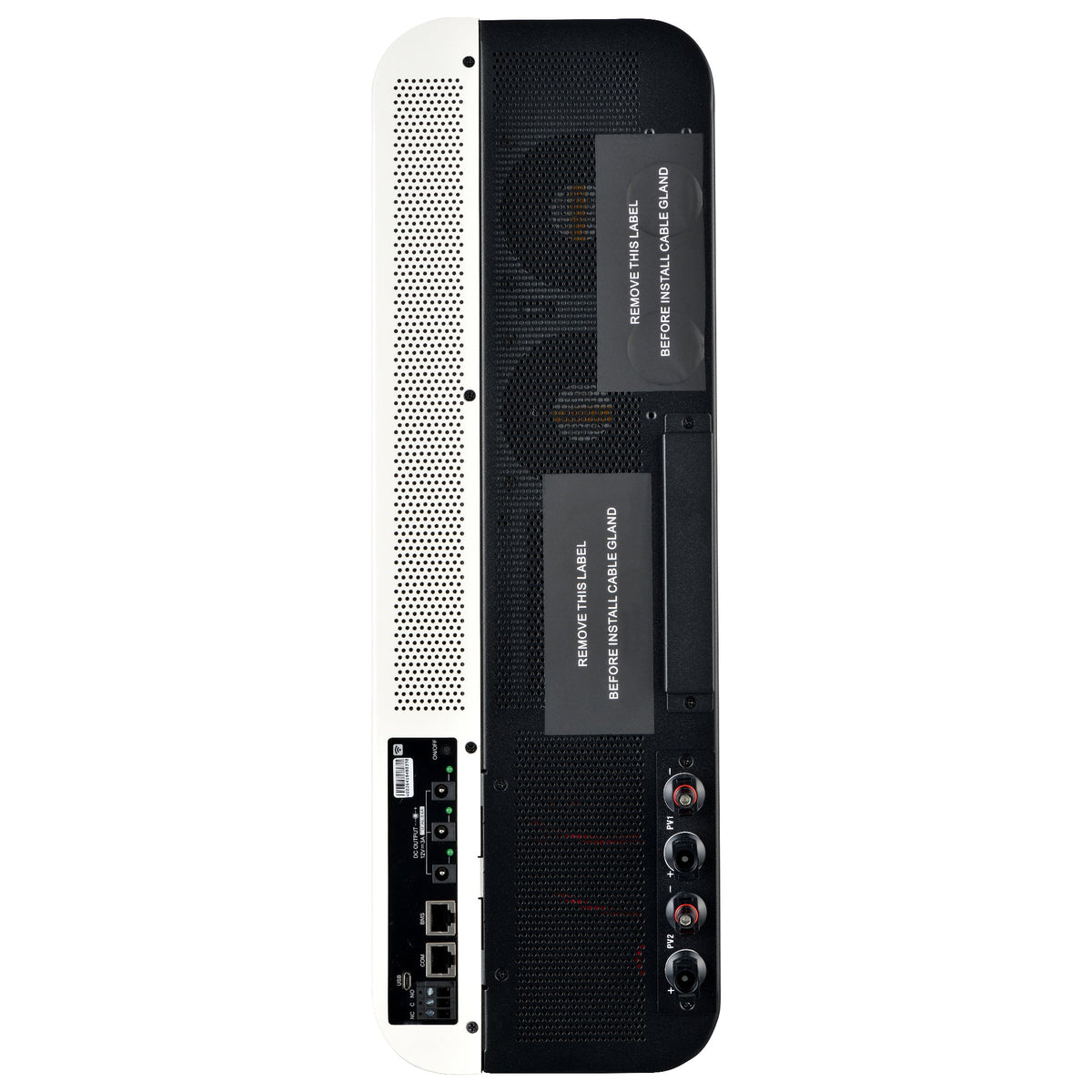

Equipment Type and Primary Applications: 6500W 48V Off-Grid Hybrid Solar Inverter delivers 13kW surge capacity with battery-independent operation for immediate heavy-load deployment. Primary applications include residential off-grid systems, RV power conversion, cabin energy management, and modular parallel expansion. Performance Specifications:
- Continuous output: 6500W with 13kW peak surge
- Waveform and regulation: Pure sine wave, 120VAC +/- 5% tolerance
- Transfer time: 15 ms for computing equipment, 20 ms for household appliances
- Peak efficiency: 91%

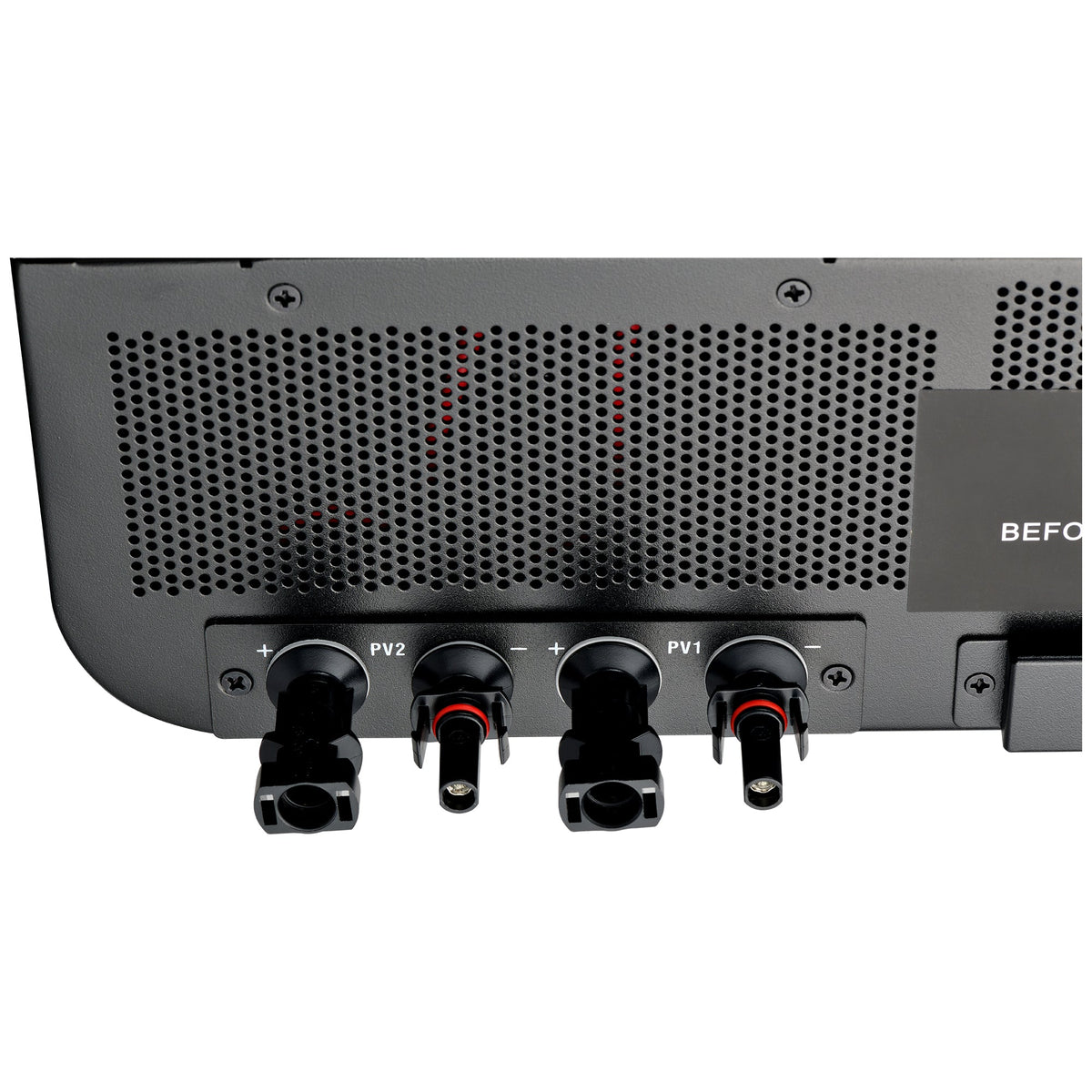

- MPPT solar input: 90-230 VDC operating range, 8000W maximum array capacity (4000W dual strings), 250 VDC max open-circuit voltage
- Charging system: Adjustable AC and solar charge current spanning 10A to 120A; automatic 50 Hz/60 Hz frequency detection
- Operating environment: -10 C to 50 C (14 F to 122 F); 5-95% relative humidity non-condensing
- Physical dimensions: 5.8 x 17.0 x 21.8 inches; net weight 44.09 pounds Safety Features and Certifications:
- UL listed certification validating compliance with established electrical safety protocols
- Embedded protection against excessive load, thermal thresholds, and low-impedance faults

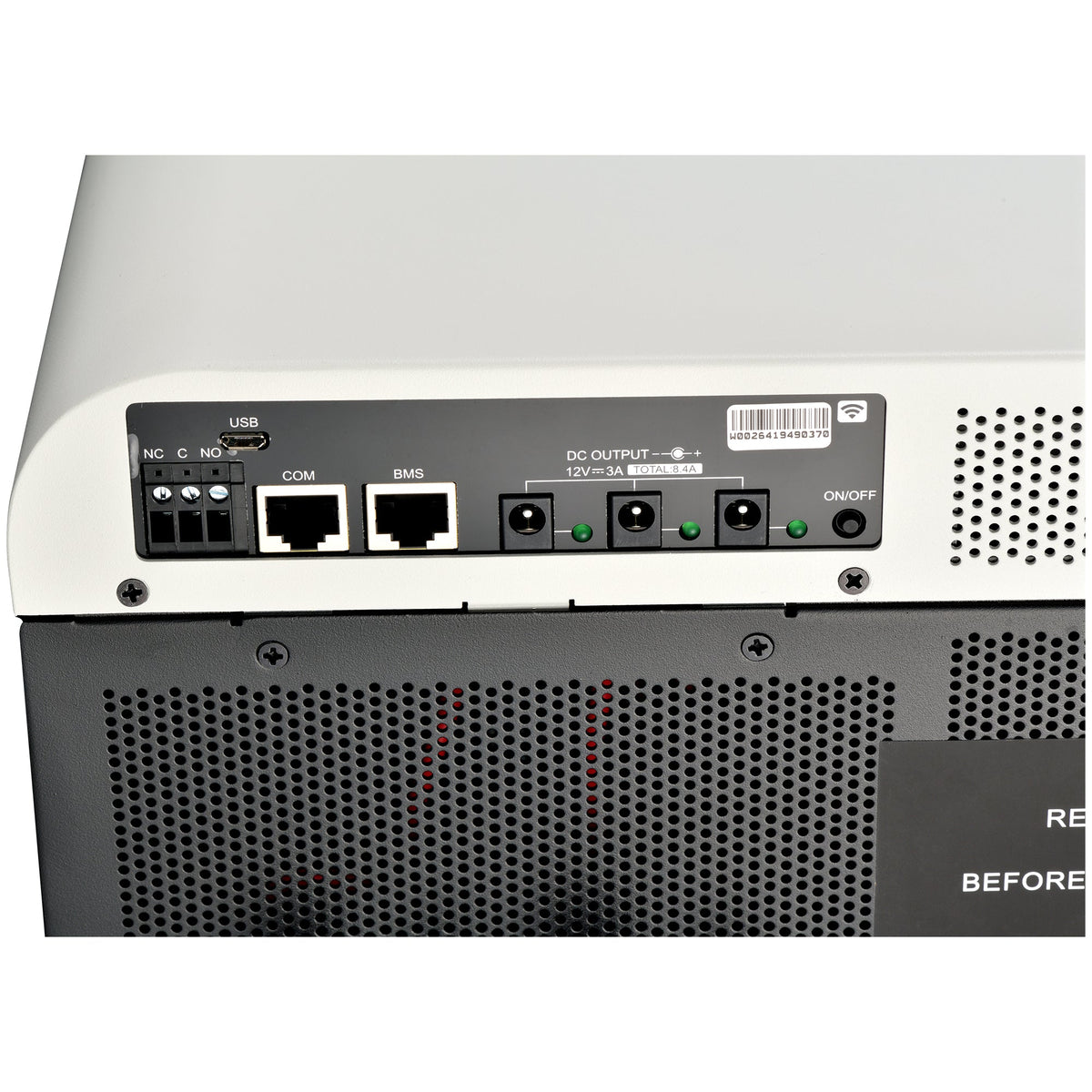

- Dedicated communication port enabling direct interaction with external battery management systems via RS485, CAN-BUS, or RS232 interfaces
- Dry-contact auxiliary output for remote fault signaling Installation and Maintenance Requirements:
- Mount in ventilated enclosures maintaining clearance for passive and active airflow convection
- Secure chassis to structural framing using vibration-dampening fasteners; verify terminal torque specifications post-installation
- System commissioning executed through integrated Wi-Fi module paired with native iOS or Android monitoring application

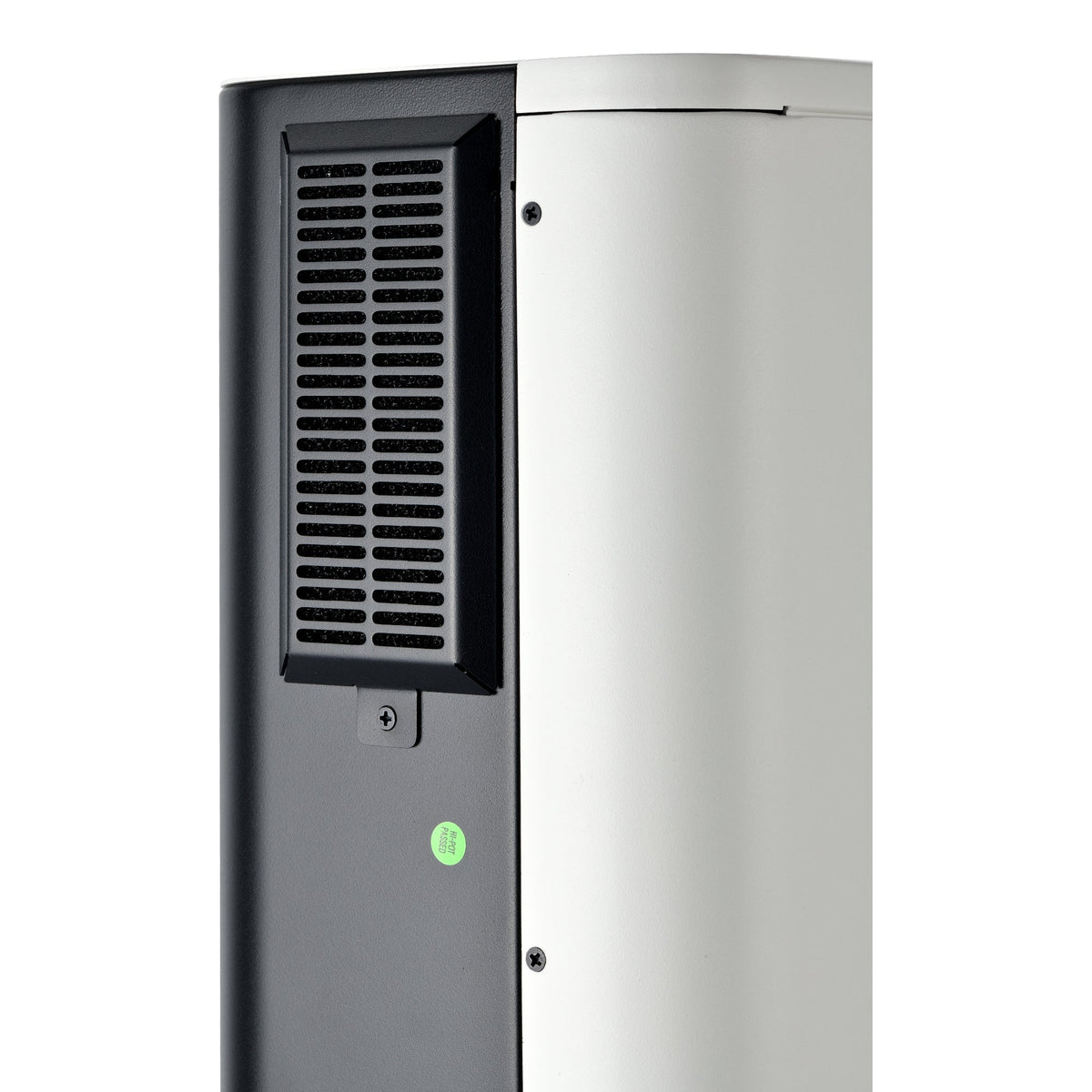

- Preventive maintenance schedule requires biannual visual inspection of replaceable radial cooling fans and dust filter assembly Branding/References:
- Manufacturer: Rich Solar
- Product Line: NOVA Series
- Model Number: RS-H6548S Differentiators:
- Configurable AC/photovoltaic priority programming allows users to dynamically shift load consumption between grid/generator sources and solar generation windows.
- Native DC distribution rail supplies dedicated 12V power for networking and LED peripheral equipment, eliminating external step-down converters.
- RGB status indicator array provides instantaneous fault diagnosis and operational mode visibility without screen reliance.
