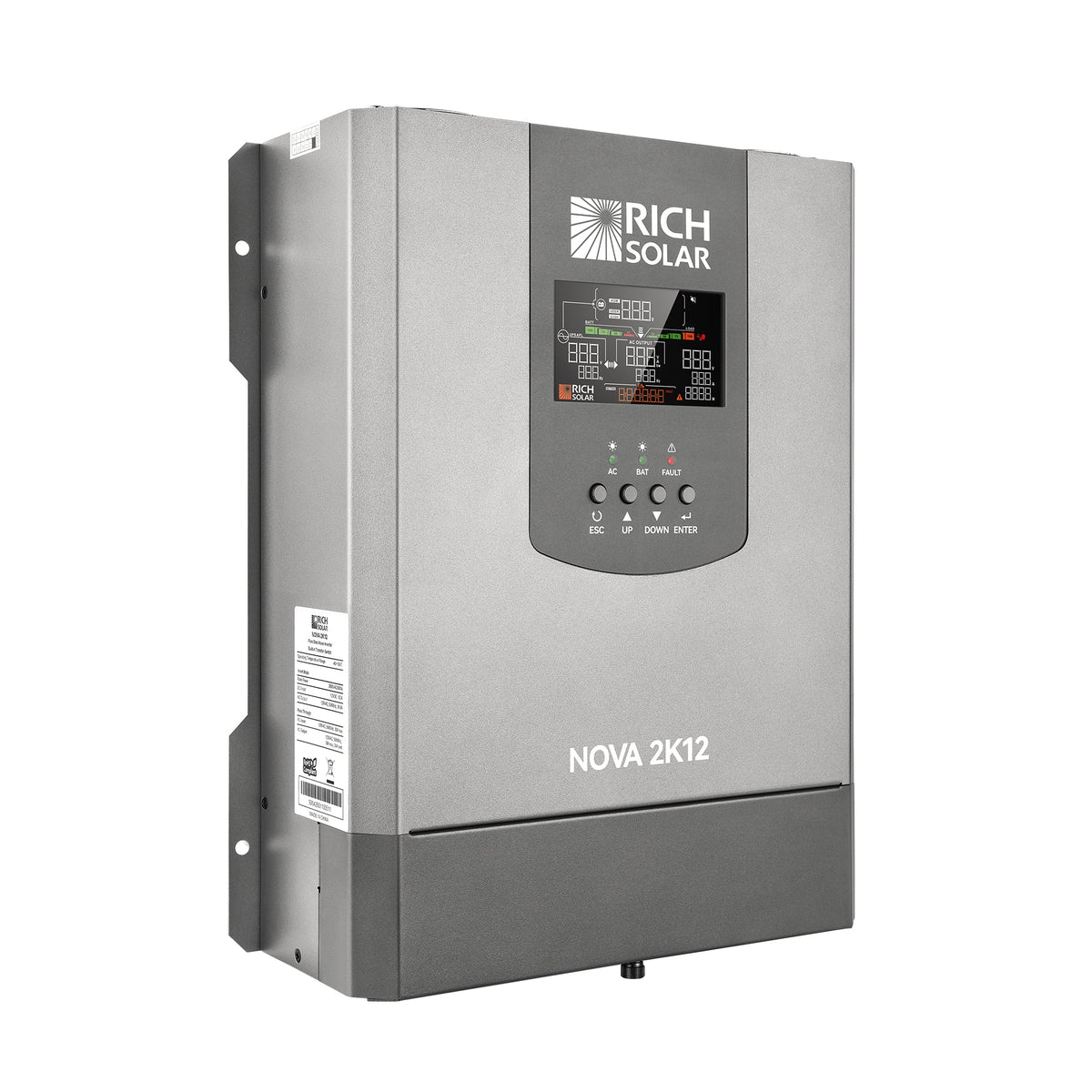

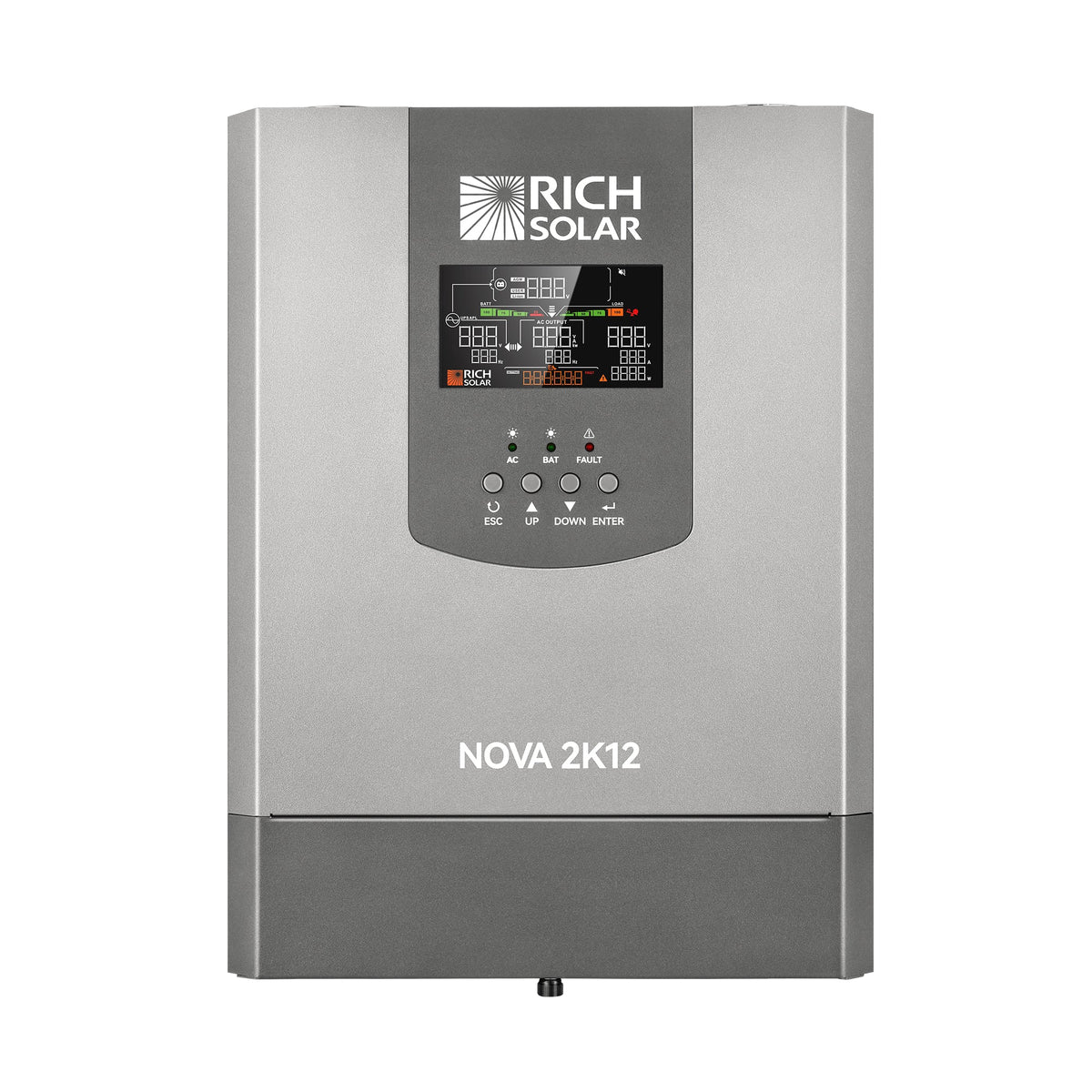

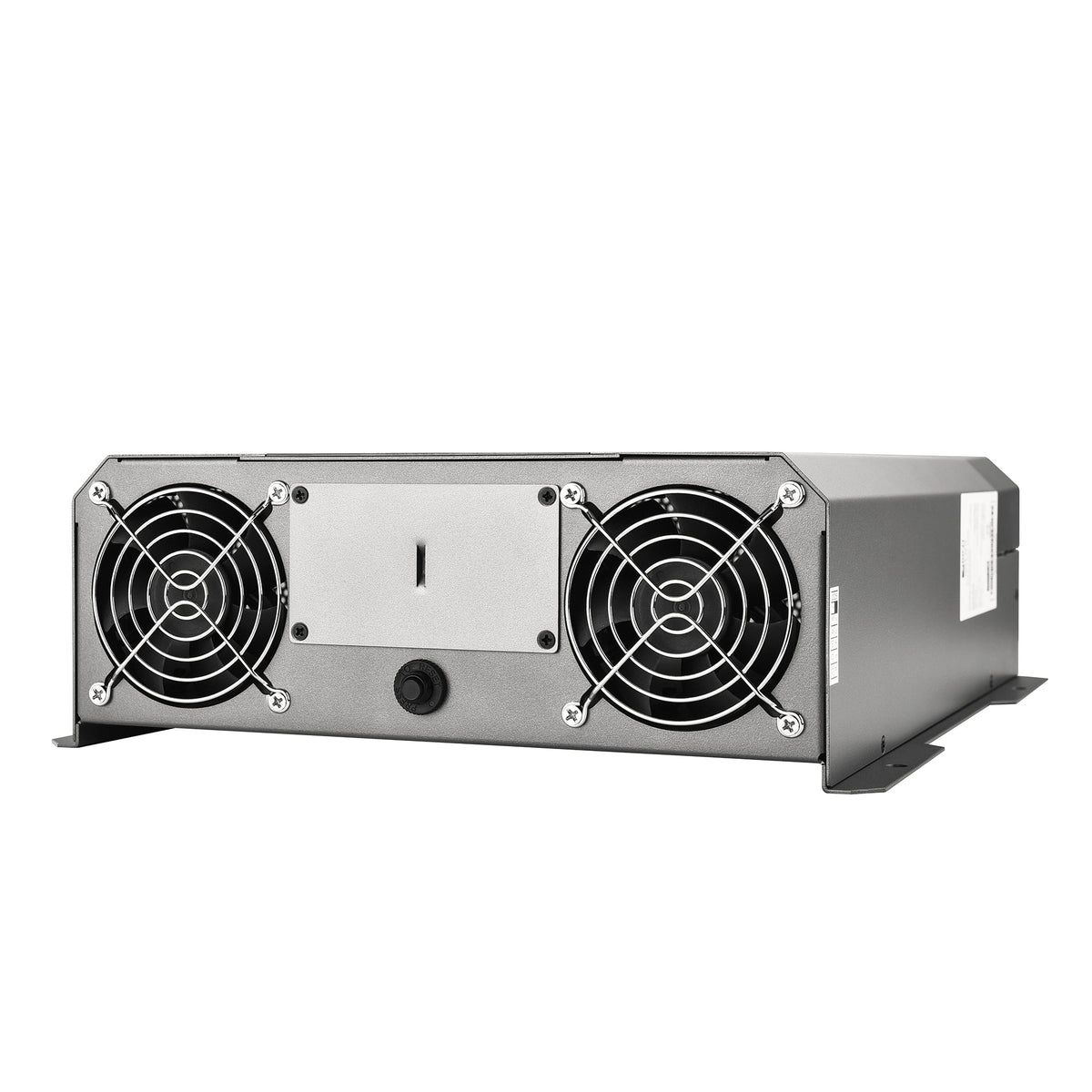

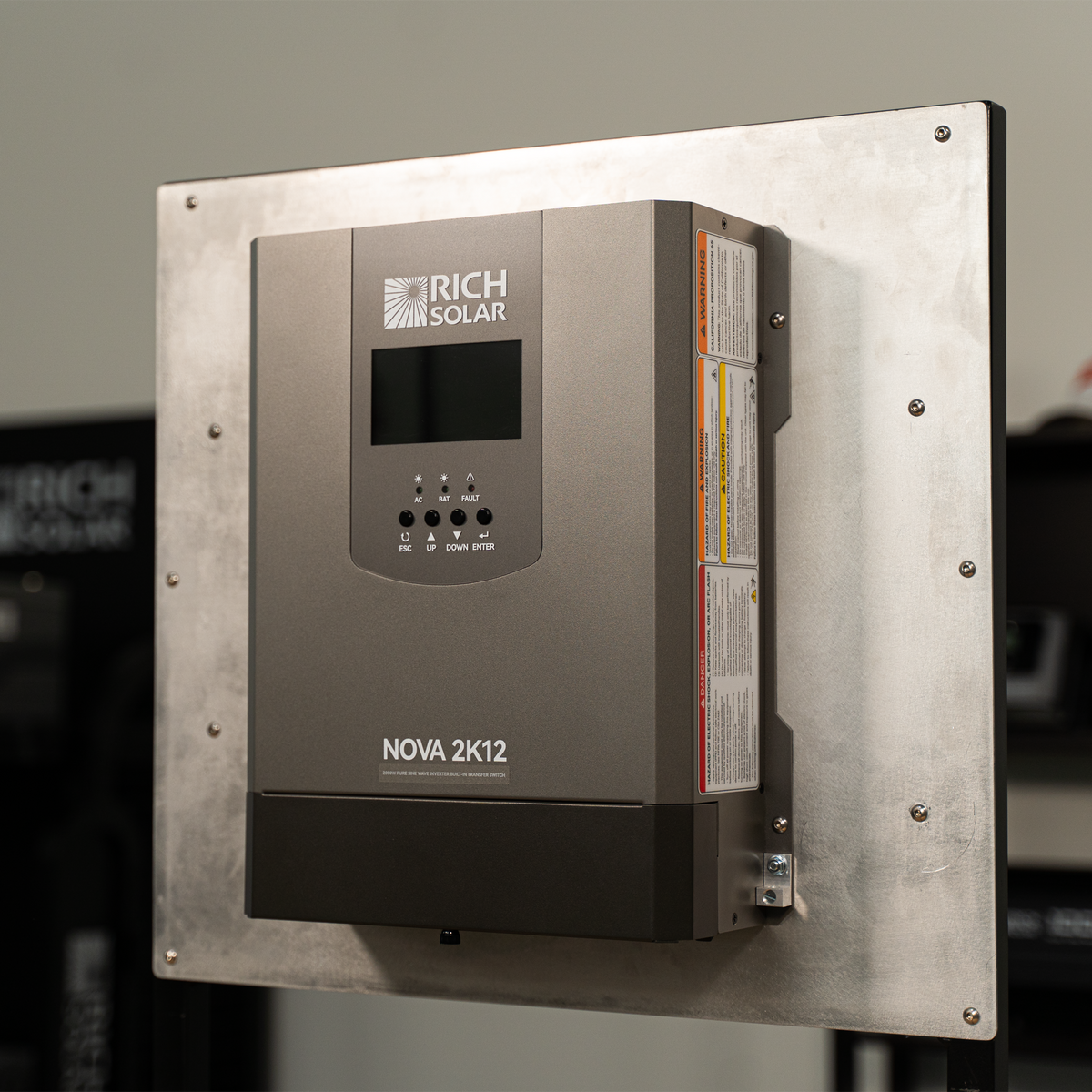

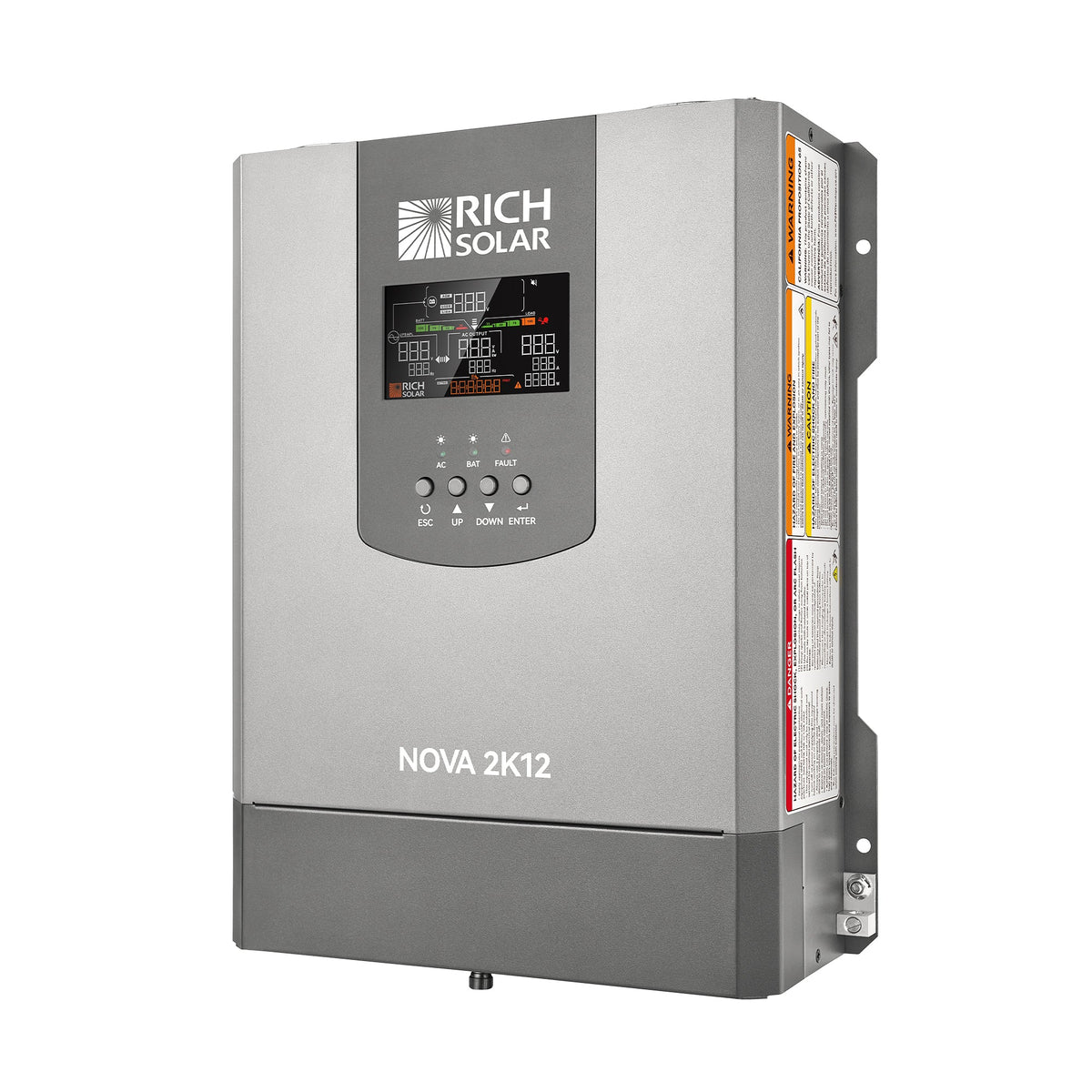

NOVA 2K12 2000W 12V Pure Sine Wave Inverter
Equipment Type and Primary Applications
The NOVA 2K12 is a 2,000W 12V pure sine wave inverter with a built-in transfer switch for RVs, boats, vehicles, and off-grid power systems. It converts 12V battery power to selectable 108V, 110V, or 120V AC power and supports utility-grid or generator input.
Performance Specifications
- Rated output: 2,000W; surge output: 4,000W for 5 seconds.
- Output current: 16.7A; selectable 50Hz or 60Hz frequency.
- Output distortion: less than 5% THD; peak efficiency: 91%.
- DC input: nominal 12V; operating range from LBCO to 18.0V DC; full-load current: 192A DC.
- AC input: nominal 120V; 80–140V AC operating range at full power.
- Automatic transfer time: less than 20ms; transfer relay rating: 30A.
- Operating temperature: -40°F to 160°F; humidity: 5%–95% RH, non-condensing.

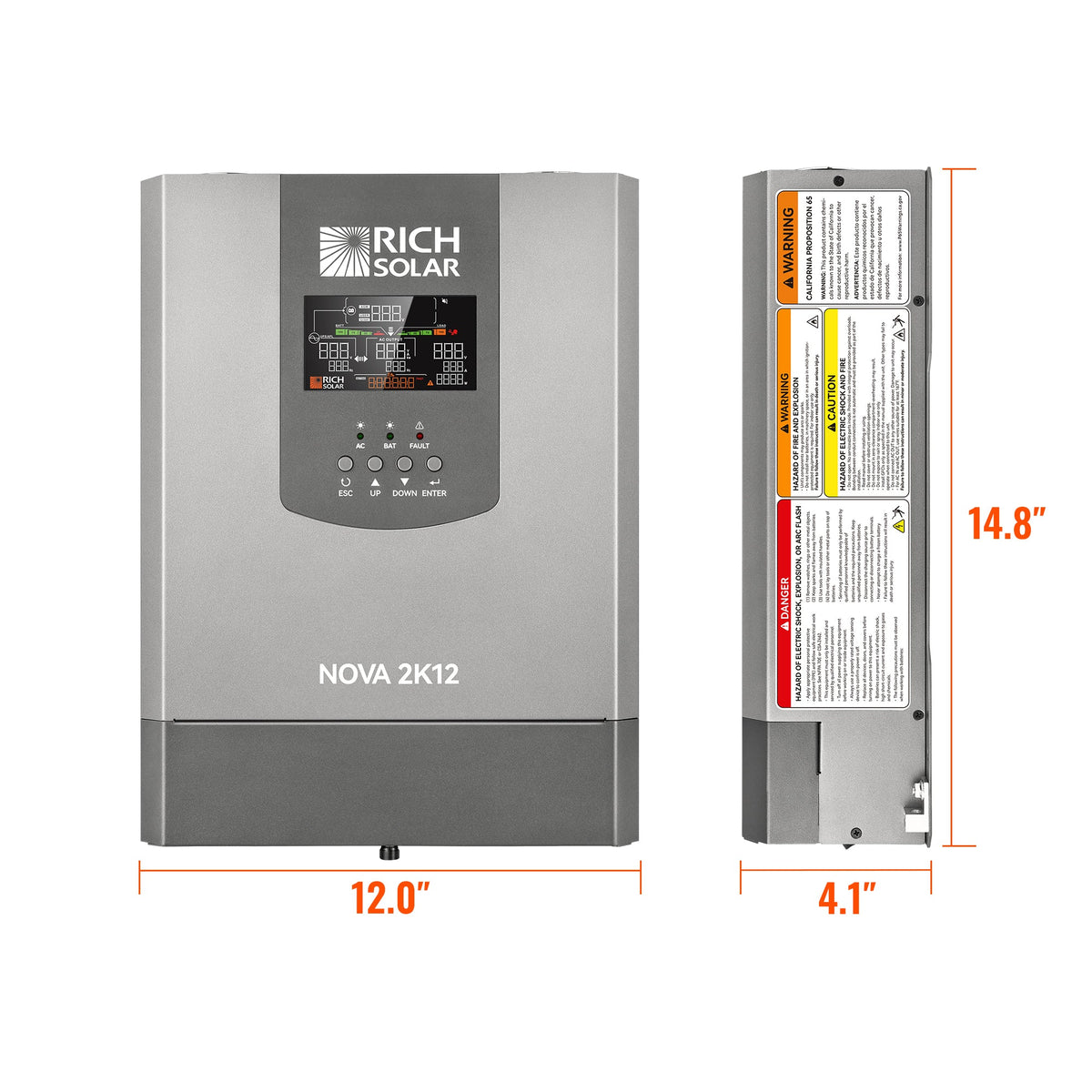

- Dimensions: 14.8 × 12.0 × 4.1 in; net weight: 15.9 lb.
Safety Features and Certifications
Protection includes adjustable low-voltage shutdown from 10.5V to 12.8V, overload protection, short-circuit protection, and over-temperature protection. The unit is certified to UL 458 and complies with FCC Part 15.
Installation and Maintenance Requirements

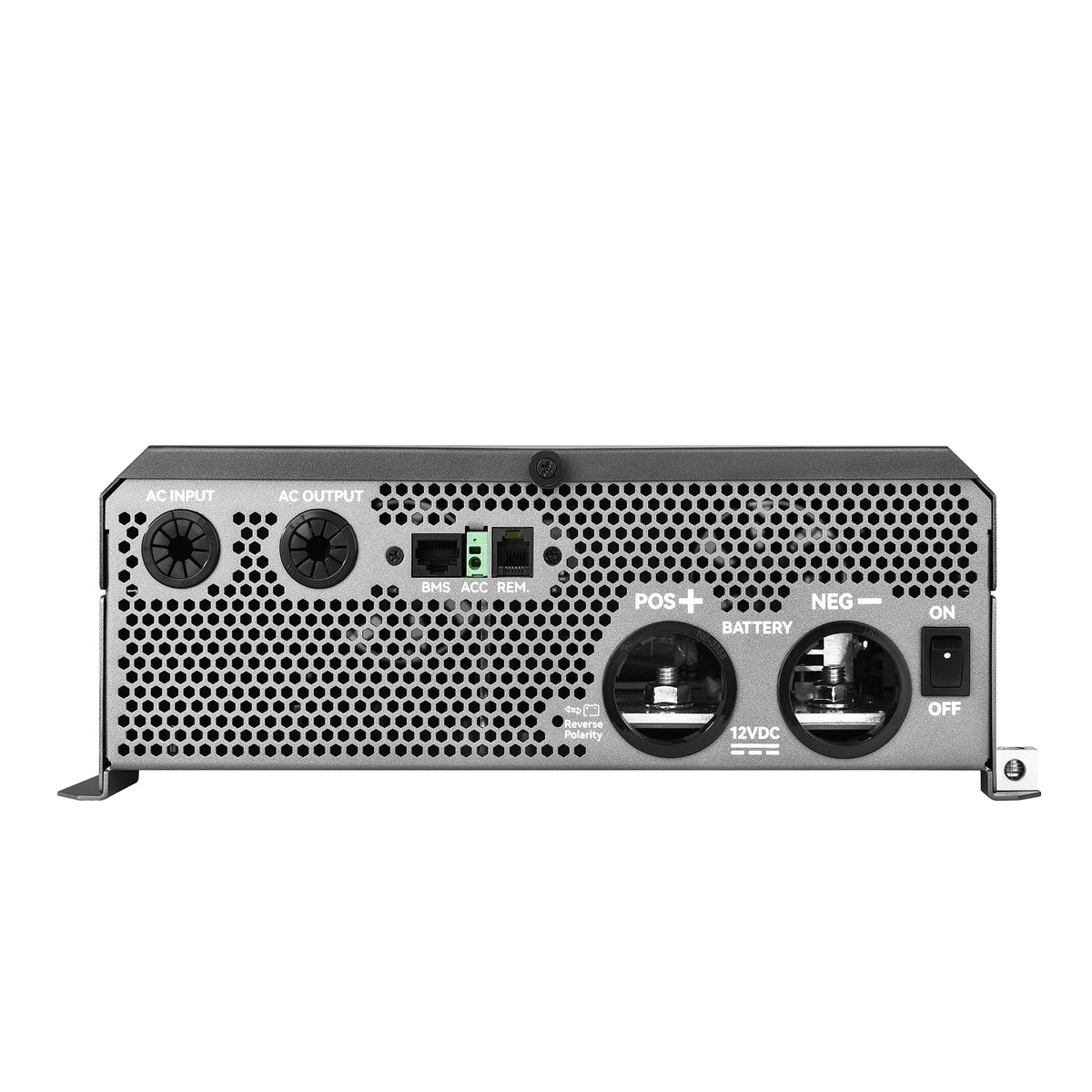

Installation requires a 12V deep-cycle or lithium battery with BMS, 120V AC utility or generator input, and suitable space for the 14.8 × 12.0 × 4.1 in enclosure. Configure output voltage and frequency, connect the AC and battery sources, and use ignition control or a manual remote switch as required. RS232 and RS485 communication are supported.
Warranty and Service Information
Branding/References
Manufacturer/brand: NOVA. Model: 2K12. Product reference: 2000W 12V Pure Sine Wave Inverter with Built-in Transfer Switch.
Differentiators
The built-in transfer switch changes between shore or generator power and inverter power in under 20ms, while selectable AC voltage, frequency, ignition control, and RS232/RS485 communication support varied mobile and off-grid installations.
