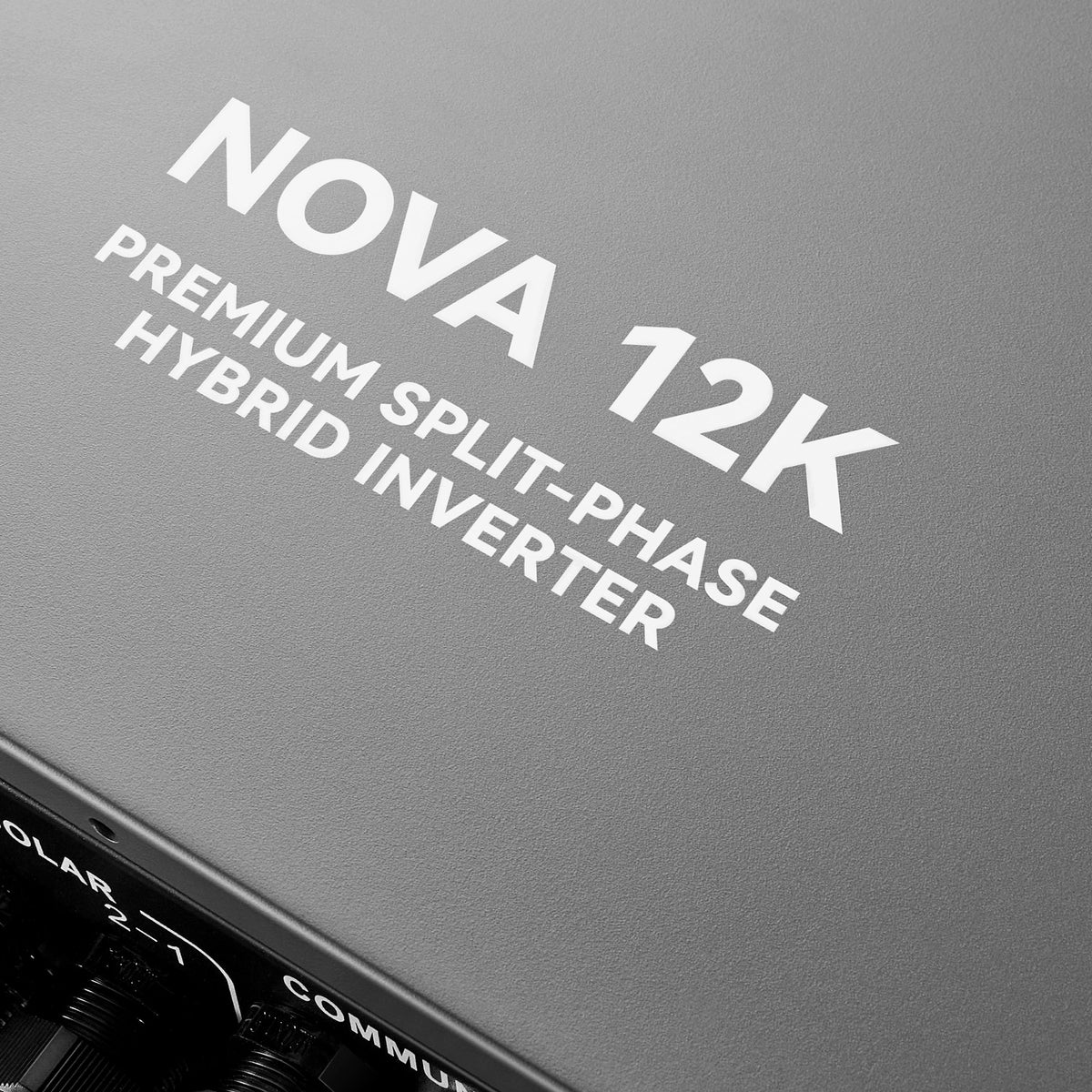

Rich Solar NOVA 12K 12000W 48V Split Phase Hybrid Inverter
Equipment Type: Grid-tied/off-grid hybrid solar inverter with integrated battery management and AC coupling.Primary Applications: Residential and light commercial solar arrays requiring split-phase power distribution, backup microgrids, and off-grid storage.
Performance Specifications:
• Max PV Input: 12000W | Continuous Output: 10000W/10000VA at 120/240VAC split phase or 208/240VAC• DC Voltage Window: 125–550VDC MPP tracking; startup at 125VDC | MPPT Array: dual tracks, 18A max per channel
• Battery Interface: 40–62VDC nominal 48V system; max charge/discharge 200A
• Parallel Operation: Up to six synchronized units | Operating Environment: -25°C to 60°C with derating above 45°C; IP65 rated
Safety Features and Certifications:
• Built-in arc fault detection (AFD) and rapid shutdown (RSD)• Standards: UL 1741SA, UL 1741SB, CSA C22.2 No. 107.1, CEC Listed
Installation and Maintenance Requirements:
• Utility Hookup: Connects to enclosed 300A DC and 60A AC breakers• Integration: External CT sensor mounting required for self-consumption calibration
• Commissioning: RS485 BMS data handshake and mobile app Wi-Fi pairing
• Maintenance: Annual terminal torque verification; consult the User Manual for clearance intervals.
Warranty and Service Information:
• Limited manufacturer coverage applies to components and firmware under rated conditions• Support channels route through certified regional distributors
Branding/References:
• Manufacturer: Rich Solar | Model: NOVA 12K• Documentation: Electrical diagrams and performance curves in the Specification sheet
