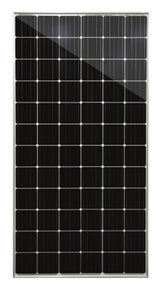

Mission Solar MSE385SR9S 385 Watt Mono Solar Panel - 40mm Frame
Clear 40mm Frame, White Backsheet 72 Cell, 5 busbar Mono Solar Panel
| Model | MSE385SR9S |
| Series | MSE PERC 72 (72 cell, 5 busbar) |
| Manufacturer | Mission Solar |
Mechanical
| Type | Monocrystalline |
| Dimensions | 78.7" x 39.68" x 1.58" |
| Weight | 50.7 lbs |
| Frame | Clear Anodized aluminum alloy |
| Connector | MC4 |
Electrical
| Watts (STC) | 385 W |
| Max Power Voltage (VMPP) | 40.84 V |
| Max Power Current (IMPP) | 9.426 A |
| Open Circuit Voltage (VOC) | 48.53 V |
| Short Circuit Current (ISC) | 9.993 A |
| Max System Voltage (UL) | DC 1000 V |
Warranty
- 25 year linear warranty, 80% output
Detailed Information
Outstanding performance with PERC
Passivated Emitter Rear Contact (PERC) technology provides excellent power output through advanced cell structure.
Best in class quality
Mission Solar Energy production lines are fully automated and include multiple quality checks throughout the production process including 2X EL Testing, 100% Visual inspection, and positive binning.
Proven reliability and bankability
Mission Solar Energy panels have been tested by independent testing centers to meet and exceed IEC standards. Our panels are deployed in projects across North America.
Proudly assembled in the USA
Mission Solar Energy is headquartered in San Antonio, TX with module facilities onsite. Their hardworking team calls Texas home and is devoted to producing high quality solar products and services. Mission Solar's supply chain includes local and domestic vendors increasing their impact to the U.S. economy.
Documentation
| Data Sheet | Mission Solar MSE PERC 72 - MSE385SR9S |
| Warranty | Mission Solar Warranty |
Features
- Class Leading Output: 385W power
- Advanced Technology: PERC and 5 busbars drive >18% module efficiency
- Reduced System Costs: Robust design, 1000V and simple installation
- Certified Reliability: Tested to UL1703 & IEC standards, PID Resistant
- 5631 Pa snow load, 185 mph wind rating
- Buy American Act
