Mission Solar 550W Solar Panel 144 Cell P-PERC Bifacial

Mission Solar 550W Solar Panel 144 Cell P-PERC Bifacial

Regular price $241.62 USD
Regular price Sale price $241.62 USD
Sale Sold out
Shipping calculated at checkout.
Quantity

features

• Solid design control box — Meets NEMA Type 4 & IP30 standard by lab test
• LCD color screen — Real-time status view and easy user interaction
• Breathing indicator light — Shows real-time charging status
• Control button — Adjust max output current & set scheduled charging time
• Water protection gasket — Resists 3-minute direct high-pressure water spray
• TPU cable — 14.76ft, excellent durability, cold resistant to -22°F
• ETL certified — Compliant with North American safety standards

Technical Specifications

Voltage: 240V/208V
Max Output Current: 40A (SS-PC1-100) / 32A (SS-HAY-100-32A)
Max Power: 8kW / 7kW
Frequency: 50/60Hz
Temperature Range: -22°F to 122°F
Humidity: 5–95%, no condensation
Connector: Type 1 (J1772)
Cable Length: 14.76ft (4.5m)
Altitude: ≤2000m (6,562ft)
Cooling: Natural
Safety Standards: ETL, UL2594, CSA C22.2
Scheduling: App / Timer control
Connectivity: Wi-Fi / Bluetooth
Warranty: 2 years

Packing Details

View full details

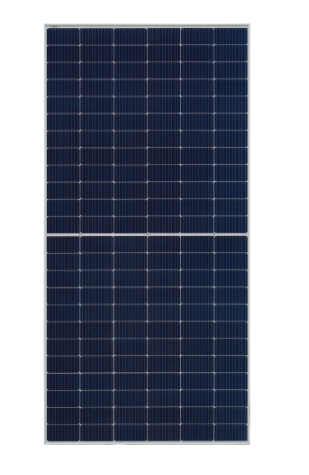

Mission Solar 550W Solar Panel 144 Cell P-PERC Bifacial

Maximize your energy production with the Mission Solar MSH10-550HT4T 550W Bifacial Solar Panel, a high-performance module engineered for residential, commercial, and off-grid applications requiring exceptional power density and long-term reliability.

Built with advanced 144 half-cut P-PERC monocrystalline cells, this module delivers an impressive 550 watts of front-side output while its bifacial transparent backsheet design captures reflected sunlight from the rear side, increasing total energy harvest and improving overall system efficiency.

Designed and manufactured to withstand harsh environmental conditions, the MSH10-550HT4T features excellent mechanical strength, superior weather resistance, and low annual degradation rates, making it an ideal choice for installers and homeowners seeking dependable performance for decades.

Key Features:

  • 550W High Power Output – Generate more energy with fewer panels.
  • Bifacial Technology – Captures sunlight from both the front and rear sides for additional energy production.
  • 144 Half-Cut P-PERC Cells – Improved efficiency and reduced power loss from shading.
  • 21.3% Module Efficiency – Excellent performance in a compact footprint.
  • Positive Power Tolerance (0 to +3W) – Receive guaranteed rated output or better.
  • Heavy Duty Construction – Rated for up to 5,400 Pa front load and 2,400 Pa rear load for enhanced durability.
  • Low Degradation Rate – Maximum 2% degradation in the first year and only 0.55% annually thereafter.
  • Long-Term Reliability – Backed by a 12-Year Product Warranty and 30-Year Linear Performance Warranty.

Specification

Rated Power Output 550 W
Voltage (VOC) 49.8 V
Maximum String Voltage 1500 V
Number of cells 144 Cell
Technology
  • Bifacial
  • PERC
Cell Type Monocrystalline
Rated Efficiency 21.3 %
Connector Type MC4 EV02 / MC4
Frame Color Silver Frame

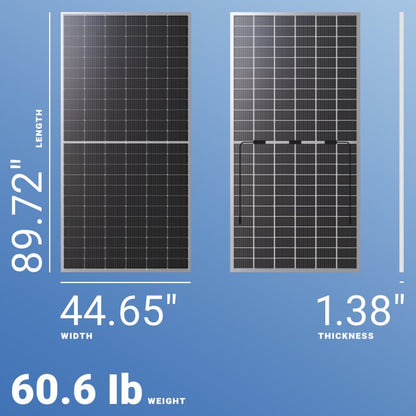

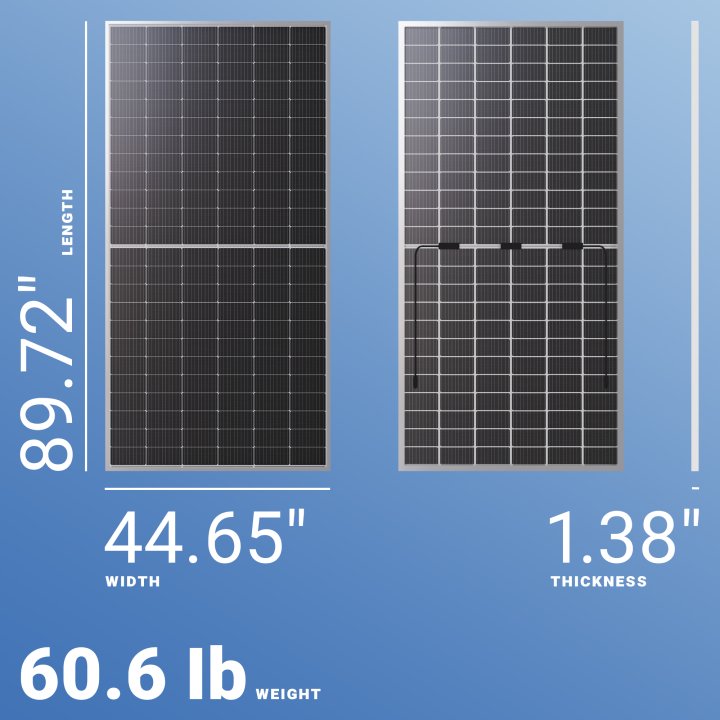

Dimensions LxWxH 89.72 x 44.65 x 1.38 in
Pallet dimensions LxWxH 89.72 x 44.65 x 42.78 in
Weight 60.6 lbs
Pallet Qty 31
Manufacturer Mission Solar
Manufacturer Part # MSH10-550HT4T
Operating Temperatures −40°F to +185°F
Scope of Application
  • Buildings
  • Carports
  • Ground Mount
Use
  • Commercial
  • Grid-Tie
  • Off-Grid
  • Residential
Warranty 12 year product warranty and 30 year Linear Performance Warranty
