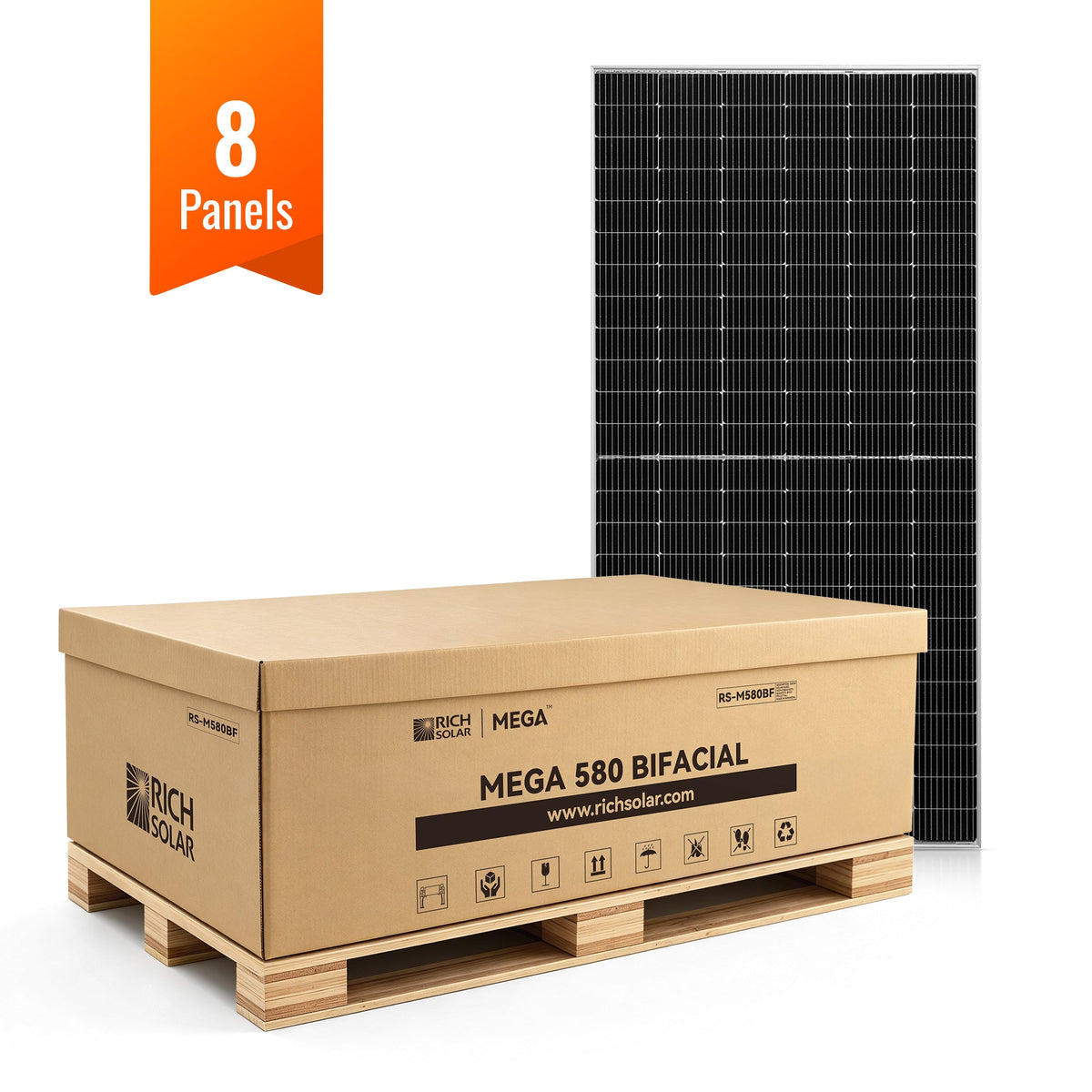

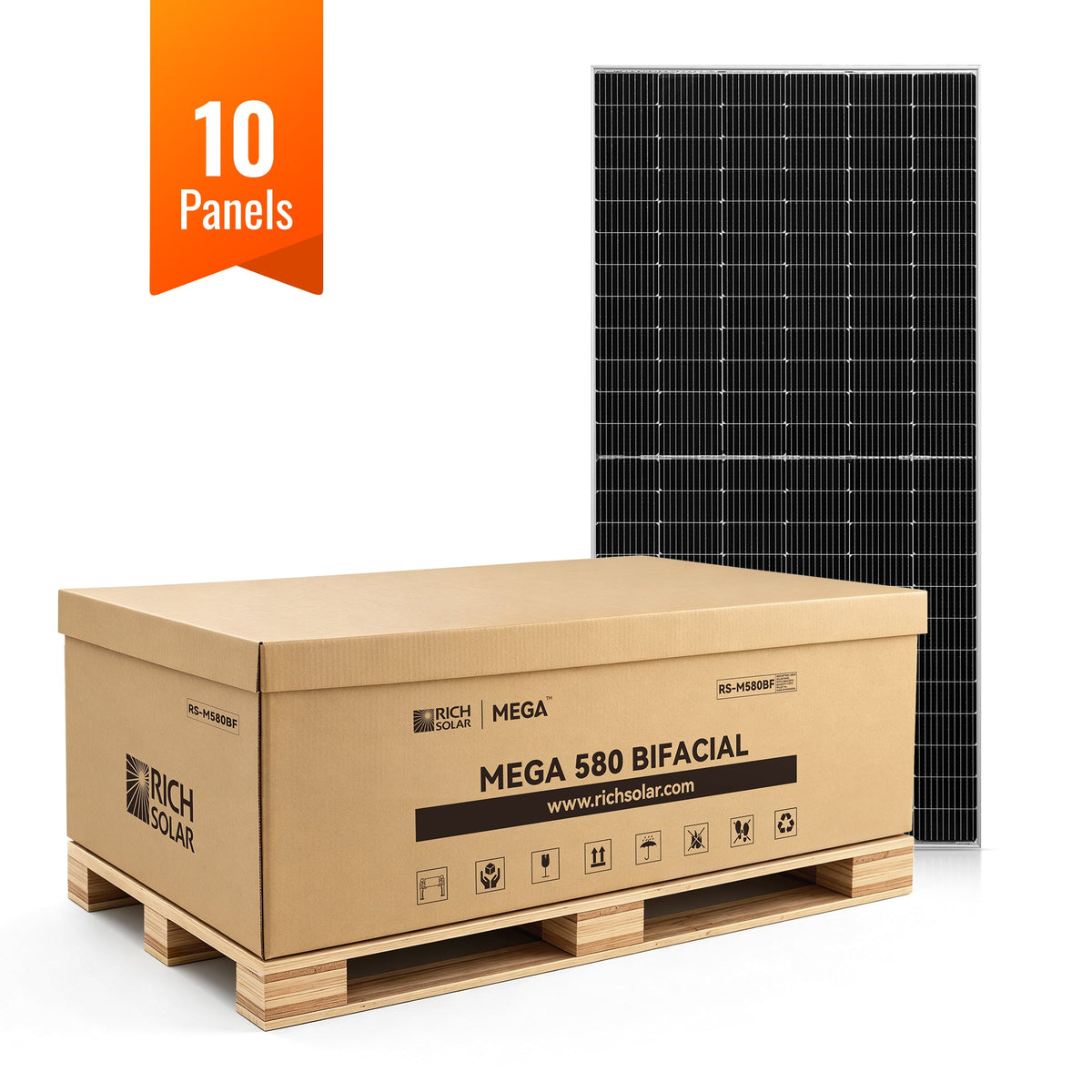

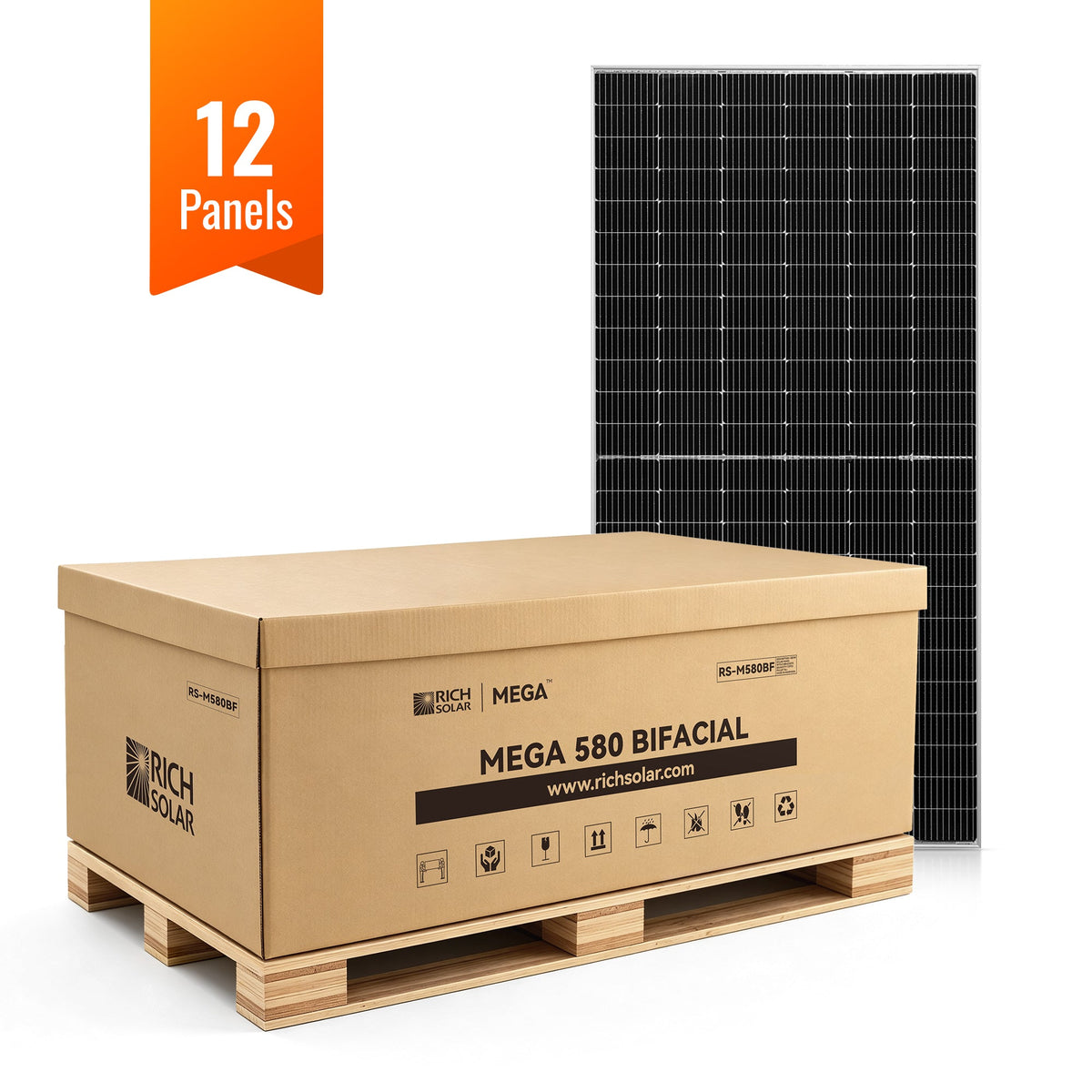

Rich Solar MEGA 580 Bifacial Solar Panel 580 Watt 24 Volt

$3,039.99 USD

~~$3,799.99 USD~~ $3,039.99 USD

Sale Sold out

Shipping calculated at checkout.

Panels 8 Solar Panels 10 Solar Panels 12 Solar Panels

features

• Solid design control box — Meets NEMA Type 4 & IP30 standard by lab test
• LCD color screen — Real-time status view and easy user interaction
• Breathing indicator light — Shows real-time charging status
• Control button — Adjust max output current & set scheduled charging time
• Water protection gasket — Resists 3-minute direct high-pressure water spray
• TPU cable — 14.76ft, excellent durability, cold resistant to -22°F
• ETL certified — Compliant with North American safety standards

Technical Specifications

Voltage: 240V/208V
Max Output Current: 40A (SS-PC1-100) / 32A (SS-HAY-100-32A)
Max Power: 8kW / 7kW
Frequency: 50/60Hz
Temperature Range: -22°F to 122°F
Humidity: 5–95%, no condensation
Connector: Type 1 (J1772)
Cable Length: 14.76ft (4.5m)
Altitude: ≤2000m (6,562ft)
Cooling: Natural
Safety Standards: ETL, UL2594, CSA C22.2
Scheduling: App / Timer control
Connectivity: Wi-Fi / Bluetooth
Warranty: 2 years

Packing Details

For any other quantities, please call our sales team at 1-800-831-9889 or email us at sales@richsolar.com.

View full details

Rich Solar MEGA 580 Bifacial 580W Solar Panel

Equipment Type and Primary Applications

The Rich Solar MEGA 580 Bifacial delivers 580W from an N-Type TOPCon photovoltaic module designed for residential rooftops, commercial solar arrays, ground-mount systems, and agricultural solar farms. Its bifacial construction captures rear-side irradiance for additional energy production where ground or surface albedo supports it. The module is identified as a 24V panel.

Performance Specifications

Peak power output: 580W
Maximum cell efficiency: 25.1%
Bifacial generation: up to 25% rear-side power gain, dependent on surface albedo
Structural load rating: 5400 Pa positive pressure and 2400 Pa negative pressure
Operating temperature performance: low temperature coefficient design for stable voltage in high-heat climates
Incident angle modifier and low-light response metrics: third-party validated

Safety Features and Certifications

PID-resistant cell processing helps limit potential-induced degradation.
Non-destructive wafer cutting suppresses micro-crack propagation.
IP68-rated junction box with bypass diodes
Structural load certification for the stated pressure ratings

Installation and Maintenance Requirements

Four-foot, 12 AWG panel leads terminate in IP67-rated MC4 connectors for string assembly. Eight factory-drilled rail slots accommodate standard Z-brackets, tilt mounts, pole mounts, or tracking systems. The corrosion-resistant anodized aluminum frame uses passive thermal management with no moving parts. Schedule biannual cleaning and visual degradation inspections.

Warranty and Service Information

Includes a 25-year linear power output guarantee and 10-year coverage for material and manufacturing defects through accredited service networks.

Branding/References

Manufacturer: Rich Solar. Model: MEGA 580 Bifacial. Product reference: Rich Solar MEGA 580 Bifacial 580W N-Type TOPCon Solar Panel.

Differentiators

Its 16-busbar N-Type TOPCon architecture and optimized cell geometry reduce series resistance while improving diffuse-light capture compared with standard PERC modules.
