MEGA 50 | 50 Watt Solar Panel | Compact 12V Off-Grid Solar Panel for Boats, Vans, Trailers | 25-Year Output Warranty | UL Certified

MEGA 50 | 50 Watt Solar Panel | Compact 12V Off-Grid Solar Panel for Boats, Vans, Trailers | 25-Year Output Warranty | UL Certified

$55.99 USD
$69.99 USD $55.99 USD
Sale Sold out
Shipping calculated at checkout.

features

• Solid design control box — Meets NEMA Type 4 & IP30 standard by lab test
• LCD color screen — Real-time status view and easy user interaction
• Breathing indicator light — Shows real-time charging status
• Control button — Adjust max output current & set scheduled charging time
• Water protection gasket — Resists 3-minute direct high-pressure water spray
• TPU cable — 14.76ft, excellent durability, cold resistant to -22°F
• ETL certified — Compliant with North American safety standards

Technical Specifications

Voltage: 240V/208V
Max Output Current: 40A (SS-PC1-100) / 32A (SS-HAY-100-32A)
Max Power: 8kW / 7kW
Frequency: 50/60Hz
Temperature Range: -22°F to 122°F
Humidity: 5–95%, no condensation
Connector: Type 1 (J1772)
Cable Length: 14.76ft (4.5m)
Altitude: ≤2000m (6,562ft)
Cooling: Natural
Safety Standards: ETL, UL2594, CSA C22.2
Scheduling: App / Timer control
Connectivity: Wi-Fi / Bluetooth
Warranty: 2 years

Packing Details

View full details

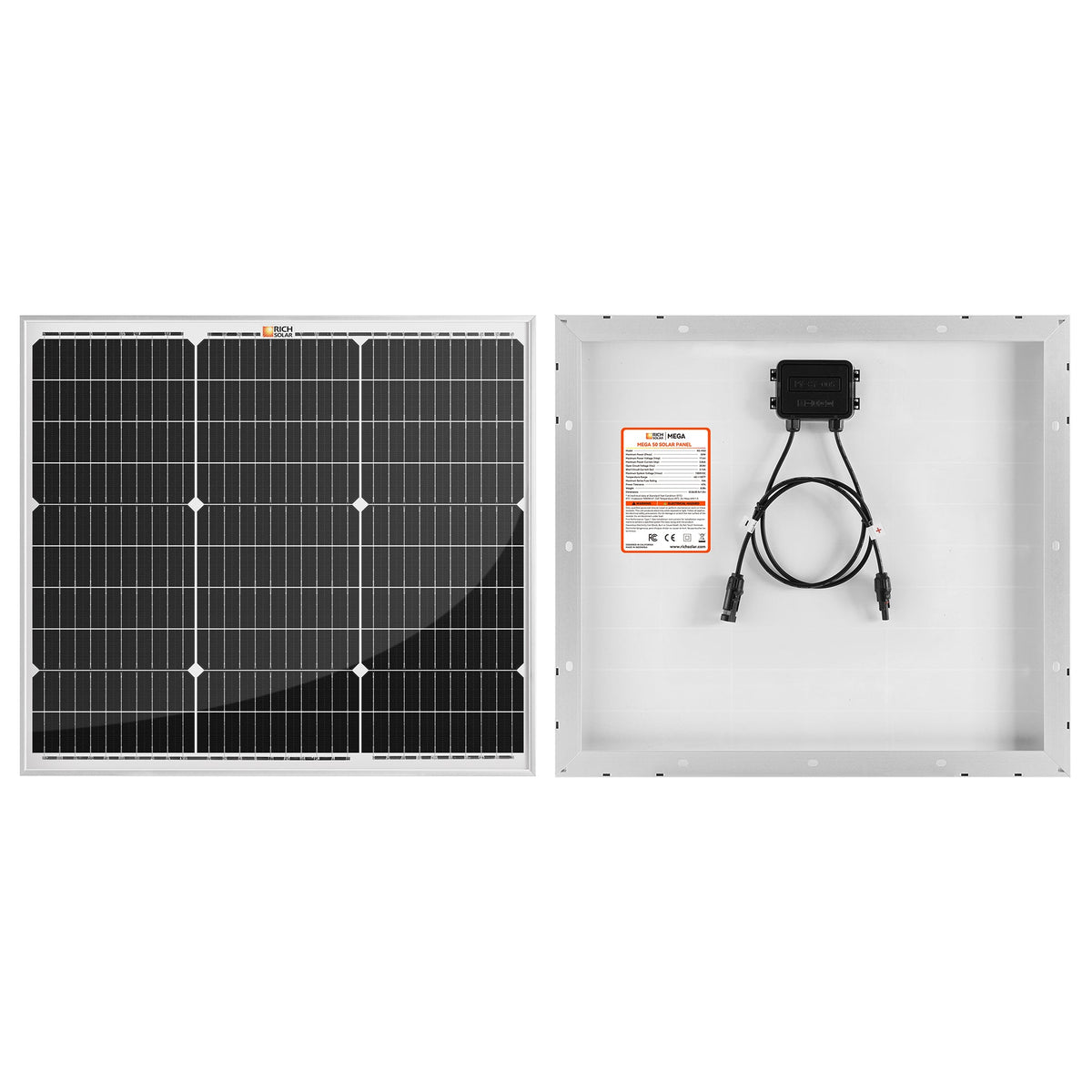

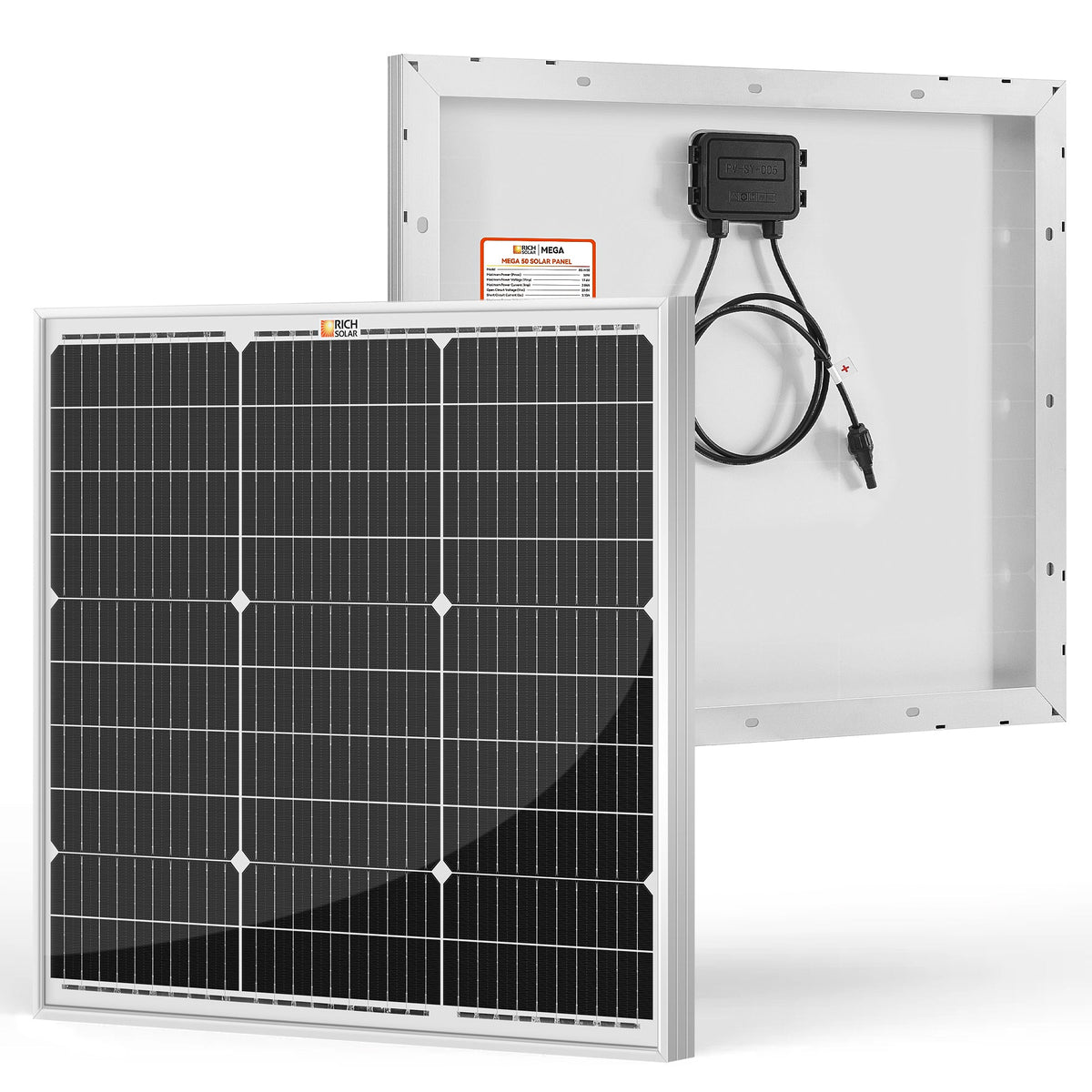

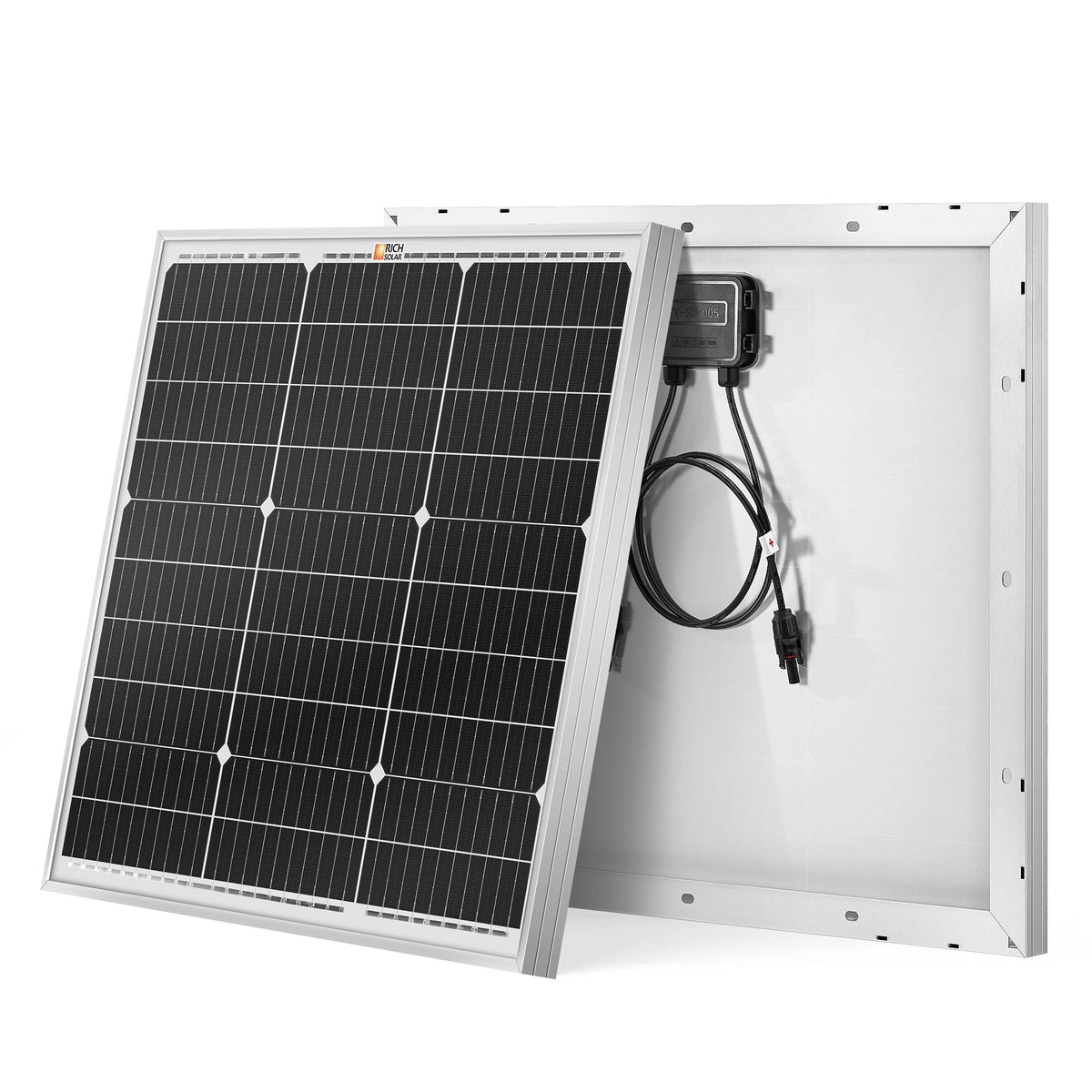

MEGA 50 50W Solar Panel

Equipment Type and Primary Applications

The MEGA 50 is a compact 12V off-grid monocrystalline solar panel delivering 50W for boats, vans, RVs, truck campers, trailers, and marine power systems. It is compatible with on-grid and off-grid inverters.

Performance Specifications

  • Maximum power: 50W; guaranteed positive output: 50–55W.
  • Efficiency: up to 23.2%; 30-cell, 10-busbar monocrystalline design.
  • Maximum power voltage/current: 17.6V / 2.84A.
  • Open-circuit voltage: 20.8V; short-circuit current: 3.13A.
  • Maximum system voltage: 1000VDC; maximum series fuse: 10A.

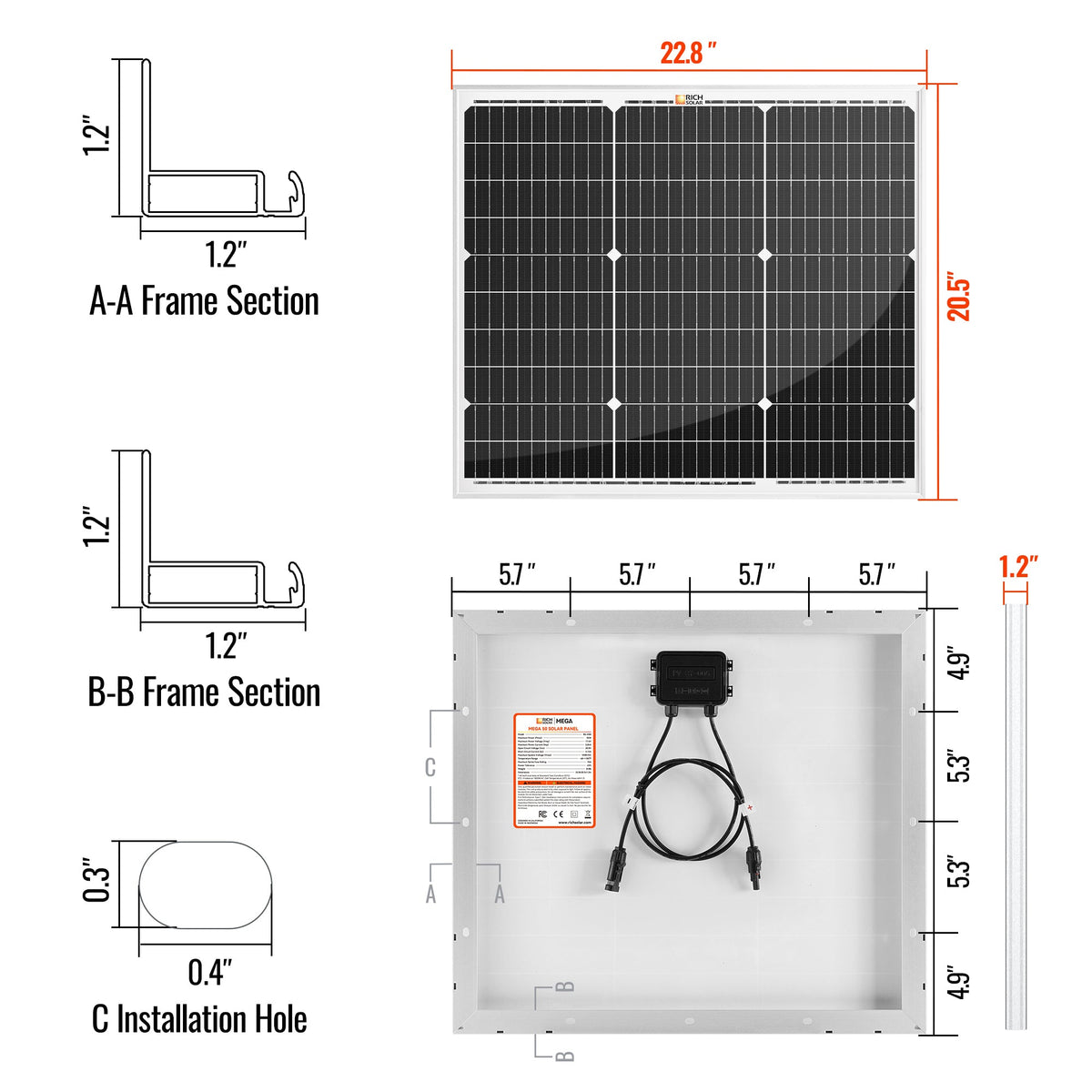

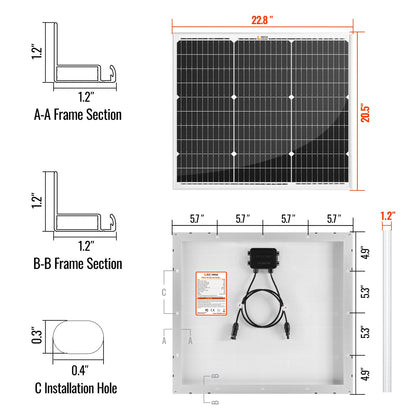

  • Dimensions: 22.8 x 20.5 x 1.2 in; weight: 8.0 lb.
  • Certified load ratings: 2400 Pa wind and 5400 Pa snow.
  • 3.2 mm AR-coated tempered glass supports light transmission and durability. The panel is designed for exposure to salt, ammonia, sand, high temperatures, and humidity.

Safety Features and Certifications

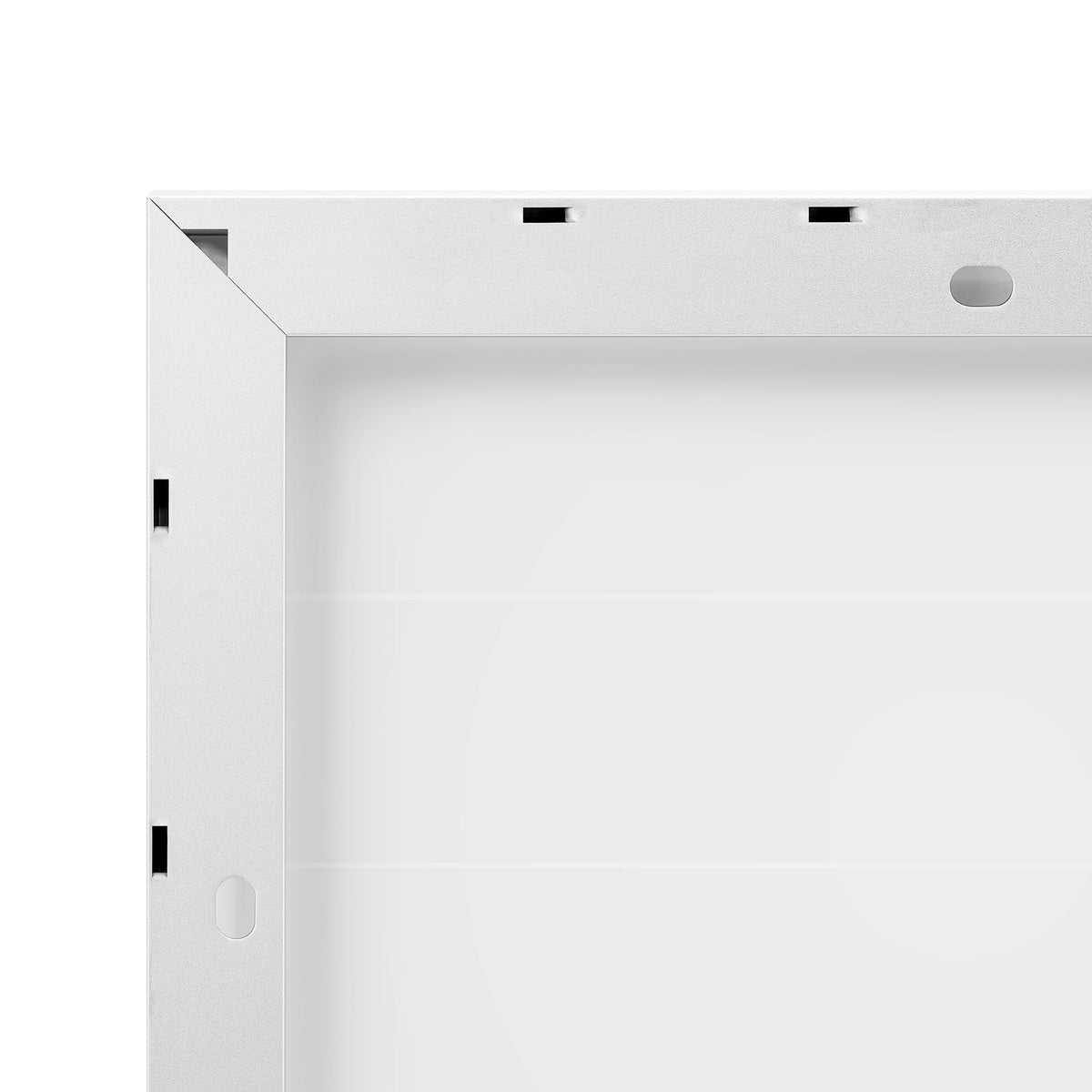

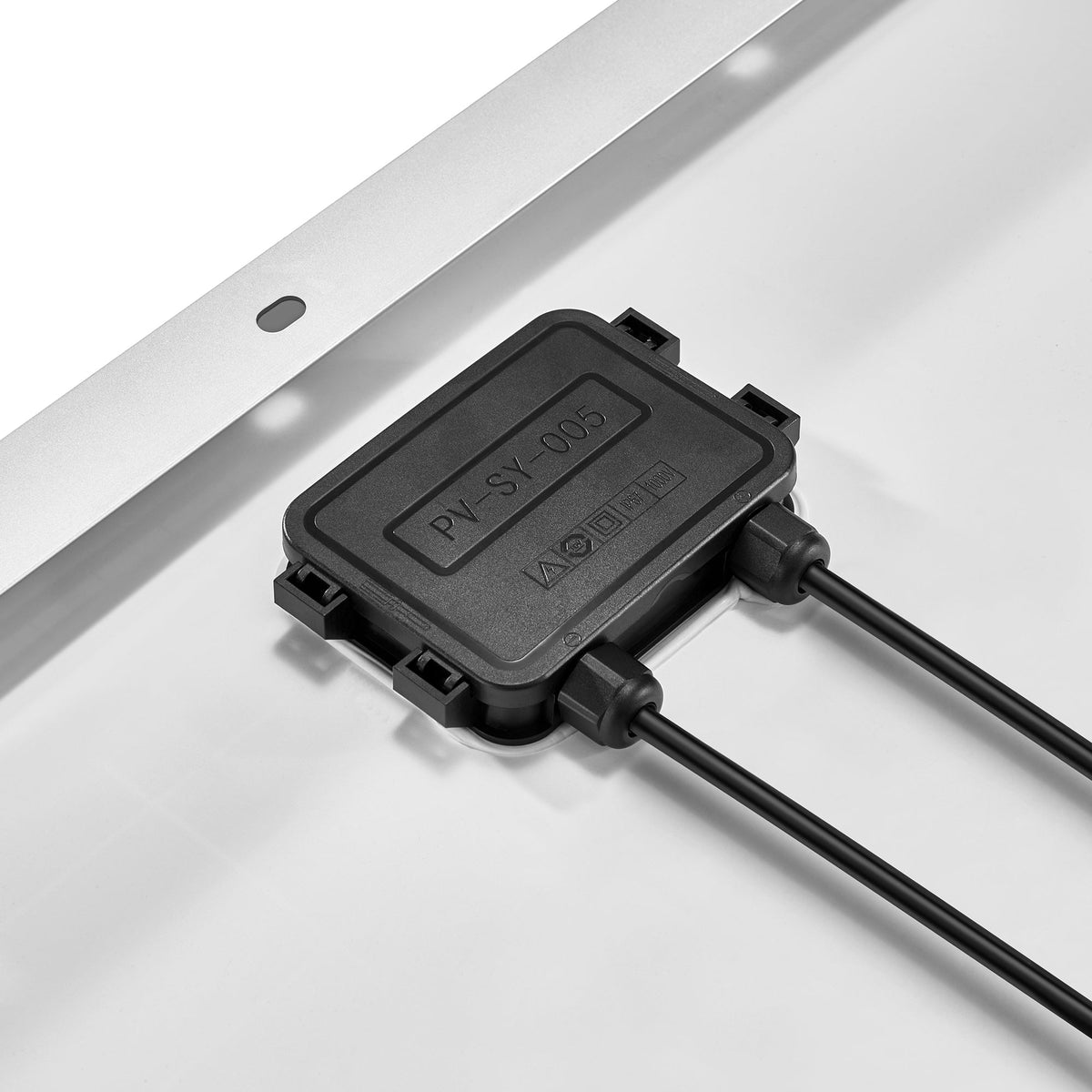

An anodized aluminum frame resists corrosion. The IP67-rated junction box and solar connectors provide waterproof protection. The panel includes PID resistance and 100% EL inspection. Certifications include UL 61730, IEC 61215, and CSA C22.2.

Installation and Maintenance Requirements

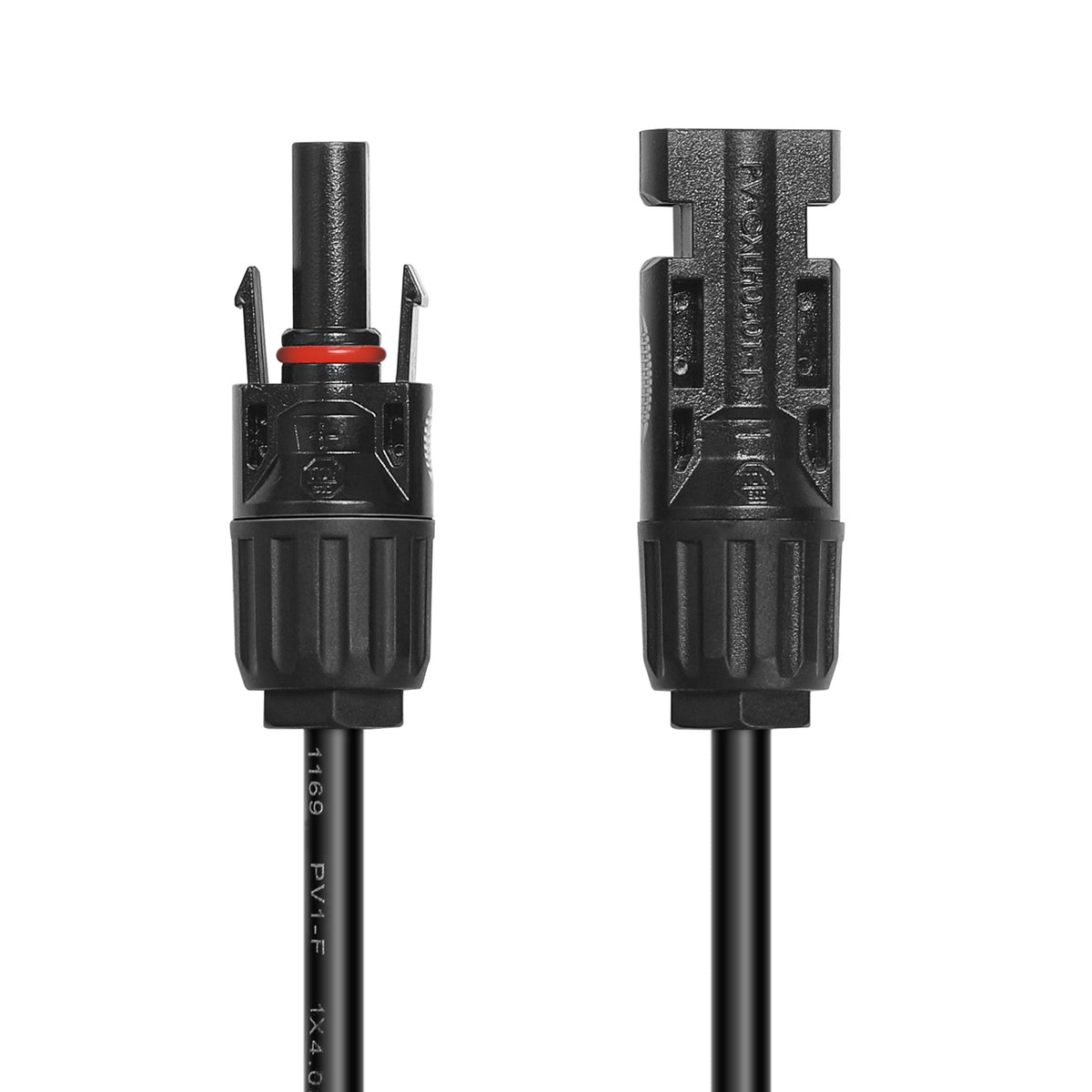

Install using the 12 pre-drilled mounting holes with Z brackets, tilt mounts, pole mounts, or ground mounts. MC4 connectors and 2 ft pre-attached 12 AWG panel leads simplify wiring. Confirm system voltage and fuse compatibility during commissioning.

Warranty and Service Information

Includes a 25-year output warranty and a 10-year workmanship warranty.

Branding/References

Product: MEGA 50. Reference specifications include UL 61730, IEC 61215, and CSA C22.2.

Differentiators

The 30-cell panel combines up to 23.2% efficiency with guaranteed positive power tolerance and low-light performance for cloudy conditions, dawn, and dusk.
