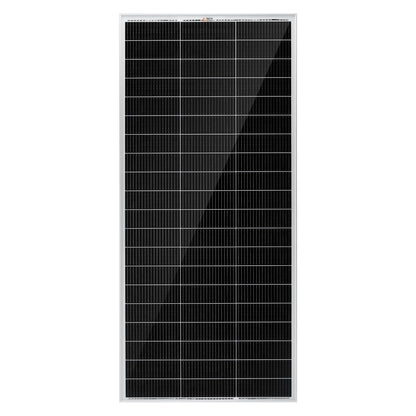

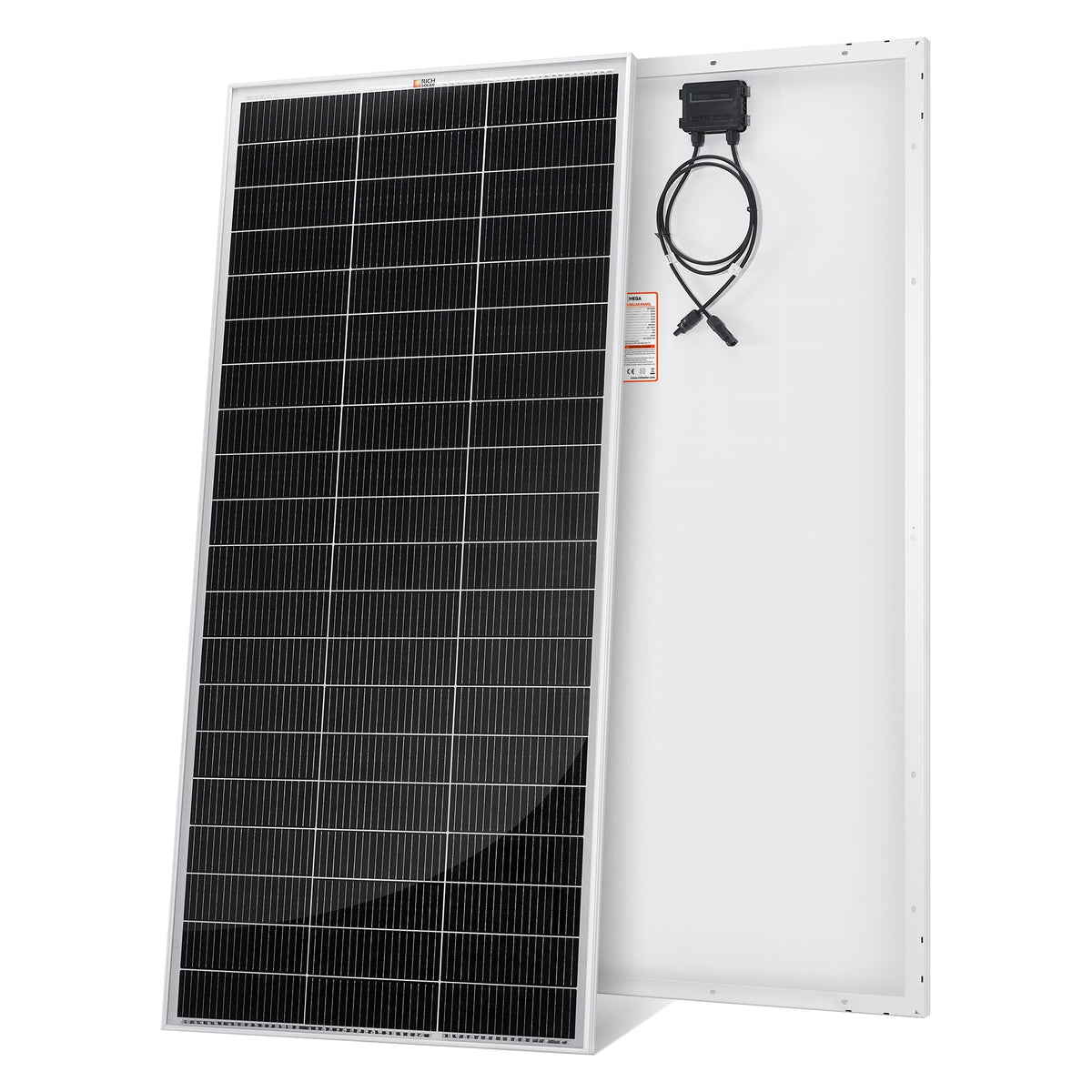

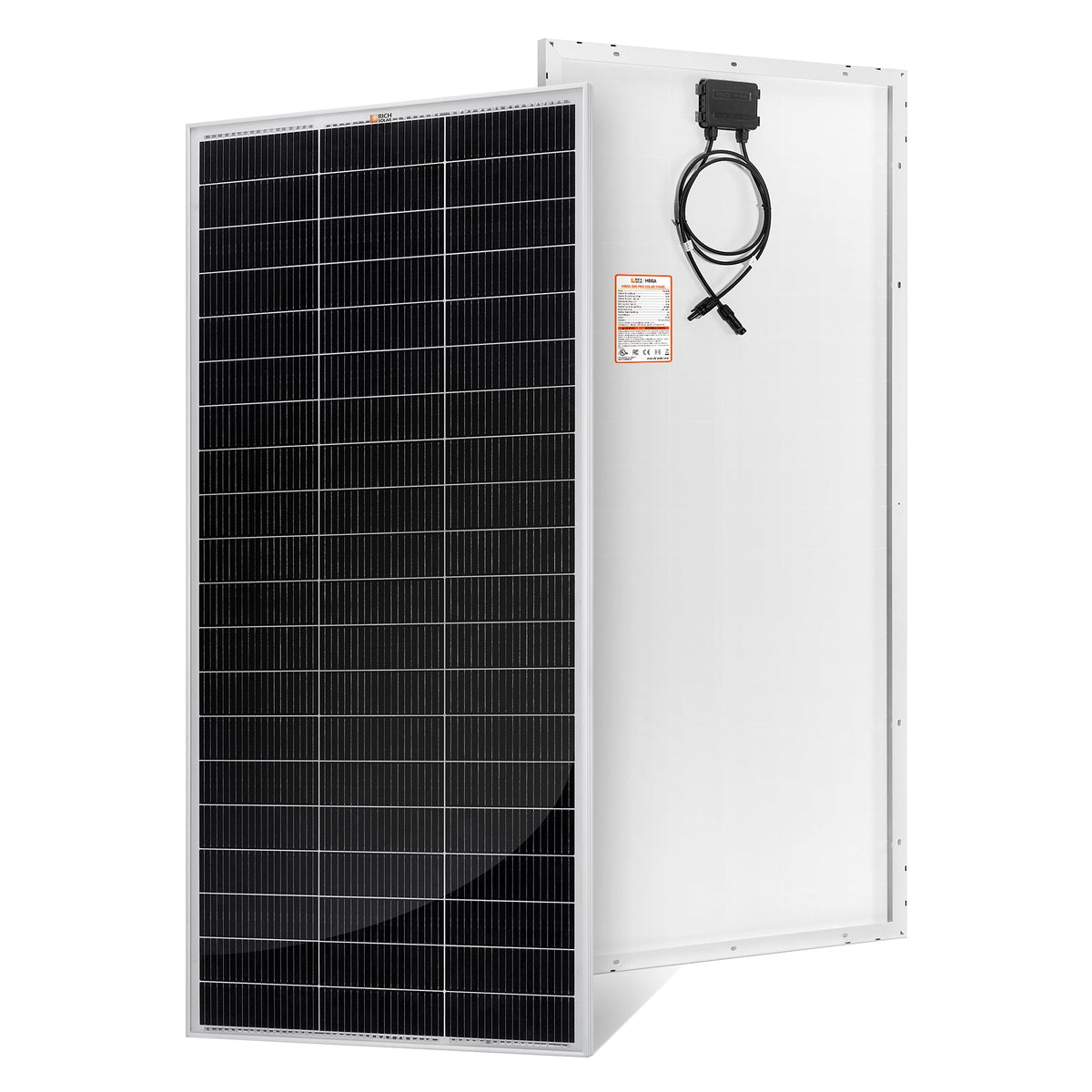

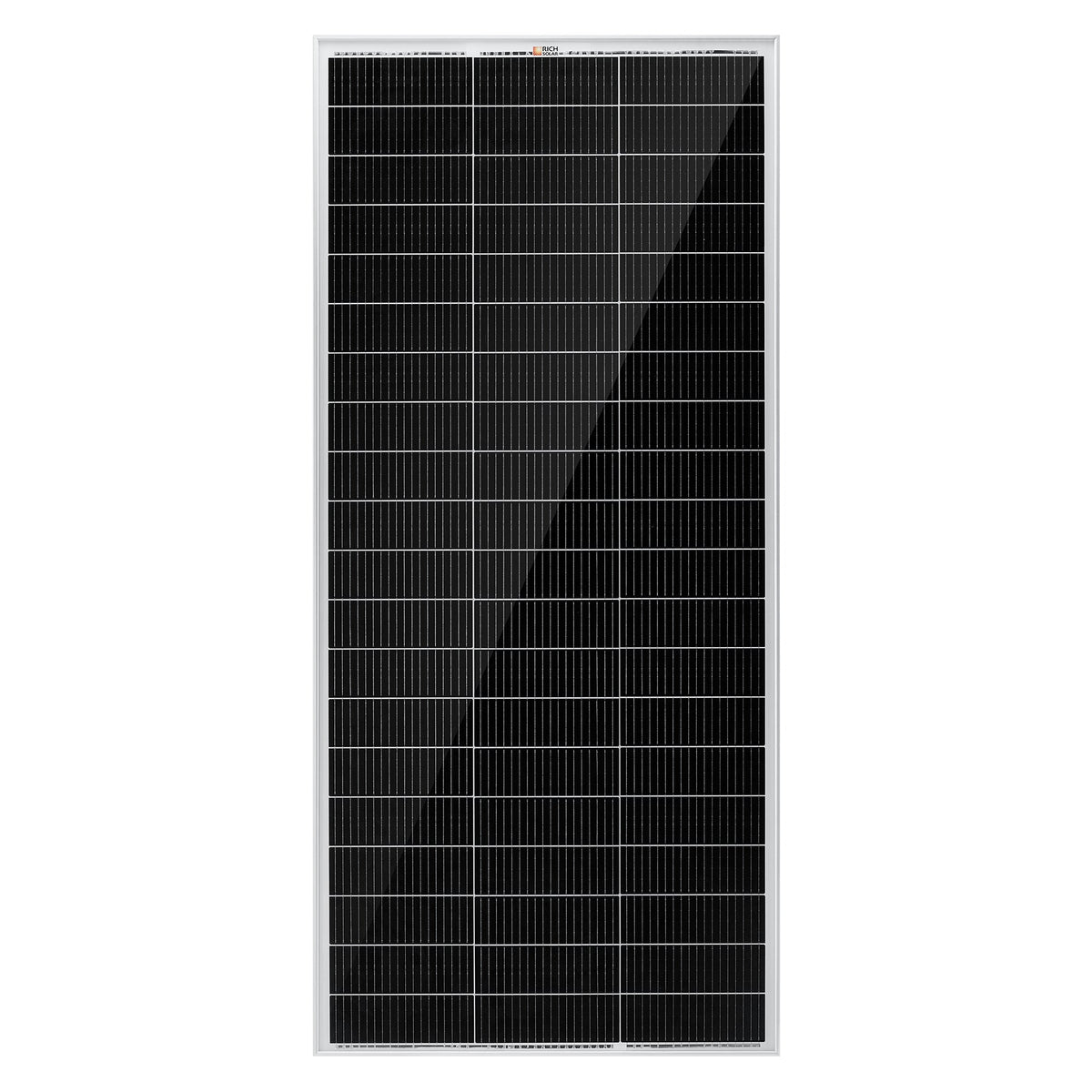

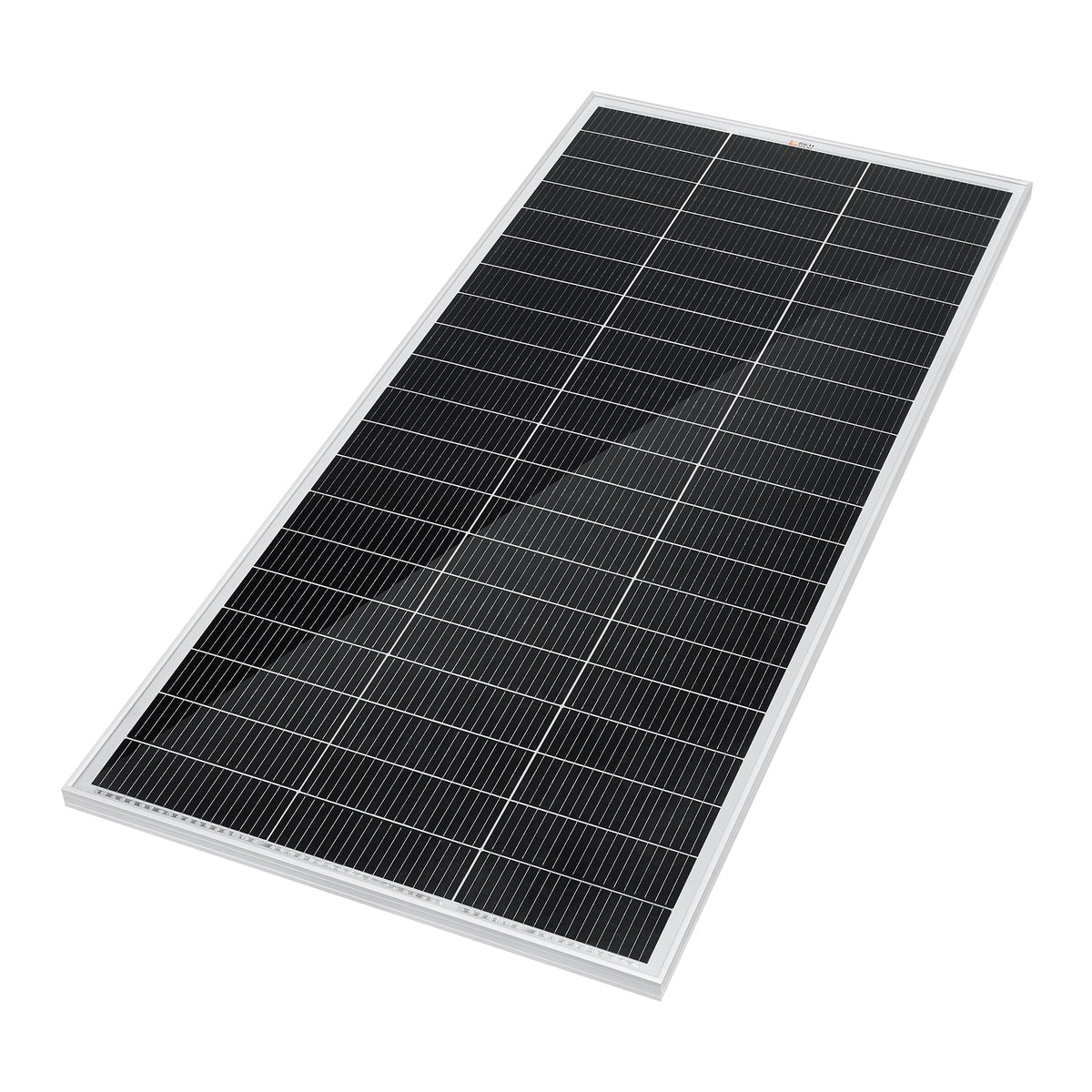

MEGA 200 MAX 200W 24V Solar Panel
Equipment Type and Primary Applications: 200W, 24V off-grid solar panel for RVs, trailers, boats, cabins, sheds, and residential or mobile off-grid solar systems. Compatible with on-grid and off-grid inverters.
Performance Specifications
- Maximum power: 200W; power tolerance: 0 to +5W.

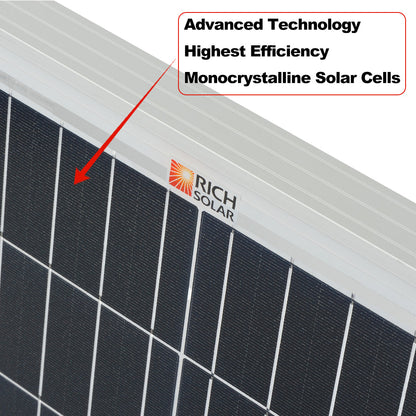

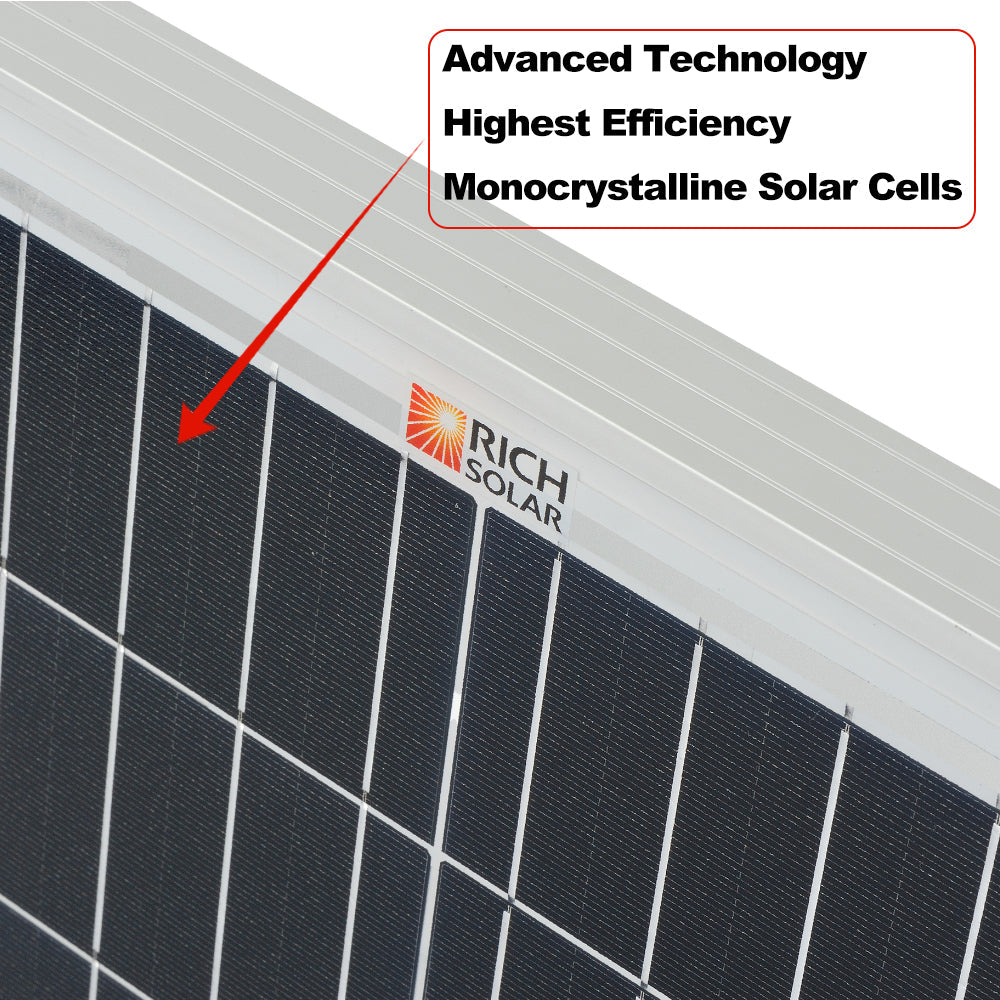

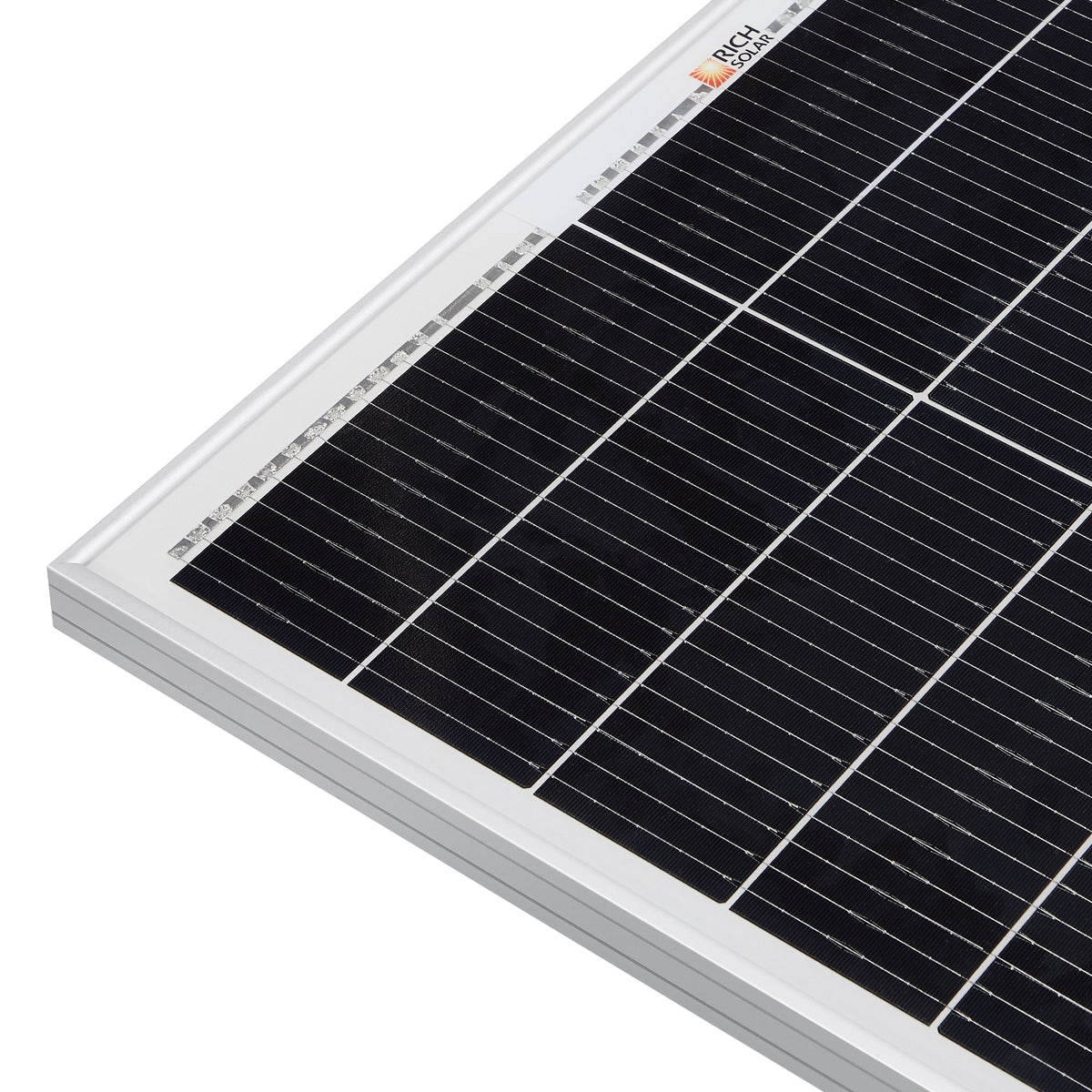

- Cell technology: 18-busbar N-Type TOPCon; 60-cell configuration; efficiency up to 25.3%.
- Operating voltage/current: Vmp 36.3V, Imp 5.51A; Voc 43.5V, Isc 5.93A.
- Maximum system voltage: 1000 VDC; maximum series fuse rating: 15A.
- Operating temperature: -40 to +185°F; rated loads: 5400 Pa snow and 2400 Pa wind.

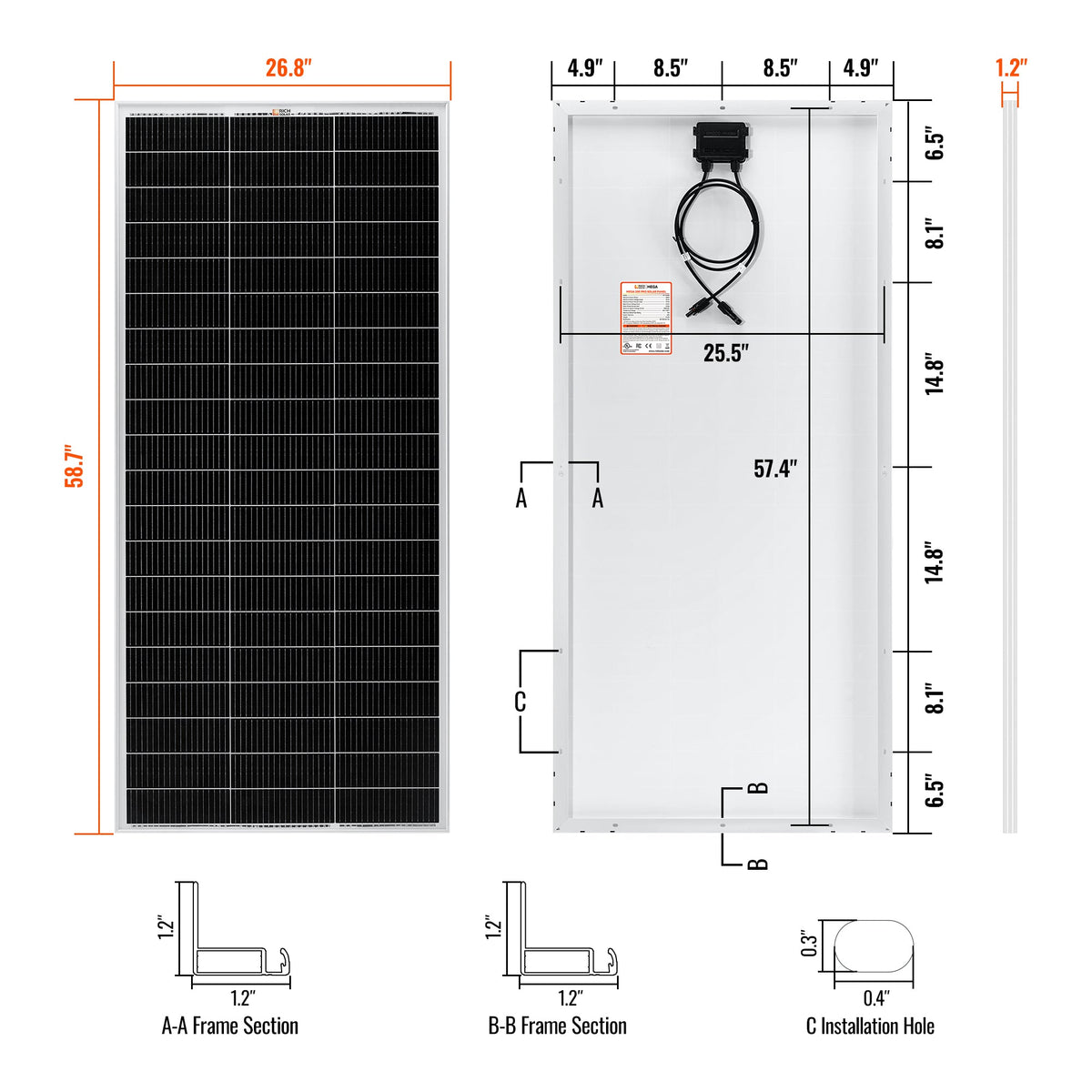

- Dimensions: 58.7 × 26.8 × 1.2 in; weight: 24.0 lb.

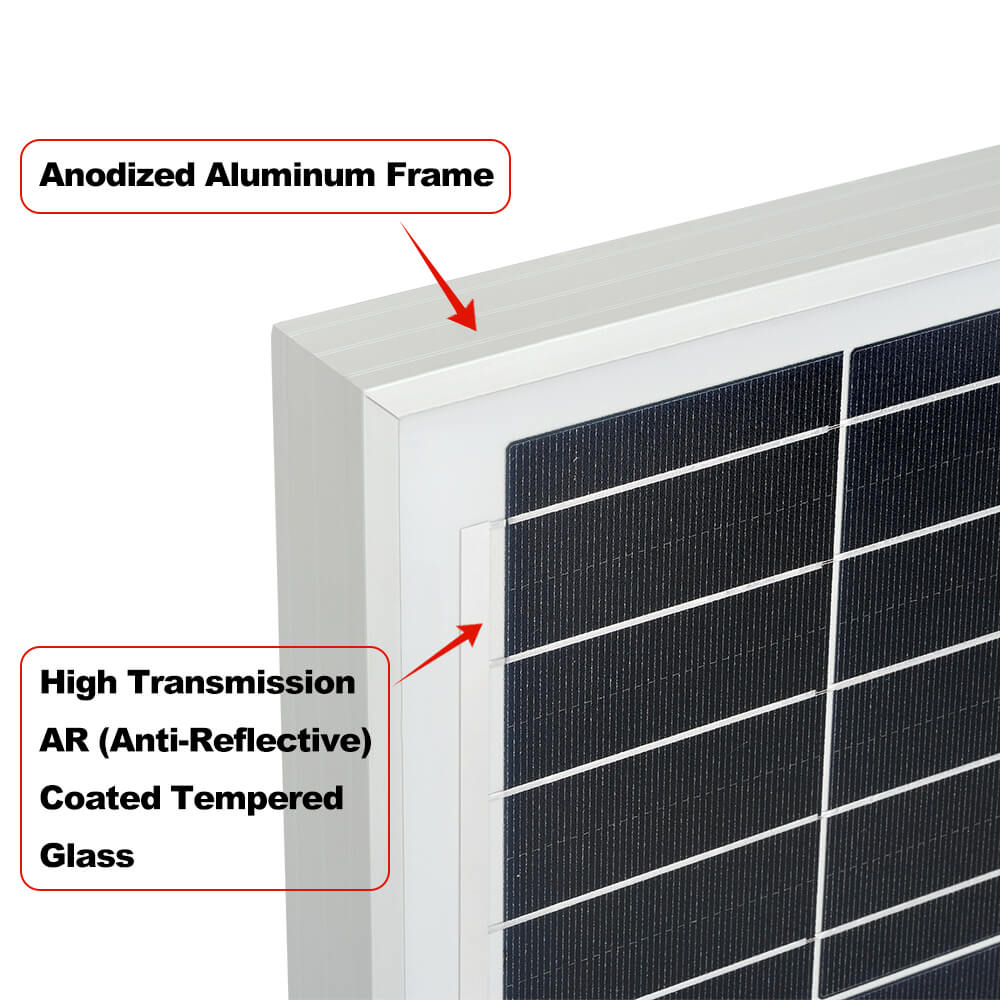

- 3.2 mm AR-coated tempered glass supports sunlight capture, durability, and low-light performance at dawn, dusk, and during cloudy conditions.
Safety Features and Certifications
- PID-resistant construction and 100% EL inspection help identify microcracks.

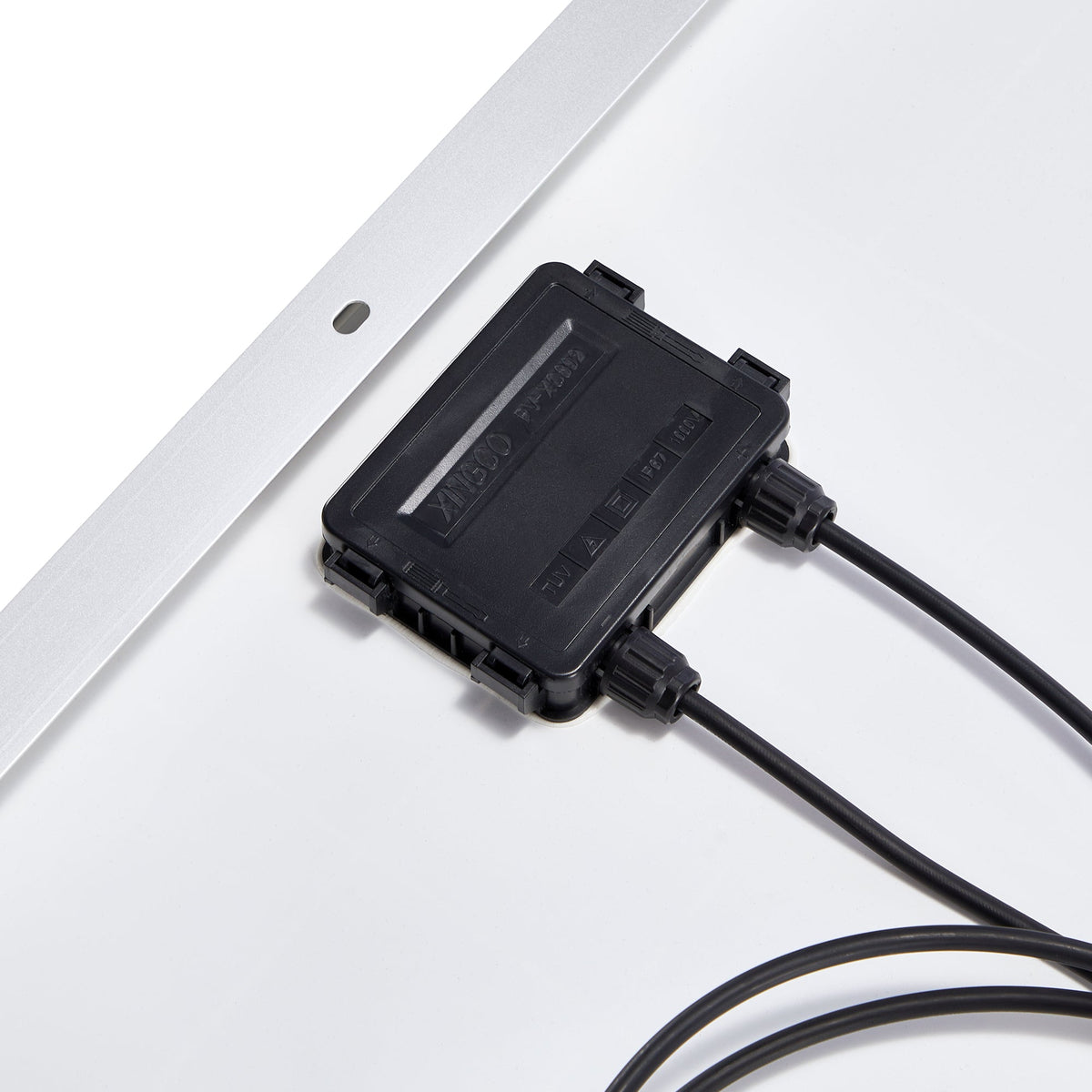

- IP67-rated waterproof junction box and solar connectors.
- Certified to UL 61730, IEC 61215, and CSA C22.2 standards; UL Certified.
- Tested for UV exposure, thermal cycling, and humidity freeze.
Installation and Maintenance Requirements

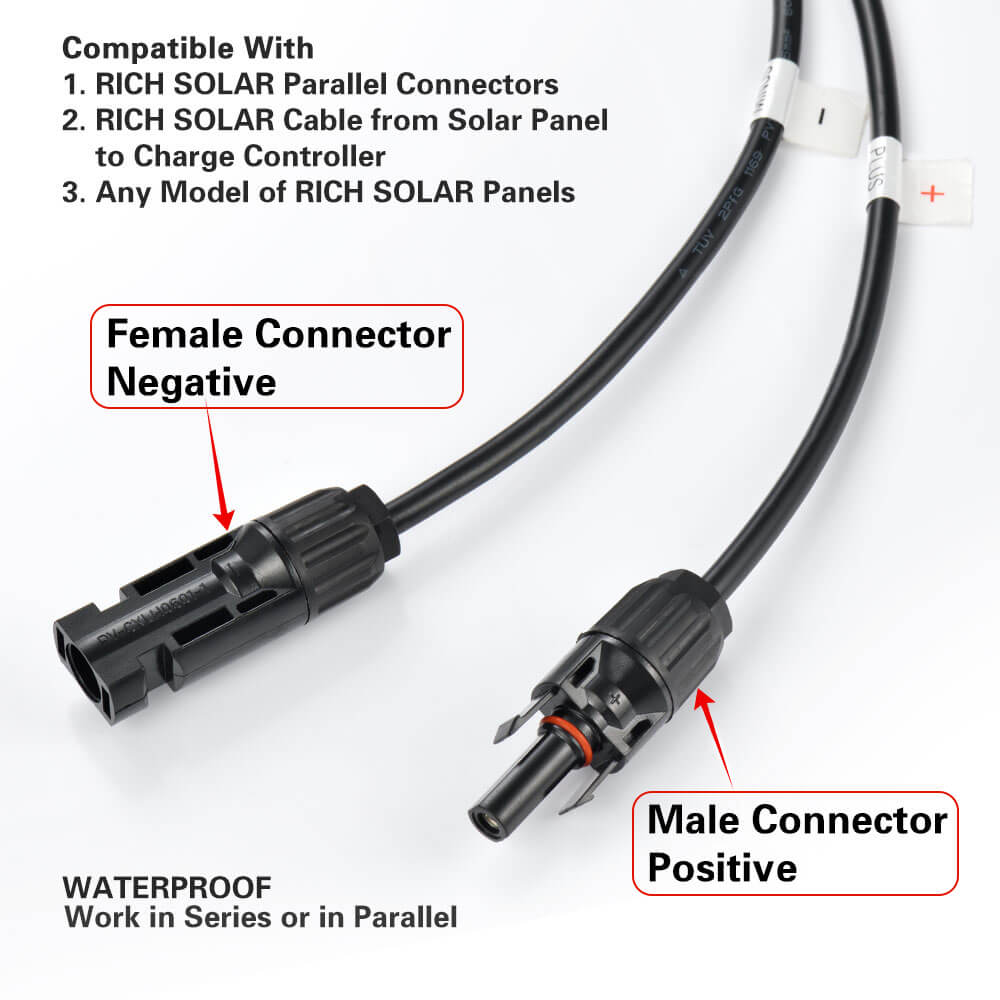

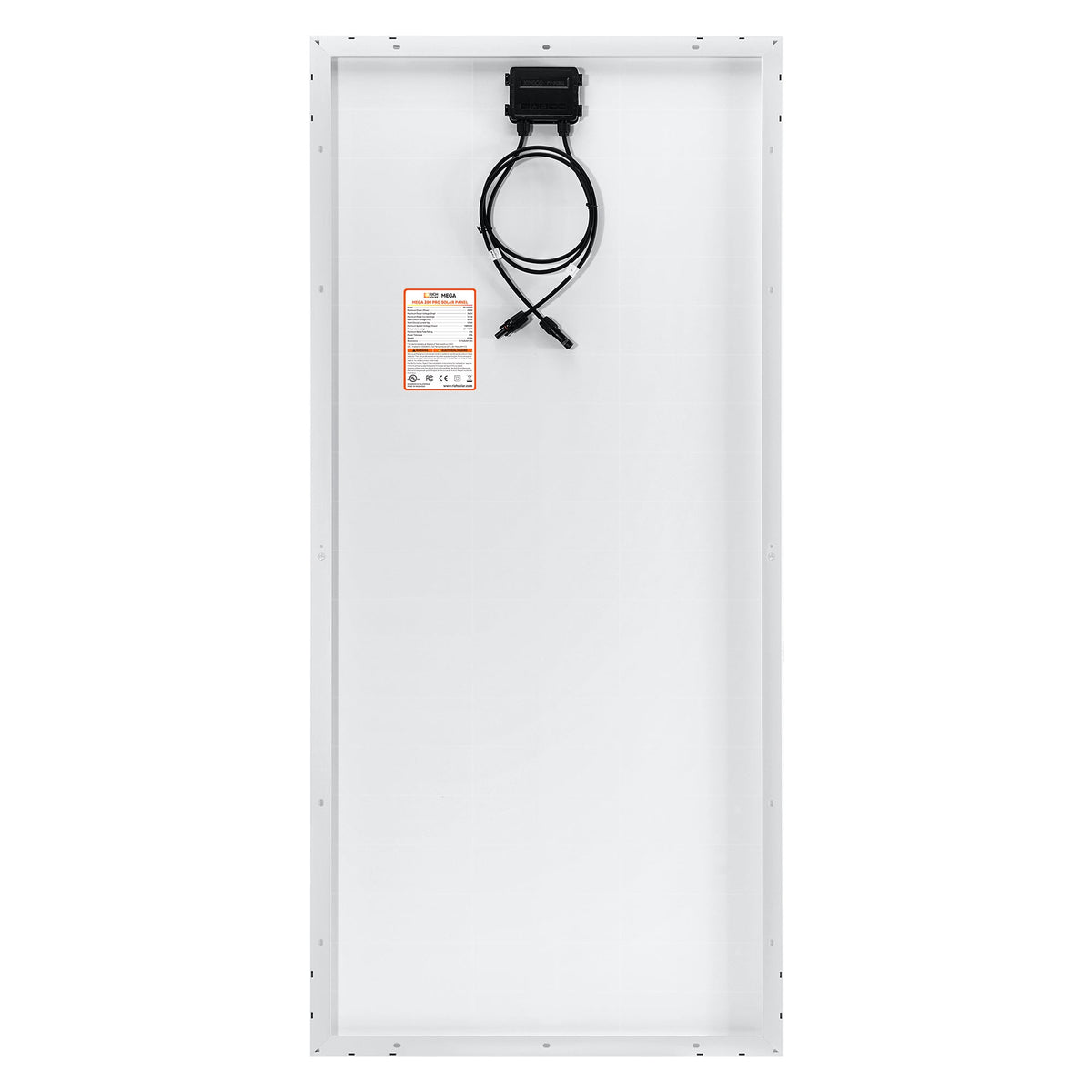

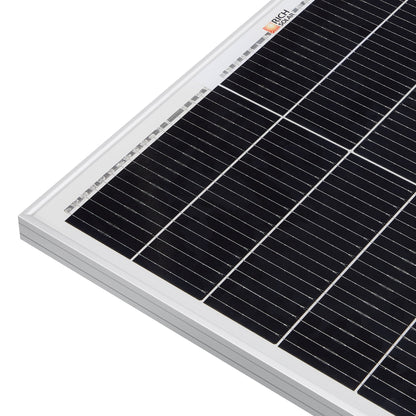

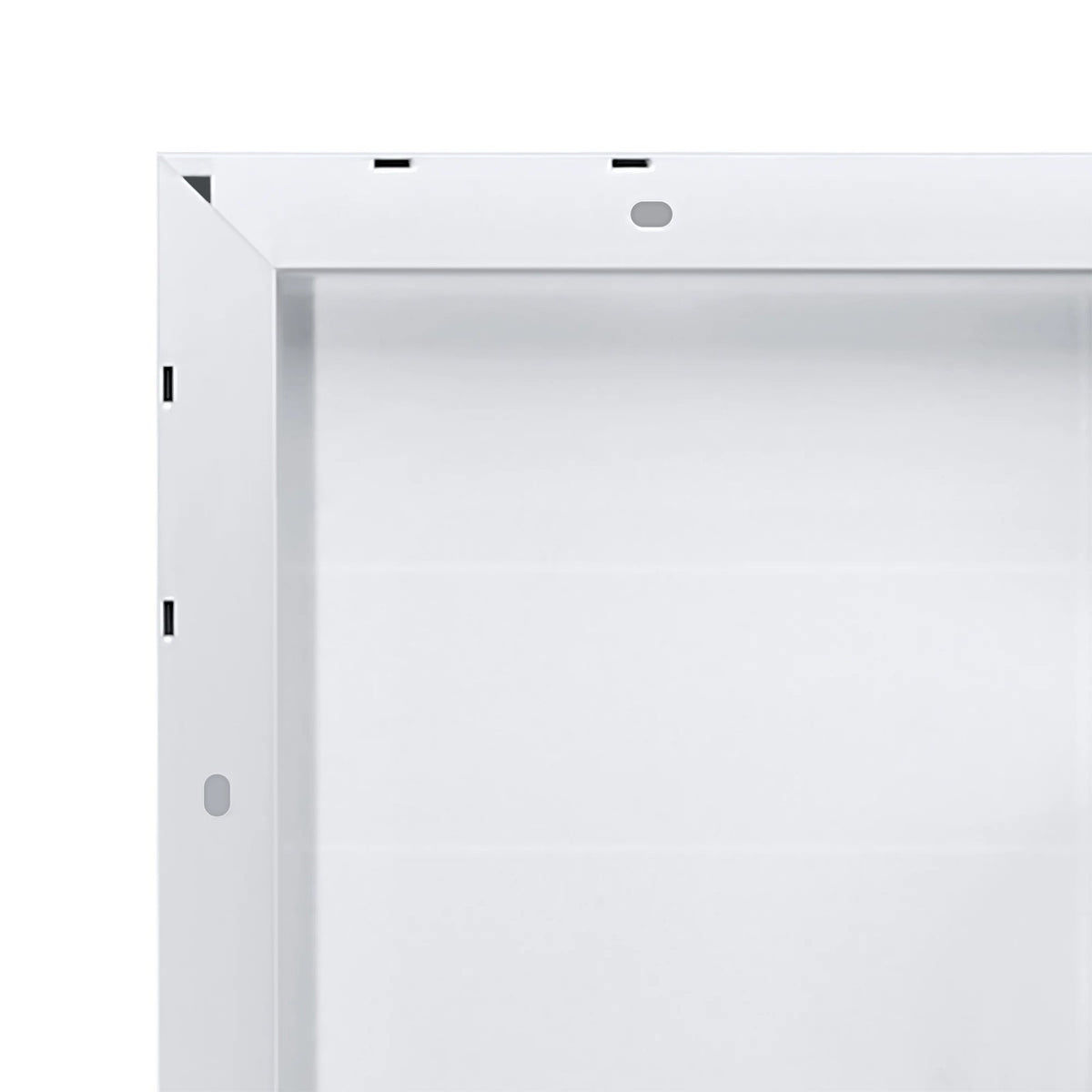

Anodized aluminum framing includes 14 pre-drilled mounting holes for Z brackets, tilt mounts, pole mounts, or ground installation. MC4 connectors include 3 ft pre-attached cables, with a pair of 12 AWG, 3 ft panel leads. Package dimensions are 61 × 2 × 29 in.
Warranty and Service Information
Includes a 25-year limited power output warranty and a 10-year workmanship warranty.
Branding/References
Product/model: MEGA 200 MAX. Reference ratings: 200W, 24V nominal panel, UL 61730, IEC 61215, and CSA C22.2.
Differentiators
N-Type TOPCon cells, 0 to +5W power tolerance, and 18-busbar construction combine rated-output assurance with up to 25.3% efficiency.
