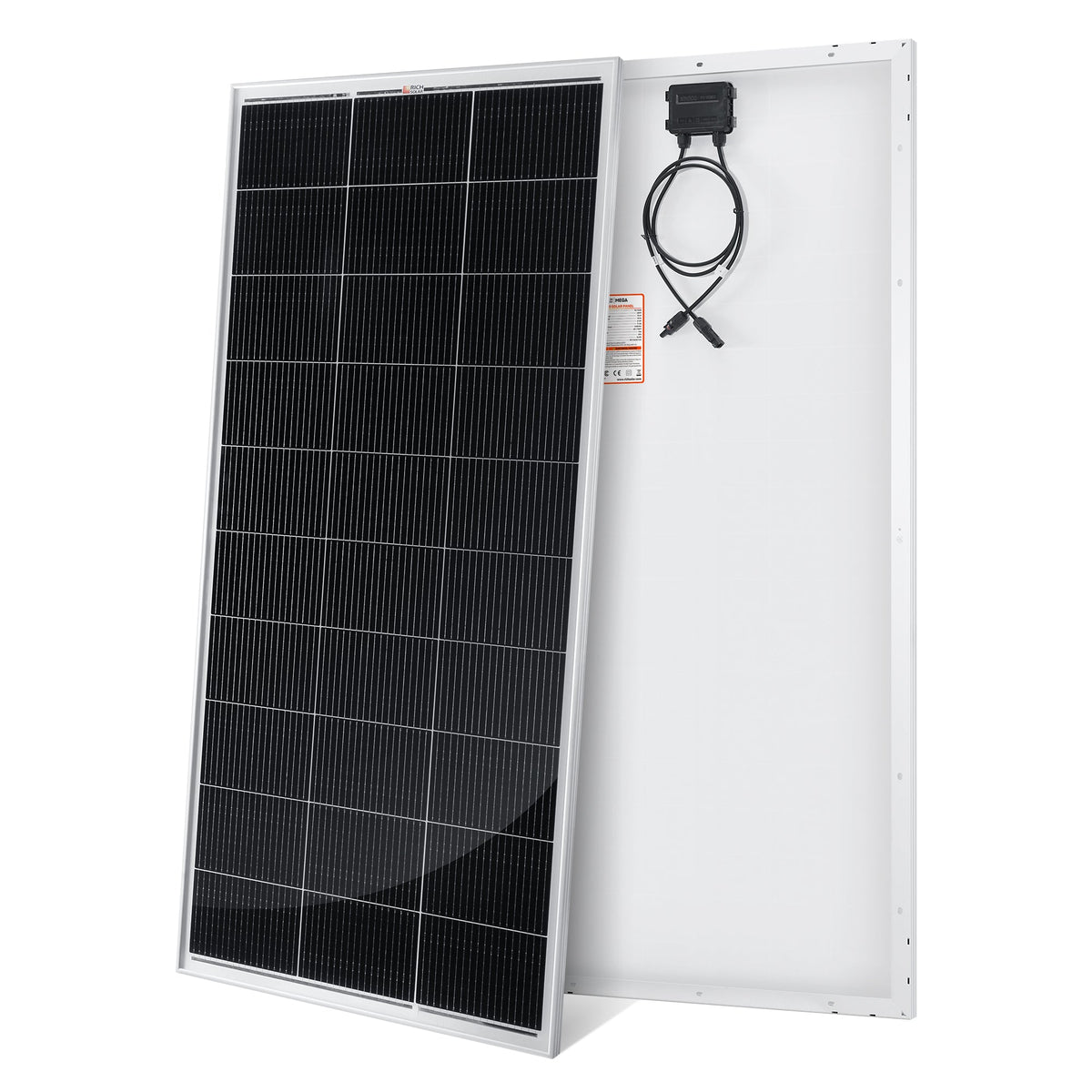

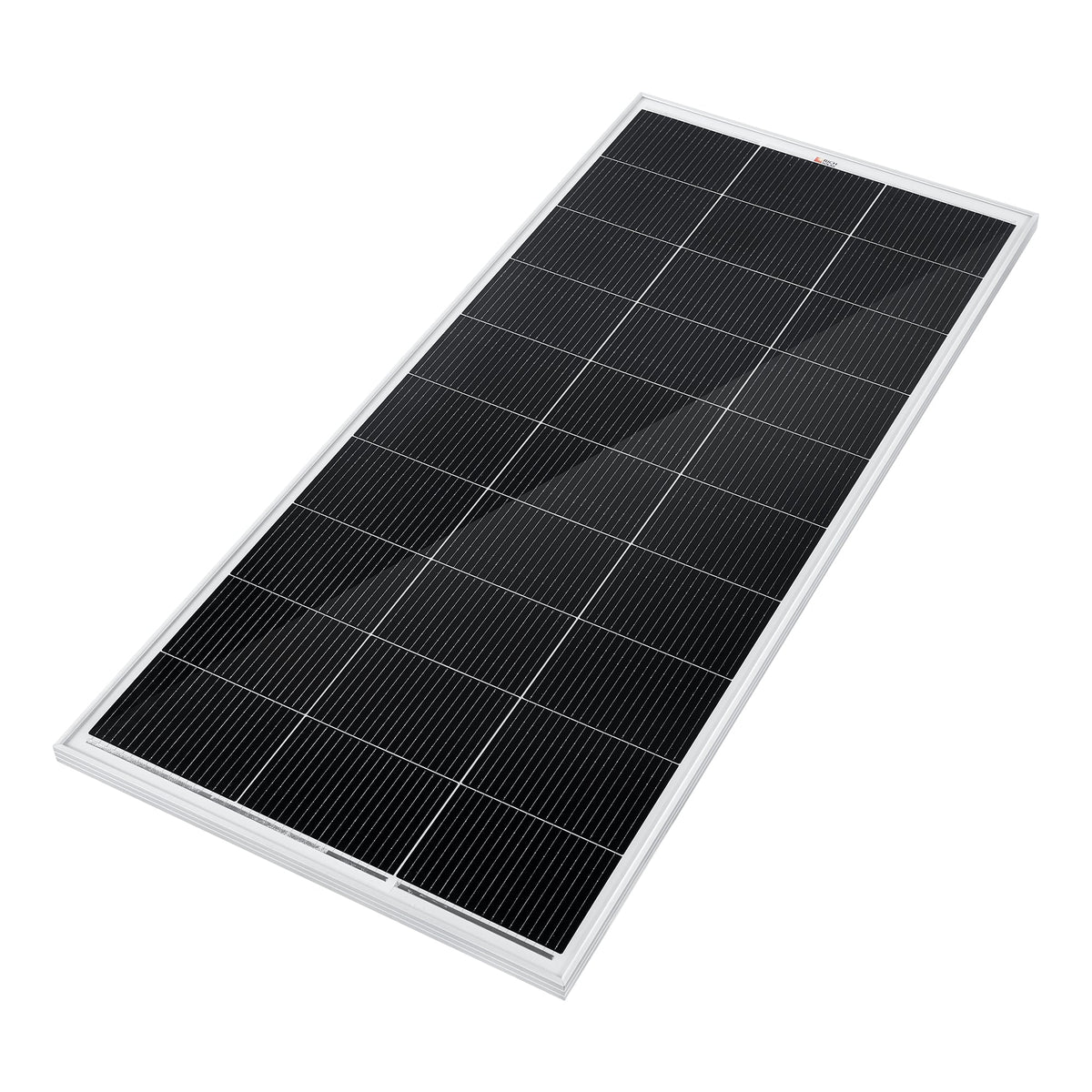

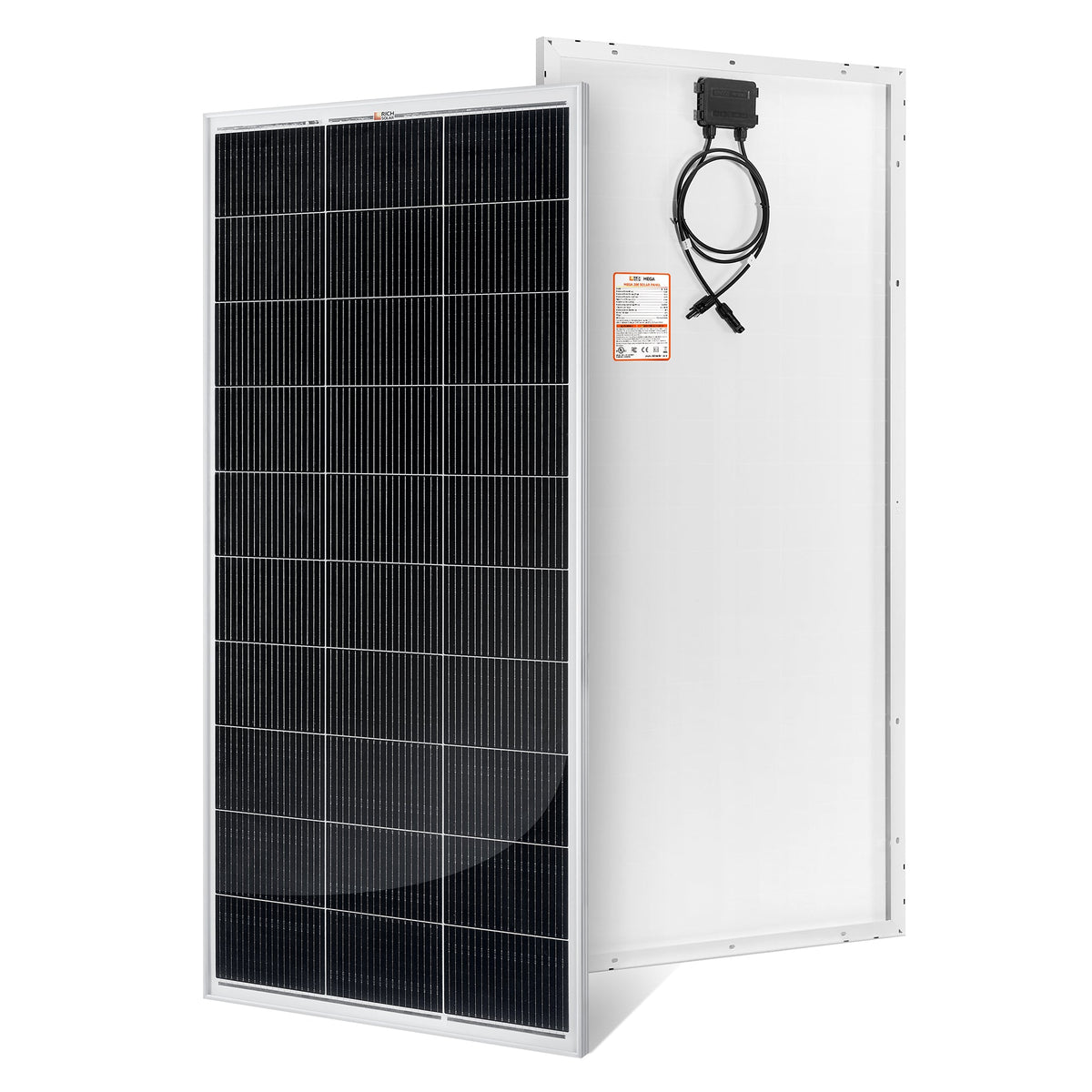

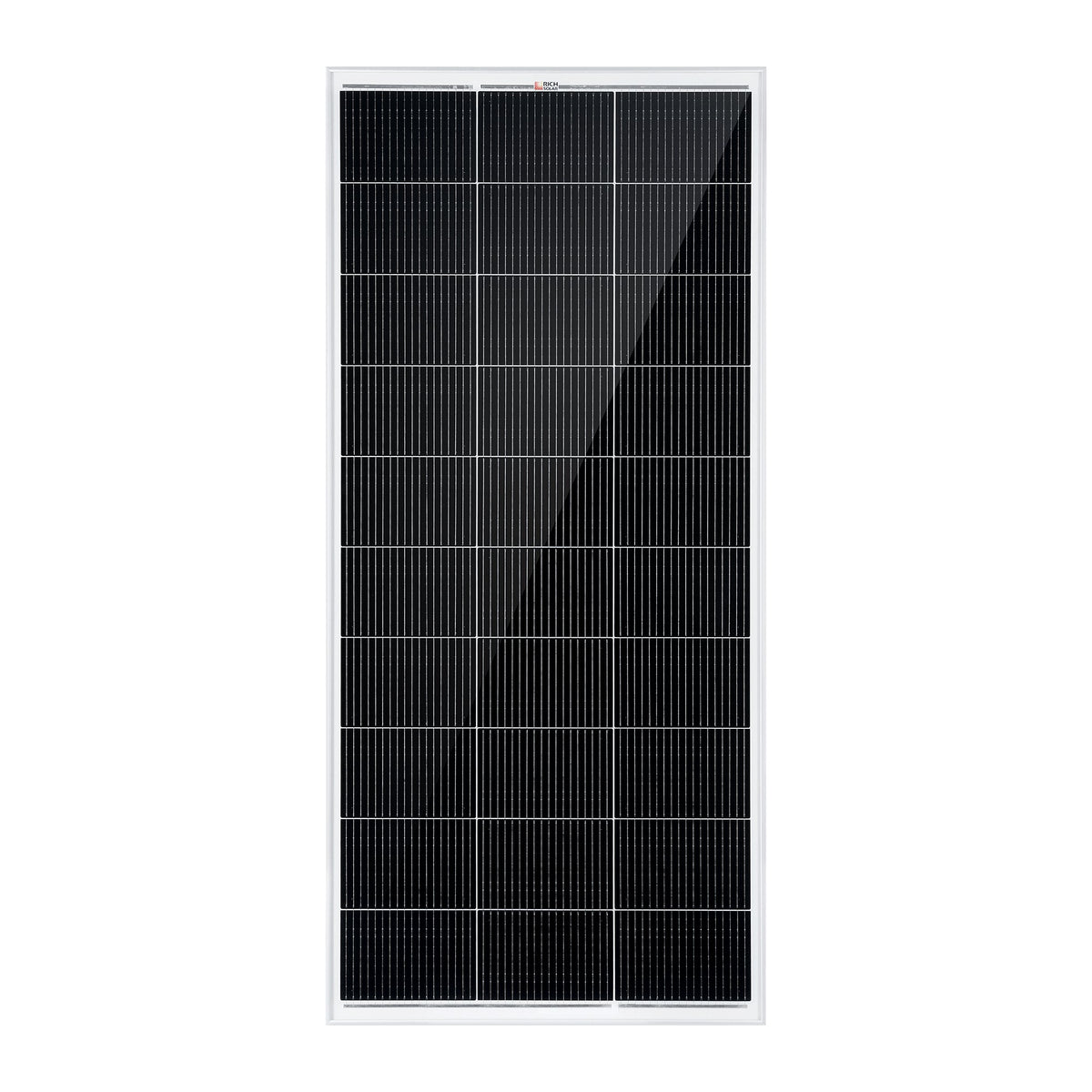

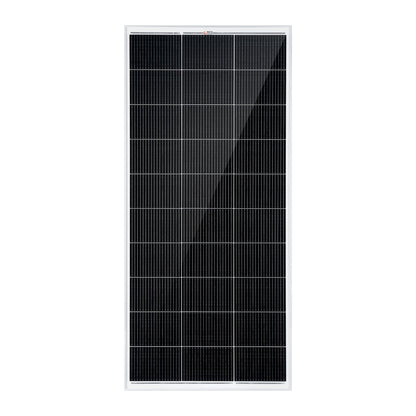

MEGA 200 200W 12V Solar Panel
Equipment Type and Primary Applications
200W 12V off-grid solar panel for RVs, boats, cabins, and residential or mobile off-grid power systems. The 30-cell module is compatible with on-grid and off-grid inverters and supports roof, pole, ground, tilt-mount, and Z-bracket installations.
Performance Specifications
- Maximum power: 200W; power tolerance: 0 to +5W

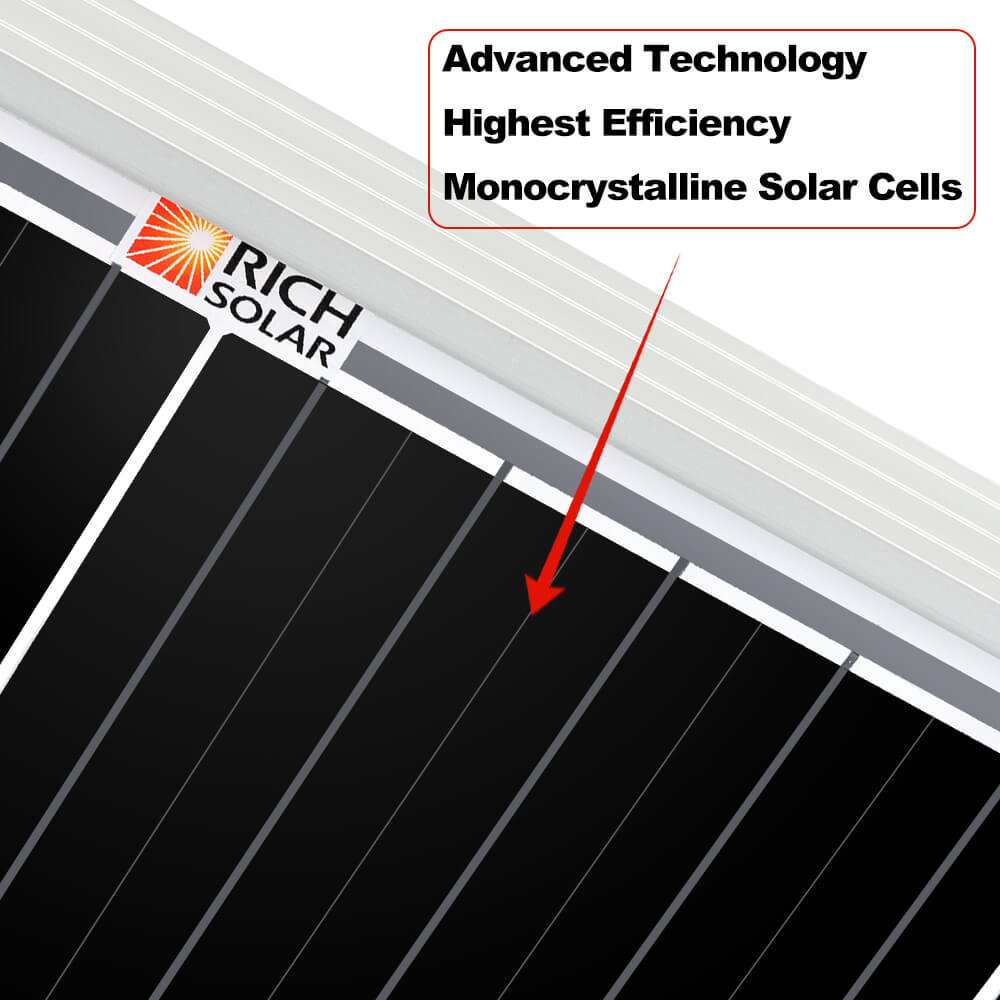

- Cell technology: 18-busbar N-Type TOPCon; maximum efficiency: up to 25.3%
- Operating voltage/current: Vmp 18.4V, Imp 10.9A
- Open-circuit voltage: 21.8V; short-circuit current: 11.6A
- Operating temperature: -40 to +185°F
- Maximum series fuse rating: 15A
- Mechanical load ratings: 5400 Pa snow and 2400 Pa wind

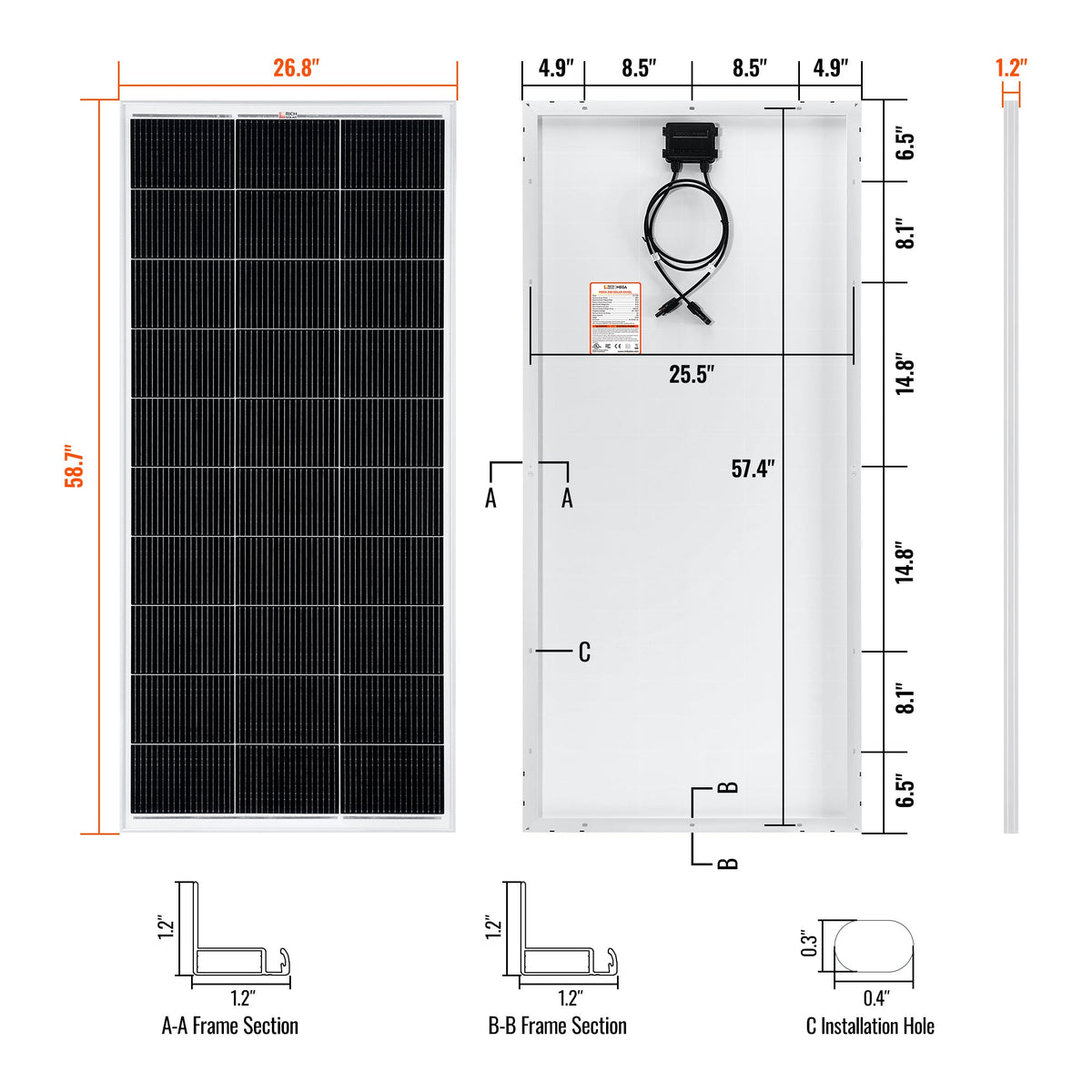

- Dimensions: 58.7 x 26.8 x 1.2 in; weight: 24 lb

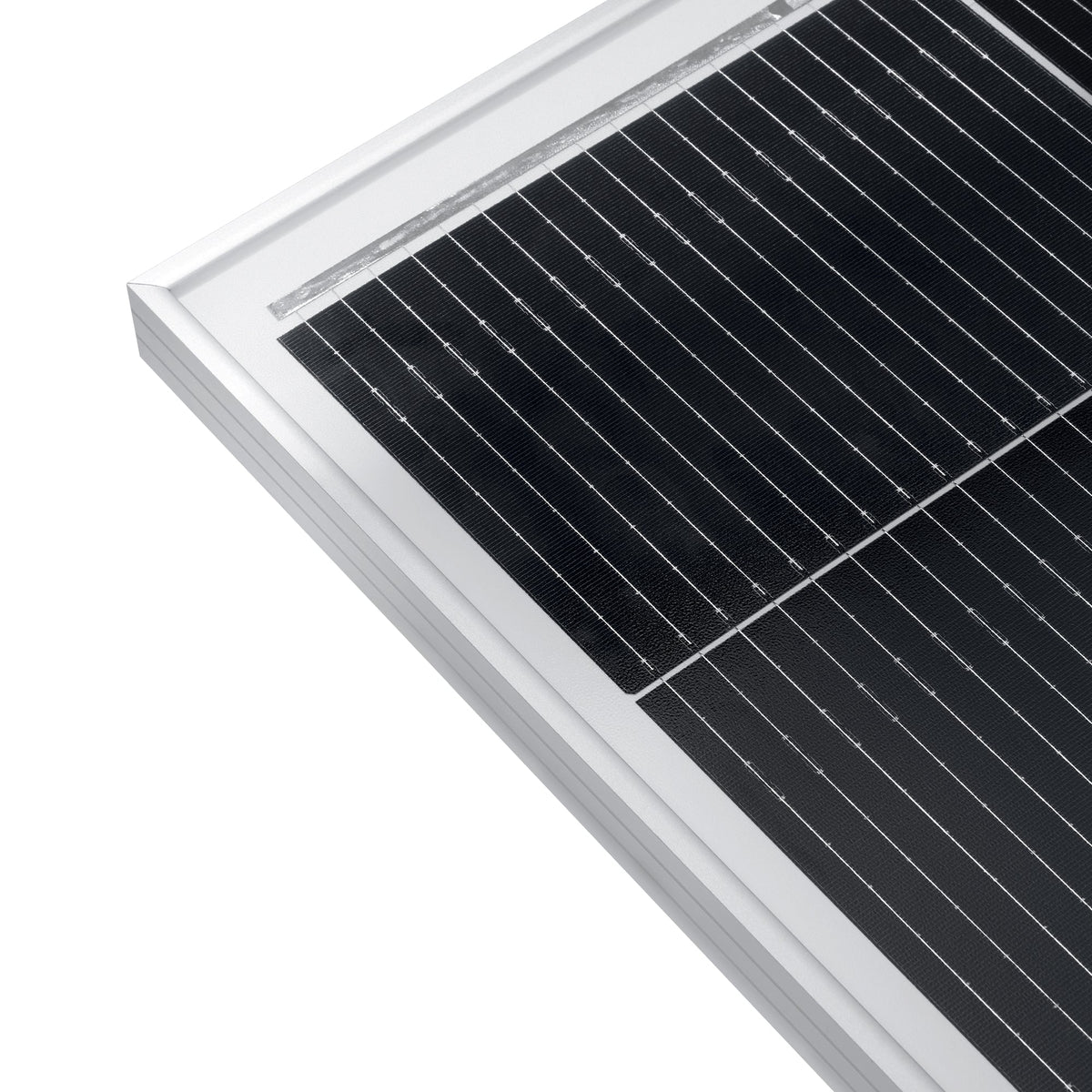

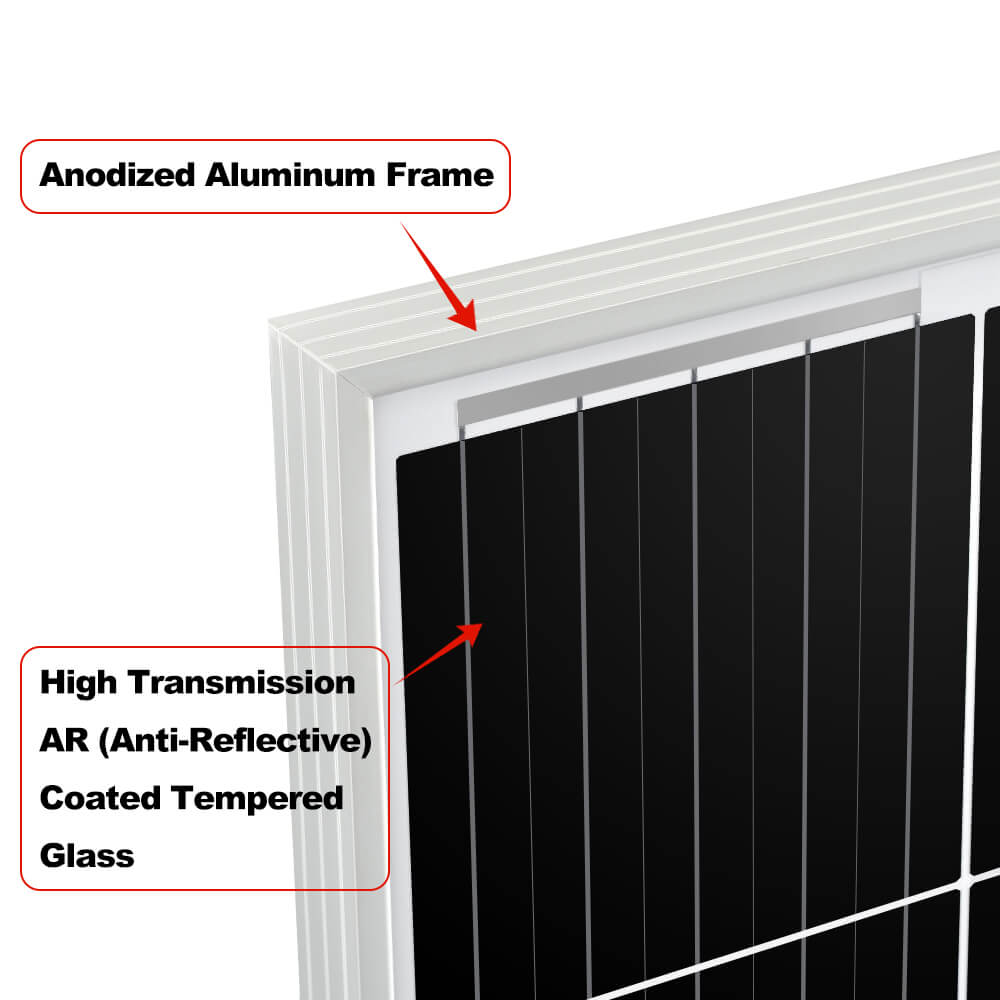

- 3.2 mm AR-coated tempered glass; anodized aluminum frame
Safety Features and Certifications

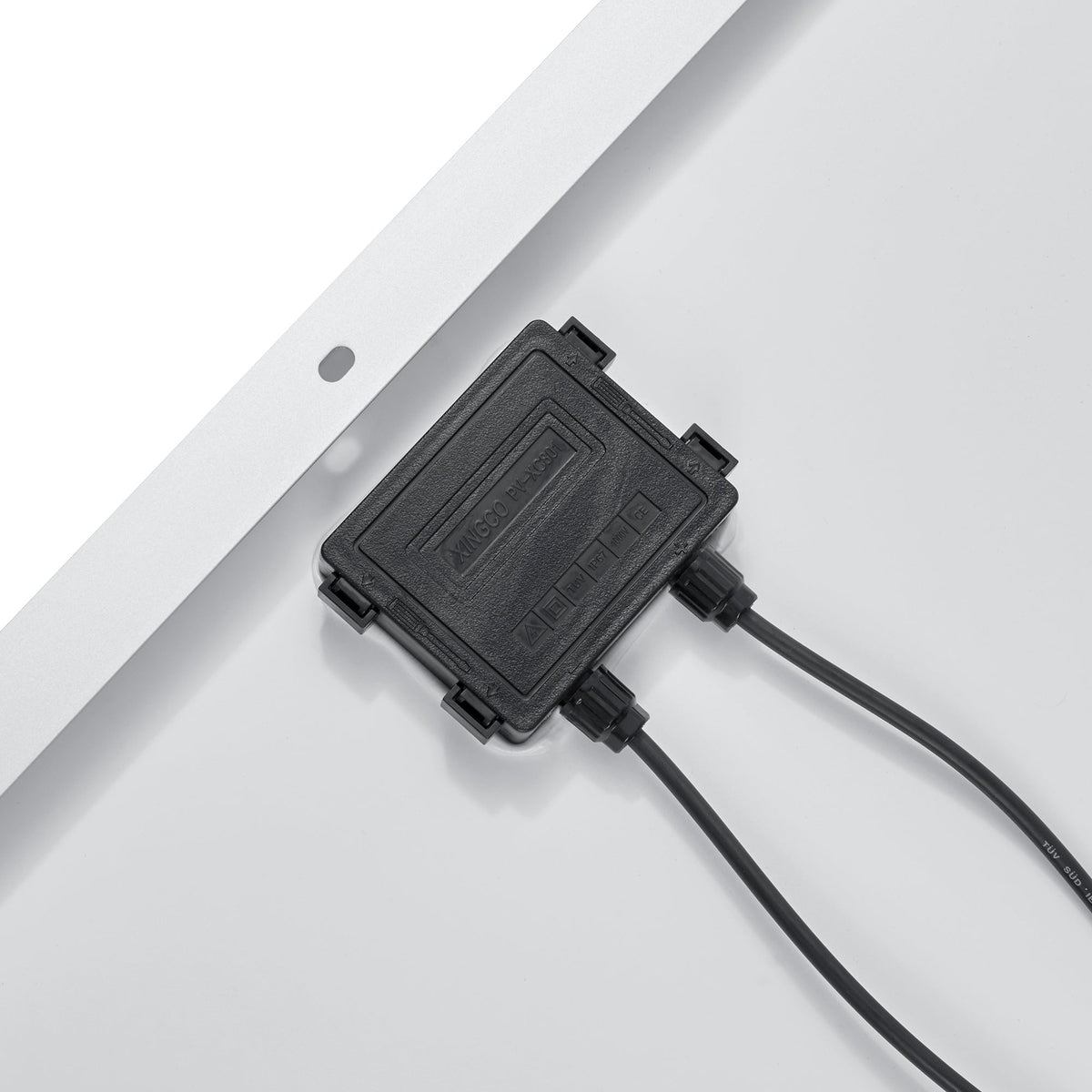

The panel uses PID-resistant cells, double EL inspection for microcrack detection, and an IP67-rated waterproof junction box and solar connectors. It is certified to UL 61730, IEC 61215, and CSA C22.2 standards, with UL certification.
Installation and Maintenance Requirements

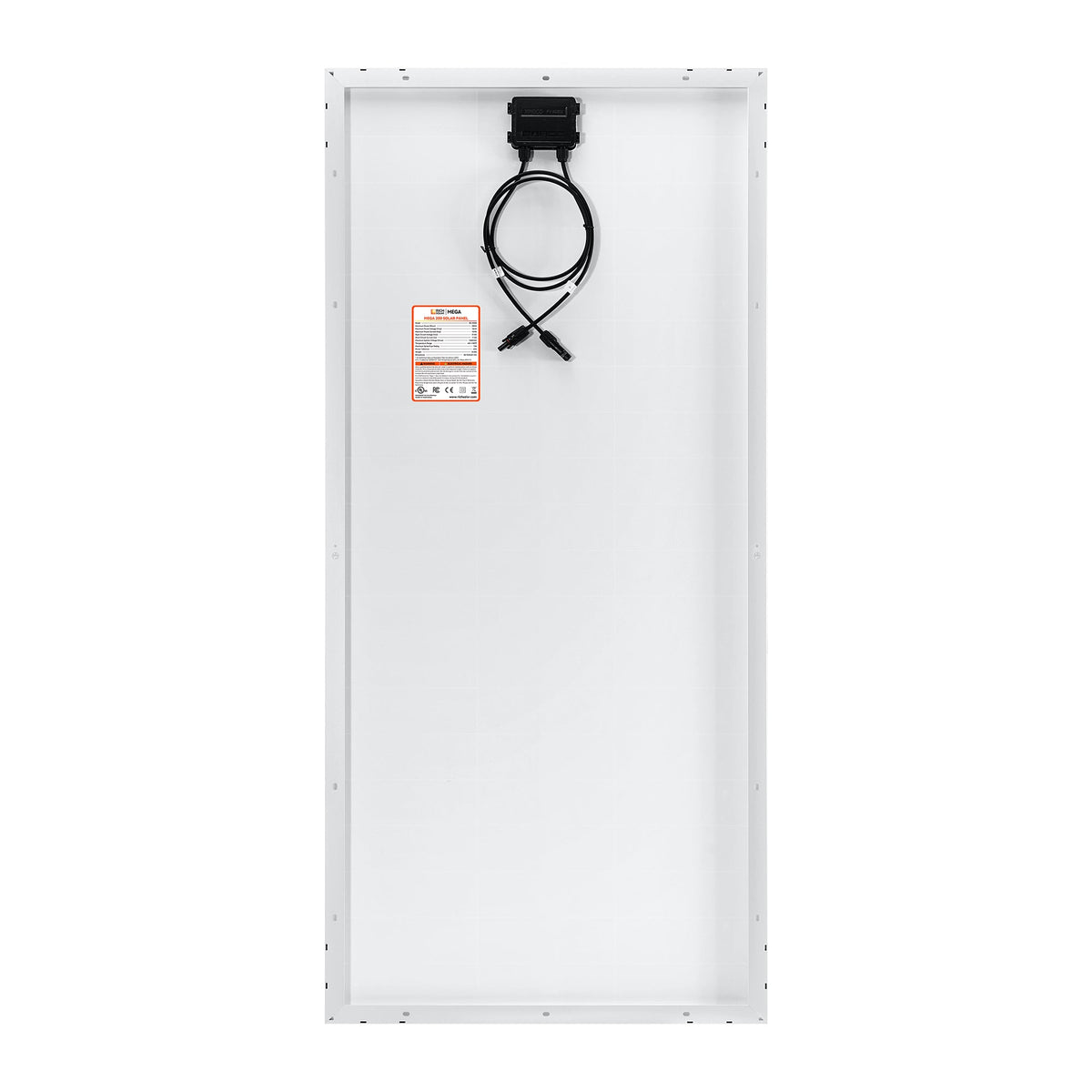

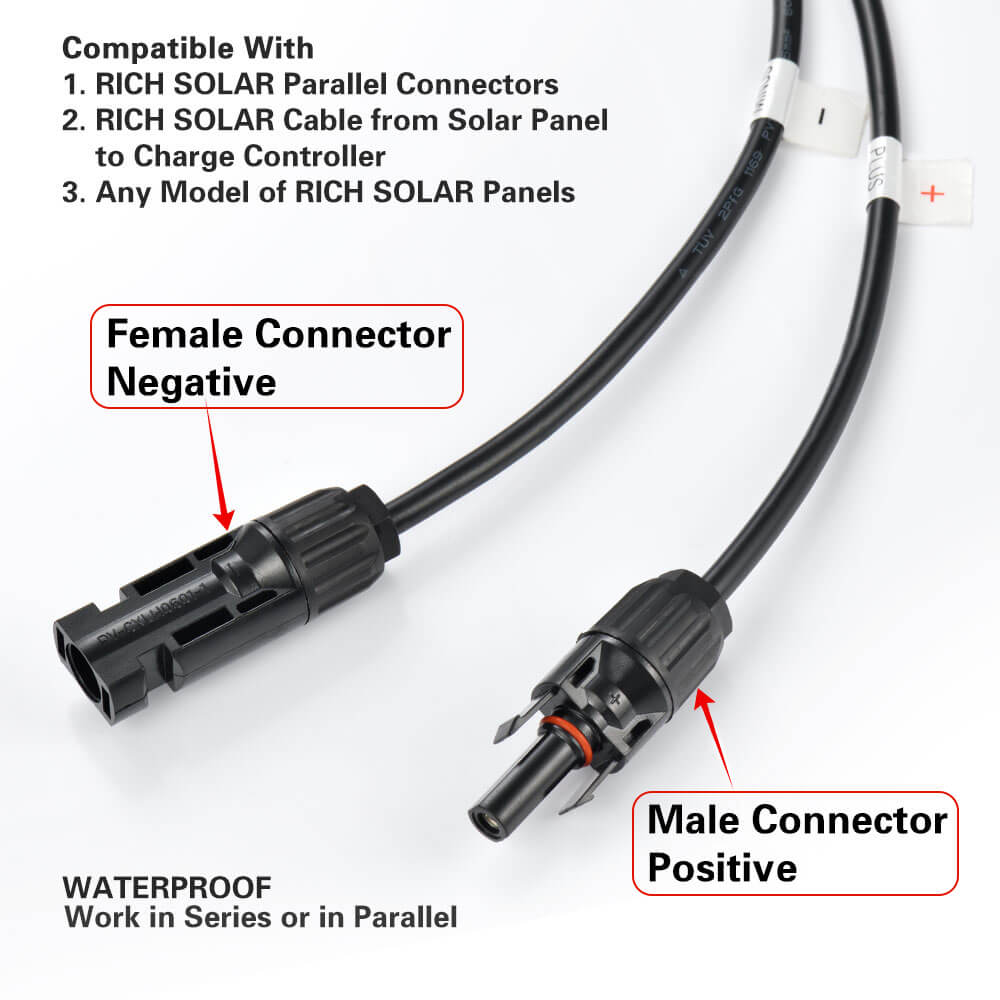

Installation requires compatible mounting hardware and inverter equipment. Fourteen pre-drilled mounting holes support Z brackets, tilt mounts, pole, or ground installation. MC4 connectors include 3 ft pre-attached 12 AWG panel leads for connection. Keep the glass surface and connectors clean and inspect the frame, cables, and mounting hardware during routine service.
Warranty and Service Information
Includes a 25-year limited power output warranty and a 10-year workmanship warranty.
Branding/References
Product: MEGA 200. Reference standards: UL 61730, IEC 61215, and CSA C22.2.
Differentiators
N-Type TOPCon cell technology, low-light performance, 0 to +5W power tolerance, and high snow and wind load ratings distinguish this 200W solar panel for demanding off-grid installations.
