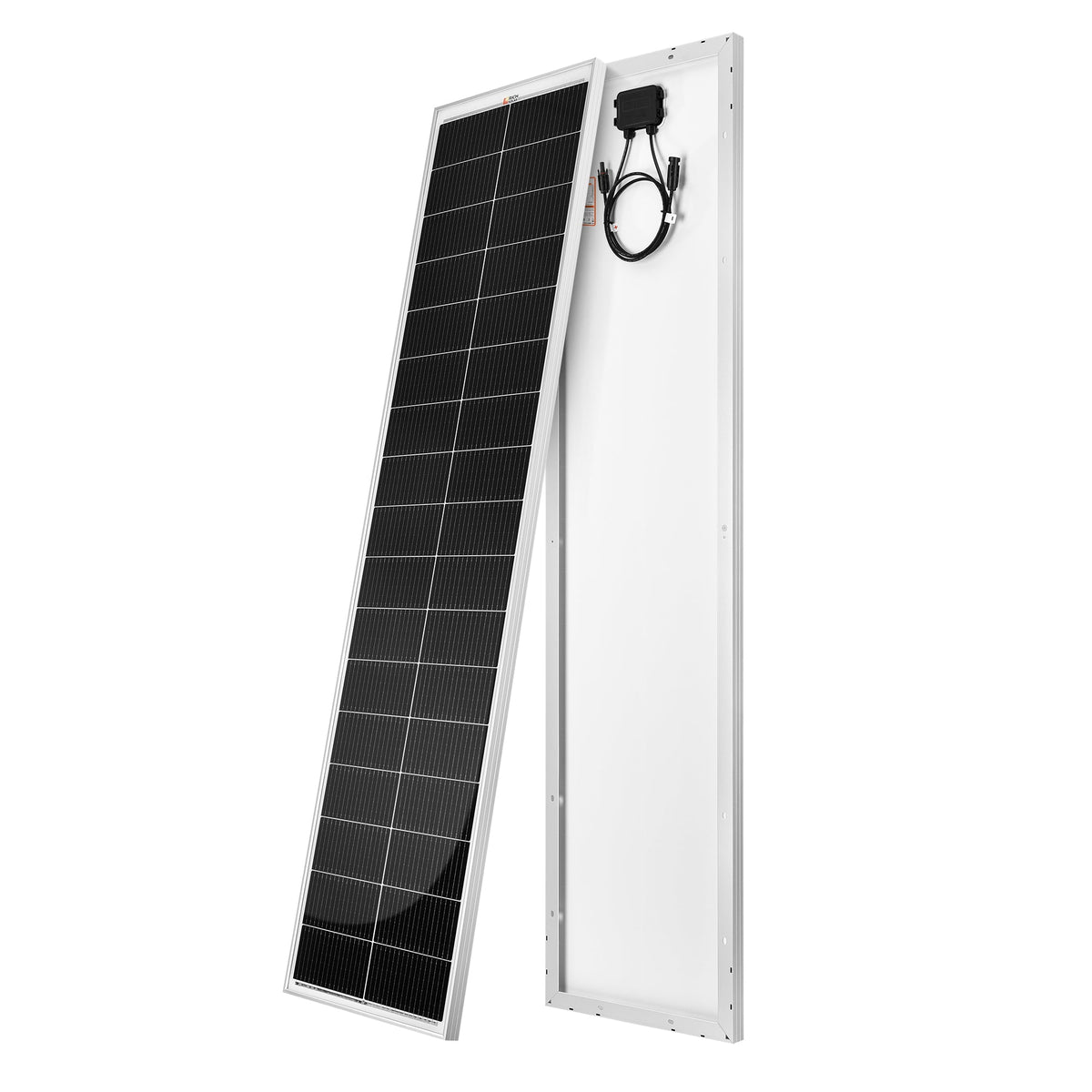

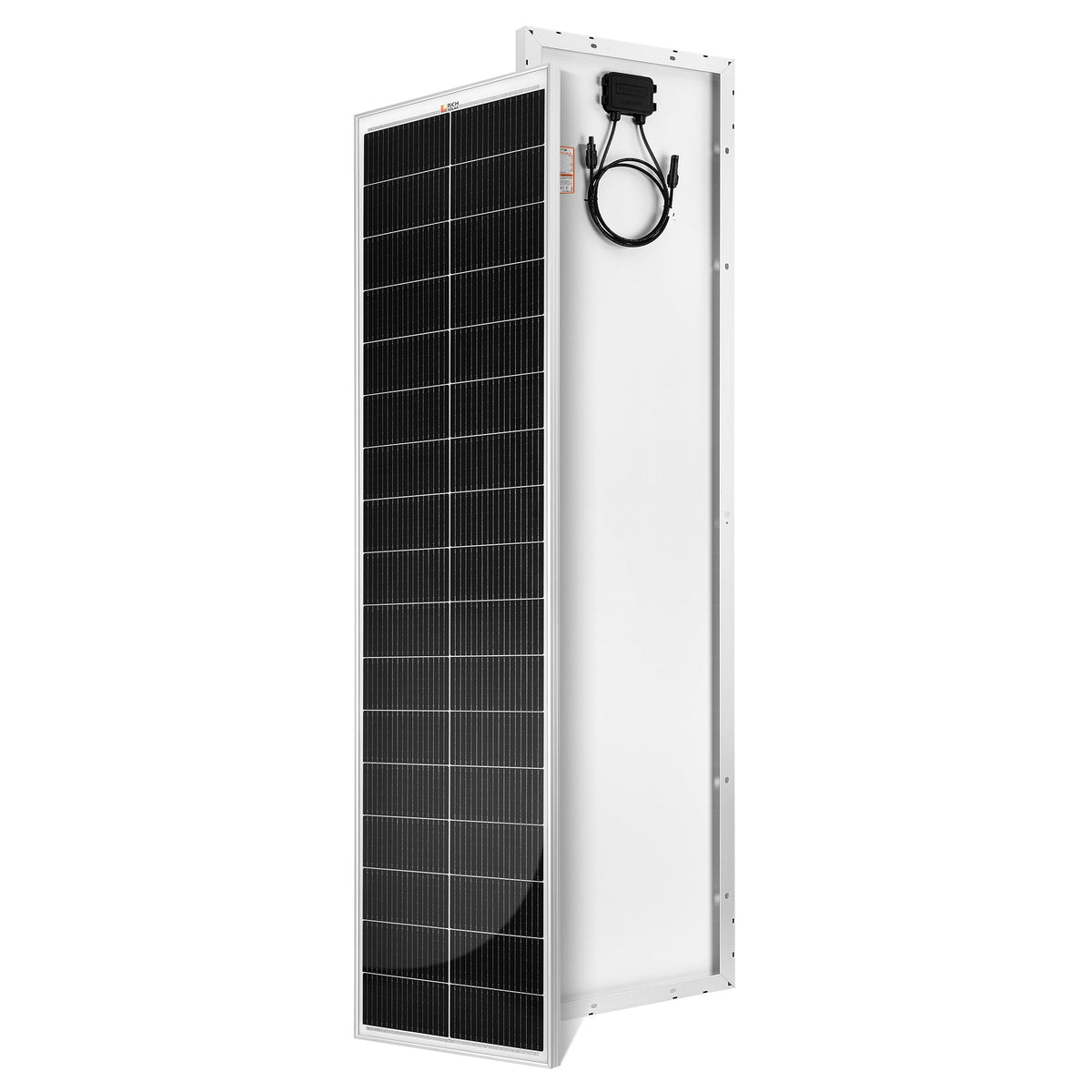

MEGA 130 SLIM 130W Slim Solar Panel

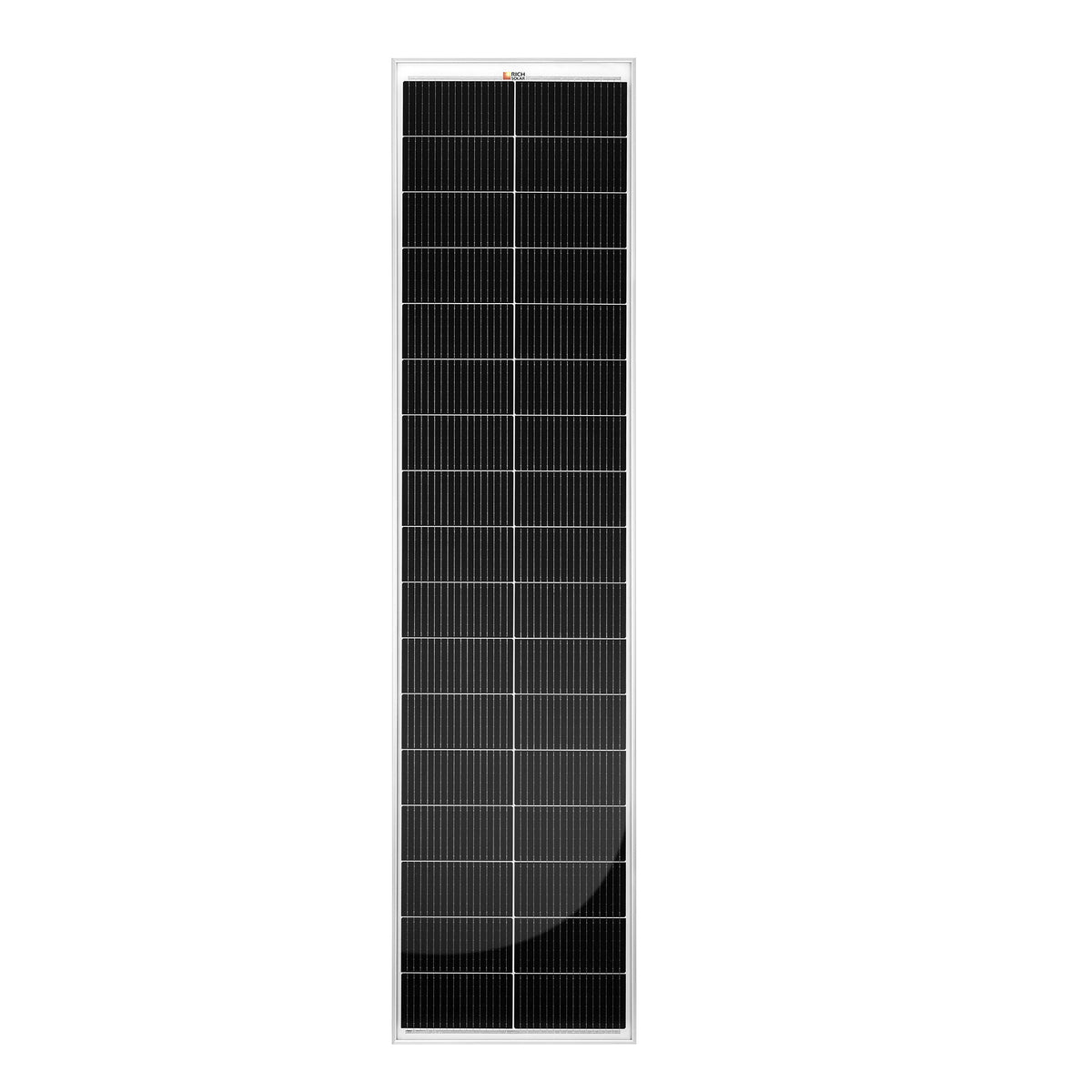

Equipment Type and Primary Applications: 12V off-grid monocrystalline solar panel for vans, RVs, campers, boats, and mobile power systems. The 65.0 x 15.8 x 1.2 in narrow format helps utilize limited roof space while delivering 130W rated output.
Performance Specifications
- Maximum power: 130W; power tolerance: 0 to +5W
- Module efficiency: 19.8%; cell efficiency: up to 25.3%
- Vmp: 19.6V; Imp: 6.63A; Voc: 23.6V; Isc: 6.92A
- Maximum system voltage: 1000 VDC; maximum series fuse: 15A
- Operating temperature: -40°F to +185°F
- Mechanical loads: 5400 Pa snow and 2400 Pa wind

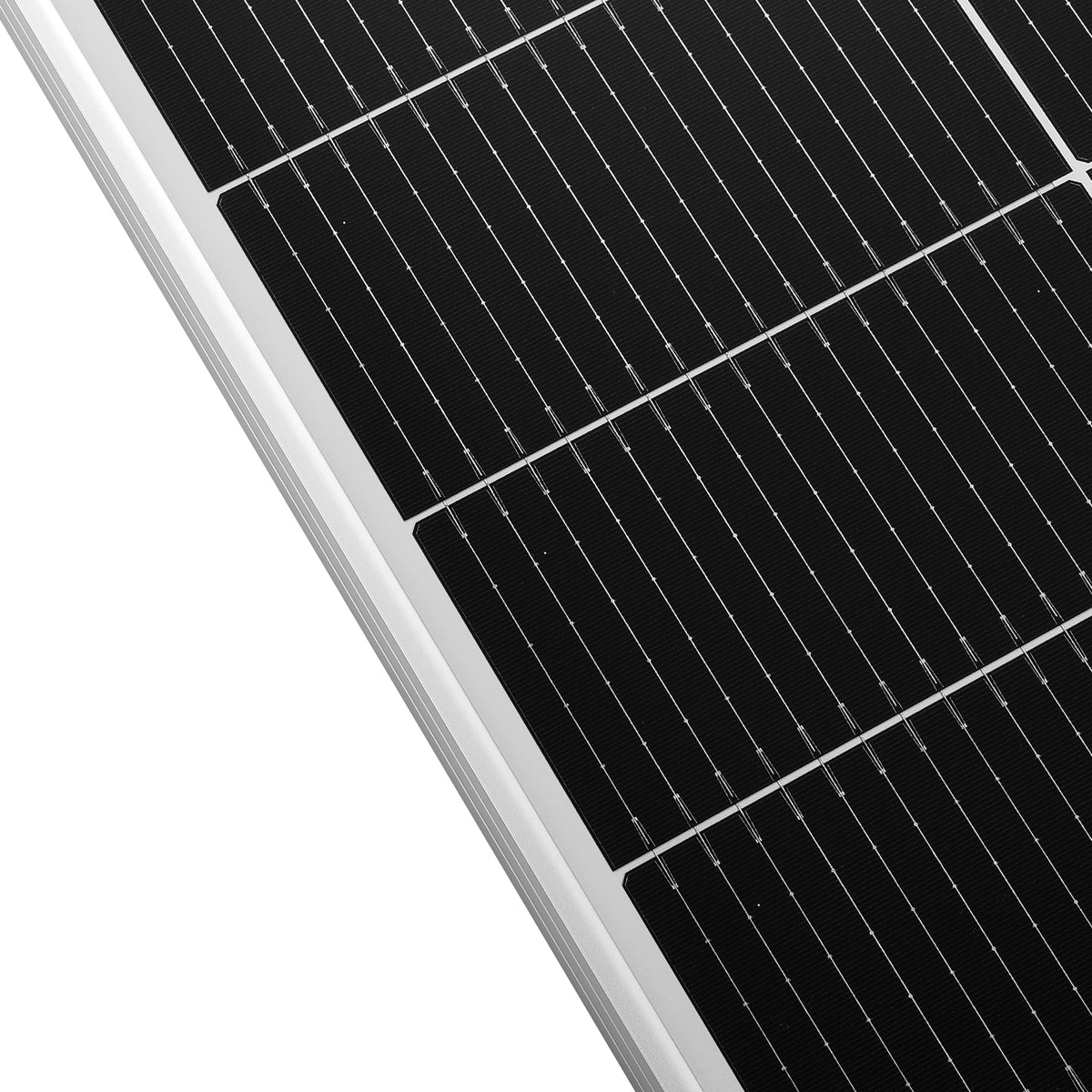

- 16-busbar N-Type TOPCon cells in a 34-cell configuration; low-light performance for cloudy conditions and dawn or dusk
- Weight: 15.4 lb; 3.2 mm AR-coated tempered glass
Safety Features and Certifications
- UL-certified solar module meeting UL 61730, IEC 61215, and CSA C22.2 standards

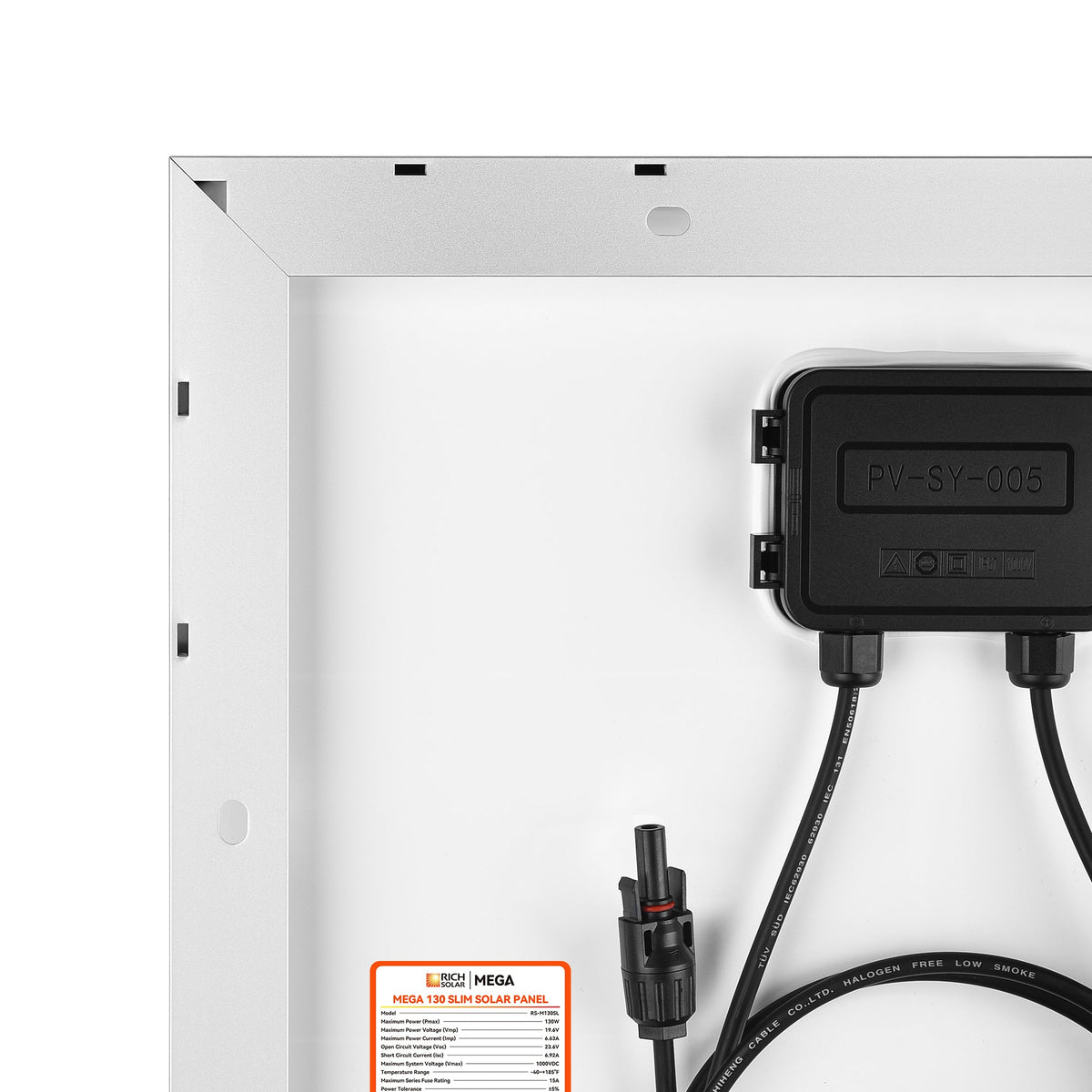

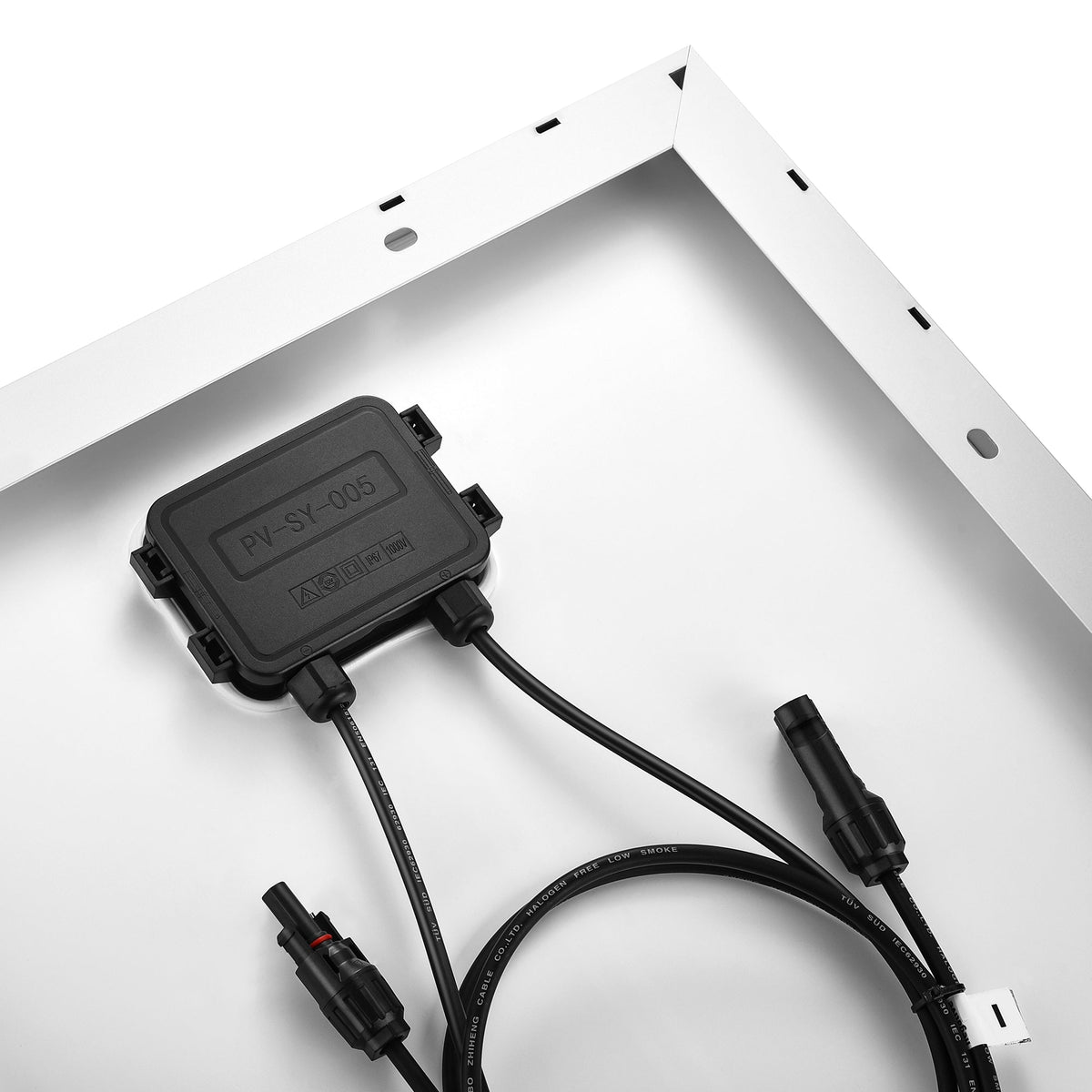

- IP67-rated waterproof junction box and solar connectors
- PID-resistant construction and double EL inspection for microcrack control
- UV, thermal-cycling, and humidity-freeze testing
Installation and Maintenance Requirements

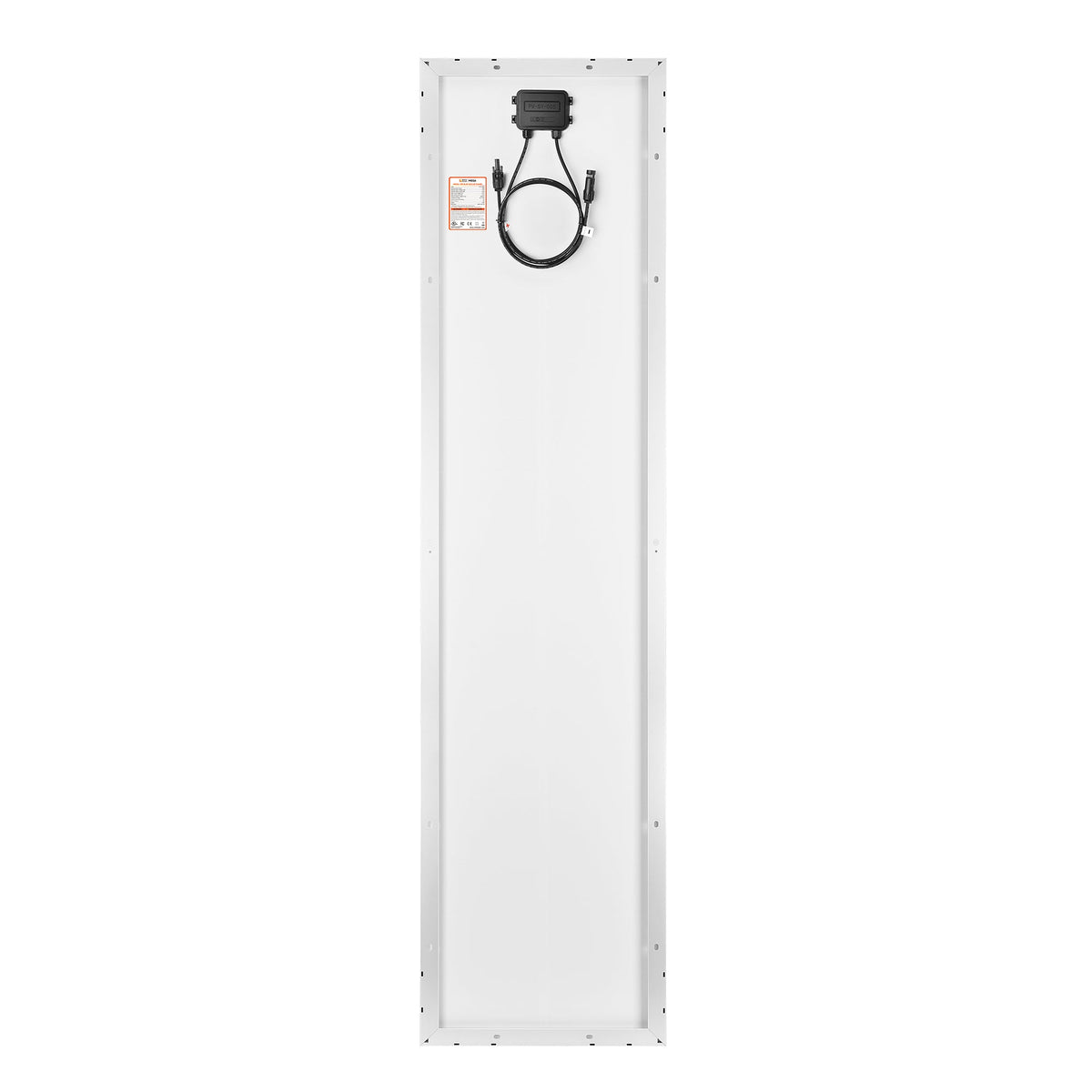

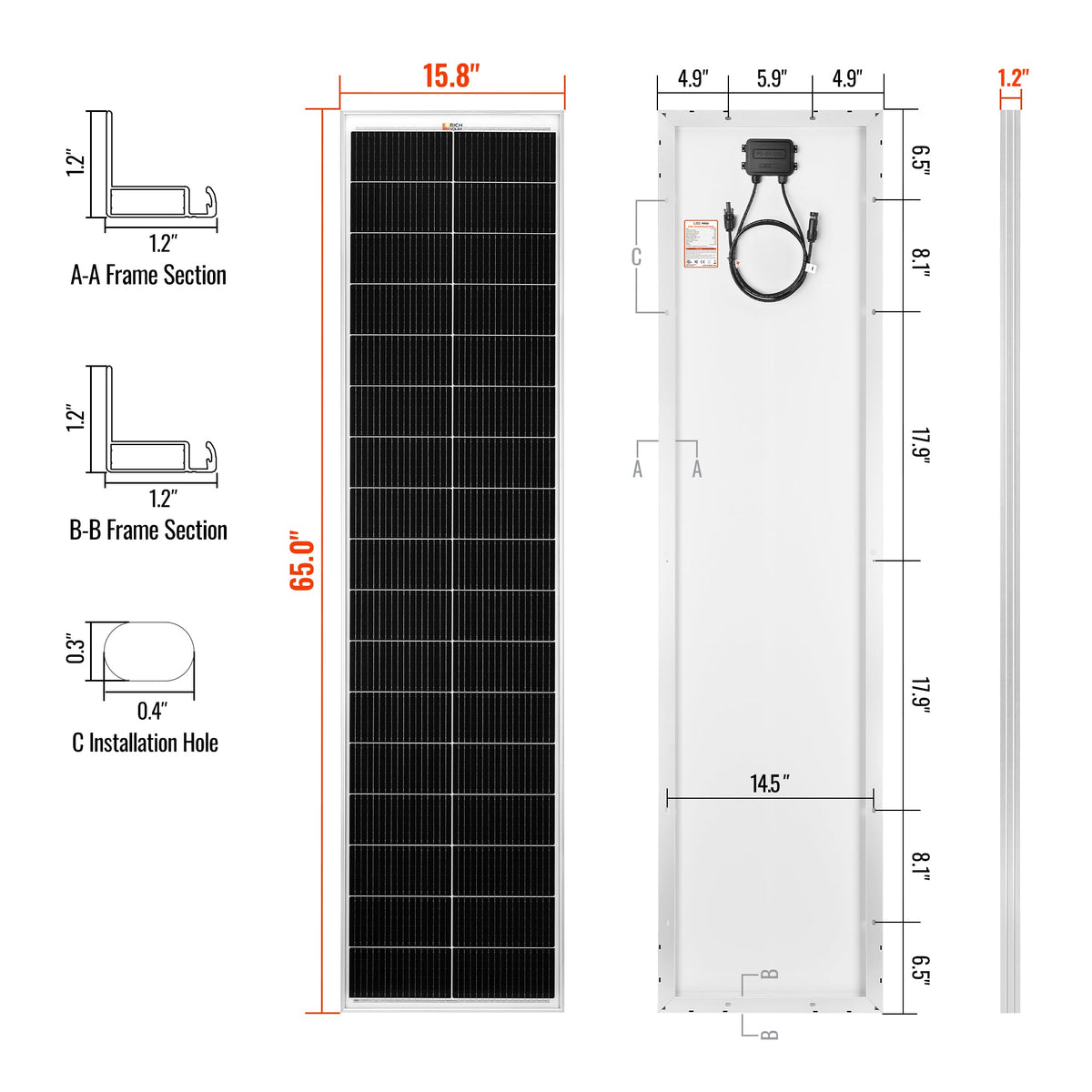

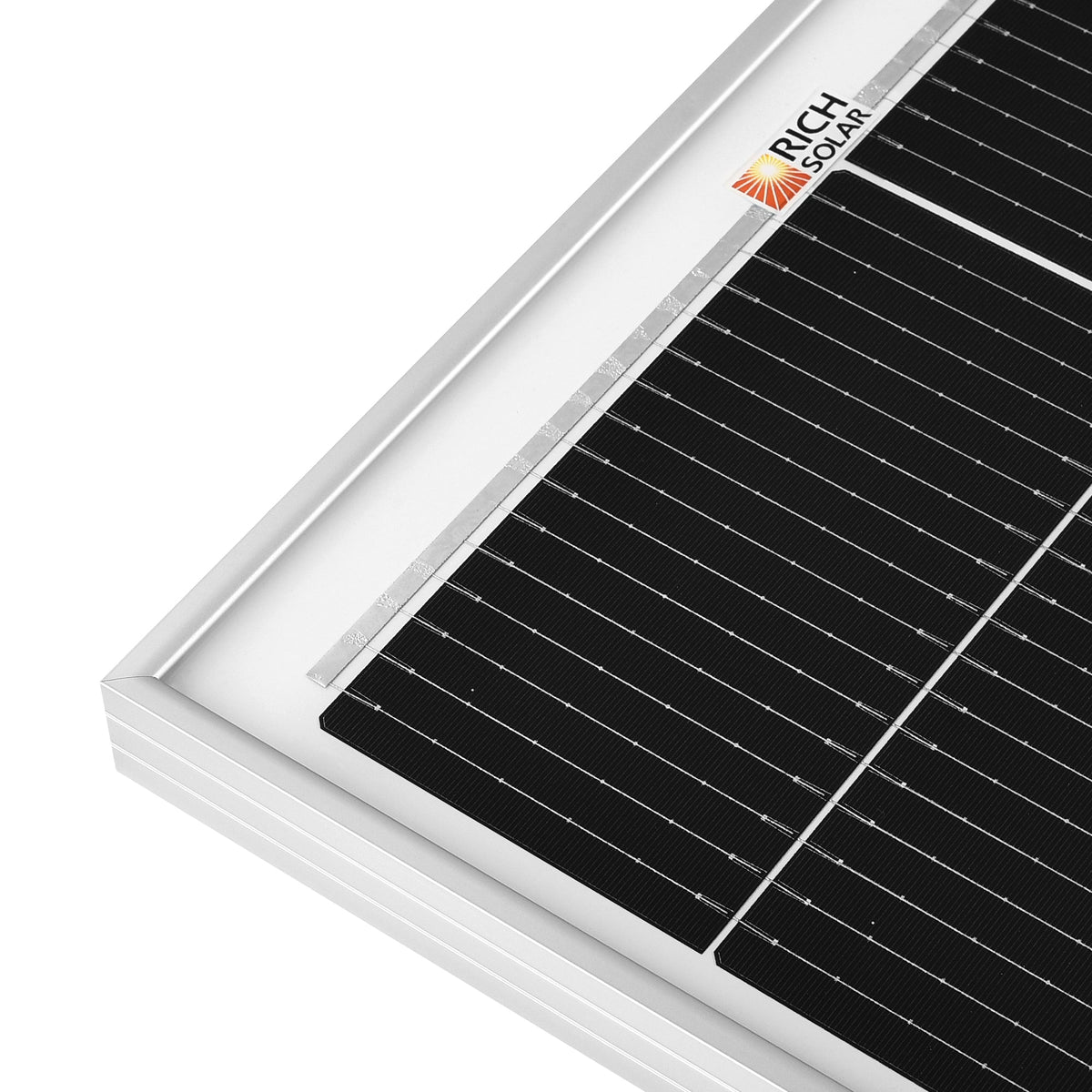

Anodized aluminum frame with 12 pre-drilled mounting holes supports Z brackets, tilt mounts, pole, or ground installation. The panel includes a pair of 12 AWG, 3 ft leads with MC4 connectors for connection to compatible on-grid or off-grid inverters. Keep the glass surface clean and inspect connectors, cables, and mounting hardware during system maintenance.
Warranty and Service Information
Includes a 25-year output warranty and a 10-year workmanship warranty.
Branding/References
Manufacturer branding: MEGA. Model: 130 SLIM. Relevant references: UL 61730, IEC 61215, and CSA C22.2.
Differentiators
The narrow 130W panel combines N-Type TOPCon technology, 0 to +5W power tolerance, 16-busbar cell design, and 12 flexible mounting points for space-constrained mobile solar installations.
