MEGA 100 Portable Briefcase Solar Panel

MEGA 100 Portable Briefcase Solar Panel

$159.99 USD
$199.99 USD $159.99 USD
Sale Sold out
Shipping calculated at checkout.

features

• Solid design control box — Meets NEMA Type 4 & IP30 standard by lab test
• LCD color screen — Real-time status view and easy user interaction
• Breathing indicator light — Shows real-time charging status
• Control button — Adjust max output current & set scheduled charging time
• Water protection gasket — Resists 3-minute direct high-pressure water spray
• TPU cable — 14.76ft, excellent durability, cold resistant to -22°F
• ETL certified — Compliant with North American safety standards

Technical Specifications

Voltage: 240V/208V
Max Output Current: 40A (SS-PC1-100) / 32A (SS-HAY-100-32A)
Max Power: 8kW / 7kW
Frequency: 50/60Hz
Temperature Range: -22°F to 122°F
Humidity: 5–95%, no condensation
Connector: Type 1 (J1772)
Cable Length: 14.76ft (4.5m)
Altitude: ≤2000m (6,562ft)
Cooling: Natural
Safety Standards: ETL, UL2594, CSA C22.2
Scheduling: App / Timer control
Connectivity: Wi-Fi / Bluetooth
Warranty: 2 years

Packing Details

View full details

MEGA 100 Portable Briefcase Solar Panel

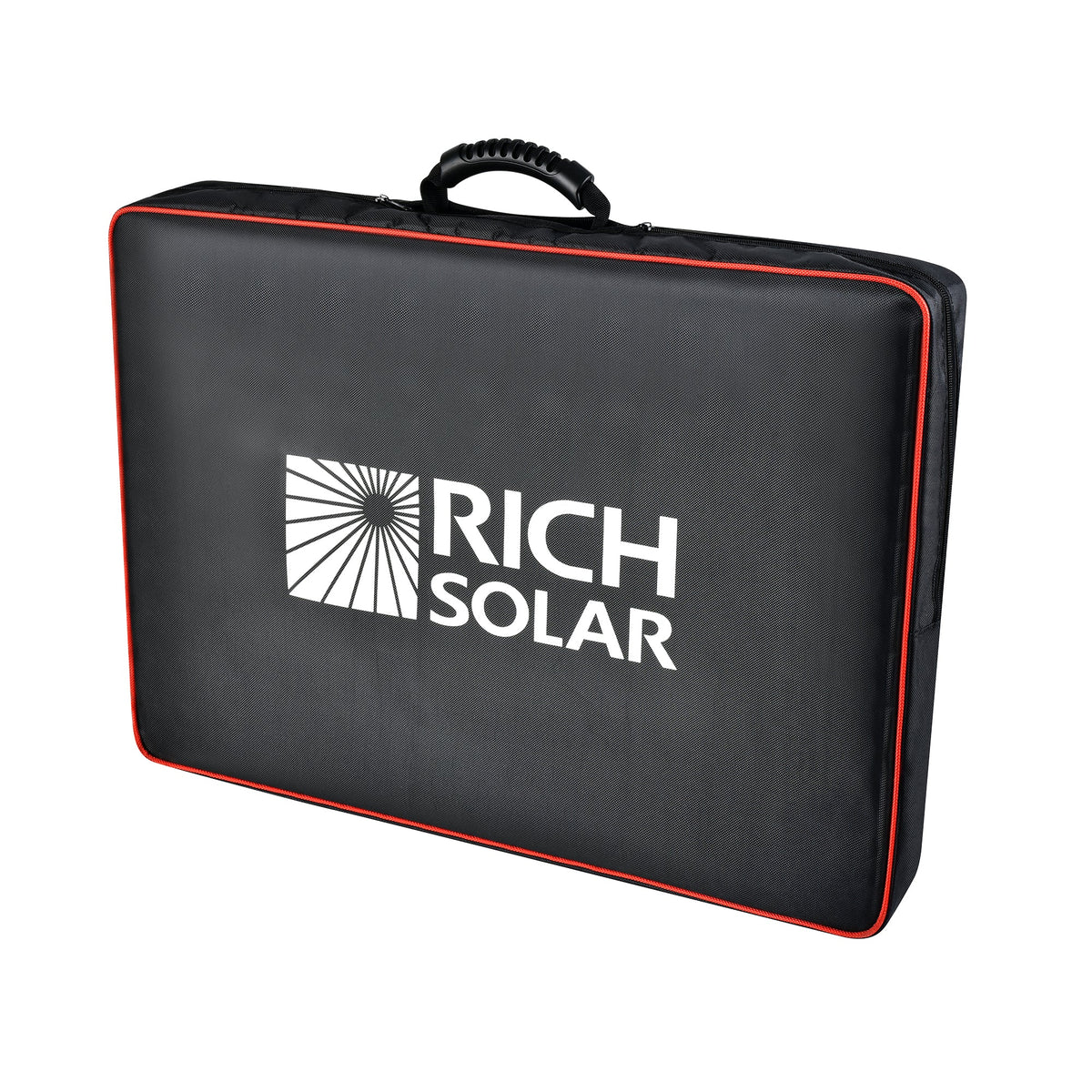

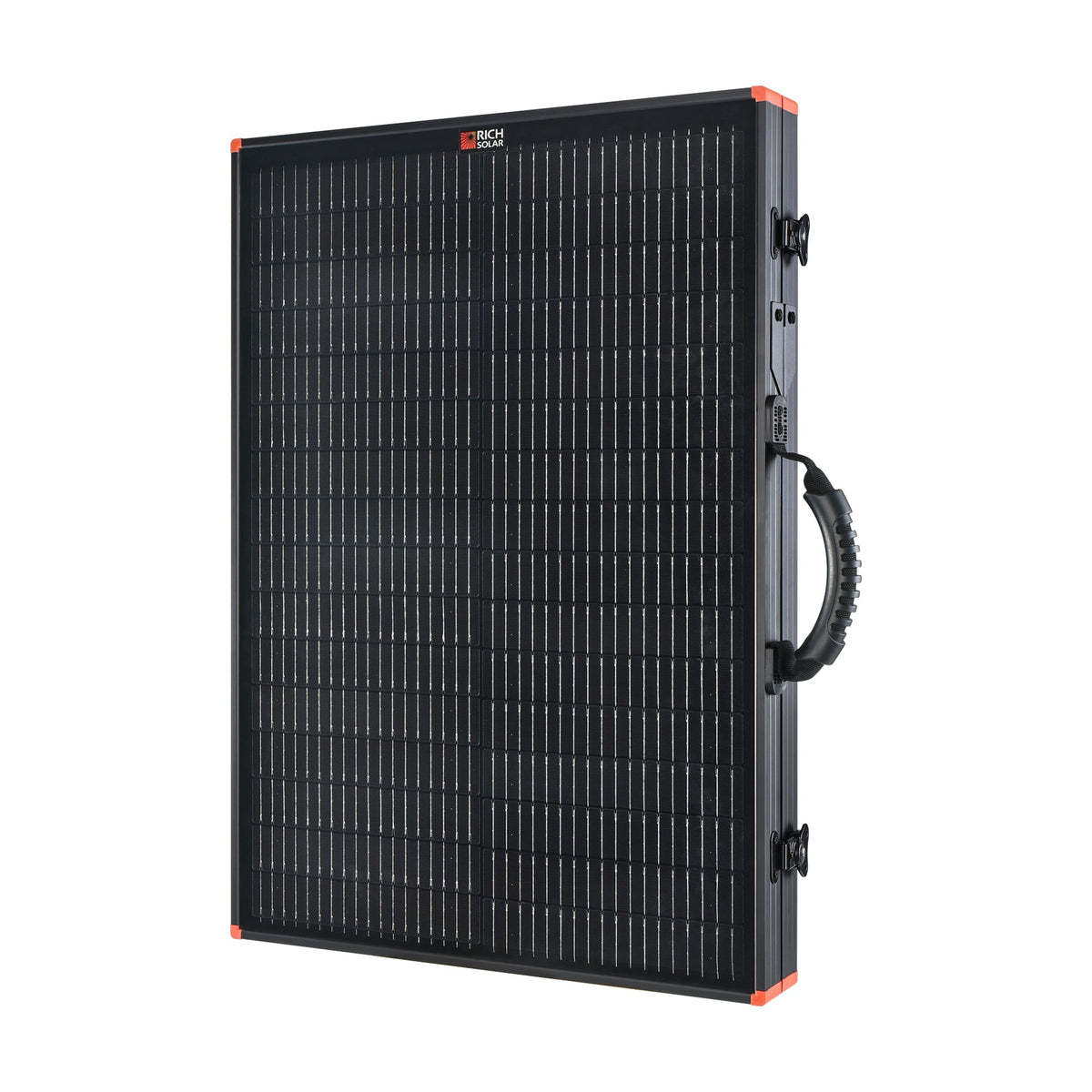

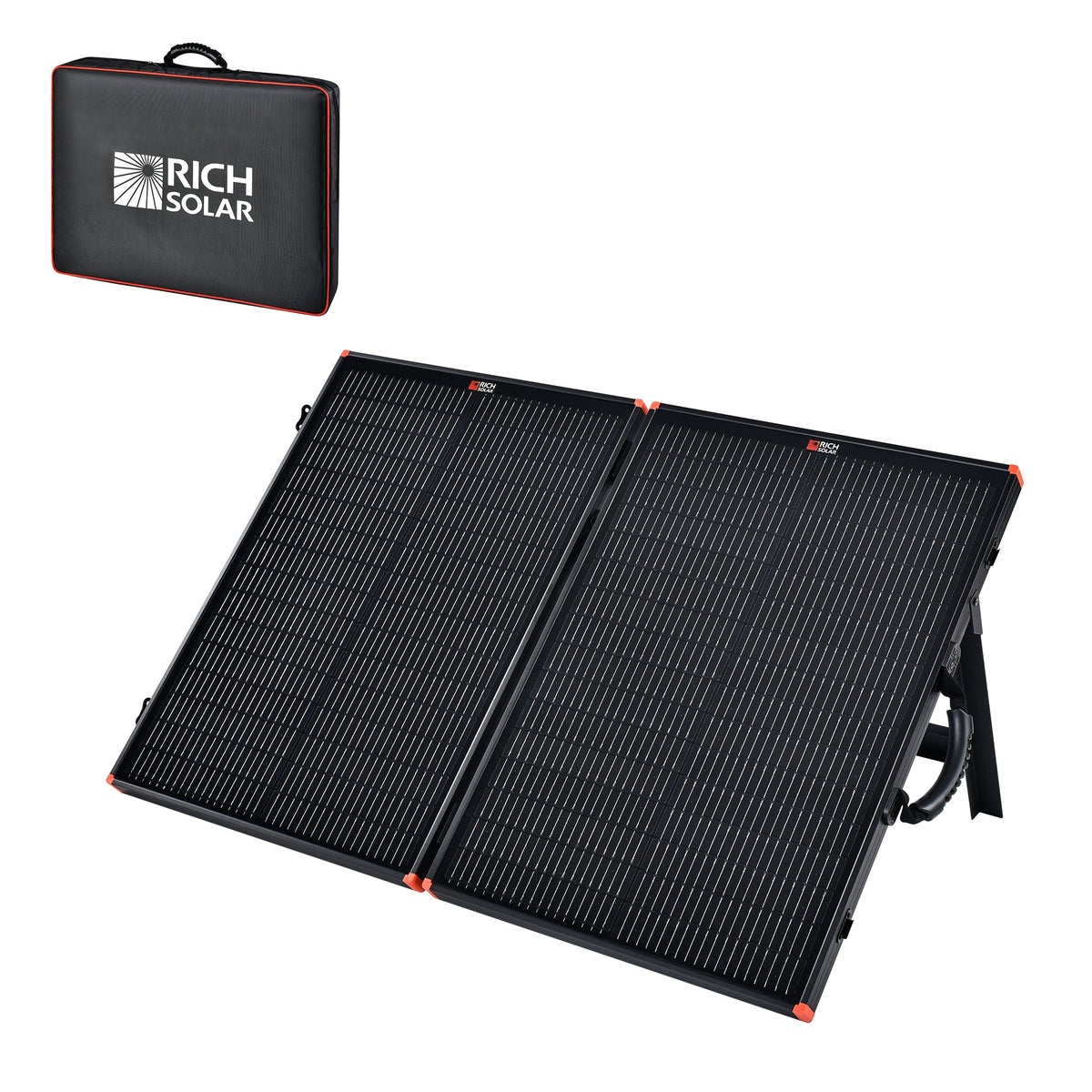

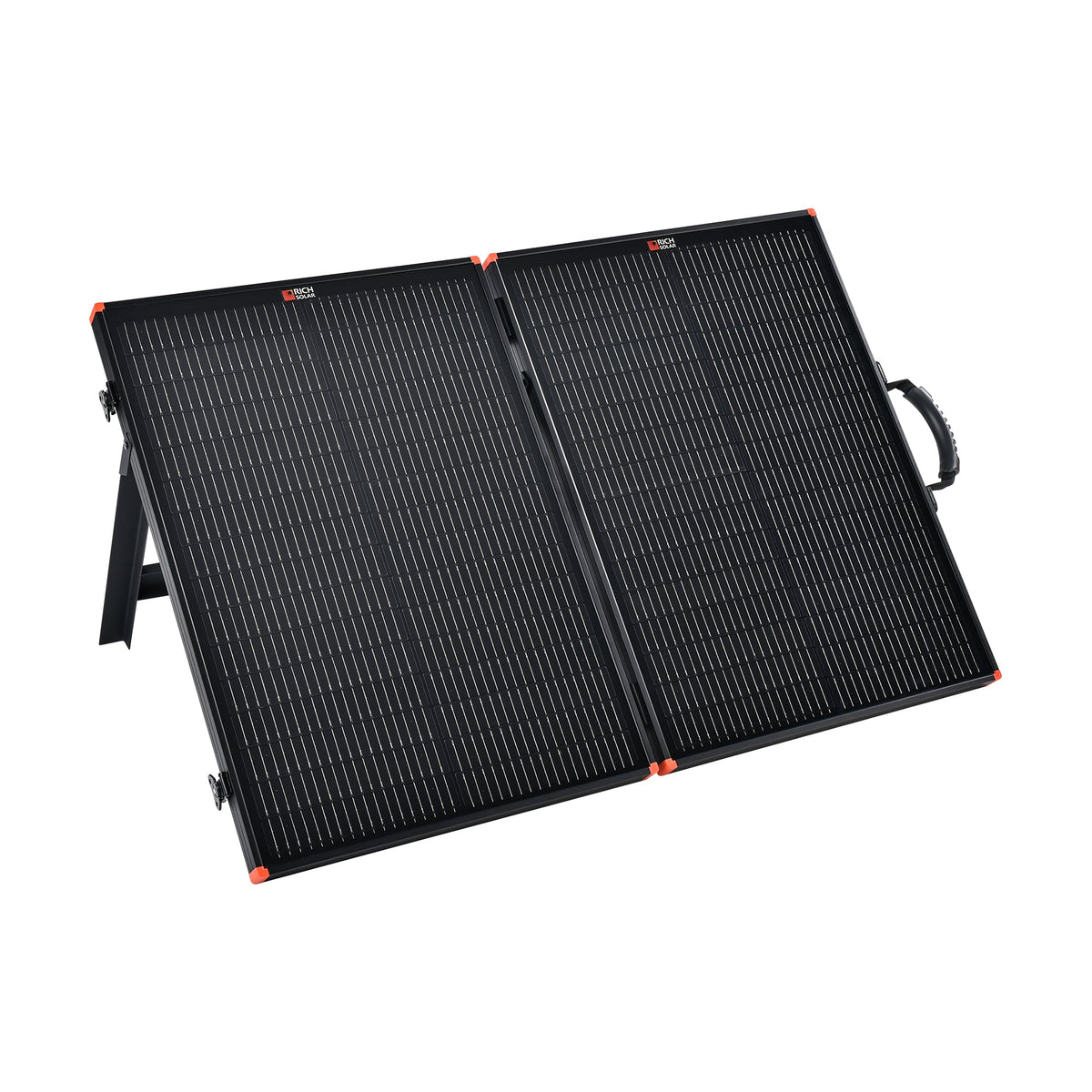

Equipment Type: 100W portable briefcase solar panel with foldable construction, integrated kickstands, carrying handle, MC4 connectors, and pre-attached cables.

Primary Applications: Portable power stations, solar generators, camping, RV power, and emergency backup charging.

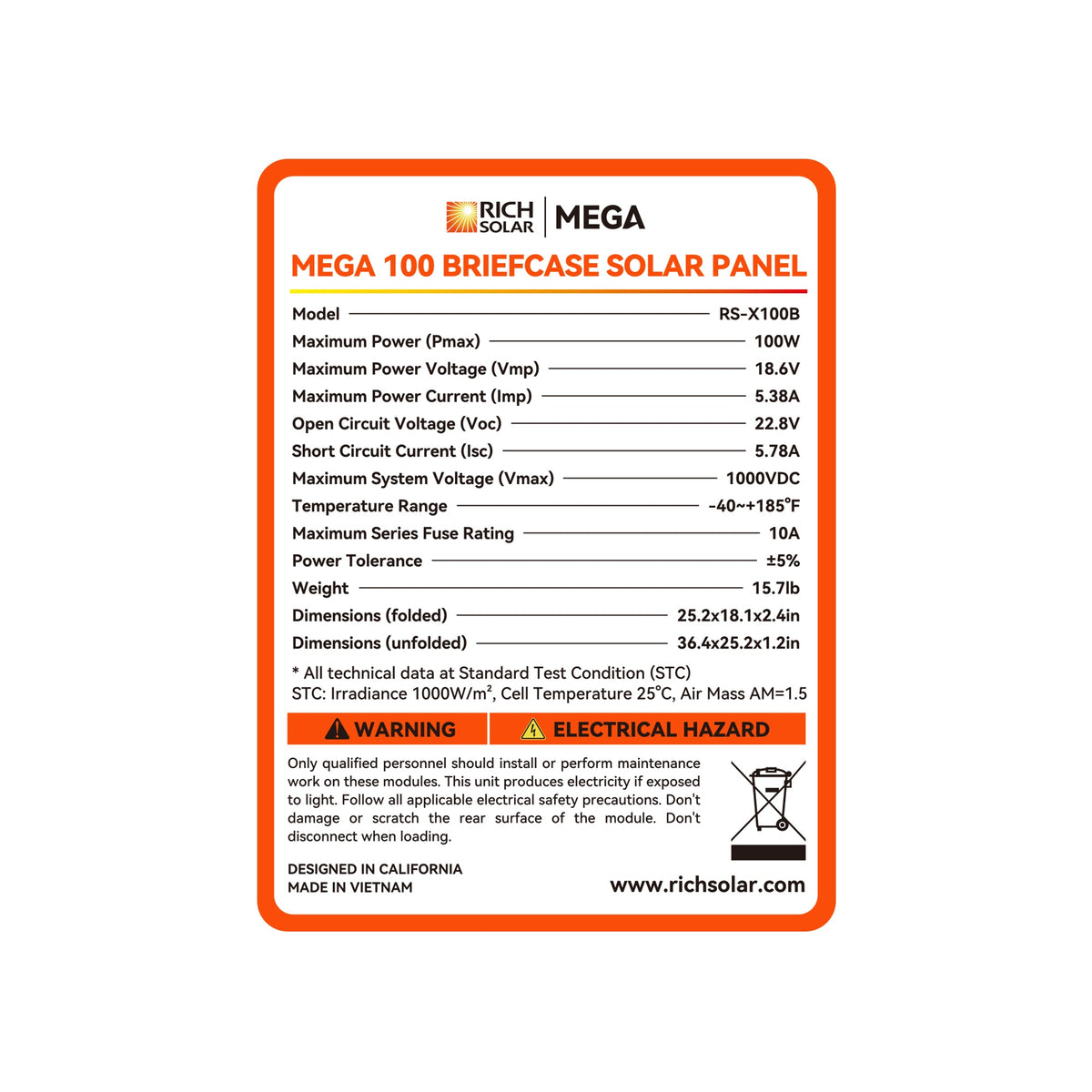

Performance Specifications

  • Maximum power (Pmax): 100W
  • Maximum power voltage (Vmp): 18.6V; maximum power current (Imp): 5.38A
  • Open-circuit voltage (Voc): 22.8V; short-circuit current (Isc): 5.78A
  • Cell efficiency: up to 23.2%
  • Maximum system voltage: 1000V DC
  • Panel leads: pair of 12 AWG cables, 5 ft each, with MC4 connectors

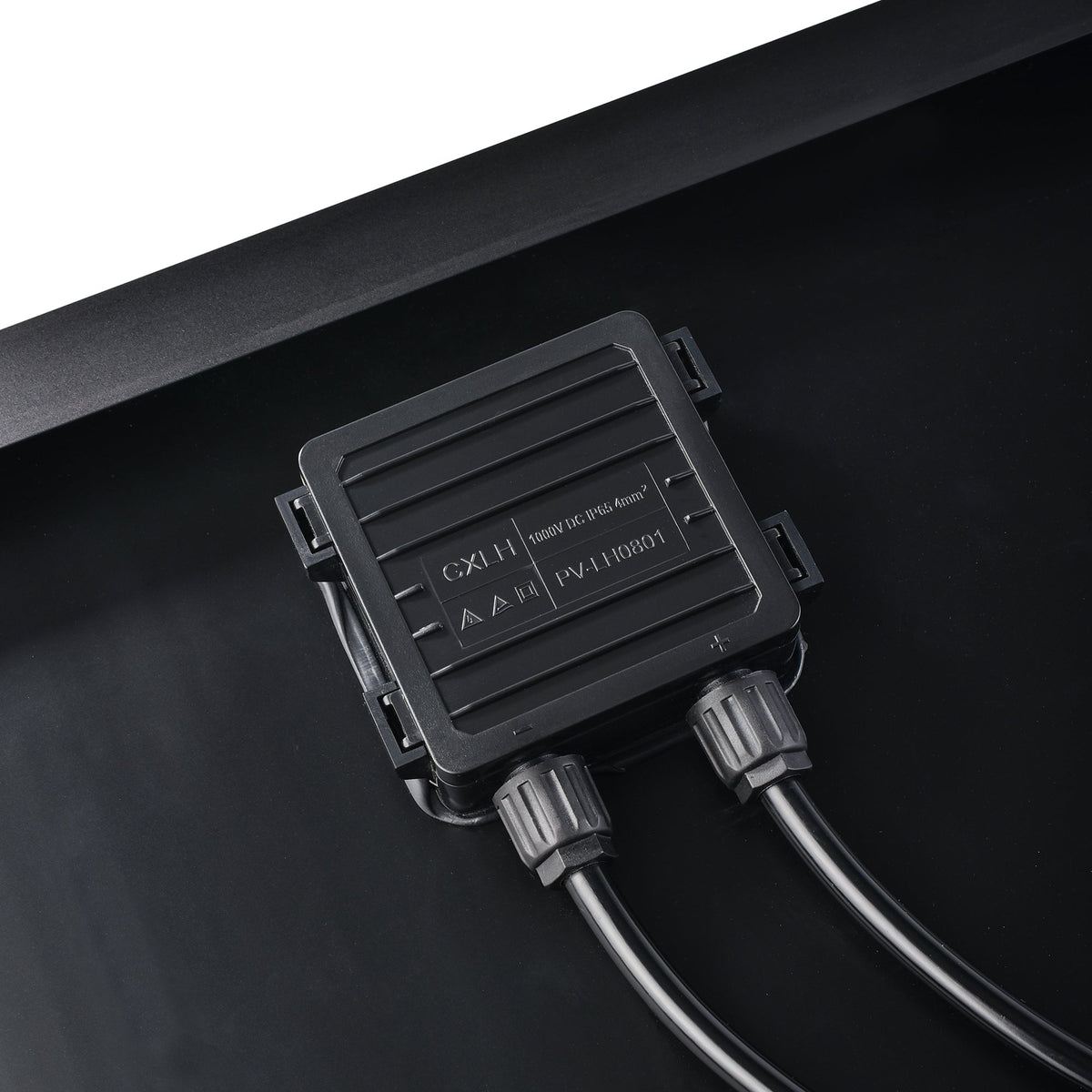

  • Weather protection: IP67-rated junction box and solar connectors
  • Weight: 15.7 lb

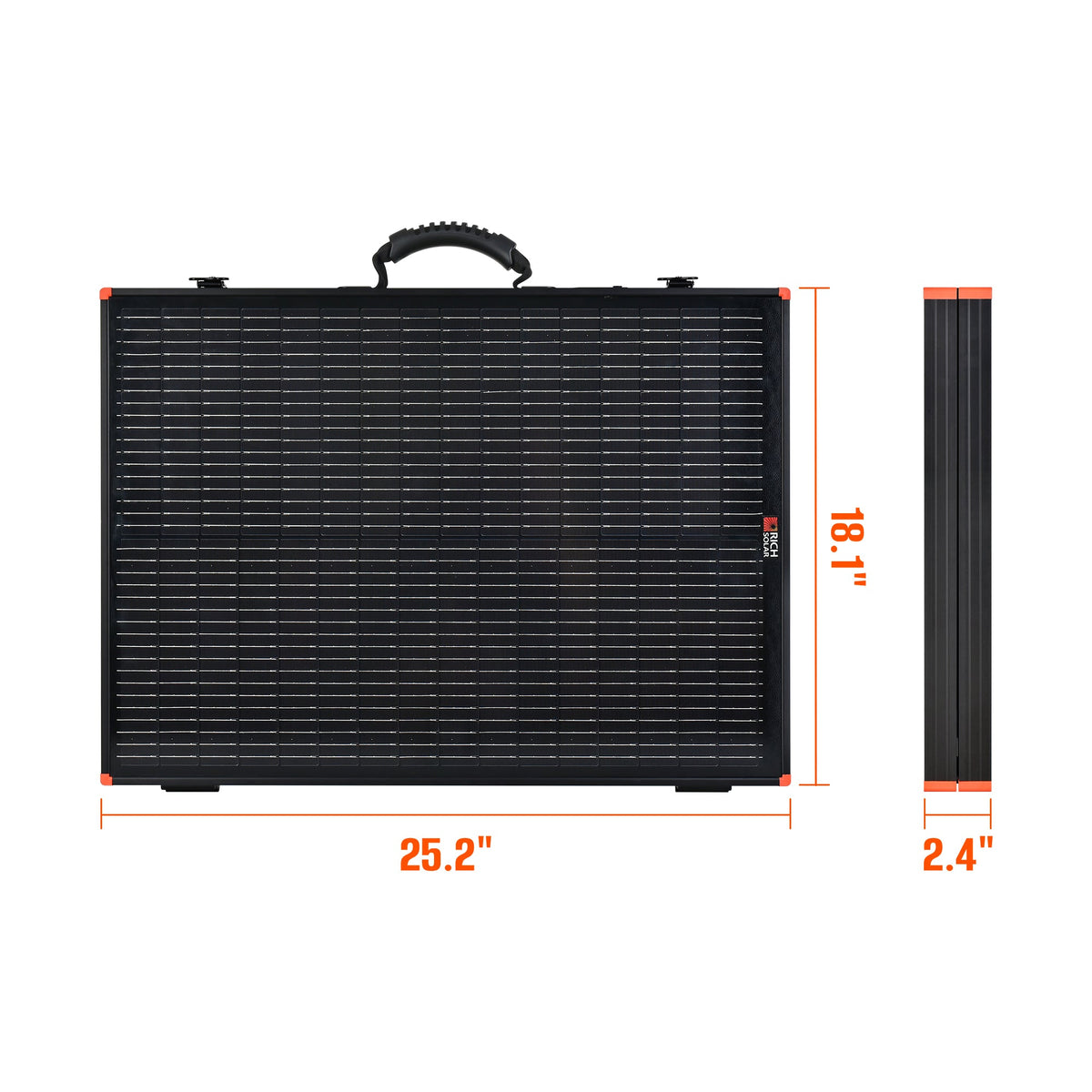

  • Folded dimensions: 25.2 × 18.1 × 2.4 in; unfolded dimensions: 36.4 × 25.2 × 1.2 in

Safety Features and Certifications

  • Strong tempered glass and aluminum frame

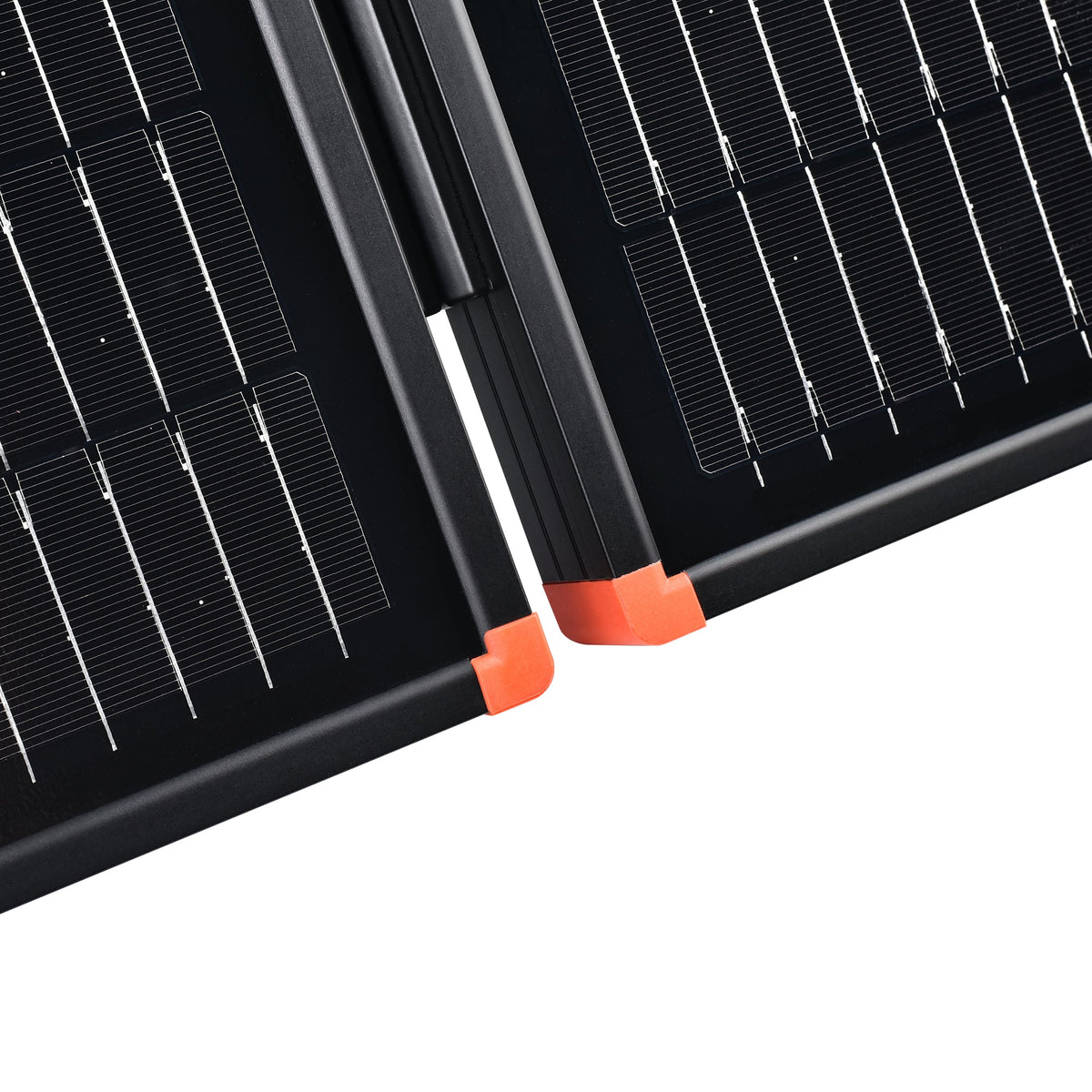

  • Corner protection for improved transport impact resistance
  • IP67-rated waterproof junction box and solar connectors

Installation and Maintenance Requirements

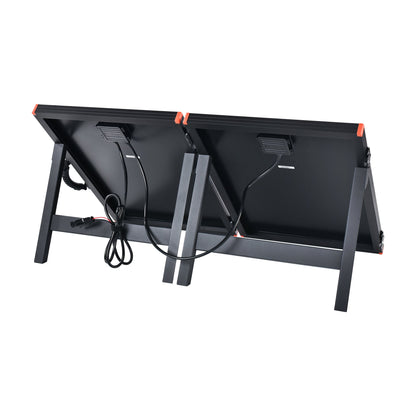

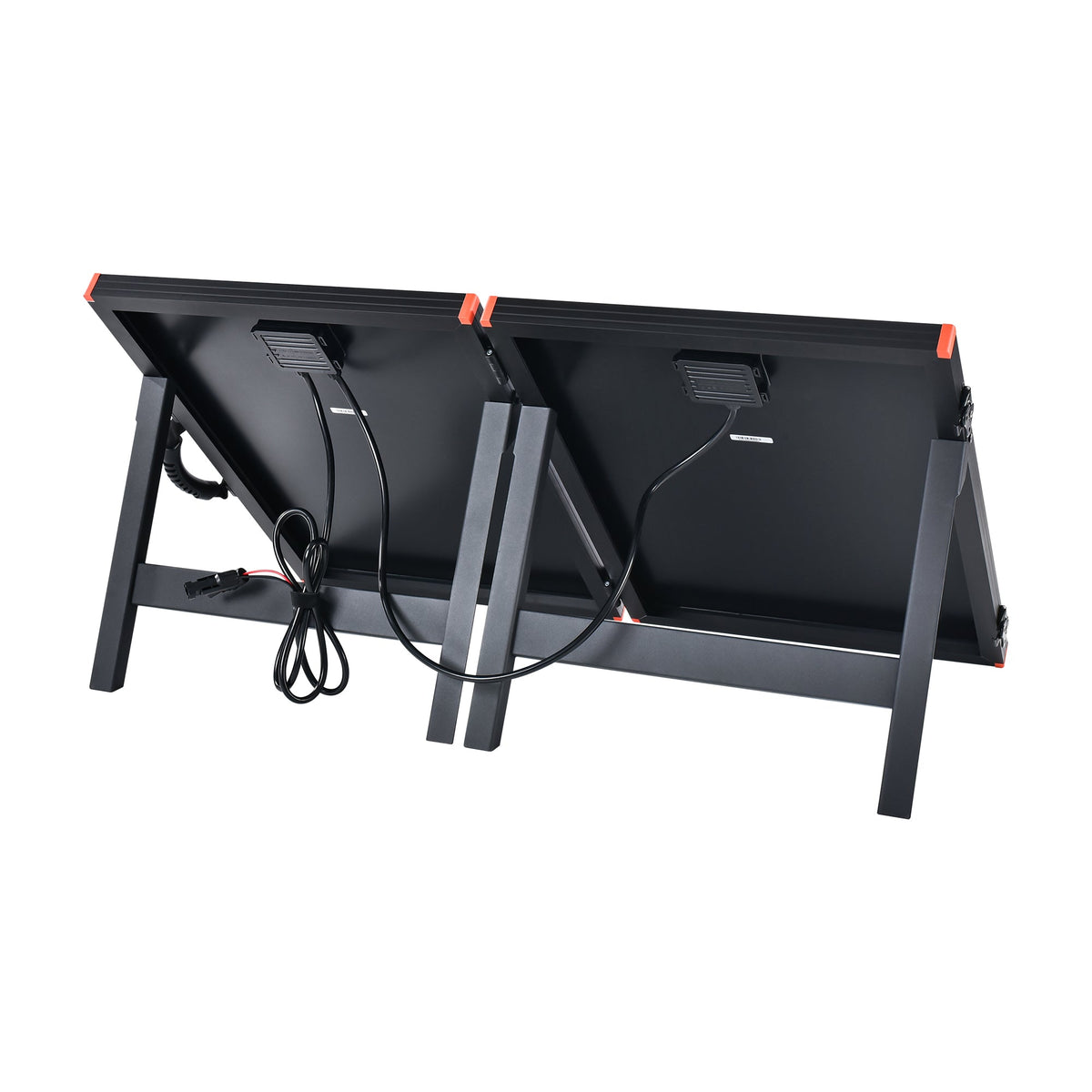

Set up the built-in kickstands to position the panel toward the sun. Connect the pre-attached MC4 cables to a compatible portable power station or solar generator. Keep connectors properly engaged and inspect cables, glass, frame, and kickstands regularly for damage or debris.

Warranty and Service Information

  • 25-year power output warranty
  • 5-year workmanship warranty
  • 2-year controller warranty on kits with controller components

Branding/References

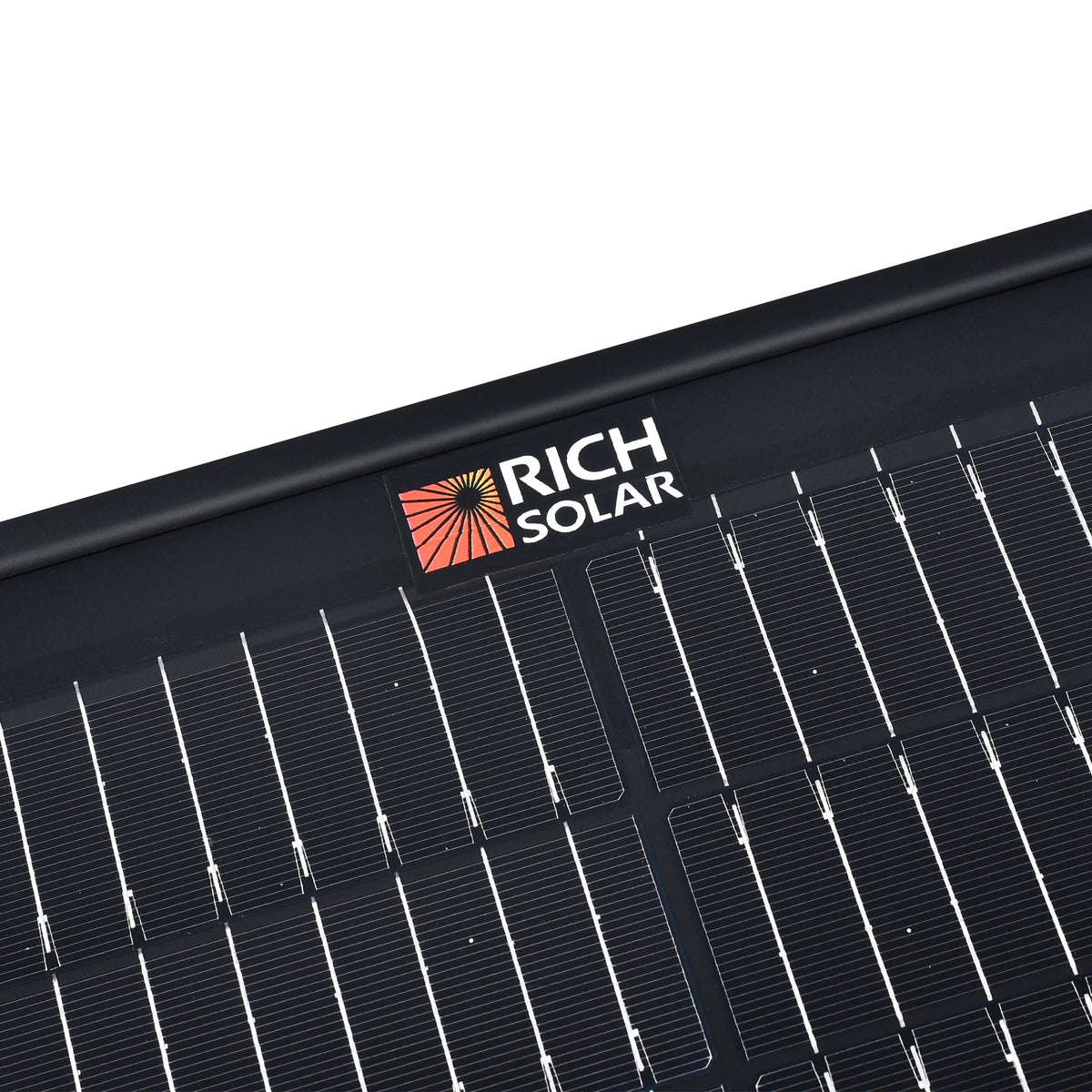

Manufacturer: Rich Solar. Product: MEGA 100 Portable Briefcase Solar Panel.

Differentiators

The foldable briefcase format combines 100W monocrystalline solar output with integrated kickstands, corner protection, a carrying handle, and IP67-rated connection hardware for portable outdoor power setups.
